Solarzip® Outdoor Blind

Juralco Aluminium

All products

Product Enquiries

Description

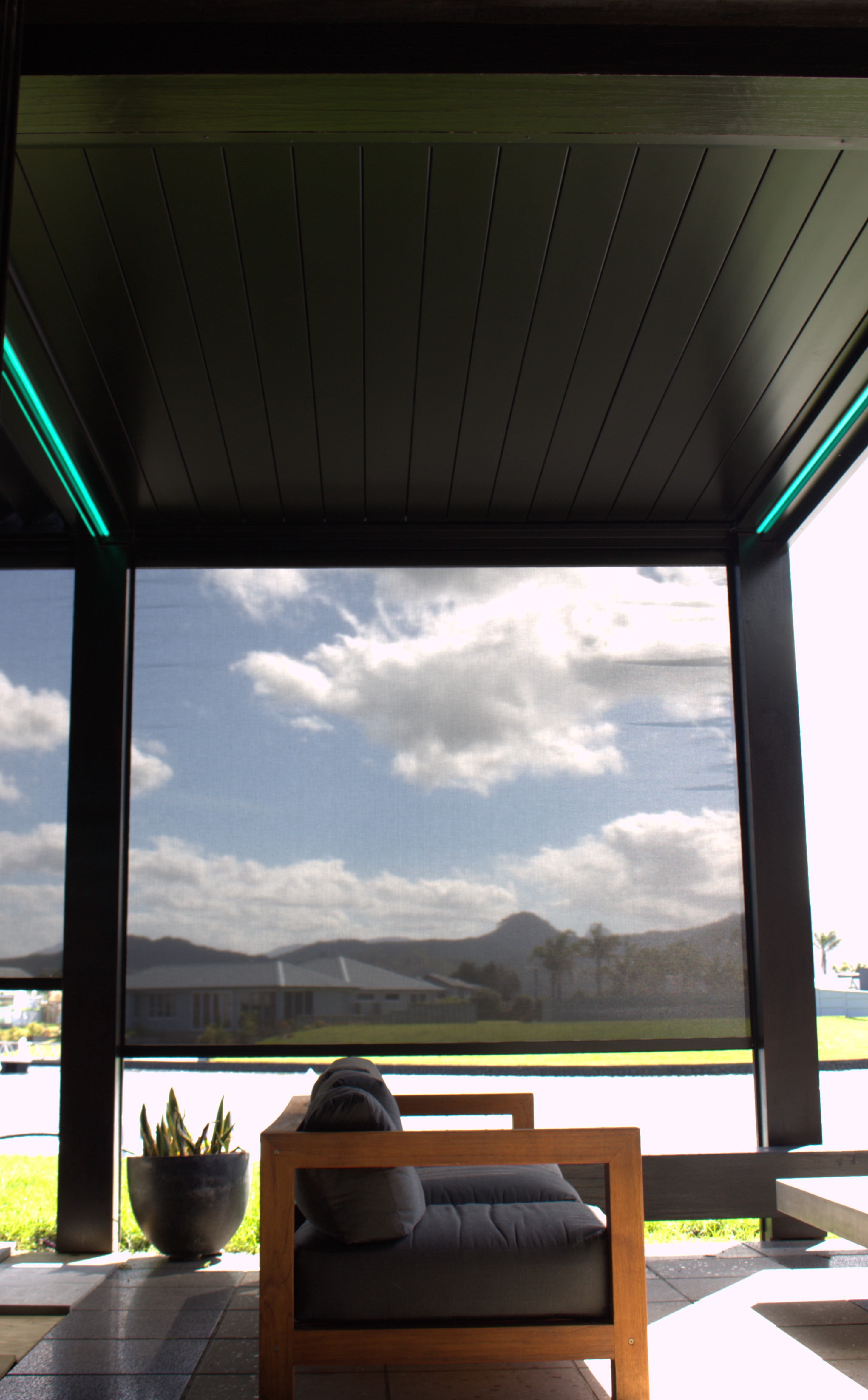

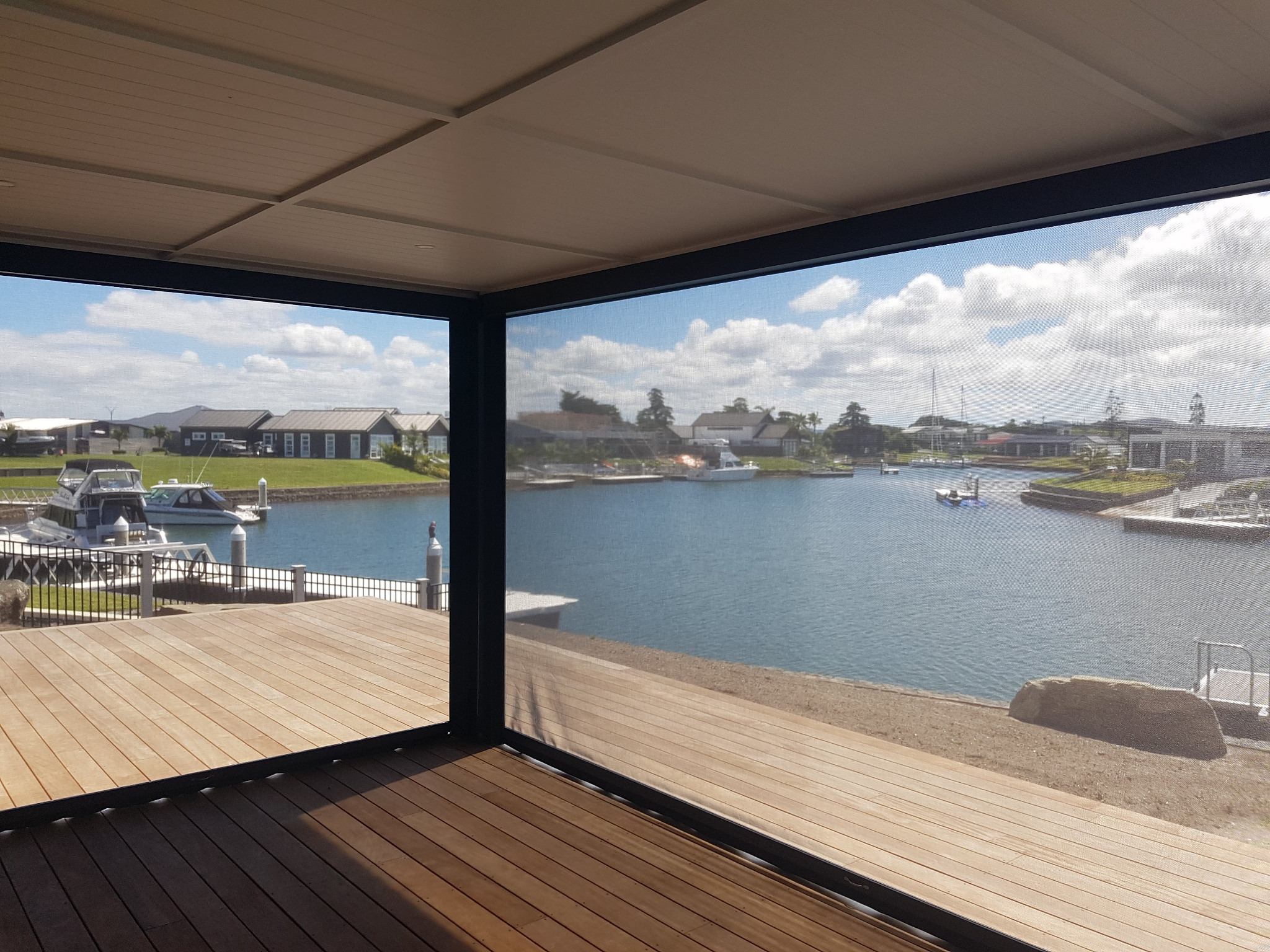

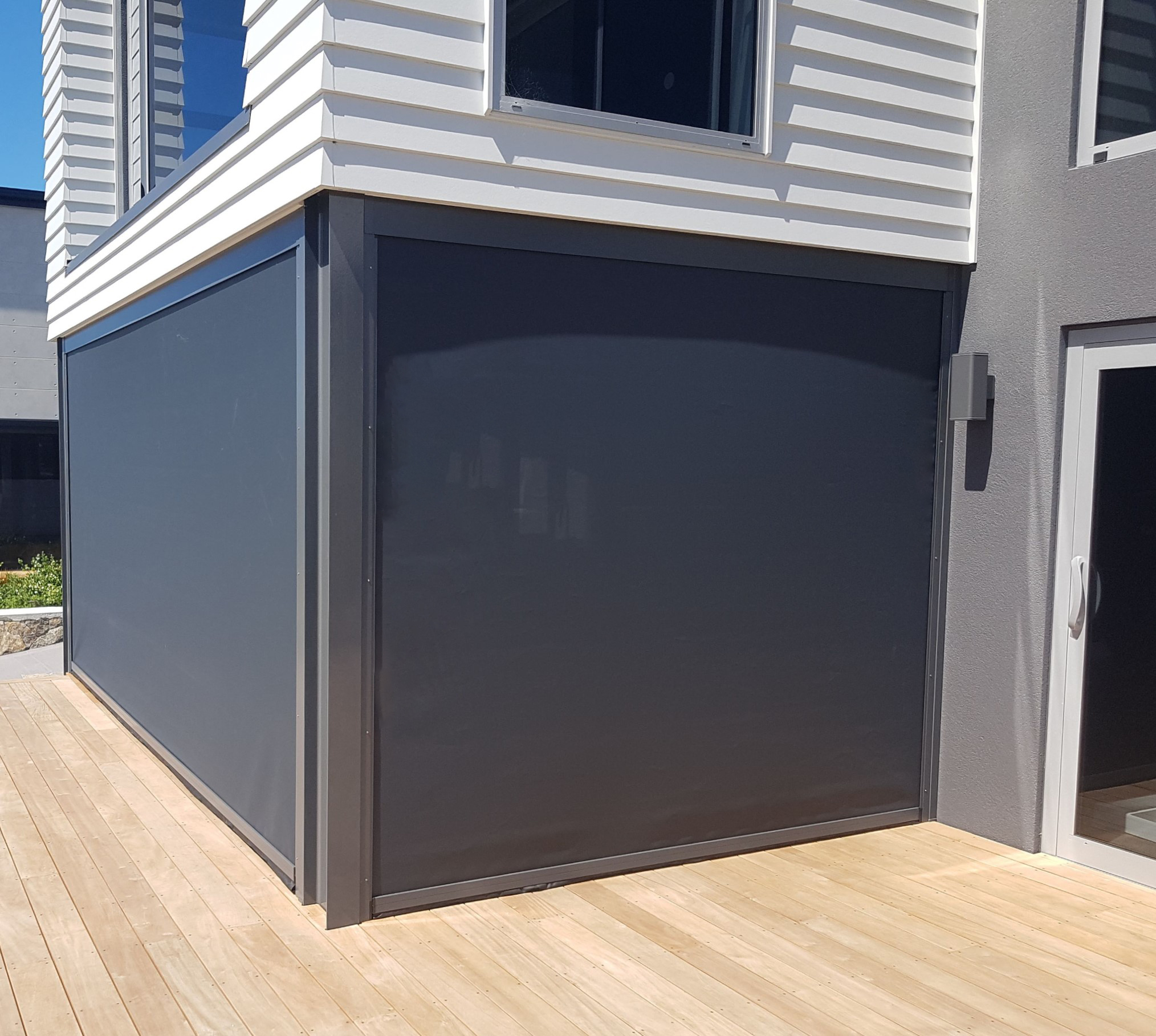

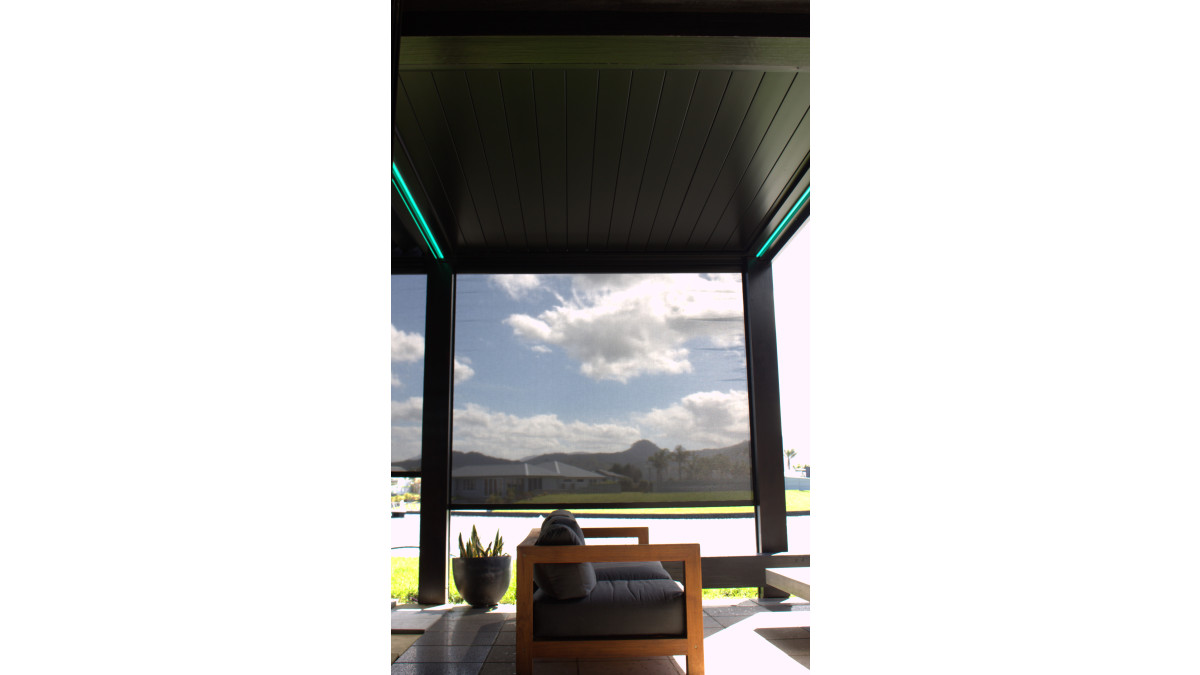

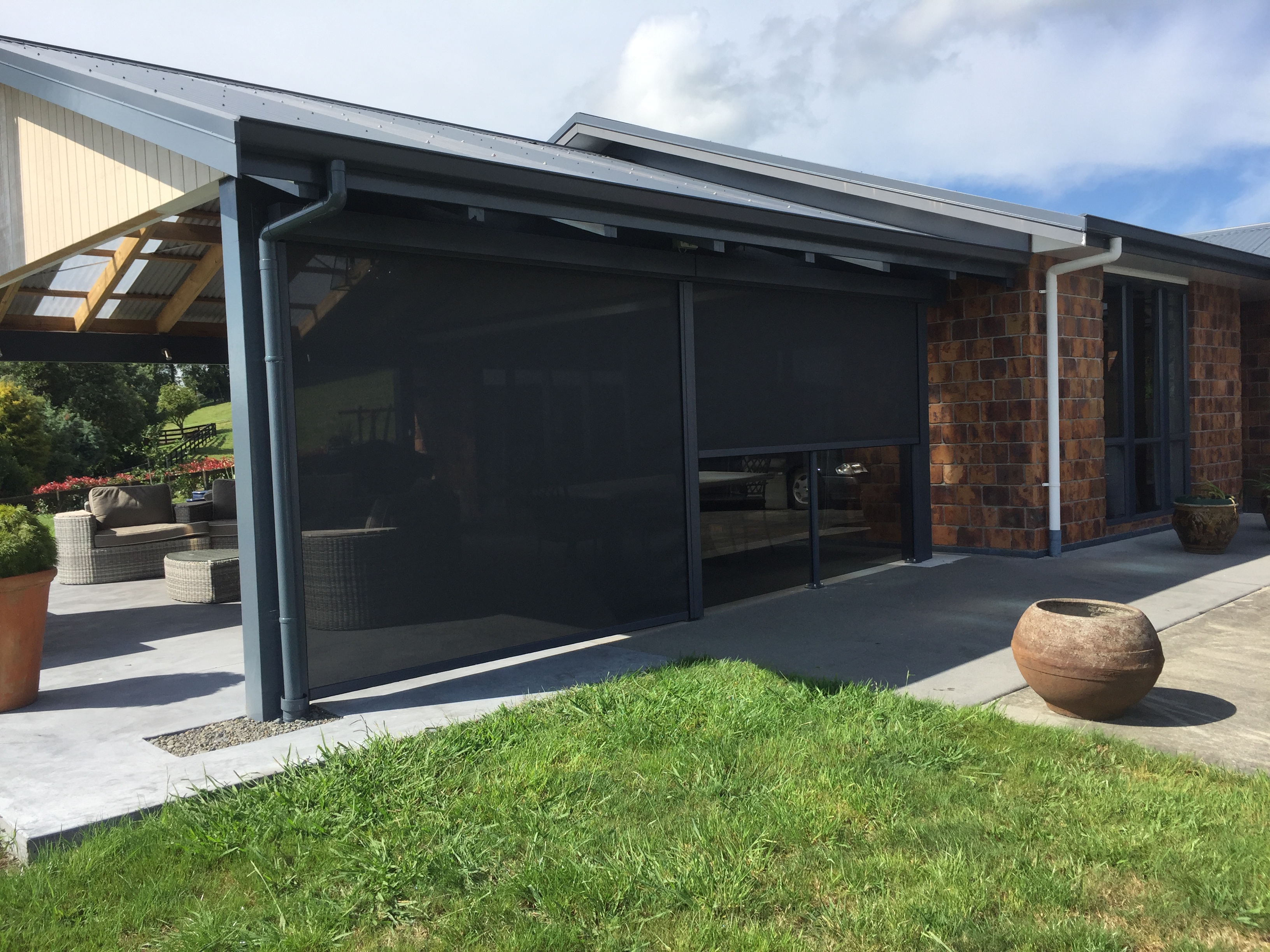

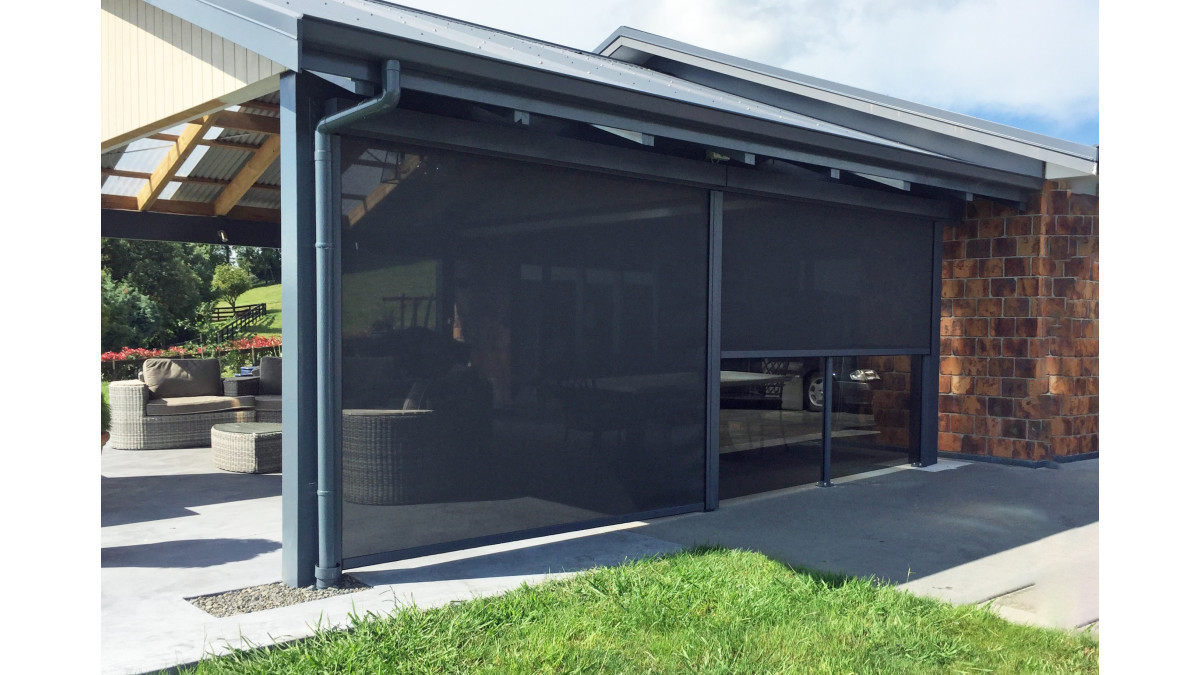

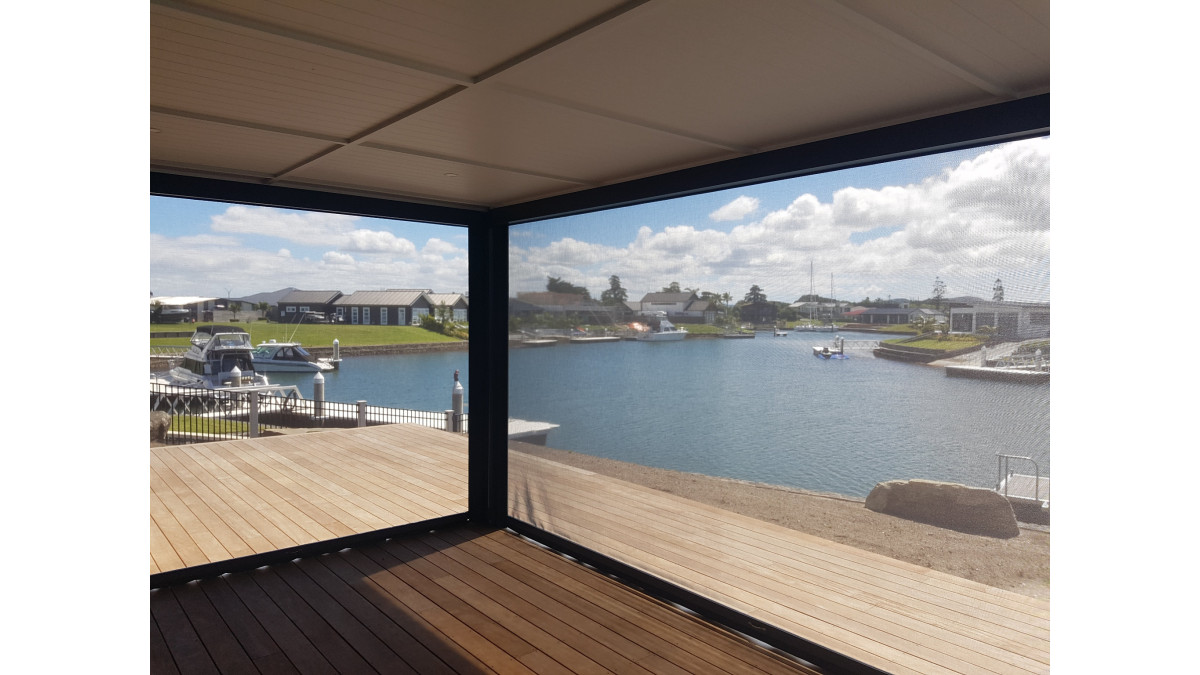

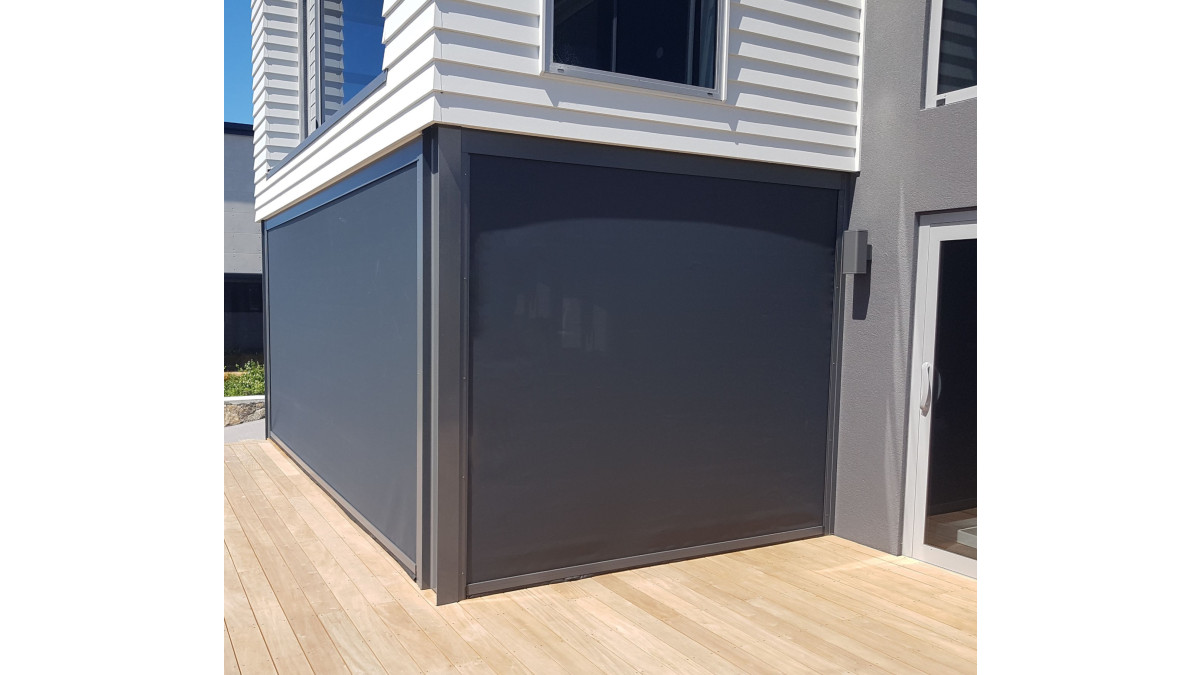

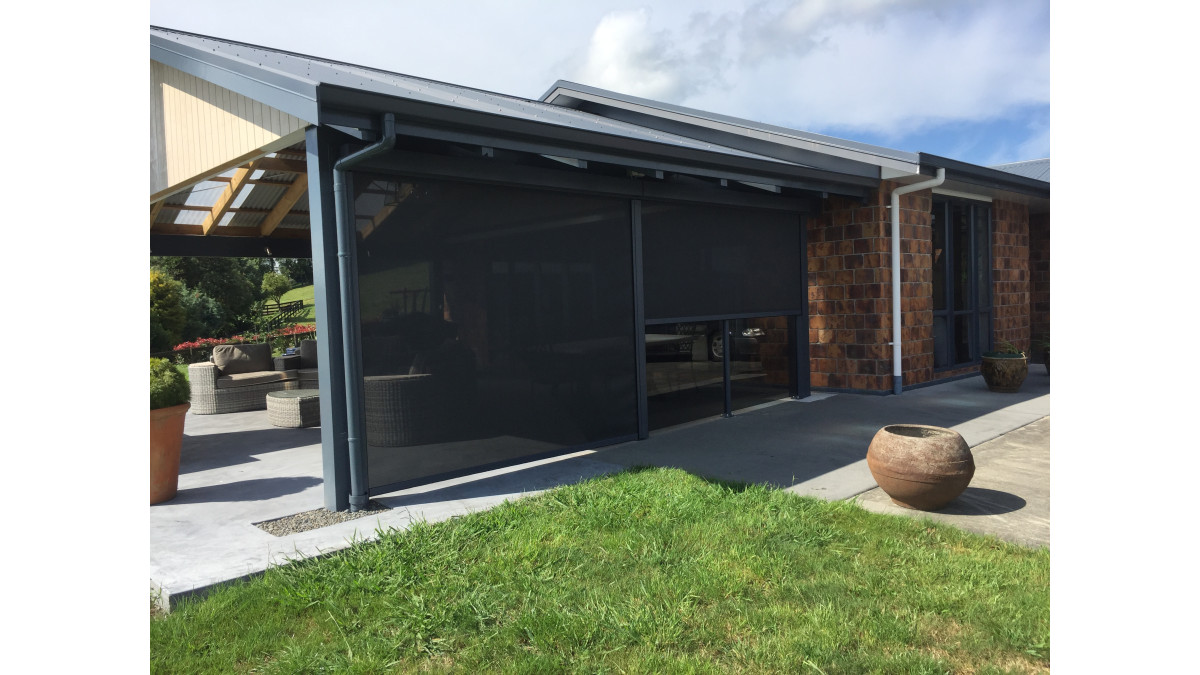

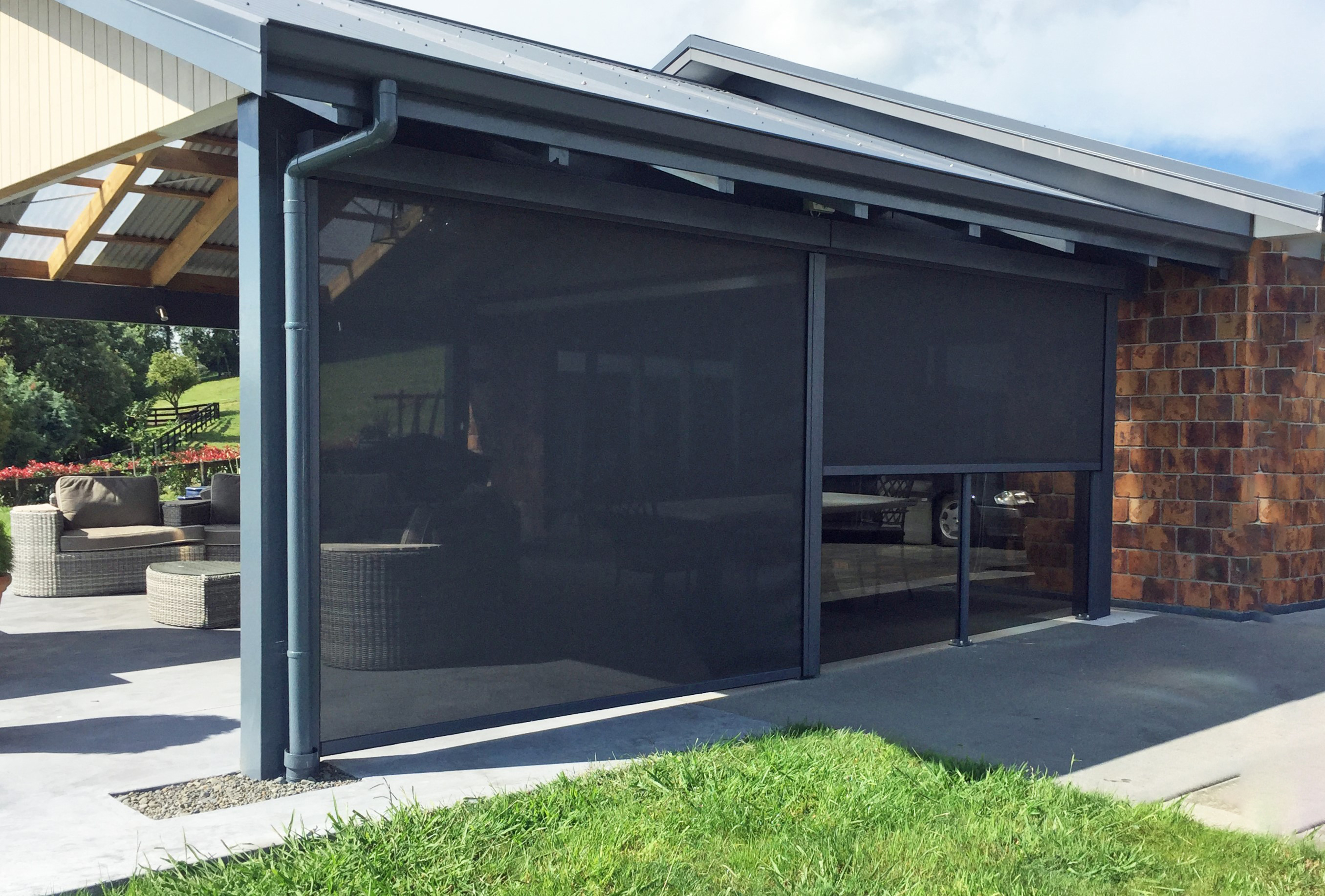

Solarzip® is a vertical outdoor blind or awning that shelters large spans from wind, sun and light rain while retaining the view and access to natural light. Solarzip® awnings transform covered pergolas, decks and verandahs into extended indoor living areas, by protecting the sides from wind and changeable weather conditions. Developed for modern lifestyles, the Solarzip® is a stylish addition that will enhance outdoor living areas throughout New Zealand.

A special high-temperature welded side zip allows the fabric to be encapsulated within the powder coated aluminium side tracks. Patented inserts act as movement absorbers, preventing the fabric from tearing with the tracks. Solarzip® awnings can be operated using a spring operation or gearbox and removable crank handle. A motorised and controlled by remote control application is also available.

Solarzip® can be manufactured in a wide range of fabrics, including clear PVC, but Solar View is the recommended fabric for this awning especially for its light filtering qualities. All awning components are made of stainless steel, zinc or colour matched aluminium, powder coated to requirements, to form a highly resistant, lightweight and rust proof construction.

Key Features

Components are made of stainless steel, zinc or colour matched aluminium, powder coated to requirements
Maximum width 4500mm
Minimum width 500mm
Maximum drop 3000mm

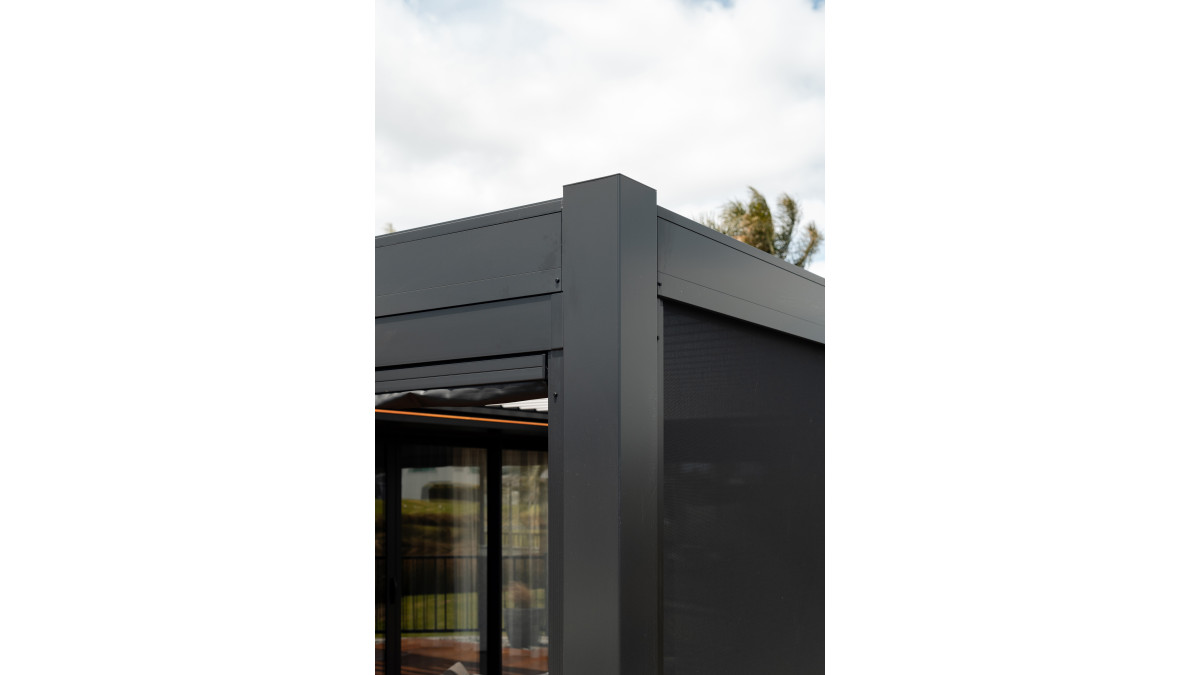

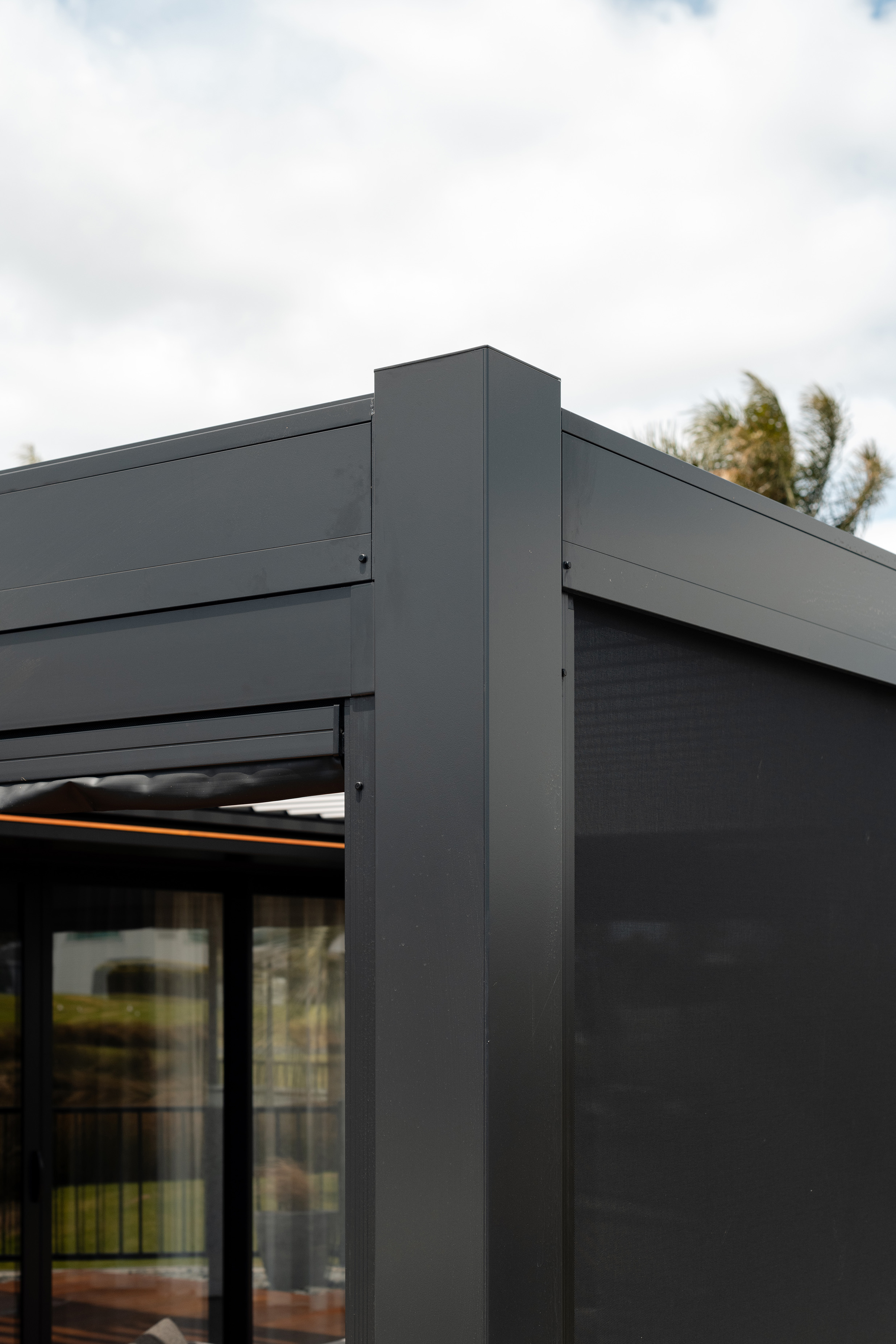

Seamless integration into a Juralco Louvre Roof beam
Optional headbox
Protection from sun and wind
Retains light and view

Ranges

Awnings Louvre Systems

NZ Made

NZ-Owned Business

Scope of Use

Providing additional protection for outdoor living areas
Covered pergolas, decks and verandahs
Operated using a spring operation or gearbox and removable crank handle
Motorised and controlled by remote control application also available
Can be manufactured in a wide range of fabrics, including clear PVC (Solar View recommended fabric)
Wall or ceiling mounted
Integrates into a Juralco Louvre Roof beam
Optional headbox

Limitations on Use

Maximum width 4500mm
Minimum width 500mm
Maximum drop 3000mm

Attachment to structures:

A PVC Tape or similar material spacer must be used to separate powder coated aluminium items from all concrete and steel structures. Failure to do so can lead to the chemicals in the structure affecting the powder coating, leading to corrosion.

Swimming Pools:

The chlorinated water in swimming pools can cause the deterioration of powder coated surfaces, leading to corrosion of the underlying surface. It is recommended that Powder coated surfaces be 1200mm minimum from a pool.

Other Performance Attributes

Dulux Duralloy Plus® powder coating systems are suitable for properties greater than 10m from high tide level. Residential and Light commercial buildings, 3 levels max. Warranty 15 years
Dulux Duratec® powder coating systems are suitable for properties greater than 10m from high tide level All Residential and Commercial buildings. Warranty 25 years.
The Dulux powder coating warranty period is conditional upon the surface being maintained in accordance with the Dulux ‘Care and Maintenance Instructions’.
