Description

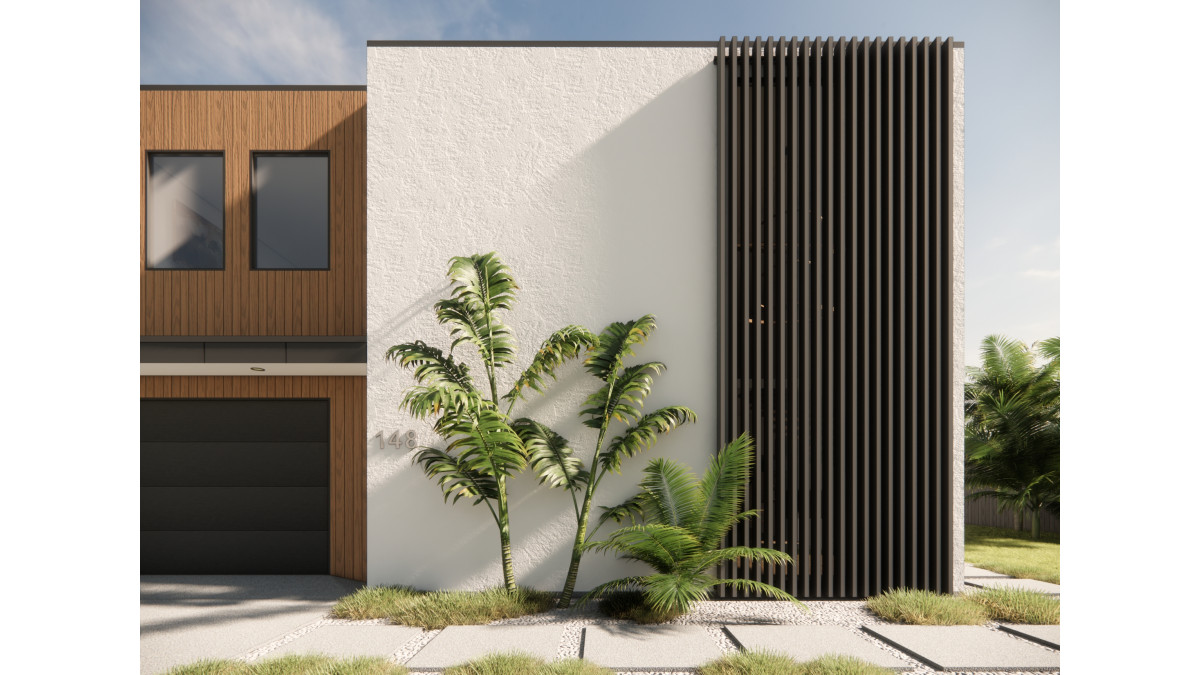

The Louvrelite® Architectural Louvre System offers a versatile, bespoke aluminium façade solution that enhances both visual appeal and building performance. Designed for flexibility, it integrates seamlessly with modern exteriors while providing solar control, privacy, security, and balustrade compatibility. With clean lines and a premium finish, Louvrelite helps create refined, functional, and visually striking architectural outcomes.

Key Features

Architectural flexibility
Softens the impact of large structures
Wide range of decorative applications
Enhance solar control or dynamic shading
Privacy screening
Balustrade option
Designed and assembled in New Zealand
Choice of custom powder coat colours
5 year warranty
15-25 year warranty on powder coating
Custom made solution

Ranges

Louvre Systems

NZ Made

NZ-Owned Business

Scope of Use

Louvrelite® Architectural Louvre System is for Domestic and Residential Occupancy types A, A Other, B C3 and E as per AS/NZ 1170.1.2002.
NZS 3604 Low, Medium, High, Very High and Extra High Windzone. 2.5kPa
Suitable for stairs, landings, external balconies and roof edges

Limitations on Use

The Juralco LouvreLite® Architectural Louvre System must only be installed in accordance with its Manual Any deviation from that specified in the Juralco LouvreLite® Architectural Louvre System manual must only be in accordance with the site specific PS1 with site specific calculations and drawings listing the non standard details
The Juralco LouvreLite®RHS Architectural Louvre System must only be fabricated/installed by a Juralco approved fabricator
Upon completion of the installation the fabricator must supply the owner with a PS3 (Construction)
Only extrusions, components and hardware supplied by or specified by Juralco Aluminium Building Products may be used in the Juralco LouvreLite® Architectural Louvre System

Statement of Building Code Compliance

NZBC Compliance

The Juralco LouvreLite® Architectural Louvre System has been reviewed by Lautrec Technology Group Ltd to demonstrate compliance with the structural requirements of the New Zealand Building Code and AS/NZS 1170:2002 occupancy A, A Other, B, E, and C3, NZS 3604 Low, Medium, High, Very High and Extra High Windzone. 2.5kPa
The Structural Engineering design includes the requirements of B1 Structure, B2 Durability, F2 Hazardous material, F4/AS, F9, all from the Building Code
Verification Method B1 / VM1, B2/AS1
Complies with NZS 4223.3.2016, NZS1170. NZS8500

A Producer Statement 1(Design) is available.

Copies of the above documents are available from: Juralco Aluminium Building Products Ltd 48 Bruce McLaren Rd, Henderson, Auckland Phone 09 478 8018 Fax 09 478 7883 Email [email protected]

Other Performance Attributes

Juralco Aluminium Building Products (JABP) Ltd is a Dulux Registered Applicator site, registration number 2101. JABP uses only Dulux branded powder coating materials

Dulux Duralloy® powder coating systems are suitable for properties greater than 100m from high tide level AAMA 2603 performance. Residential buildings, 3 levels max. Warranty 10 years
Dulux Duralloy Plus® powder coating systems are suitable for properties greater than 10m from high tide level. AAMA 2603 performance. Residential and Light commercial buildings, 3 levels max Warranty 15 years
Dulux Duratec® powder coating systems are suitable for properties greater than 10m from high tide level AAMA2603 and 2604 performance. All Residential and Commercial buildings. Warranty 25 years
