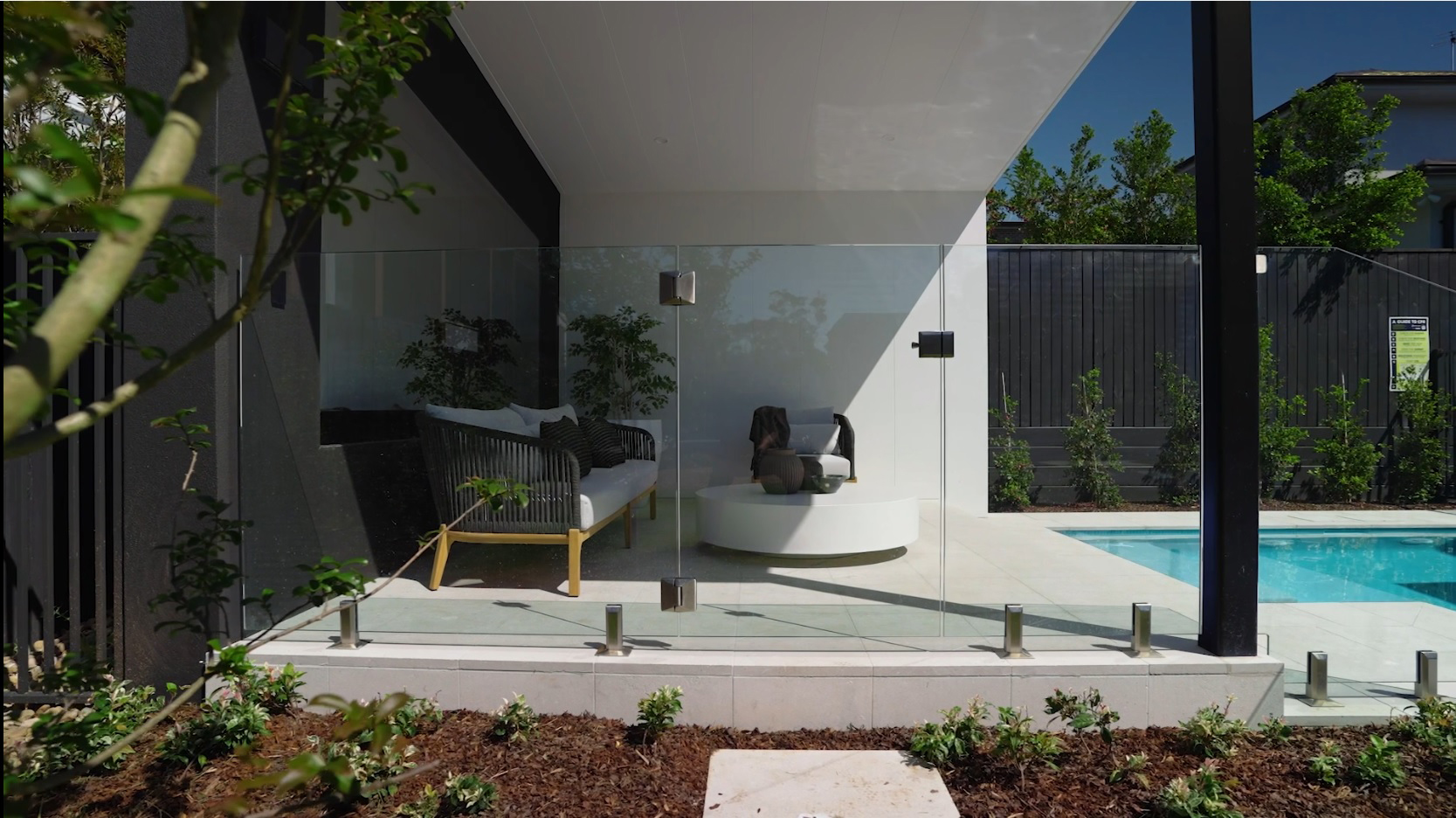

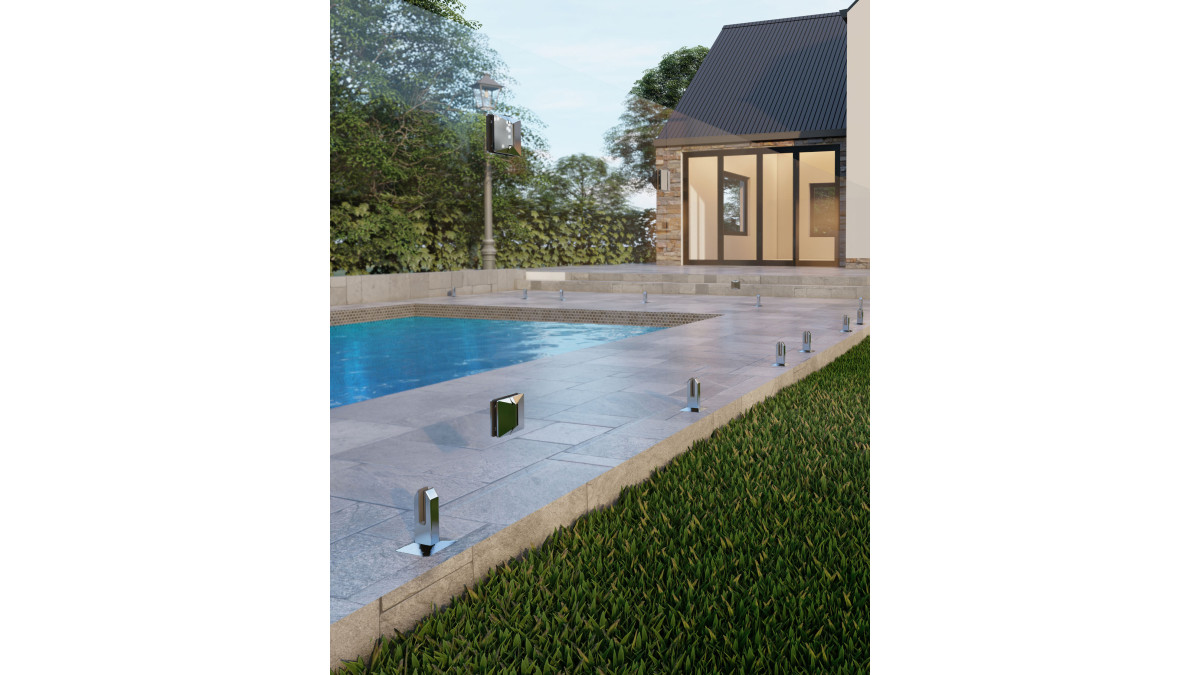

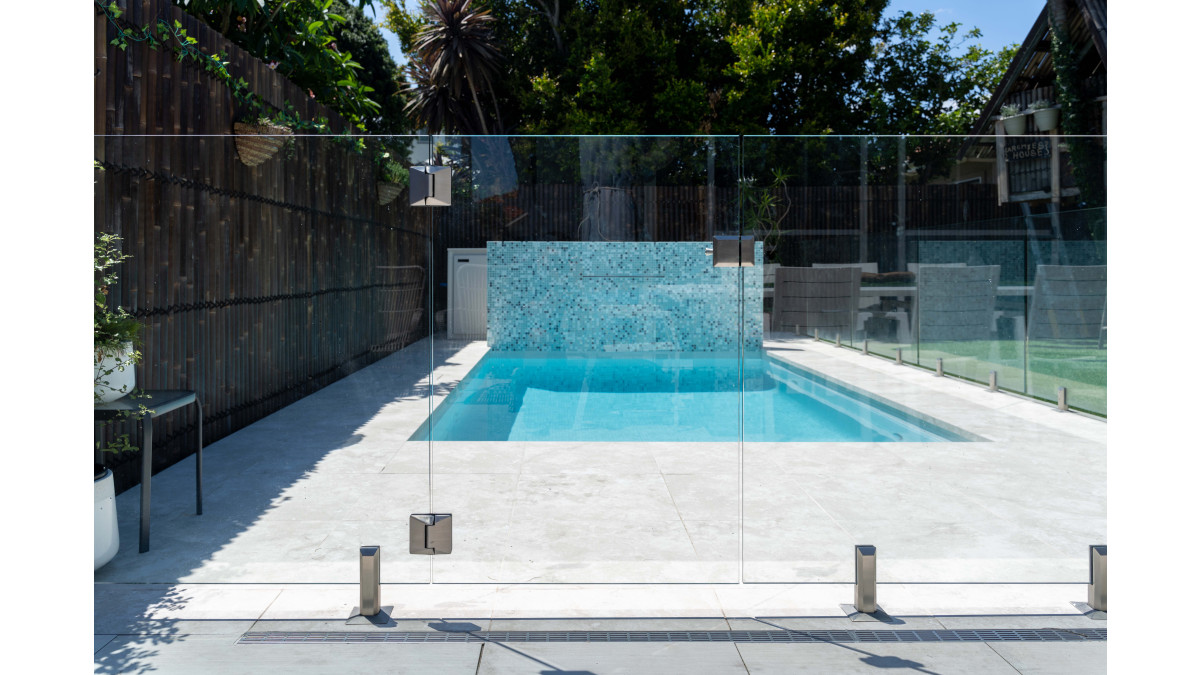

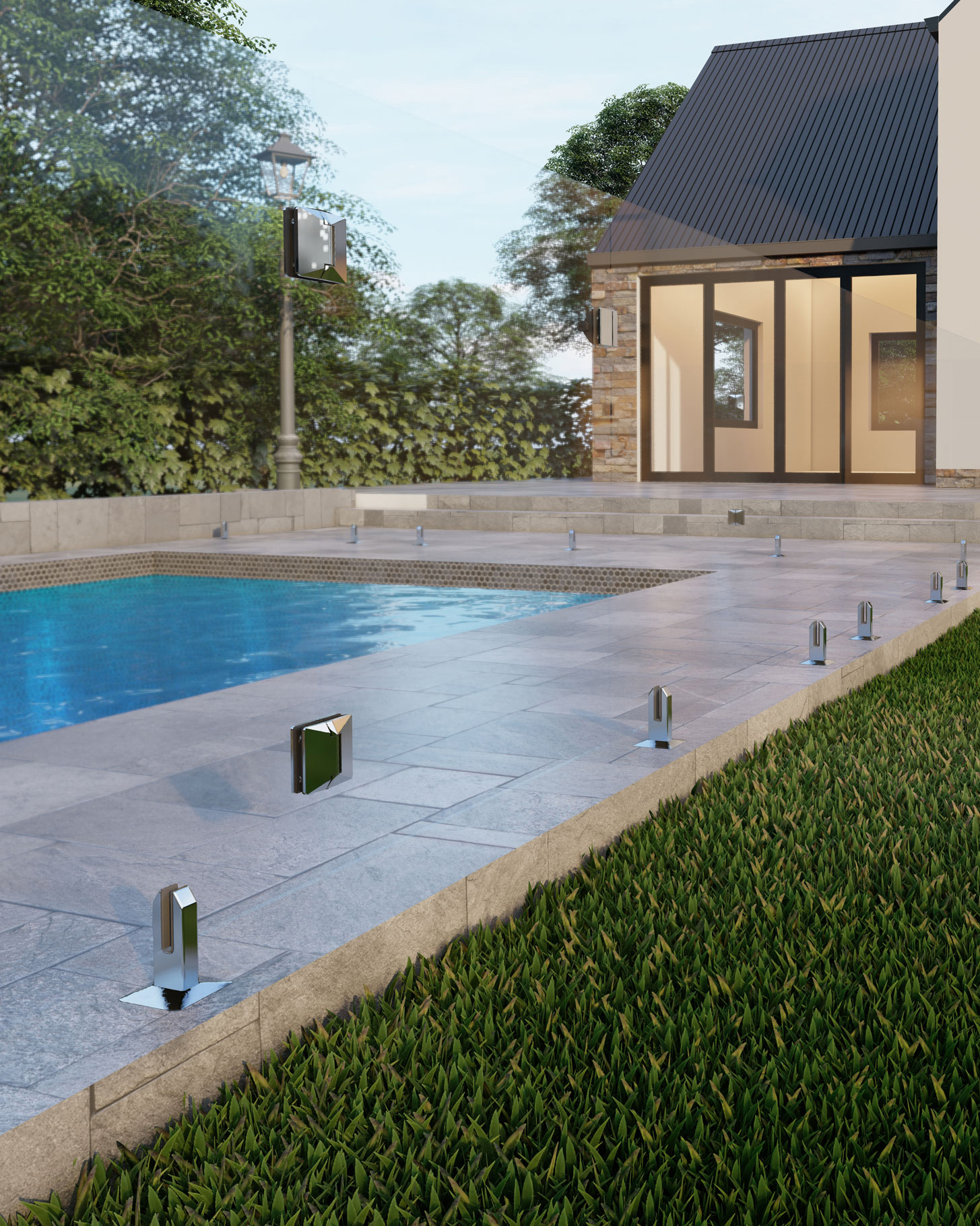

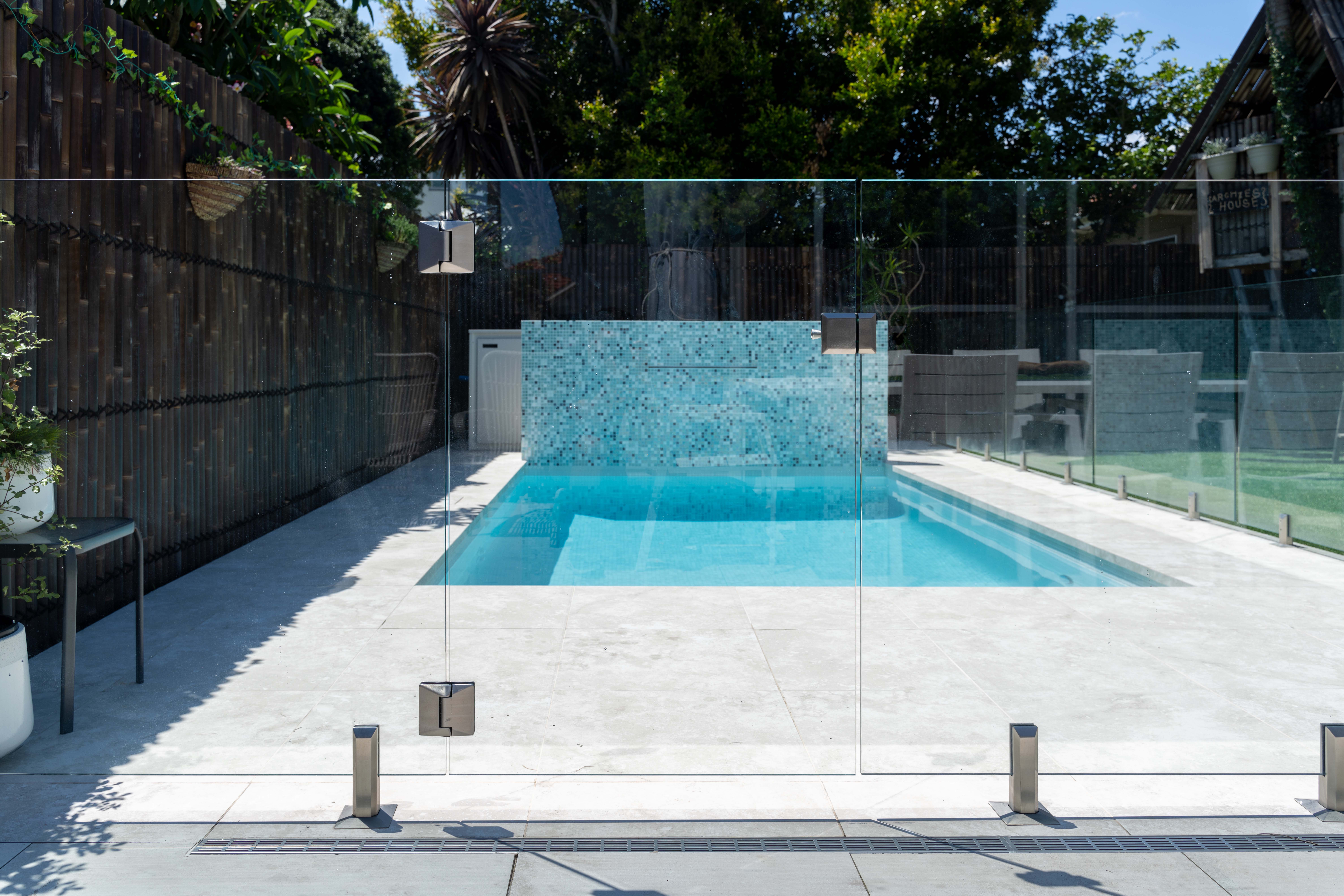

Juralco Edgetec® Atlantic and Malibu Glass Pool Gate System
Description

The Juralco Glass Pool Gate System can use 10mm and 12mm toughened Glass or 13.52mm SentryGlas® panels. The system is suitable for use, with any Juralco frameless or semi-frameless glass pool fencing system.

Key Features
  • This system utilises adjustable hydraulic self closing hinges (non-hold open) and an automatic latch.
  • The Hinges are available as 2 types

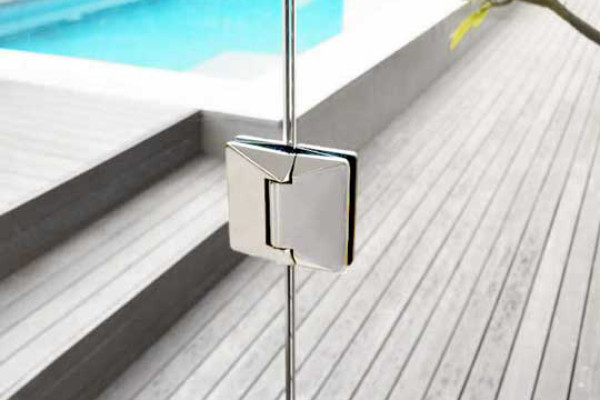

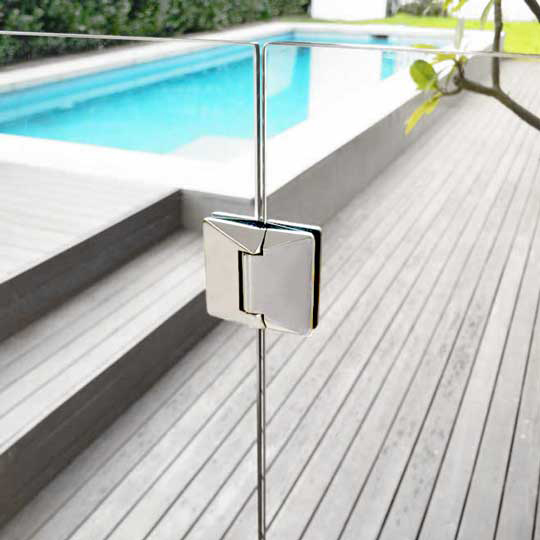

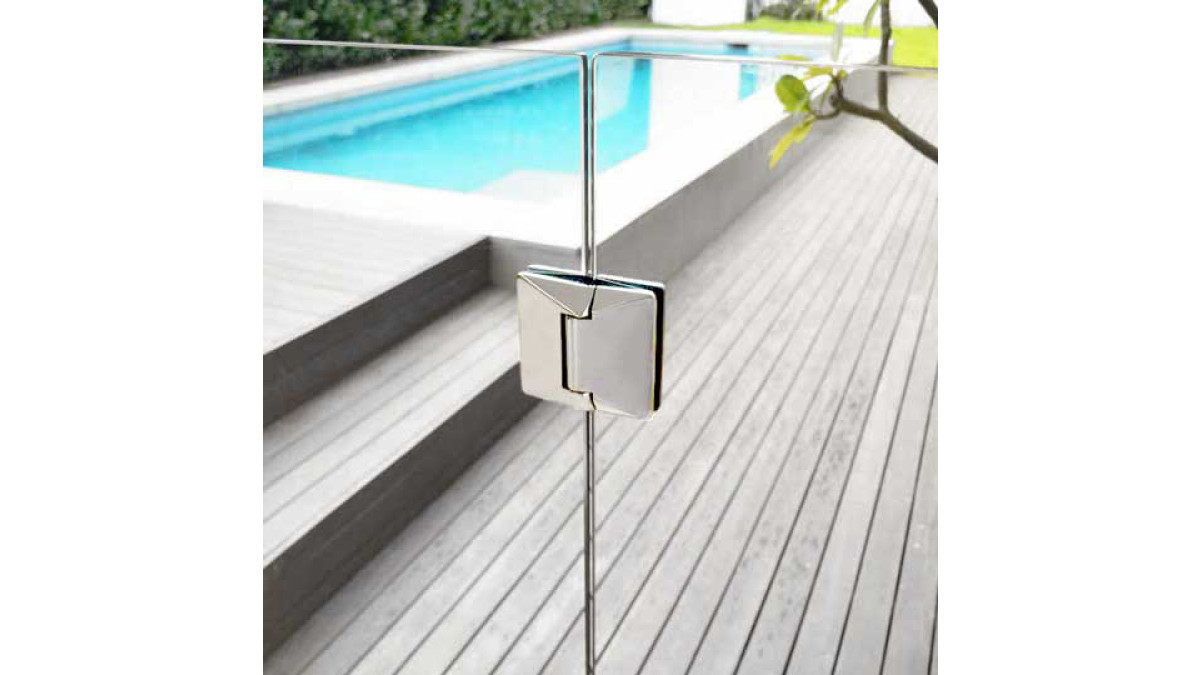

  • Glass to Glass type, suitable for all Juralco Frameless Glass Pool systems — 10mm, 12mm and 13.52mm SentryGlas®
  • Wall or Post to Glass type, suitable for Juralco EDGE Pool system — 10mm or 12mm Glass
  • Suitable with all Juralco Frameless Glass balustrade system
  • Suitable with all Juralco Semi-Frameless Glass balustrade systems
  • For 10 and 12mm Toughended Glass. The glass must have a minimum strength of 100MPa, all edges polished
  • Hinge standard finishes in Satin, Mirror Polish, Satin Black
  • Special order only finishes in Satin White and Satin Gold
  • Duplex 2205 stainless steel
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for all Juralco Frameless Glass Balustrade systems
  • Suitable with all Juralco Semi-Frameless Glass balustrade systems
  • 10 or 12mm toughened glass and 13.52mm SentryGlas®
  • The manufactureres documents refer to the products and requirements in relation to fixing and surface finishings
  • Suitable for Glass-to-Glass gates: Juralco Mini Post and Infinity systems
  • Suitable for Post-to-Glass Juralco Edge system

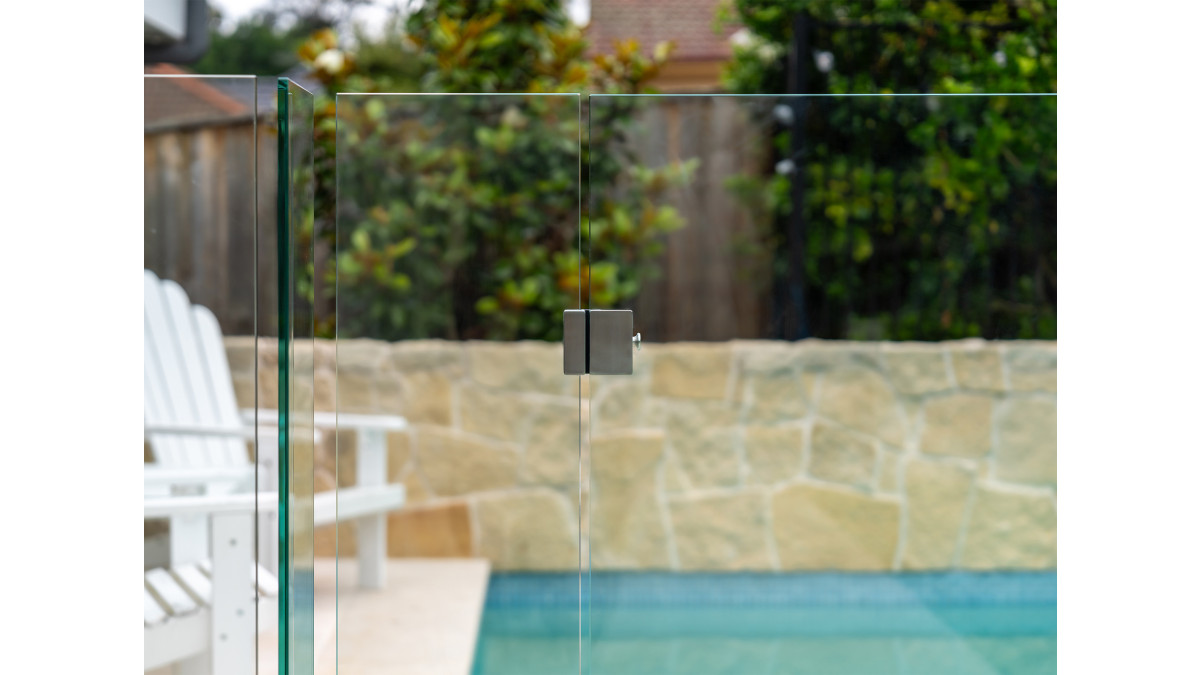

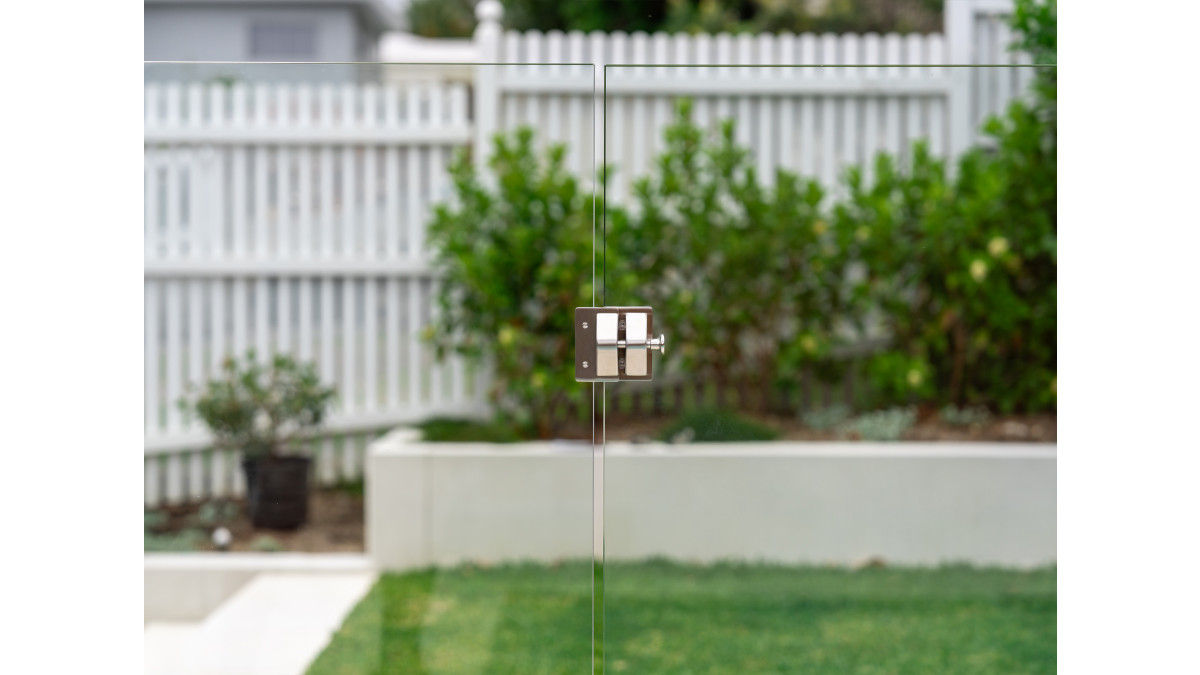

  • The glass must have a minimum strength of 100MPaThe system utilises adjustable hydraulic self-closing hinges (non-hold open) and a magnetic latch
  • Complies with the structural requirements of the New Zealand Building Code and AS/NZS 1170 : 2002 occupancy A, A Other, and C3
  • NZS 3604 Low, Medium, High, Very High Wind Zone, max design wind pressure 2.04 kPa
  • Passed 640 hour salt spray test
Limitations on Use
  • The Juralco Edgetec® Atlantic and Malibu Glass Pool Gate Systems must only be installed in accordance with its Manual
  • Any deviation from that specified in the Juralco Edgetec® Atlantic and Malibu Glass Pool Gate Systems manual must only be in accordance with the site specific PS1 with site specific calculations and drawings listing the non standard details
  • Only extrusions, components and hardware supplied by or specified by JABP may be used in the Juralco Glass Pool Gate. Aluminium extrusions, components and hardware, unless specified, are manufactured to 6060 T5 specifications. Stainless steel components, hardware, fixings — all components to 316 grade.
  • The Juralco Edgetec® Atlantic and Malibu Glass Pool Gate Systems must only be fabricated/installed by a Juralco approved fabricator
  • Upon completion of the installation the fabricator must supply the owner with a PS3 (Construction
  • Not recommended for Childcare Centres or high traffic areas
Statement of Building Code Compliance
  • The Juralco Edgetec Atlantic and Malibu Glass Pool Gate Systems have been reviewed by Lautrec Technology Group Ltd to demonstrate compliance with the structural requirements of the New Zealand Building Code and AS/NZS 1170: 2002 occupancy A, A Other and C3, NZS 3604 Low, Medium, High, Very High Wind Zone, max design wind pressure 2.04 kPa
  • The Structural Engineering design includes Building Code requirements, B1 Structure, B2 Durability, F2 Hazardous material and Clause F9
  • Verification Method B1/VM1, B2/AS1
  • Complies with NZS 4223.3.2016
  • A Producer Statement 1(Design) is available
  • Building Product Information Requirements (BPIR) document is available
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Manual: Atlantic & Malibu
