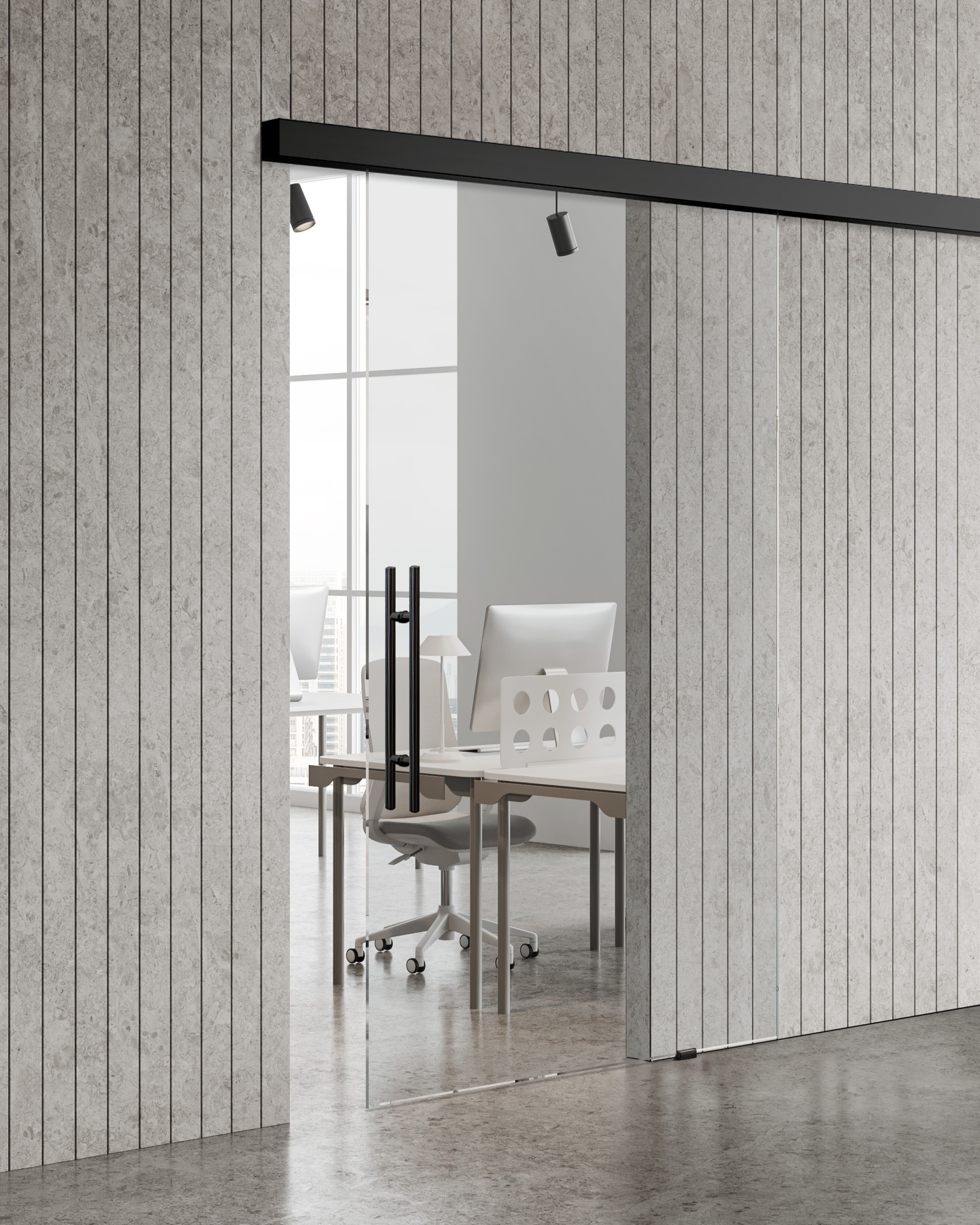

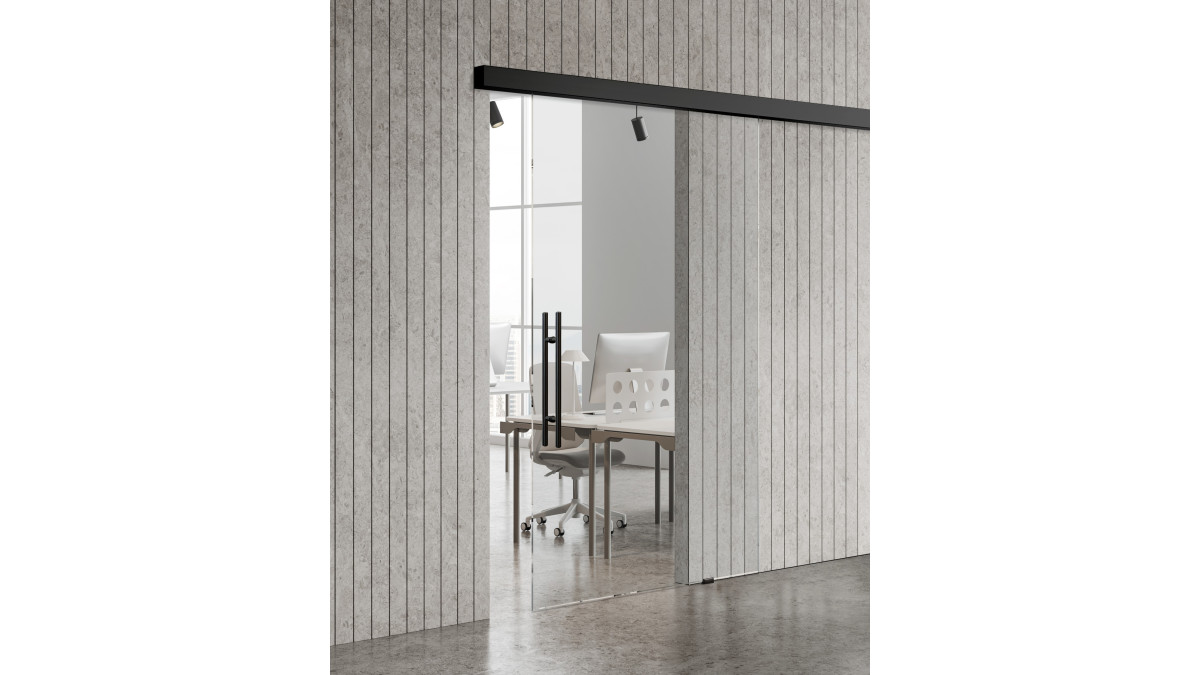

GlasGlide™ Frameless Glass Sliding Panel System
Description

The Juralco GlasGlide system is a modern Sliding Frameless Glass Door System suitable for 10 and 12mm toughened glass. With a concealed twin roller carriage mechanism and a low profile track design (only 62mm high) it provides space saving technology while still allowing glass doors to move smoothly and safely.

The twin clamp roller mechanism means that glass preparation is greatly reduced and panels weighing up to 150kgs can be moved effortlessly. GlasGlide can be either top or side fixed and used in a single panel door or door and fixed sidelight configuration.

Key Features
  • Suitable for 10 and 12mm toughened glass
  • Concealed twin roller carriage mechanism
  • Low-profile track design (only 62mm high)
  • Provides space-saving technology while still allowing glass doors to move smoothly and safely
  • The twin clamp roller mechanism means that glass preparation is greatly reduced
  • Maximum glass panel weight 150kgs
  • Top or side fix versions
  • Single panel door or door and fixed sidelight configuration
  • Specifiable with a Producer Statement (PS1)
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Internal
  • Commercial or residential applications
Limitations on Use
  • Glaslide Frameless Glass Sliding Panel System is not a barrier for Safeguard from Falling (F4)
  • This Door cannot be considered as an access route as detailed in Building Code Clause D1 Access Routes
  • Any deviation from the standard fabrication or installation/fixing must be accompanied by a site-specific PS1 with site-specific calculations and drawings
  • Maximum glass panel weight 150kgs
Statement of Building Code Compliance

Compliant with the structural requirements of the New Zealand Building Code:

  • B1 Structure
  • B2 Durability (15 yrs)
  • F2 Hazardous material.
  • In particular: AS/NZS 1170.0-2002 Structural Design Actions-Part 0: General Principals AS/NZS 1664.1:1997 Aluminium structures limit state design NZS4223.3:2016 Glazing in buildings — Human impact and safety requirements NZS4223.4:2008 Glazing in buildings
Other Performance Attributes

Surface Finishing — Juralco Aluminium Building Products Ltd is a Dulux Registered Applicator site, registration number 2101. JABP uses only Dulux branded powder coating materials — Dulux Duralloy® powder coating systems are suitable for properties greater than 100m from high tide level AAMA 2603 performance.

  • Residential buildings, 3 levels max: Warranty 10 year
  • Dulux Duralloy Plus® powder coating systems are suitable for properties greater than 10m from high tide level. AAMA 2603 performance. Residential and Light commercial buildings, 3 levels max: Warranty 15 years
  • Dulux Duratec® powder coating systems are suitable for properties greater than 10m from high tide level AAMA2603 and 2604 performance. All Residential and Commercial buildings: Warranty 25 years
  • Juralco products come with a minimum 5 year warranty
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Technical/Design Manual

6-24-v1

Additional Information

Juralco design and supply exceptional aluminium building products through the nationwide HomePlus network.

Product Enquiries

News from Juralco Aluminium

Introducing VelaSun: The New Juralco Fixed Outdoor Living System NEW

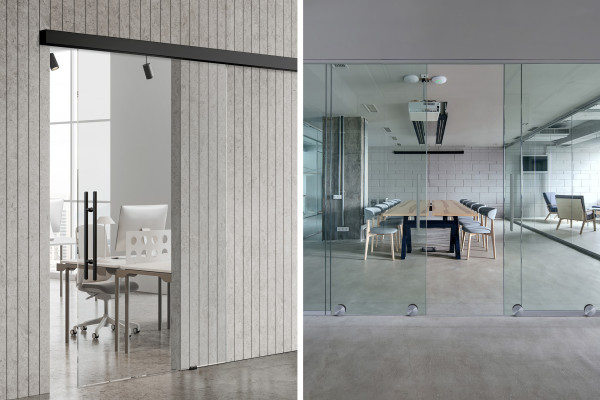

Introducing Rolline and GlasGlide Sliding Frameless Glass Hardware NEW
