Edgetec Single Disc Anchor Balustrade
Description

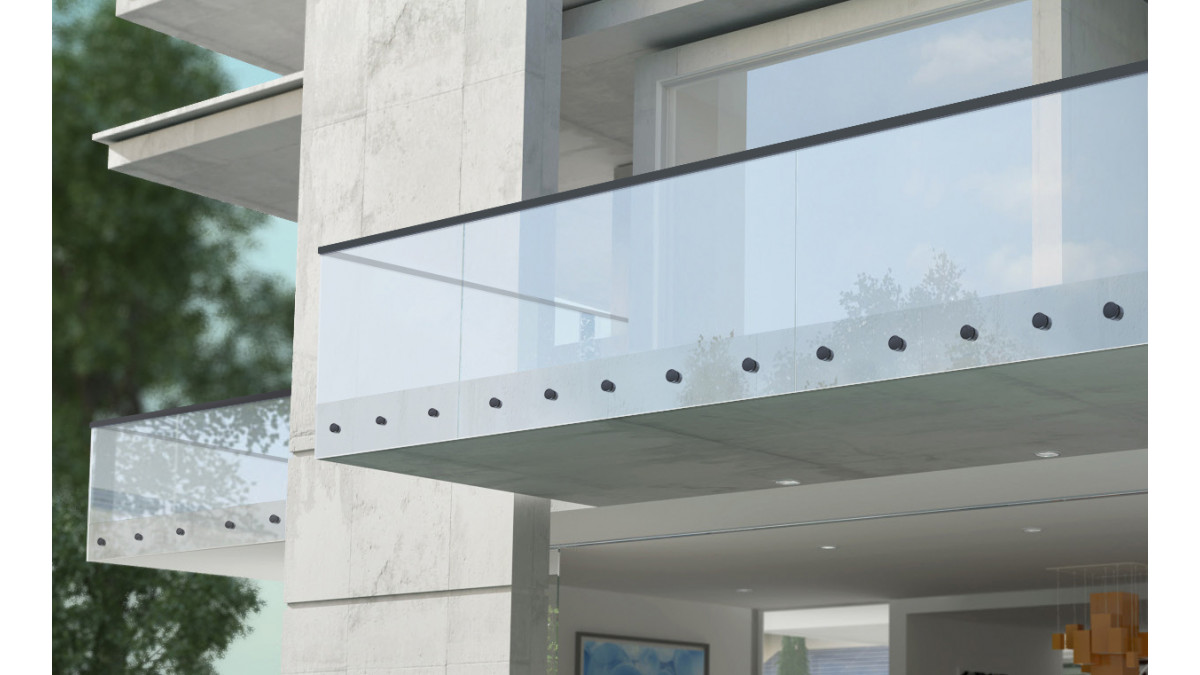

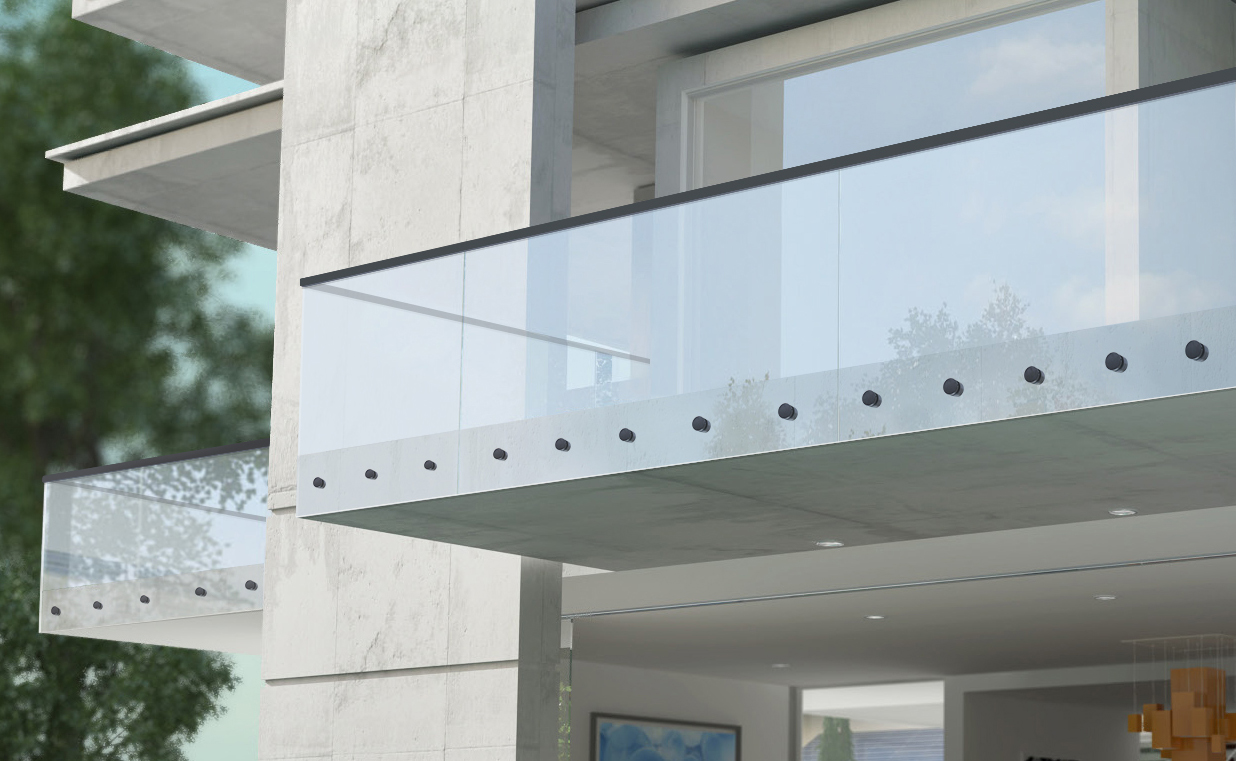

The Edgetec Single Disc Anchor has a 75mm diameter anchor fixing, available in powder-coated aluminium and polished or satin stainless steel finishes. For 12 or 15mm toughened glass panels with an interlinking top rail.

Key Features
  • Manufactured from architectural grade aluminium
  • Surface finished in New Zealand in a choice of Dulux powder coat colours
  • Also available in solid 316 marine grade polished or satin stainless steel
  • Hidden fixing details standard
  • 30mm long body sets panels out from deck for easier water drainage and cleaning
  • Available in 12 or 15mm toughened glass with Interlinking Top Rail
  • A range of glass stiffener brackets available for NZS4223.3.2016 conformance (laminated glass)
  • Complies with NZS1170:2002
  • No fixings seen at deck level
  • Custom made balustrade solution
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

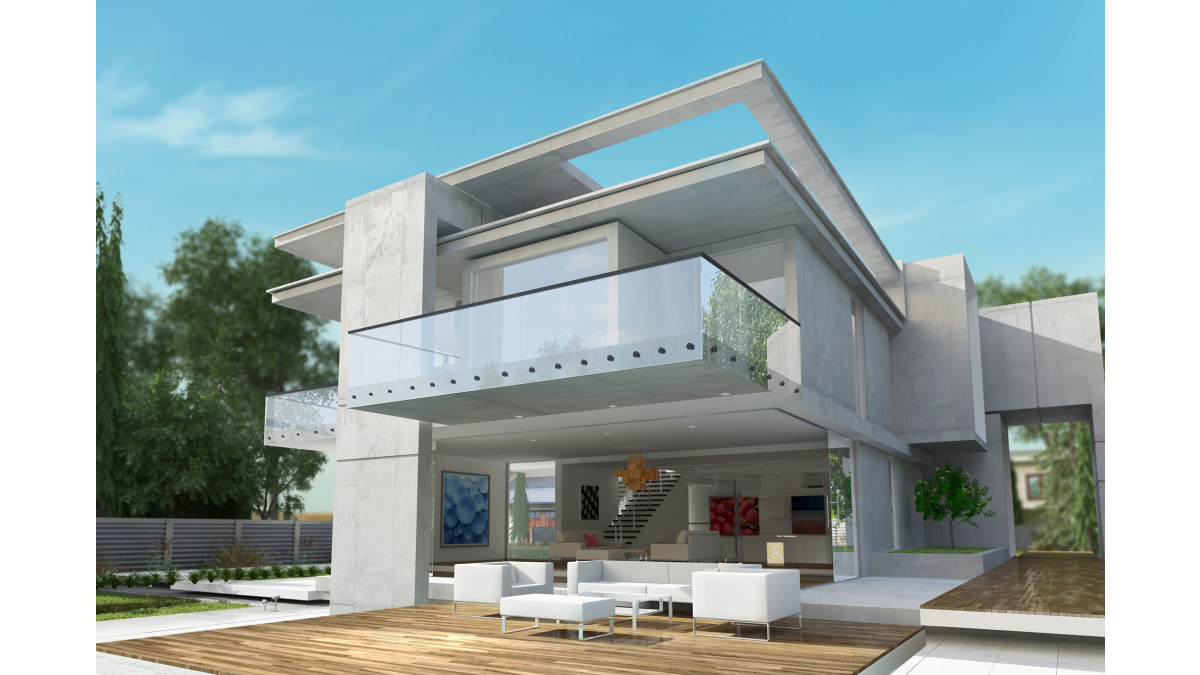

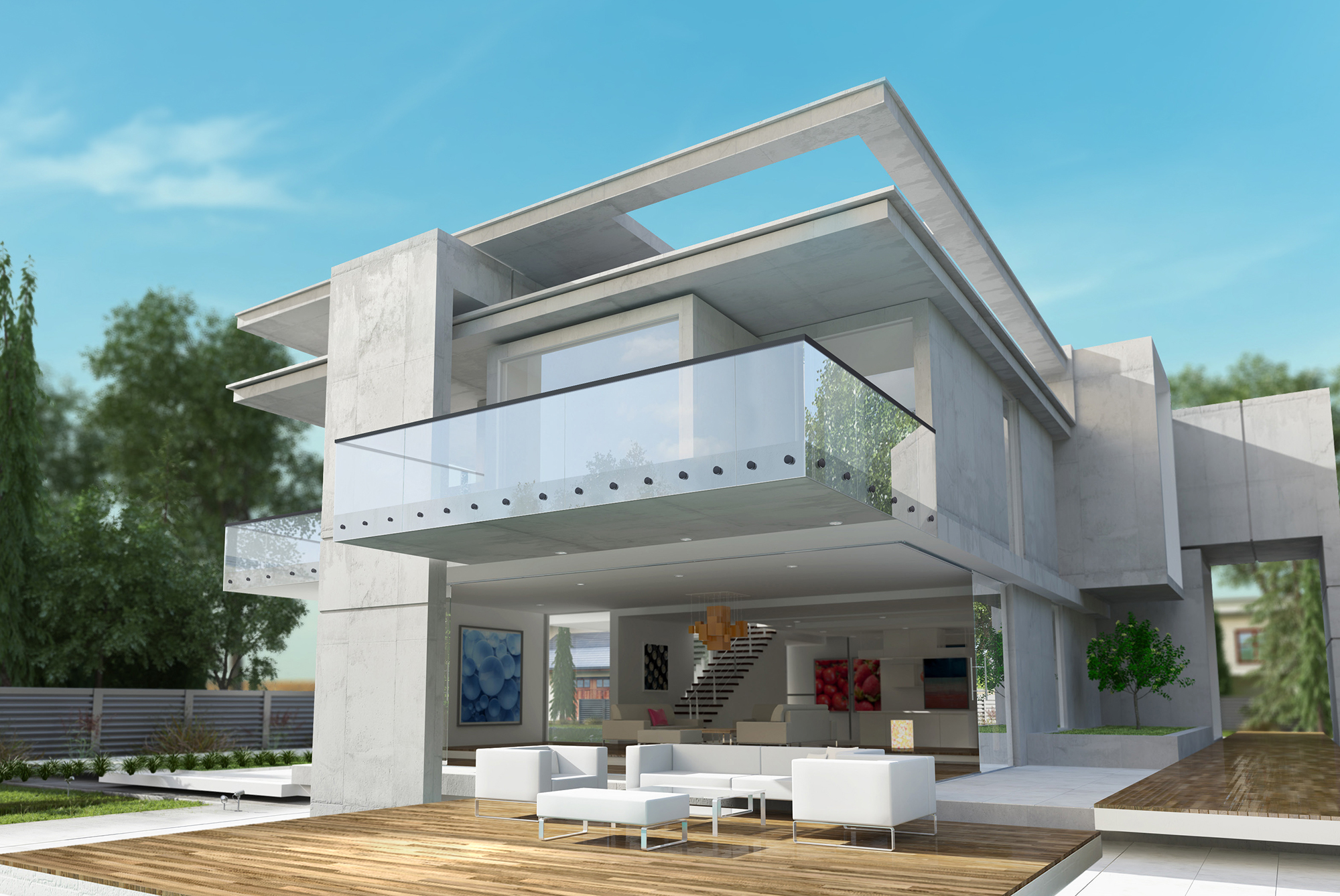

Edgetec Single Disc Anchor balustrade is suitable for deck and balcony barriers, pool fencing, internal stairways or landings and can be fixed to timber (including waterproof decks), concrete, and steel.

Suitable for:

  • Residential and Domestic Occupancy types A, A Other, and C3
  • Commercial Occupancy types B, E, and C3

A hidden fixing detail is standard for Single Disc Anchor fixings.

Limitations on Use
  • The Edgetec Single Disc Anchor system must only be installed in accordance with the Edgetec Single Disc Anchor product manual
  • Glass must have a minimum strength of 100MPa
  • All glass edges must be polished
  • All glass holes must be smooth and free of chips and cracks
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
Statement of Building Code Compliance
  • The Edgetec Single Disc Anchor balustrade system has been engineered and tested by independent engineers to comply with NZ standards AS/NZS1170 and NZS4223.3.2016, New Zealand Building Code B1, B2, F2, F4, F9 and section 162C of the Building Act (pool fencing regulations)
  • Edgetec Single Disc Anchor balustrade is suitable for Residential and Domestic Occupancy types A, A Other, and C3
  • Edgetec Single Disc Anchor balustrade is suitable for Commercial Occupancy types B, E, and C3
In-Service History

Juralco has over 18 years experience designing and installing balustrades throughout New Zealand and continues to focus on supporting and developing its dealer network. The Edgetec Single Disc Anchor Balustrade system was introduced for customers who prefer an alternative to a traditional disc anchor fixing system, with a choice of either powder coat or stainless steel finishes.

The Edgetec balustrade range offers a choice of fixing systems for heavyweight glass panels that includes strut posts (Mini Post), rectangular clamps (JH Clamp), a cantilevered channel balustrade (Infinity), Single and Double Disc Anchor. An interlinking top rail has been incorporated into the Edgetec range to comply with new 2016 balustrade regulations — NZS4223.3.2016.

Other Performance Attributes
  • Powder coated aluminium — finished in New Zealand in a choice of Dulux powder coat colours
  • Also available in solid 316 marine grade polished or satin stainless steel
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
F9 Restricting Access to Residential Pools compliant
Restricting Access to Residential Pools
Documents
Technical/Design Manual

7/20

Data Sheet
Maintenance and Warranty
Specification Clause (Masterspec)
Brochure
Options, Variations or Accessories
Additional Information

Juralco design and supply exceptional aluminium building products through the nationwide HomePlus network.
