Edgetec® PosiGlaze
Description

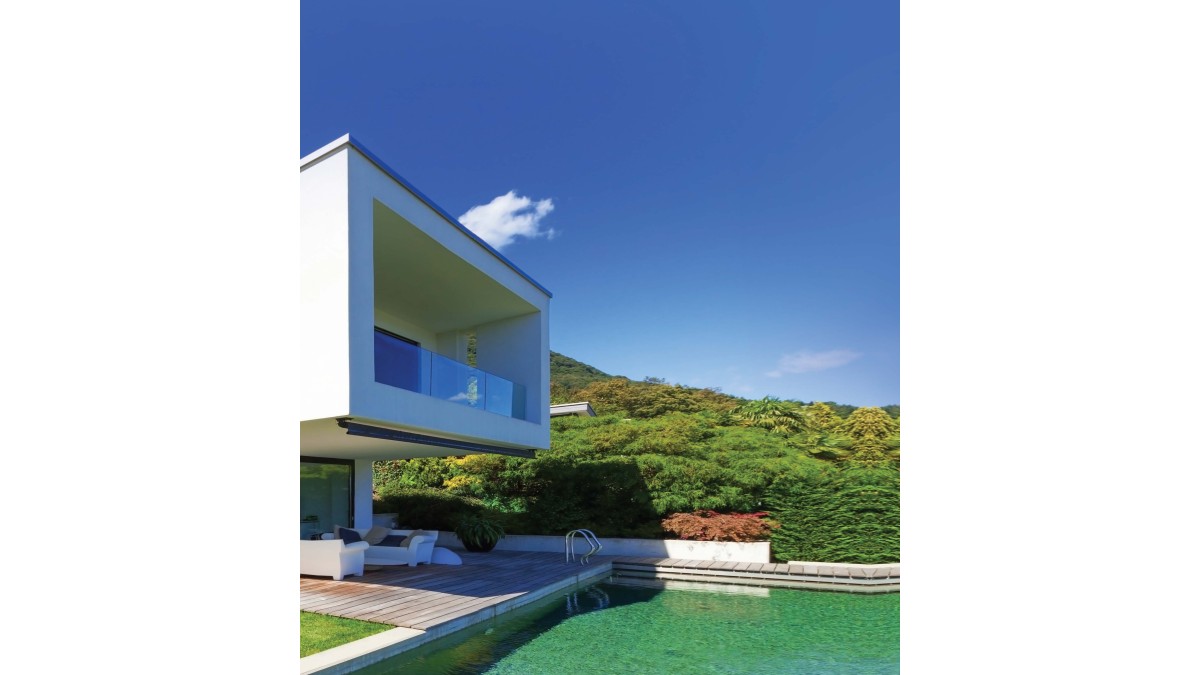

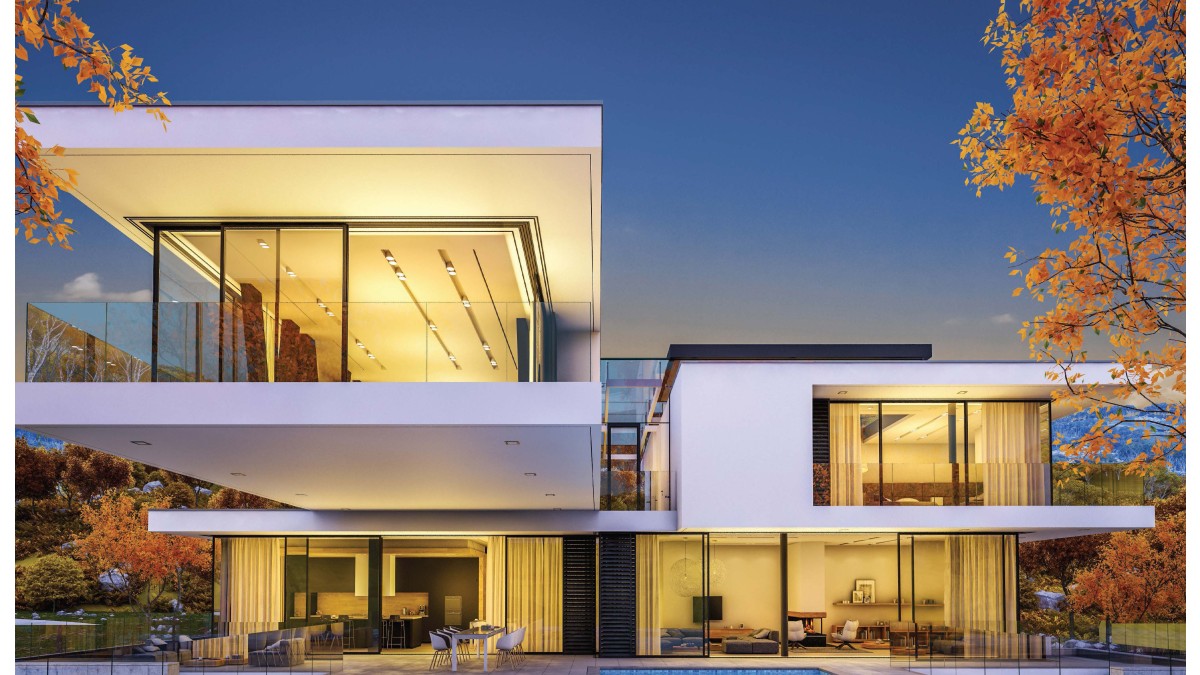

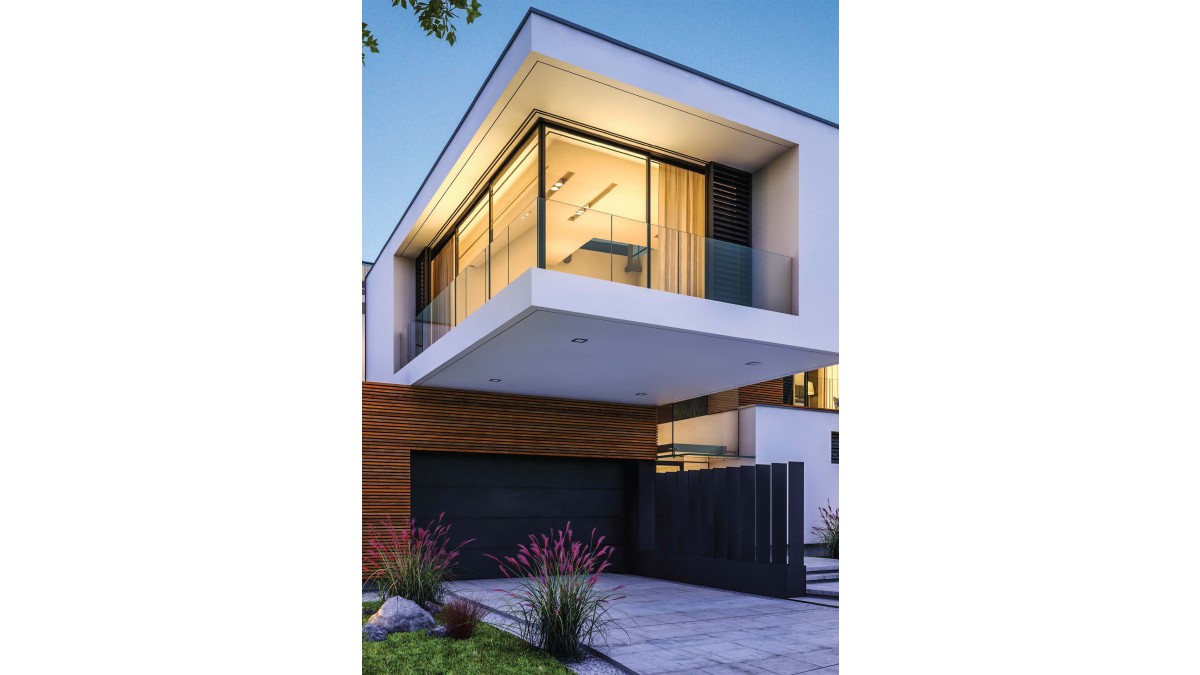

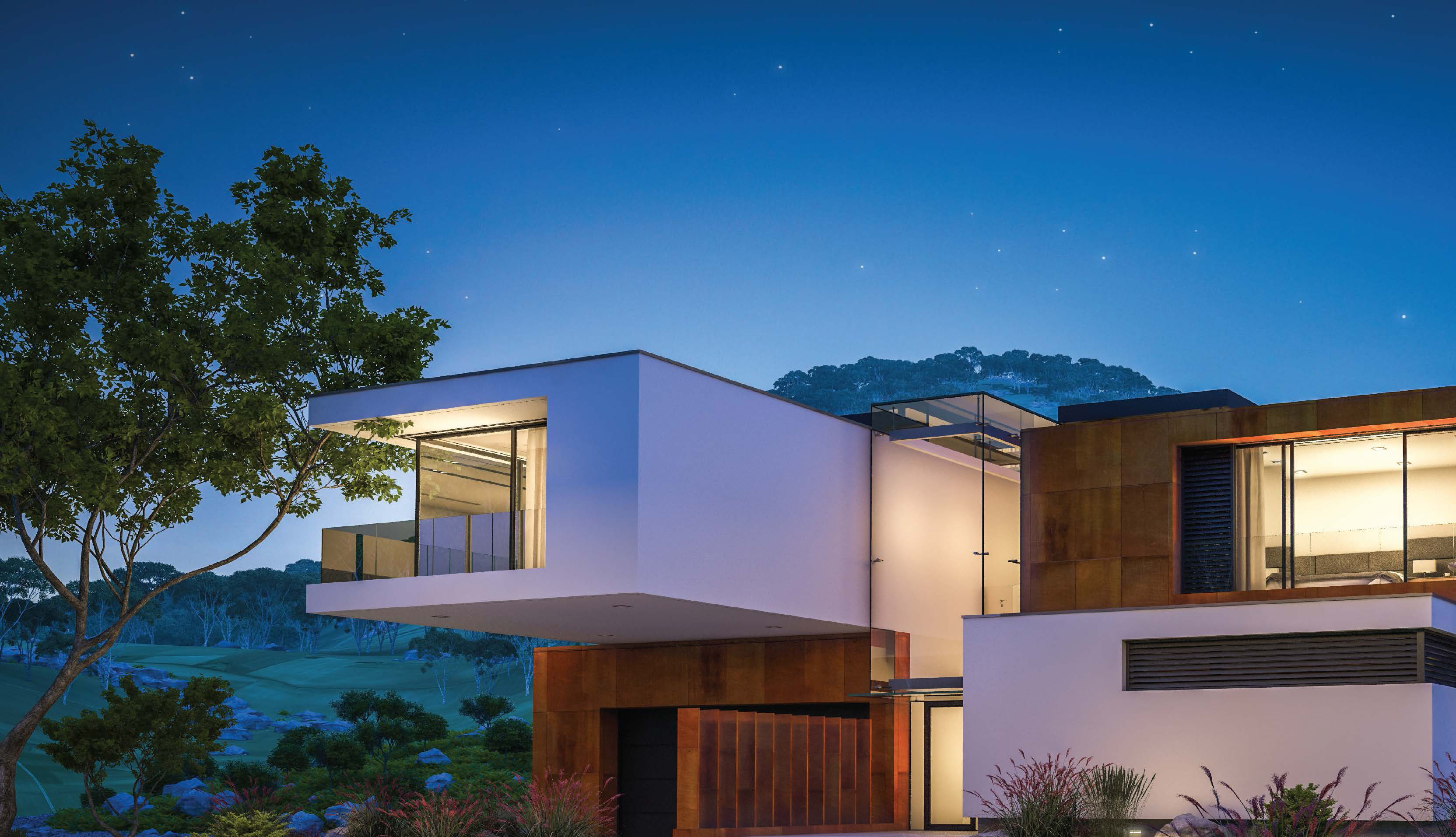

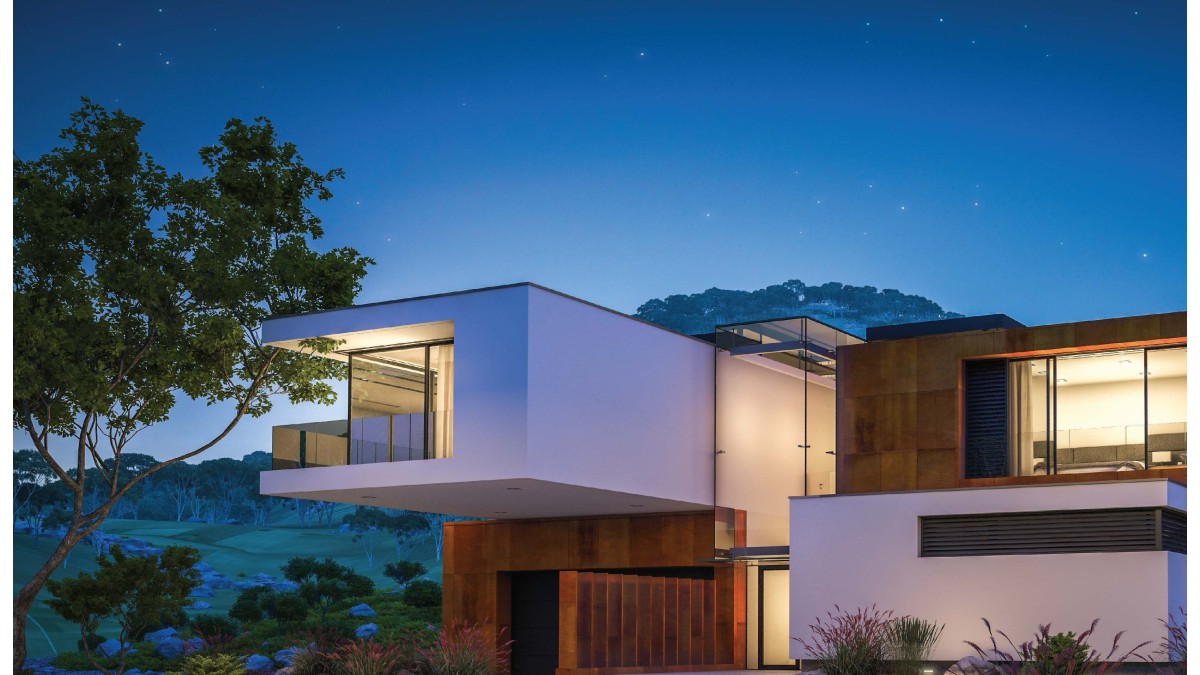

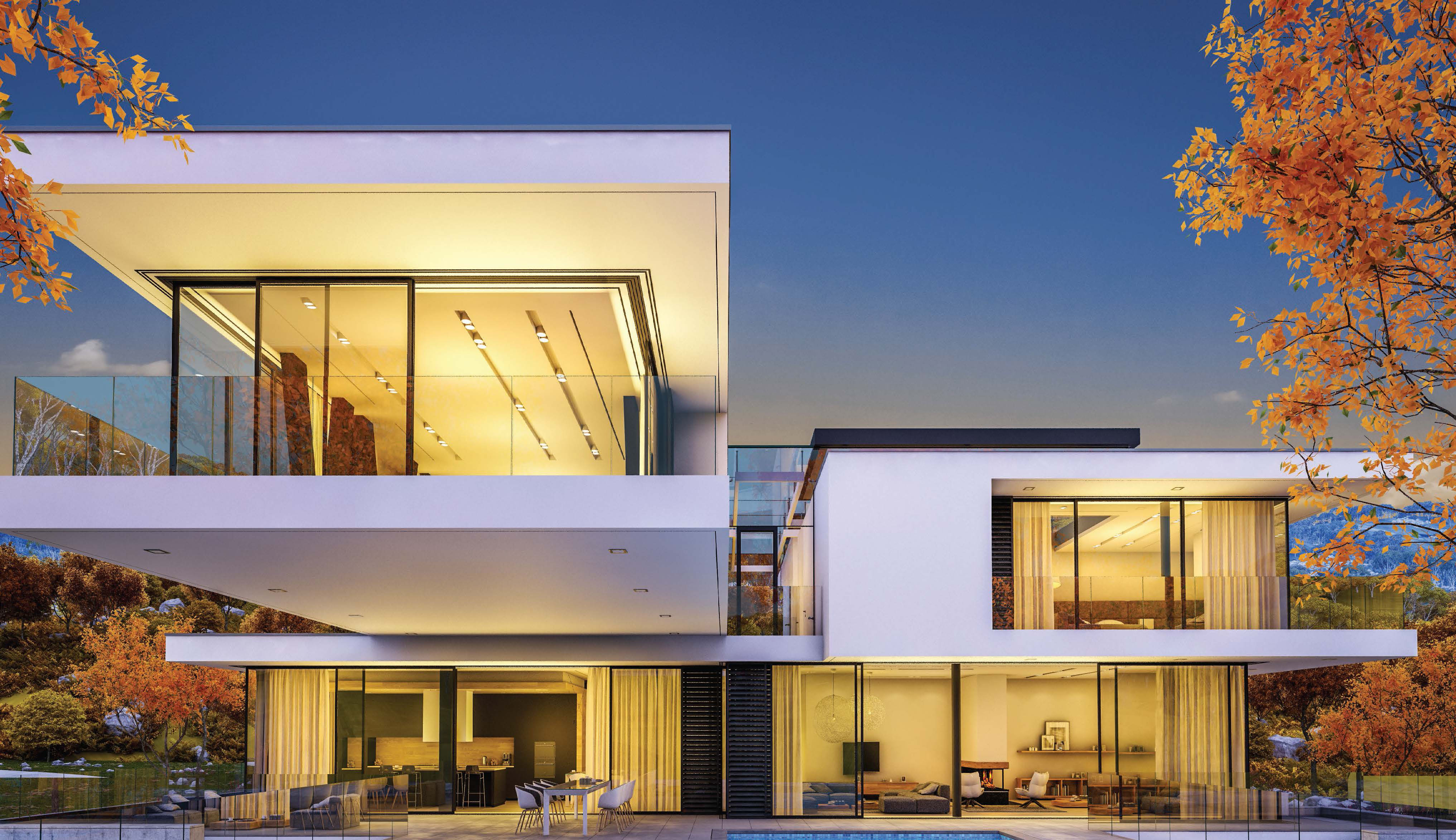

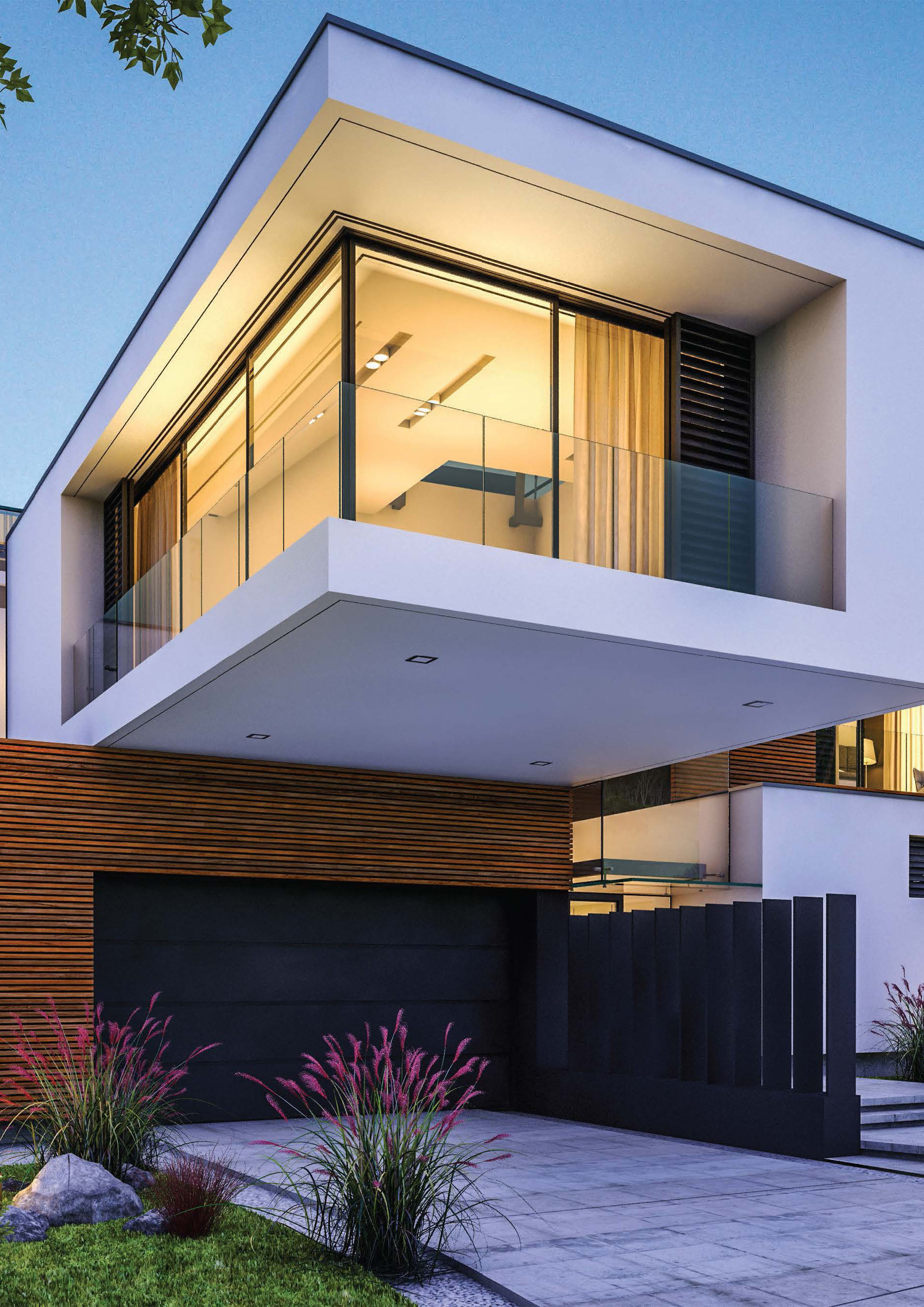

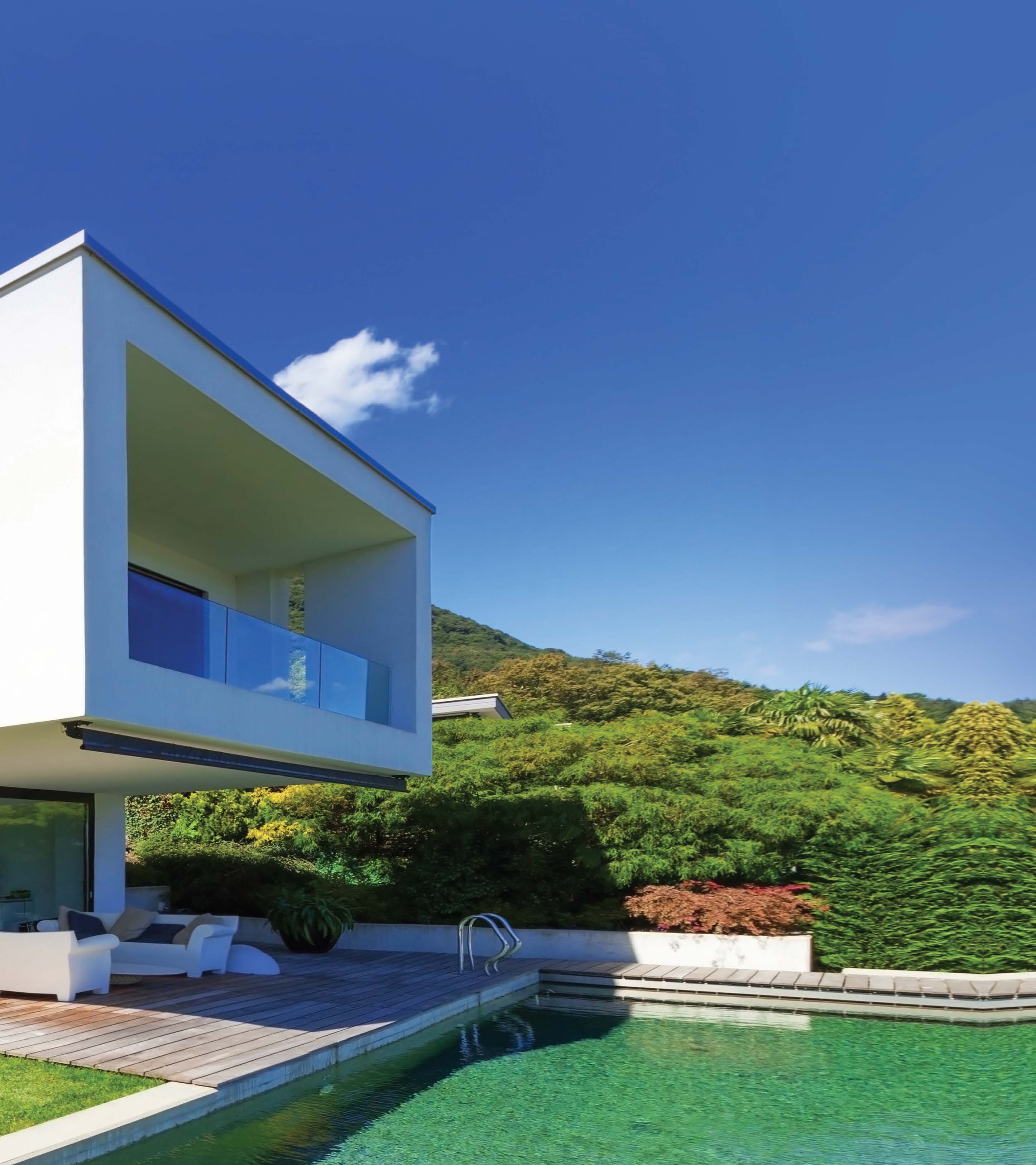

The Edgetec® PosiGlaze is the latest addition to the Juralco range of balustrades — a high-performance frameless glass balustrade and pool fencing system. Designed for a wide range of applications, PosiGlaze® offers exceptional aesthetic appeal as well as alignment flexibility during and after installation.

Supporting glass from 12mm Toughened up to 21.5mm SentryGlas™, with patented screw-clamp technology, elevates projects with the ultimate in adjustability, strength and elegance.

The Juralco Generic PS1 covers most standard installations for immediate PS1 turnaround via our website.

Key Features
  • Quick and easy to install
  • Can be top fixed or face fixed
  • Wide range of applications — ideal as hidden or architectural feature
  • Supporting glass from 12mm — high 21.5mm Toughened, Toughened Laminate or SentryGlas™
  • Exceptional alignment flexibility during and after installation with patented screw-clamp technology

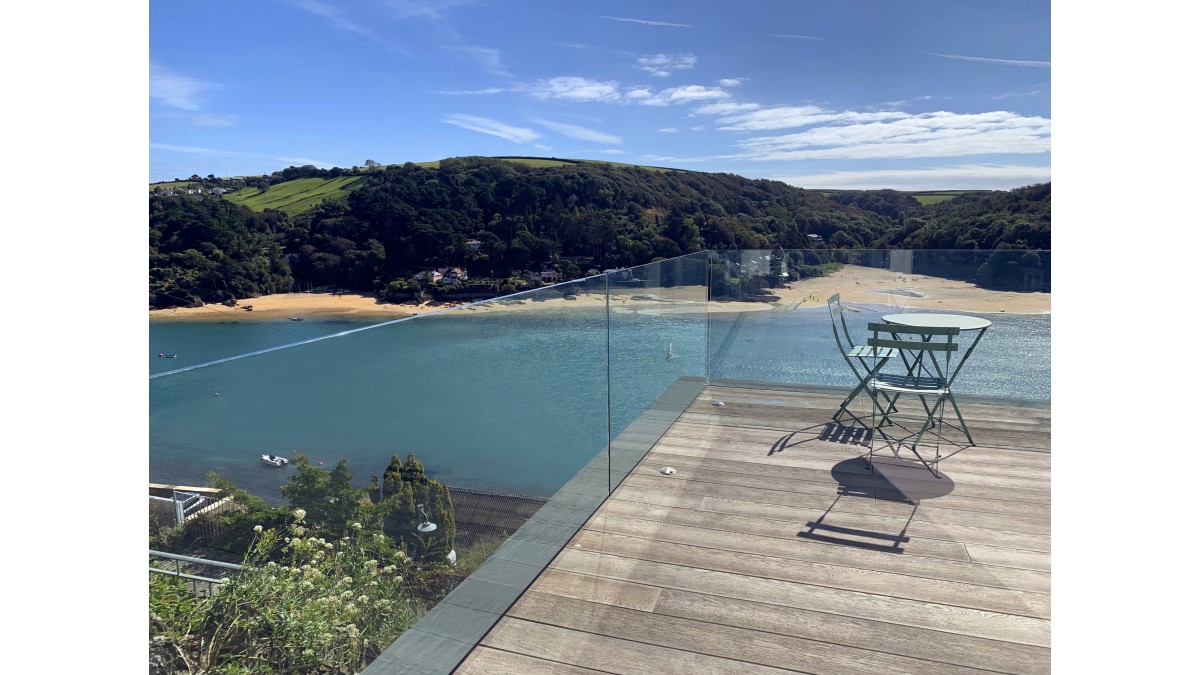

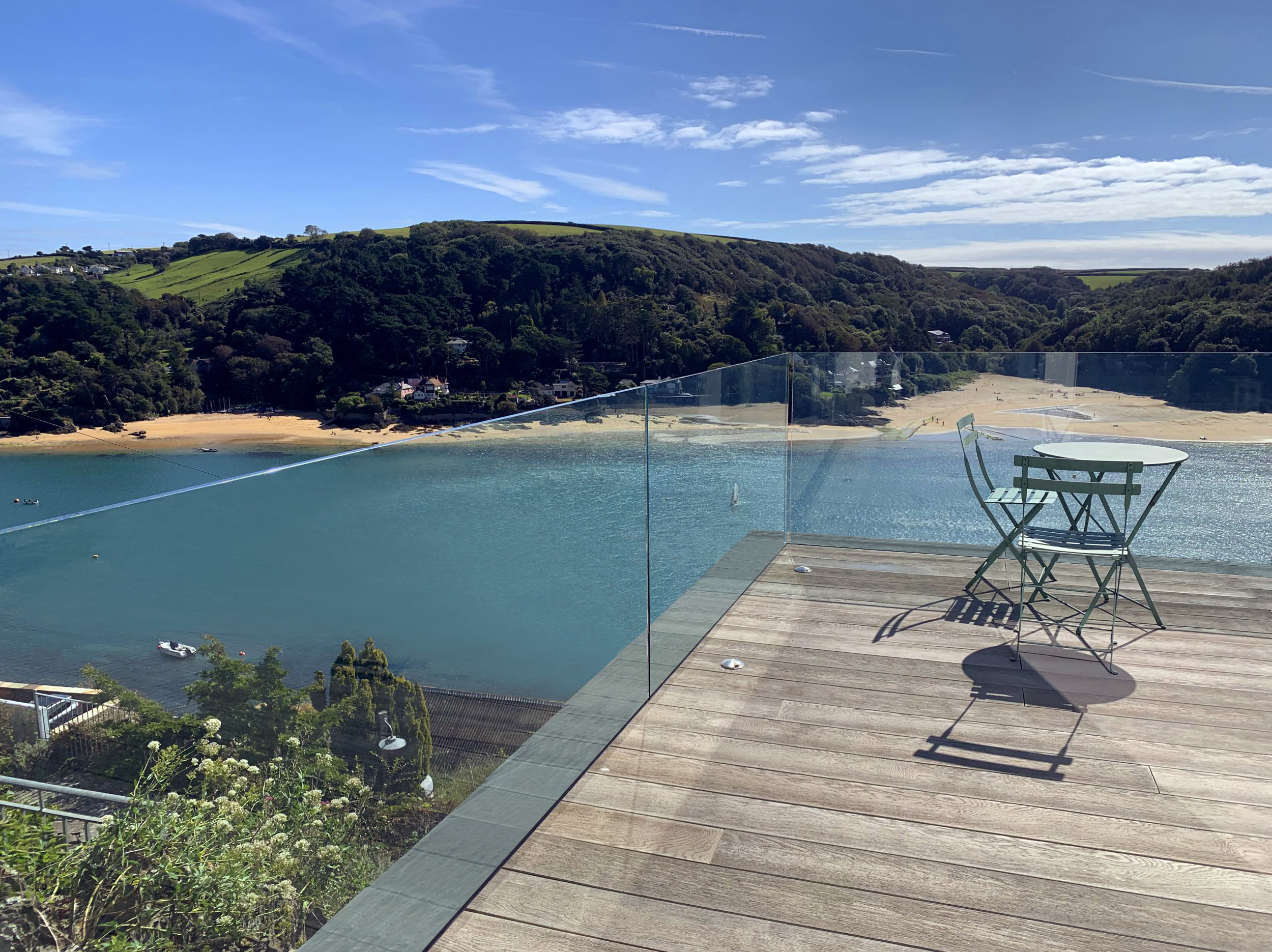

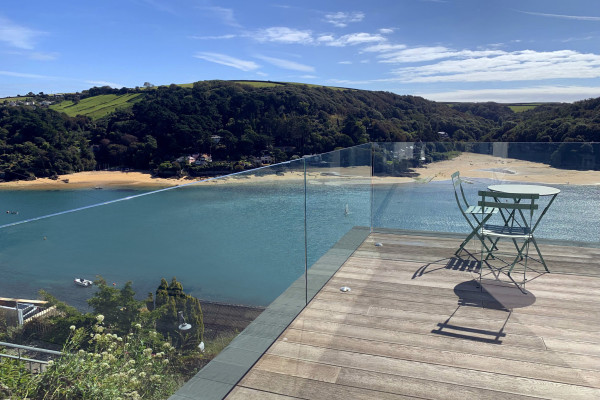

  • Adjustable from the top, PosiGlaze is ideal for hidden installations
  • Powder coated from an extensive range of colours
  • Can be used on uneven surfaces
  • Lightweight and strong



Scope of Use
  • Ideal for residential to small commercial installations
  • Perfect for where a frameless glass balustrade is wanted or required
  • Wide range of applications — ideal as hidden or architectural feature
  • Can be top or face fixed
  • Supporting glass from 12mm — high 21.5mm Toughened, Toughened Laminate or SentryGlas™
Limitations on Use

Occupancy Type:

  • Suitable for occupancy types A, B, E, C3, C1/C2, D (subject to glass & fixing type)
  • Occupancy types as per AS/NZ 1170.1.2002

Windzone:

  • Exceeds the wind loading for all Wind Zones up to and including Extra High Wind Zone as set out in NZS 3604:2011
  • Max design Wind pressure subject to glass type and fixing method
Statement of Building Code Compliance
  • Complies with AS/NZS 1170:2002, NZS 4223.3.2016
  • NZ Building Code B1, F2, F4 and F9
Documents

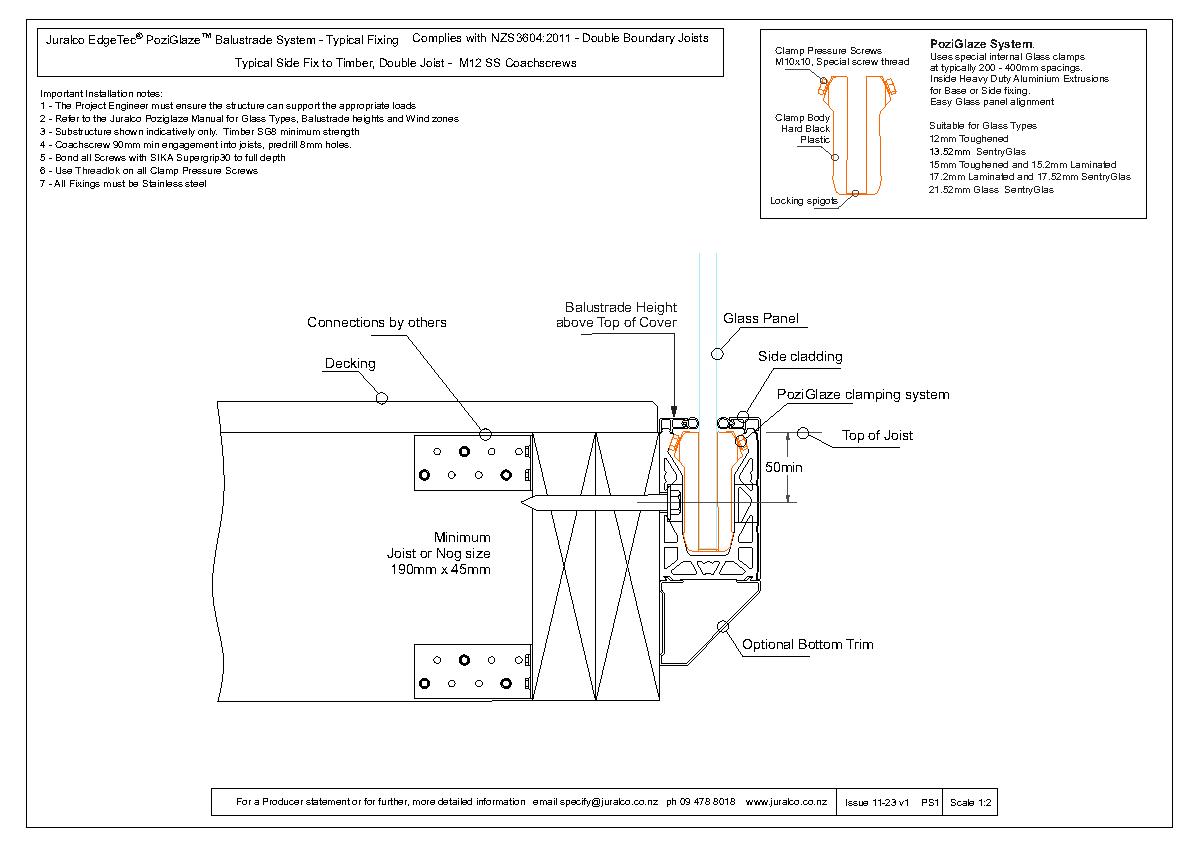

Technical/Design Manual

11-23 v1

Maintenance Instructions
Warranty

Dec 2022

Brochure
Colour Range
