Nimbus 13 Partition System

The Hale Nimbus 13 partition system, using 13mm Compact Laminate, is a pedestal mounted, overhead braced system with the option of overlay or flush doors. It is a high grade solution with the utmost flexibility.

Key Features
  • Group 3 Fire rating
  • 13mm Antimicrobial Compact Laminate panels
  • Cast alloy powder coated, standard 150mm pedestal legs or adjustable (80mm - 230mm) supplied as necessary
  • Devon Satin Chrome Plated indicator bolt with large turn lock inside of cubicle and red/green indication with coin operated emergency release to outside
  • Stainless Steel 75mm x 50mm hold open butt hinges (overlay door option)
  • Concealed fixed Avanti or Wave gravity hinges (flush door option)
  • Antimicrobial treatment reducing bacteria and fungal growth and reproduction throughout the lifetime of the panel (Laminex Compact Laminate only)
  • No edge treatment required, however, oil will enhance black edge
  • Panels are 1800mm wide, eliminating the need for joints in most cases
  • Easy to keep clean and low maintenance
  • Antimicrobial Protection (Laminex Compact Laminate only)
  • Continuous wall channel fixing at all junctions
  • Wave coat hook and bumper
  • 10 year Compact Laminate board warranty
  • Environmentally friendly low emissions board
  • Flexible design, available in ready to install, flat pack complete with shop drawings & installation manual

 Optional Extras:

  • Sliding door or open out door to comply with accessibility requirements
  • Powder coating to aluminium trim available
  • Octagonal headrail channel, providing extra strength
  • CF2 Stainless Steel bullet style feet
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Nimbus 13 partition system is suitable for use in high or low abuse wet areas such as toilets, changing rooms or showers.

Recommended applications:

  • Offices
  • Factories
  • Hotels
  • Restaurants
  • Educational centres
  • Sporting and Gymnasium centres
  • Clubs and Entertainment centres
  • Recreational centres
  • Shopping centres
  • Public Areas
  • Caravan parks and campgrounds
Limitations on Use

The use of strong acid or alkaline cleaning agents, abrasive or polishing materials should not be used as they may stain or damage the worktop surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
  • NZ Building Code: Clause E3 - Internal Moisture
  • NZ Building Code: Clause G1 - Personal Hygiene
In-Service History

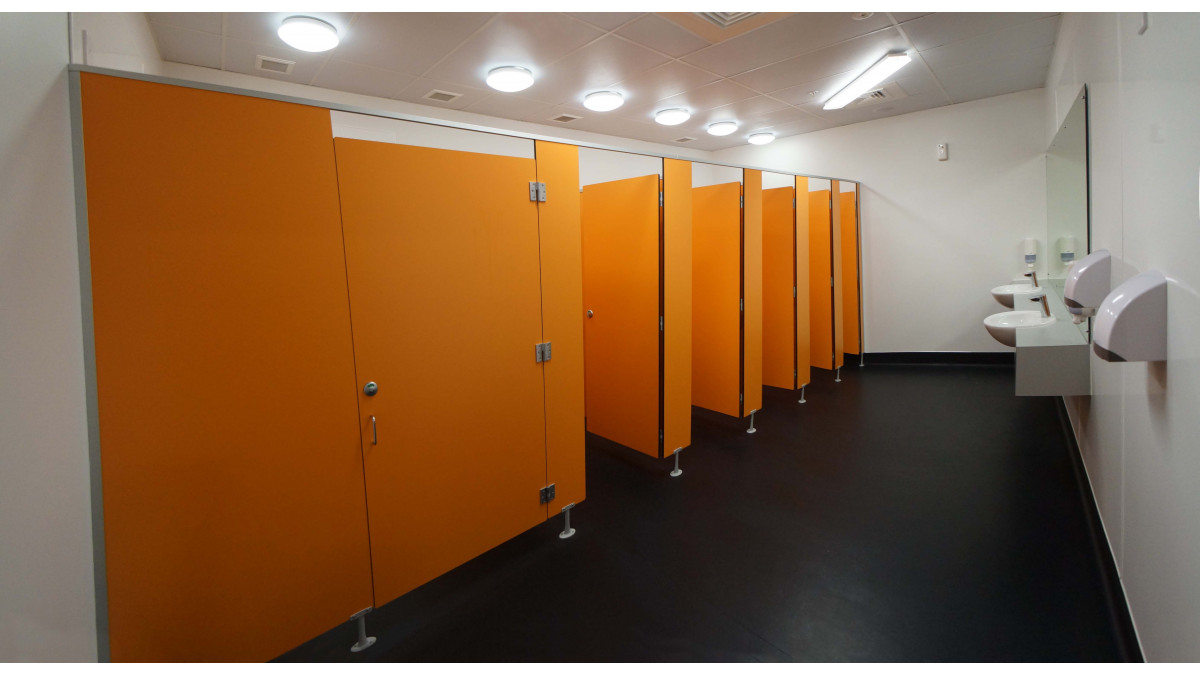

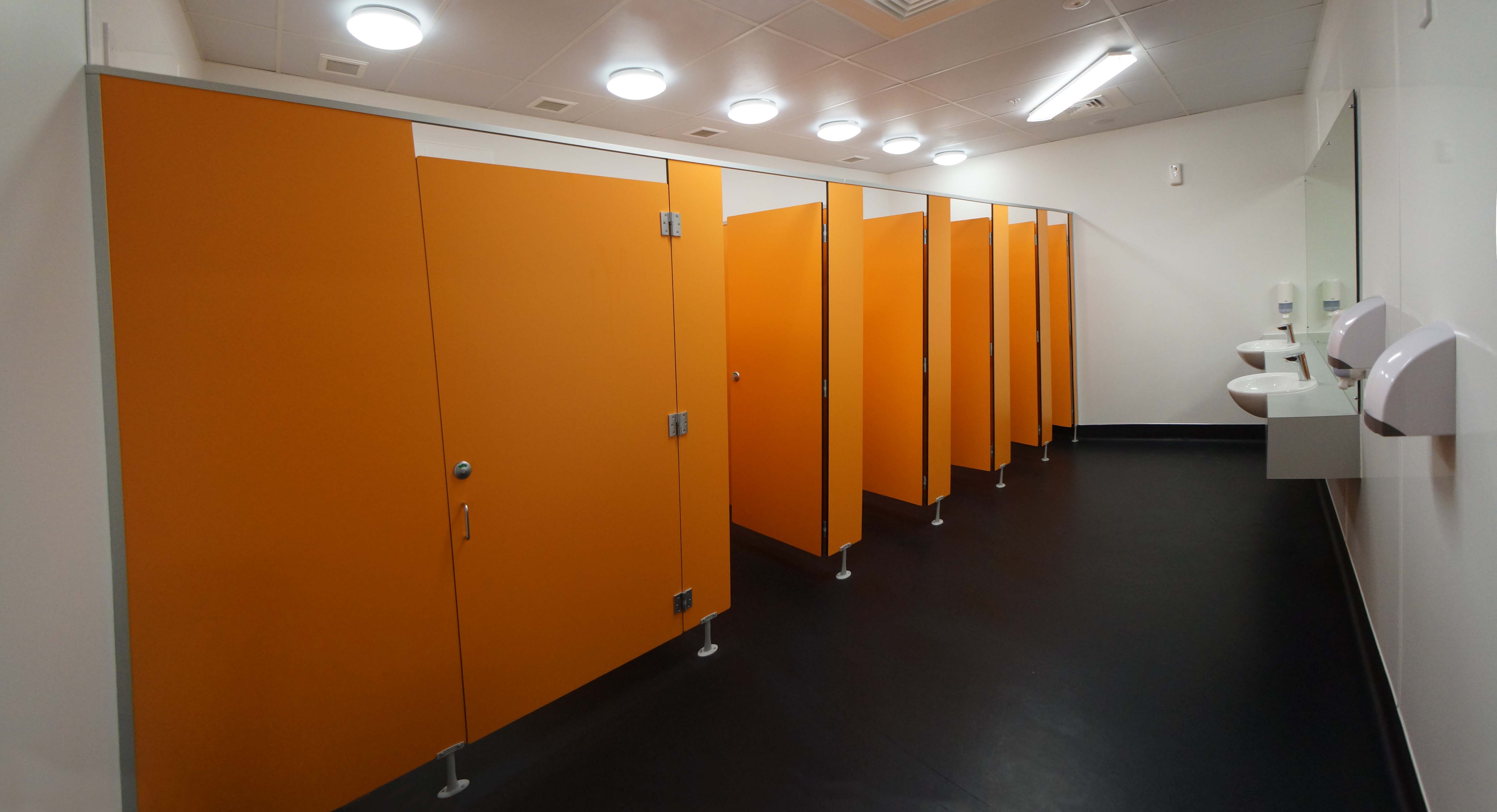

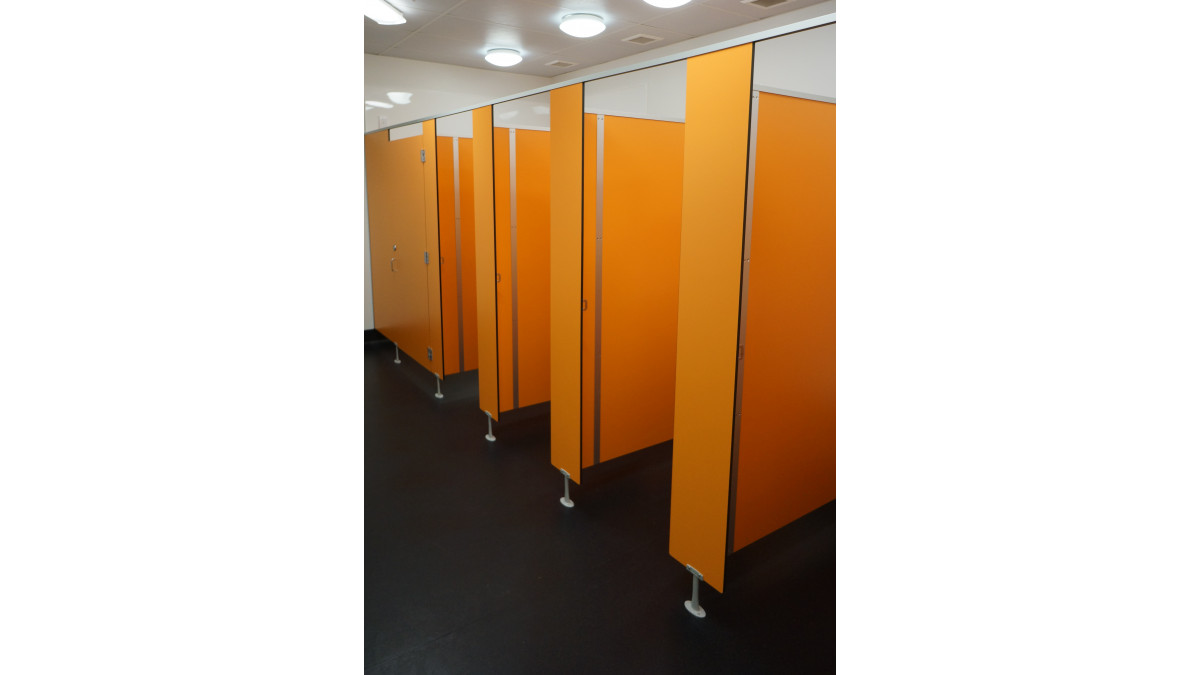

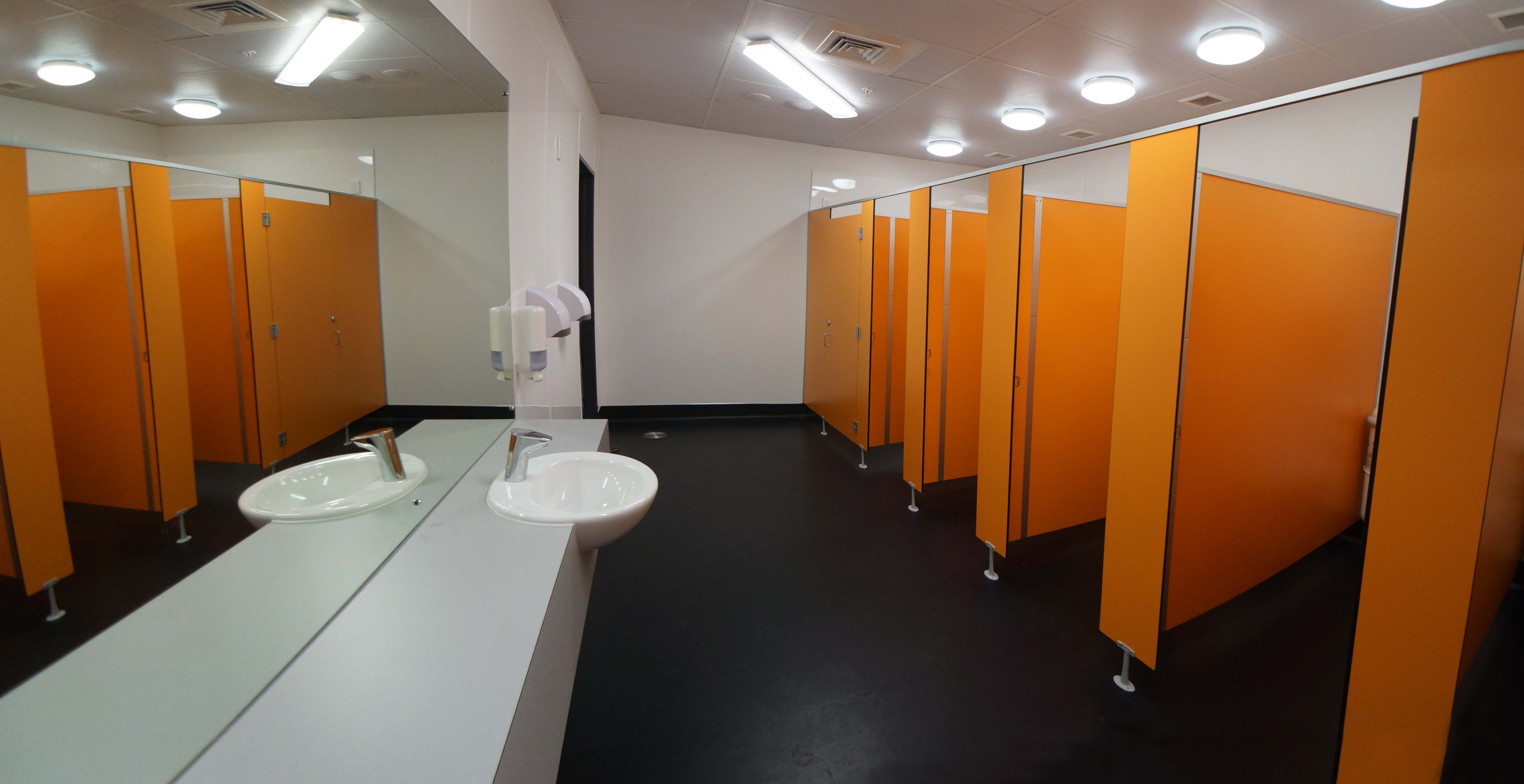

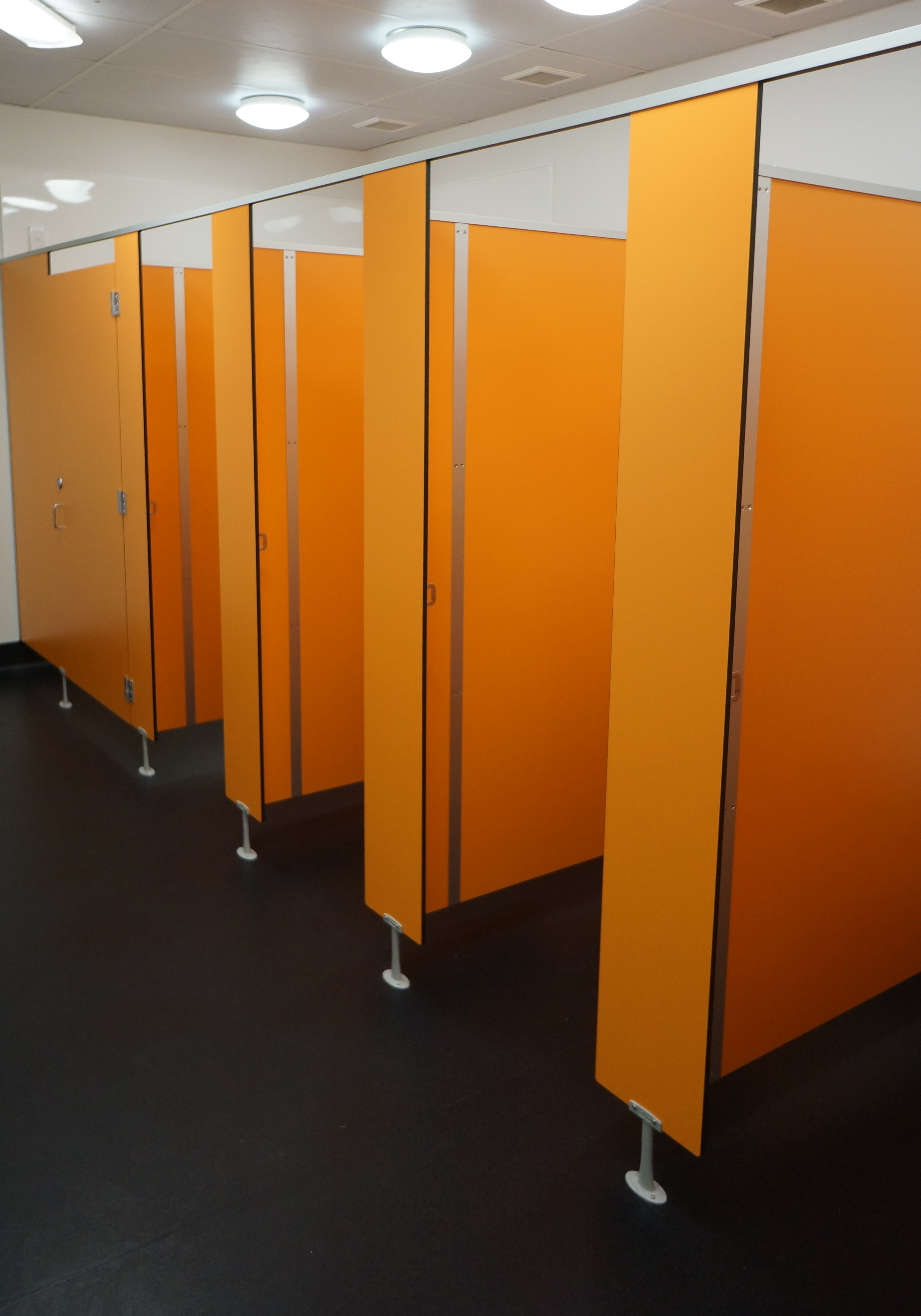

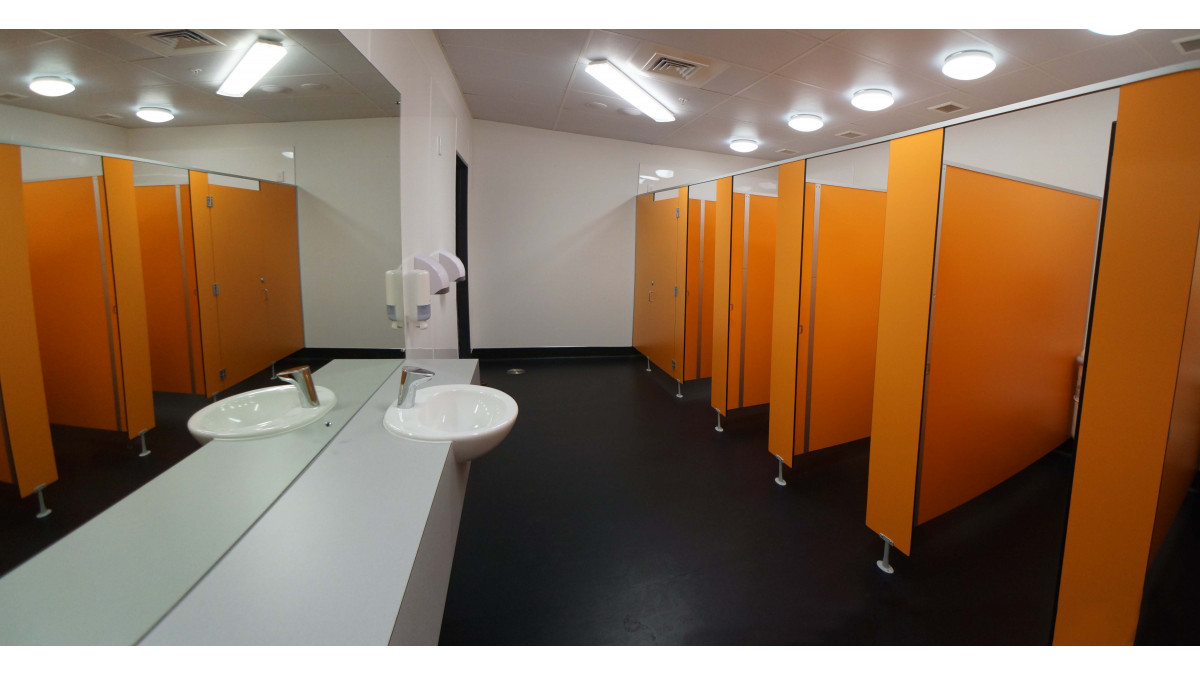

The Hale Nimbus 13 partition system has been installed in well known buildings in Auckland, the most recent being Hobsonville Point School, Auckland.

Other Performance Attributes

Laminex Compact Laminate is certified antimicrobial to JIS Z 2801:2001 and proven to prevent the growth of bacteria and fungi on the surface up to 99% within 24 hours.

The Hale In-House Compact Laminate is certified antimicrobial to ASTM G22.  It is produced by permanently incorporating a US-EPA approved, well-known and widely used anti-microbial agent to retard the growth of nearly 99% of common form of bacteria on any decorative surface, further adding a spectacular look to the overall décor.

B2 Durability compliant
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
G1 Personal Hygiene compliant
Personal Hygiene
Interior Fire Rating 3
Installation Details (link to page on supplier website)
Antibacterial Information (Hale Compact)
Antibacterial Information (Laminex)
Multipurpose Compact Data Sheet
Specification Clause (Masterspec)
Test Results
Test Results
Test Results
Colour Range
Colour Range
Colour Range

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
