Swiss CDF 13mm Partition System
Description

The Hale SwissCDF partitioning system is an economical solution and, using design patented suites of hardware with channel headrail extrusion, makes it a system that is aesthetically pleasing. A high pressure laminate, factory applied to Compact Density Fibreboard provides superior impact resistance and is recommended for dry areas such as toilets.

Key Features
  • Group 3 Fire rating
  • 13mm SwissCDF (Compact Density Fibreboard) Panels with high pressure laminate
  • Anodised aluminium concealed fix adjustable (165mm - 240mm) pedestal legs
  • Devon Satin Chrome Plated indicator bolt with large turn lock inside of cubicle and red/green indication with coin operated emergency release to outside
  • Emergency lift off hinges
  • CNC Machined edges, black core requires no additional protection
  • A system that is cost effective and durable
  • Economically friendly and aesthetically pleasing
  • Panels are 2070mm wide, eliminating the need for joints in most cases
  • Concealed fixed Avanti or Wave gravity hinges
  • Concealed fixed Avanti or Wave coat hook and bumper
  • Anodised aluminium channel headrail
  • Continuous wall channel fixing at all junctions
  • 5 year board guarantee
  • Flexible design, available in ready to install, flat pack complete with shop drawings and installation manual

Optional Extras:

  • Sliding door or open out door to comply with accessibility requirements
  • Privacy strips along hinge and opening side of door for maximum privacy of cubicle
  • Powder coating to aluminium trim available
  • CF2 Stainless Steel bullet style feet
Scope of Use

The Hale Swiss CDF partition system is suitable for use in low abuse dry areas such as toilets.

Recommended applications:

  • Offices
  • Factories
  • Hotels
  • Restaurants
  • Shopping centres
  • Educational centres
  • Club and Entertainment centres
  • Sports Clubs
  • Public areas
Limitations on Use

Abrasive cleaners or scourer pads are not to be used to clean Structuralboard as that may damage the surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
  • NZ Building Code: Clause G1 - Personal Hygiene
In-Service History

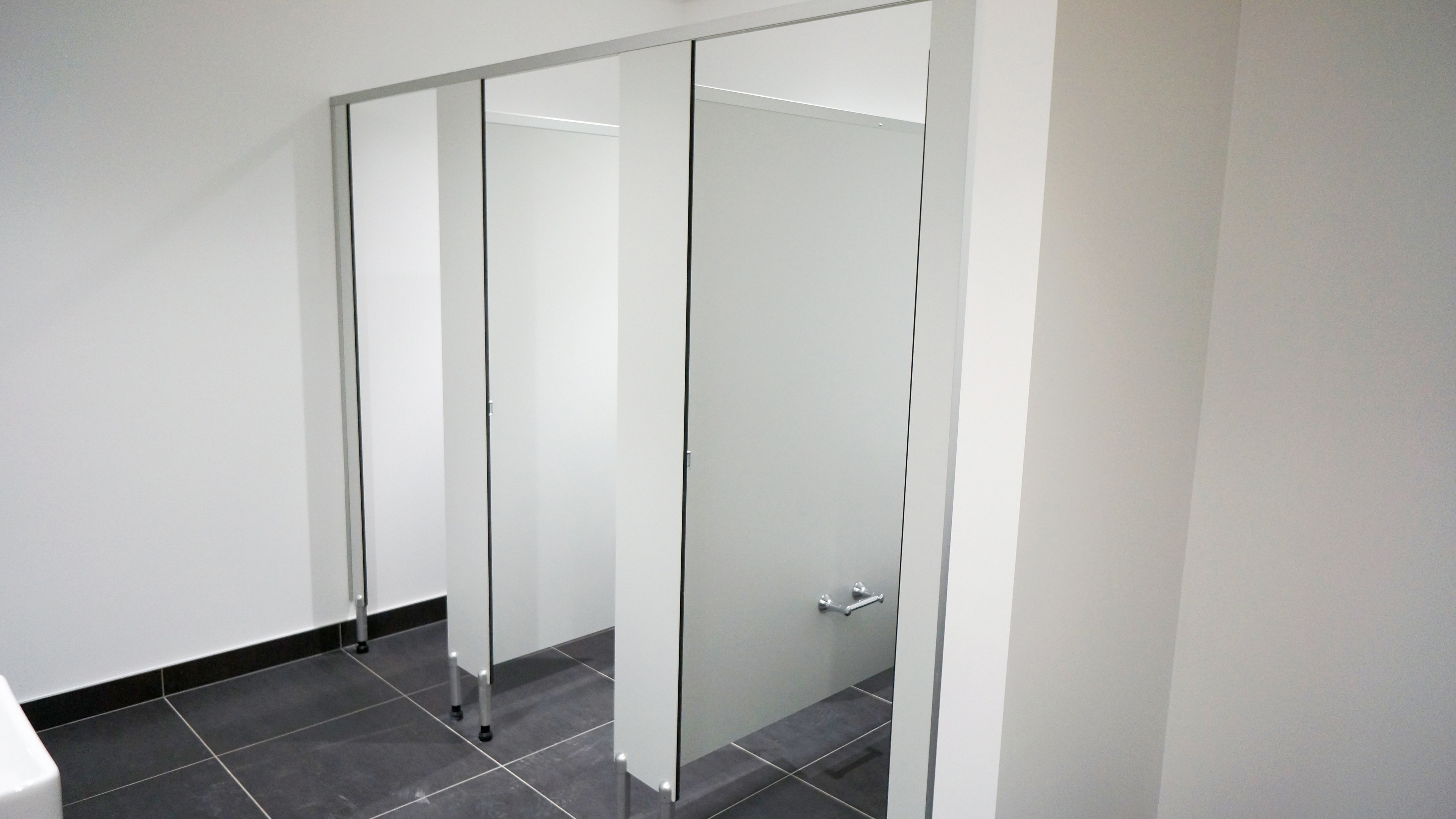

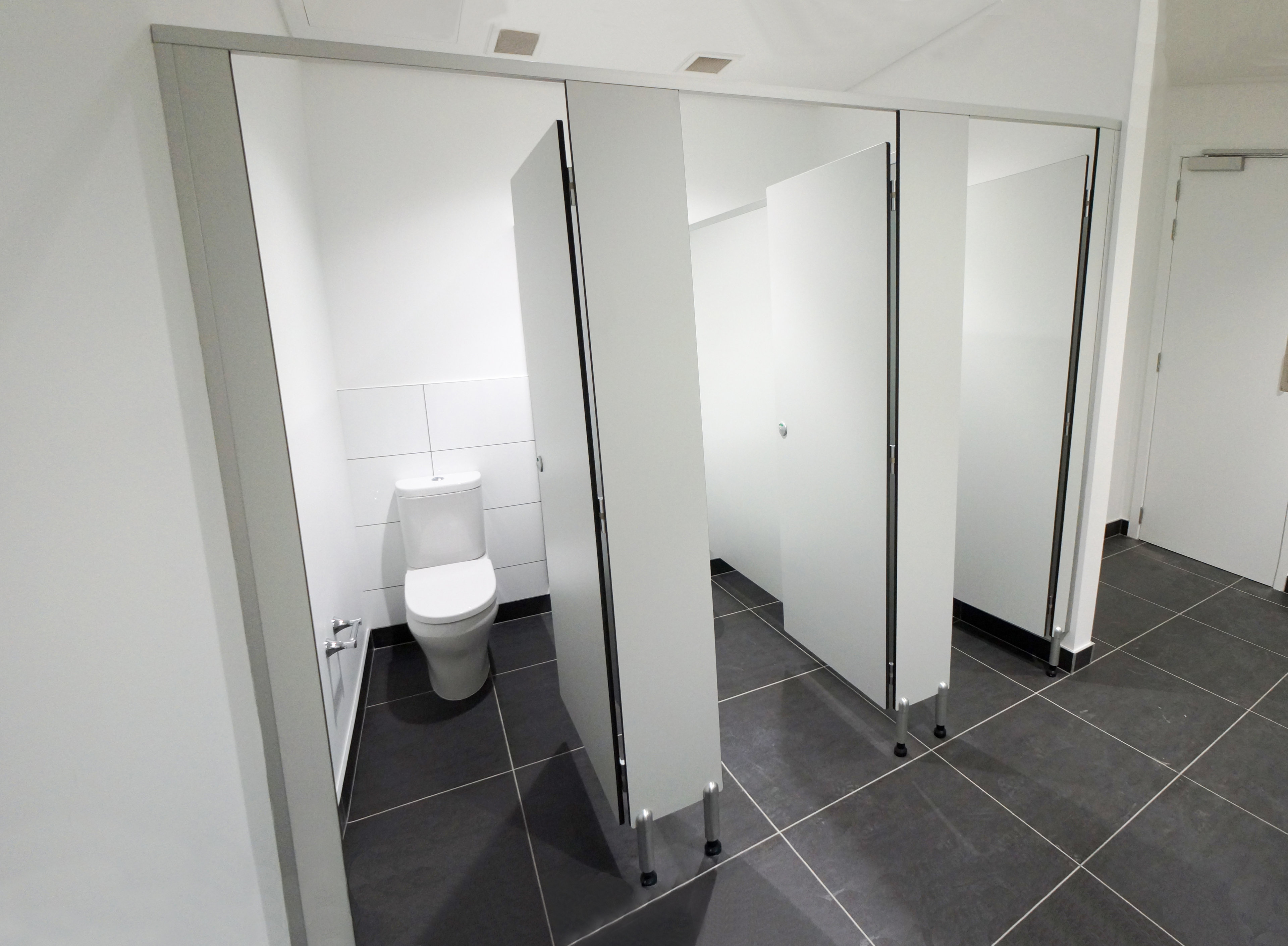

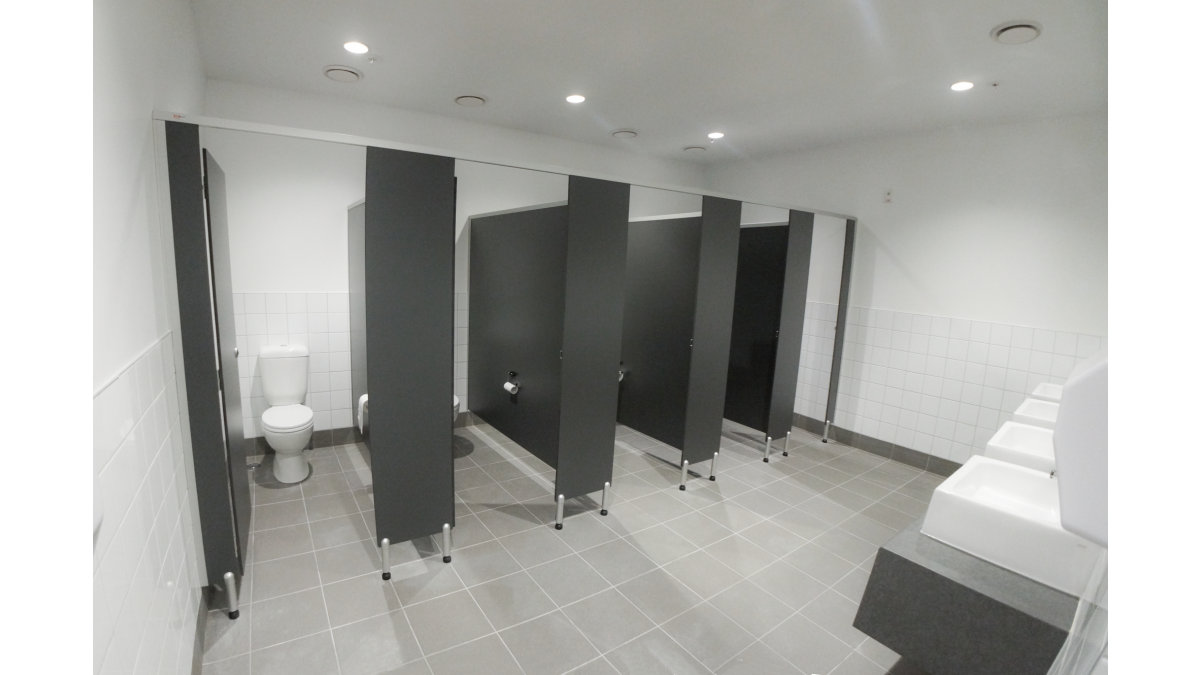

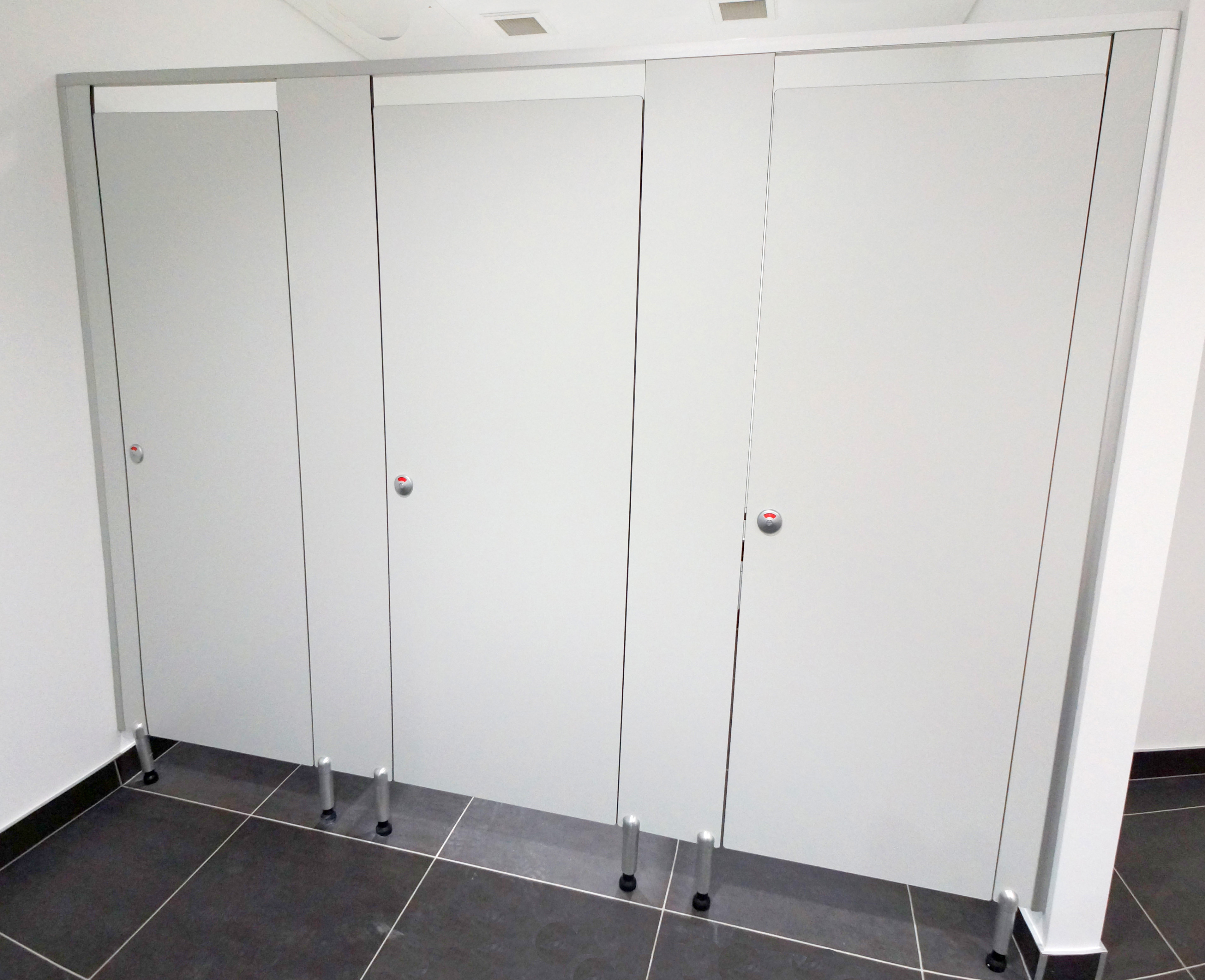

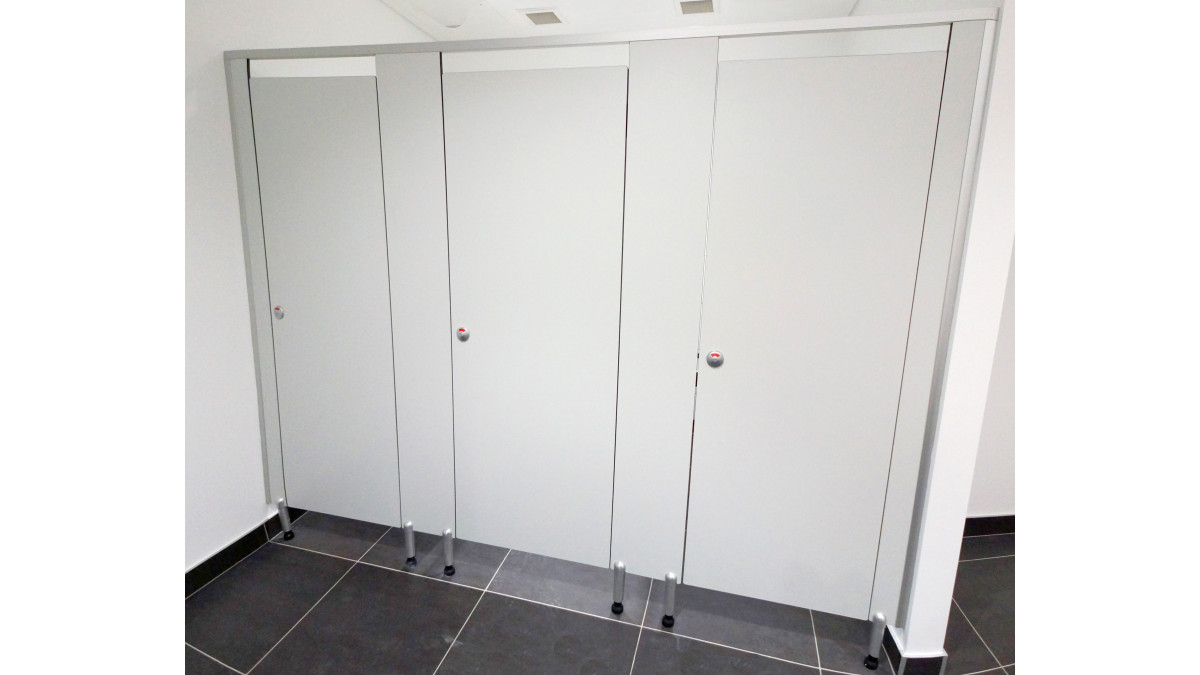

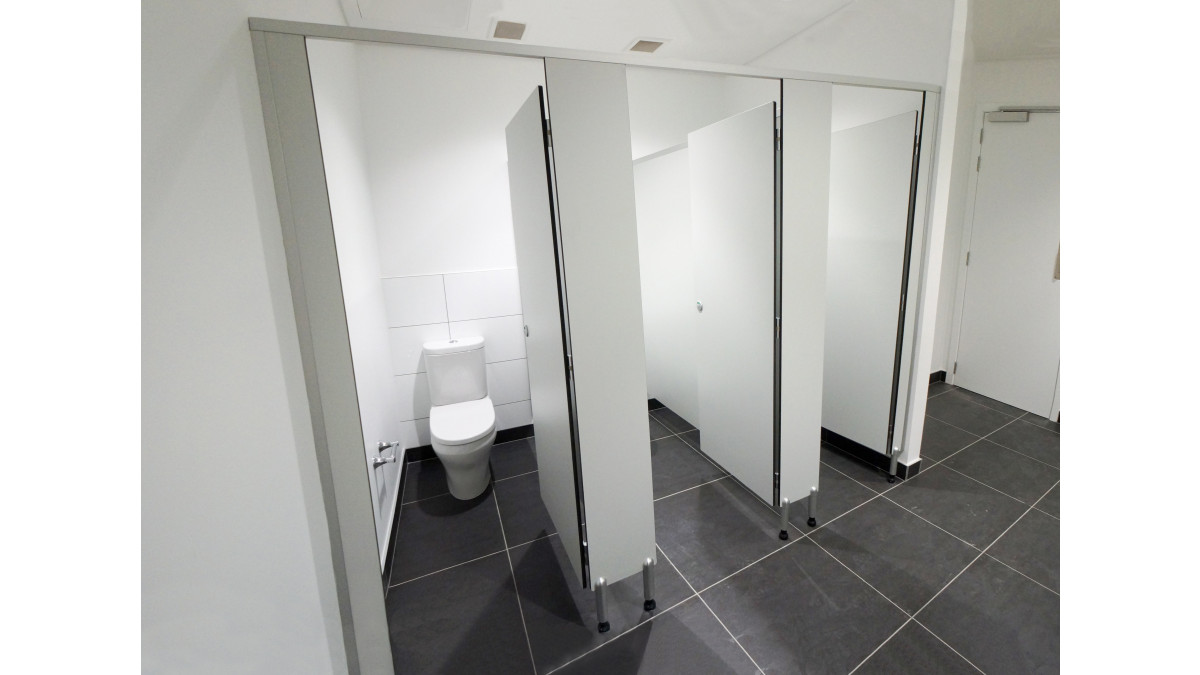

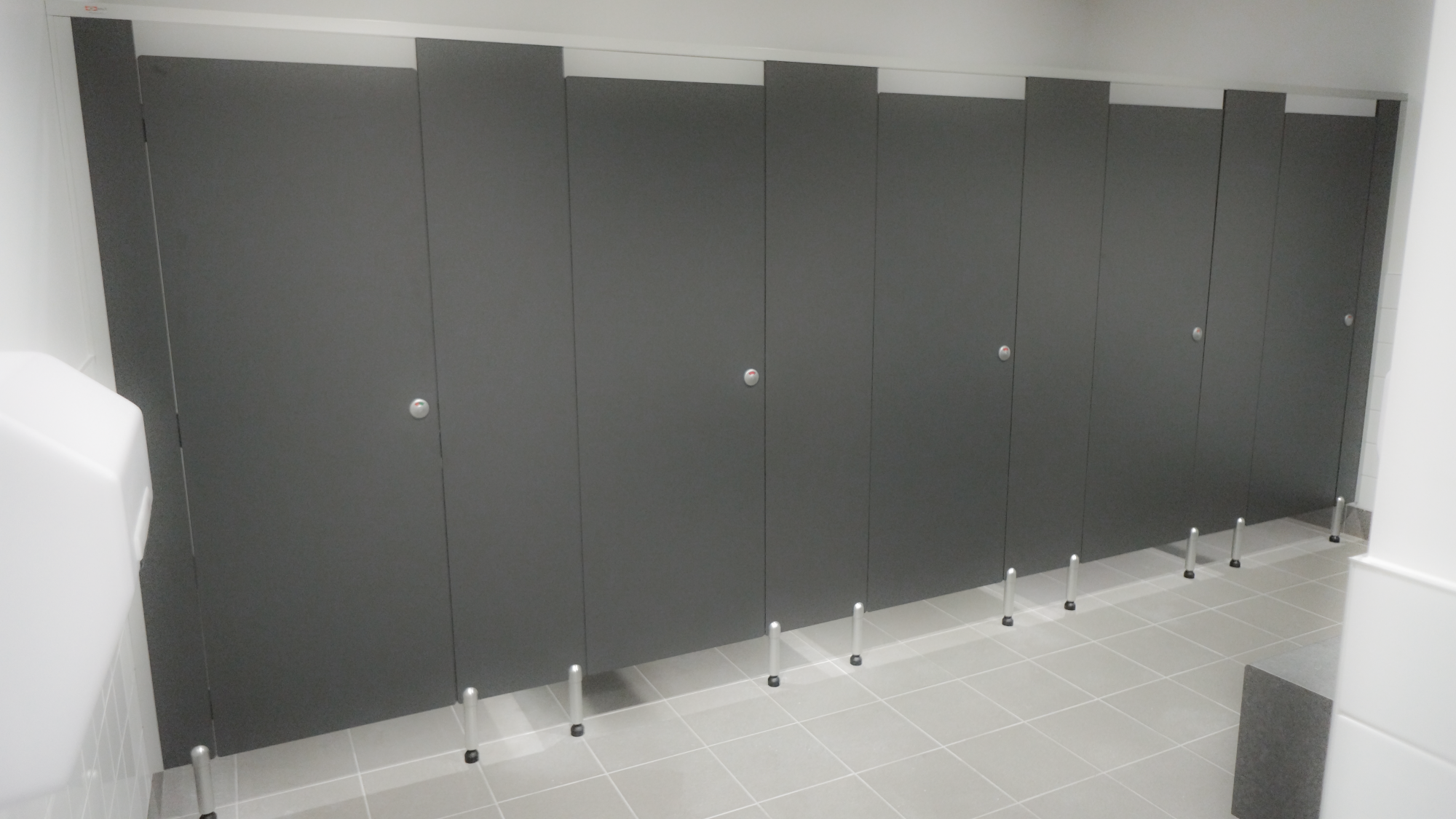

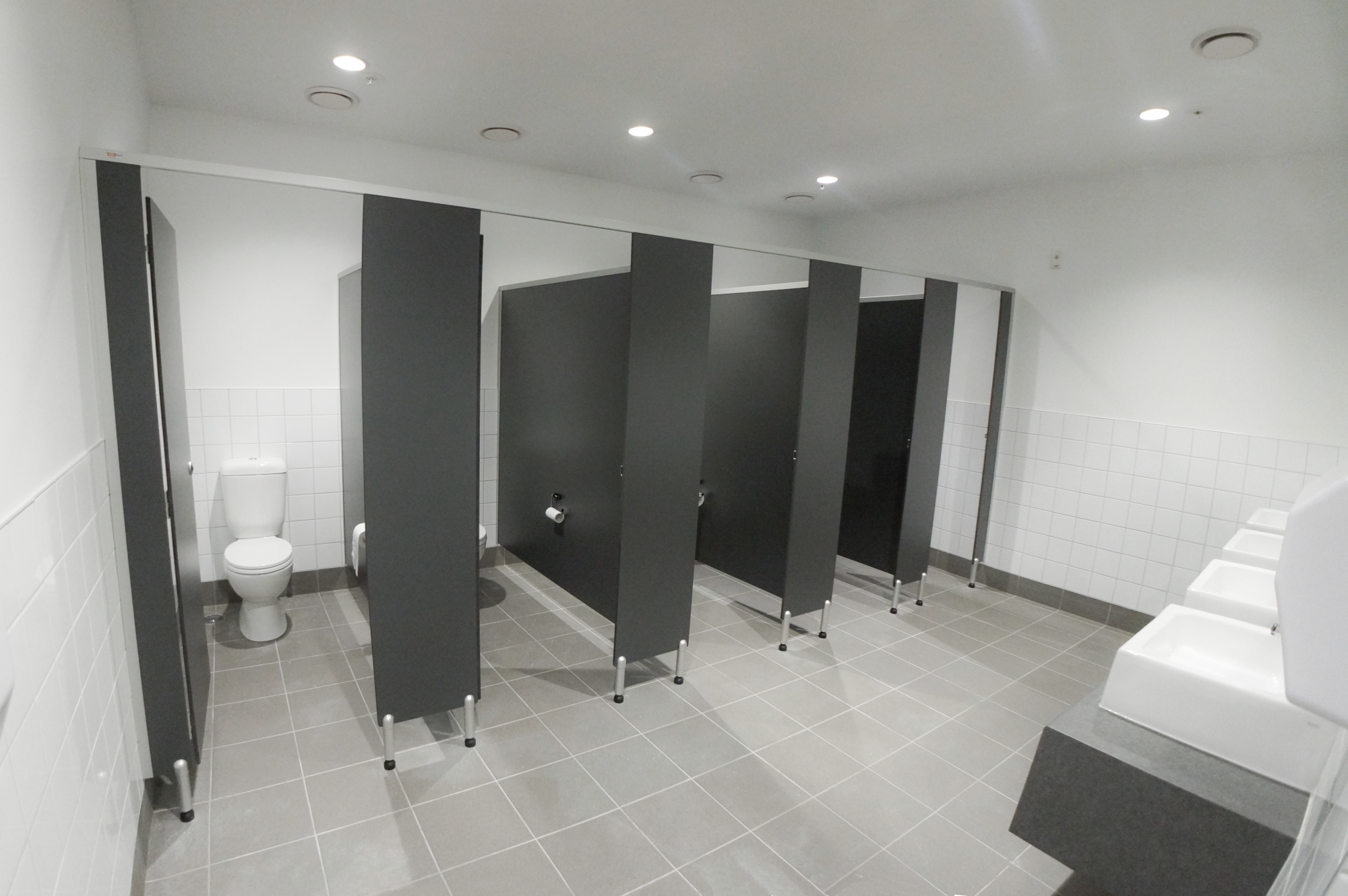

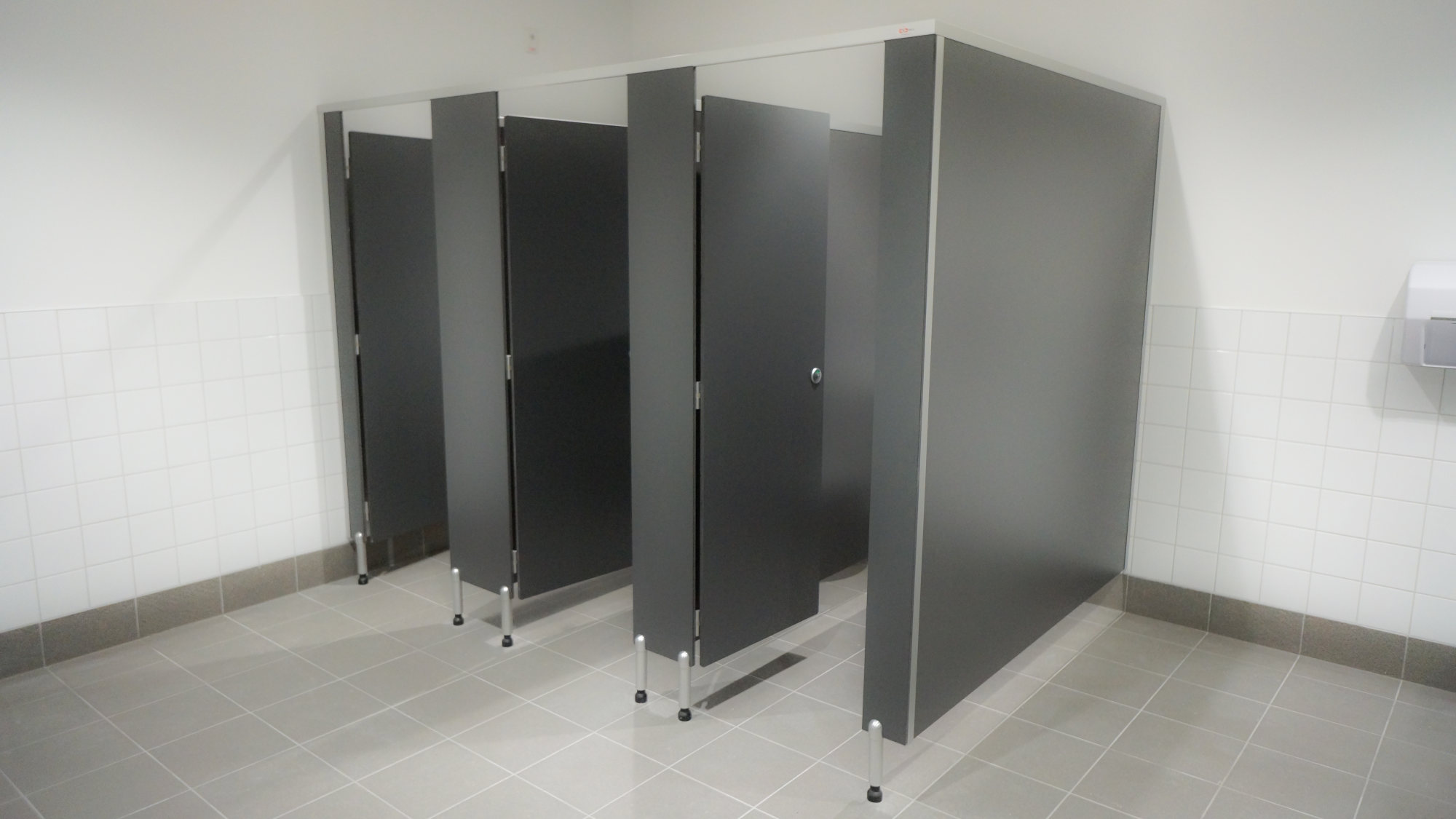

The Hale Swiss CDF partition system has been installed in well known buildings in Auckland, the most recent being Fonterra, West Gate Shopping Centre and Glen Eden Fitness Centre and Lynmore Junction, Rotorua.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
G1 Personal Hygiene compliant
Personal Hygiene
Interior Fire Rating 3
3
Documents
CAD/PDF (link to page on supplier website)
Installation Details (link to page on supplier website)
Test Results
Specification Clause (Masterspec)
Brochure
Colour Range

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
