Pinnacle 18 Partition System
Description

The Hale Pinnacle 18 partition system is an all-purpose system using 18mm Structuralboard (high moisture resistant MDF) core faced with a high impact resistant laminate. This system features anodised load supporting custom skirt mount pedestals for a clean look, overhead braced with anodised aluminium headrails. Available in a wide range of colours, this system is aesthetically pleasing and budget friendly.

Key Features
  • Group 3 Fire rating
  • 18mm Laminex Structural MR board panels featuring a high moisture resistant MDF core faced with high impact resistant laminate.
  • 2mm ABS edging, matching colour of panel face
  • Anodised load supporting custom skirt mount pedestal
  • Emergency lift off hinges
  • Panels are 1800mm wide, eliminating the need for joints in most cases
  • Cost effective and durable
  • Concealed fixed Avanti or Wave indicator lock with combined bumper
  • Concealed fixed Avanti or Wave gravity hinges
  • Concealed fixed Avanti or Wave coat hook and bumper
  • Anodised aluminium headrail
  • Continuous wall channel fixing at all junctions
  • 7 year board warranty
  • Environmentally friendly low emissions board
  • Flexible design, available in ready to install, flat pack complete with shop drawings & installation manual

Optional Extras:

  • Sliding door or open out door to comply with accessibility requirements
  • Powder coating to aluminium trim available
  • Privacy strips along hinge and opening side of door for maximum privacy of cubicle
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Pinnacle 18 partition system is suitable for use in low abuse dry areas such as toilets.

Recommended applications:

  • Offices
  • Hotels
  • Restaurants
  • Shopping centres
  • Educational centres
  • Sporting and Gymnasium centres
  • Clubs and Entertainment centres
Limitations on Use

The Hale Pinnacle 18 partition system has a Structuralboard (Moisture Resistant MDF) Core, making this system unsuitable to be hosed down for cleaning and for any wet areas such as showers.

Abrasive cleaners or scourer pads are not to be used to clean Structuralboard as that may damage the surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
In-Service History

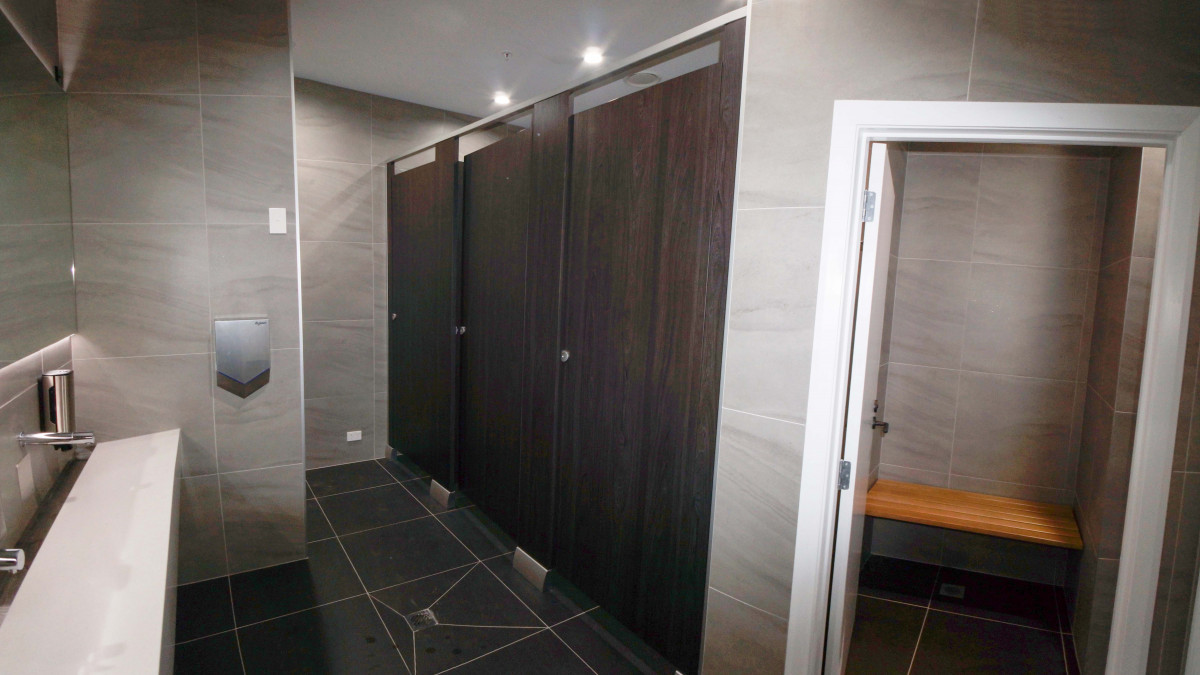

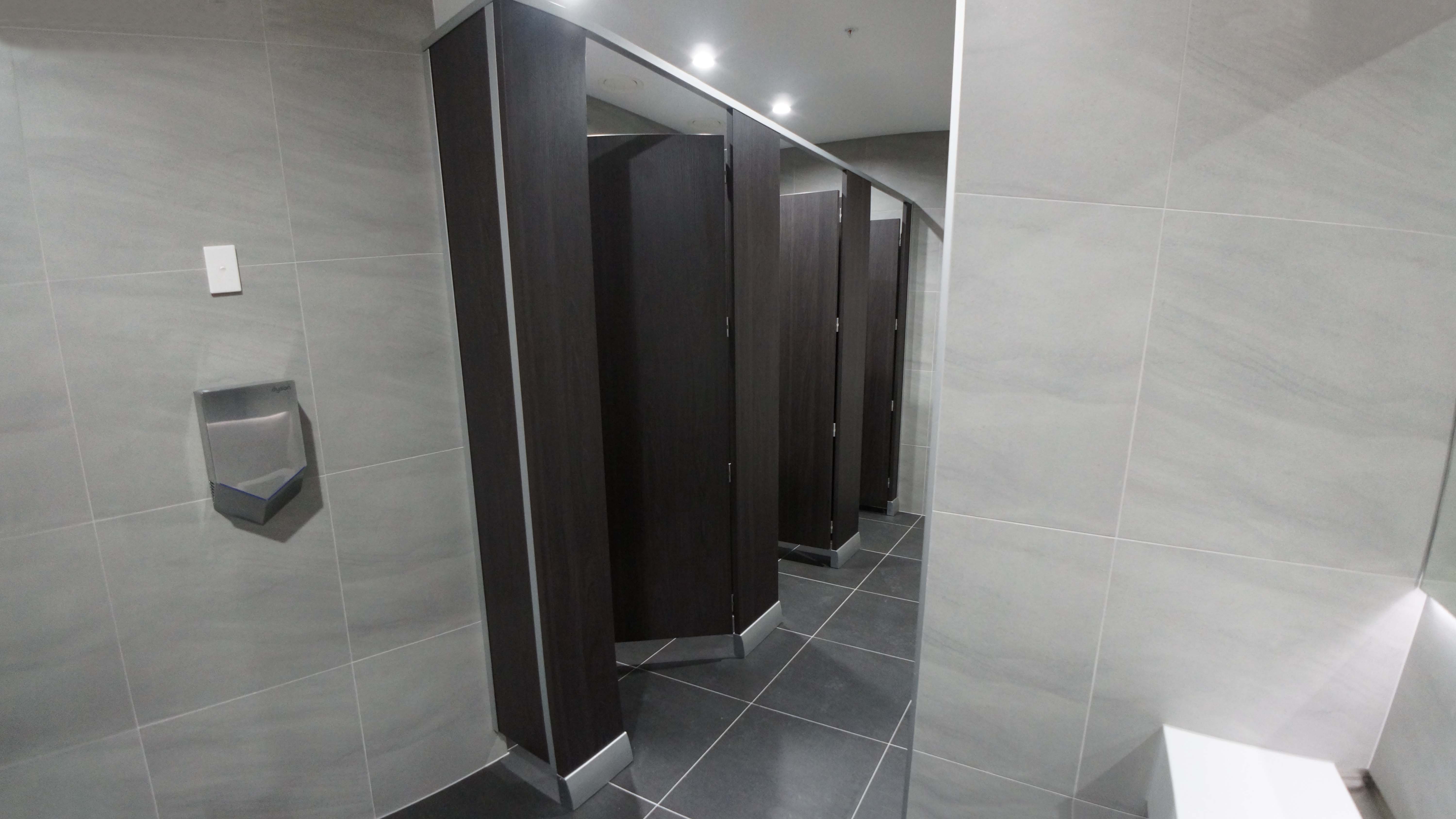

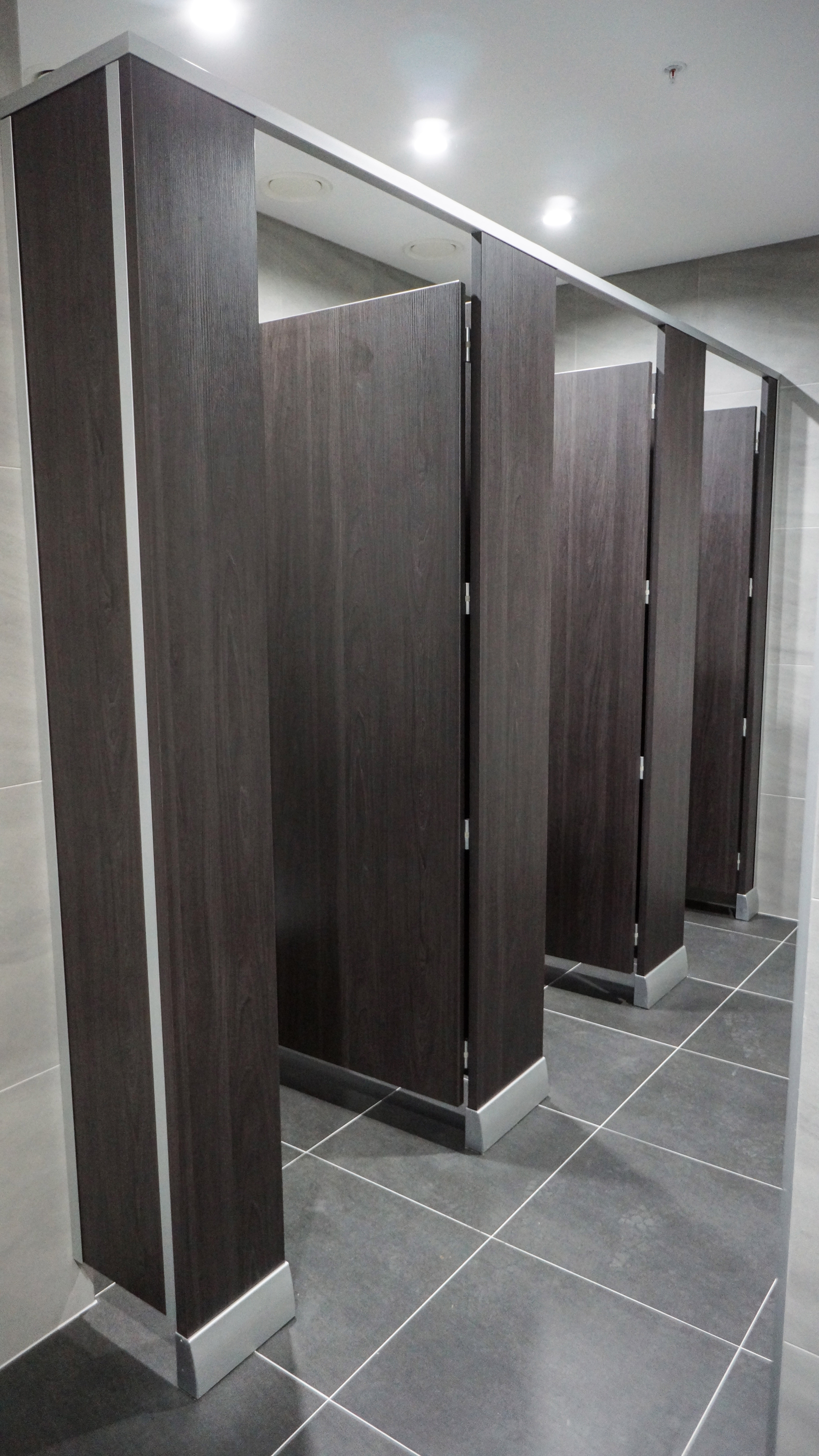

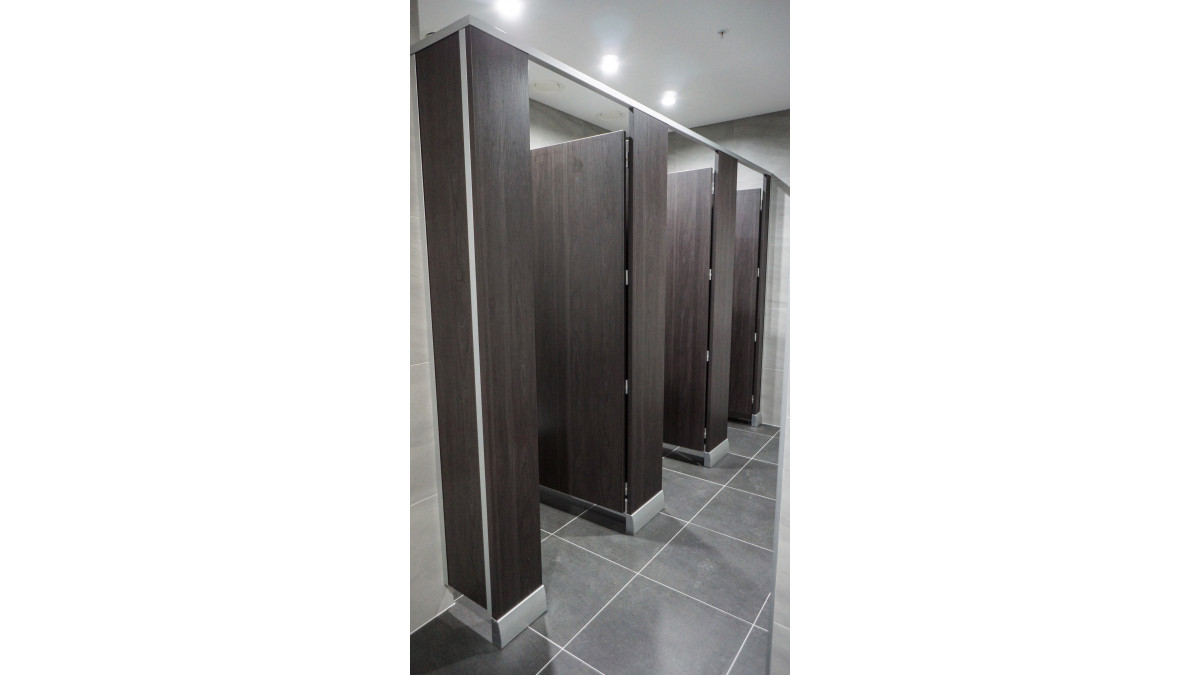

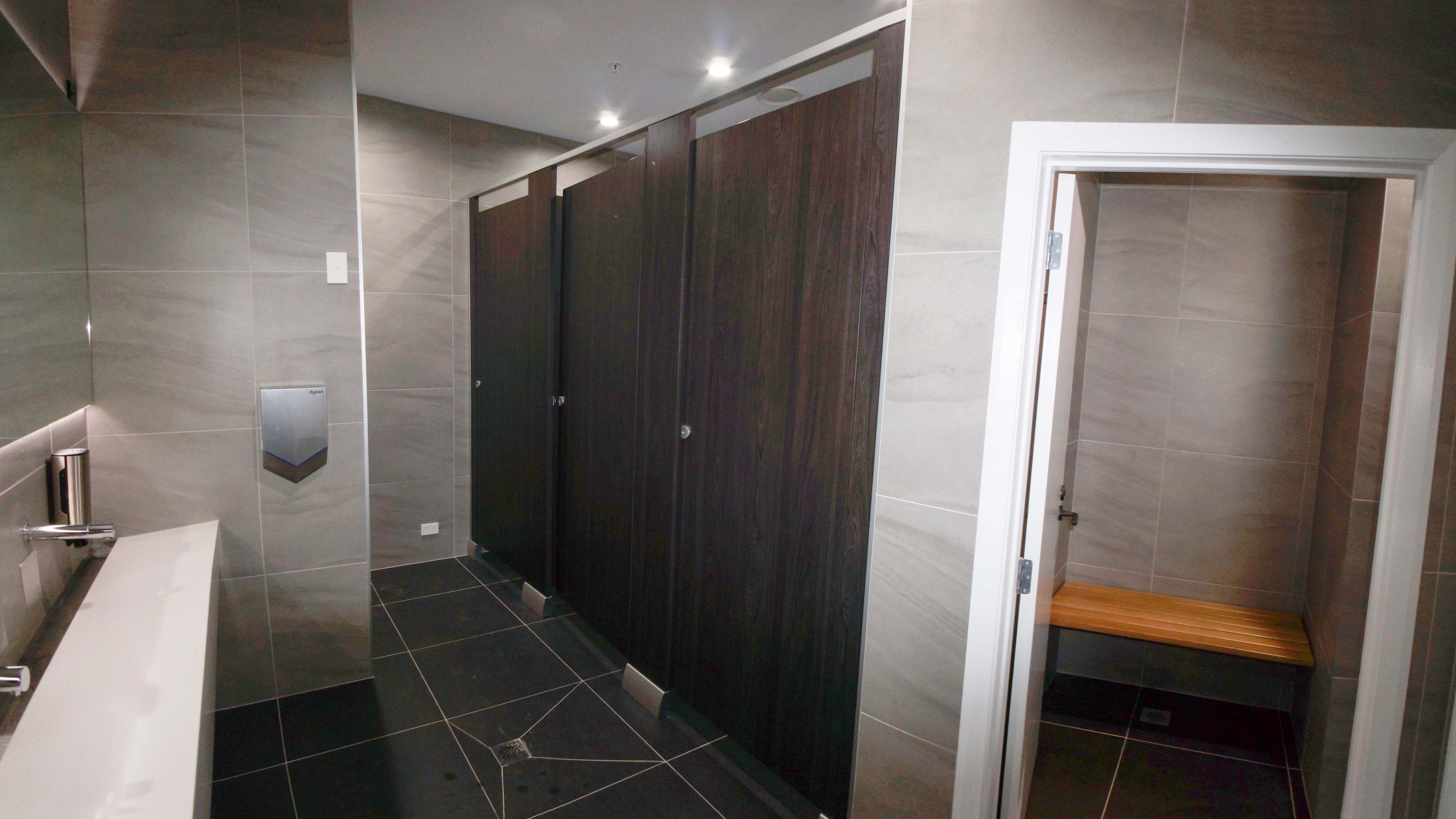

The Hale Pinnacle 18 partition system is a relatively new system to Hale Manufacturing, only being in the market since early 2016 and has been installed at 34 Cryers Road, Auckland.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
Interior Fire Rating 3
3
Documents
CAD/PDF (link to page on supplier website)
Installation Details (link to page on supplier website)
Data Sheet
Test Results
Specification Clause (Masterspec)
Brochure
Colour Range

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
