Freestyle Kindy 18 Partition System
Hale Manufacturing
All products

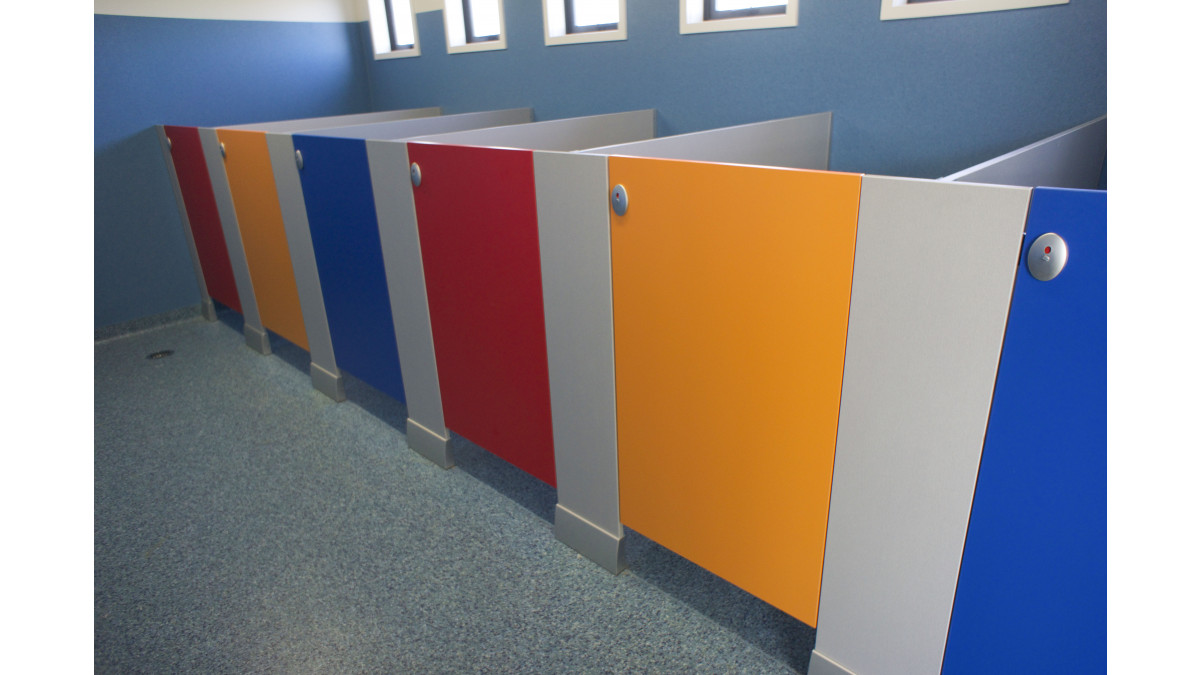

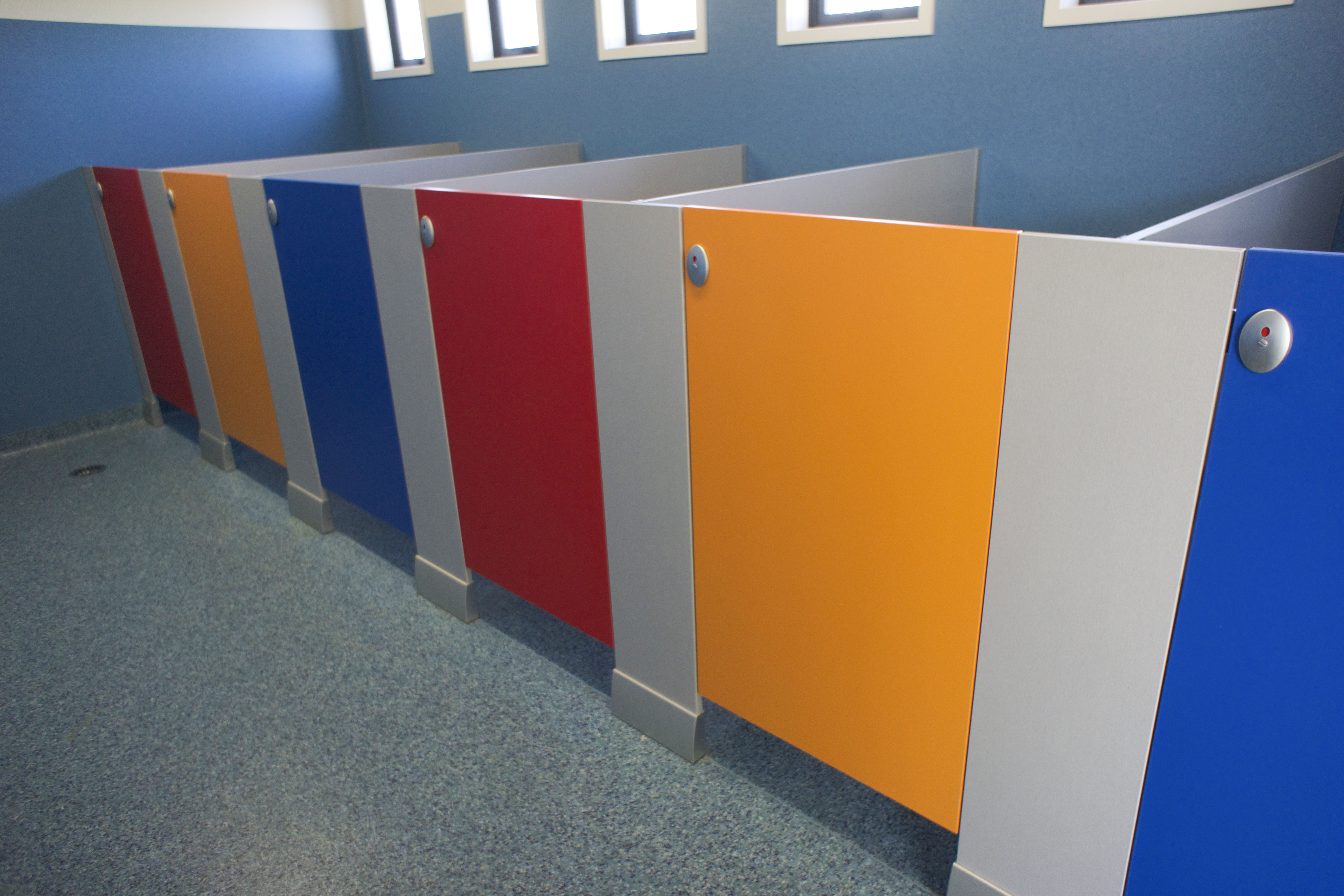

Glen Innes kindy 1

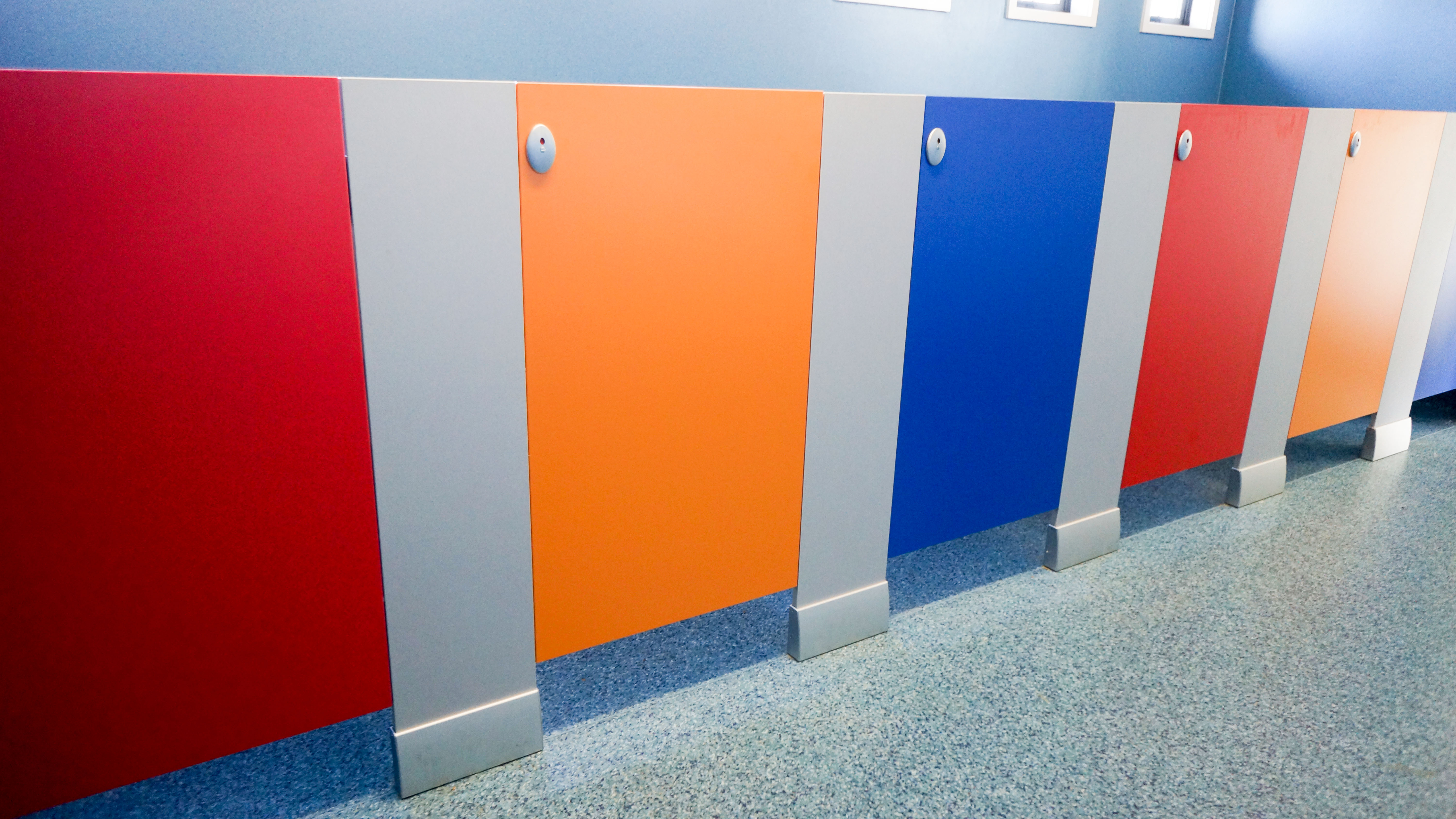

Front page

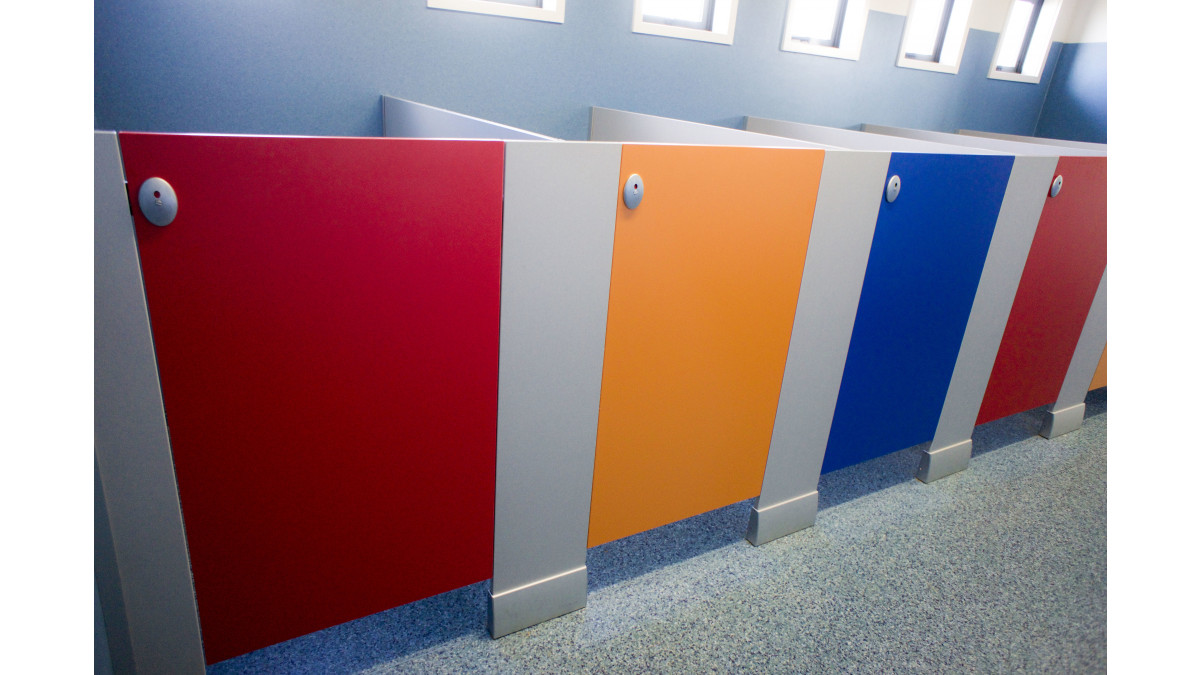

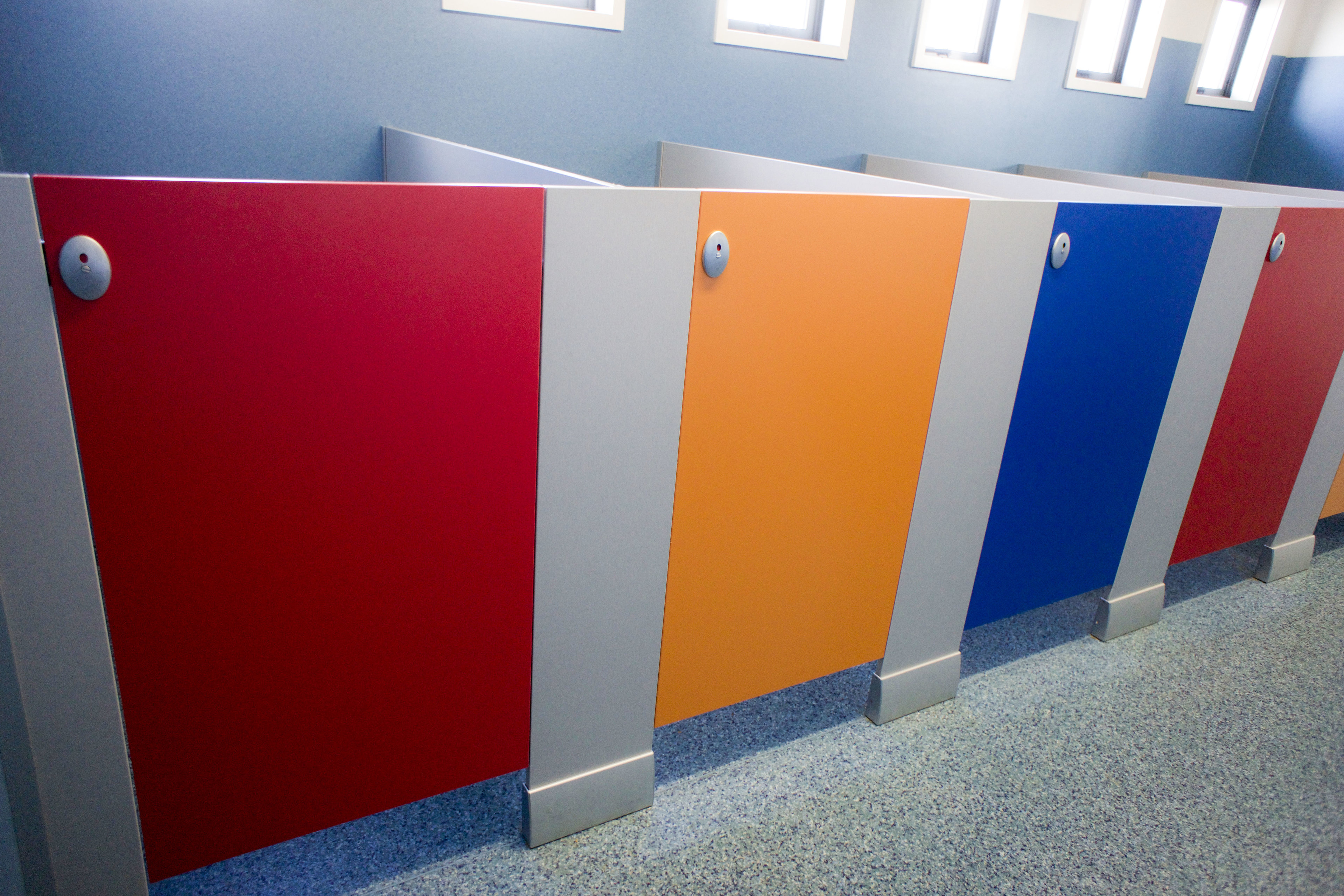

Glen Innes Kindy 4
Description

The Hale Freestyle Kindy 18 partitioning system offers anodised load supporting custom skirt foot mounting, giving this system clean lines and a quirky style. This system features low height cubicles for kindergarten and child care facilities allowing privacy for little people and easy access for grown-ups. The custom skirt foot does require a concrete floor for installation to ensure maximum rigidity in the system and to minimise panel movement.

The Freestyle 18 panels are pre-finished with 2mm ABS edging, matching the colour of the panel face.

Key Features
  • Group 3 Fire Rating
  • 18mm Laminex Structural MR board panels featuring a high moisture resistant particle board core faced with high pressure laminate
  • 2mm ABS edged panels, matching the colour of the face
  • Anodised load supporting custom skirt mount pedestals
  • Emergency lift off hinges
  • Skirt foot mounting without the need for headrail
  • All dimensions can be tailor made to suit your application and needs
  • Creates an easy to use, functional environment for both children and staff alike
  • Easy to clean and low maintenance
  • Concealed fixed Avanti or Wave lock and bumper
  • Concealed fixed Avanti or Wave Indicator
  • Concealed fixed Avanti or Wave gravity hinges
  • Concealed fixed Avanti or Wave coat hook and bumper
  • Continuous wall channel fixing at all junctions
  • 7 year board guarantee
  • Environmentally friendly low emissions board
  • Flexible design, available in ready to install, flat pack complete with shop drawings and installation manua

Optional Extra:

  • Powder coating to aluminium trim available
  • Privacy strips along hinge and opening side of door for maximum privacy of cubicle
Categories
Toilet and Cubicle Partitions
Ranges
Toilet Partitions Kindergarten Partitions
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Freestyle Kindy 18 partition system is suitable for use in low abuse, dry areas such as toilets.

Recommended applications:

  • Educational centres
  • Offices and Factories
  • Hotel and Restaurants
  • Public areas
  • Caravan parks and campgrounds
Limitations on Use

Never use abrasive cleaners or scourer pads to clean Structural Board as that may damage the surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
In-Service History

The Hale Freestyle Kindy 18 partition system has been installed in well known buildings in Auckland, the most recent being Glen Innes Kindy.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
Interior Fire Rating 3
3
Documents
CAD/PDF (link to page on supplier website)
URL
Installation Details (link to page on supplier website)
URL
Data Sheet
pdf
Specification Clause (Masterspec)
URL
Test Results
URL
Brochure
URL
Colour Range
pdf

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
