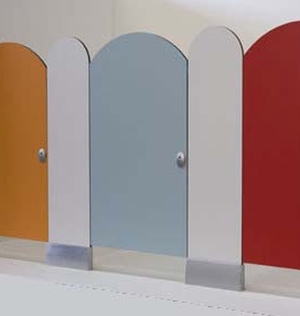

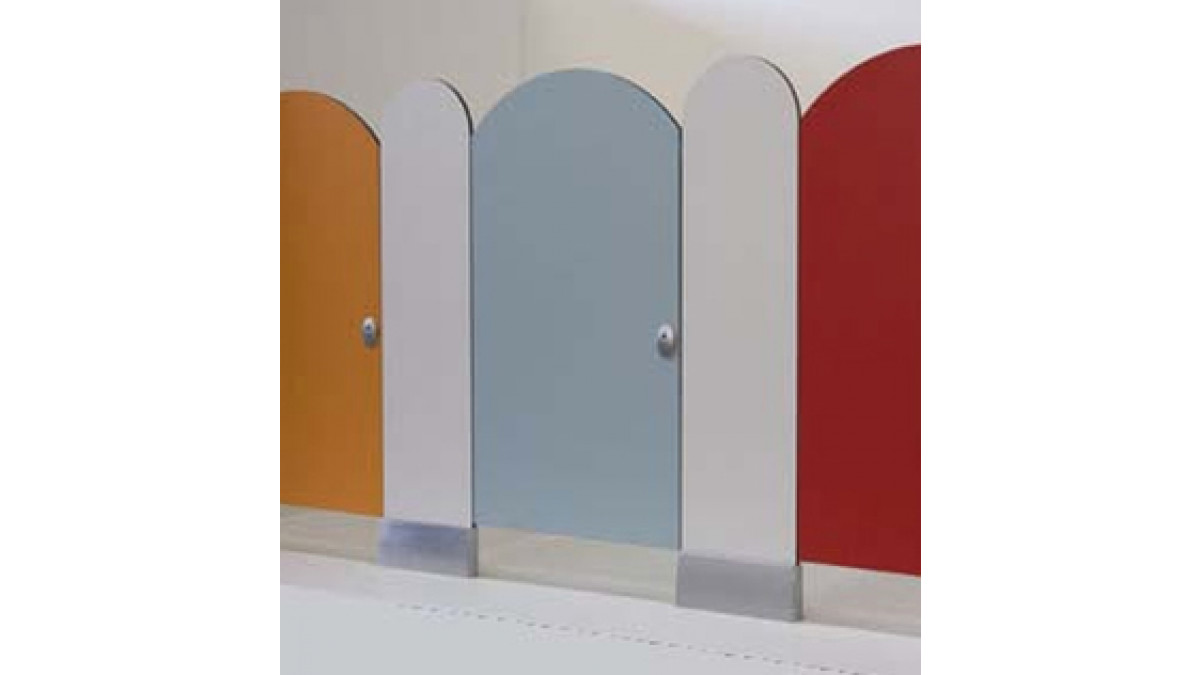

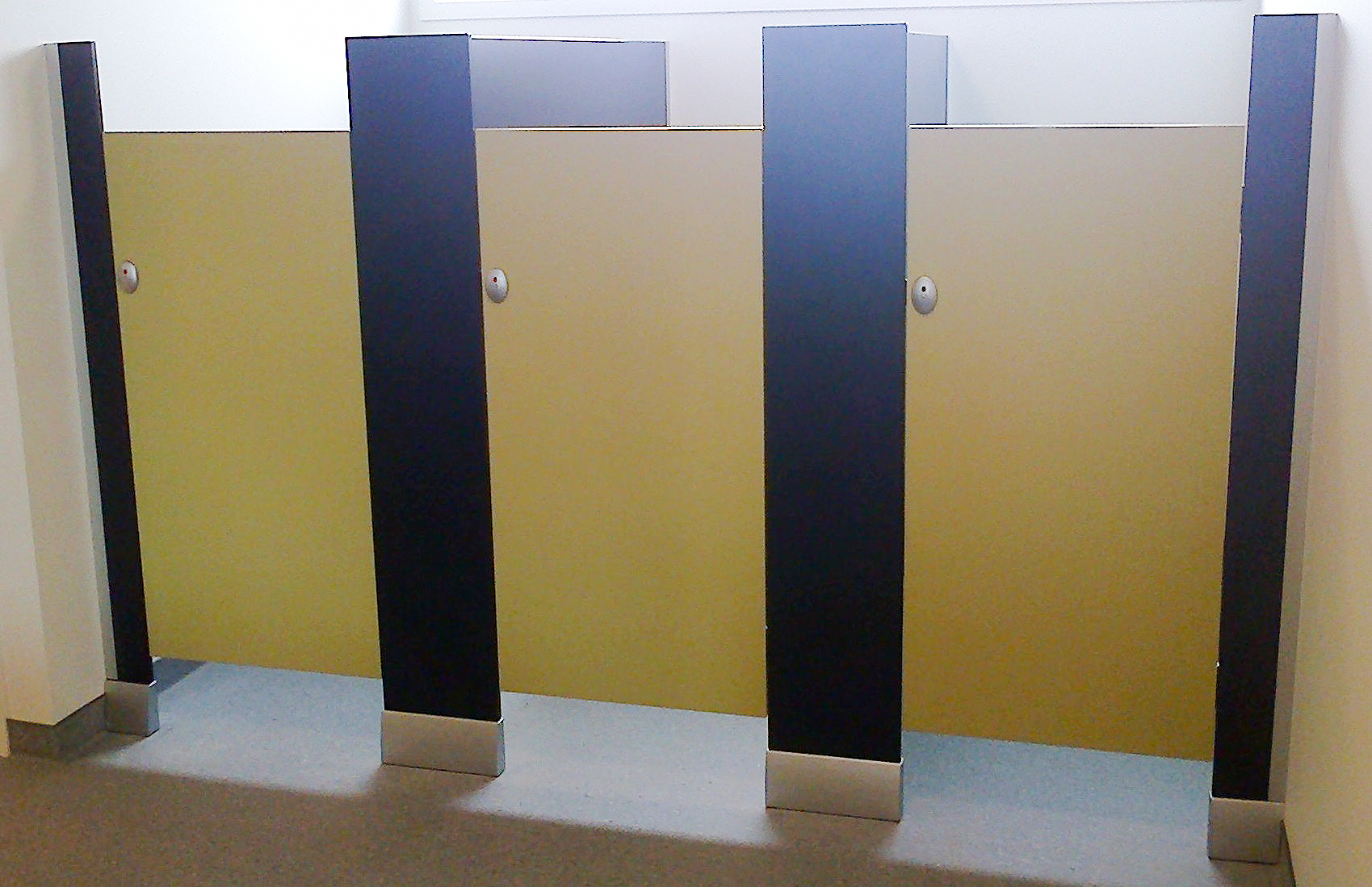

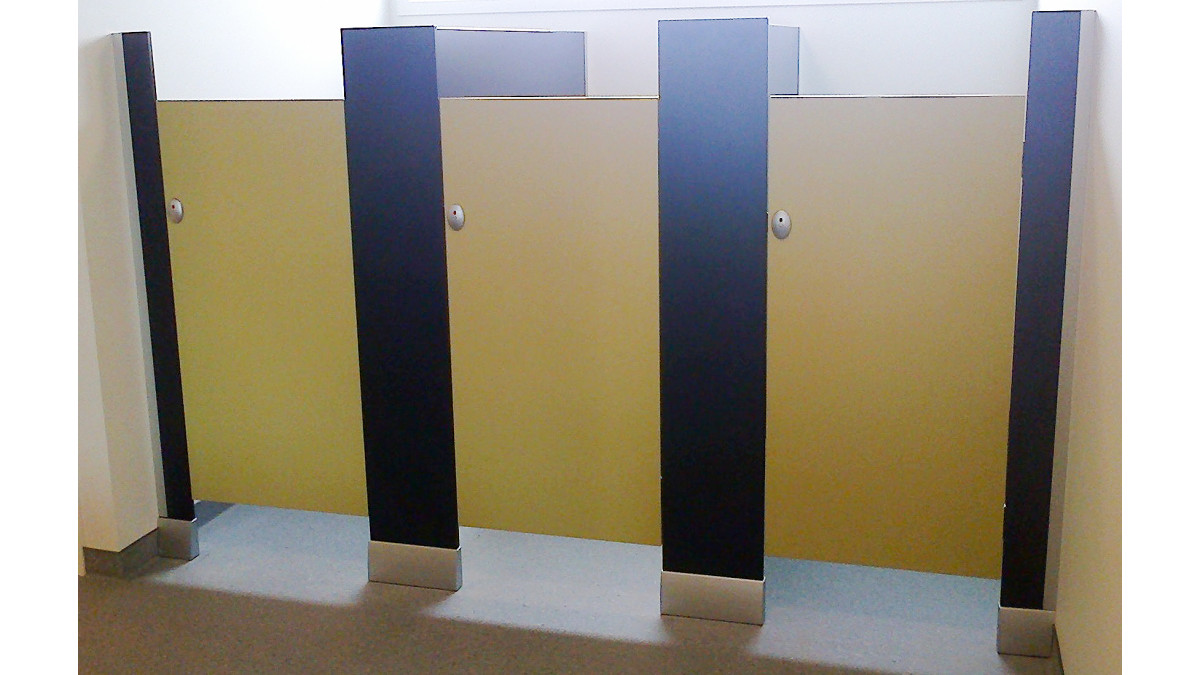

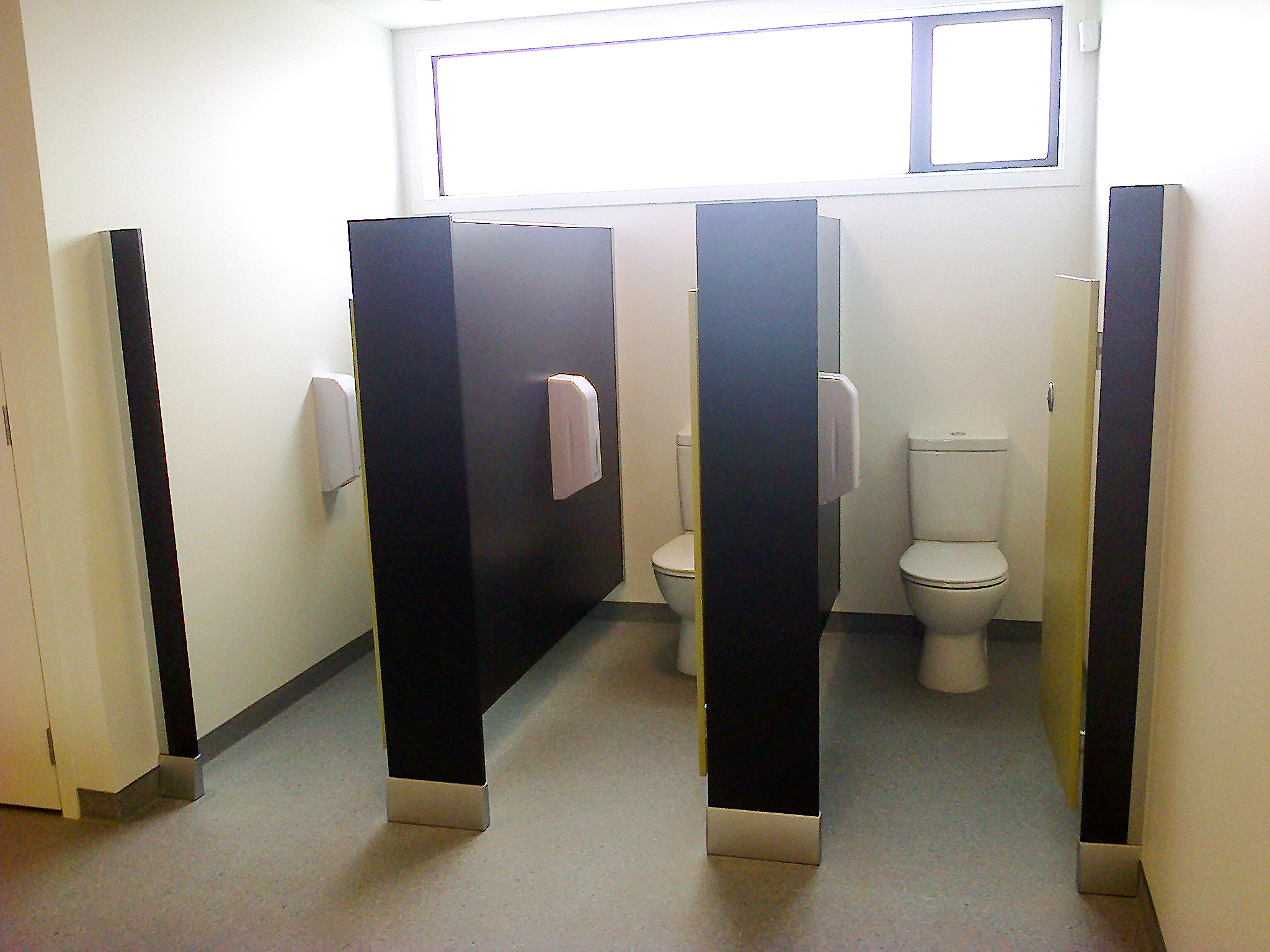

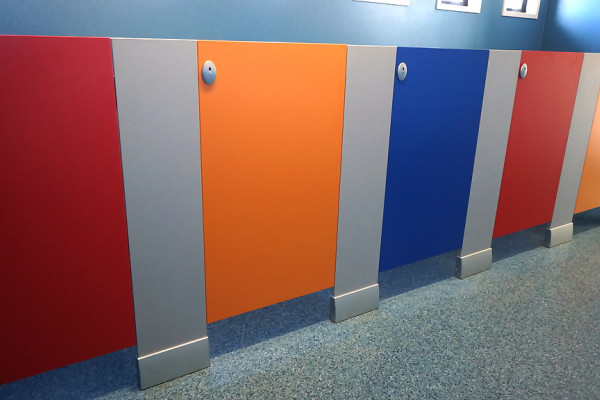

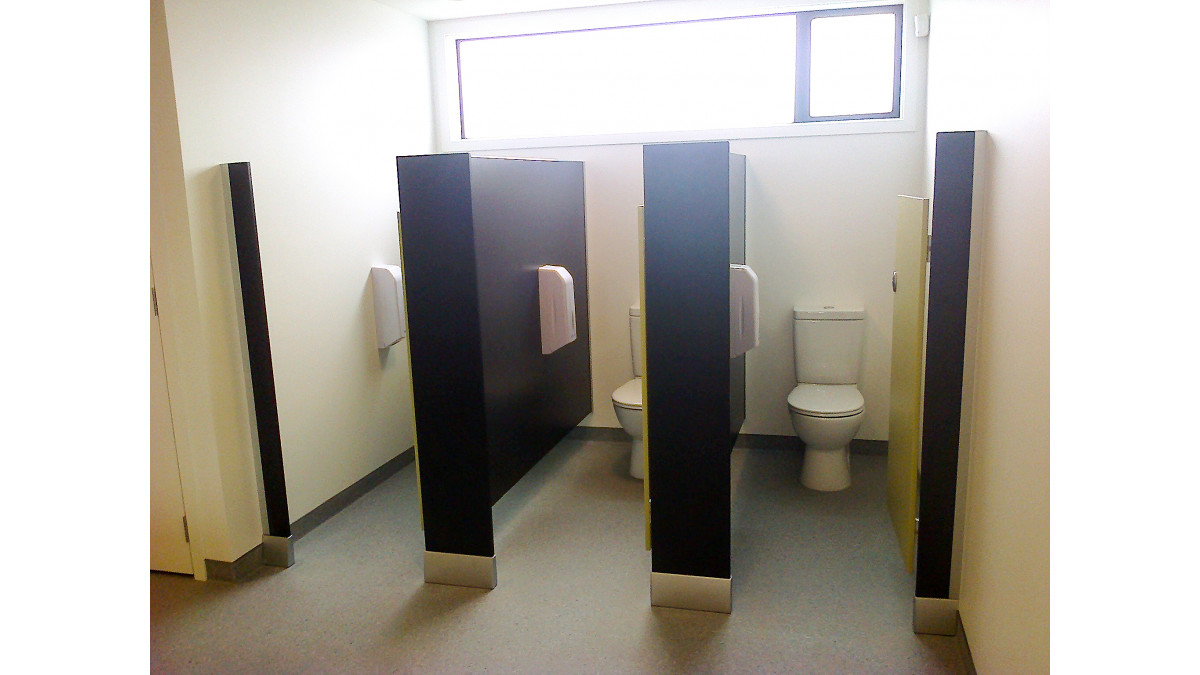

Freestyle Kindy 13 Partition System

The Hale Freestyle Kindy 13 partition system is a modern, unique design system using 13mm Compact Laminate, offering maximum resistance to graffiti, vandalism, water and impact.  With clean lines, quirky style and wide colour range, this system is a must for any child care facility.

In addition to the anodised load supporting custom skirt foot mounting, this system features low height cubicles for kindergarten and child care facilities allowing privacy for little people and easy access for grown-ups.  The custom skirt foot does require a concrete floor for installation to ensure maximum rigidity in the system and to minimise panel movement.

Compact Laminate panels have a black core that when machined, presents a distinctive black edge which requires no edge treatment, but oil will enhance the black edge if preferred.

Key Features
  • Group 3 Fire rating
  • 13mm Antimicrobial Compact Laminate panels
  • Anodised load supporting custom skirt mount pedestals
  • Antimicrobial treatment reducing bacteria and fungal growth and reproduction throughout the lifetime of the panel
  • Emergency lift off hinges
  • No edge treatment required, however oil will enhance black edge
  • Skirt foot mounting without the need for headrail
  • All dimensions can be tailor made to suit your application and needs
  • Creates an easy to use, functional environment for both children and staff alike
  • Easy to clean and low maintenance
  • Concealed fixed Avanti or Wave lock and bumper
  • Concealed fixed Avanti or Wave Indicator
  • Concealed fixed Avanti or Wave gravity hinges
  • Concealed fixed Avanti or Wave coat hook and bumper
  • Continuous wall channel fixing at all junctions
  • 10 year board guarantee
  • Environmentally friendly low emissions board
  • Flexible design, available in ready to install, flat pack complete with shop drawings and installation manual

Optional Extras:

  • Powder coating to aluminium trim available
  • Privacy strips along hinge and opening side of door for maximum privacy of cubicle
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Freestyle Kindy 13 partitions system is suitable for use in high or low abuse wet areas such as toilets, changing rooms or showers.

Recommended applications:

  • Educational centres
  • Public areas
  • Caravan parks and campgrounds
Limitations on Use

The use of strong acid or alkaline cleaning agents, abrasive or polishing materials should not be used as they may stain or damage the worktop surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
  • NZ Building Code: Clause E3 - Internal Moisture
  • NZ Building Code: Clause G1 - Personal Hygiene
In-Service History

Hale Manufacturing began manufacturing and installing toilet partitions in the early 1970's. With more than 40 years in the business, their range of tried and tested systems, coupled with bespoke systems, allows architects freedom and flexibility with their designs. All Hale Manufacturing panels are pre-finished, reducing potential issues on site and saving time and additional costs.

Other Performance Attributes

Laminex Compact Laminate is certified antimicrobial to JIS Z 2801:2001 and proven to prevent the growth of bacteria and fungi on the surface up to 99% within 24 hours.

The Hale In-House Compact Laminate is certified antimicrobial to ASTM G22. It is produced by permanently incorporating a US-EPA approved, well-known and widely used anti-microbial agent to retard the growth of nearly 99% of common form of bacteria on any decorative surface, further adding a spectacular look to the overall décor.

B2 Durability compliant
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
G1 Personal Hygiene compliant
Personal Hygiene
Interior Fire Rating 3
CAD/PDF (link to page on supplier website)
Installation Details (link to page on supplier website)
Data Sheet
Hale In-House Antibacterial Fact Sheet
Lamiinex Protec+ Antibacterial Fact Sheet
Specification Clause (Masterspec)
Test Results
Test Results
Colour Range
Colour Range

Hale Manufacturing Ltd are a manufacturer of toilet partitions and bathroom appliances, sold and distributed throughout New Zealand.
