Contemporary Partition System
Description

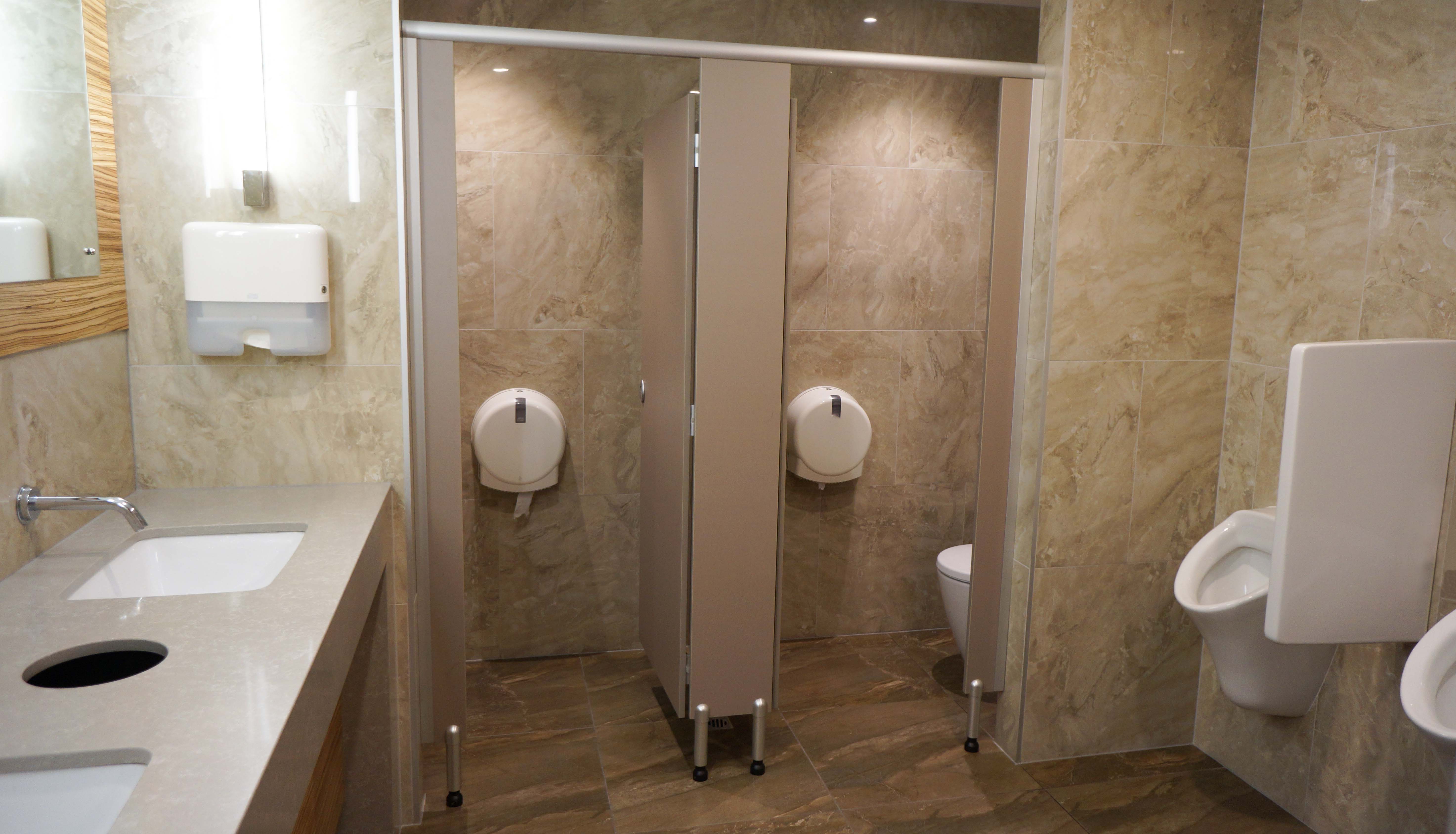

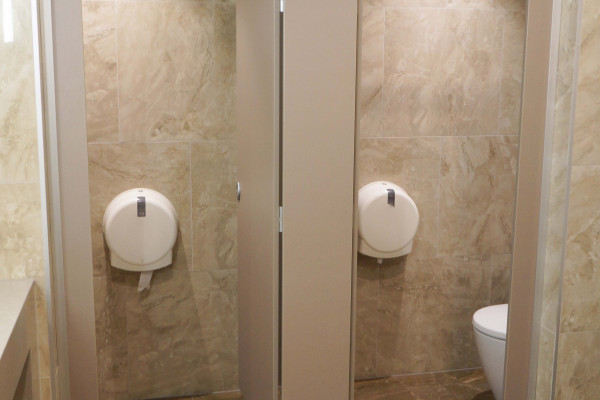

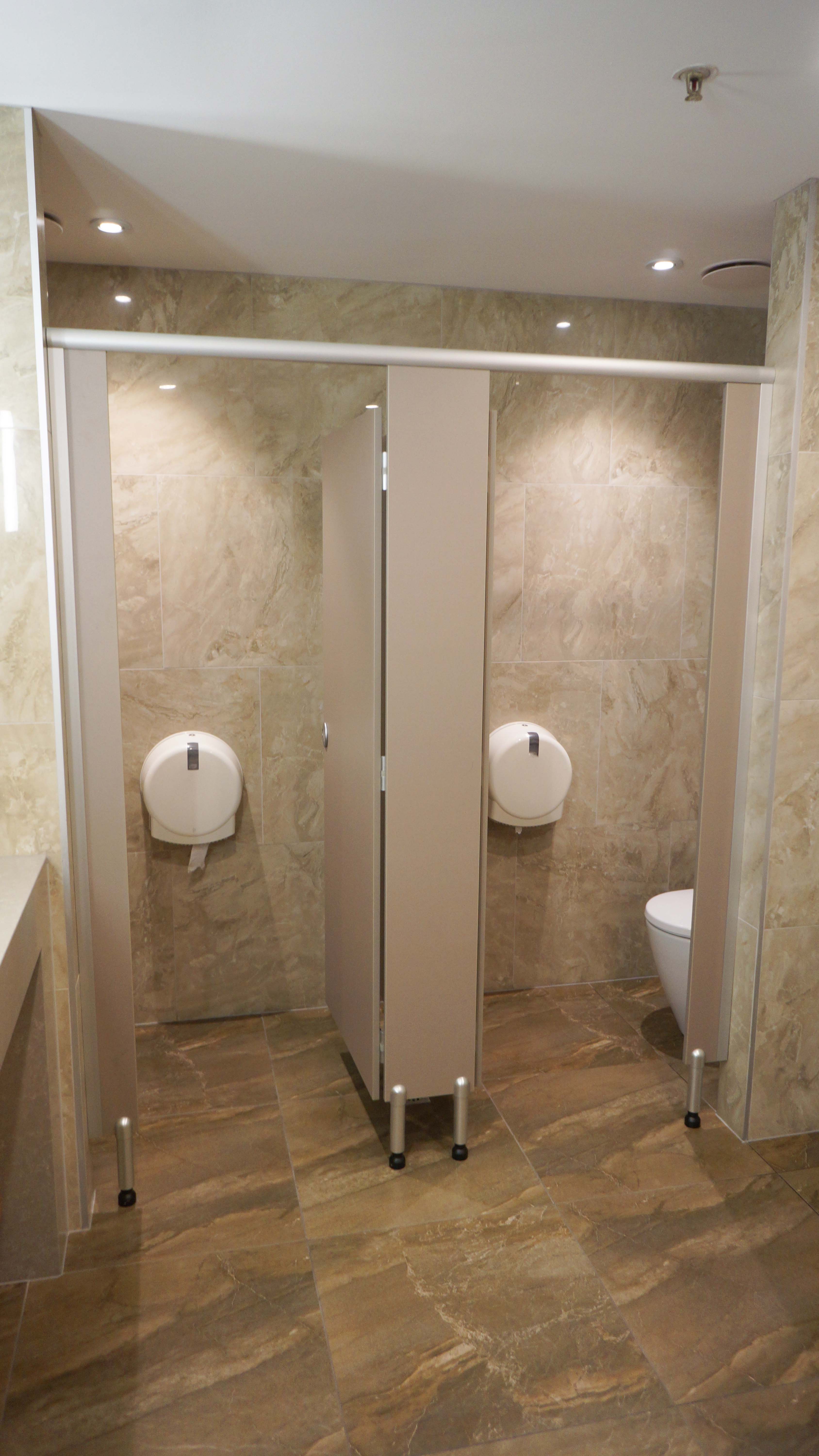

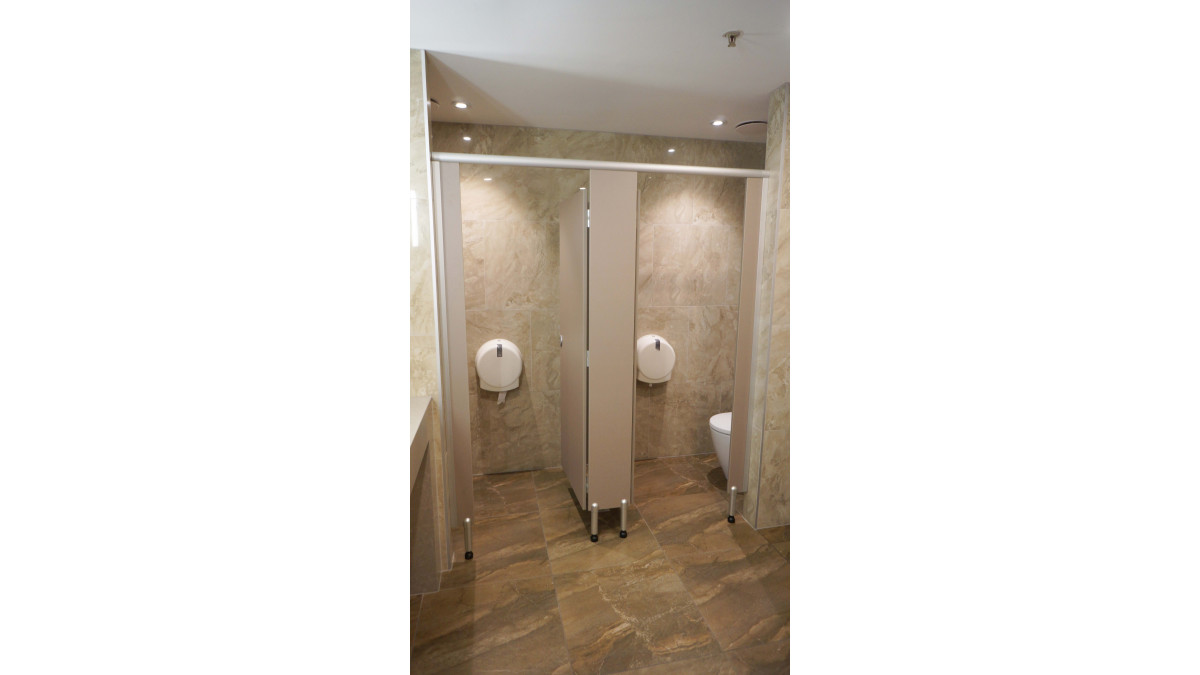

The Hale Contemporary partition system is an aesthetically pleasing, economical solution using a 18mm Structuralboard (high moisture resistant MDF) core faced with a high impact resistant laminate. This system features adjustable anodised aluminium pedestals and anodised aluminium headrail with infills. Available in a wide range of colours, this system is aesthetically pleasing and functional.

Structuralboard panels are pre-finished with 2mm ABS edging, matching the colour of the panel face.

Key Features
  • Group 3 Fire rating
  • 18mm Laminex Structural MR board panels featuring a highly moisture resistant particle board core faced with high pressure laminate
  • 2mm ABS edged panels, matching the colour of the face
  • Anodised aluminium concealed fix adjustable (165mm - 240mm) pedestal legs
  • A system that is cost effective and durable
  • Emergency lift off hinges and lock
  • Panels are 1800mm wide, eliminating the need for joints in most cases
  • Concealed fixed Avanti or Wave indicator lock and bumper
  • Concealed fixed Avanti or Wave gravity hinges
  • Concealed fixed Avanti or Wave coat hook and bumper
  • Aluminium slimline headrail with infills
  • Continuous wall channel fixing at all junctions
  • 7 year board guarantee
  • Environmentally friendly E1 rated board
  • Flexible design, available in ready to install, flat pack complete with shop drawings & installation manual

Optional Extras:

  • Sliding door or open out door to comply with accessibility requirements
  • Powder coating to aluminium trim available
  • CF2 Stainless Steel bullet style feet
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Hale Contemporary partition system is suitable for use in low abuse dry areas such as toilets.

Recommended applications:

  • Offices
  • Hotels
  • Restaurants
  • Shopping centres
  • Educational centres
  • Clubs and Entertainment centres
  • Sports centres and Gymnasiums
  • Recreational centres
Limitations on Use

The Hale Contemporary partition system has a Structuralboard (Moisture Resistant MDF) Core, making this system unsuitable to be hosed down for cleaning and for any wet areas such as showers.

Abrasive cleaners or scourer pads are not to be used to clean Structuralboard as that may damage the surface.

Statement of Building Code Compliance
  • NZ Building Code: Clause B2 - Durability
  • NZ Building Code: Clause C - Protection from Fire
In-Service History

The Hale Contemporary partition system has been installed in well known buildings in Auckland, the most recent being such as the Waipuna Hotel.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
Interior Fire Rating 3
3
Documents
CAD/PDF (link to page on supplier website)
Data Sheet
Test Results
Specification Clause (Masterspec)
Installation and Operation
Brochure
Colour Range
