Gauzy Smart Glass for Offices
Description

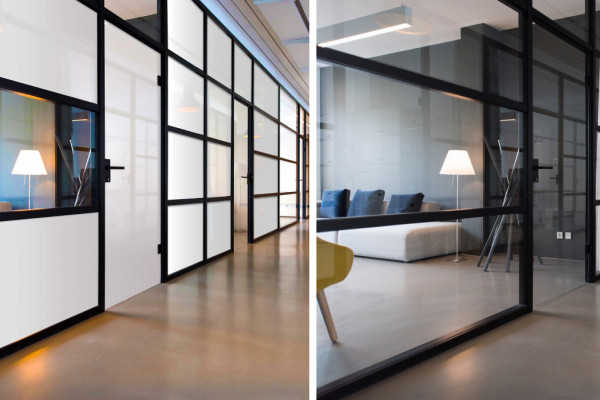

Gauzy Smart Glass delivers on demand opacity or transparency to create instant privacy. Suitable for almost any glazing application where privacy is required, such as office meeting rooms, Gauzy offers both full privacy, and unobstructed views of the outside space and natural light.

As Gauzy is a custom laminated glass product, the glass lites can be selected to suit your aesthetic, acoustic and thermal design requirements all while complying with human impact safety standards.

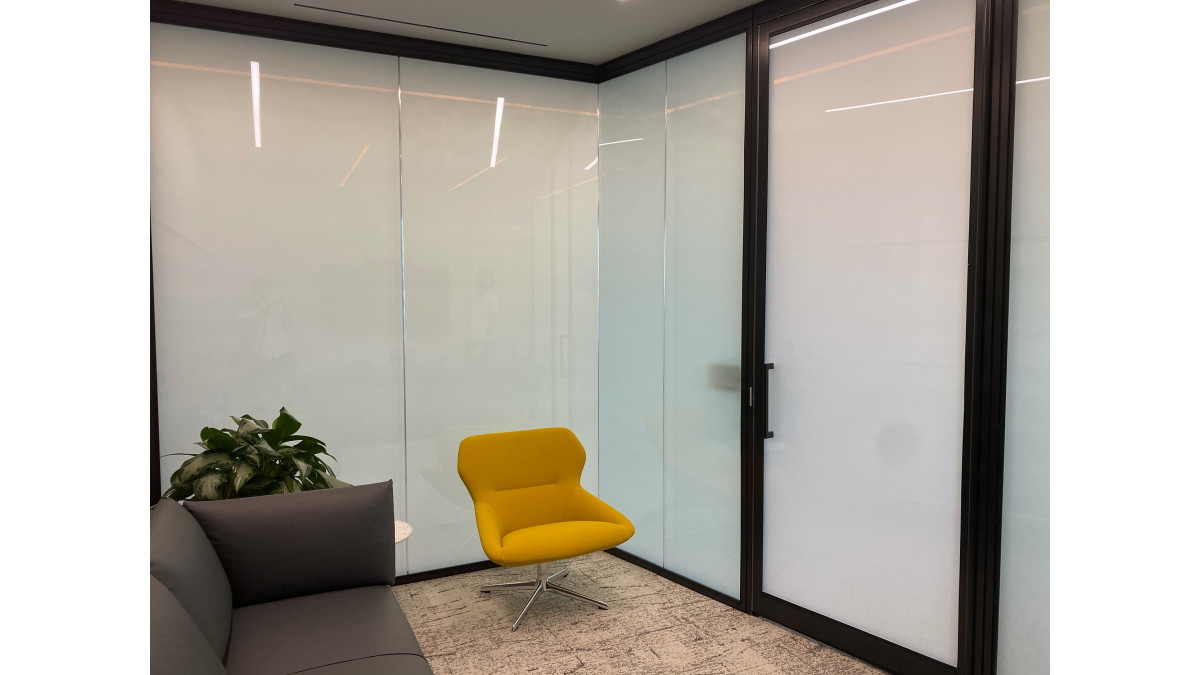

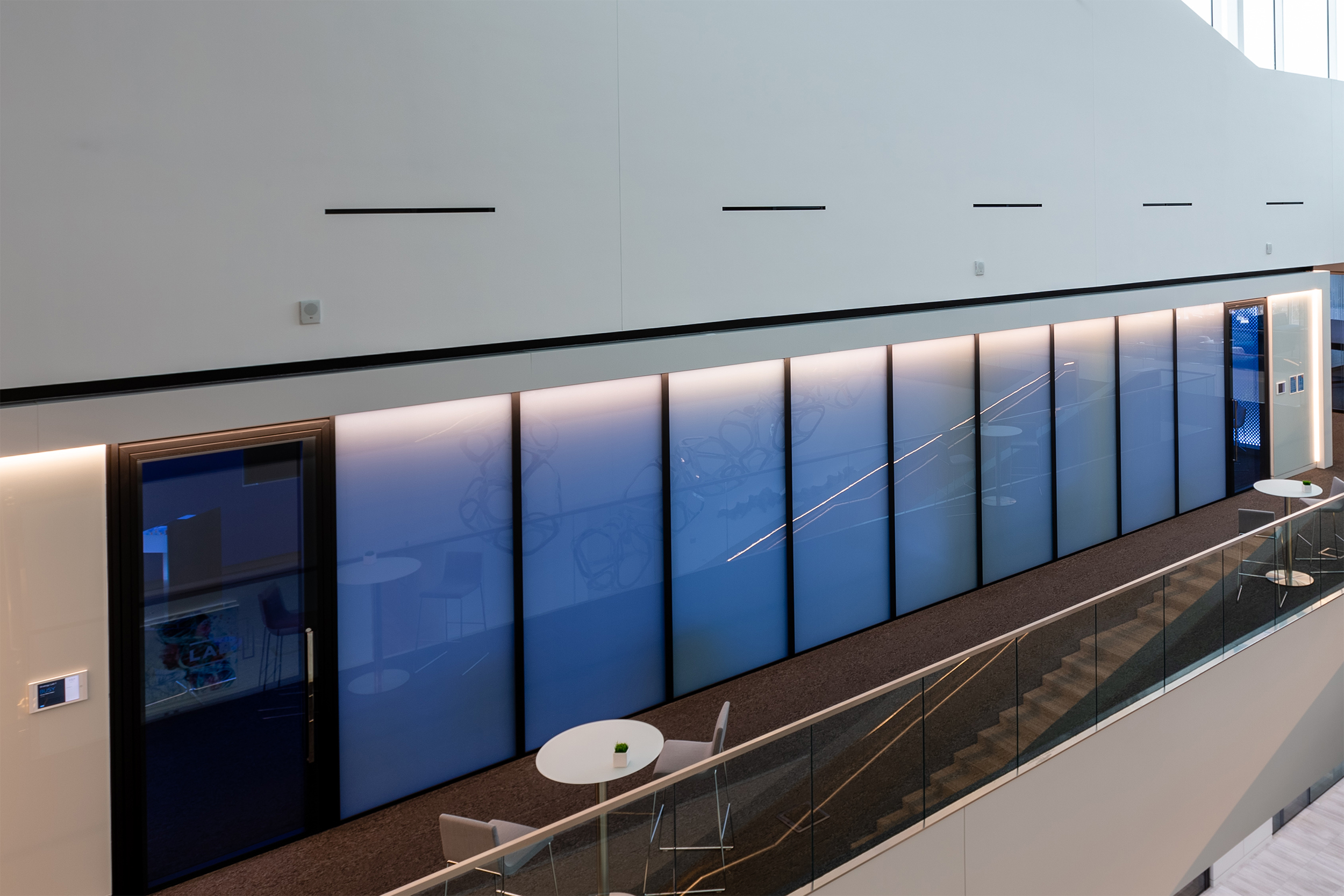

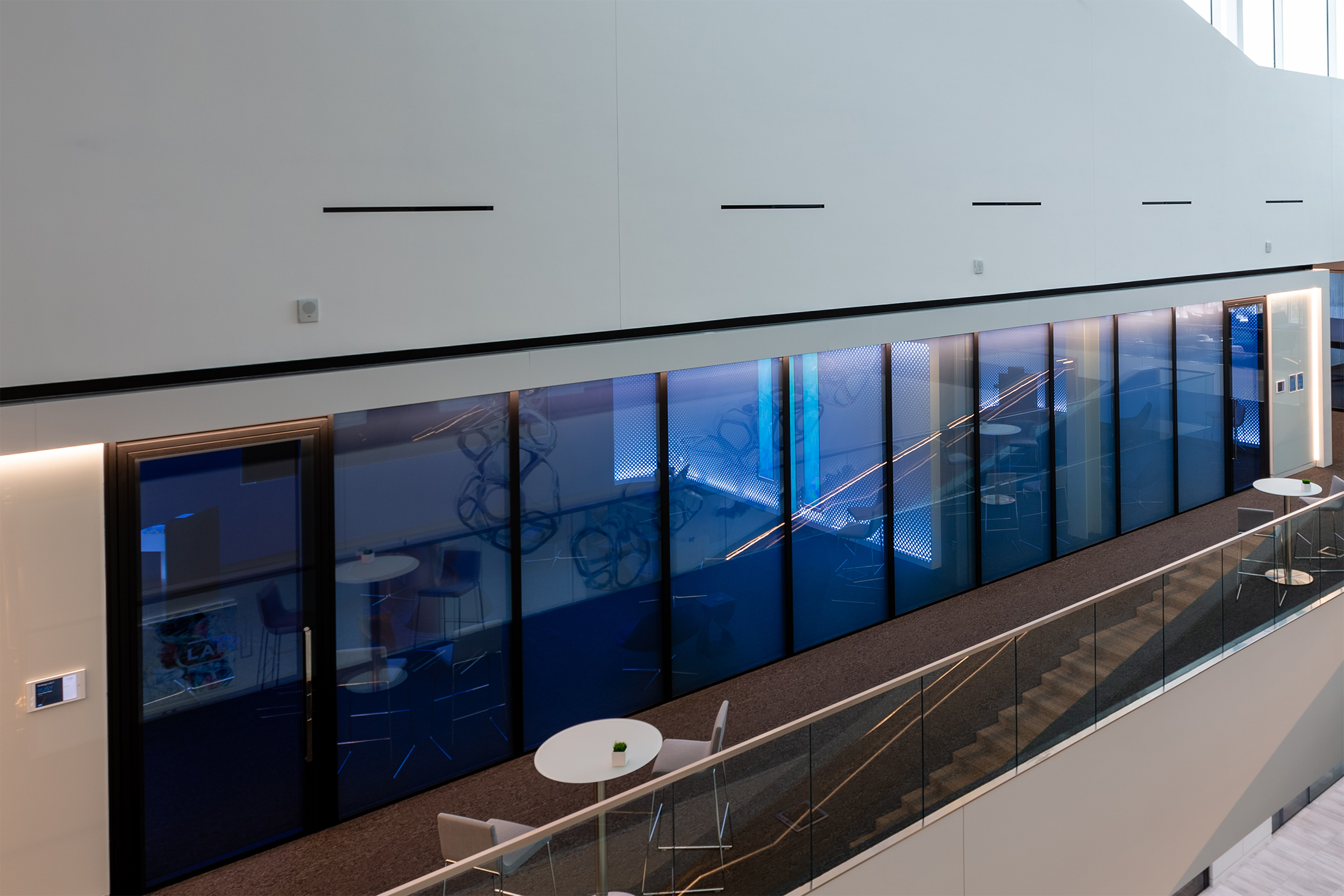

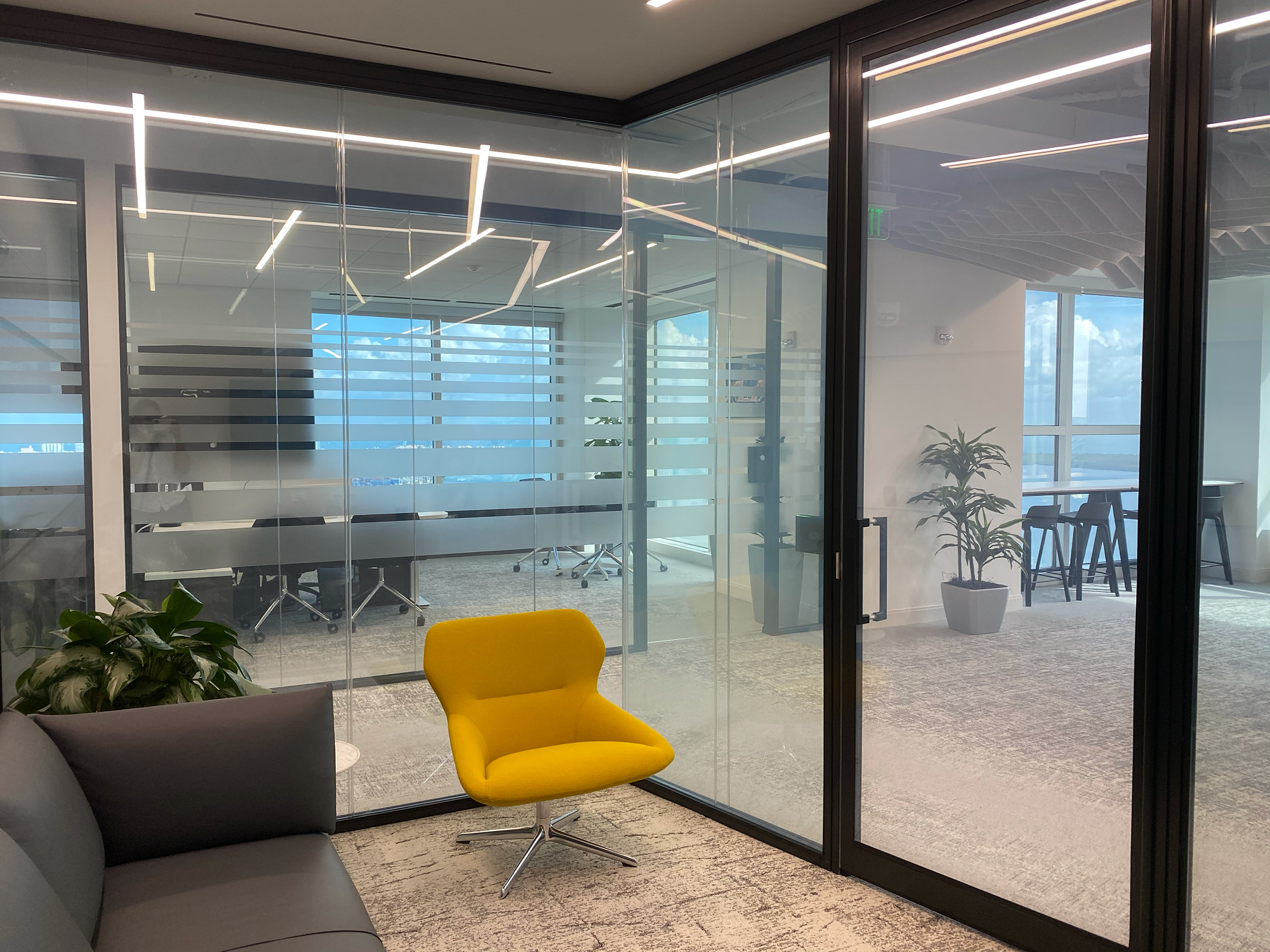

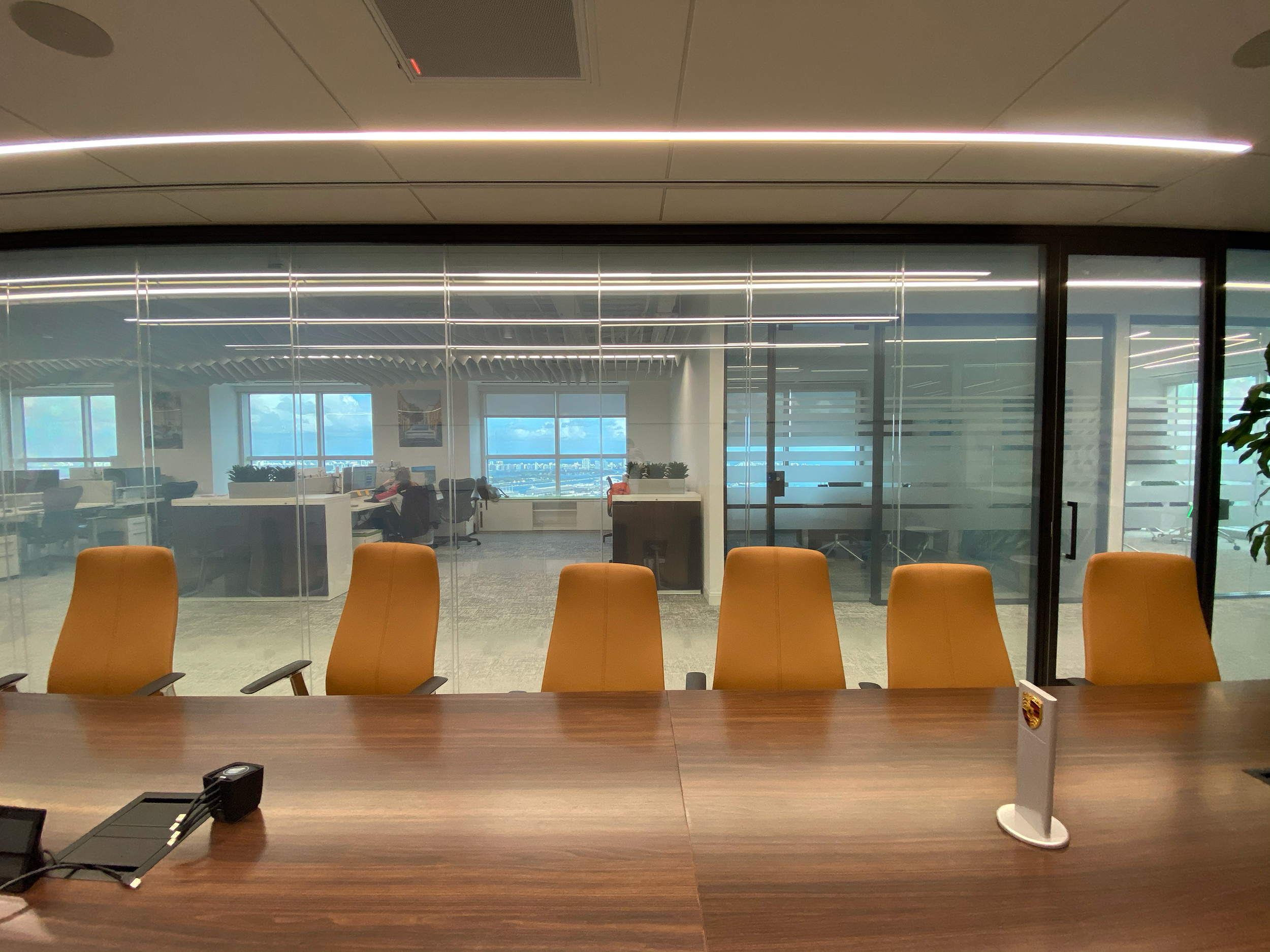

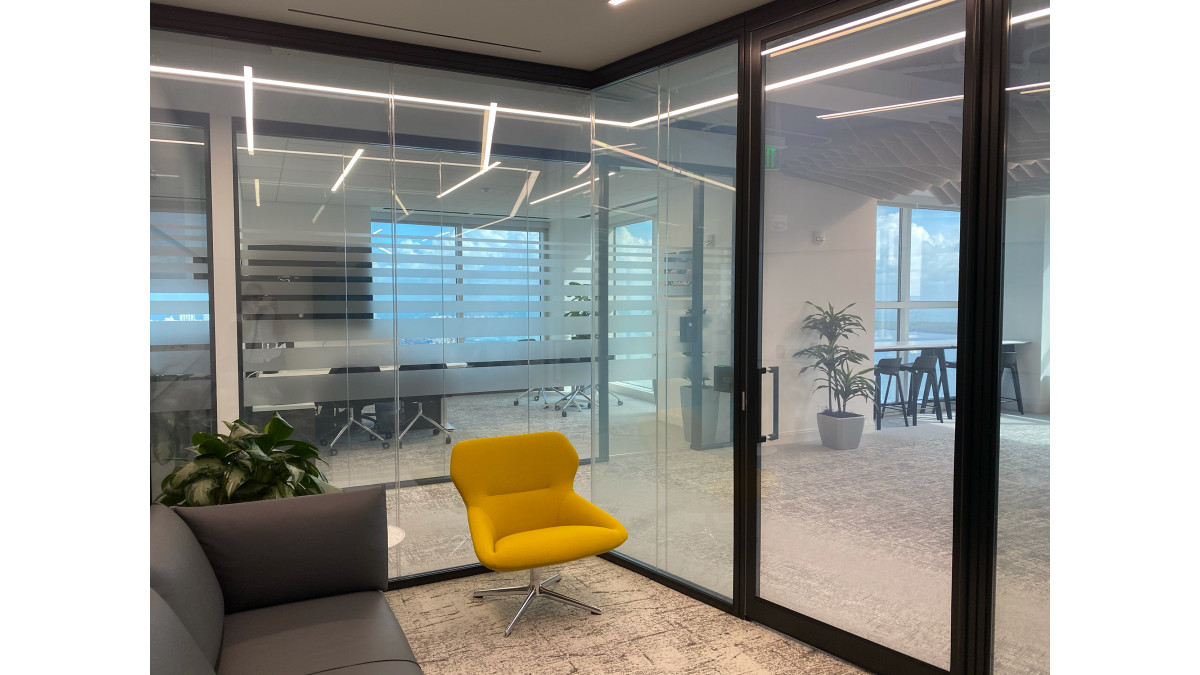

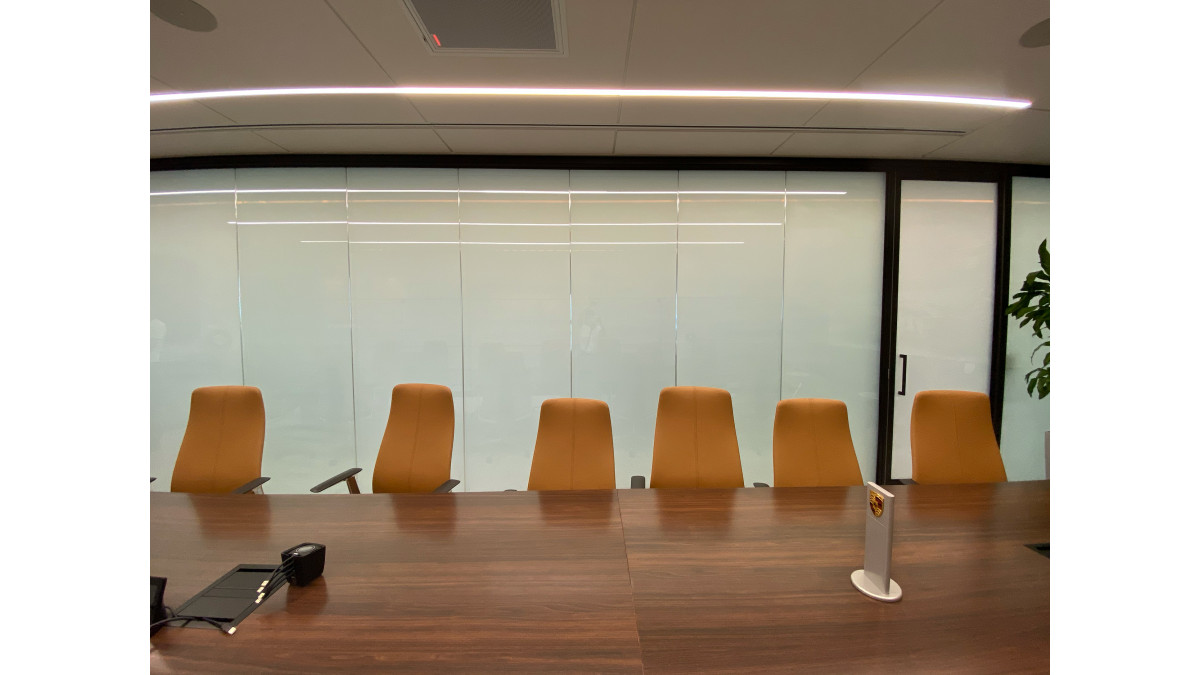

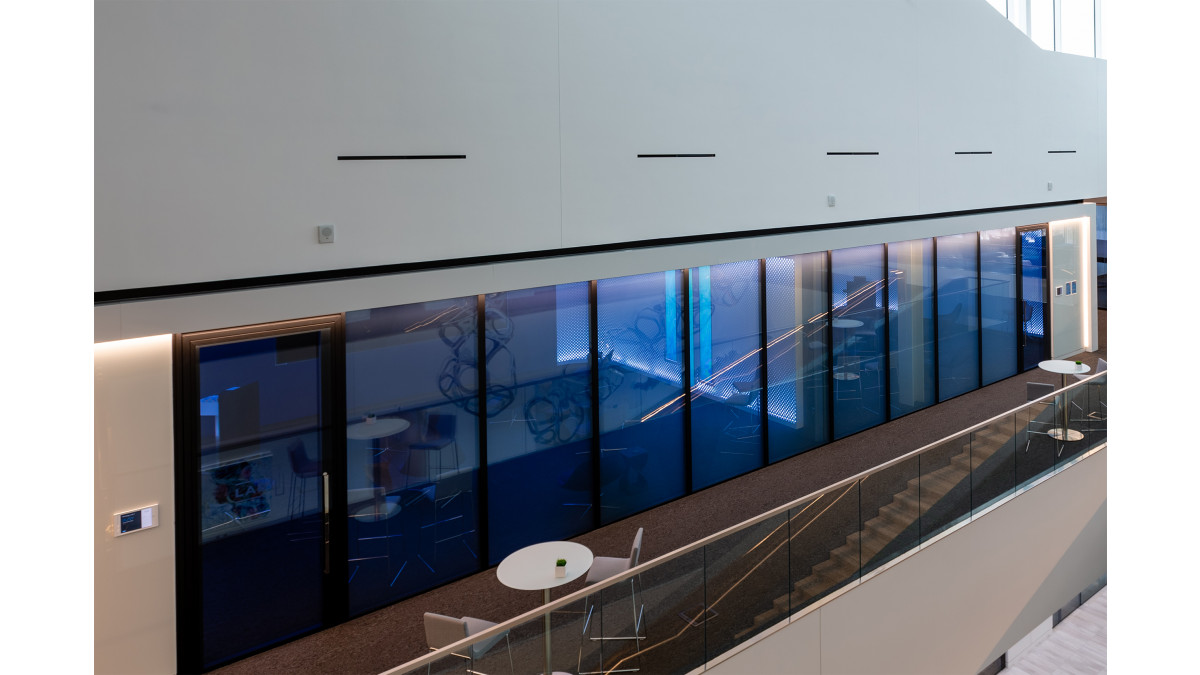

Controlled by a wall mounted touch panel, the space instantly transforms from a private meeting room to a naturally lit open workspace or a technologically-advanced and engaging piece of art with dynamic patterns — all within a matter of milliseconds.

Gauzy Polymer Dispersed Liquid Crystal (PDLC) films laminated into glass or full IGU systems offer on-demand privacy or transparency. Optimised for premium optical performance with haze as low as 2%, millisecond switching time and patented technology to extend the lifetime of smart glass.

Products are assembled in New Zealand by GlassTeam:

  • Available in White or Grey & White Solar IR Reflective
  • Available in custom sizes
Key Features
  • Proven to last over 18 million on/off cycles
  • Film can be left 'on' all day with no need to rest the film
  • Available in custom shapes, sizes and invisible patterning

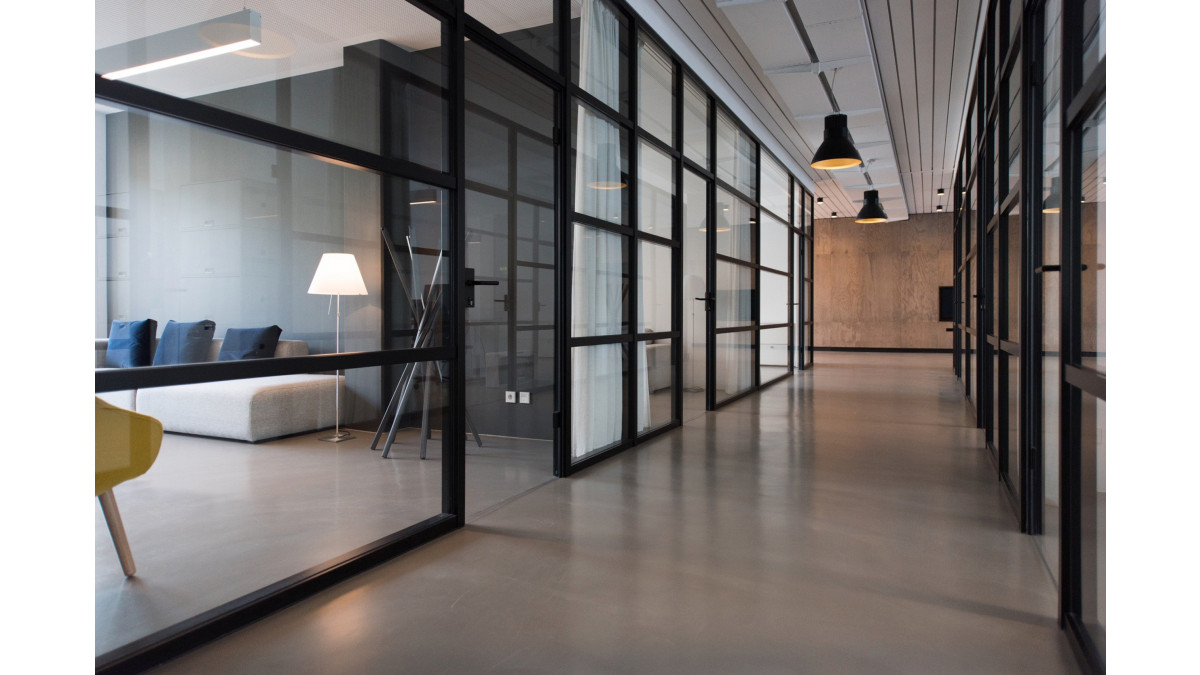

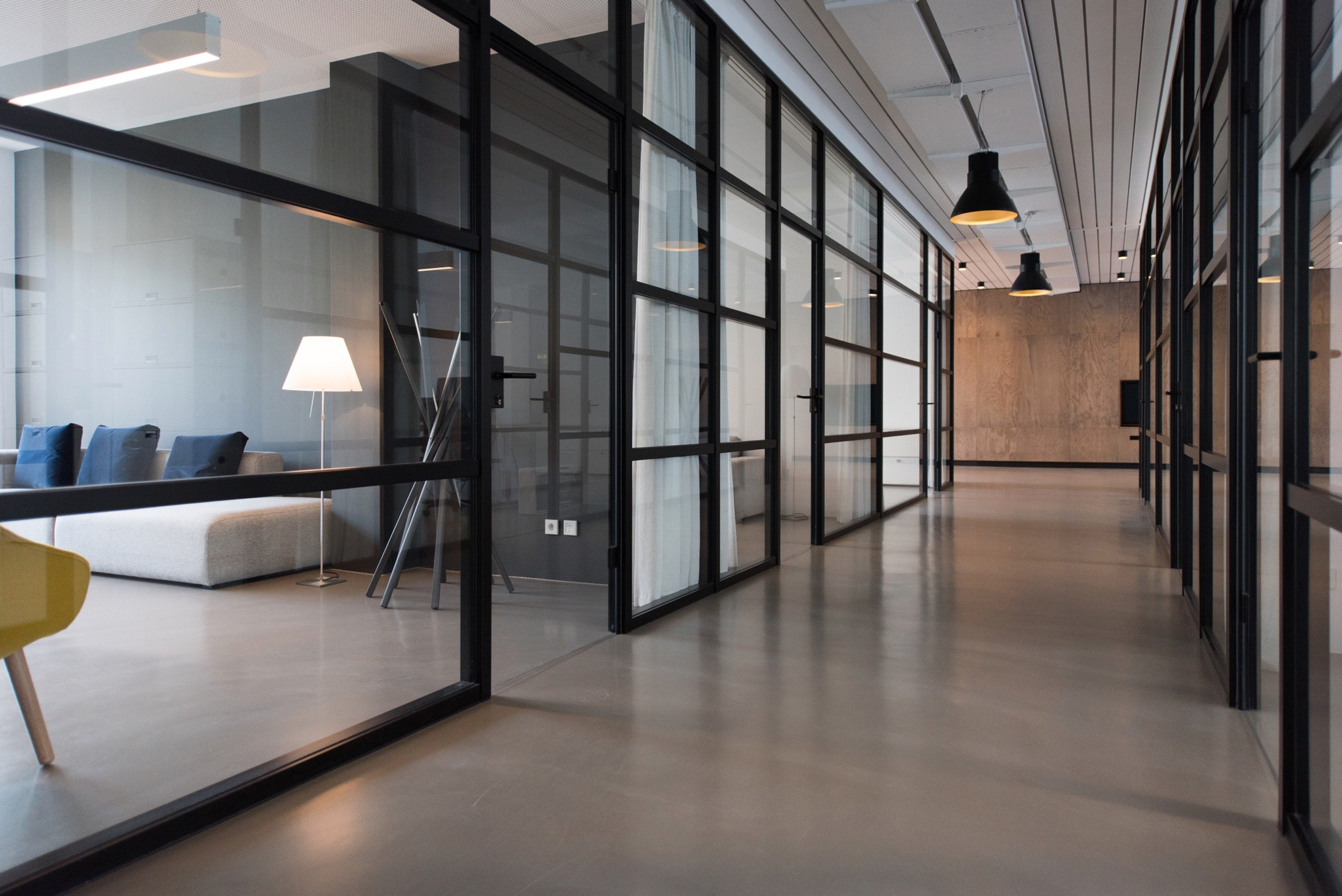

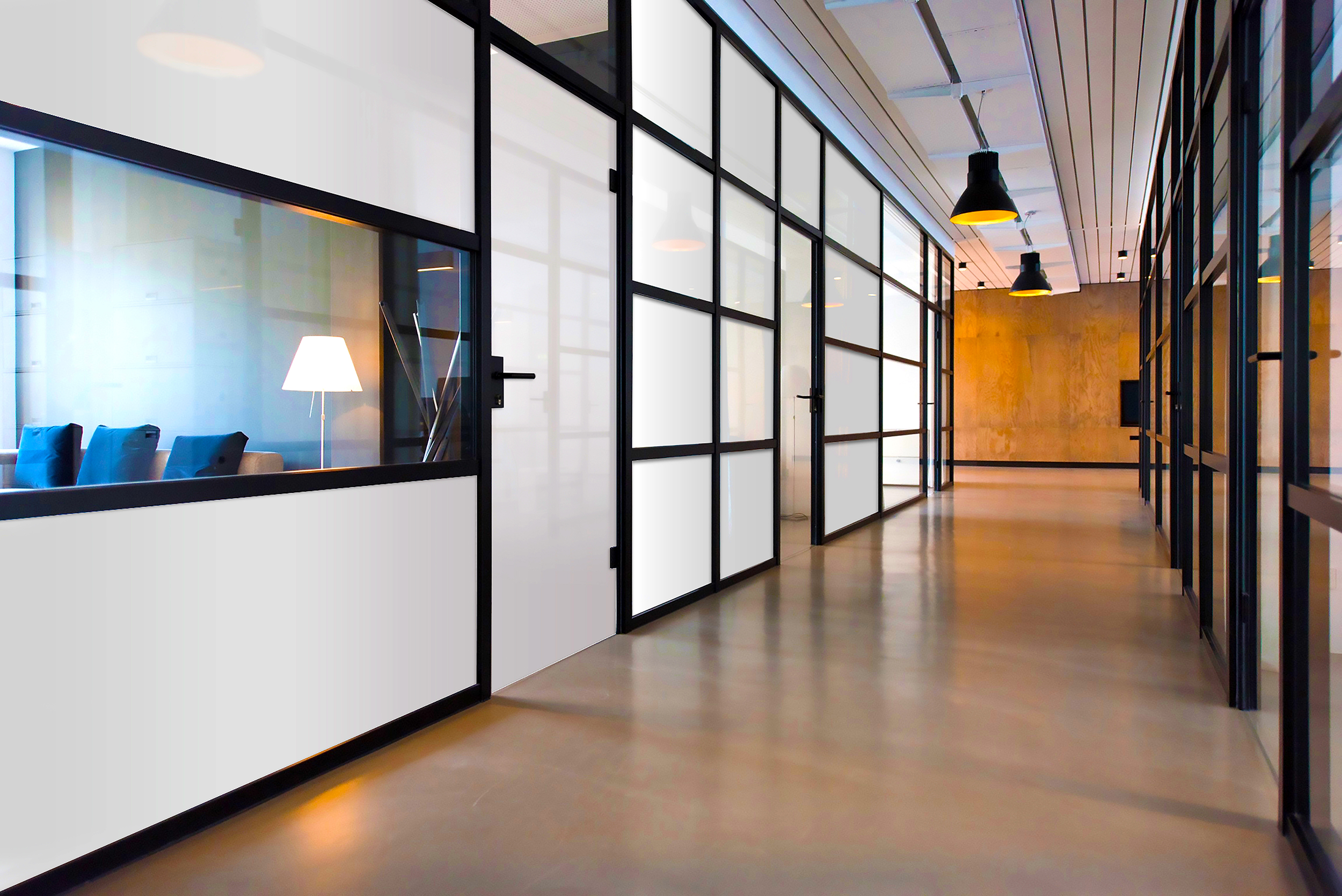

  • Optimise space with glass partitions, create fluid boundaries in open concept spaces
  • Agile spaces that support employee preferences
  • Instant privacy or transparency — access to natural light without compromising privacy or views
  • White board or projection screen when opaque
  • Hygienic glass surface, easy to clean privacy solution
  • Sound control
  • Thermal insulation (when included in an Insulating Glass Unit)
Scope of Use
  • Suitable for almost any glazing application, including: Glazed Office Partitions, Observation Windows, Residential Windows and Doors, Commercial Windows and Doors, Glass Floors, Skylights, Pergolas, Shopfronts:

Key Applications:

  • Conference rooms
  • Executive suites
  • Break out rooms
  • Private offices
  • Pods/phone booths
  • Reception areas
  • Desk dividers
  • Facades
  • Ground floor windows
  • Ground floor doors
Limitations on Use
  • Film maximum width: 1800mm
  • Maximum size: 3600 x maximum film width — other sizes may be available on request subject to approval
  • Should not be used in external frameless applications
Statement of Building Code Compliance
  • Electronics Compliance: CE, UL, IEC 62368 Safety Standard and RoHS certified to demonstrate compliance with New Zealand Power System Requirements
  • NZBC: B1, F2 and F4
  • NZS 4223.3 2016
In-Service History

Gauzy's smart films have been laminated and used in a variety of architectural products since 2012.

Trusted by leading brands such as Crowne Plaza, Deloitte, Intel, WeWork, The Ritz Carlton, Mercedes-Benz Daimler, Brose, Corning, Texas Instruments, and OUE.

Other Performance Attributes
  • All Gauzy PDLC Switchable Films are manufactured in ISO 9001 certified facilities
  • Every switchable glass panel undergoes rigorous quality control with Gauzy’s Automatic Testing Equipment (ATE) which is  a patented switch film testing and quality control system
  • Every piece of film is tested before and after being laminated into a switchable glass product
  • Proven to last over 18million on/off cycles
  • Film can be left 'on' all day with no need to rest the film
Documents
PDLC Laminated Y Controller Guide

B-11-10.01

ATE: Automatic Testing Equipment
Gauzy Durability Performance

1037: 2.7.19

Brochure: The Gauzy Advantage

2021

Door & Window Electrical Solution Guide

TN-09-51.01

Installation Details

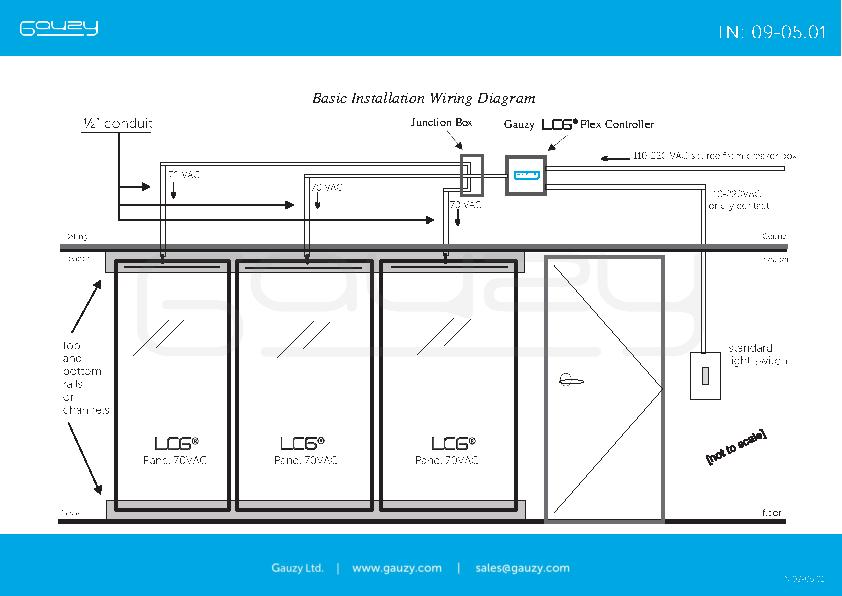

Wiring Diagram: LCG Basic Installation

TN: 09-05.01

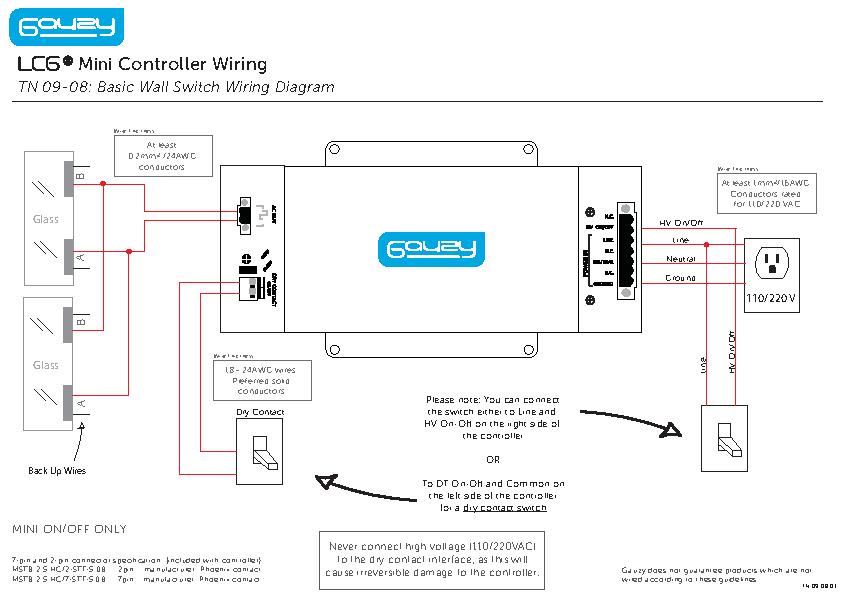

Wiring Diagram: Mini Controller

TN 09-08

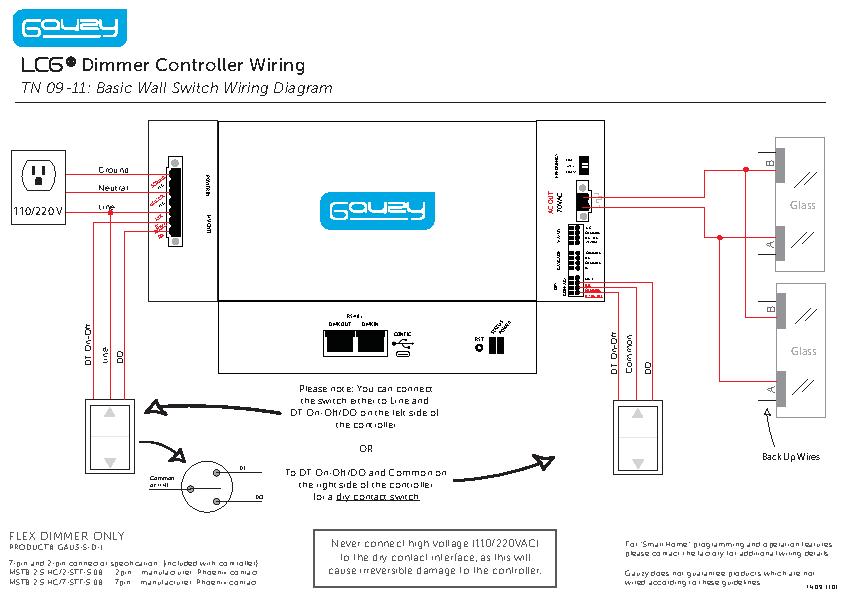

Wiring Diagram: Flex Dimmer

TN 09-11

Gauzy is an international company developing and manufacturing Light Control Glass (LCG) Smart Glass technology, allowing glass to change from transparent to opaque.
