• Vauth-Sagel kitchen storage products are suitable for residential use throughout the home; kitchens, pantries, sculleries. They also have applications in laundries, home offices, and garages.

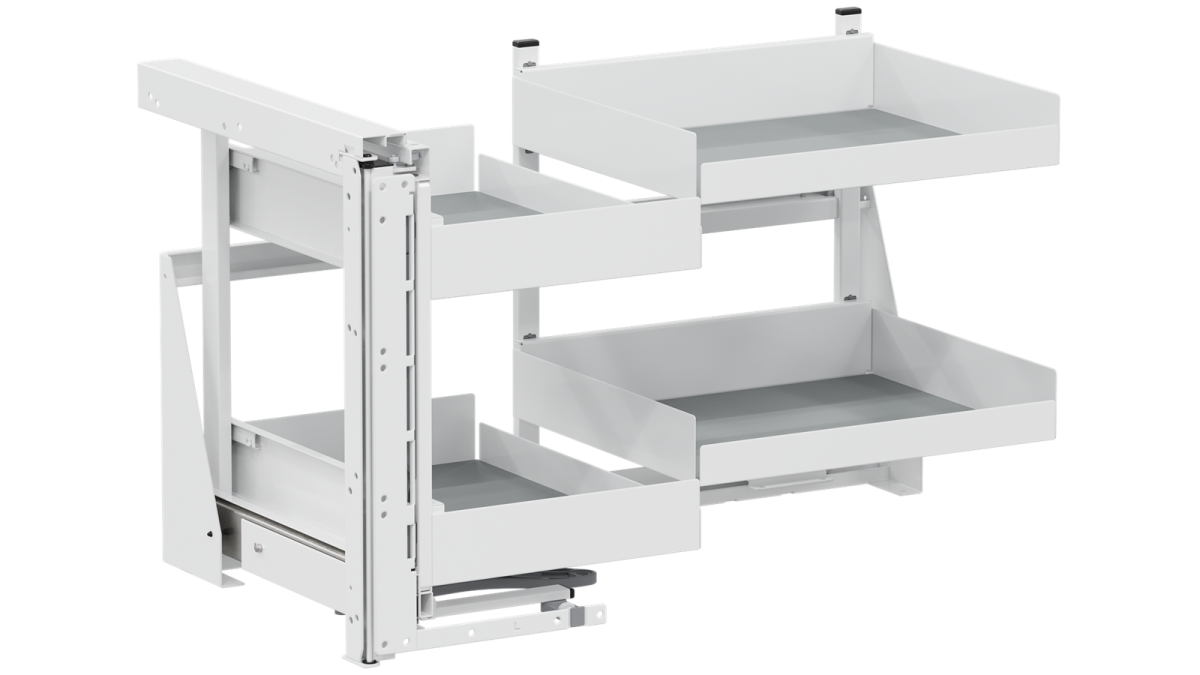

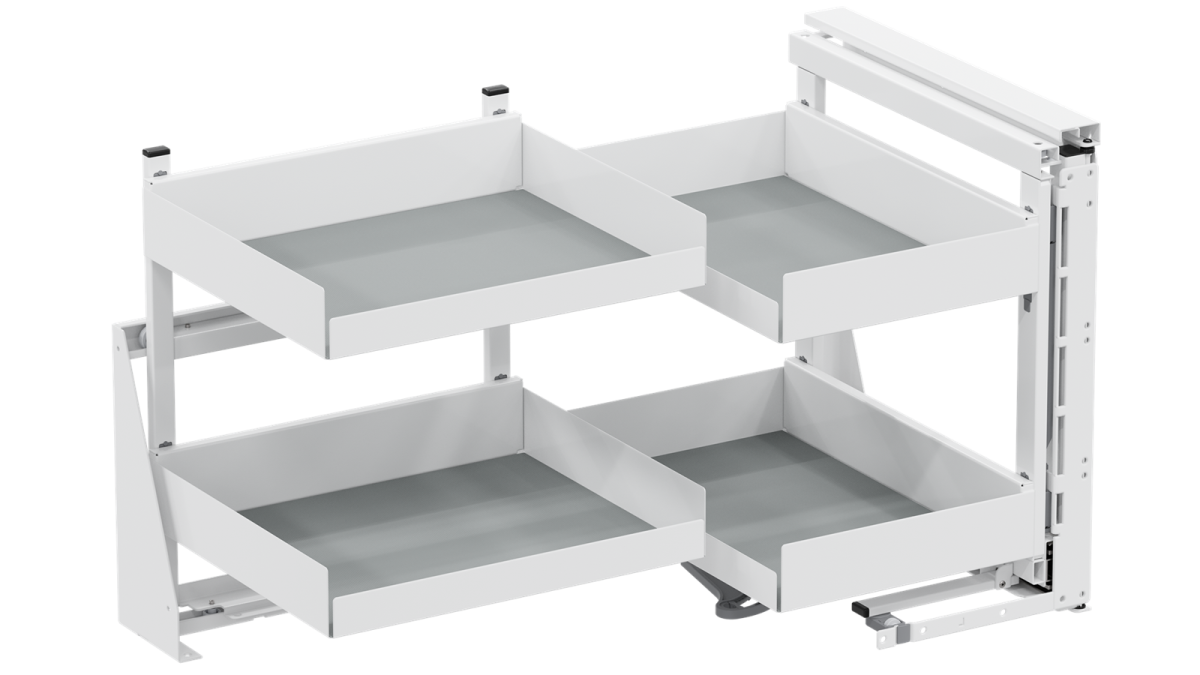

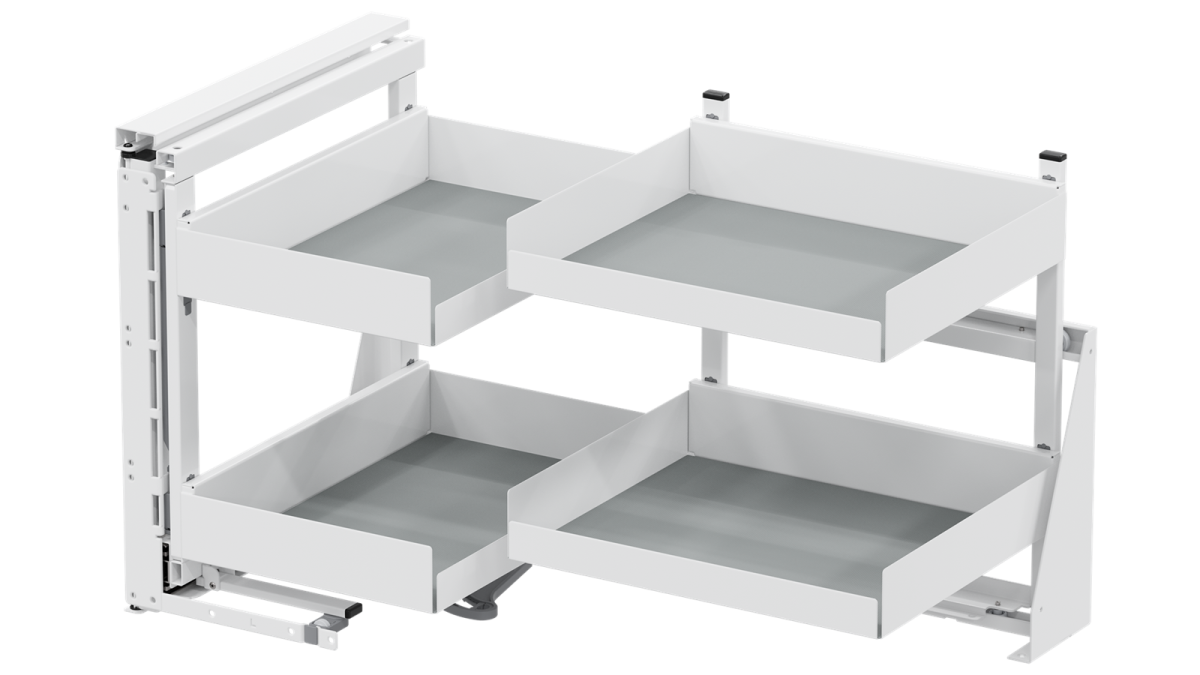

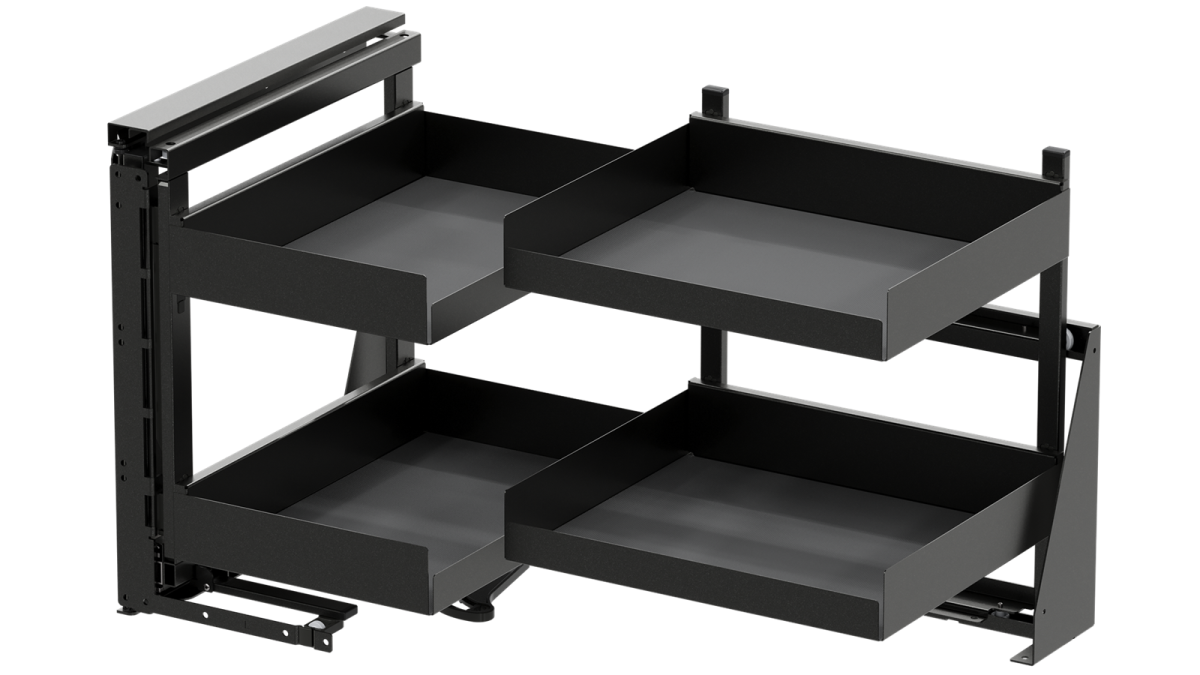

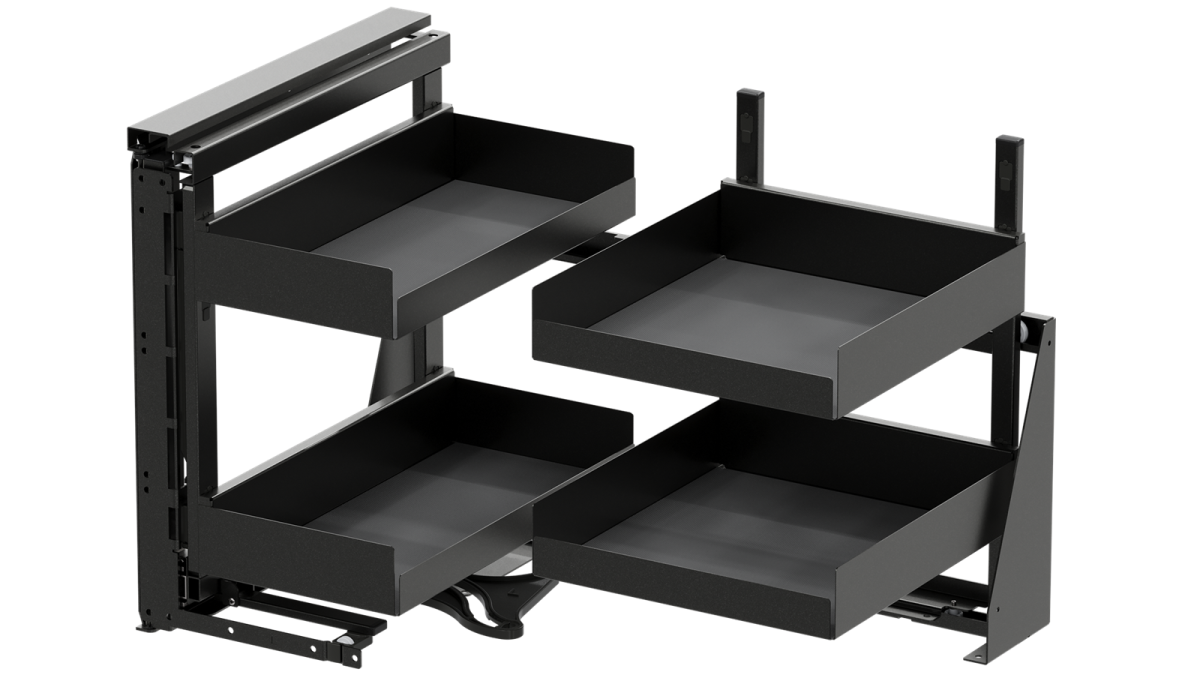

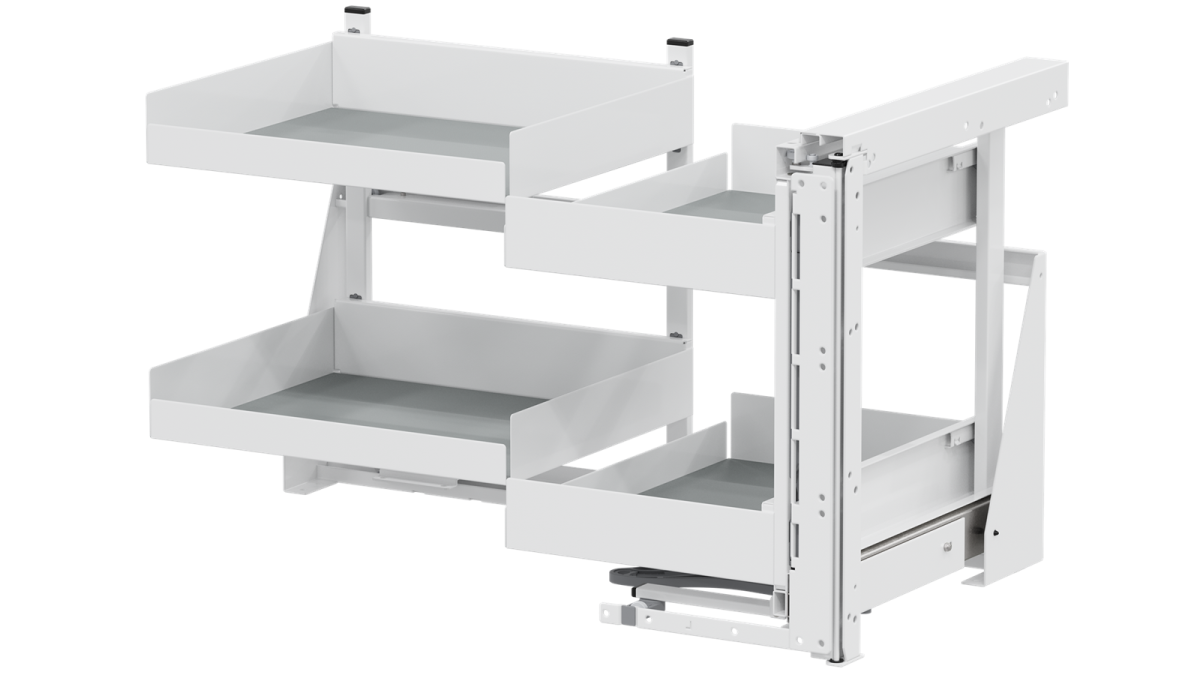

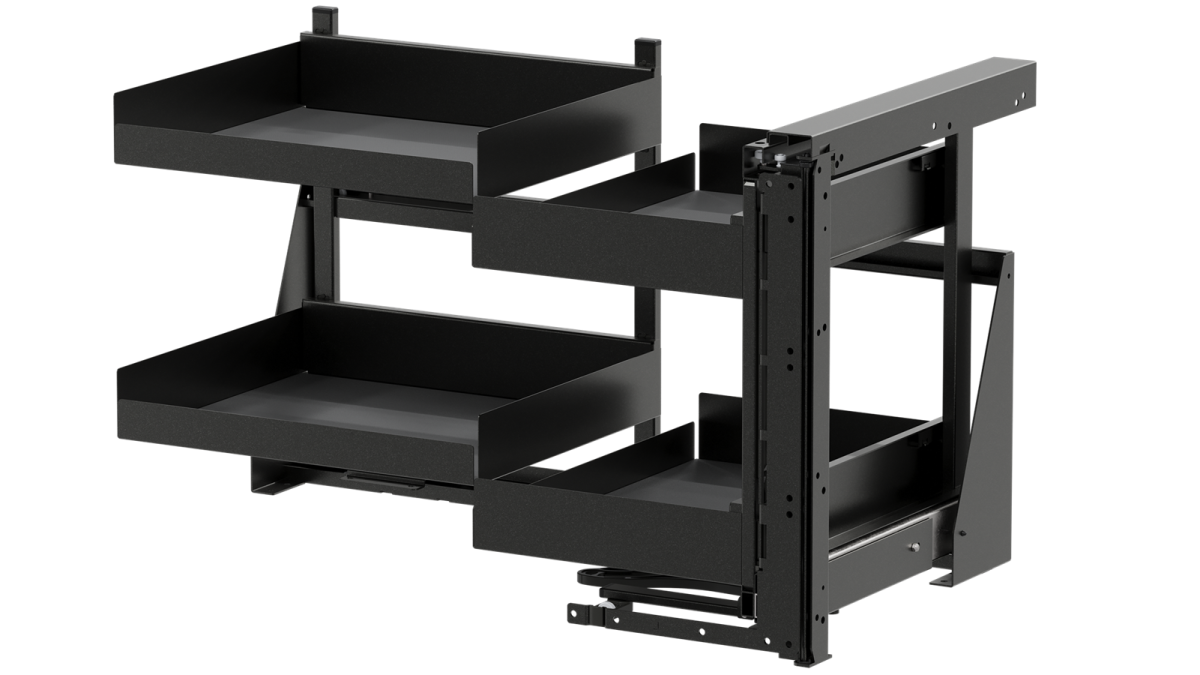

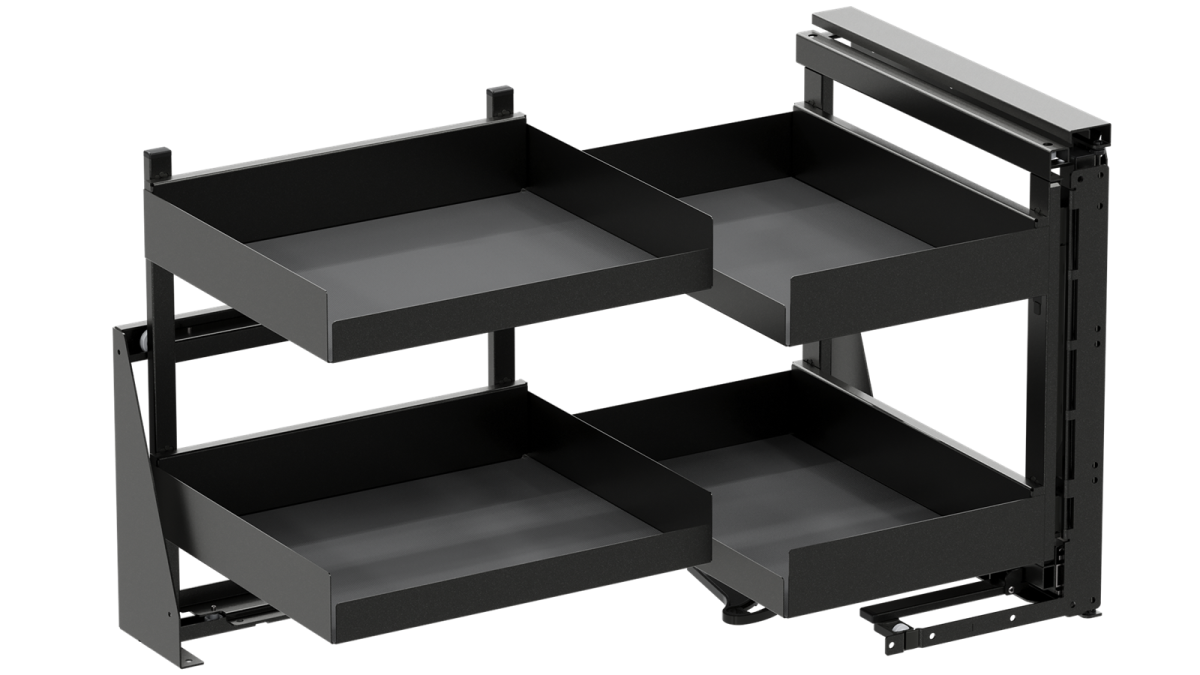

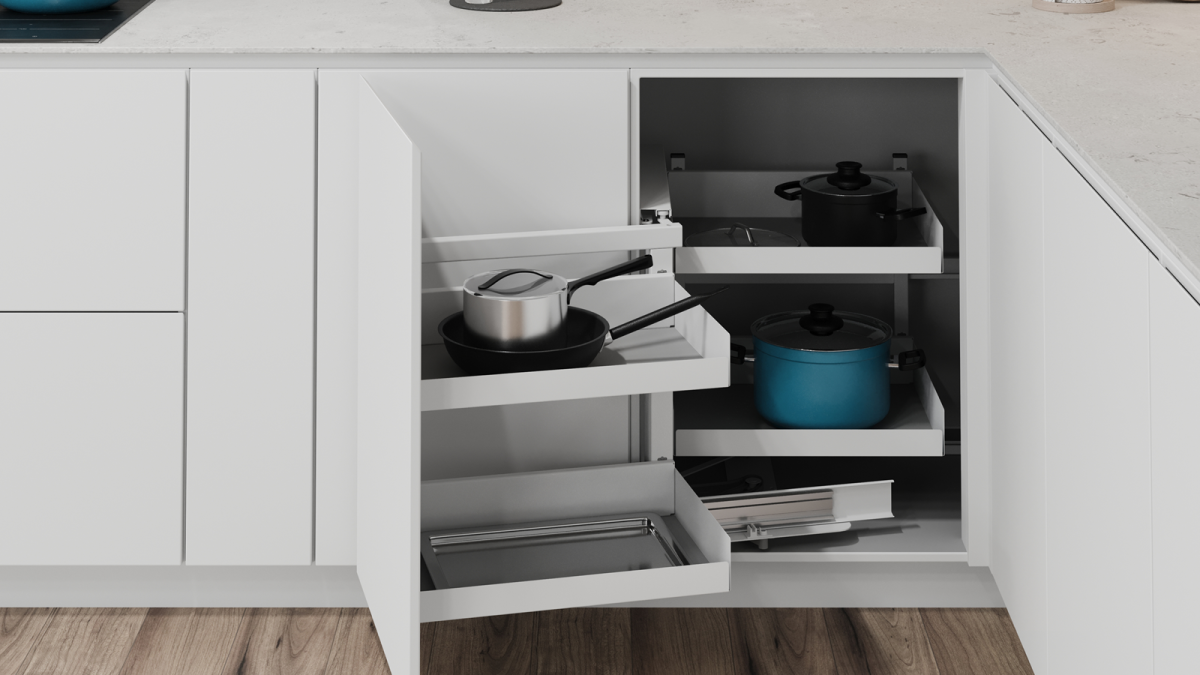

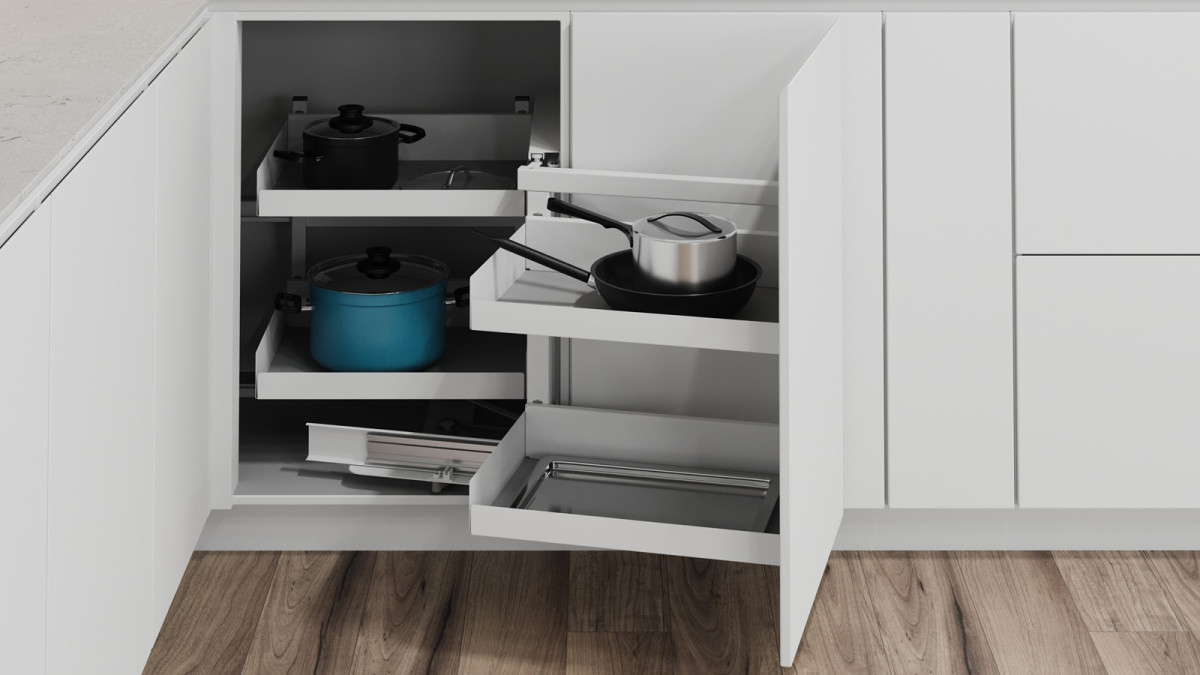

•  Designed for blind corner base cabinet installations in new custom cabinetry or retrofit applications — can be installed into existing blind corner cabinetry without benchtop removal.

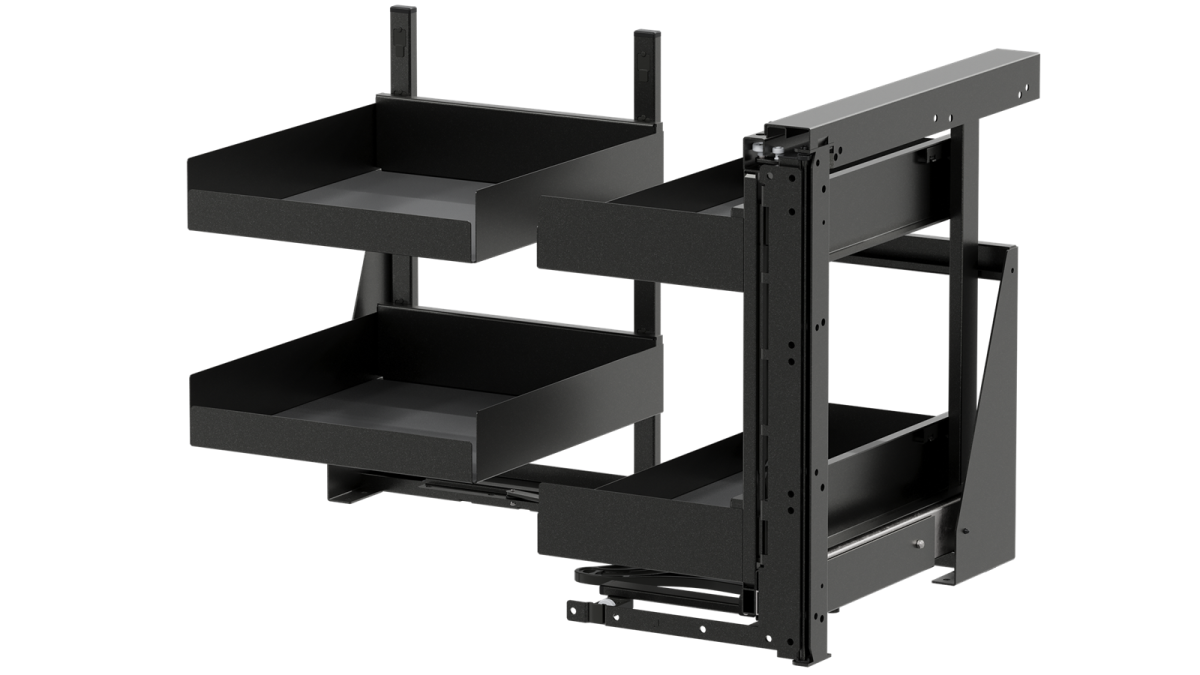

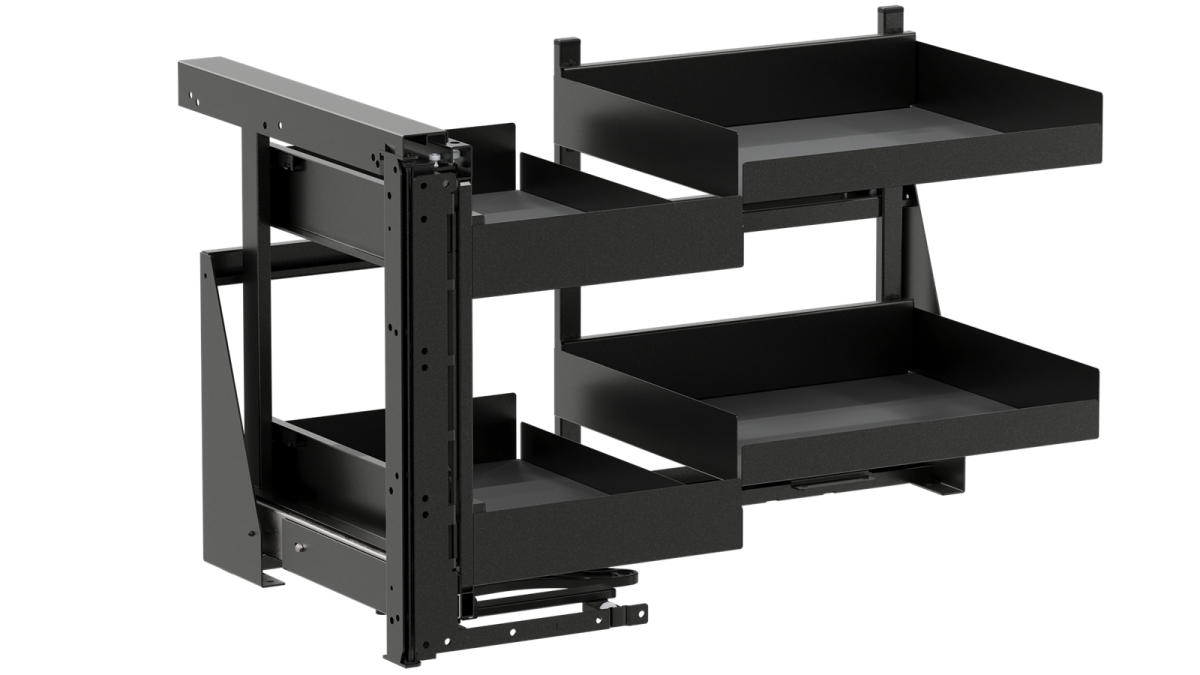

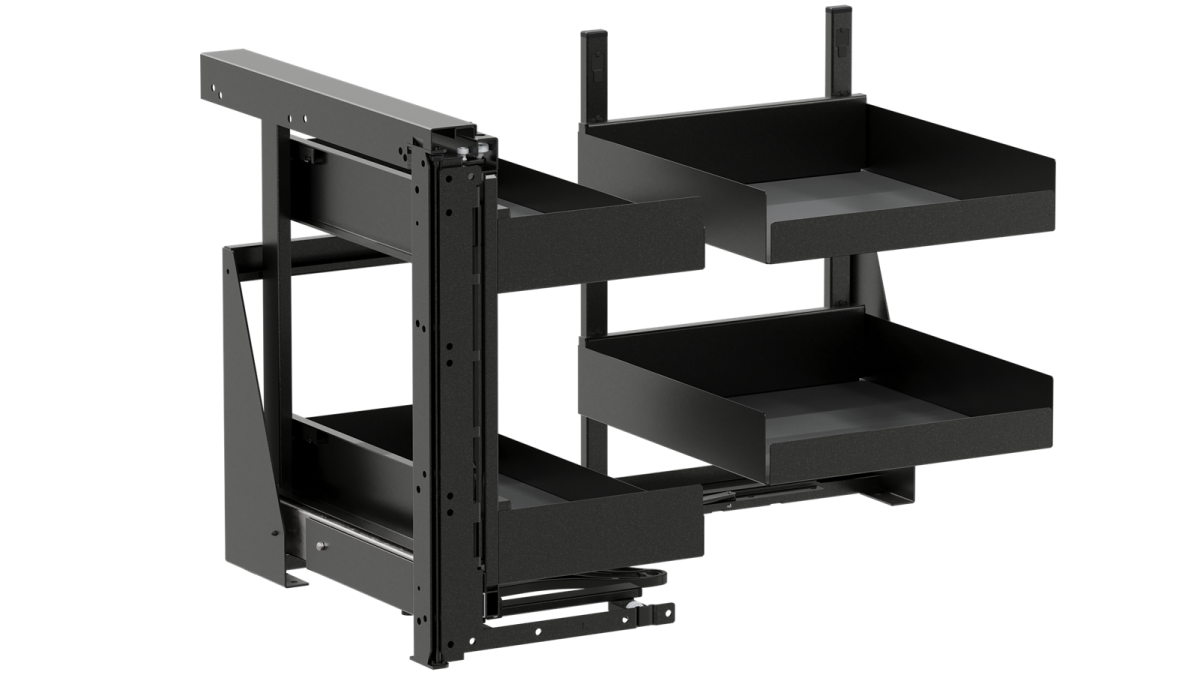

• Fits 800mm cabinet widths (approx. 0.447m² total shelf area over 4 baskets) and 900mm cabinet widths (approx. 0.662m² total shelf area over 4 baskets).
• Suitable for 400mm and 450mm door widths, with a minimum required cabinet depth of 485mm and minimum height of 530mm.

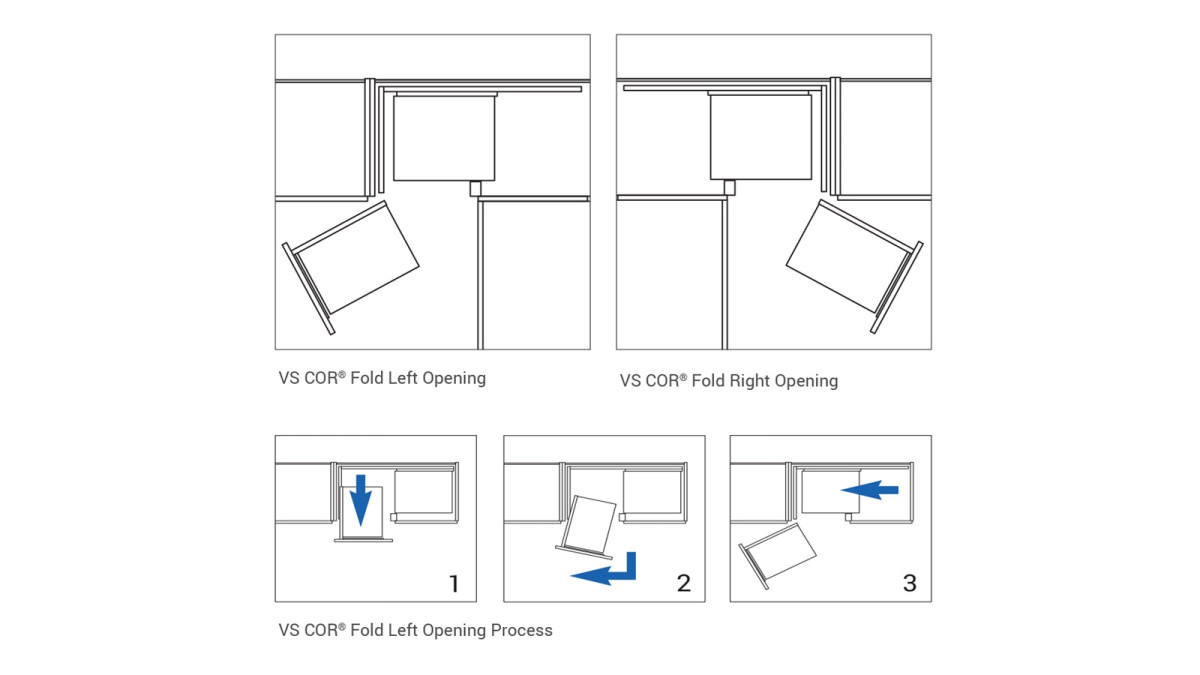

• Options available for left-hand and right-hand door opening configurations.
• Fully compatible with modular VS ADD® Box and VS ADD® Separator inserts.

• Maximum load limits are 8kg per front basket, 9.5kg per rear basket, and a total maximum system weight capacity of 35kg.
• Not suitable for blind corner cabinets with door widths under 400mm, internal depths under 485mm, or internal heights under 530mm.

Suitable for residential use, taking into account the following:

• Recommended maximum cabinet widths, depths and heights.
• Be familiar with the load capacity of the unit and do not exceed it.
• To avoid base panel sagging, sufficient support for the cabinet base is required directly under the mechanism runner. Warranty depends on adequate support being installed with the pantry.
• To avoid base panel sagging, sufficient support for the cabinet base is required directly under the mechanism runner. Warranty depends on adequate support being installed with the pantry.
• When opening and closing unit or when putting items into it, do not apply strong downward force as this may damage the runners.
• Do not use caustic cleaners on any part of the unit. Some dishwasher powders and laundry powders are particularly caustic, as are dry salt, salt water and any citrus juice. If they spill onto or into the unit, remove the powder promptly with a vacuum cleaner, soft brush or damp cloth taking care to re-wipe the surface clean after rinsing cloth free of substance and ensure it is dried well.

Refer to the Care & Maintenance document for further detail.

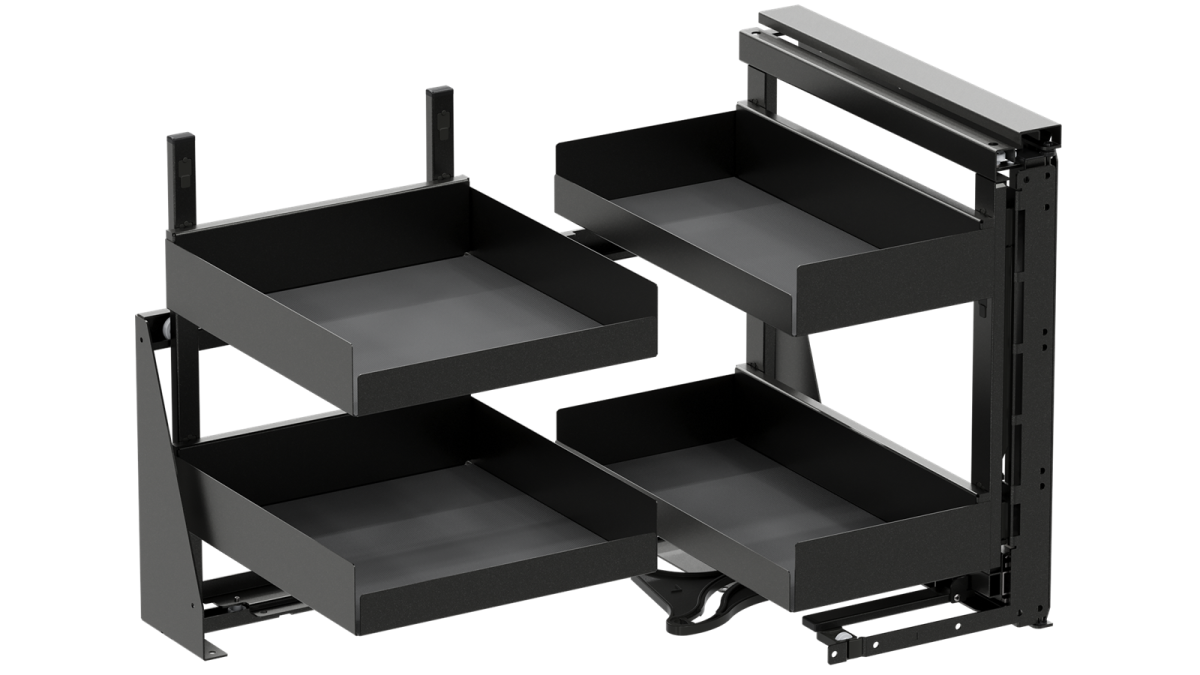

FIT first brought Vauth-Sagel’s VS COR Fold blind corner unit to the New Zealand market in 2013. Since then, they have refreshed the style on occasion, with the latest style, ESSENTIO® launching in 2026.

• Maximum load: 8kg per front basket, 9.5kg per rear basket
• Maximum load: 35kg

Warranty

FIT warrants the original purchaser of products against manufacturing defects for as long as the original purchaser owns the product. This warranty applies to all non-electrical products sold by FIT in New Zealand and Australia.

The warranty covers replacements for faulty goods only. Replacements will be supplied to the original purchaser only. If the identical item is no longer available, FIT will replace with the closest item from their current product selection. The warranty does not include any labour or other associated expense that may be involved in removal or installation of the product. The warranty does not apply if products have been incorrectly installed, have been subjected to loads in excess of specifications and/or have been subjected to uses/purposes for which they are not expressly intended. FIT’s liability is limited to the goods themselves and does not cover any consequential or incidental damages contributed to or resulting from the use, installation, performance or failure of products.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
