Metro Series ThermalHeart+® Sliding Windows
FIRST Windows & Doors
All products
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore
SI 028 v1 current 122
SW1 W

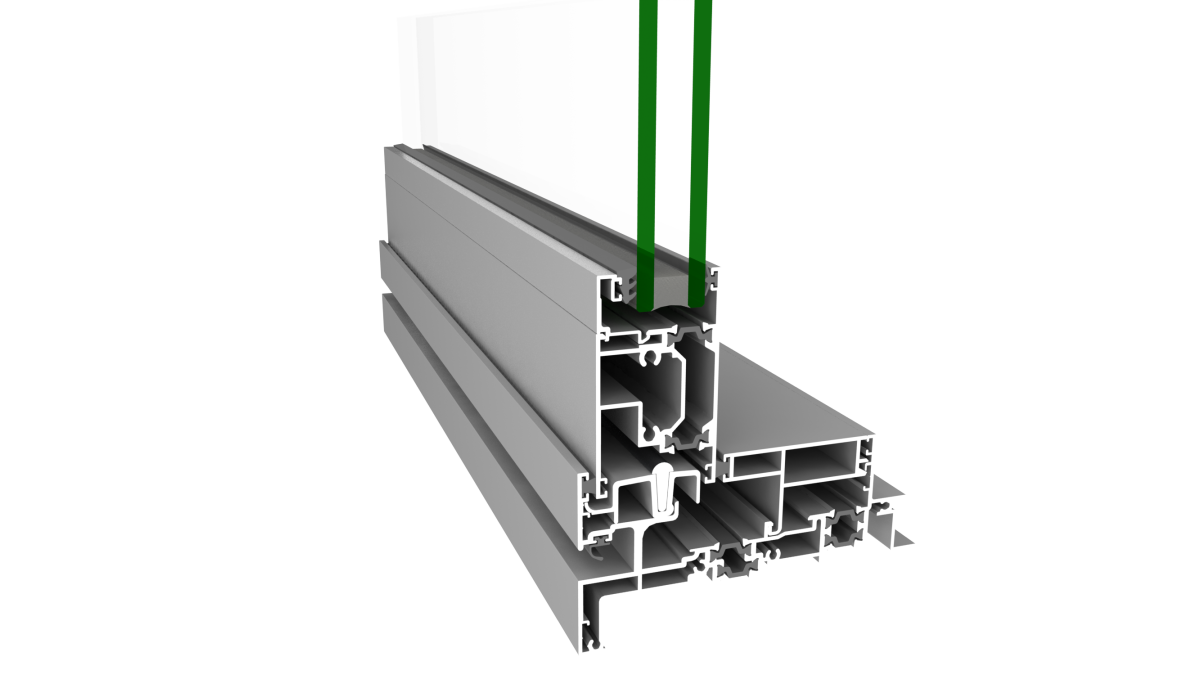

Sliding window sill and panel rail
SW2 W

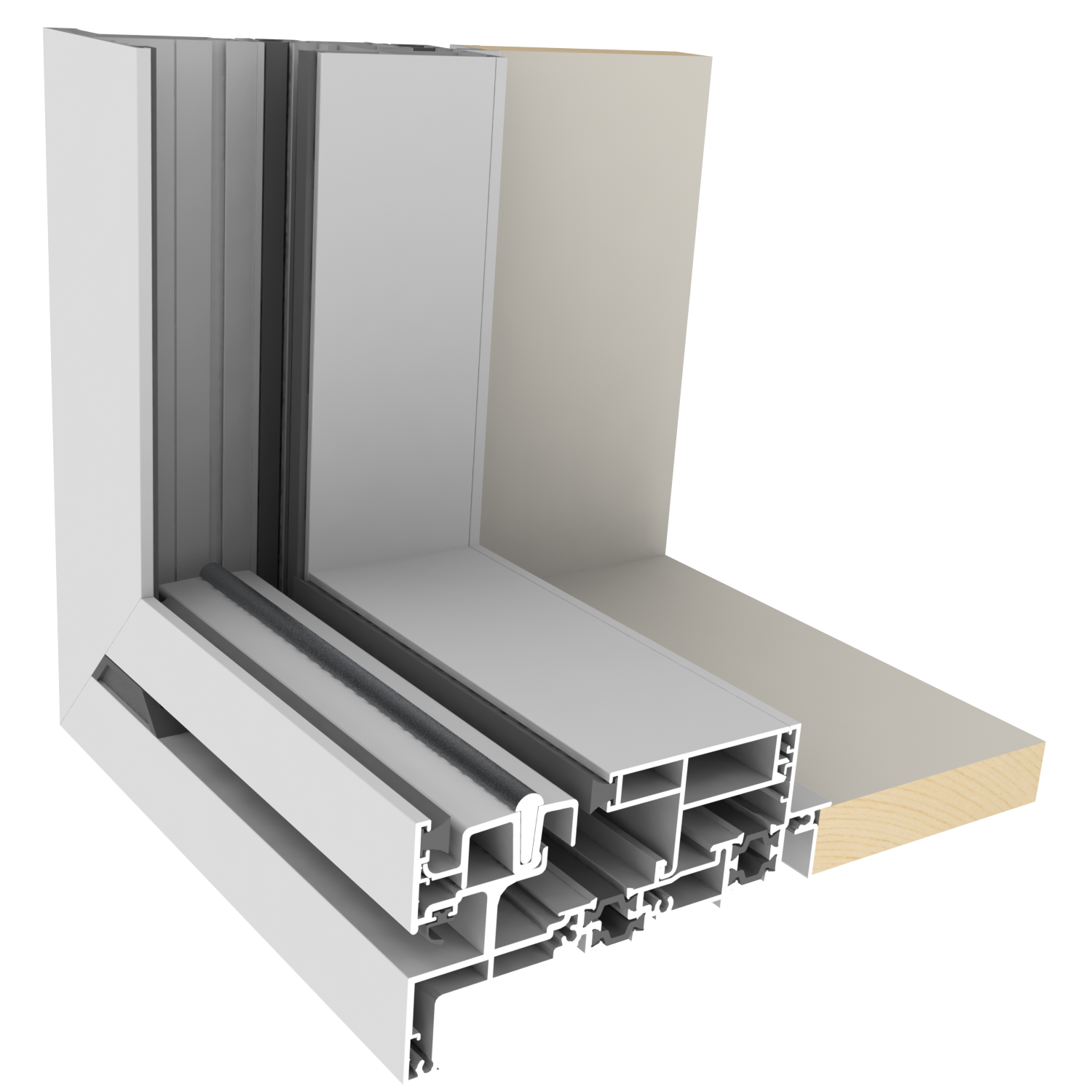

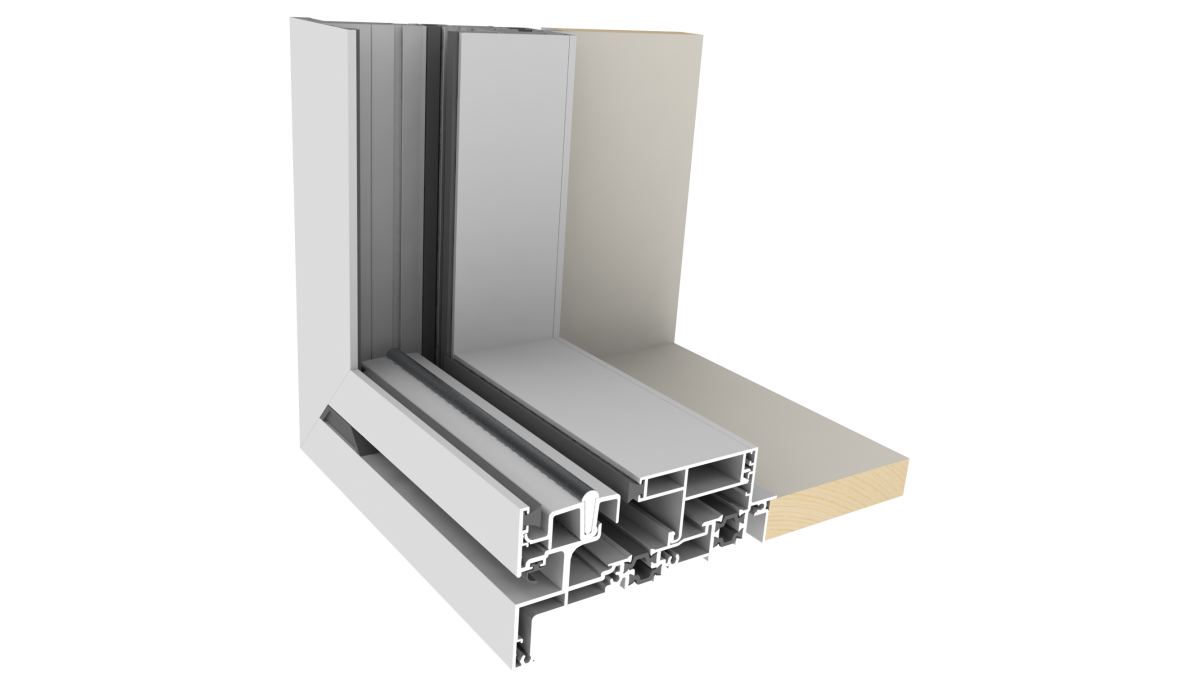

Sliding window sill (single slider)
SW3 W

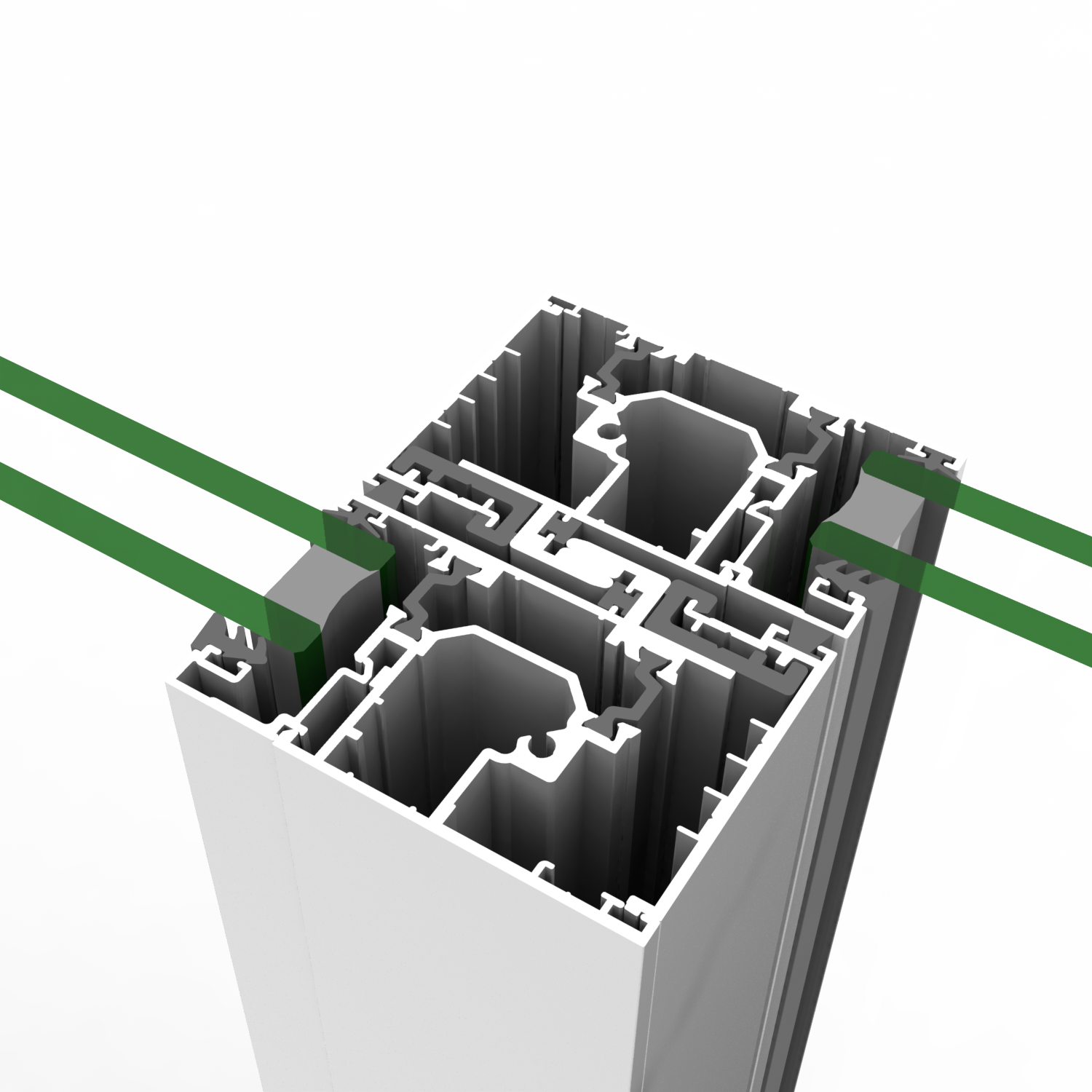

Fully thermally isolated interlocker stiles in closed position
SW4 W LR

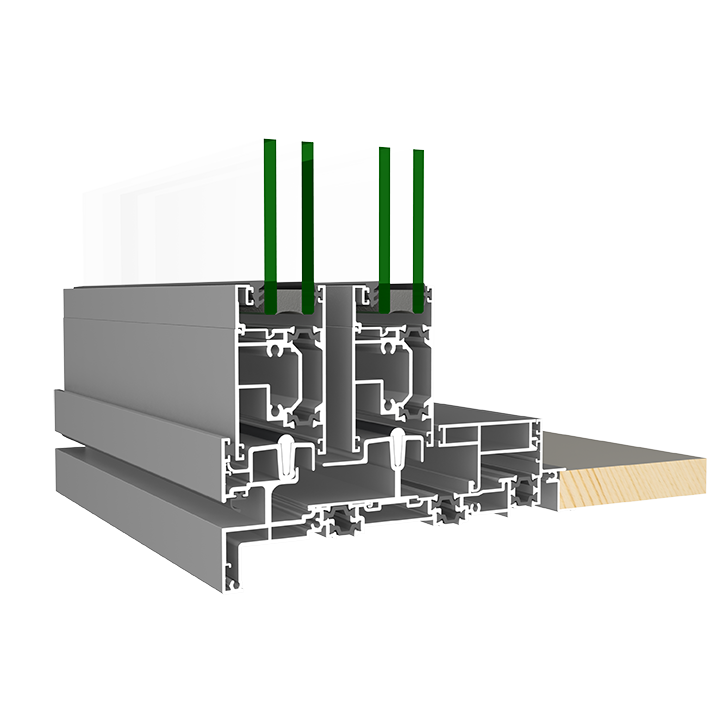

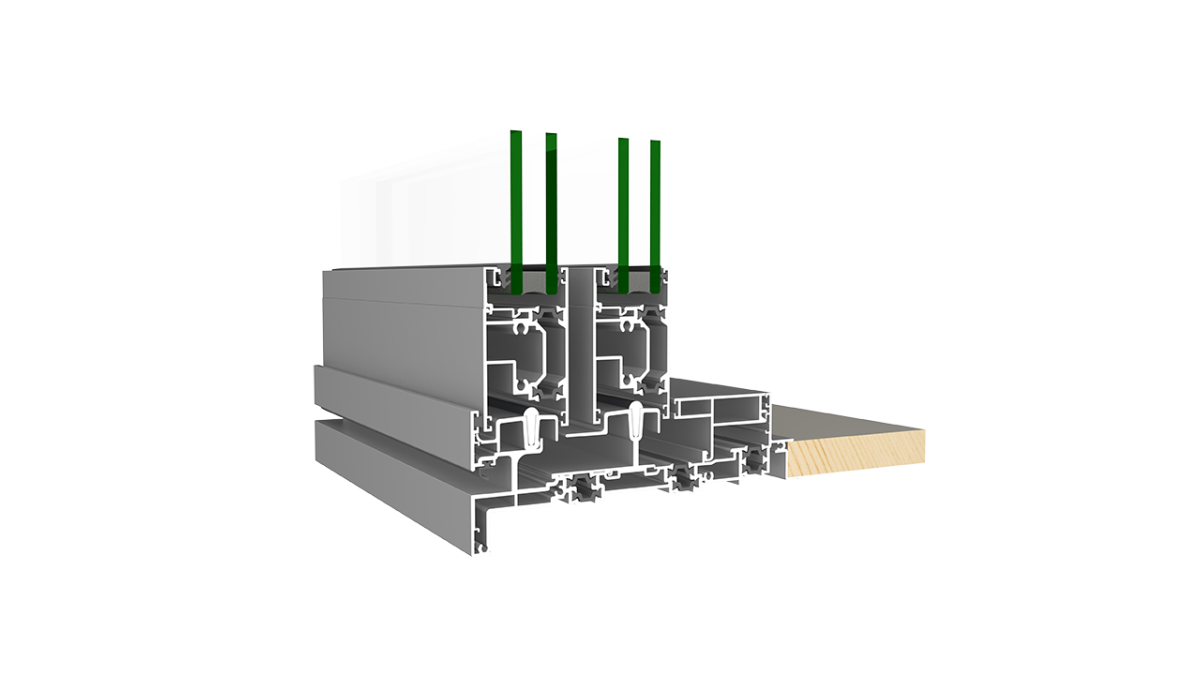

Multi slider window track and panel rails
SW5 W LR

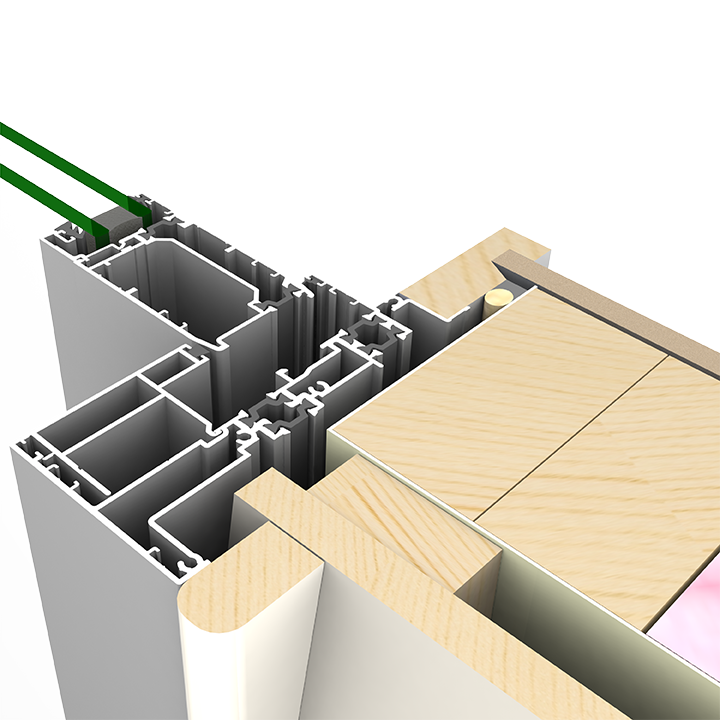

The sliding window jamb section
Description

Sliding windows use the sliding door system, which has slender sightlines. The sill frame has a flush track. Interlocker stiles and mullions are flush in the closed position.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features
  • An exterior sliding track as standard
  • Ideal for non-projecting or servery windows
  • Smooth sliding action
  • Wide opening is possible in bi-parting or stacking configurations.
  • Stiles and rails feature slender sightlines

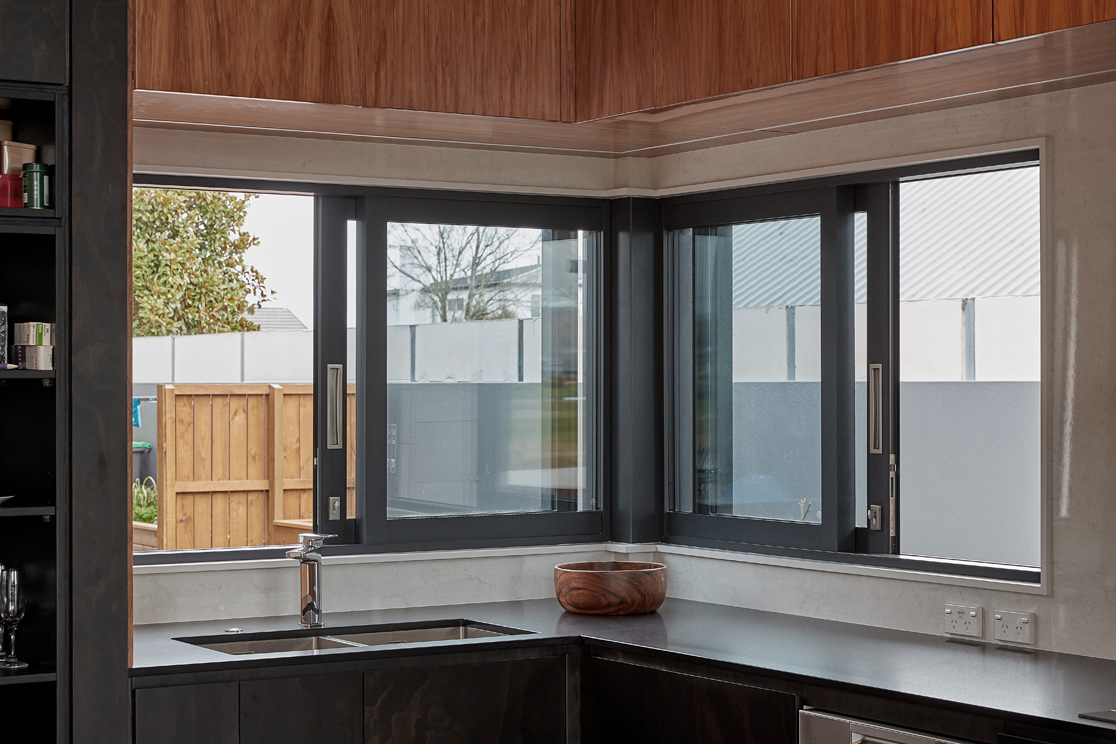

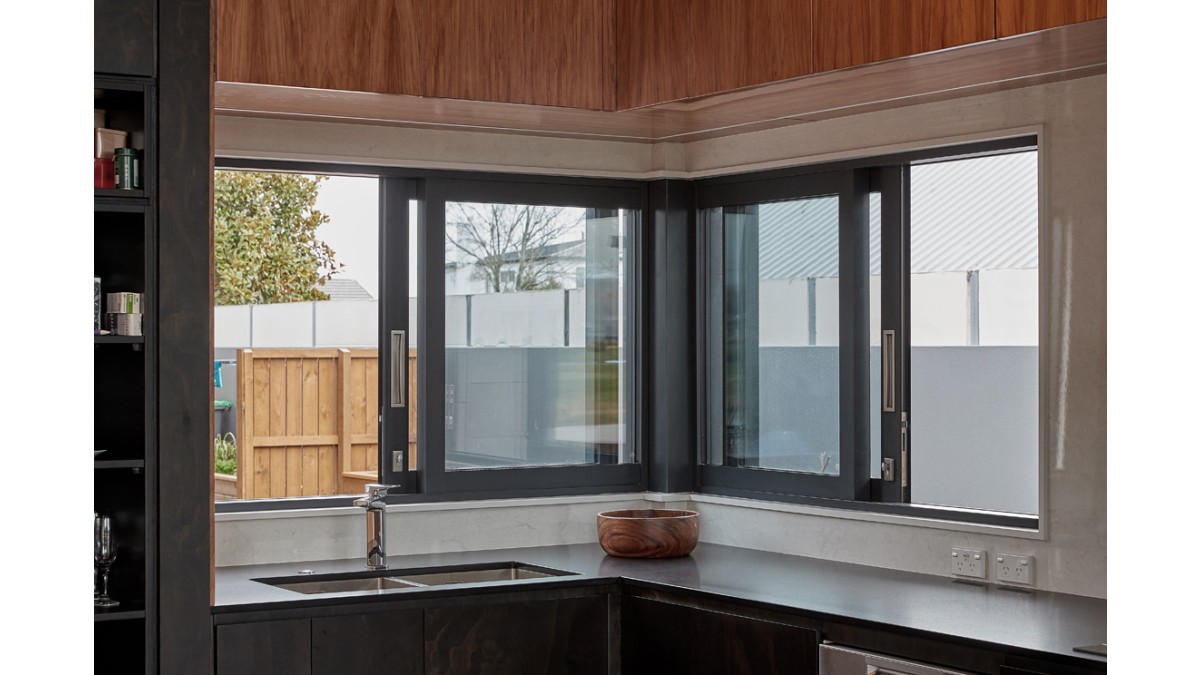

  • Corner sliding windows (90°) are available with no corner post (exterior and interior corners)
  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Categories
Sliding Windows
Ranges
Metro Series ThermalHeart+®
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • Recommended in maximum sizes
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Redesigned and relaunched in 2023 (previous version 2012)
  • New range rolling out nationally; previous version in use in residential projects, including medium rise, throughout New Zealand by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHeart+® products can have a different colour on the interior and exterior faces as an optional choice
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
  • News
Documents
Specifier Guide
pdf
Data Sheet: Metro Series ThermalHeart+® Windows

2023

pdf
Span Tables: Metro Series ThermalHeart+® Sliding Windows
pdf
Environmental Product Declaration (EPD) Report

2023

URL
WGANZ Guide to E2/AS1

2022

pdf
Calculate R-Value and Ug-Value
pdf
FIRST on Masterspec
URL
Full Specification Guide: Metro Series ThermalHeart+®
docx
Specification Guide: Metro Series ThermalHeart+® Sliding Windows
docx
Manufacturer Contact List
URL
AGP Care & Maintenance
pdf
FIRST Care, Maintenance & Warranty Brochure (with AGP)
URL
AGP State of the Art Glass Brochure
URL
FIRST Brochure
URL
Sustainability Report
URL
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability
URL
EPD: Understanding the global standard
pdf
CAD/PDF Details
View full
APL Metro Thermal Heart Sliding Window Drawings pdf
Metro Series ThermalHEART® Sliding Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip

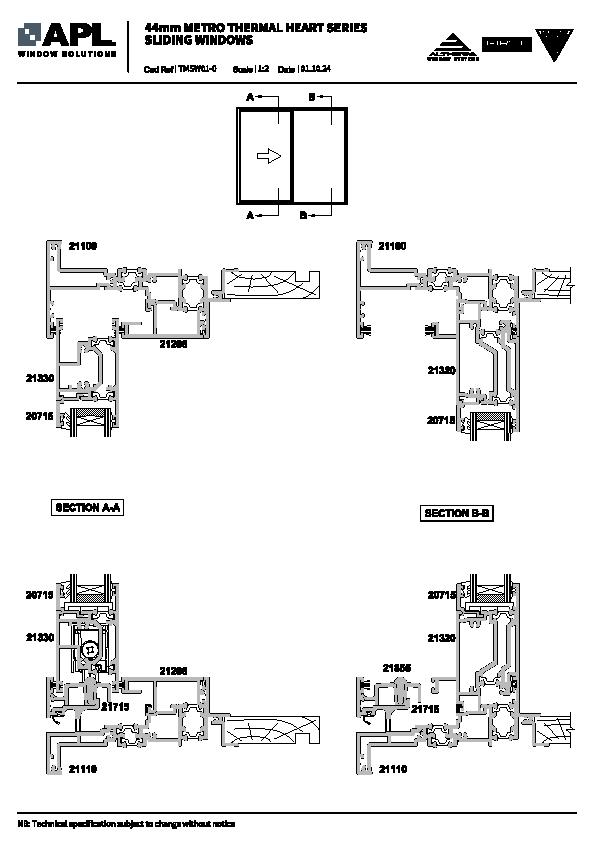

TMSW01 0 pdf
Metro Series ThermalHEART® Sliding Windows

TMSW01

dwg
dxf
pdf

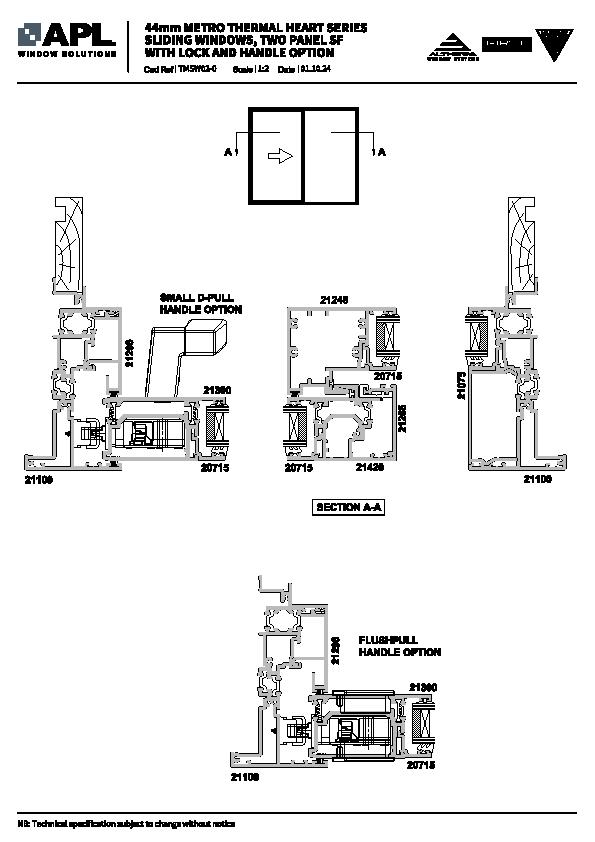

TMSW02 0 pdf
Metro Series ThermalHEART® Sliding Windows — Two Panel SF

TMSW02

dwg
dxf
pdf

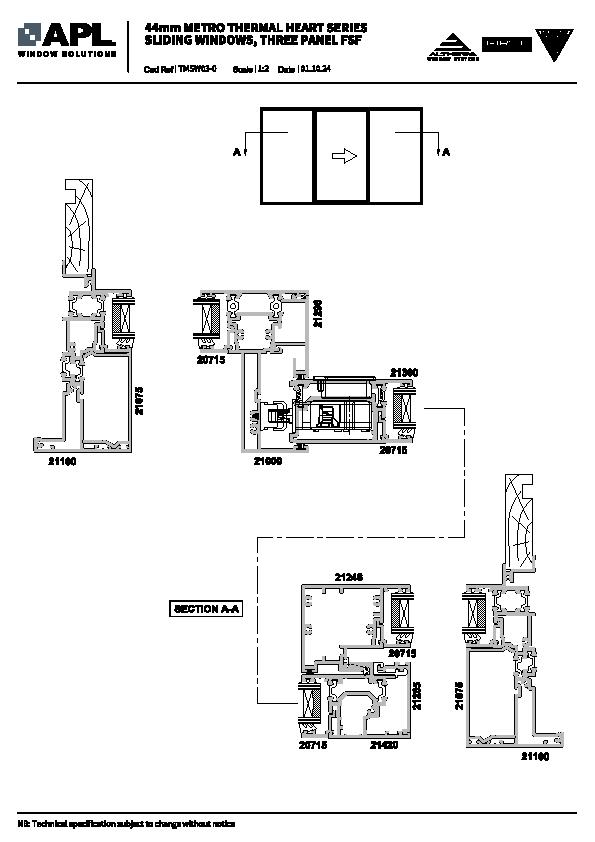

TMSW03 0 pdf
Metro Series ThermalHEART® Sliding Windows — Three Panel FSF

TMSW03

dwg
dxf
pdf

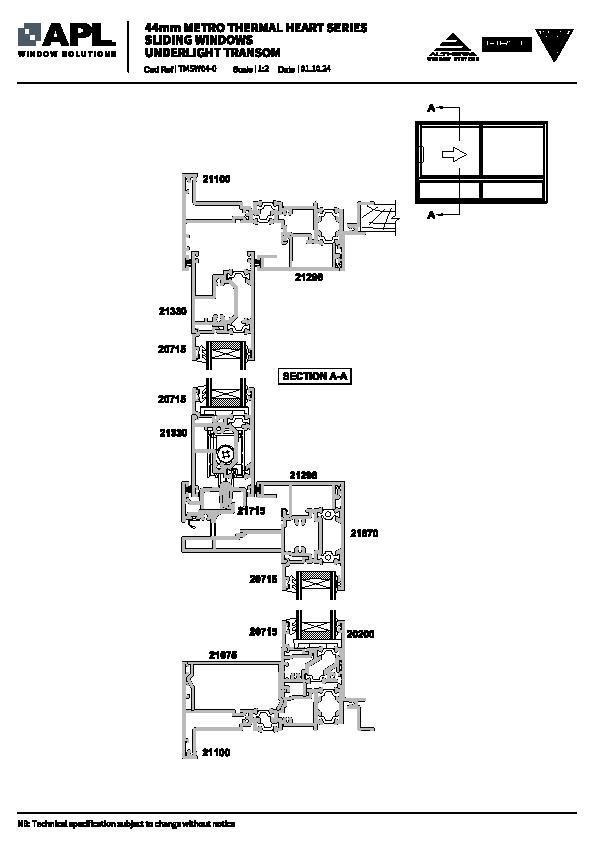

TMSW04 0 pdf
Metro Series ThermalHEART® Sliding Windows — Underlight Transom

TMSW04

dwg
dxf
pdf
TMSW05 0 pdf

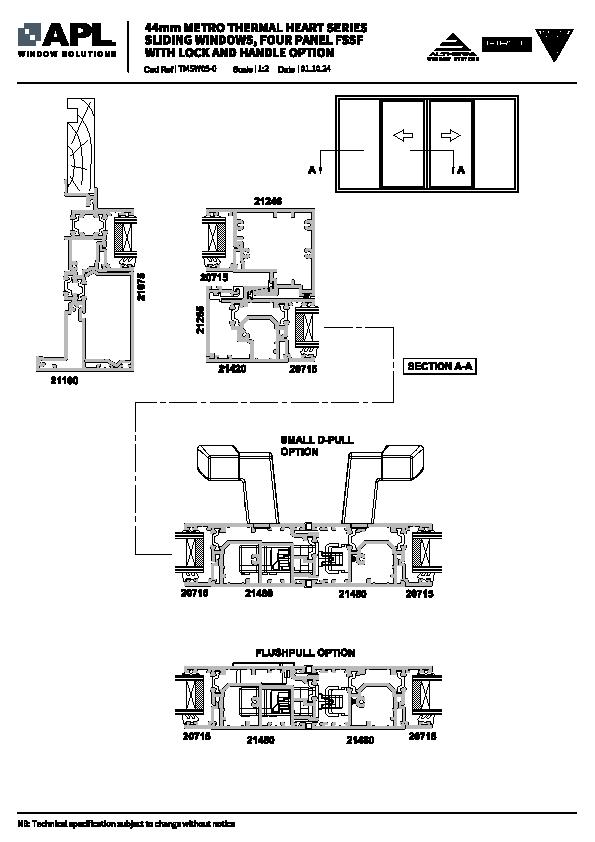

Metro Series ThermalHEART® Sliding Windows — Four Panel FSSF

TMSW05

dwg
dxf
pdf
TMSW06 0 pdf

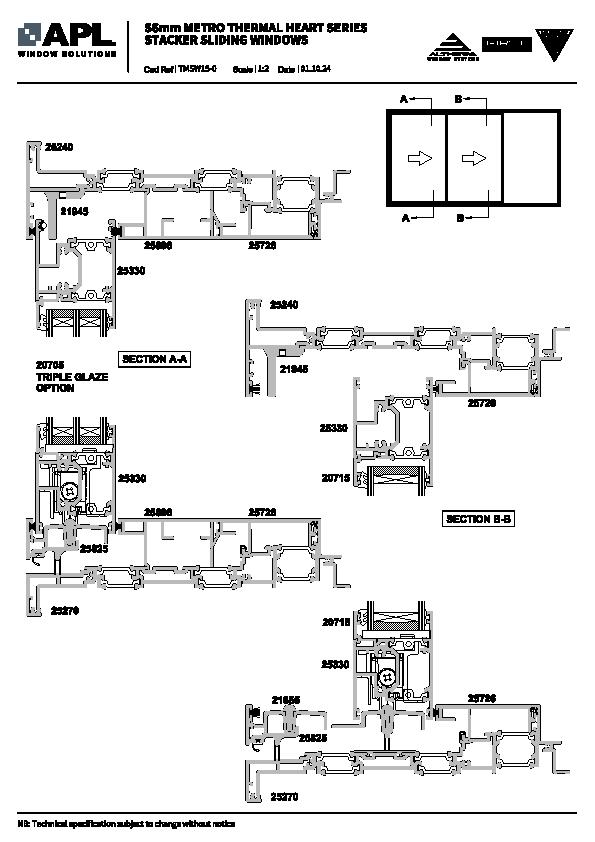

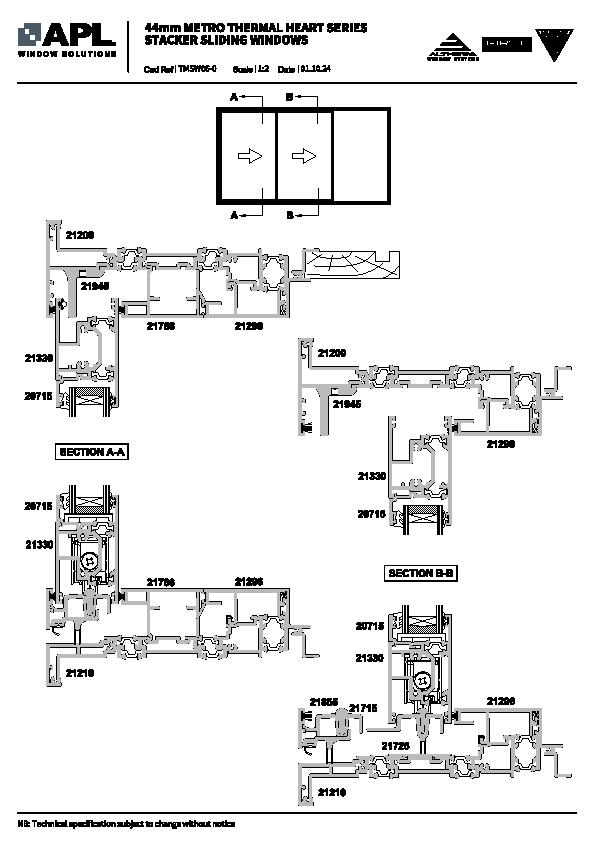

Metro Series ThermalHEART® Stacker Sliding Windows

TMSW06

dwg
dxf
pdf
TMSW07 0 pdf

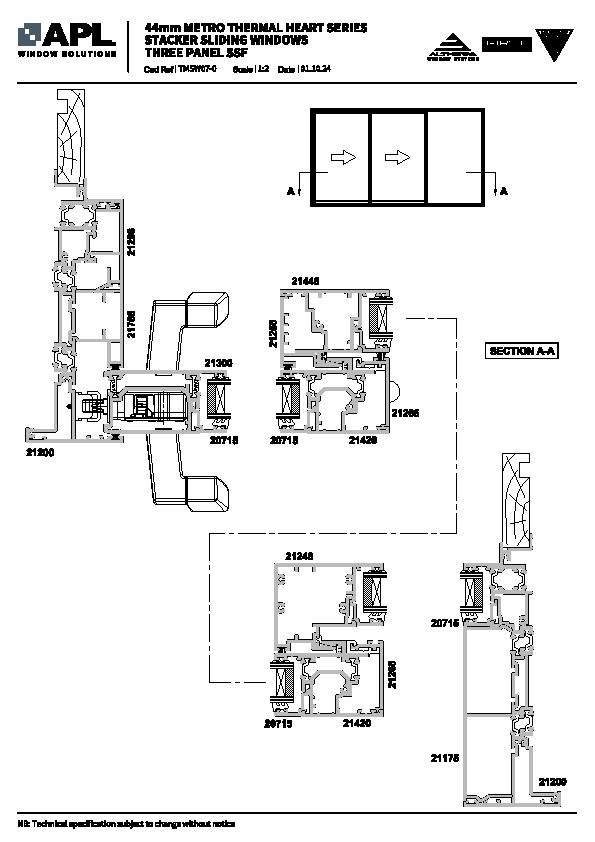

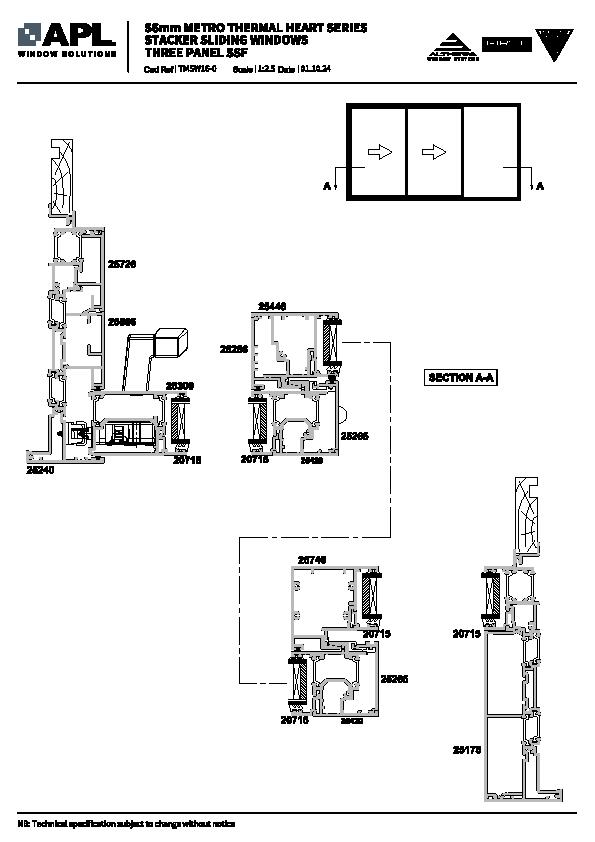

Metro Series ThermalHEART® Stacker Sliding Windows — Three Panel SSF

TMSW07

dwg
dxf
pdf
TMSW10 0 pdf

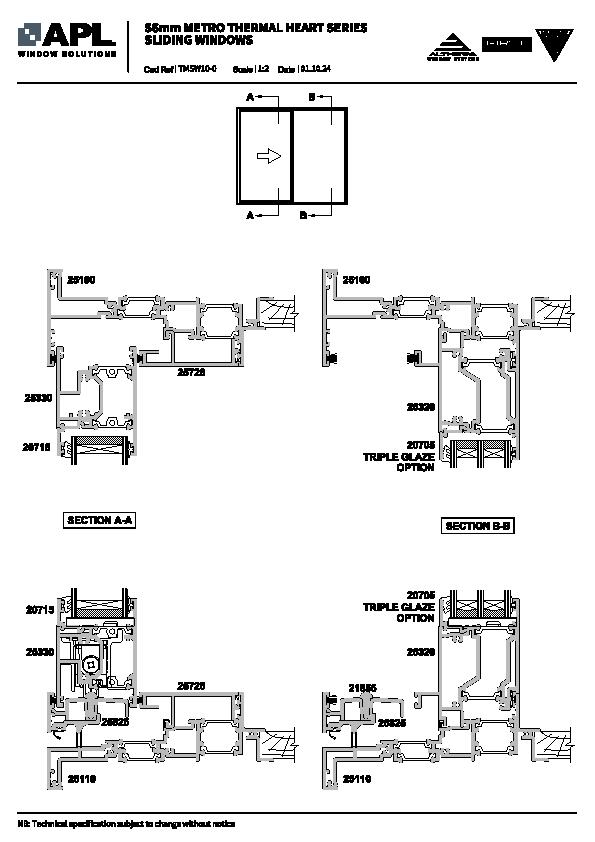

Metro Series ThermalHEART® Sliding Windows (56mm)

TMSW10

dwg
dxf
pdf
TMSW11 0 pdf

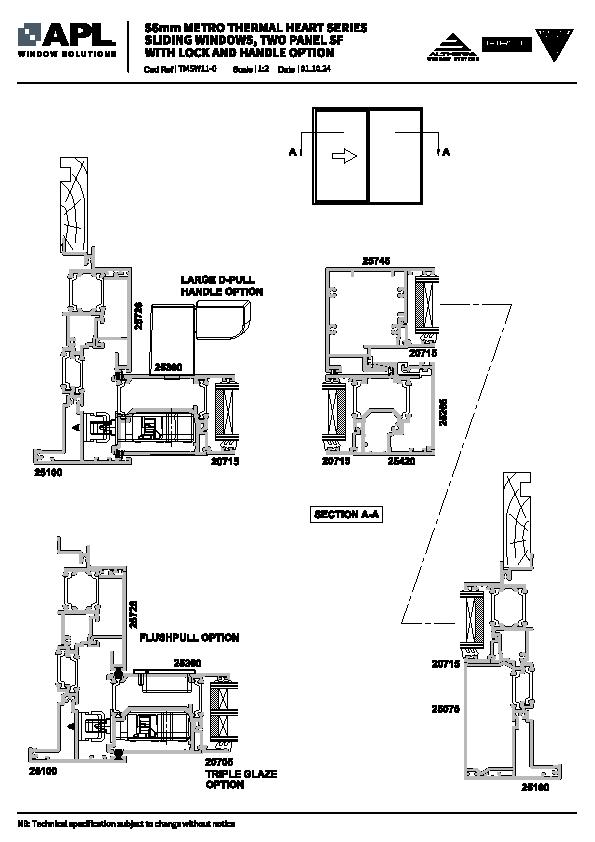

Metro Series ThermalHEART® Sliding Windows — Two Panel SF (56mm)

TMSW11

dwg
dxf
pdf

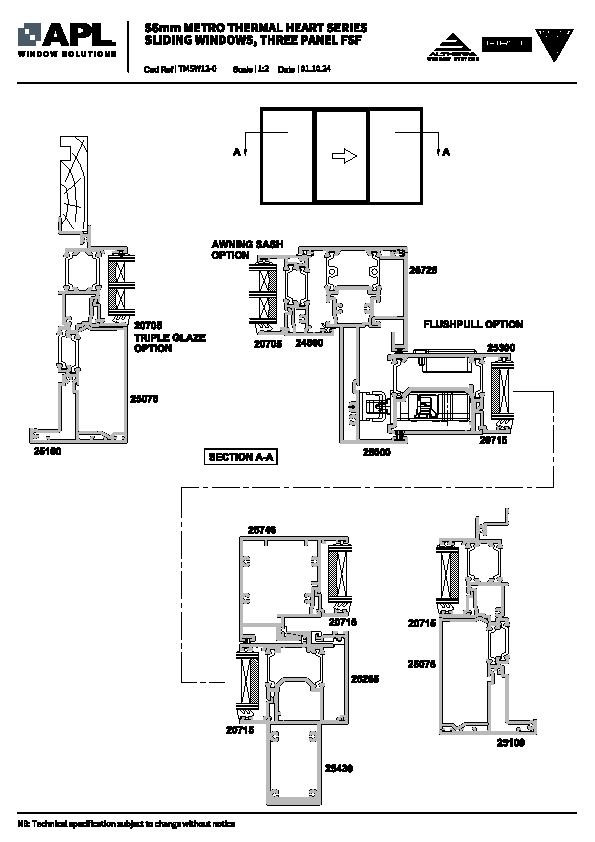

TMSW12 0 pdf
Metro Series ThermalHEART® Sliding Windows — Three Panel FSF (56mm)

TMSW12

dwg
dxf
pdf
TMSW13 0 pdf

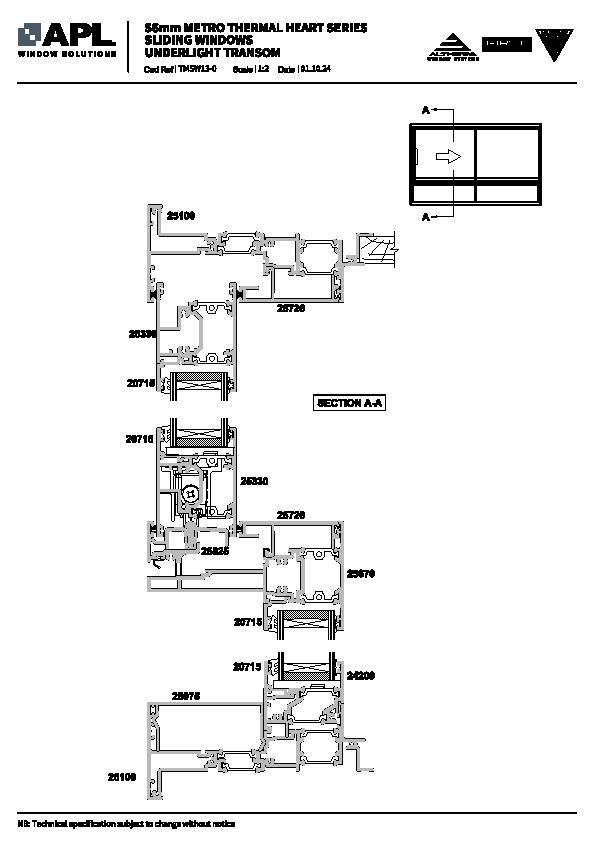

Metro Series ThermalHEART® Sliding Windows — Underlight Transom (56mm)

TMSW13

dwg
dxf
pdf
TMSW14 0 pdf

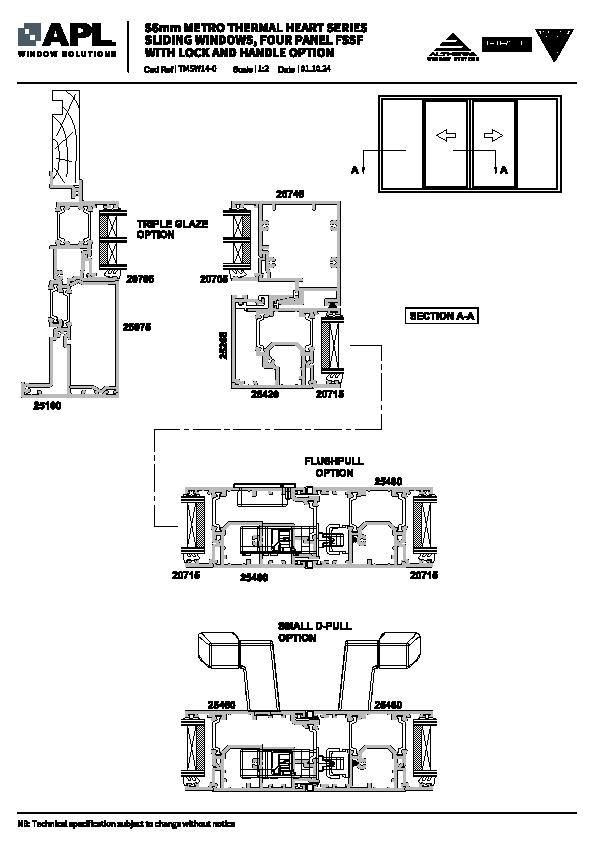

Metro Series ThermalHEART® Sliding Windows — Four Panel FSSF (56mm)

TMSW14

dwg
dxf
pdf
TMSW15 0 pdf
Metro Series ThermalHEART® Stacker Sliding Windows (56mm)

TMSW15

dwg
dxf
pdf
TMSW16 0 pdf
Metro Series ThermalHEART® Sliding Windows — Three Panel SSF (56mm)

TMSW16

dwg
dxf
pdf
Installation Details
View full
TM44SWBB pdf v2
Metro Series ThermalHEART® Multislider Window on Board & Batten

TM44SWBB

dwg
pdf
TM44SWBV pdf v2
Metro Series ThermalHEART® Multislider Window on Brick Veneer

TM44SWBV

dwg
pdf
TM44SWBW pdf v2
Metro Series ThermalHEART® Multislider Window on Bevelback Weatherboard

TM44SWBW

dwg
pdf
TM44SWFS pdf v2
Metro Series ThermalHEART® Multislider Window on Flat Sheet

TM44SWFS

dwg
pdf
TM44SWPM pdf v2
Metro Series ThermalHEART® Multislider Window on Profile Metal

TM44SWPM

dwg
pdf
TM44SWRW pdf v2
Metro Series ThermalHEART® Multislider Window on Rusticated Weatherboard

TM44SWRW

dwg
pdf
TM44SWST pdf v2
Metro Series ThermalHEART® Multislider Window on Stucco

TM44SWST

dwg
pdf
TM56SWBB pdf v2
Metro Series ThermalHEART® Sliding Window on Board & Batten (56mm)

TM56SWBB

dwg
pdf
TM56SWBV pdf v2
Metro Series ThermalHEART® Sliding Window on Brick Veneer (56mm)

TM56SWBV

dwg
pdf
TM56SWBW pdf v2
Metro Series ThermalHEART® Sliding Window on Bevelback Weatherboard (56mm)

TM56SWBW

dwg
pdf
TM56SWFS pdf v2
Metro Series ThermalHEART® Sliding Window on Flat Sheet (56mm)

TM56SWFS

dwg
pdf
TM56SWPM pdf v2
Metro Series ThermalHEART® Sliding Window on Profile Metal (56mm)

TM56SWPM

dwg
pdf
TM56SWRW pdf v2
Metro Series ThermalHEART® Sliding Window on Rusticated Weatherboard (56mm)

TM56SWRW

dwg
pdf
TM56SWST pdf v2
Metro Series ThermalHEART® Sliding Window on Stucco (56mm)

TM56SWST

dwg
pdf
