FIRST APL Architectural Series Sliding Doors
Description

Sliding doors slide on an outside track and can meet 90 degree corners without the need for a corner post. For most configurations a fixed side panel is required, however a bypass slider option is available where two or three panels move.

The sliding door system has also been designed for convenient use as a cavity slider or for sliding back over a wall.

Key Features
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • A high-performance series of windows and doors ideal for architecturally designed houses and apartments
  • Designed for suitability for Extra High wind zones and Specific Design applications

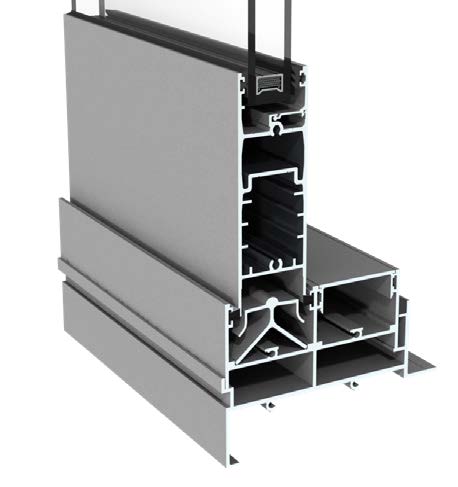

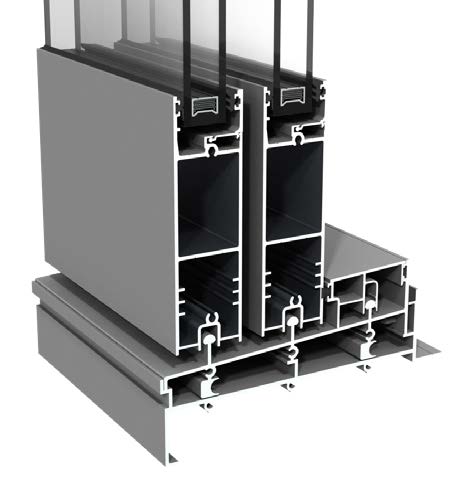

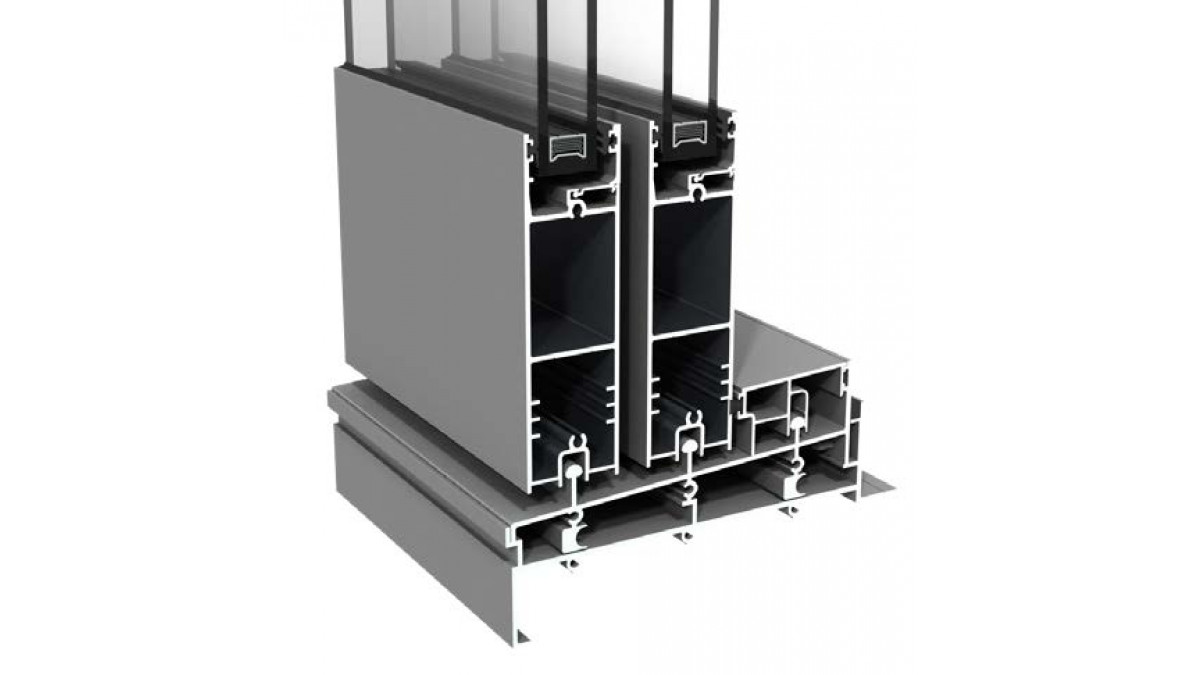

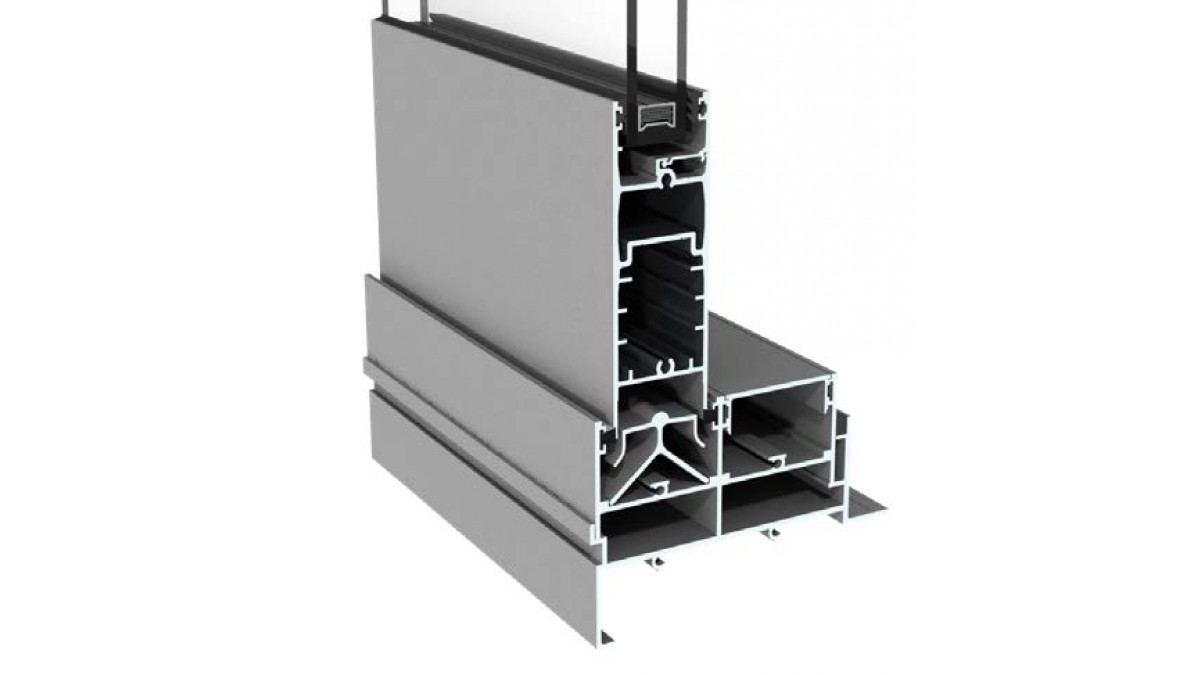

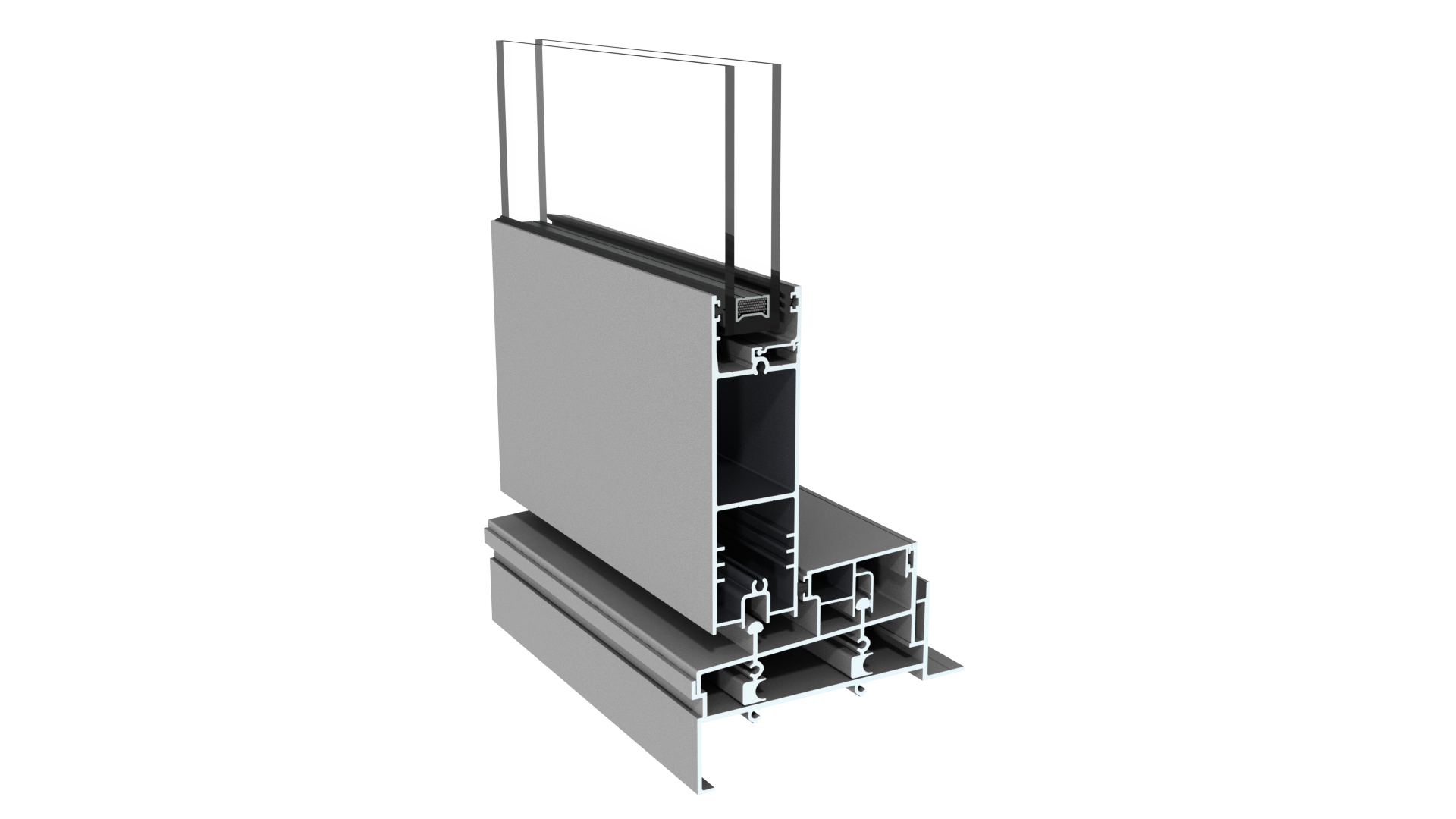

  • The sill frame has both sloped and flush track options
  • Interlocker stiles and mullions are flush in the closed position
  • A bypass slider is available where two or three panels can be moved independently without a fixed panel

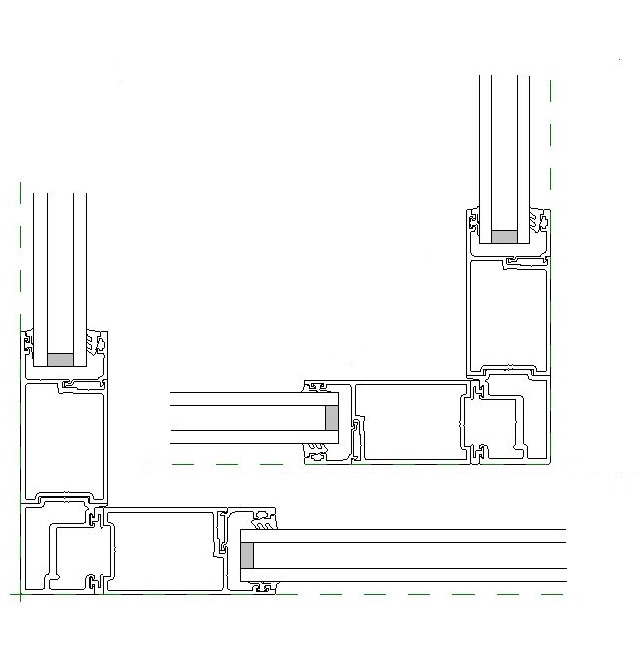

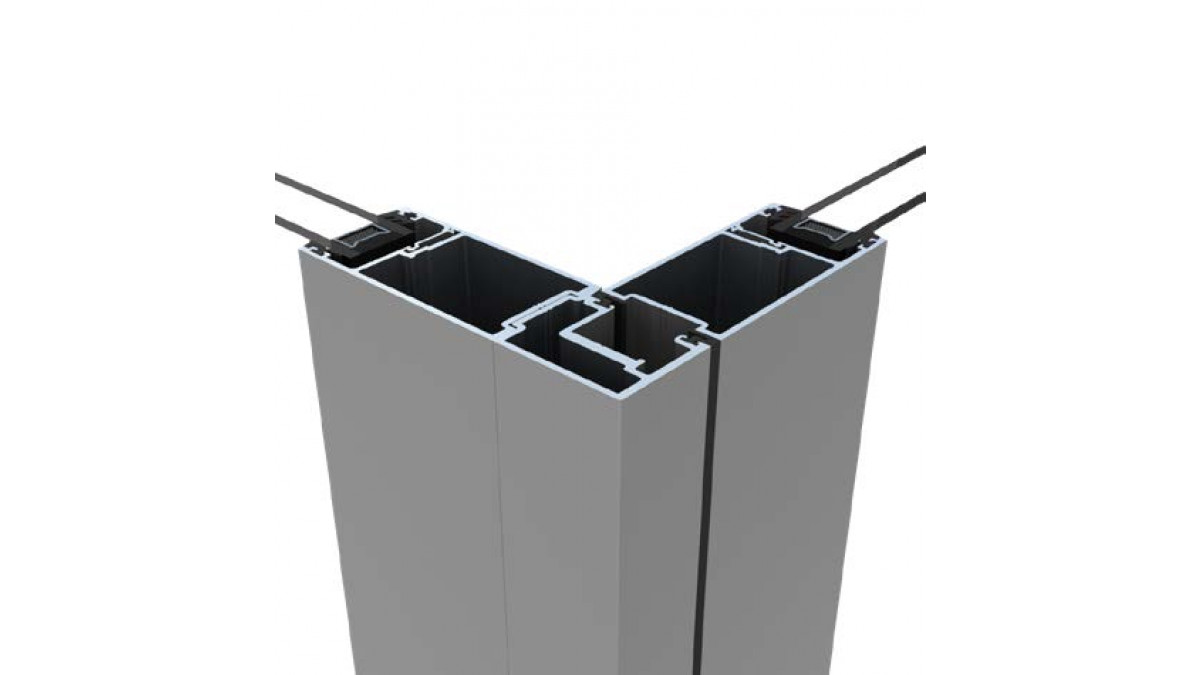

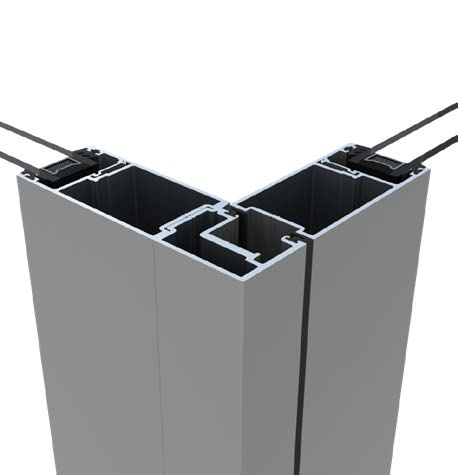

  • Corner sliders (90º) are available with no corner post (exterior and interior corners)
  • Three sliders can stack over a fixed panel

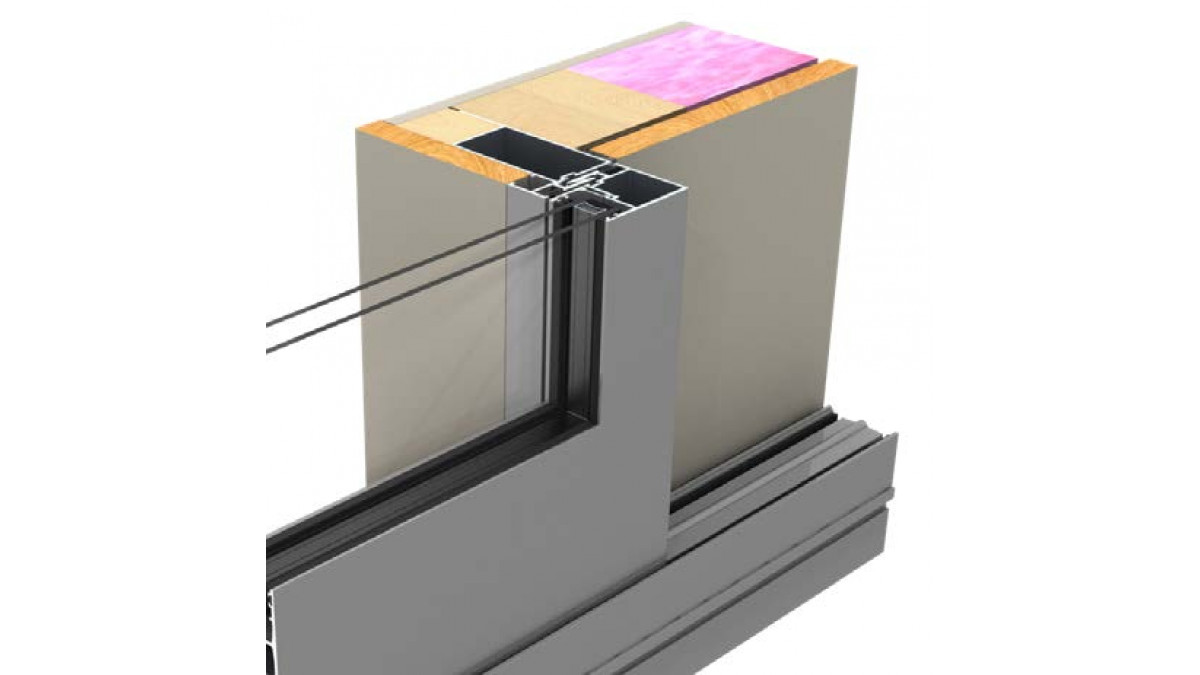

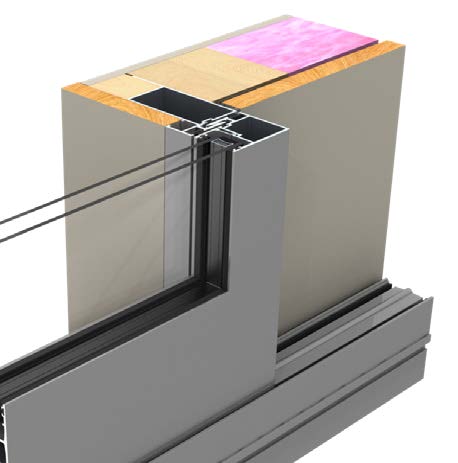

  • Overwall and cavity sliding options are available
Scope of Use
  • Suitable for most residential environments in larger sizes
  • Designed for suitability for Extra High wind zones and Specific Design applications
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • For enhanced flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Recommended maximum 2700mm high doors in Extra High wind zones
  • Narrow stiles and large glass expanses maximise views in the closed position
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Literature
Product Assurance
Data Sheet
Specification Clause
Warranty
Other Literature
APL and Sustainability 2017
First Care & Maintenance Brochure 2017
Full Specification
Manufacturer Contact List
Span Tables
Specifier Guide
WANZ Guide to E2/AS1
CAD/PDF Details
Full Set of Drawings

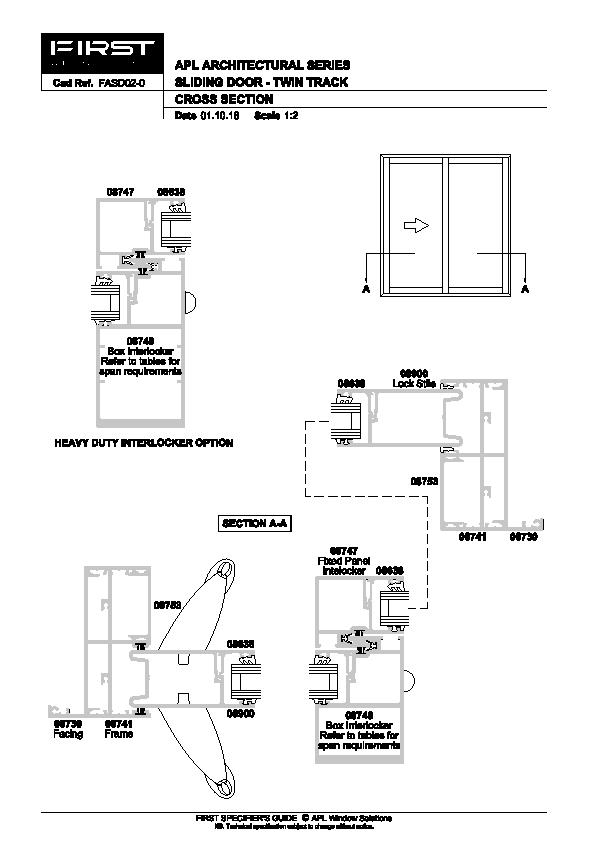

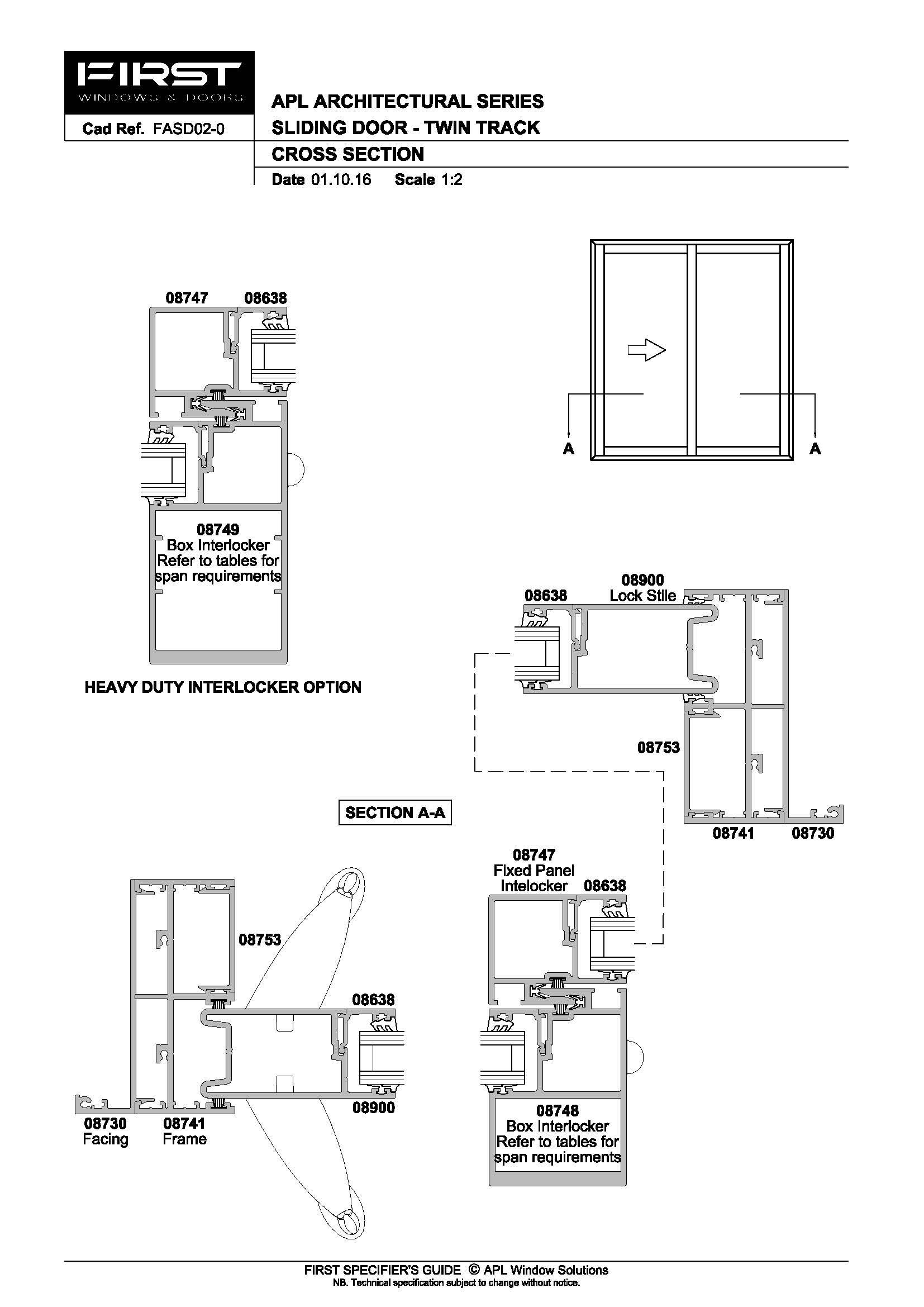

FIRST APL Architectural Series Sliding Door - Twin Track

FASD02-0

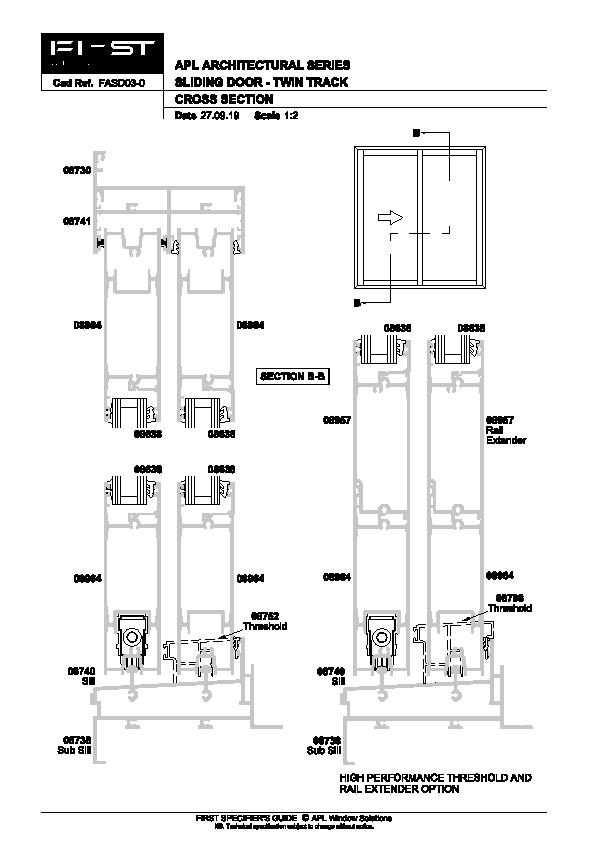

FIRST APL Architectural Series Sliding Door - Twin Track

FASD03-0

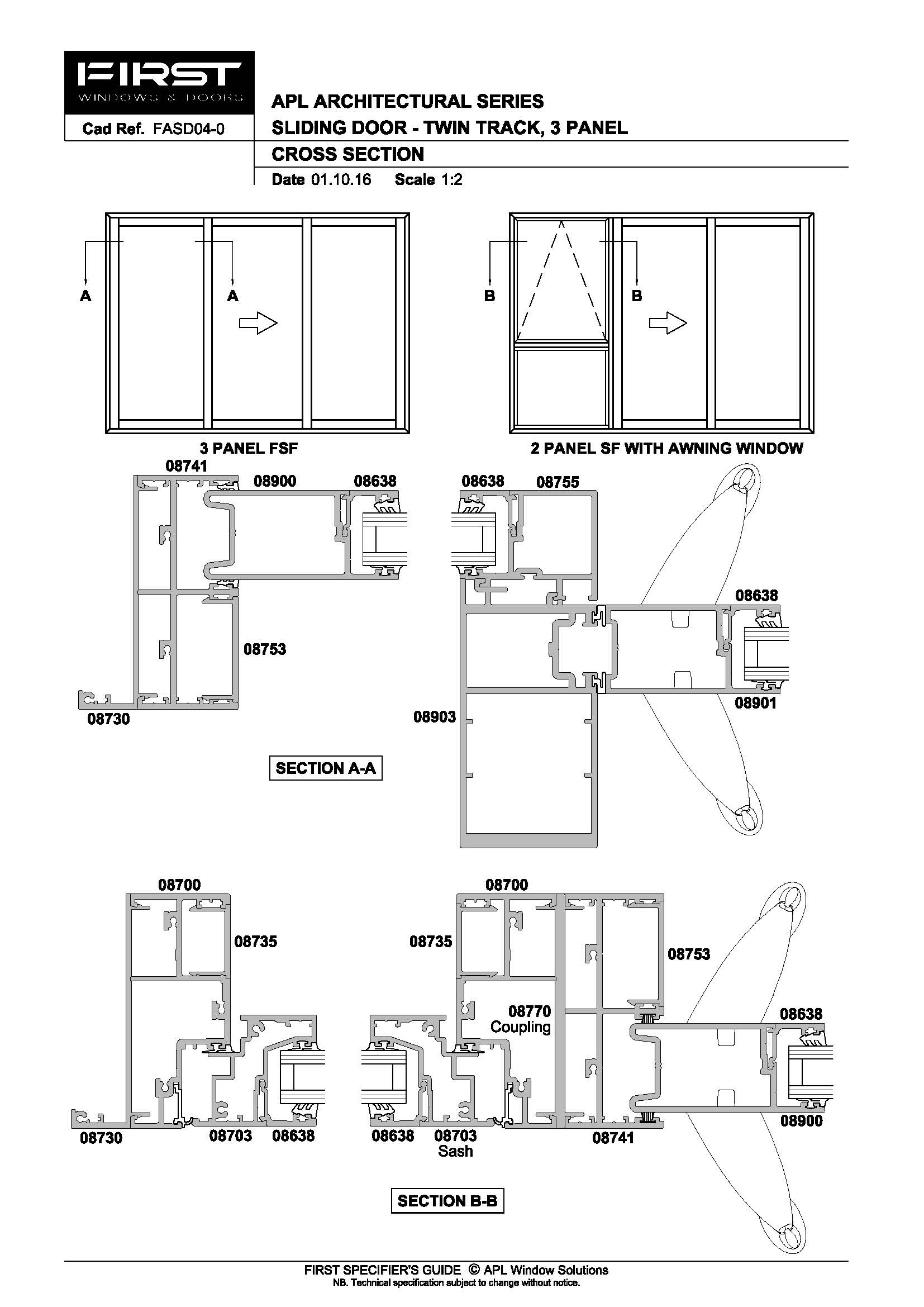

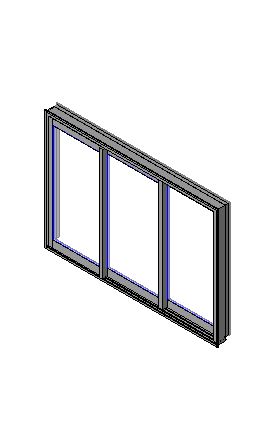

FIRST APL Architectural Series Sliding Door - Twin Track 3 Panel

FASD04-0

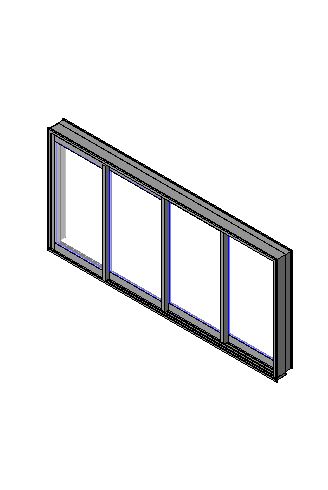

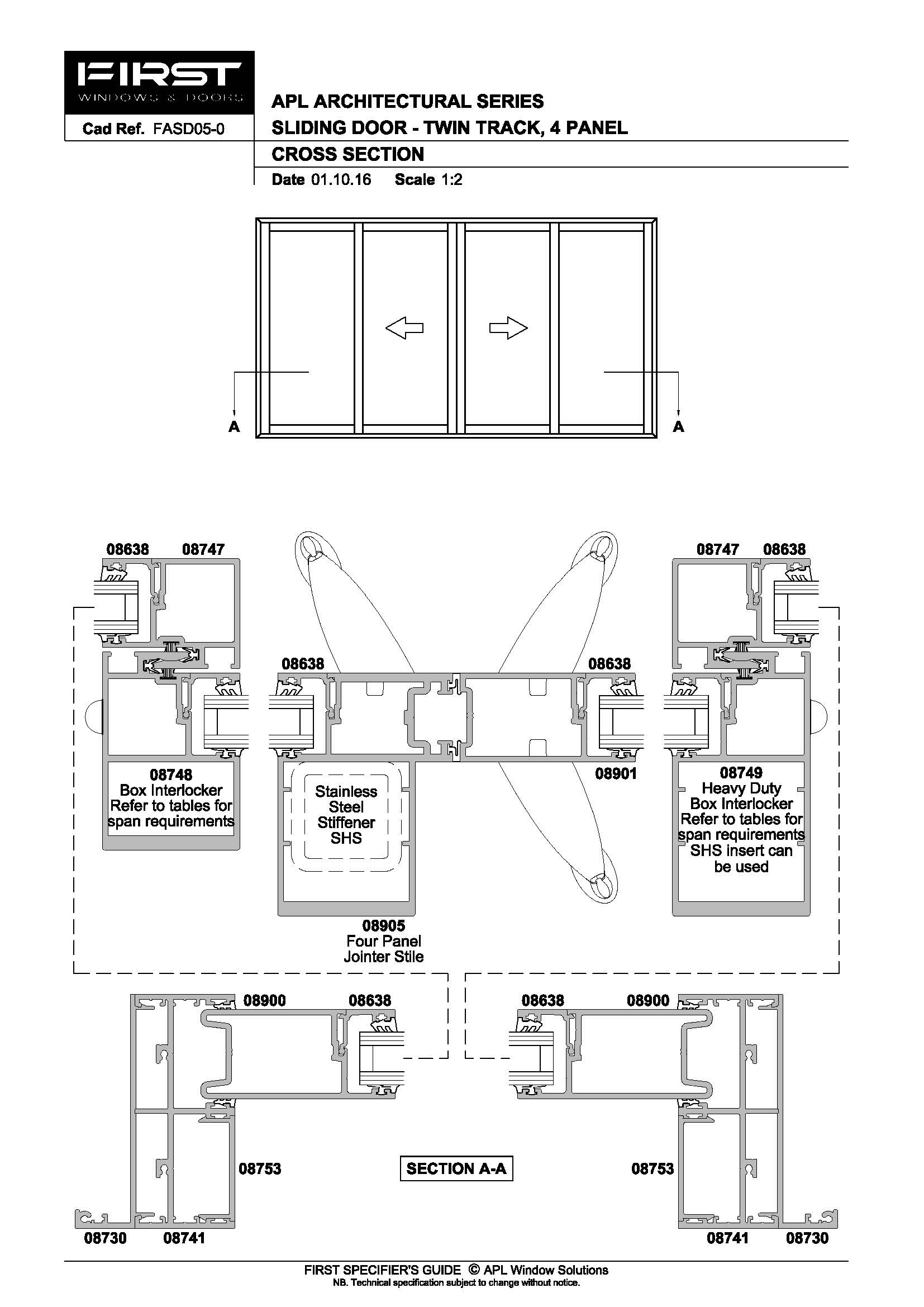

FIRST APL Architectural Series Sliding Door - Twin Track 4 Panel

FASD05-0

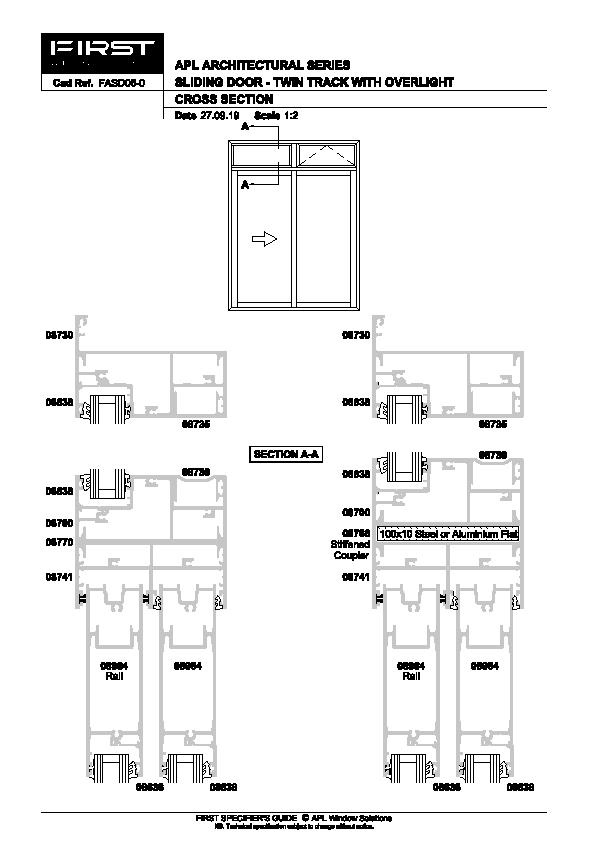

FIRST APL Architectural Series Sliding Door - Twin Track with Overlight

FASD06-0

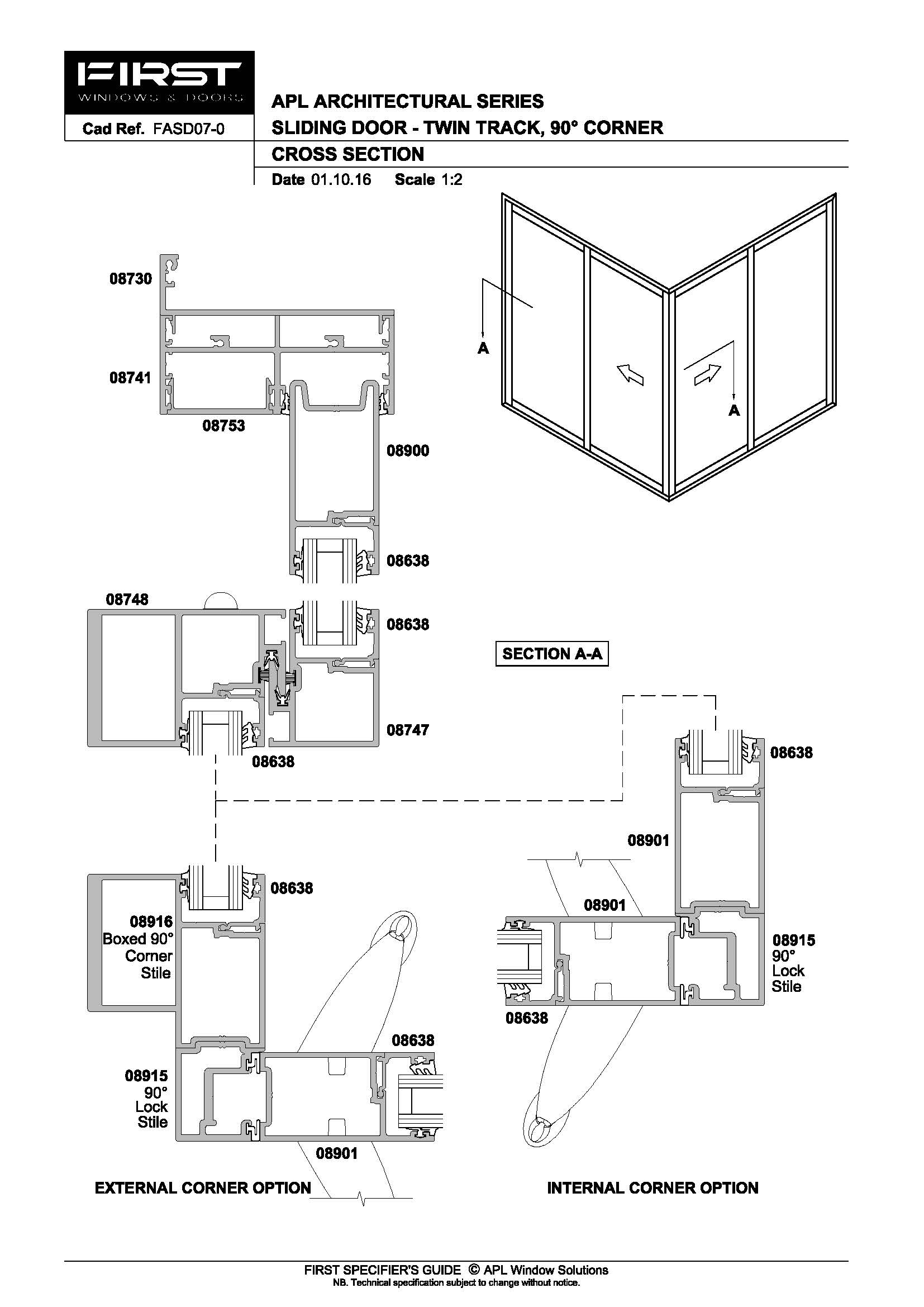

FIRST APL Architectural Series Sliding Door - Twin Track 90º Corner

FASD07-0

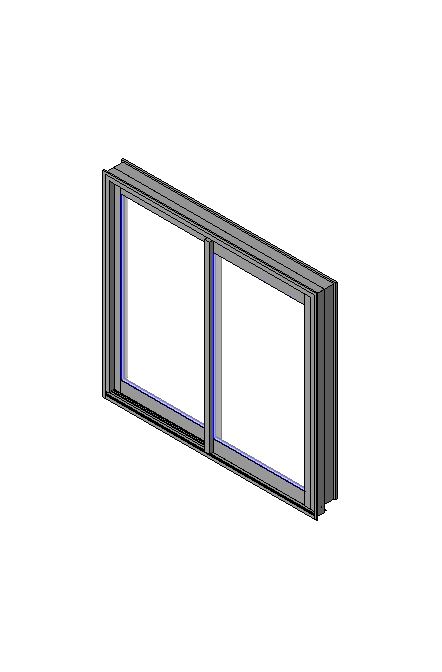

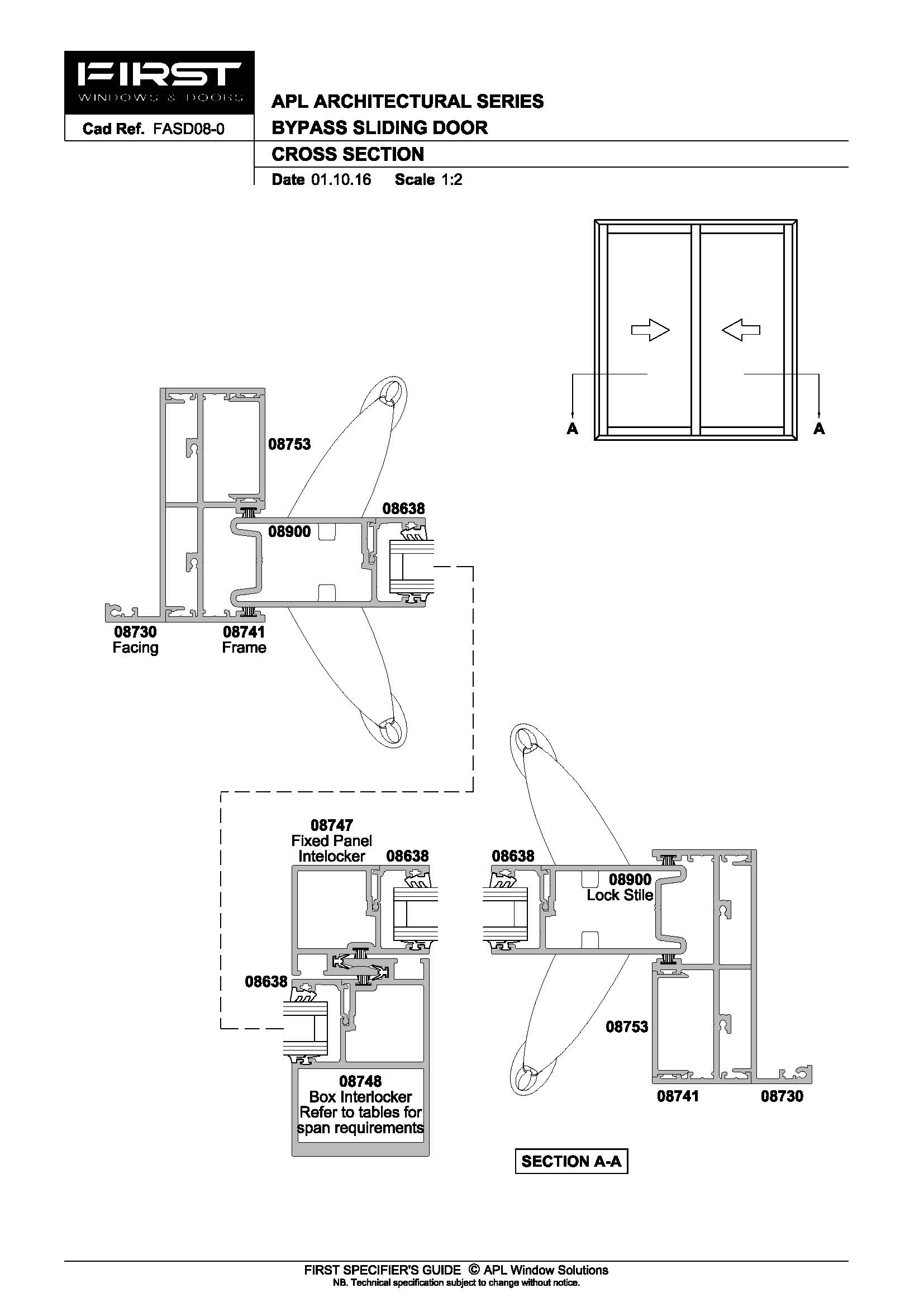

FIRST APL Architectural Series Bypass Sliding Door

FASD08-0

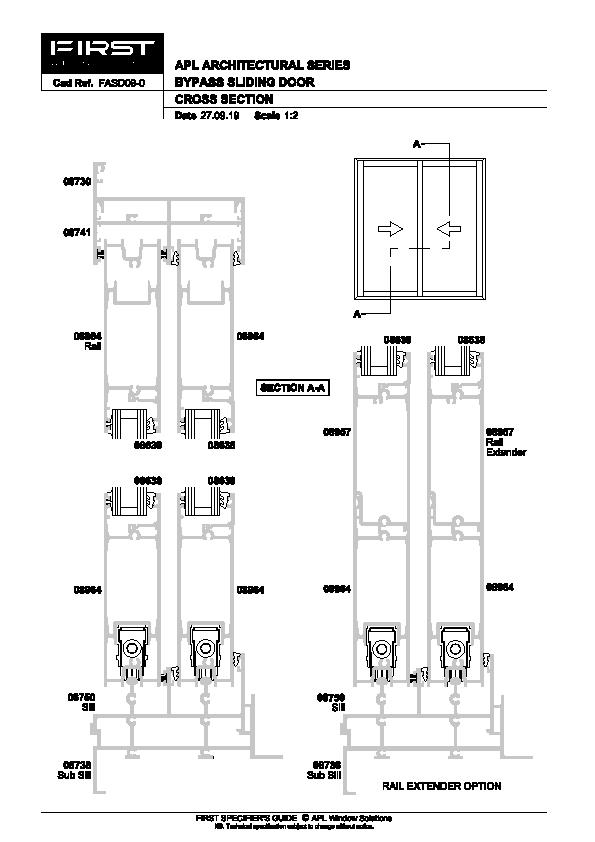

FIRST APL Architectural Series Bypass Sliding Door

FASD09-0

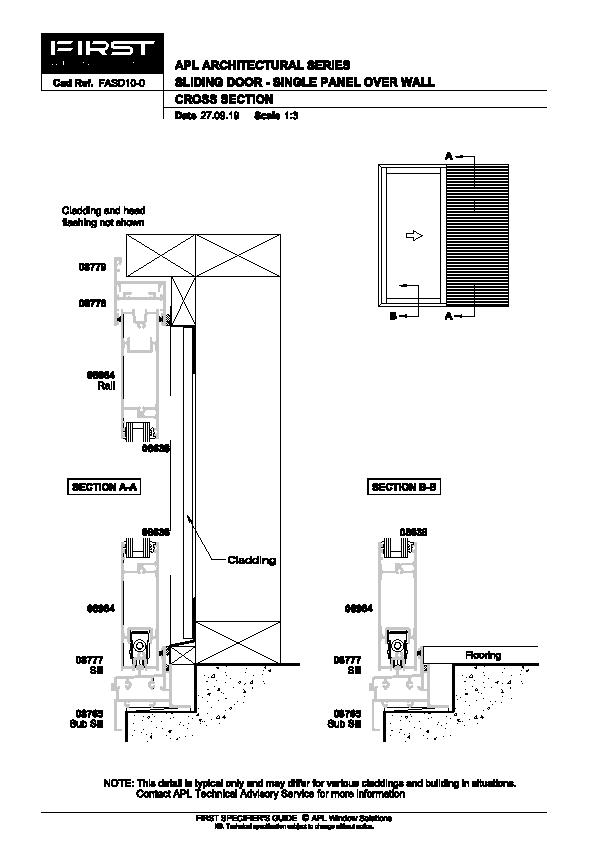

FIRST APL Architectural Series Sliding Door - Singel Panel Over Wall

FASD10-0

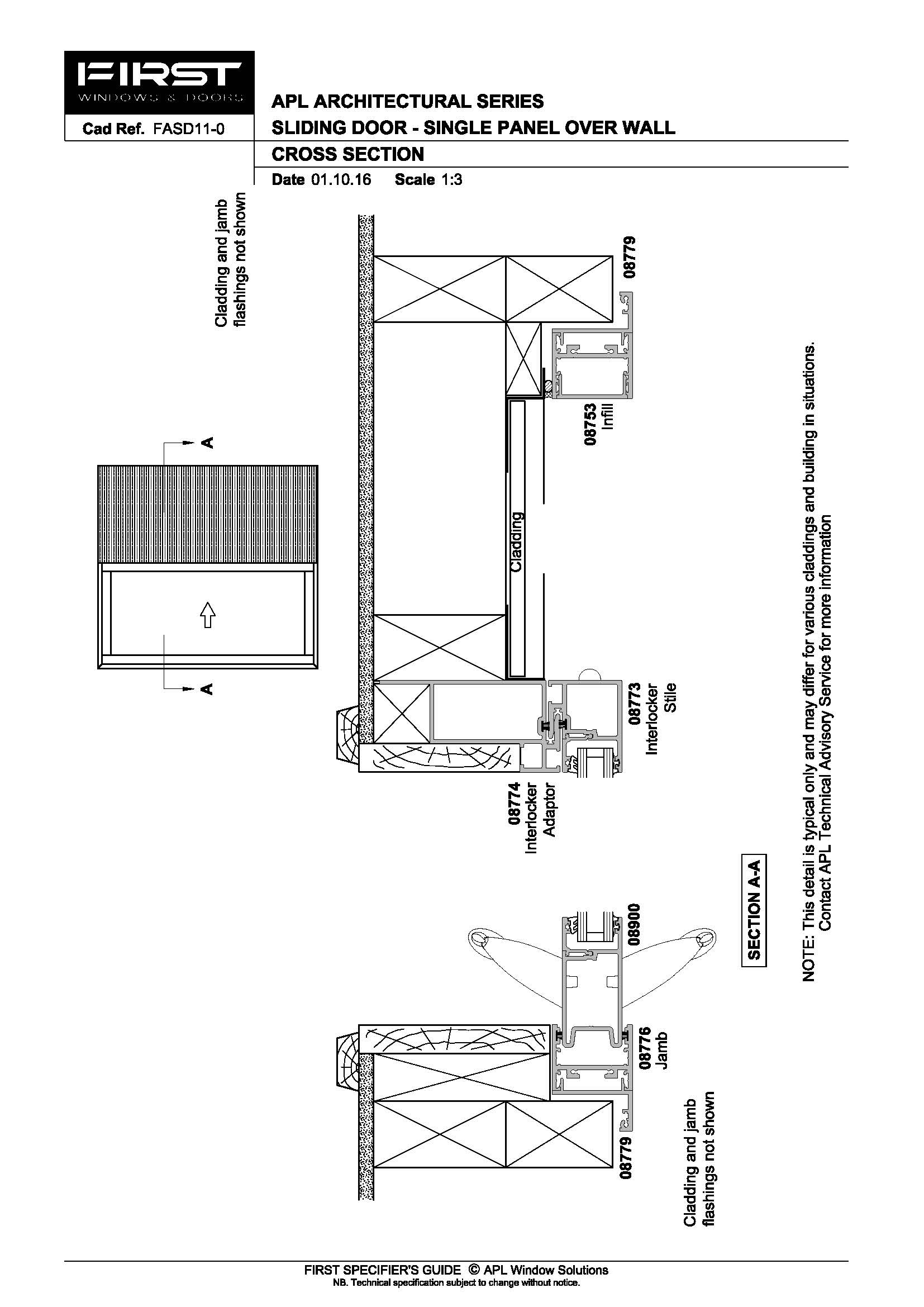

FIRST APL Architectural Series Sliding Door - Single Panel Over Wall

FASD11-0

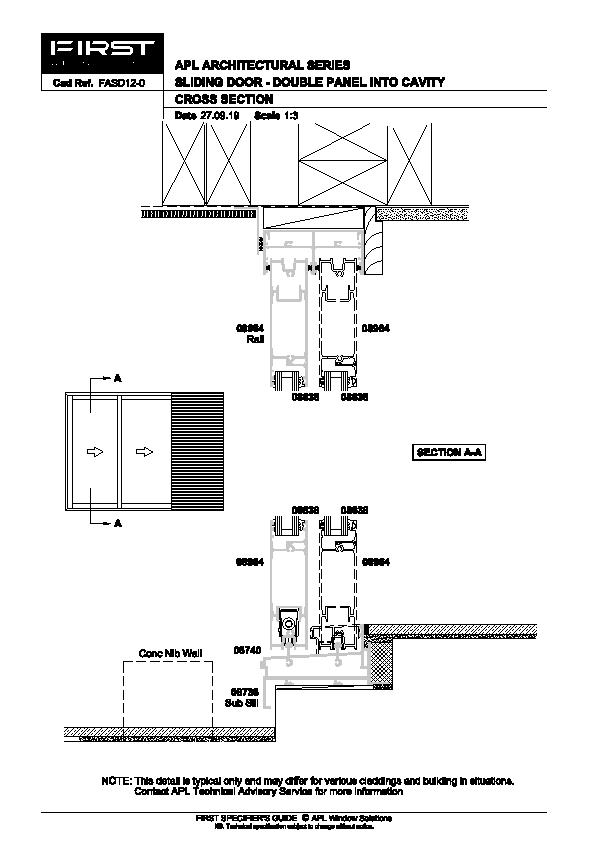

FIRST APL Architectural Series Sliding Door - Double Panel into Cavity

FASD12-0

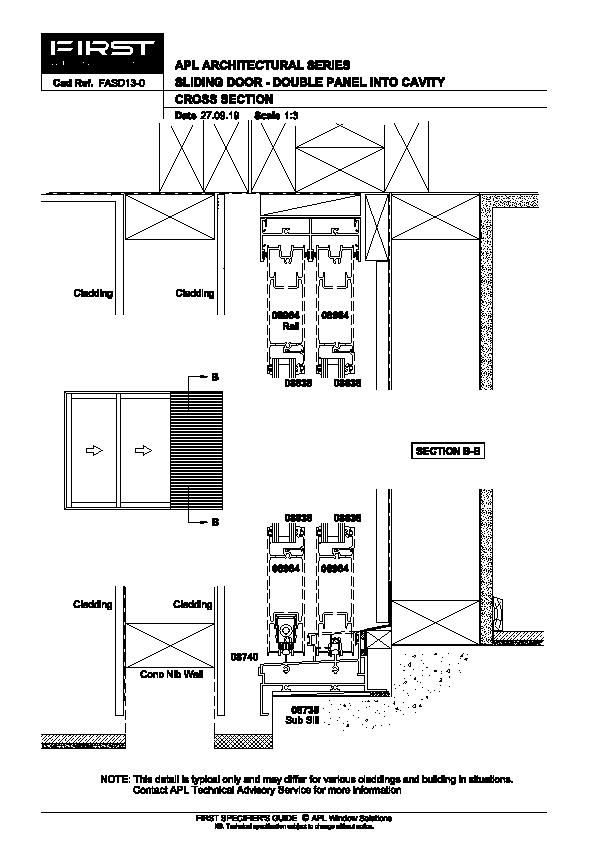

FIRST APL Architectural Series Sliding Door - Double Panel into Cavity

FASD13-0

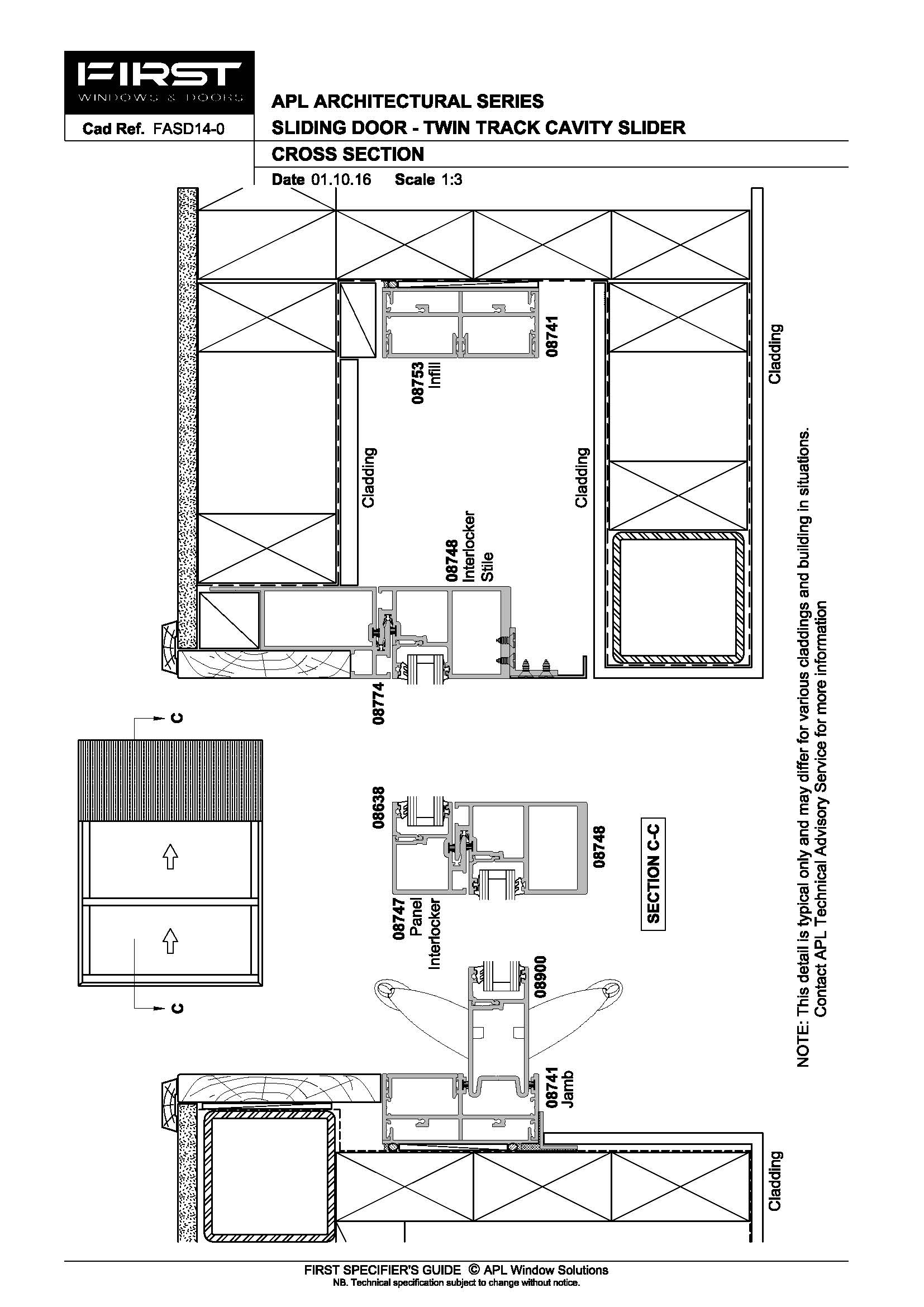

FIRST APL Architectural Series Sliding Door - Twin Track Cavity Slider

FASD14-0

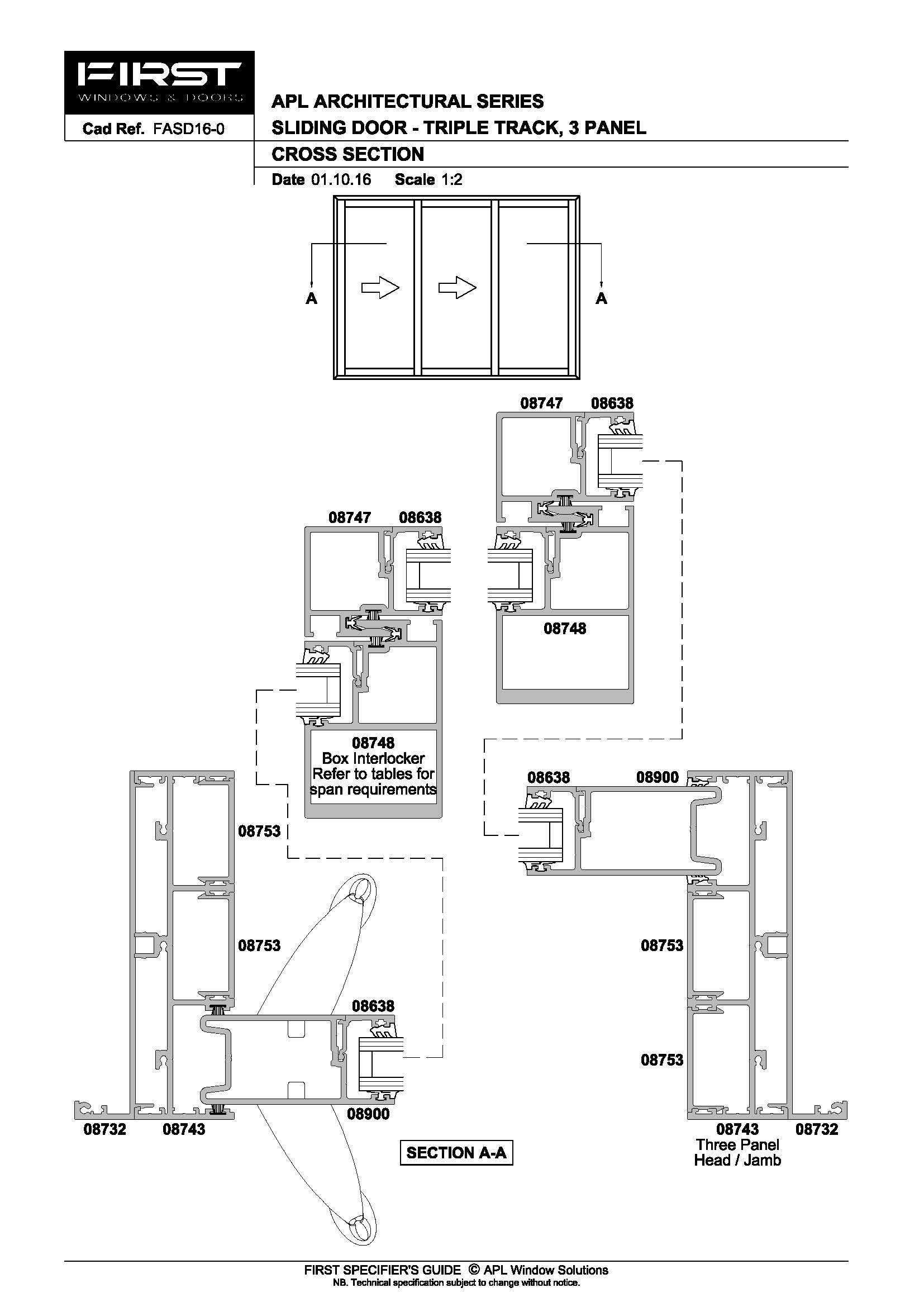

FIRST APL Architectural Series Sliding Door - Triple Track 3 Panel

FASD16-0

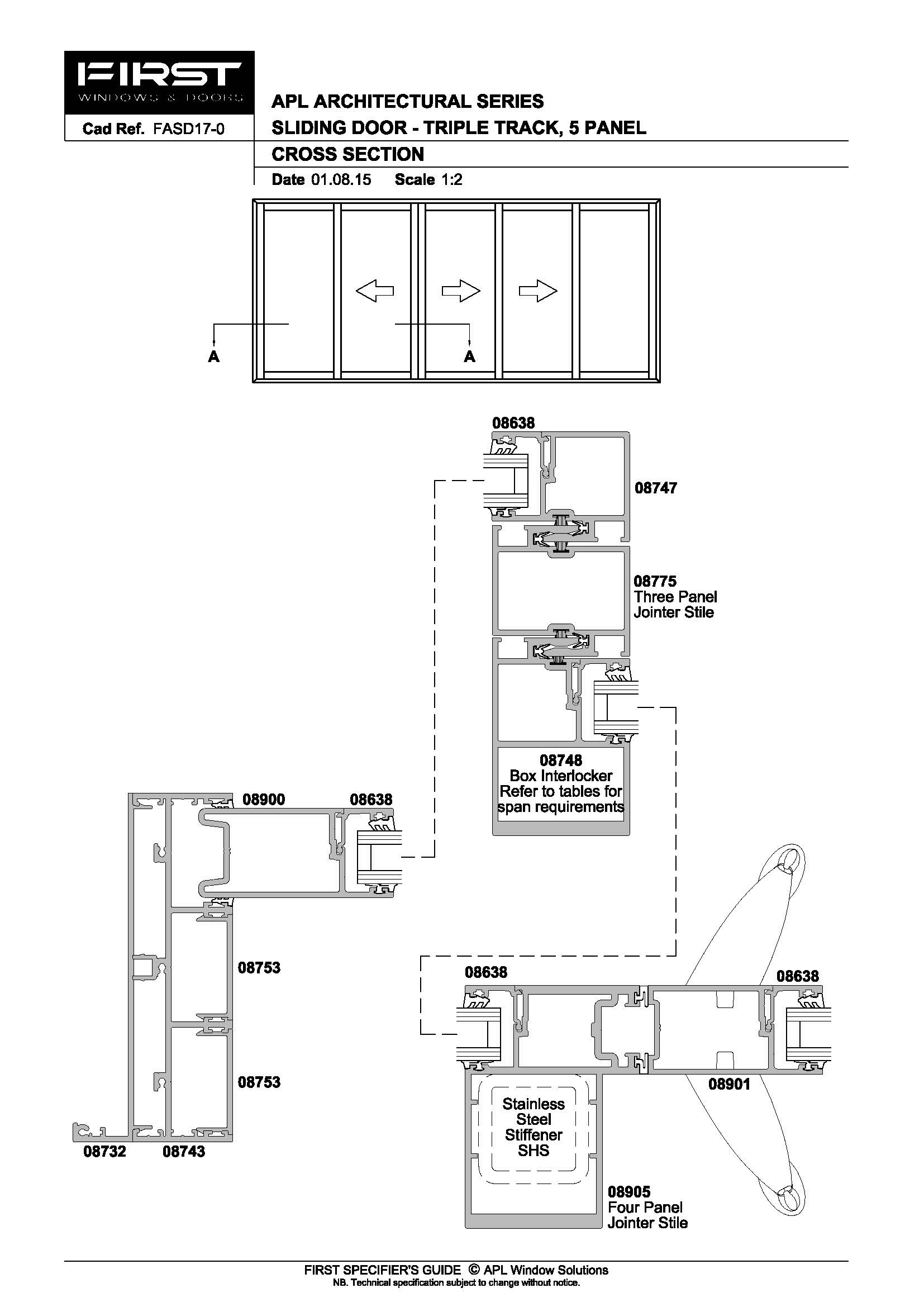

FIRST APL Architectural Series Sliding Door - Triple Track 5 Panel

FASD17-0

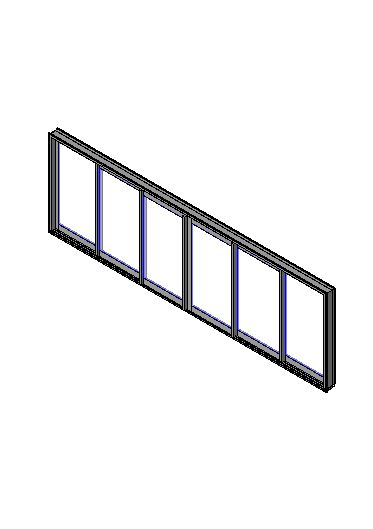

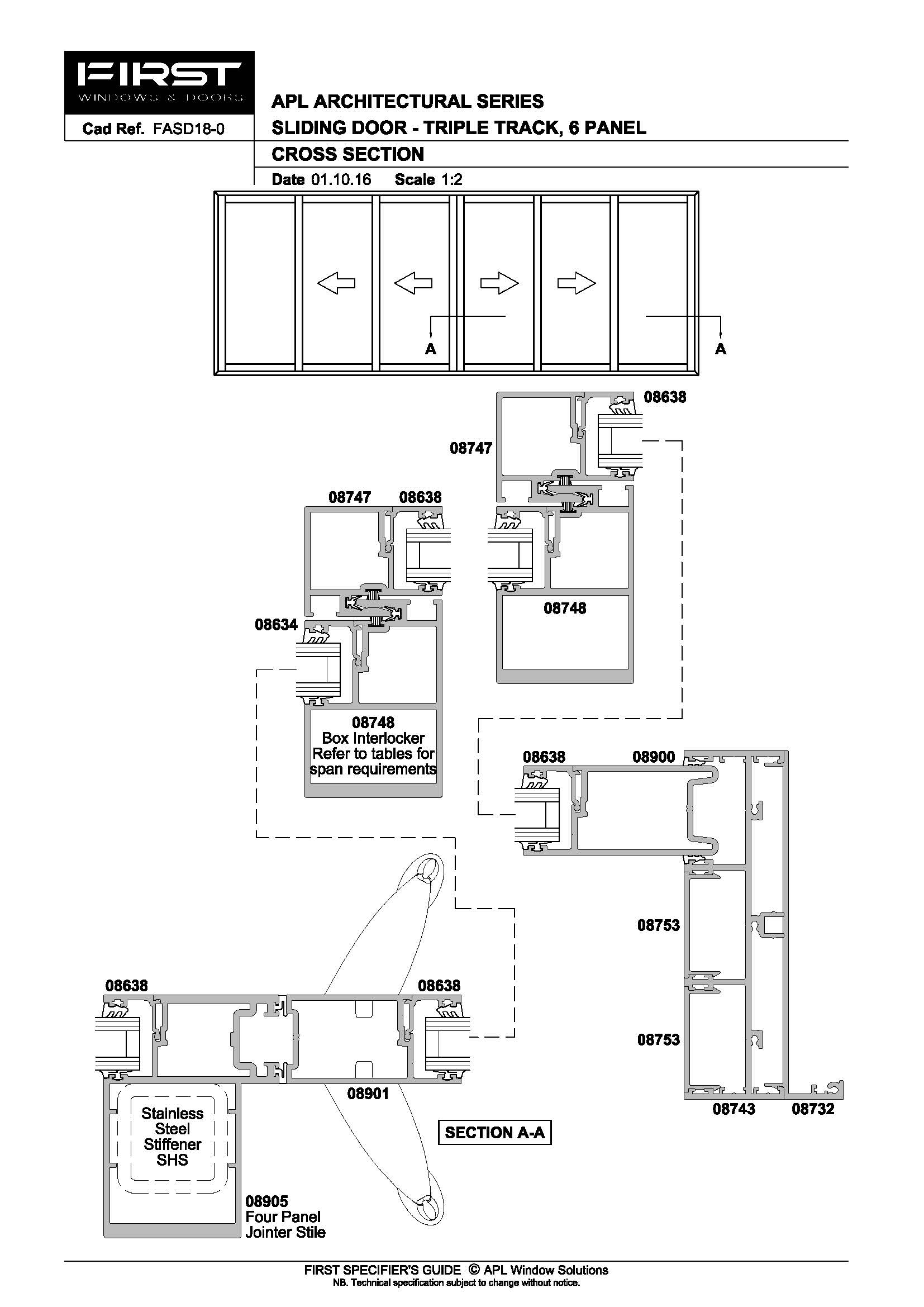

FIRST APL Architectural Series Sliding Door - Triple Track 6 Panel

FASD18-0

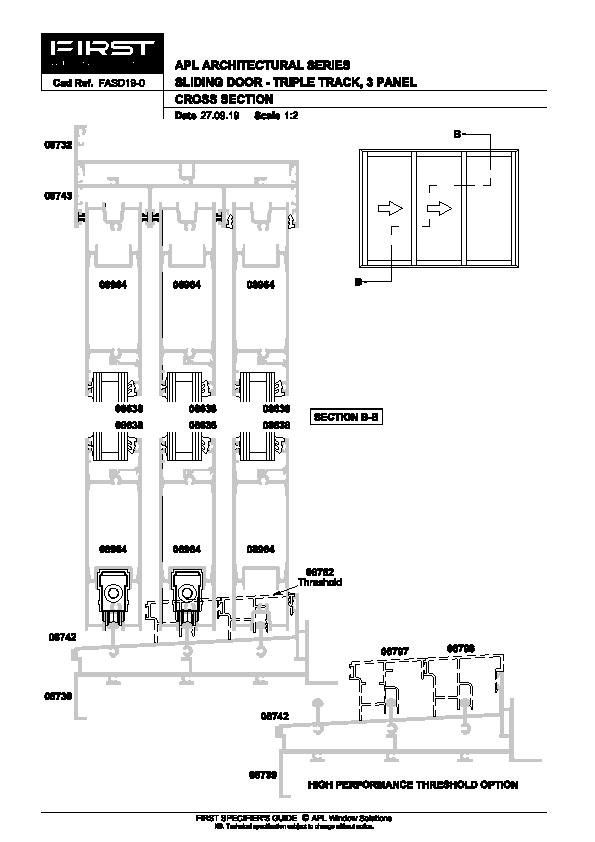

FIRST APL Architectural Series Sliding Door - Triple Track 3 Panel

FASD19-0

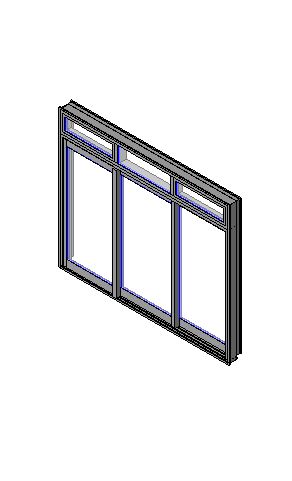

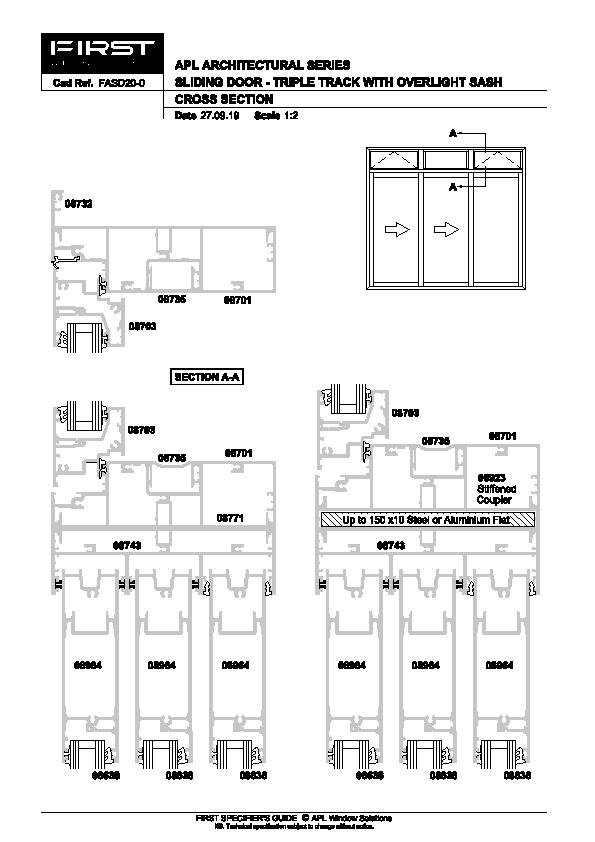

FIRST APL Architectural Series Sliding Door - Triple Track with Overlight Sash

FASD20-0

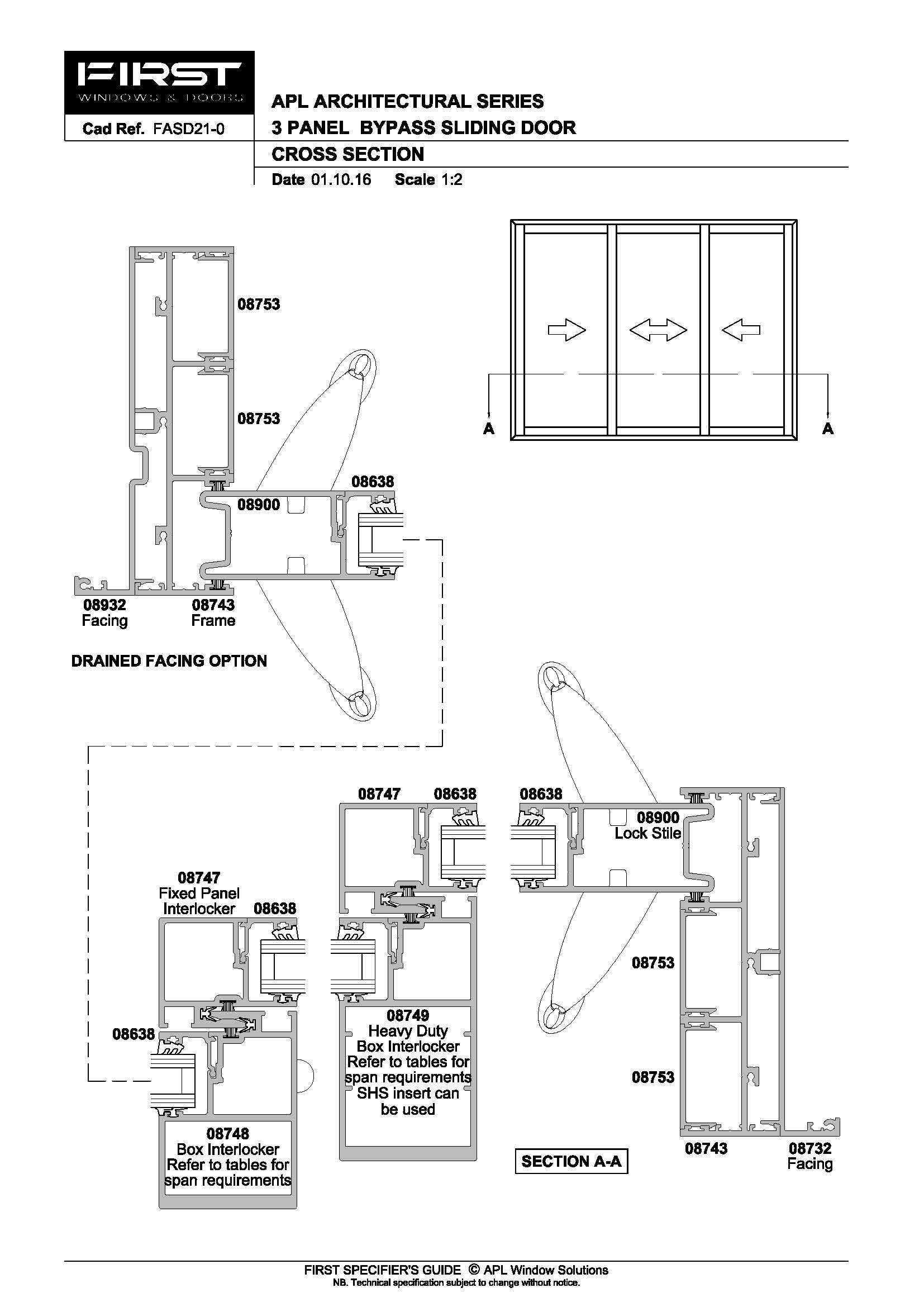

FIRST APL Architectural Series 3 Panel By Pass Sliding Door

FASD21-0

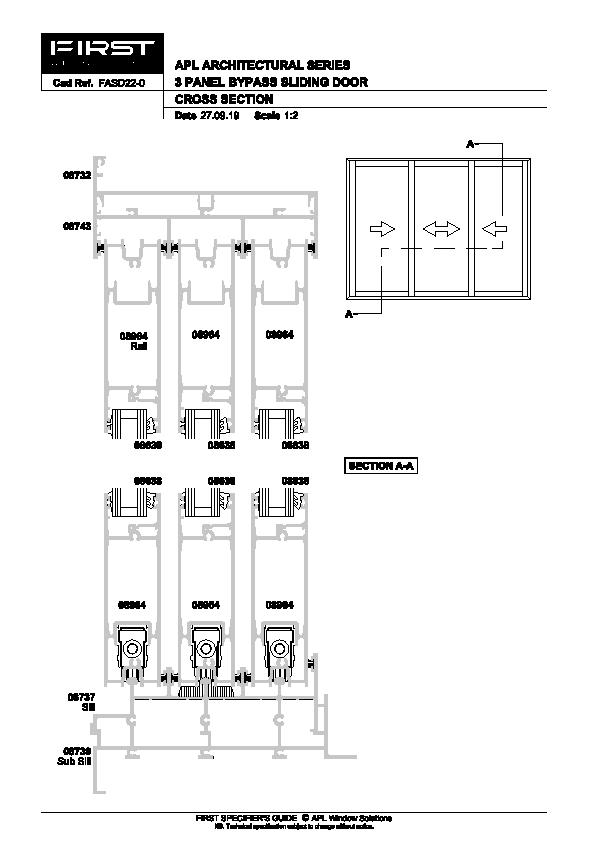

FIRST APL Architectural Series 3 Panel Bypass Sliding Door

FASD22-0

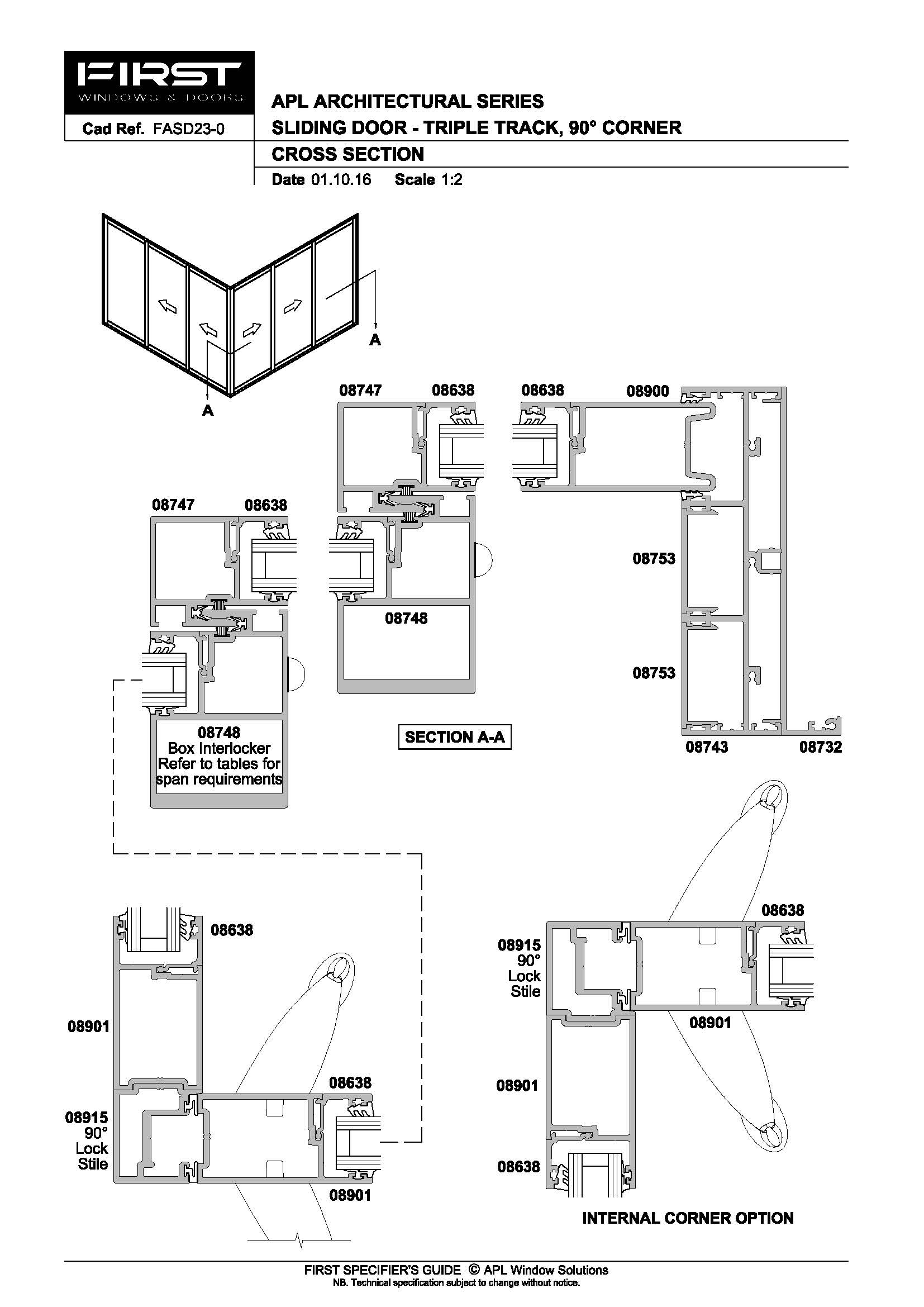

FIRST APL Architectural Series Sliding Door - Triple Track 90º Corner

FASD23-0

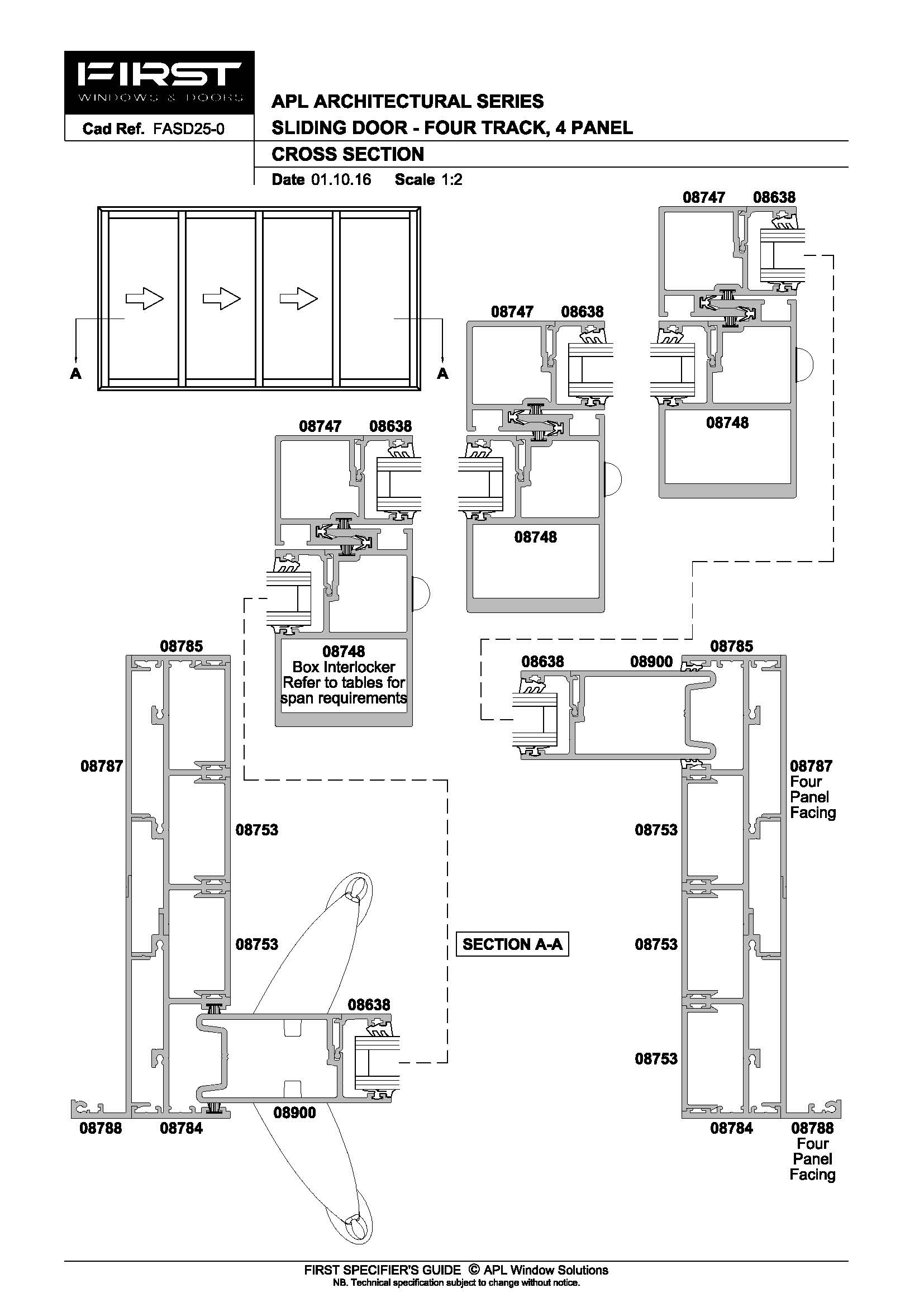

FIRST APL Architectural Series Sliding Door - Four Track 4 Panel

FASD25-0

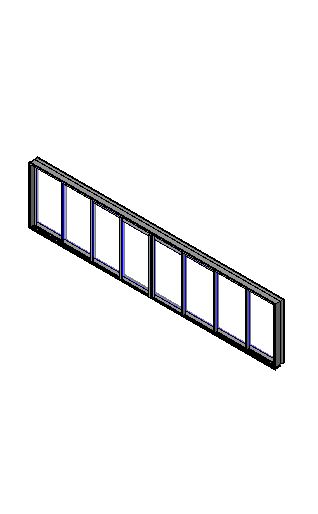

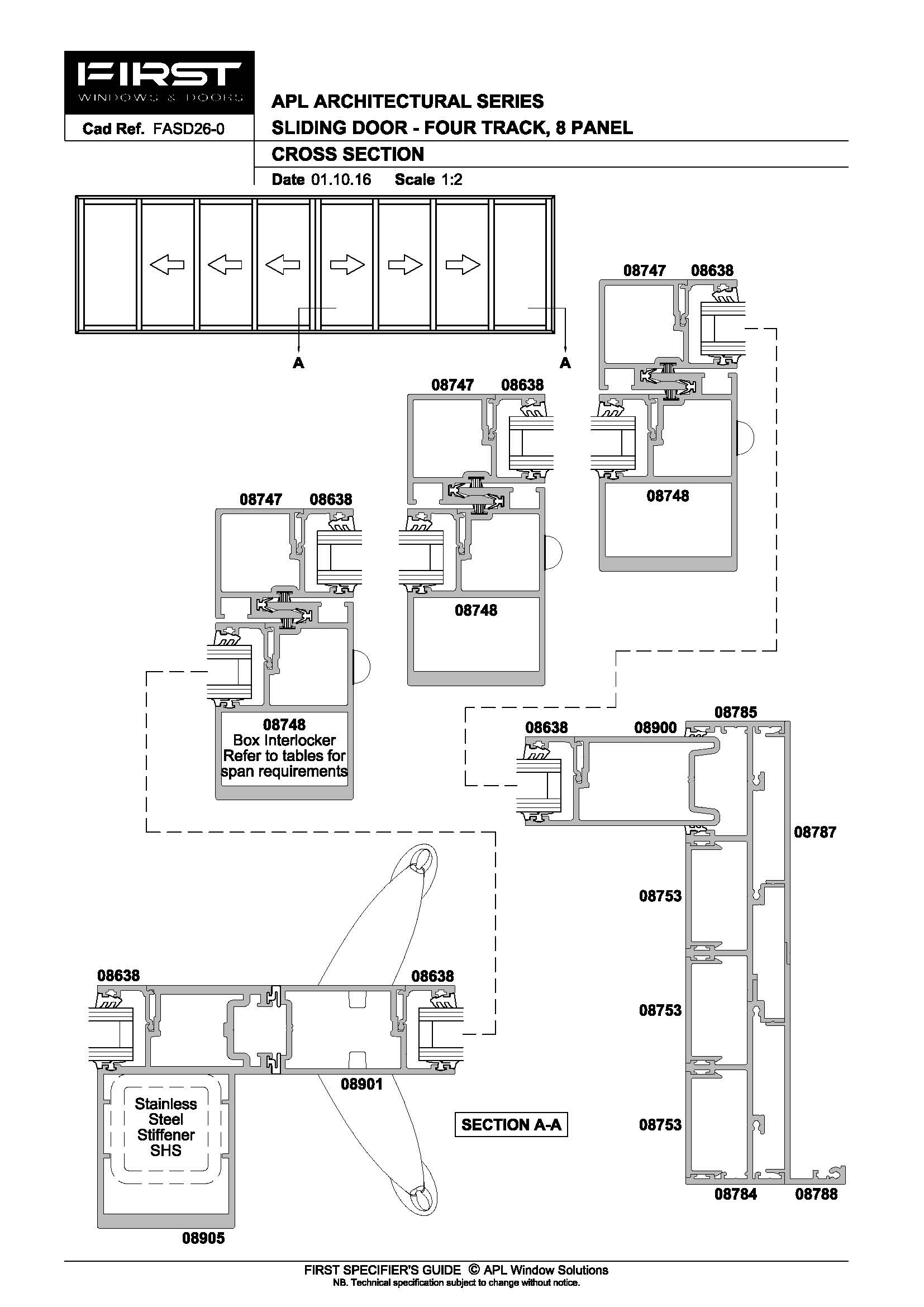

FIRST APL Architectural Series Sliding Door - Four Track 8 Panel

FASD26-0

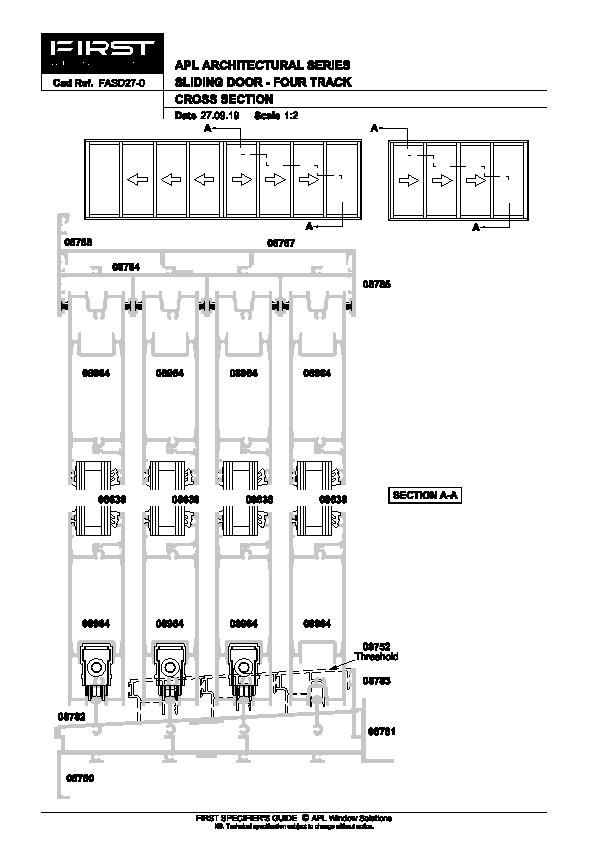

FIRST APL Architectural Series Sliding Door - Four Track

FASD27-0

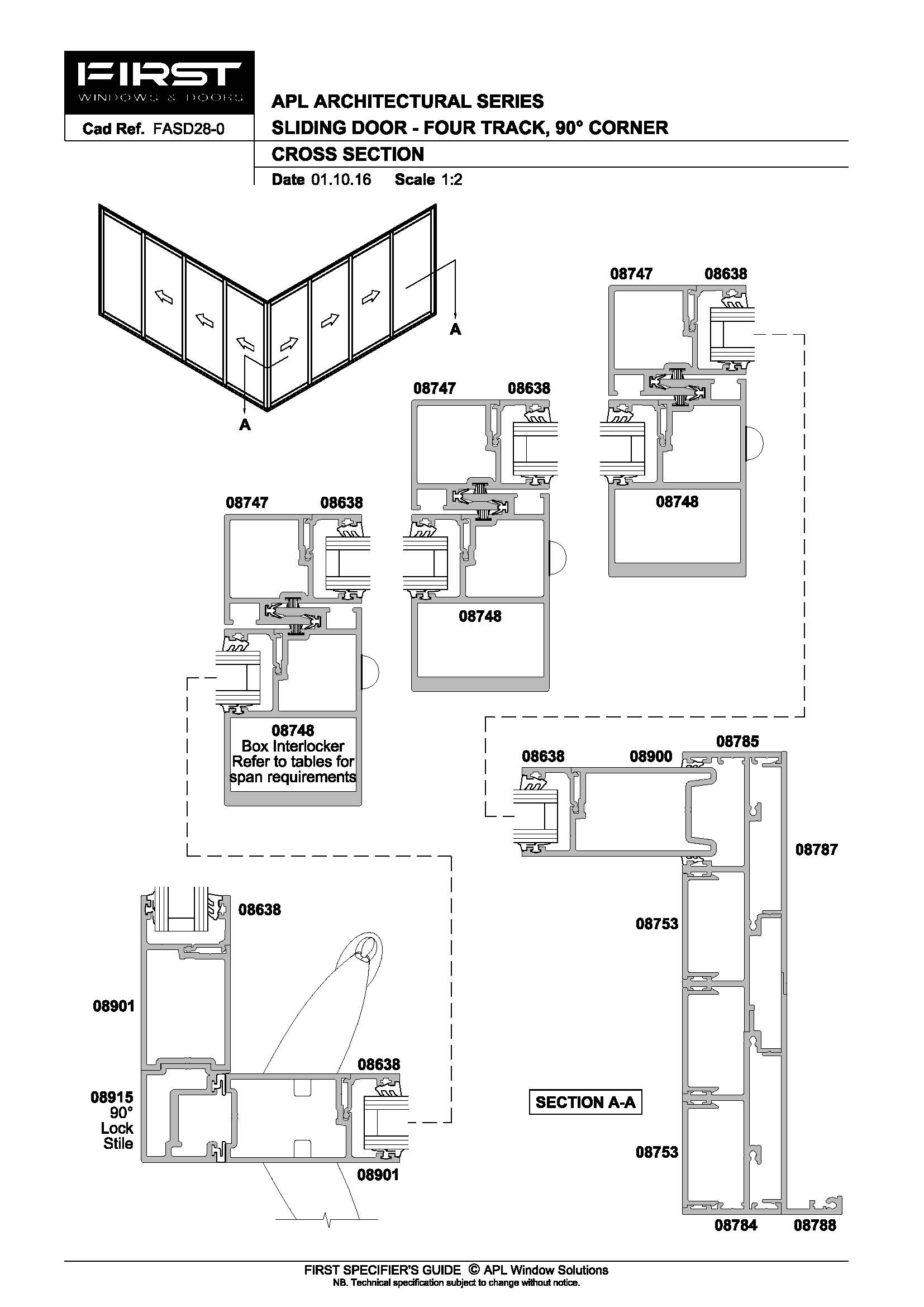

FIRST APL Architectural Series Sliding Door - Four Track 90º Corner

FASD28-0

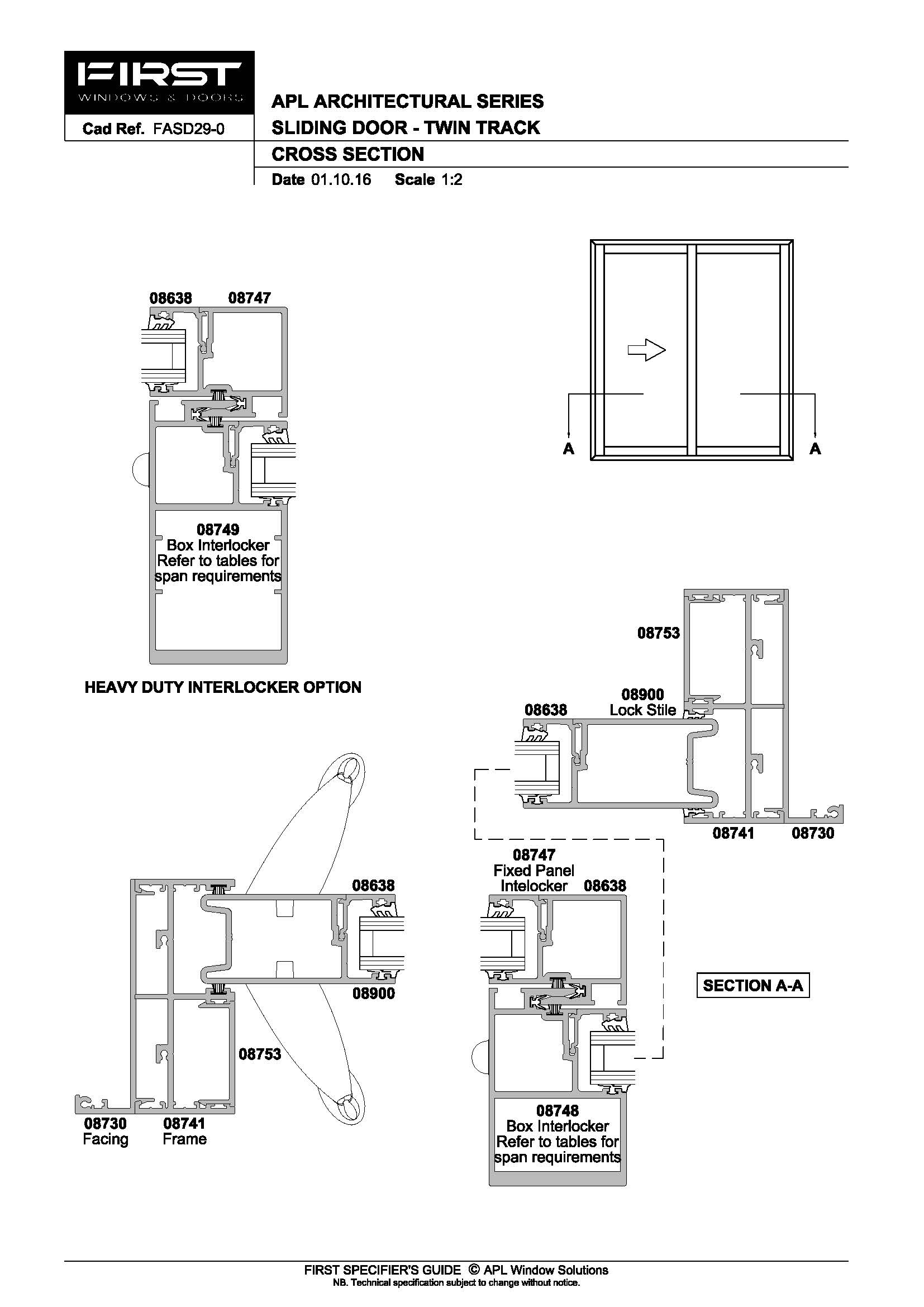

FIRST APL Architectural Series Sliding Door - Twin Track

FASD29-0

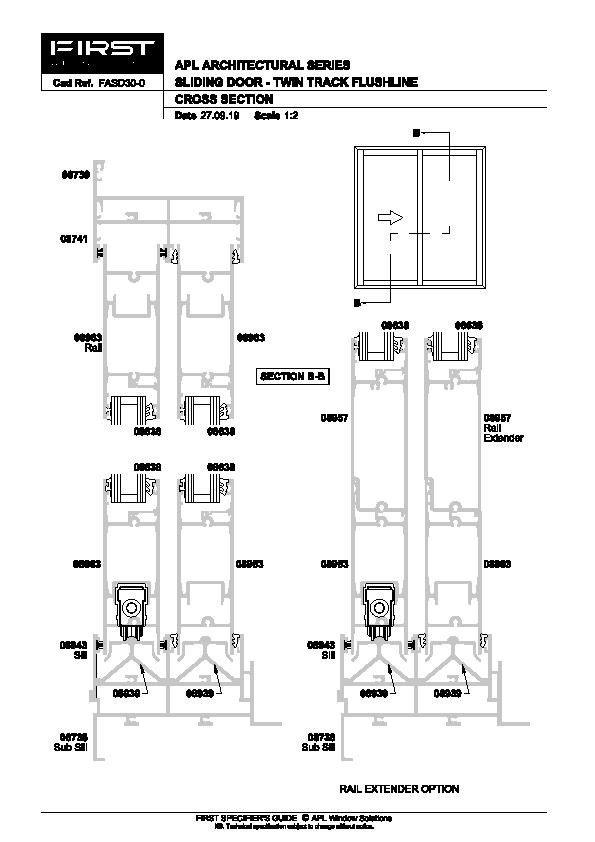

FIRST APL Architectural Series Sliding Door - Twin Track Flushline

FASD30-0

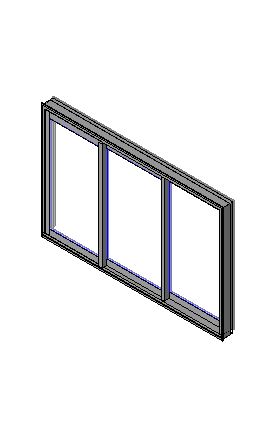

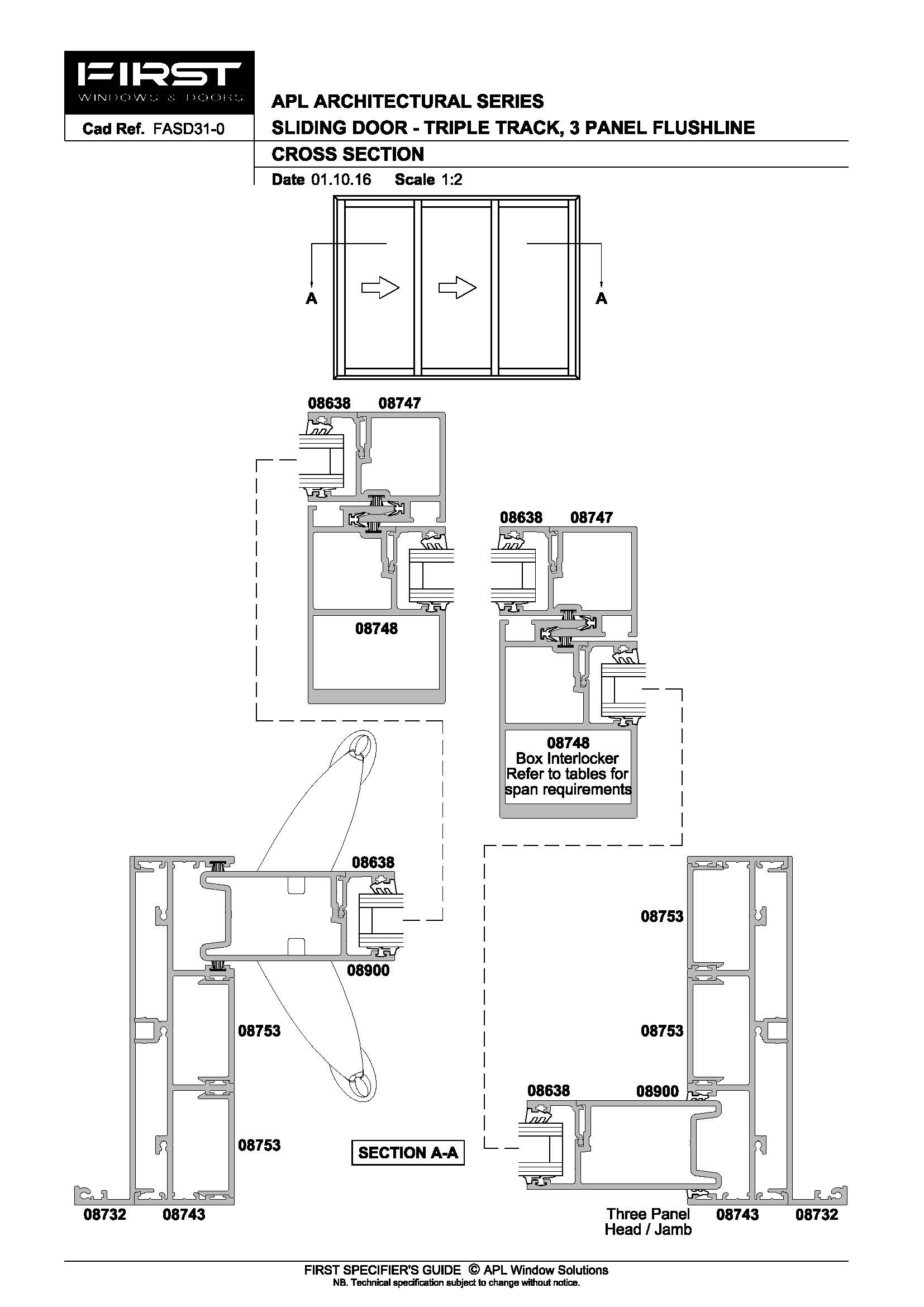

FIRST APL Architectural Series Sliding Door - Triple Track 3 Panel Flushline

FASD31-0

FIRST APL Architectural Series Sliding Door - Triple Track 3 Panel Flushline

FASD32-0

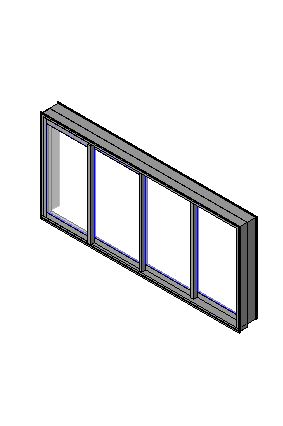

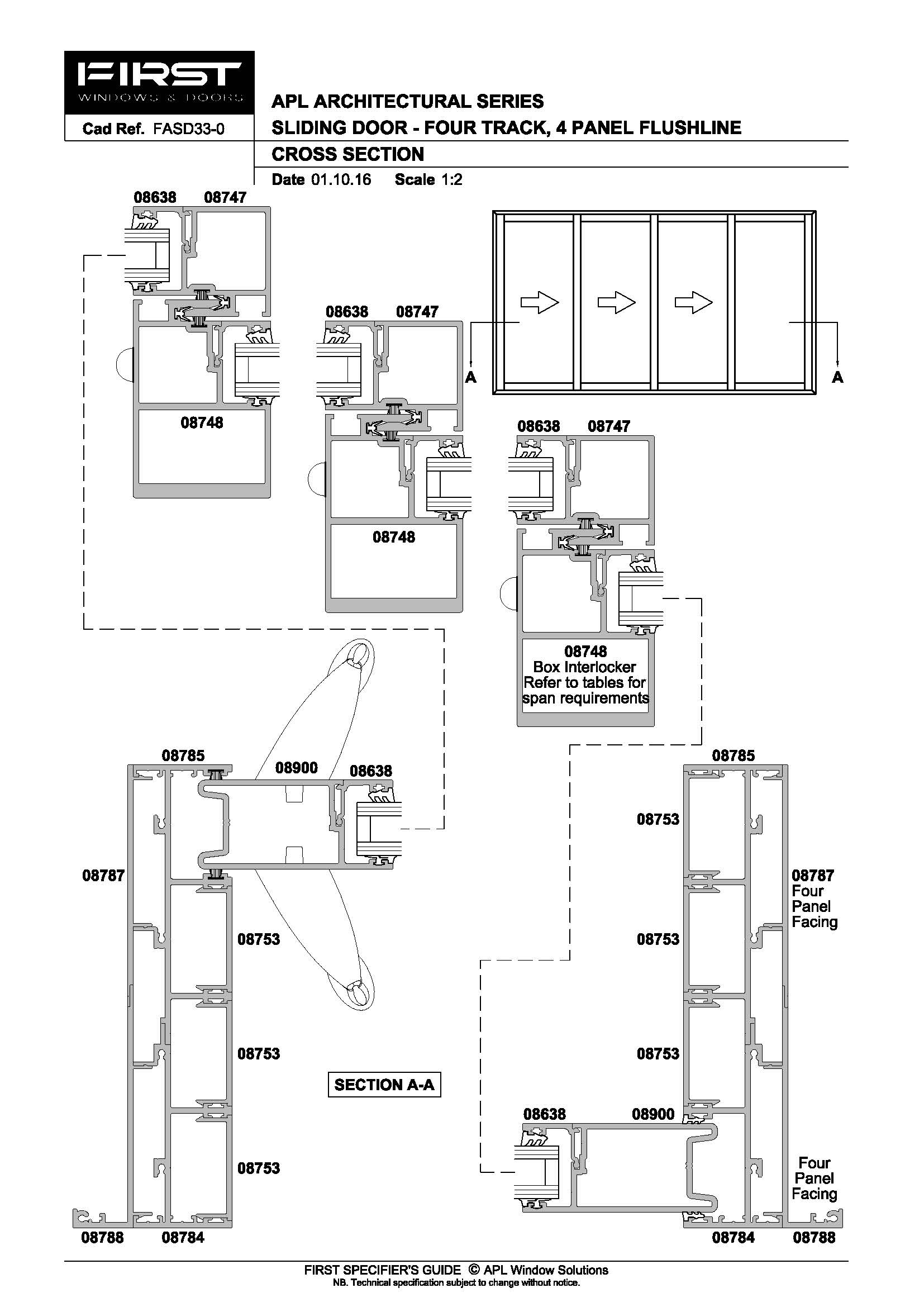

FIRST APL Architectural Series Sliding Door - Four Track, 4 Panel Flushline

FASD33-0

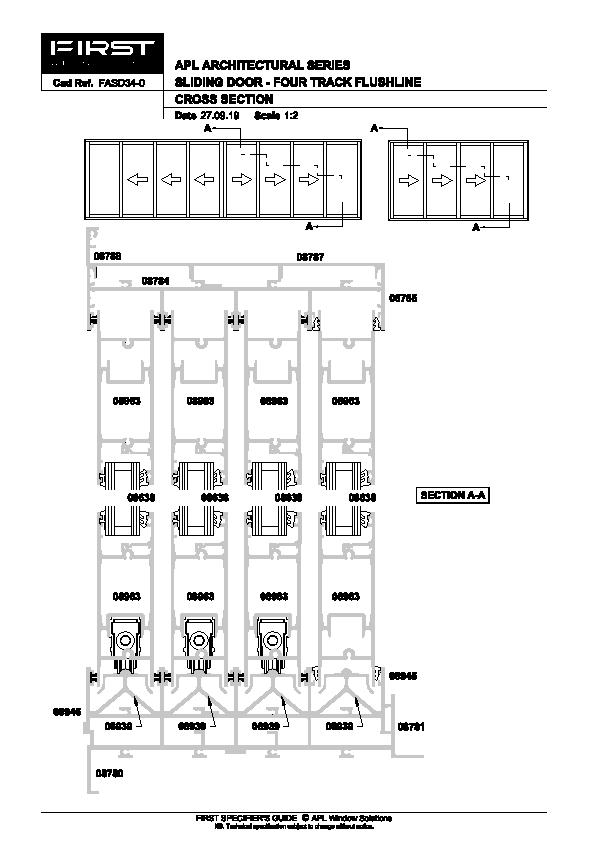

FIRST APL Architectural Series Sliding Door - Four Track Flushline

FASD34-0

Installation Details
FIRST APL Architectural Series Sliding Door Two Track on Board and Batten

ASS2BB

FIRST APL Architectural Series Sliding Door Two Track on Brick Veneer

ASS2BV

FIRST APL Architectural Series Sliding Door Two Track on Bevelback Weatherboard

ASS2BW

FIRST APL Architectural Series Sliding Door Two Track on Flat Sheet

ASS2FS

FIRST APL Architectural Series Sliding Door Two Track on No Cladding

ASS2NC

FIRST APL Architectural Series Sliding Door Two Track on Profile Metal

ASS2PM

FIRST APL Architectural Series Sliding Door Two Track on Rusticated Weatherboard

ASS2RW

FIRST APL Architectural Series Sliding Door Two Track on Stucco

ASS2ST

FIRST APL Architectural Series Sliding Door Three Track on Board and Batten

ASS3BB

FIRST APL Architectural Series Sliding Door Three Track on Brick Veneer

ASS3BV

FIRST APL Architectural Series Sliding Door Three Track on Bevelback Weatherboard

ASS3BW

FIRST APL Architectural Series Sliding Door Three Track on Flat Sheet

ASS3FS

FIRST APL Architectural Series Sliding Door Three Track on No Cladding

ASS3NC

FIRST APL Architectural Series Sliding Door Three Track on Profile Metal

ASS3PM

FIRST APL Architectural Series Sliding Door Three Track on Rusticated Weatherboard

ASS3RW

FIRST APL Architectural Series Sliding Door Three Track on Stucco

ASS3ST

FIRST APL Architectural Series Sliding Door Four Track on Board and Batten

ASS4BB

FIRST APL Architectural Series Sliding Door Four Track on Brick Veneer

ASS4BV

FIRST APL Architectural Series Sliding Door Four Track on Bevelback Weatherboard

ASS4BW

FIRST APL Architectural Series Sliding Door Four Track on Flat Sheet

ASS4FS

FIRST APL Architectural Series Sliding Door Four Track on No Cladding

ASS4NC

FIRST APL Architectural Series Sliding Door Four Track on Profile Metal

ASS4PM

FIRST APL Architectural Series Sliding Door Four Track on Rusticated Weatherboard

ASS4RW

FIRST APL Architectural Series Sliding Door Four Track on Stucco

ASS4ST

BIM Objects

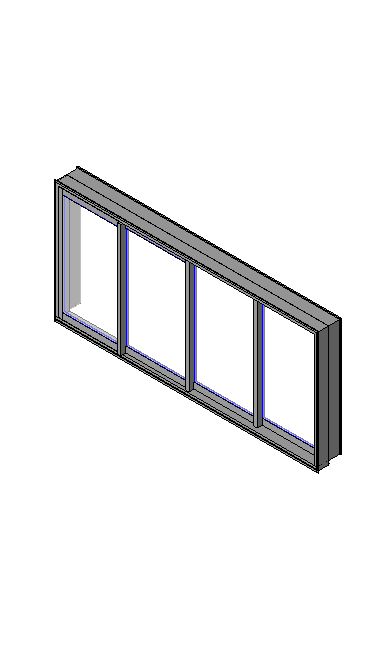

FIRST APL Architectural Series Sliding Door Four Track Bypass Flushline
FIRST APL Architectural Series Sliding Door FS

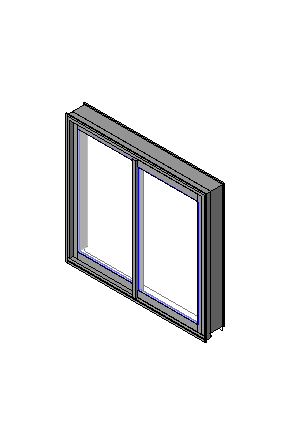

FIRST APL Architectural Series Sliding Door FS Bypass Flushline

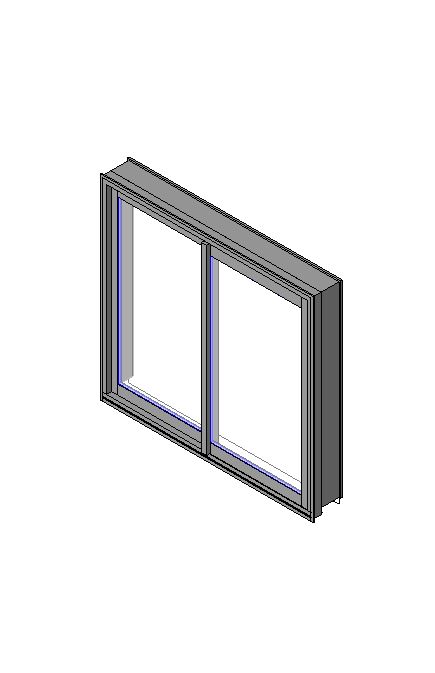

FIRST APL Architectural Series Sliding Door FS Twin Track Flushline
FIRST APL Architectural Series Sliding Door FS with Overlight

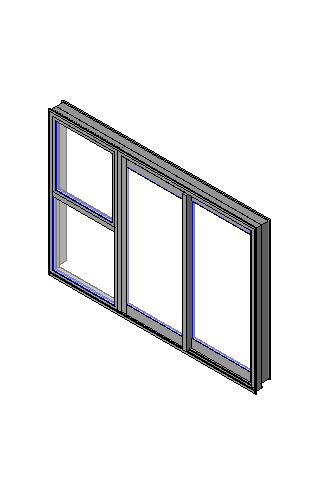

FIRST APL Architectural Series Sliding Door FS with Sidelight
FIRST APL Architectural Series Sliding Door FSSF
FIRST APL Architectural Series Sliding Door FSSSSF
FIRST APL Architectural Series Sliding Door FSSSSSSF
FIRST APL Architectural Series Sliding Door SSF
FIRST APL Architectural Series Sliding Door SSF Triple Track Flushline

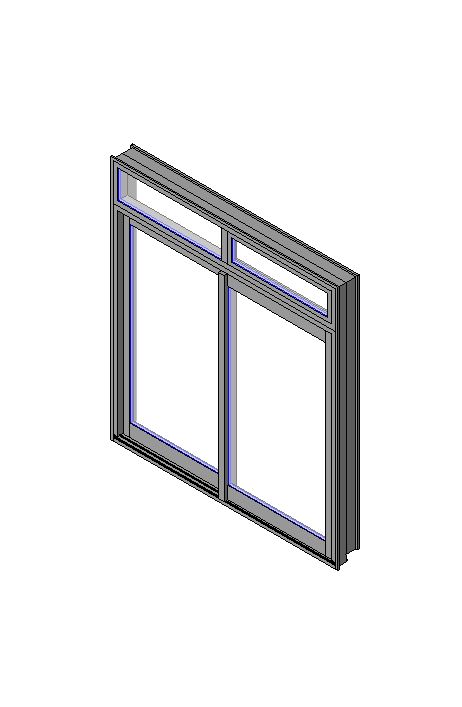

FIRST APL Architectural Series Sliding Door SSF with Overlight
FIRST APL Architectural Series Sliding Door SSSF
FIRST APL Architectural Series Sliding Door SSSF Four Track Flushline
FIRST APL Architectural Series Sliding Door Three Track Bypass
FIRST APL Architectural Series Sliding Door Three Track Bypass Flushline
FIRST APL Architectural Series Sliding Door Twin Track Bypass
FIRST APL Architectural Series Sliding Door, Corner Lock Stile options
FIRST APL Architectural Series, Single Panel Over Wall

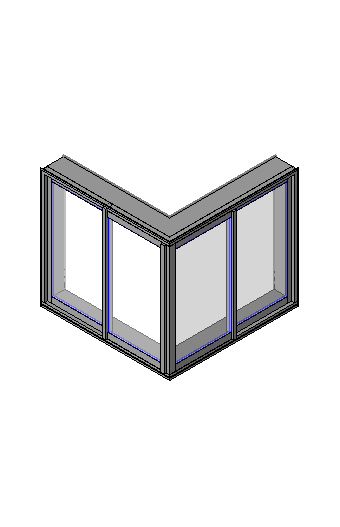

FIRST APL Architectural Sliding Door Two Track 90° External Corner

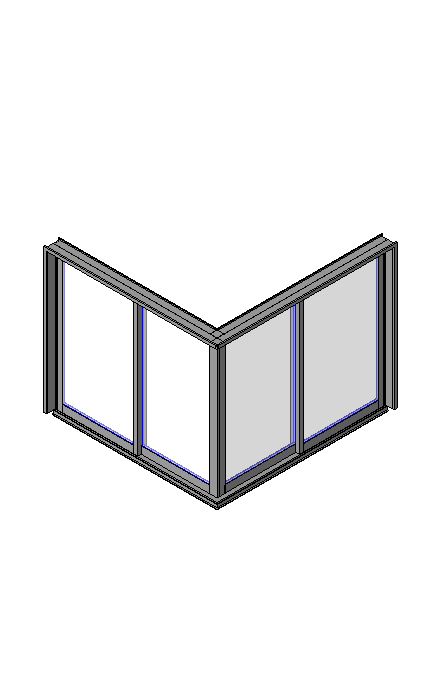

FIRST APL Architectural Sliding Door Two Track 90° Internal Corner
