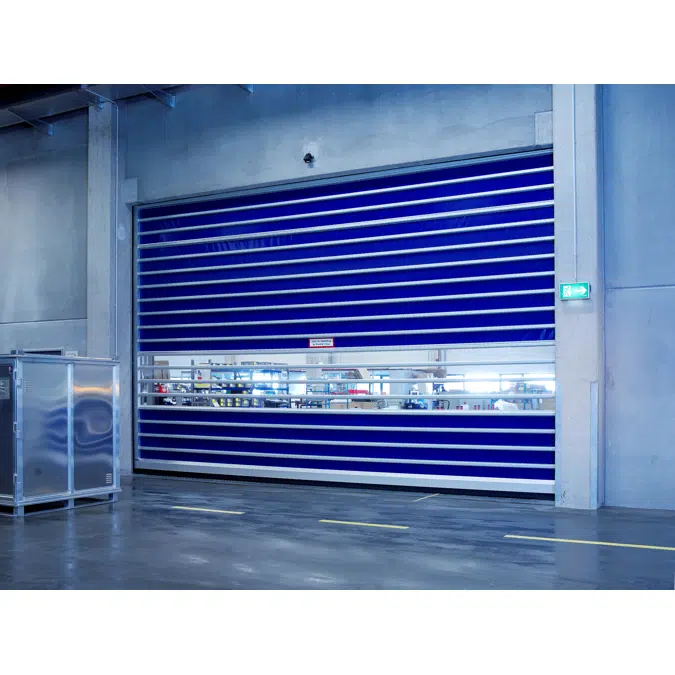

S Series STR — High Speed Roll-Up Turbo Door
EFAFLEX
All products
01 EFA STR 05

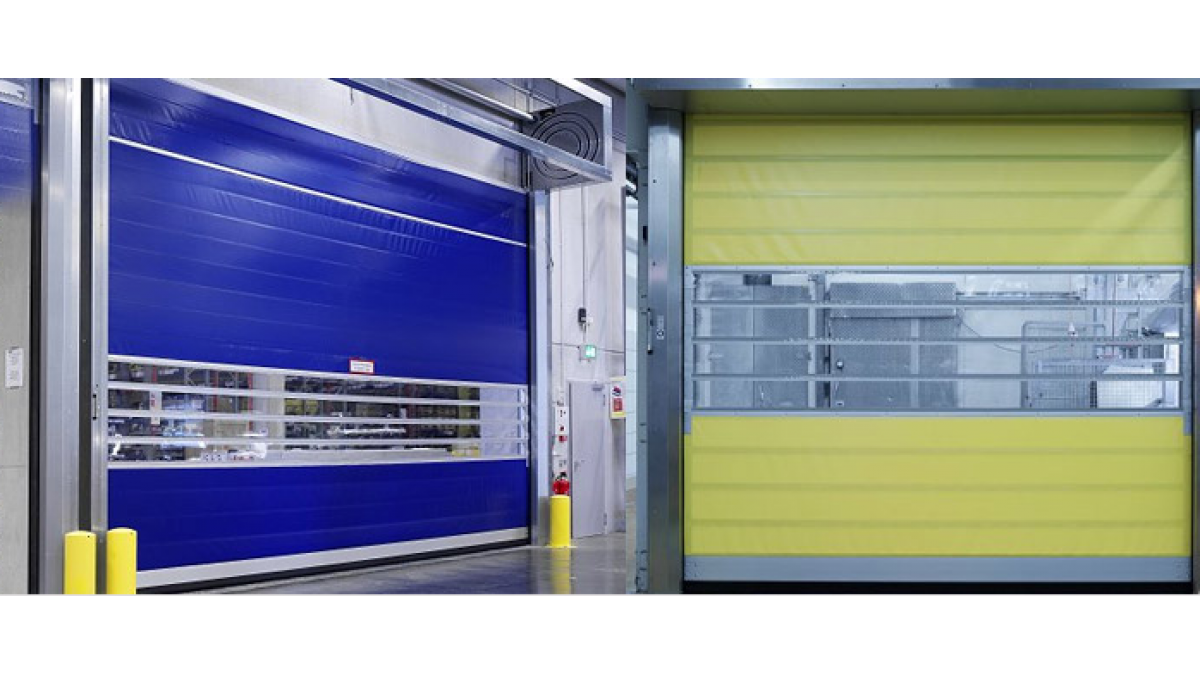

turbo door

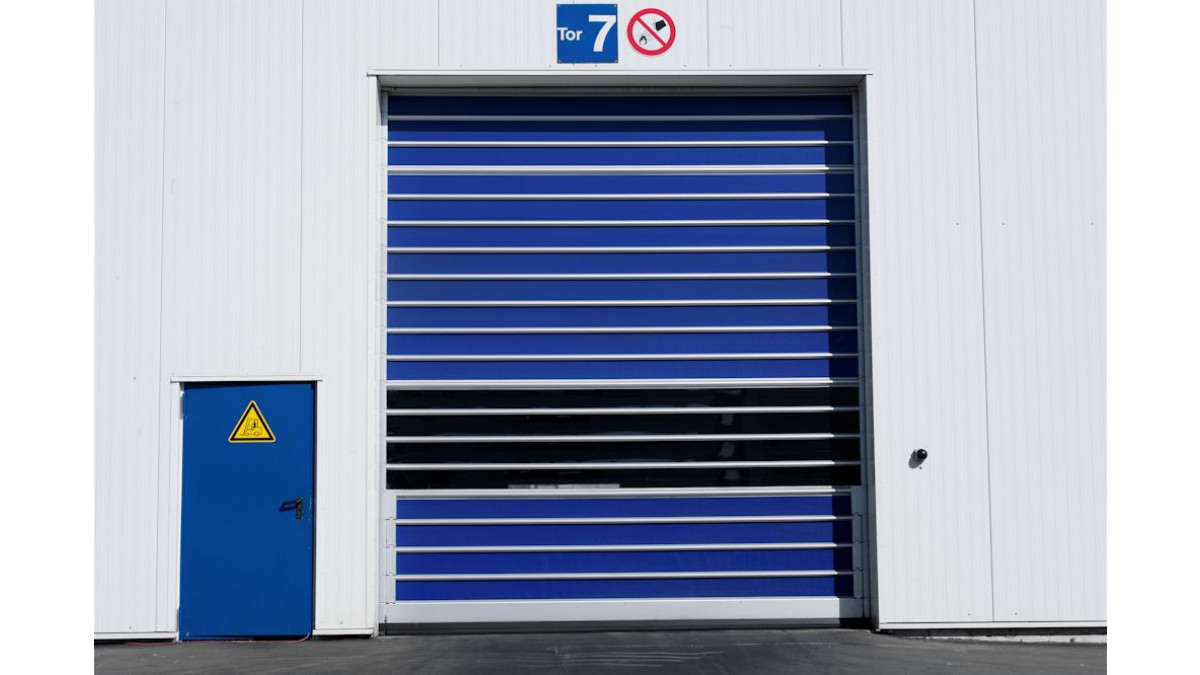

01 EFA STR 02

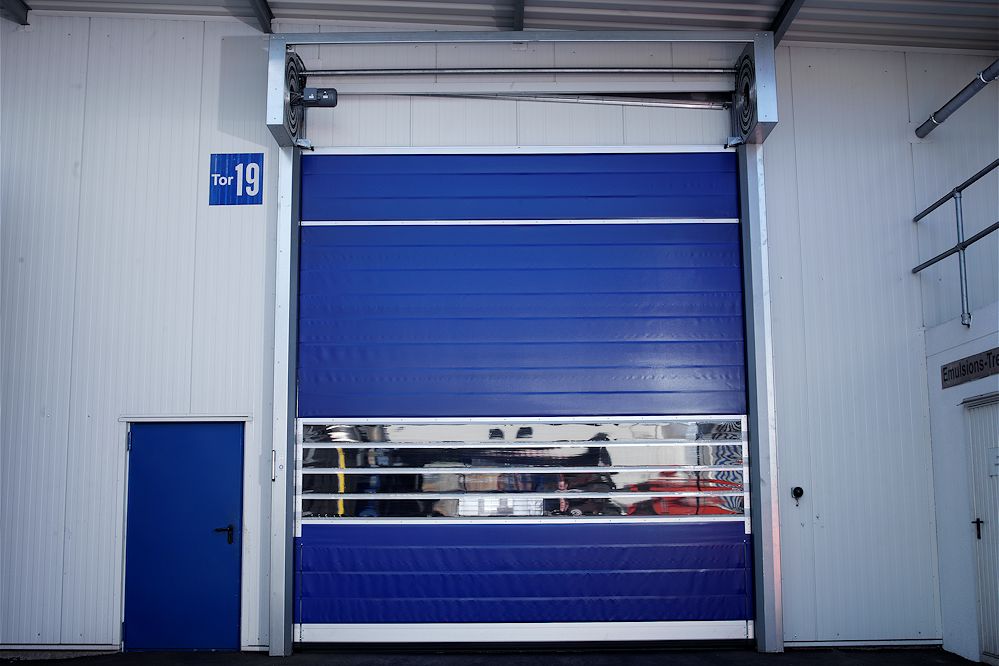

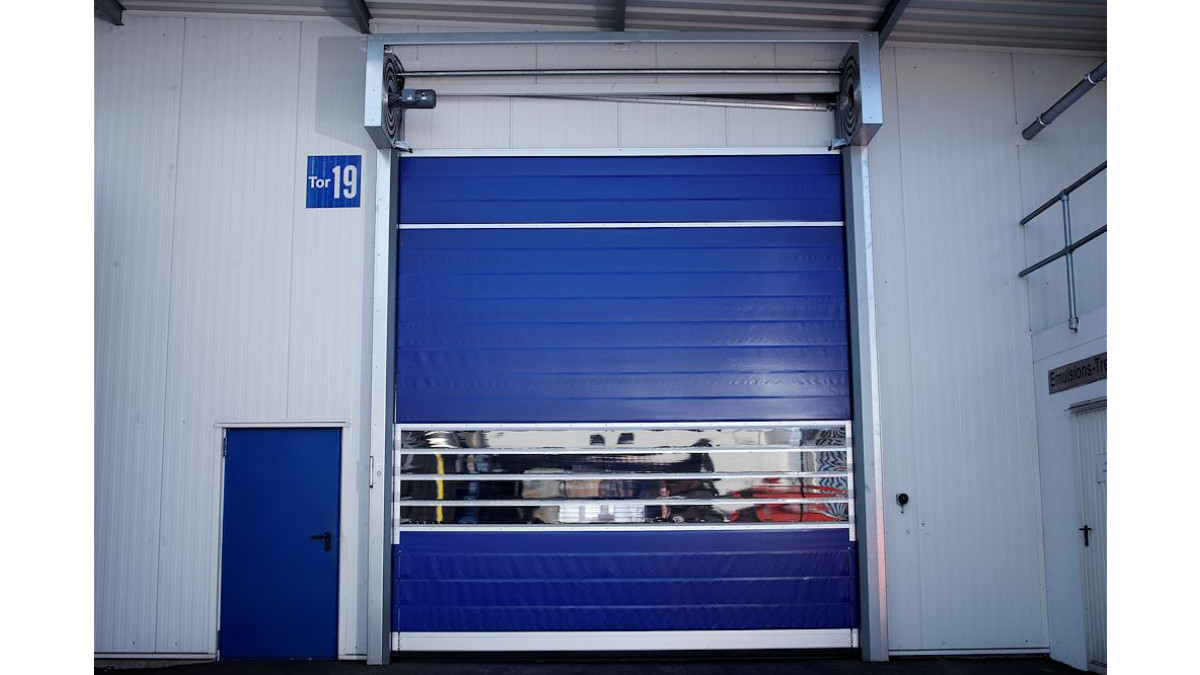

01 EFA STR 03

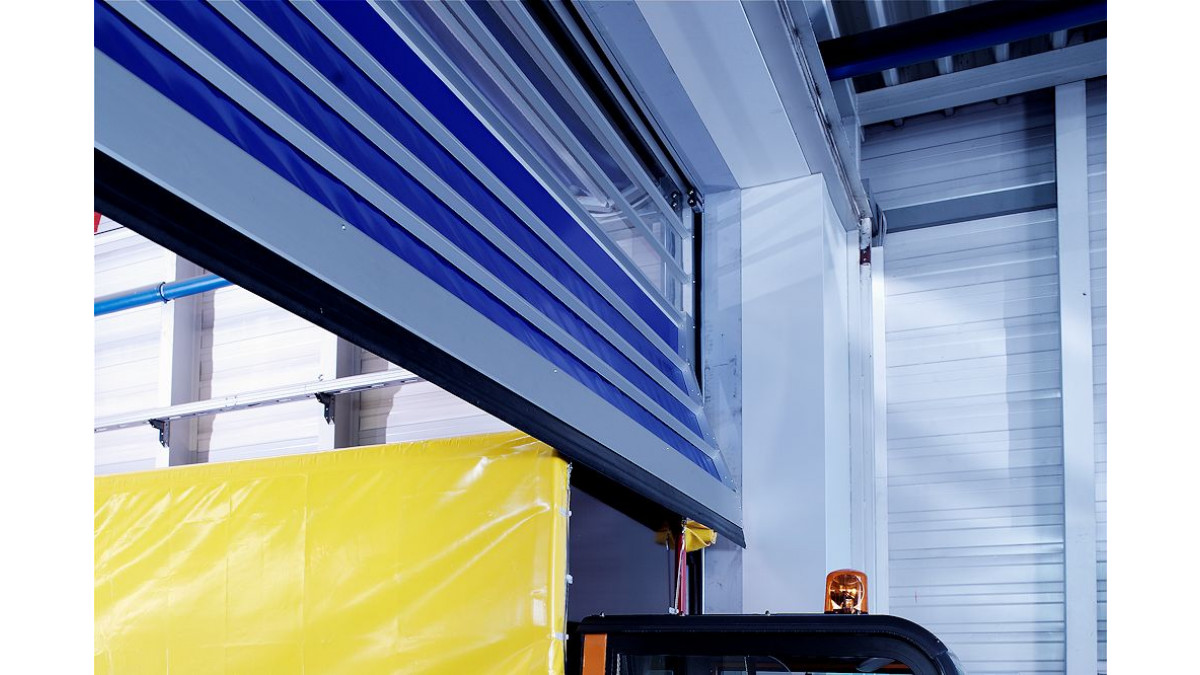

02 EFA STR 01
02 EFA STR 03
03 EFA STR 03

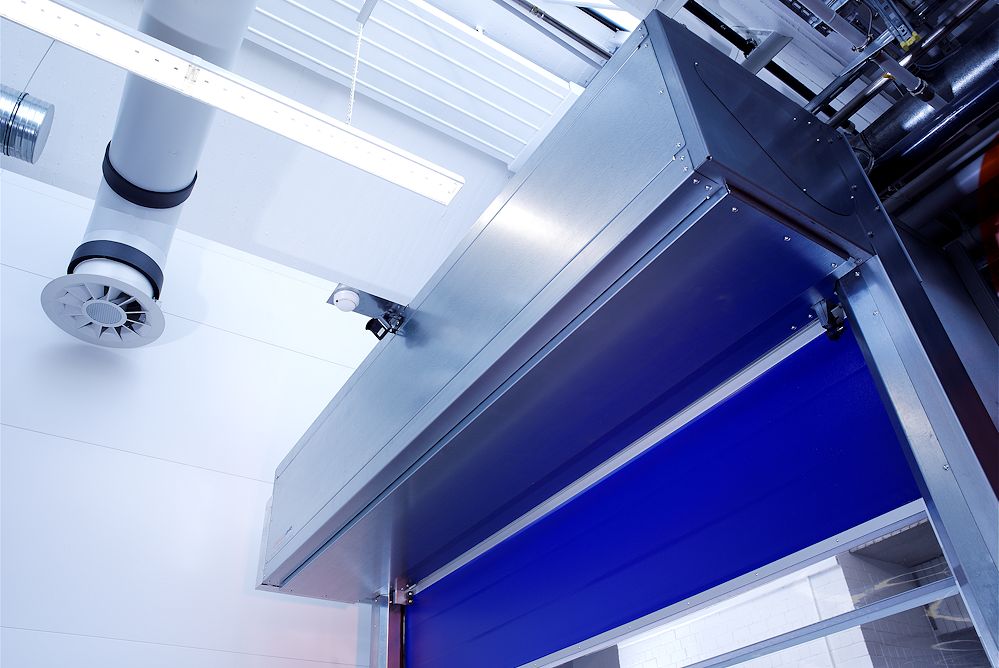

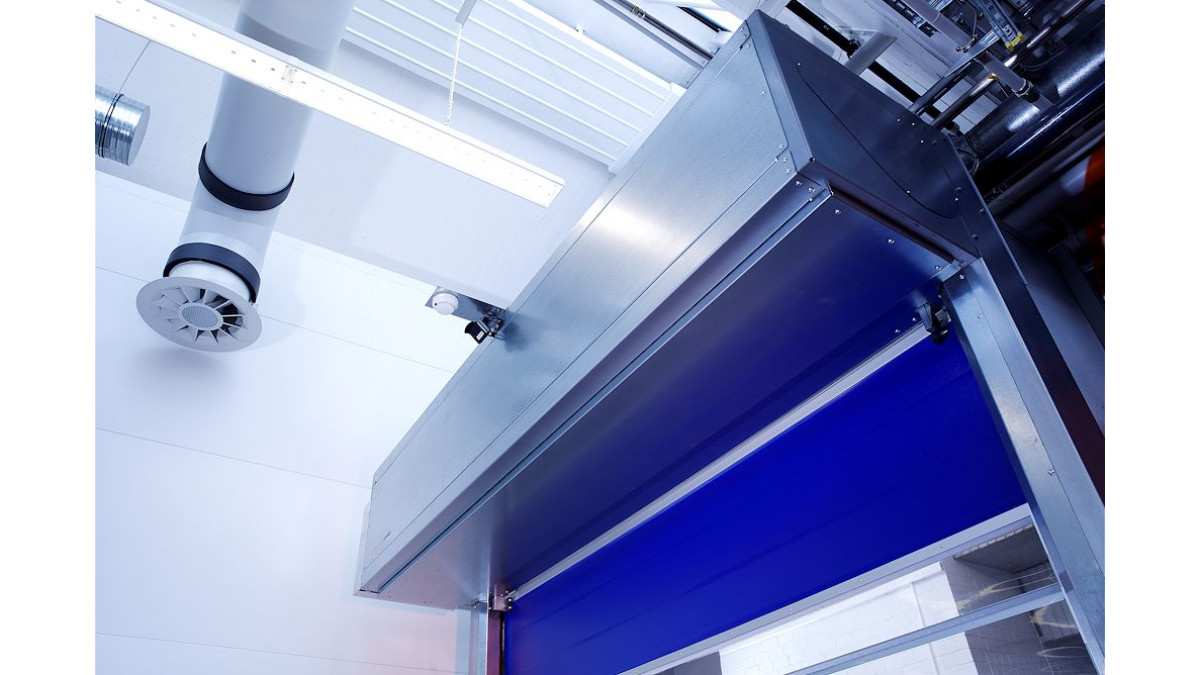

03 EFA STR 05
04 EFA STR 01

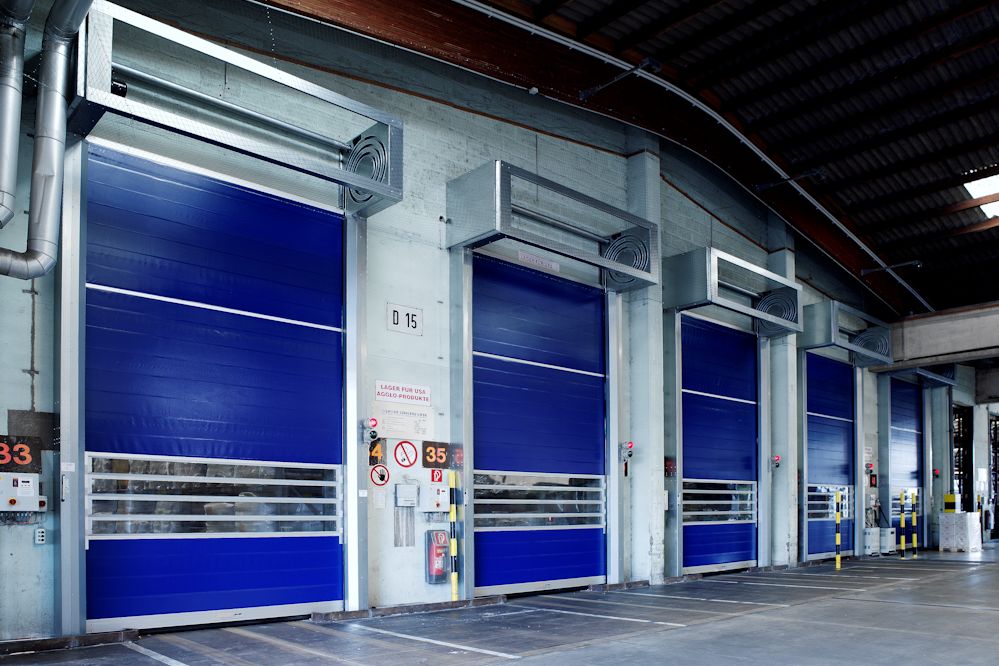

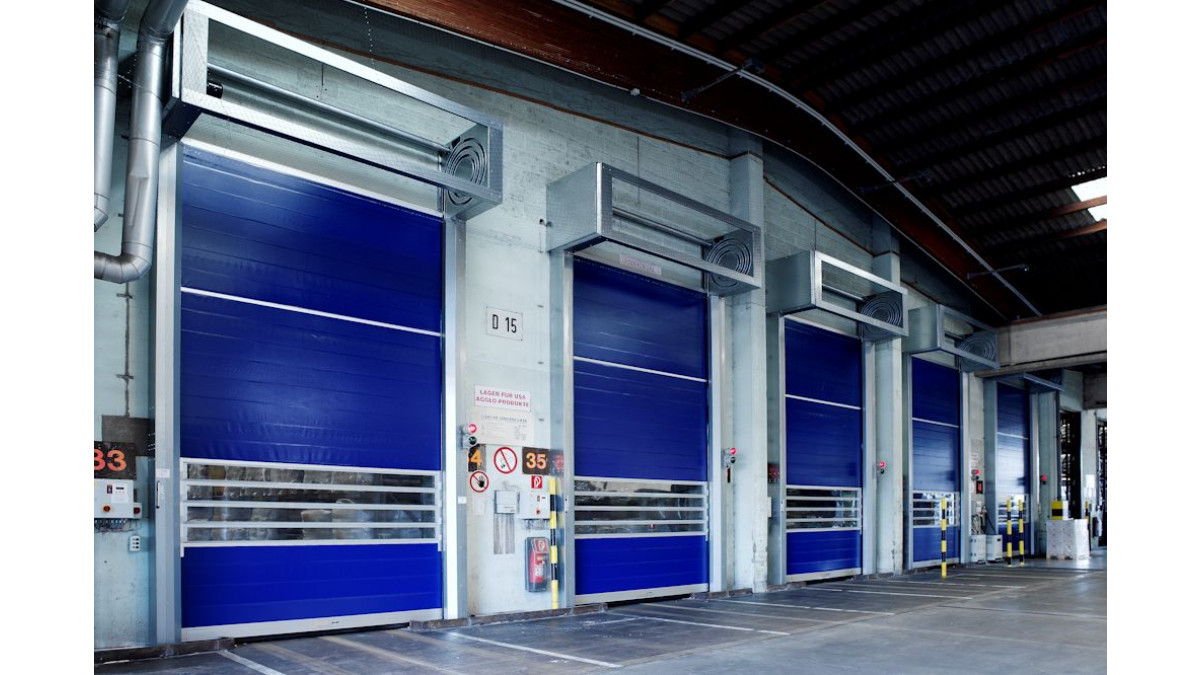

04 EFA STR 04

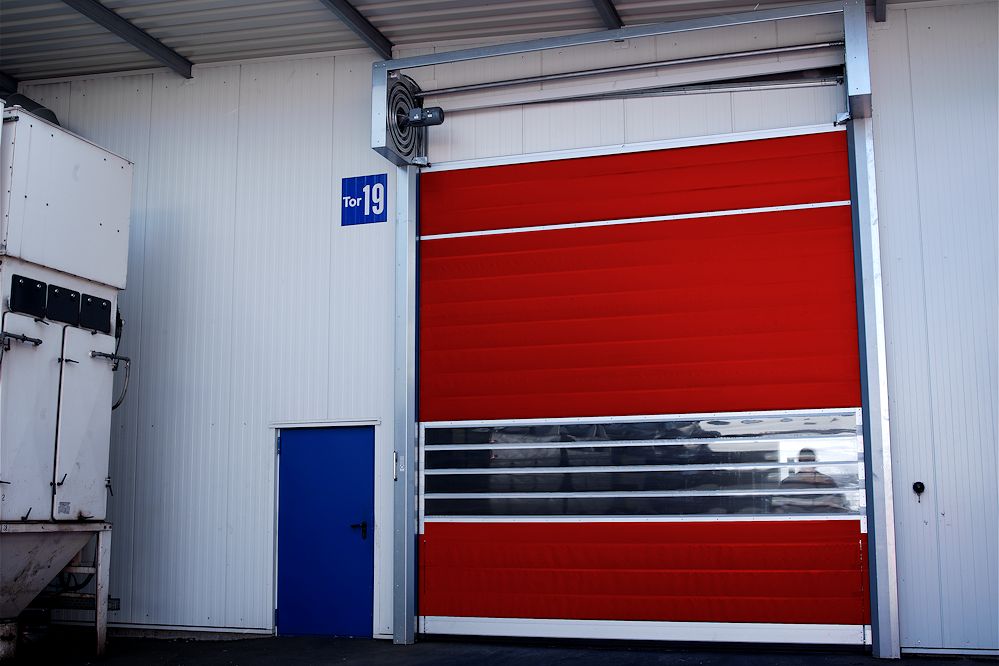

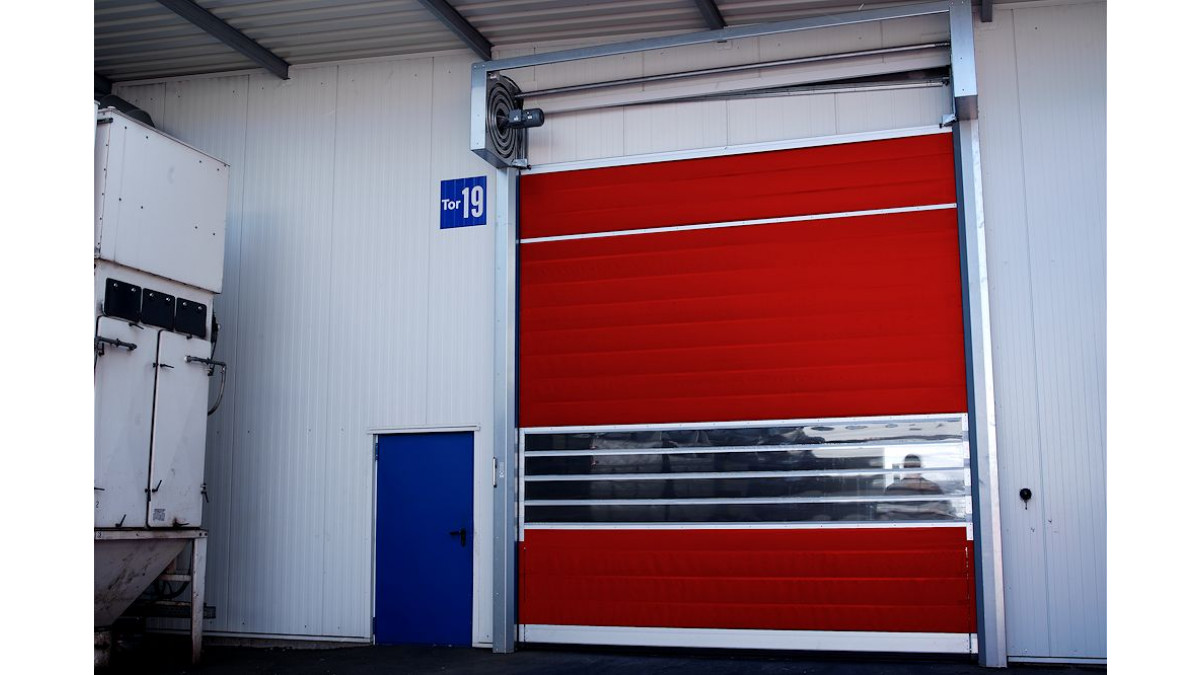

05 EFA STR 03

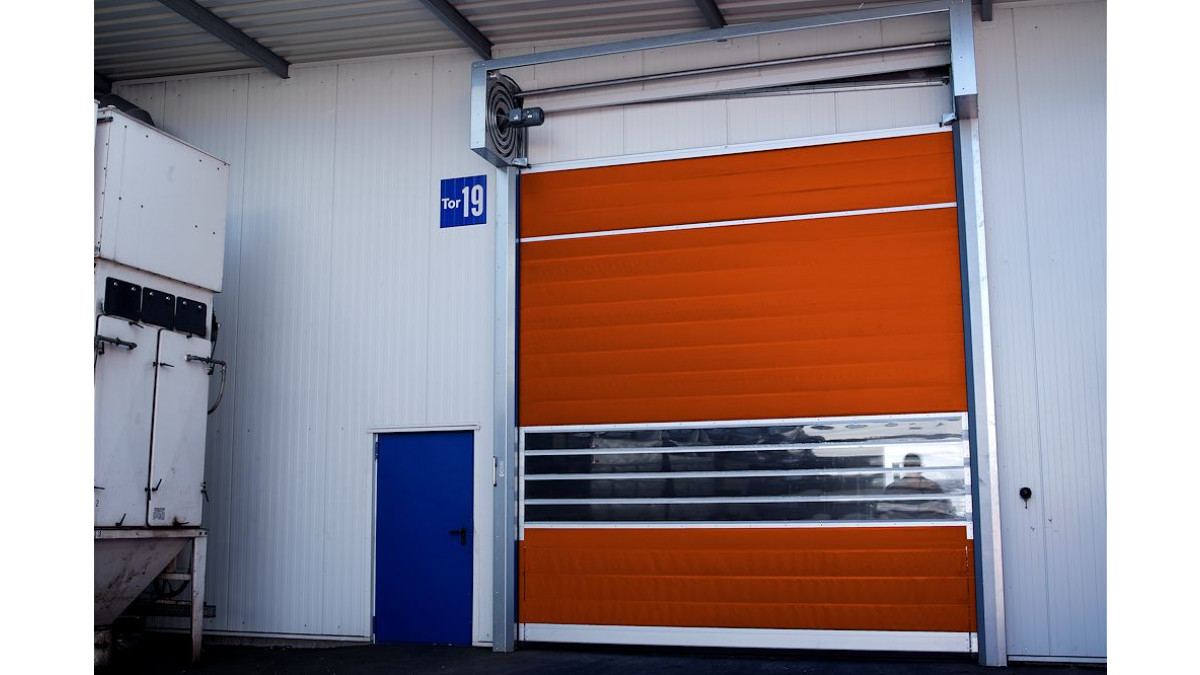

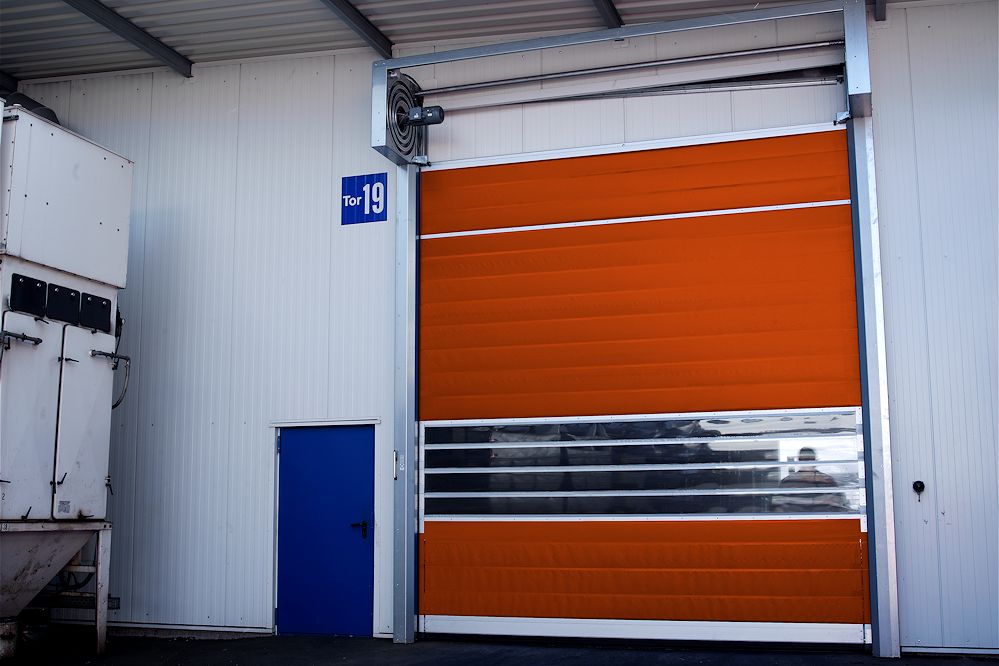

05 EFA STR 05
Description

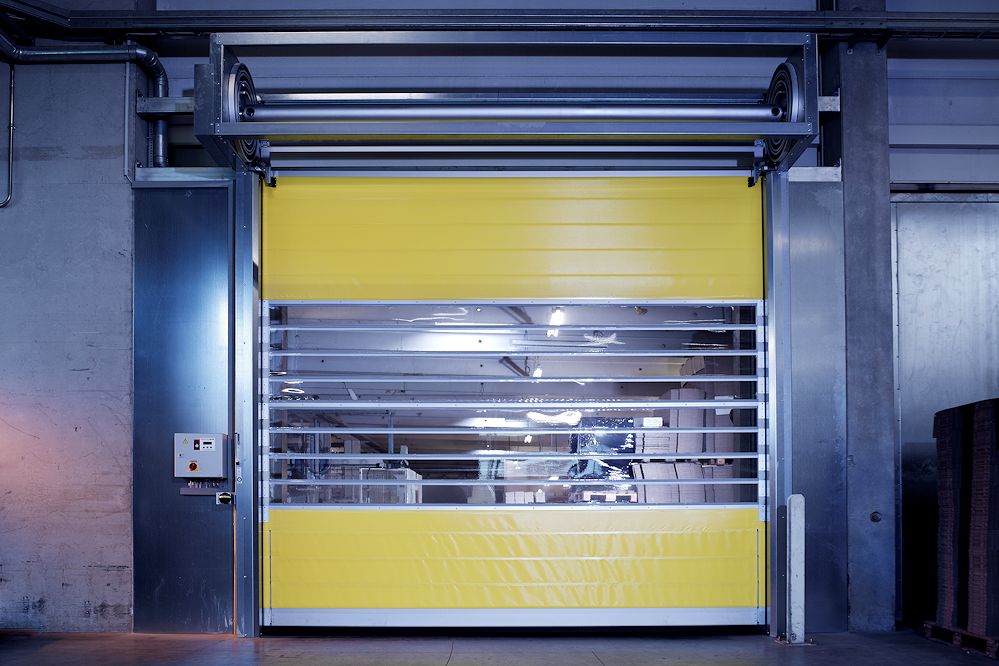

The World's fastest vertically opening door. Suitable as an interior or exterior door for use across a wide range of industries where fast, safe, secure and reliable access is required.

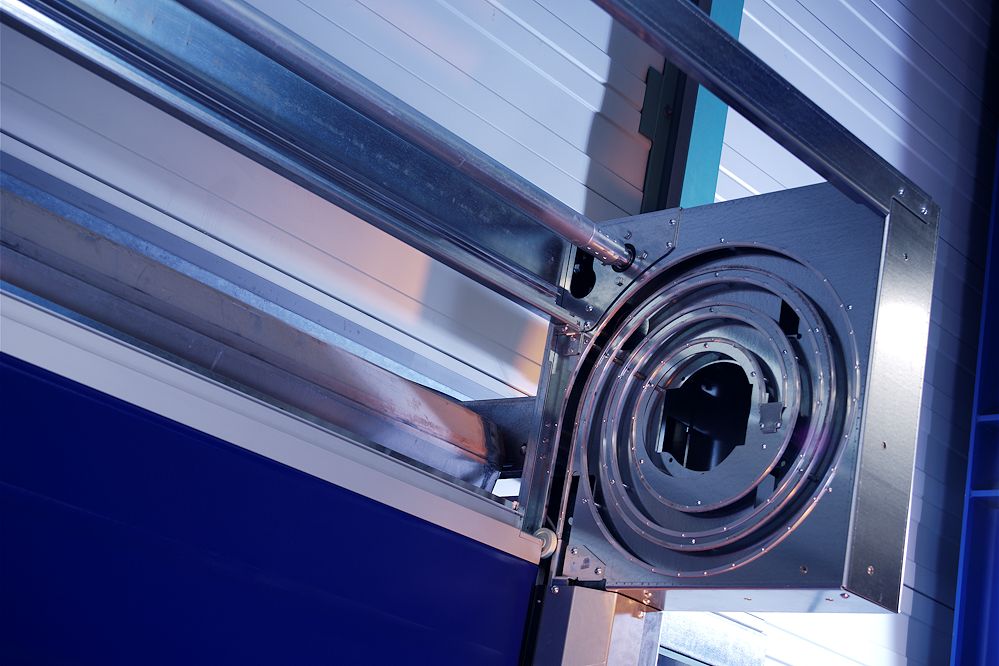

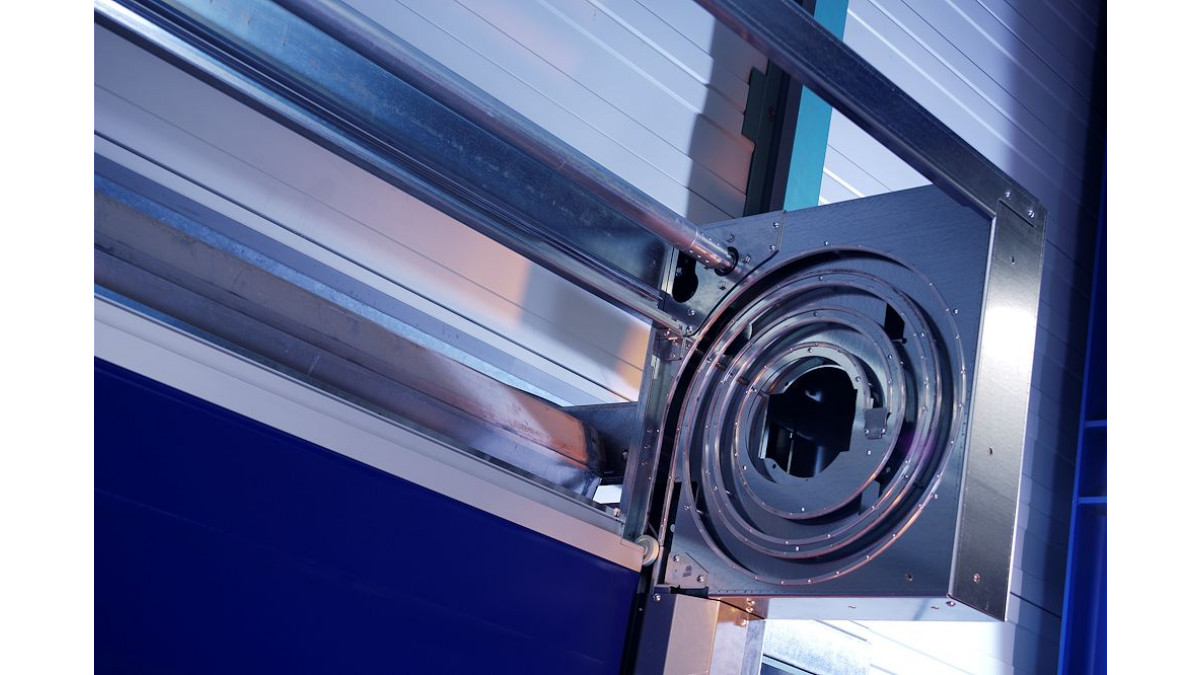

Unlike conventional roller doors, which roll the door blade up on a shaft, spiral doors guide the door into a spiral, allowing higher operating speeds and less wear.

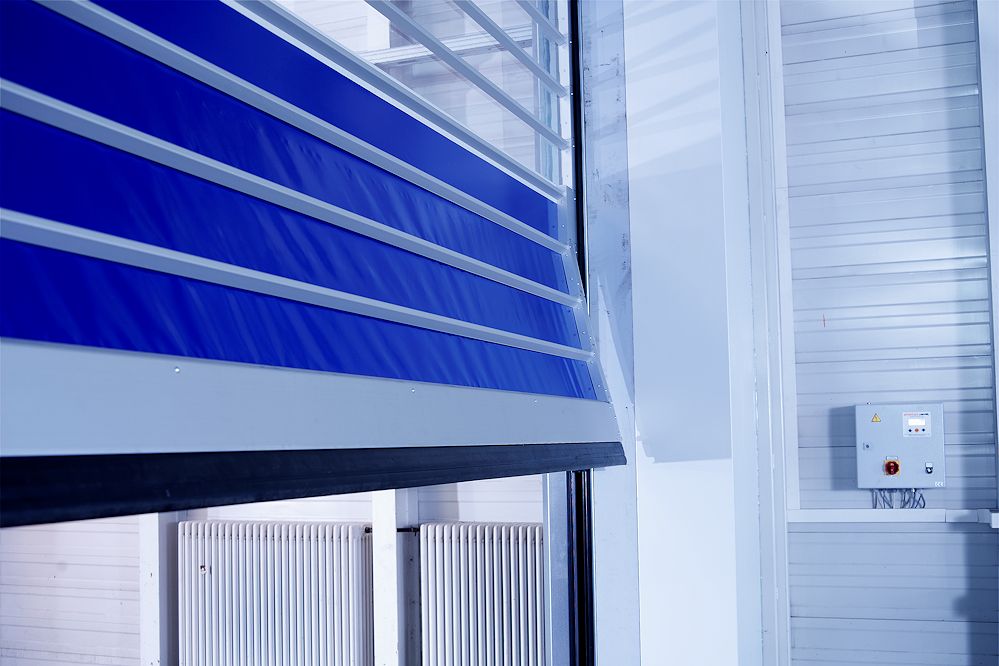

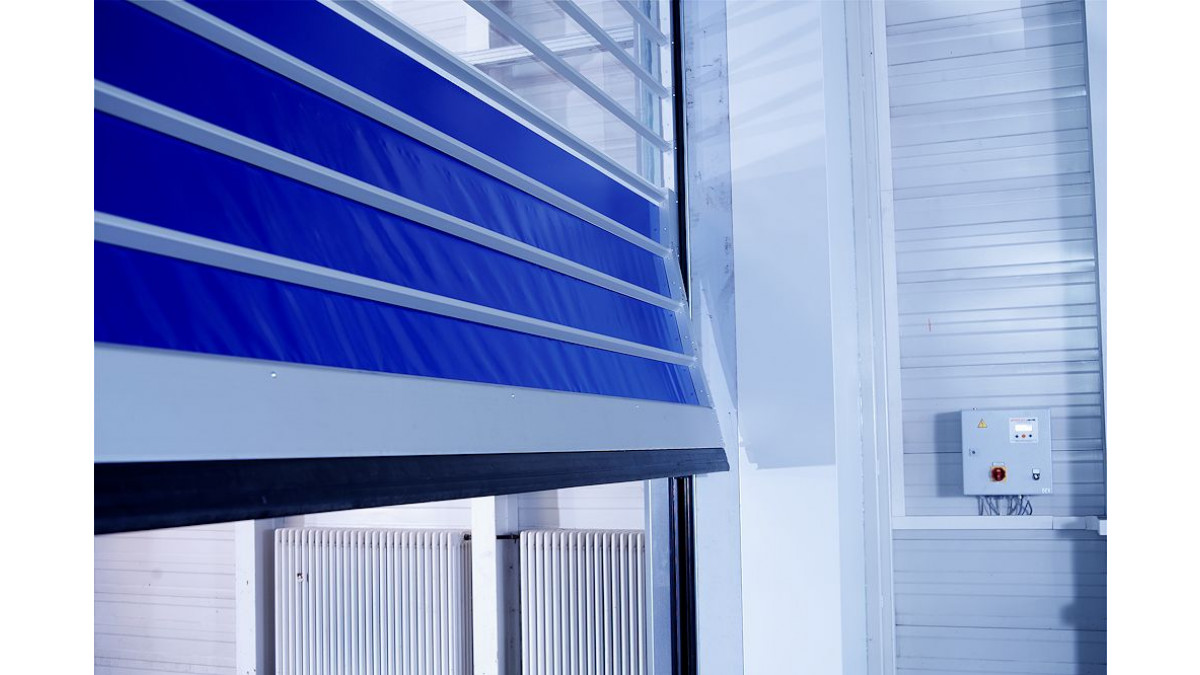

Manufactured using aluminium profiles with fabric reinforced PVC infills. Options of transparent sections.

Available in 5 different models.

Key Features
  • World's fastest vertically opening door — Opening speed up to 4 metres per second
  • Safe and secure
  • Energy saving
  • Available in up to 7000w x 6000h
  • Wind load up to Class 3
  • Manufactured in round and low header designs
  • Designed for up to 200,000 load cycles per year (approx)
  • Activators can be integrated with  any access control systems
  • Available in standard aluminium or powdercoated finish with 4 colours of PVC curtain infill
  • Safety systems include TLG, approach area monitoring, and radars
  • Emergency opening — automatic after manual activation
Categories
Garage and High-Speed Doors Specialist Doors
Scope of Use
  • Suitable for interior or exterior use
  • Can be mounted internally or externally to any building surface
  • Designed for industries were high cycle, safety and reliability are a requirement.
  • Suitable for wind loads up to Class 3
  • Manufactured in round and low header designs
  • Intended for use in a wide range of industries, including, but not limited to:
    • Manufacturing
    • Logistics
    • Warehousing
    • Food and beverage
    • Airports
    • Retail
  • Often used in logistic industry breezeways due to it high wind load abilities
In-Service History
  • Manufactured by EFAFLEX since 2002 (STR) and sold worldwide since
  • EFAFLEX Doors have been installed and operating in NZ since 2004
  • They have been in use with Synlait Milk since 2013
Other Performance Attributes
Wind Load Maximum DIN EN 12424 up to Class 3 (depending on model)
Operating Forces / Safe Opening DIN EN 13241-1 Fulfilled
Air Permeability DIN EN 13241-1 up to Class 1 (depending on model)
Direct Airborne Sound Insulation DIN EN 717-1 up to 12db (depending on model)
U Value Maximum W/m²k DIN EN 13241-1 up to 6.1 (depending on model)

Warranty and Maintenance

All doors require regular service maintenance which must be carried out by an authorised service agent.

For specific warranty details please contact EFAFLEX.

  • Case Studies
  • News
Documents
BIM Object: STR High Speed Roll-Up
URL
Brochure: EFAFLEX World of Doors
pdf
Brochure: S Series
pdf

EFAFLEX were the first company in the world to deal exclusively with high-speed doors, they remain a global market leader in that sector through innovation, safety, and individuality.
