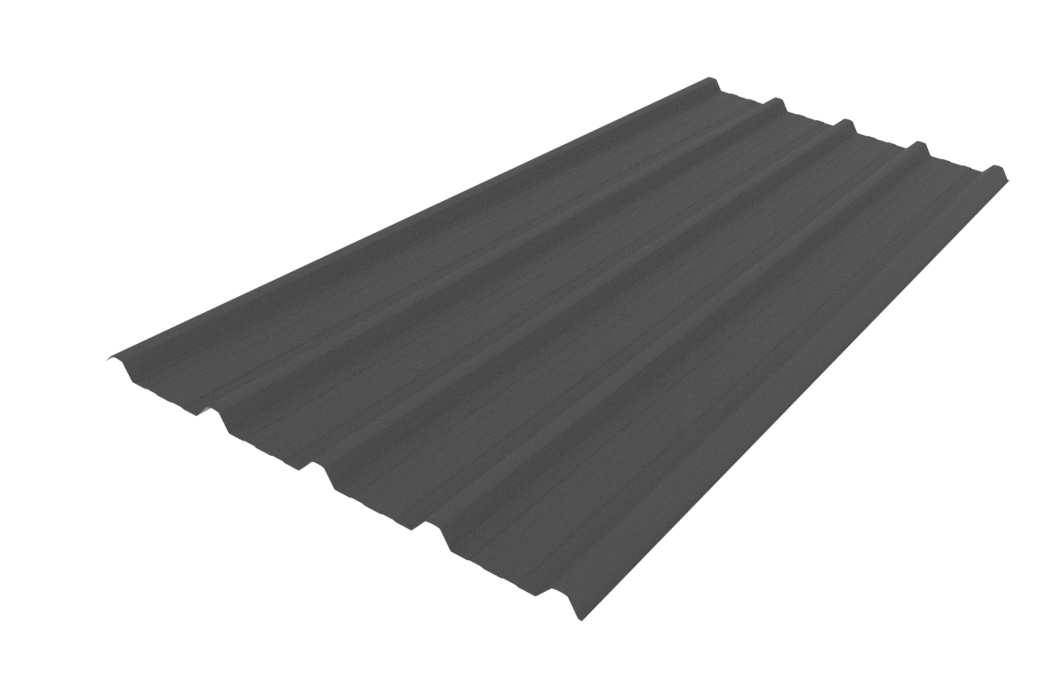

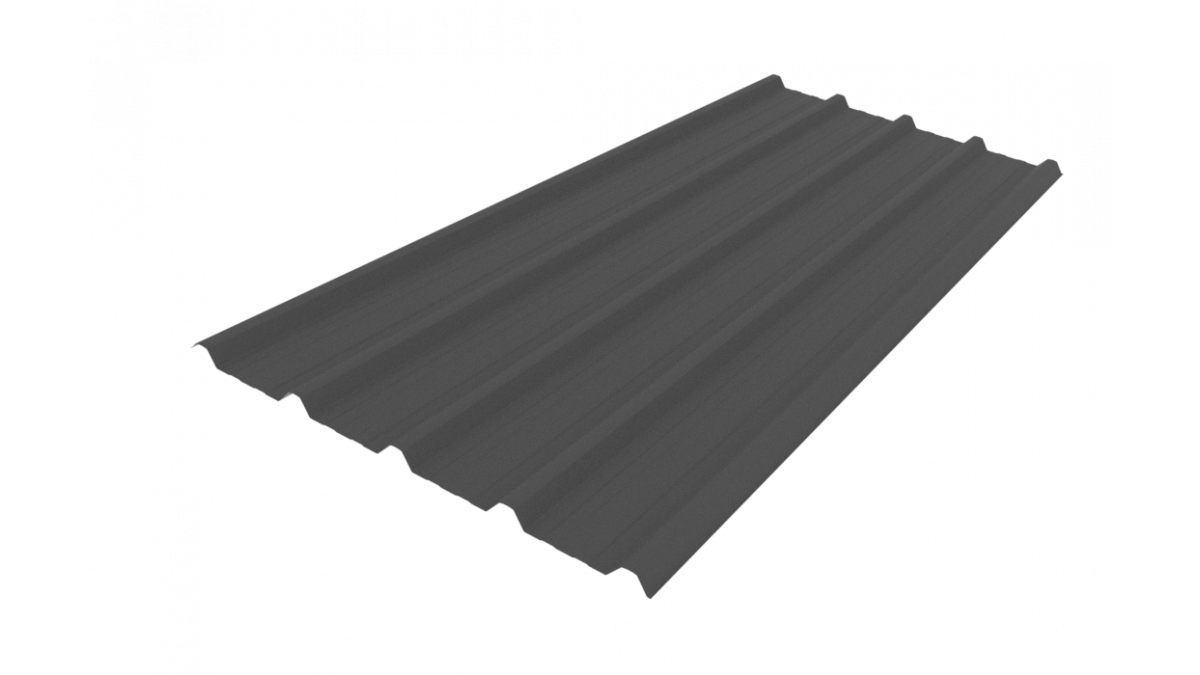

Hi Five
Description

Offering a bold modern look, Hi Five allows designers to maximise roofing and cladding efficiencies in building designs. Supporting wide purlin spacing and performing well on low pitch roofs. It can additionally be crimp curved, offering unique architectural design possibilities.

Key Features
  • Suitable for roof and wall cladding
  • Suitable for residential and commercial applications
  • Also available as Audio-Perf
Green Tag Certified
Green Tag Certified
Scope of Use
  • Cover Width: 755mm
  • Sheet width: 810mm
  • Minimum pitch: 3°

Available in a variety of materials to suit most New Zealand conditions

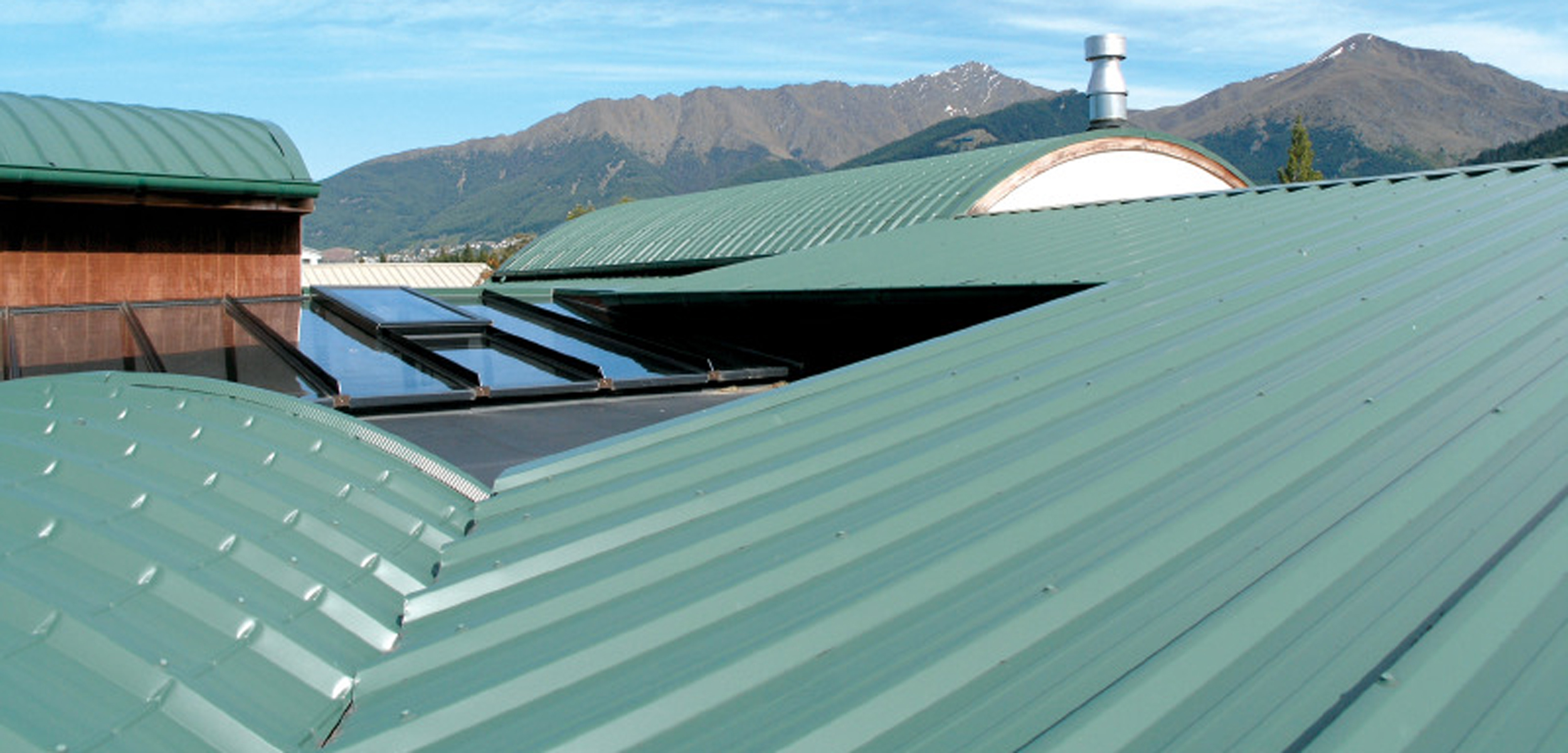

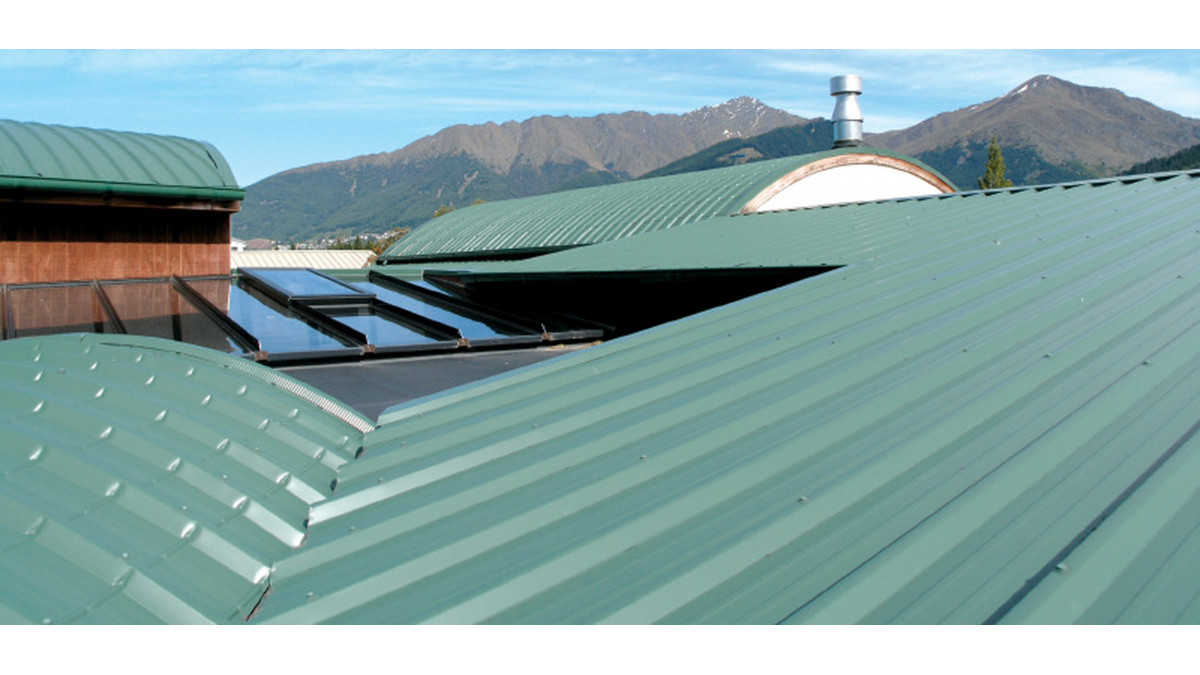

Hi Five can be crimp-curved either convex or concave — the radius is dependent on the material being used

Statement of Building Code Compliance

Test information available from Pacific Coilcoaters and BHP NZ Steel, and past history of use of long run metal roofing and cladding products in New Zealand indicate that, provided the product use and maintenance is in line with the guidelines contained in the current literature referenced (see Dimond Roofing website) Dimond long run metal roofing and wall cladding systems can be expected to meet the performance criteria in clause B2 and E2 of the New Zealand Building Code, for a period of not less than 15 years.

In-Service History

Dimond is New Zealand's largest manufacturer of steel roofing, cladding, structural and rainwater goods.

Other Performance Attributes

Green Tag:

  • All Dimond Roofing products roll-formed using ColorCote painted steel coil is Global GreenRate GreenTag certified and is applicable for Green Star and Home Star credits
Documents
Dimond Roofing & Cladding Technical Manual
Environmental Information
Environmental Information — Global Green Tag
CAD/PDF LInk
Installation and Operation
Colour Range
Additional Information

Dimond Roofing are a manufacturer of steel roofing, cladding and rainwater products.
