DimondClad Rib20/Rib50
Description

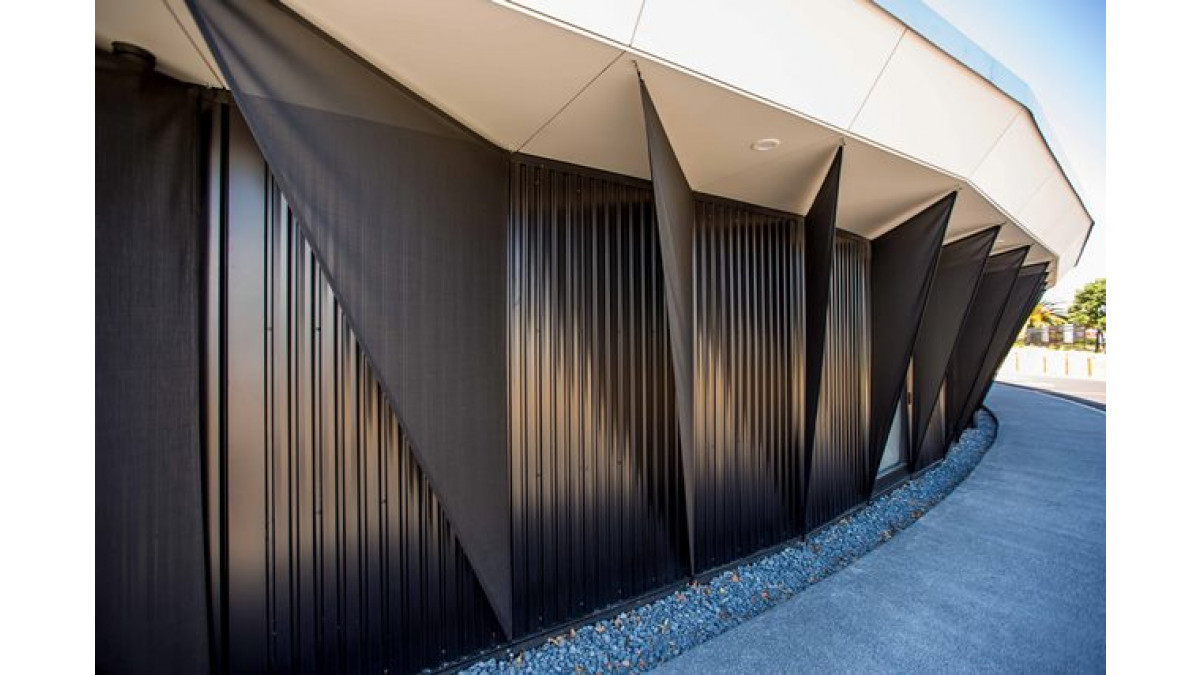

DimondClad is a highly versatile cladding solution.  Its clean, efficient lines and well concealed laps are excellent for both exterior and interior cladding.

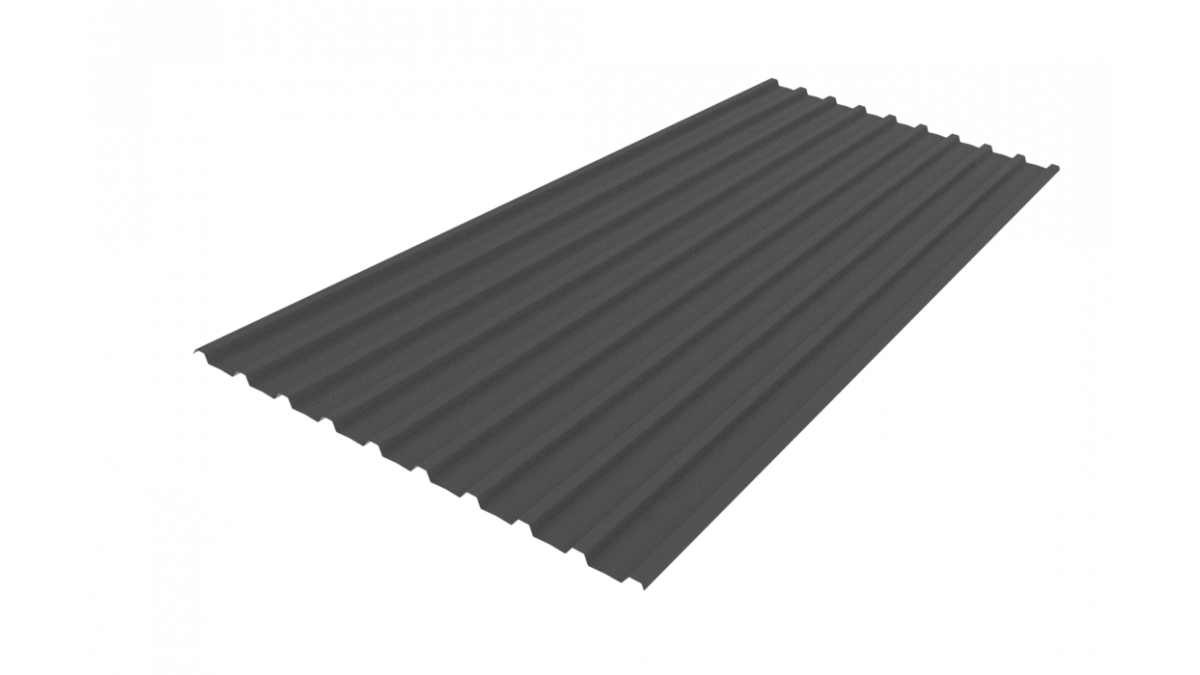

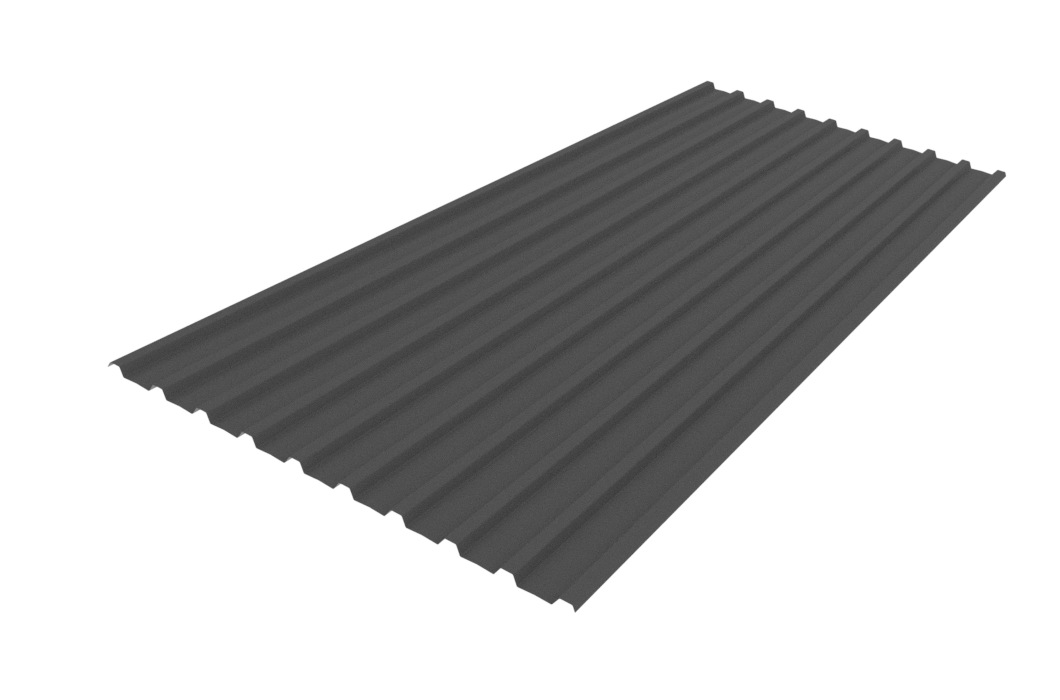

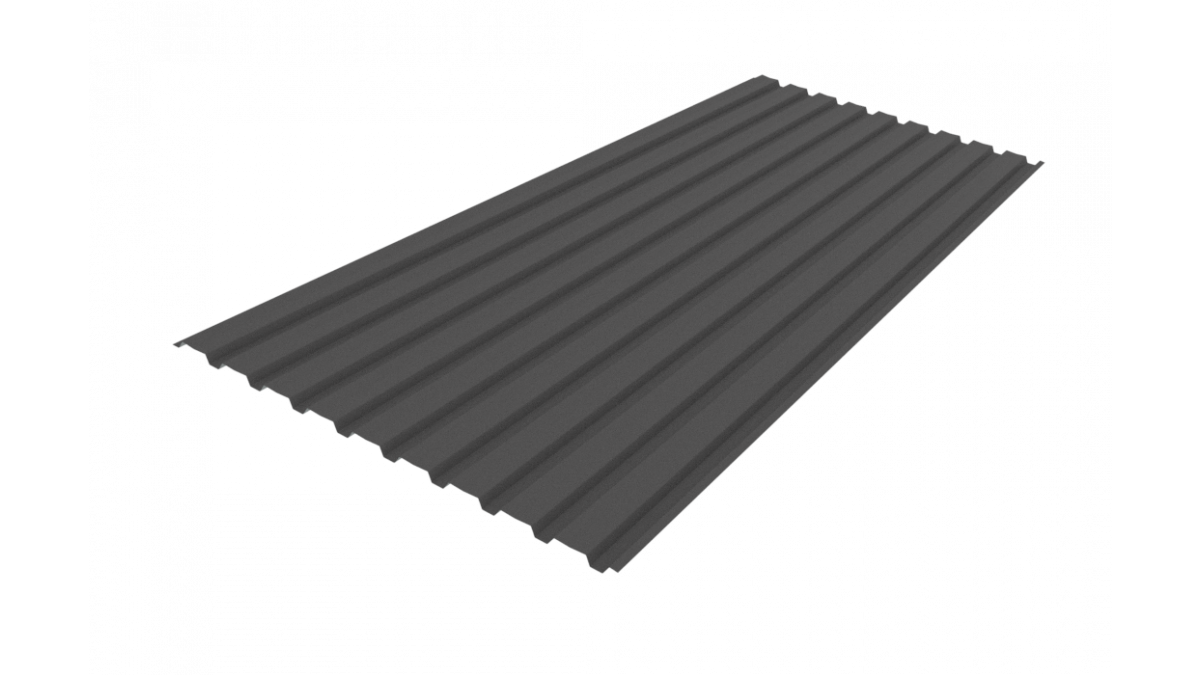

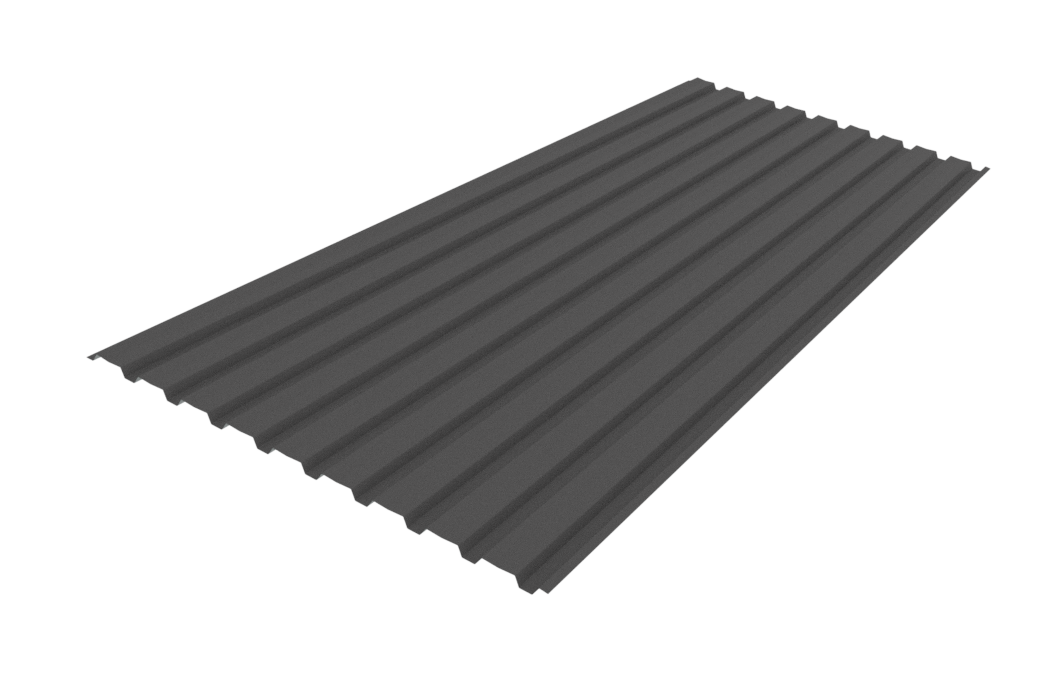

Both sides of Dimondclad can be used through the Rib 20 and Rib 50 versions, creating two completely different and highly distinctive looks.

Key Features
  • Cover: 779mm
  • Sheet Width: 810mm
Categories / Ranges
Metal Cladding Cladding
Green Tag Certified
Green Tag Certified
Scope of Use
  • The span capacity of Dimondclad Rib 20 and Dimondclad Rib 50 is determined by the serviceability requirement for acceptable appearance and should not exceed 1400mm
  • The ultimate windload should not exceed 3 kPa
  • Dimondclad Rib 20 and Dimondclad Rib 50 profiles are not intended for use as roofing products
  • Must not be used in situations where foot traffic point loads can be applied
Statement of Building Code Compliance

Test information available from Pacific Coilcoaters and BHP NZ Steel, and past history of use of long run metal roofing and cladding products in New Zealand indicate that, provided the product use and maintenance is in line with the guidelines contained in the current literature referenced, Dimond long run metal roofing & wall cladding systems can be expected to meet the performance criteria in clause B2 and E2 of the New Zealand Building Code, for a period of not less than 15 years.

In-Service History

Dimond is New Zealand's largest manufacturer of steel roofing, cladding, structural and rainwater goods.

Other Performance Attributes

Green Tag:

  • All Dimond Roofing products roll-formed using ColorCote painted steel coil is Global GreenRate GreenTag certified and is applicable for Green Star and Home Star credits
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Documents
CAD/PDF (link to page on supplier website)
CAD/PDF (link to page on supplier website)
Product Technical Statement: Dimondclad Rib50
Product Technical Statement: Dimondclad Rib20
Span Tables: Dimondclad Rib50
Dimond Roofing & Cladding Technical Manual
Span Tables: Dimondclad Rib20
Environmental Information
Environmental Information
Installation and Operation
Colour Range
Product Page: Dimondclad Rib20
Product Page: Dimondclad Rib50
