CS FramelessGlass Cavity Slider
Description

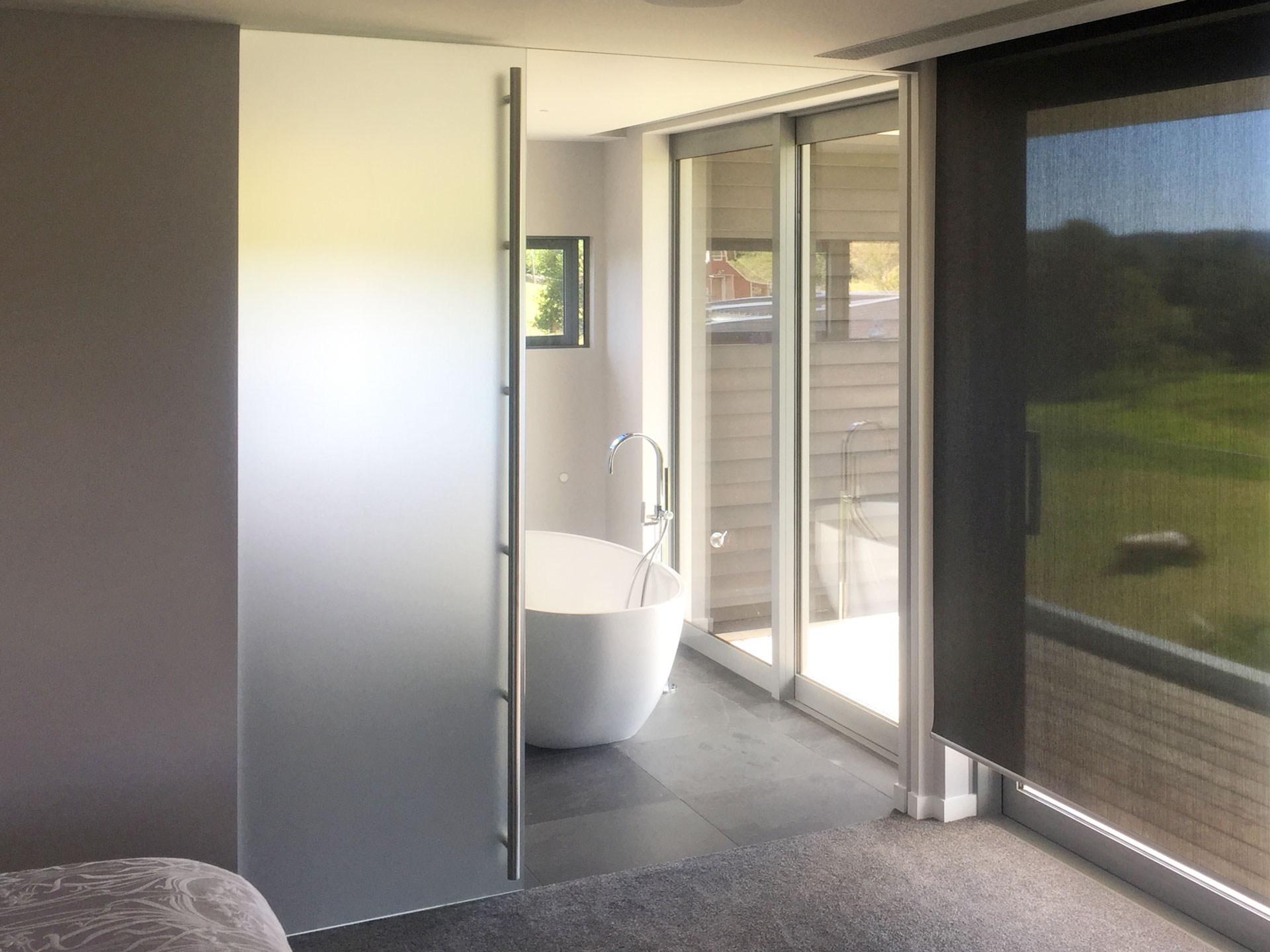

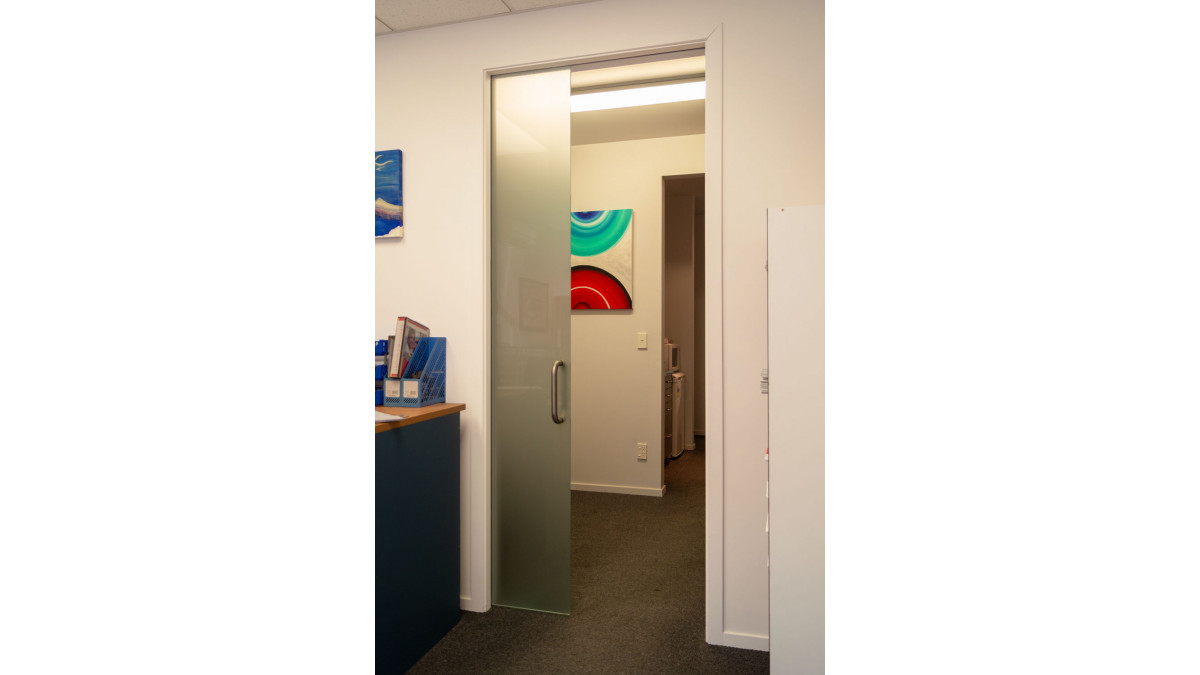

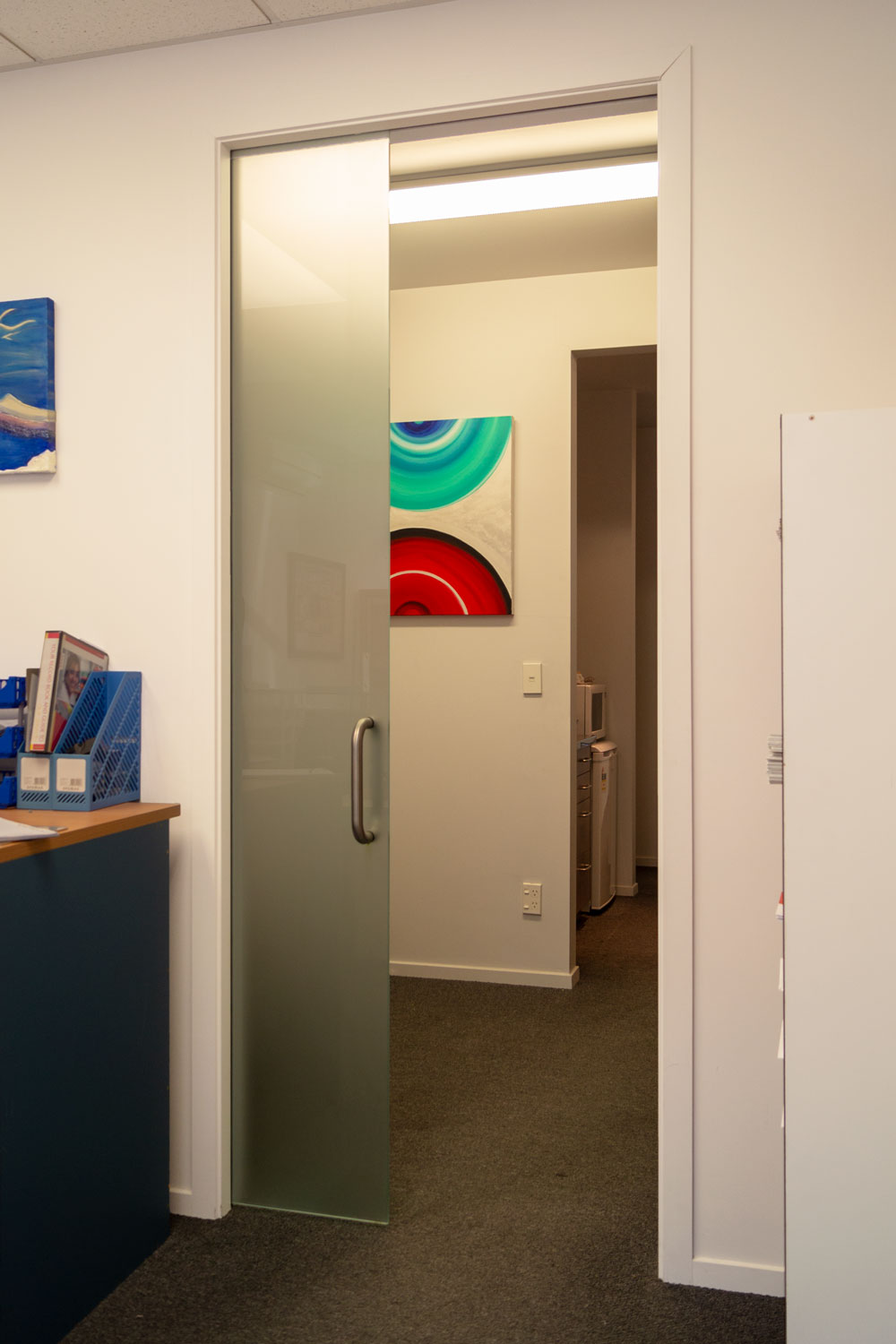

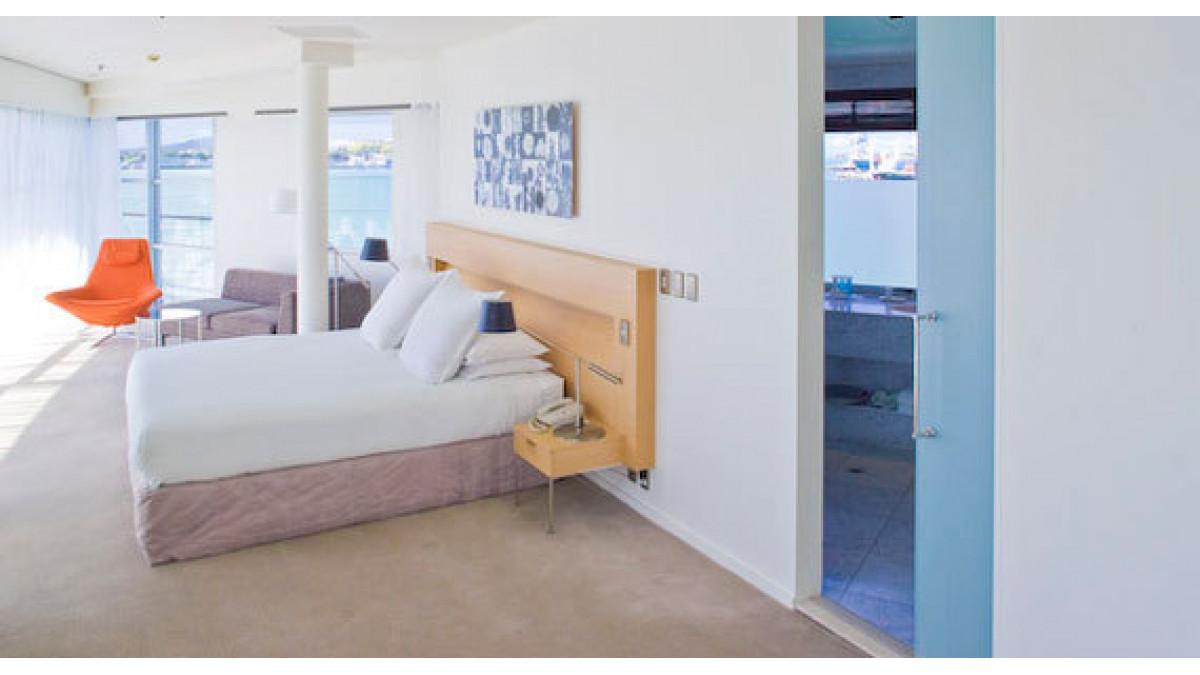

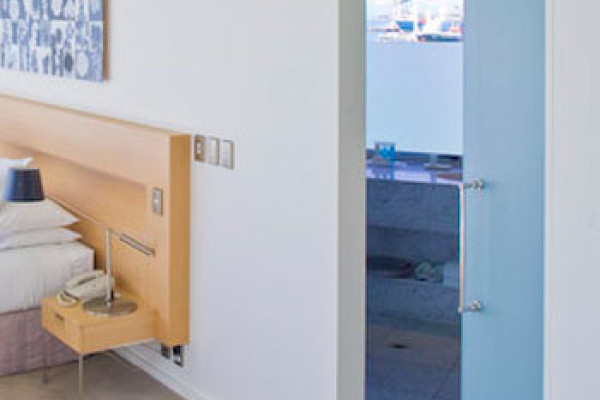

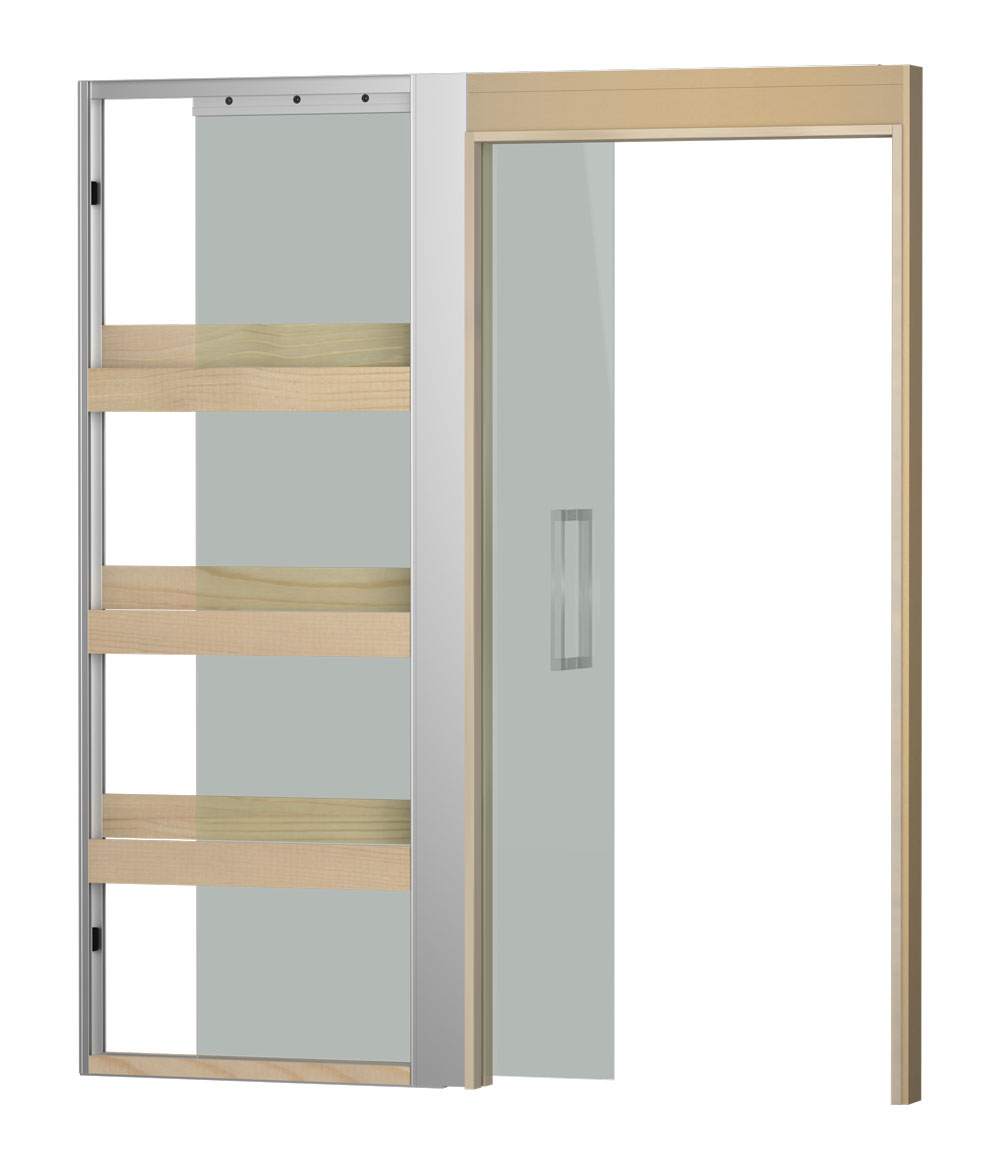

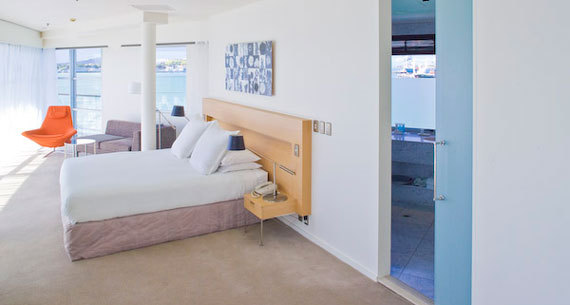

CS FramelessGlass units incorporate a toughened frameless glass panel as the door leaf, creating a light and uninterrupted walk space - even with the door closed. Units are supplied with a clamp bracket that may be either exposed or hidden above the head jambs depending on option selected at time of order.

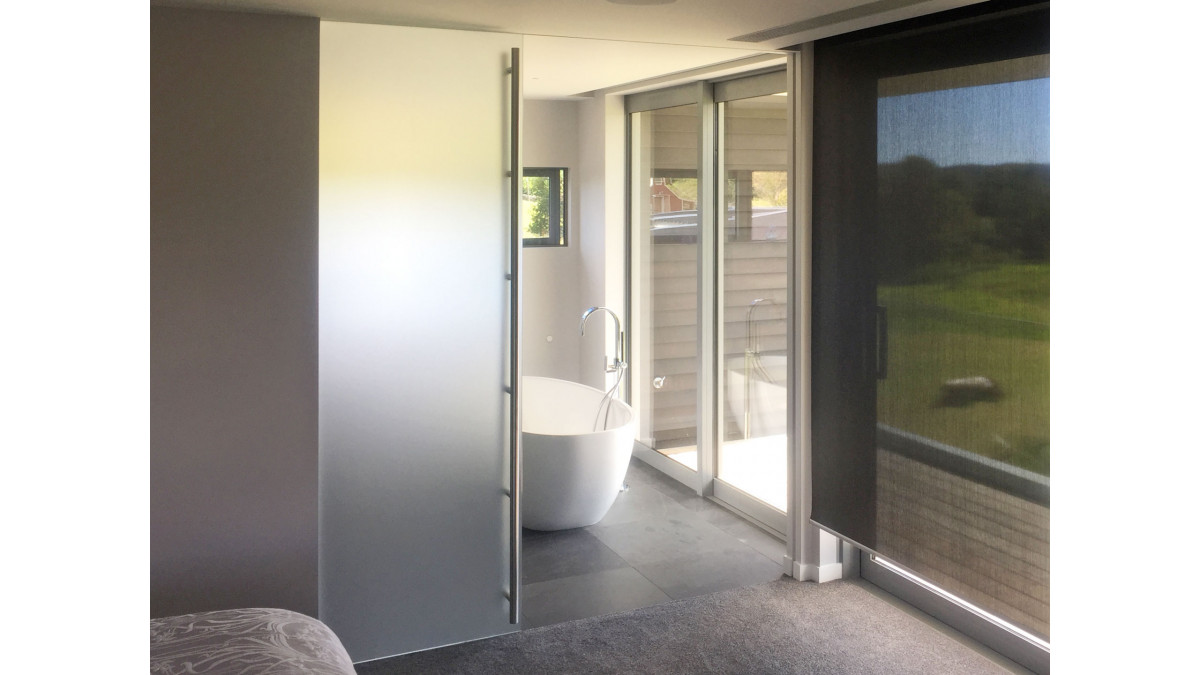

Frosted glass and other finishes including 'branded options' are available. 10mm or 12mm safety glass must be specified with these units.

Operation: Choose from M8 (240kg) carriages, SofStop Single soft close (100kg) or SofStop Twin soft open & close (50kg).

Key Features

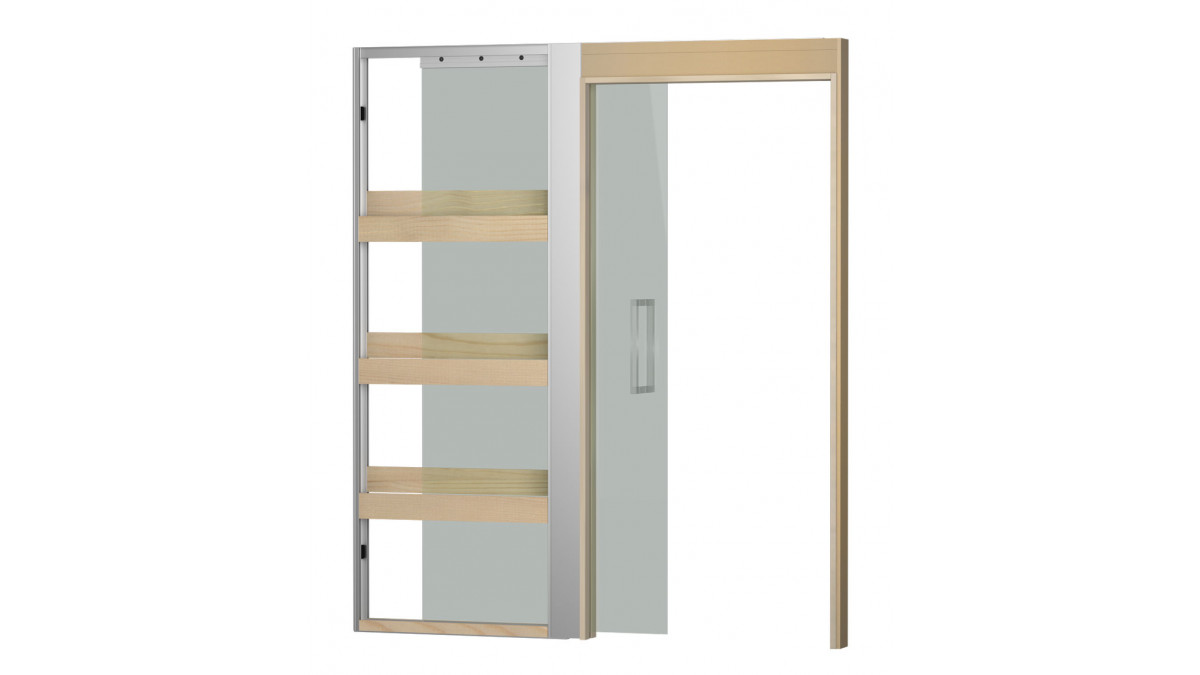

  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • The toughened glass panel has excellent sound reducing qualities
  • Available as single or bi-parting (double) units
  • Door cannot jump off the track
  • Fits into a standard thickness wall (90 x 45 framing)
  • Supplied fully assembled for on-site installation
  • No visible floor guides

Detail Options

Incorporate any of the following architectural detail options with the CS FramelessGlass cavity slider to create a specific look or to provide a unique solution:

  • Full-Height
  • No Closing Jamb
  • Shadow Line
  • Square Stop
  • Servery
  • Extra-Wide Jambs
  • Protrude 100

Maximum size 3000mm high x 2800mm wide

Categories
Cavity Sliders
NZ Made
NZ Made
Scope of Use

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

Limitations on Use
  • CS Cavity Sliders are not suitable for use with fire doors or smoke control doors
  • CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exitways
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people
In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • CS Cavity Sliders are backed by a 10 year written guarantee.
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
BRANZ Appraisal

900 [2020]

Maintenance Instructions
Warranty
Additional Information
CAD/PDF Details

CS For Doors are a manufacturer of cavity sliding door systems and related products.

Product Enquiries

News from CS For Doors

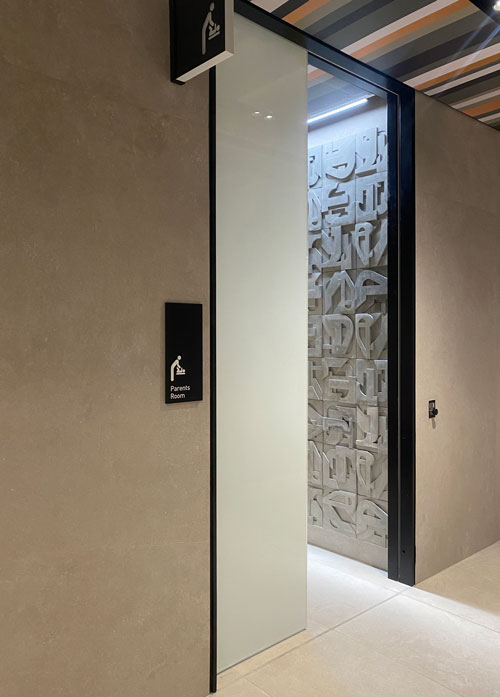

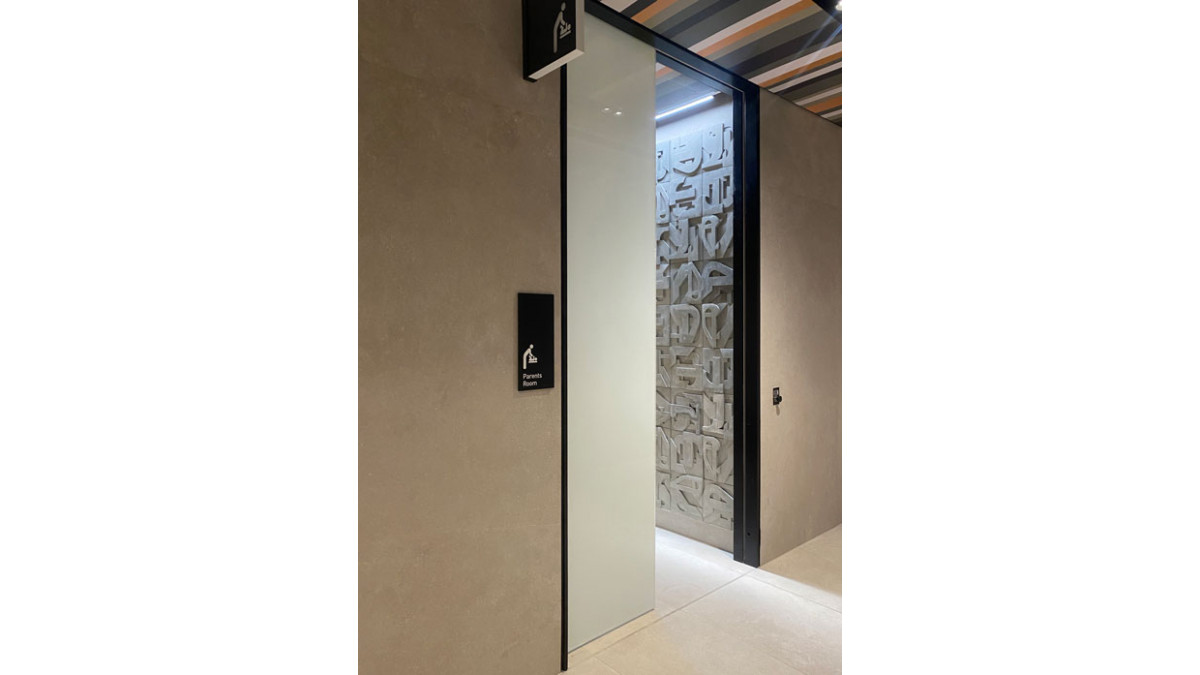

CS AutoCav: A Touch-Free Cavity Slider Solution
