CS TopFix 2T-90
Description

The CS TopFix 2T-90 is a patented easy-to-fit sliding wardrobe door system. The CS TopFix fits into standard 90mm framing and is easier to install and finish than similar products on the market as timber head jambs are not required. This product suits any wardrobe situation where space is at a premium.

Standard timber doors can be used, ensuring hinged and wardrobe doors match.

This system uses a discreet floor guide hidden in the door overlap, so there are no unsightly floor tracks through the door opening.  Combine the CS TopFix with the CS MirrorLite door leaf for a complete sliding wardrobe door solution.

Operation: Choose from standard (240kg) carriages or SofStop Twin soft open and close (50kg).

Key Features

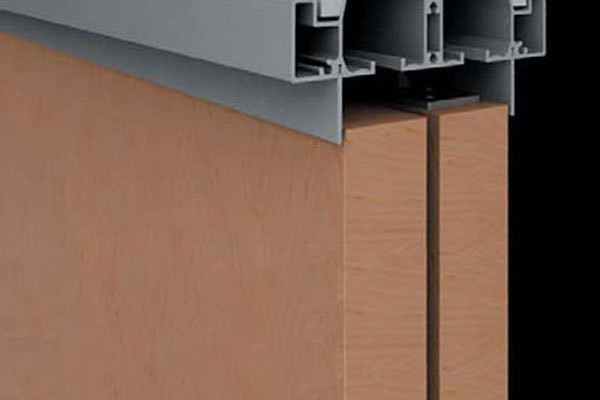

  • Track is heavy duty, high quality, one piece extruded aluminium
  • Door and carriages can be easily removed
  • Standard timber doors can be used, ensuring hinged and wardrobe doors match
  • Timber head jambs are not required
  • Can be supplied with or without vertical jambs
  • Fits into a standard thickness wall (90 x 45 framing) with 10mm linings
  • Suitable for 2 door setup
NZ Made
NZ Made
Scope of Use

Suitable for use with sliding doors in internal locations in residential buildings.

  • Fits into a standard thickness wall (90 x 45 framing) with 10mm linings
Limitations on Use
  • Door thickness: 35-40mm
  • Maximum door weight: 240kg per door
  • Wall Framing: 90mm
  • SofStop minimum door width 840mm
In-Service History

CS Wardrobe Sliders have been successfully used in commercial and residential projects in New Zealand and Australia since 1994.

Other Performance Attributes
  • CS Wardrobe Sliders are backed by a 10 year written guarantee
Documents
Data Sheet
Maintenance Instructions
Warranty
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
