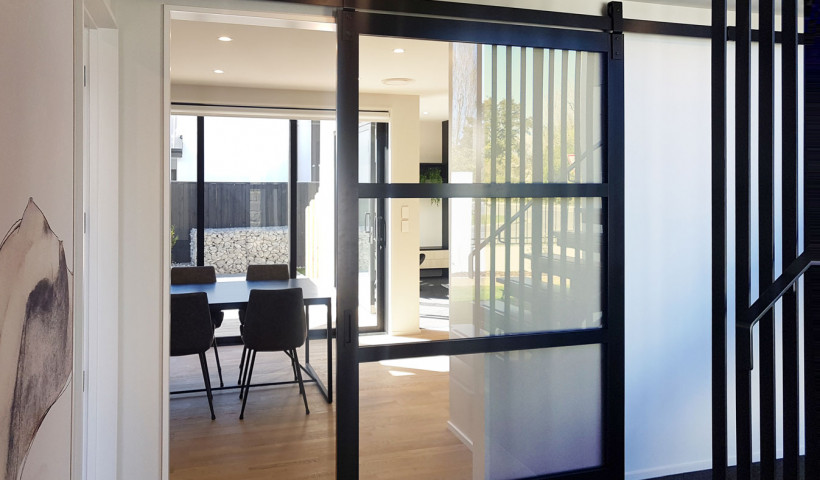

CS Barn Door Track
Description

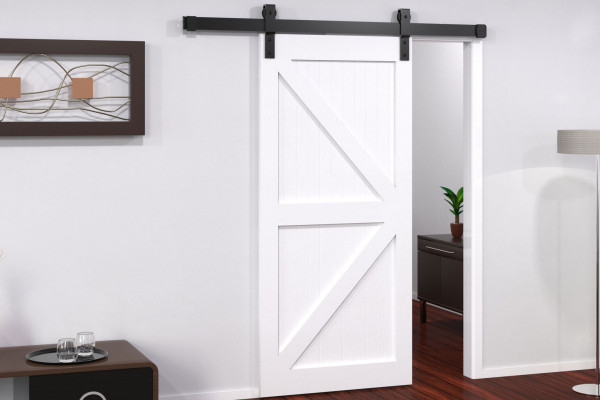

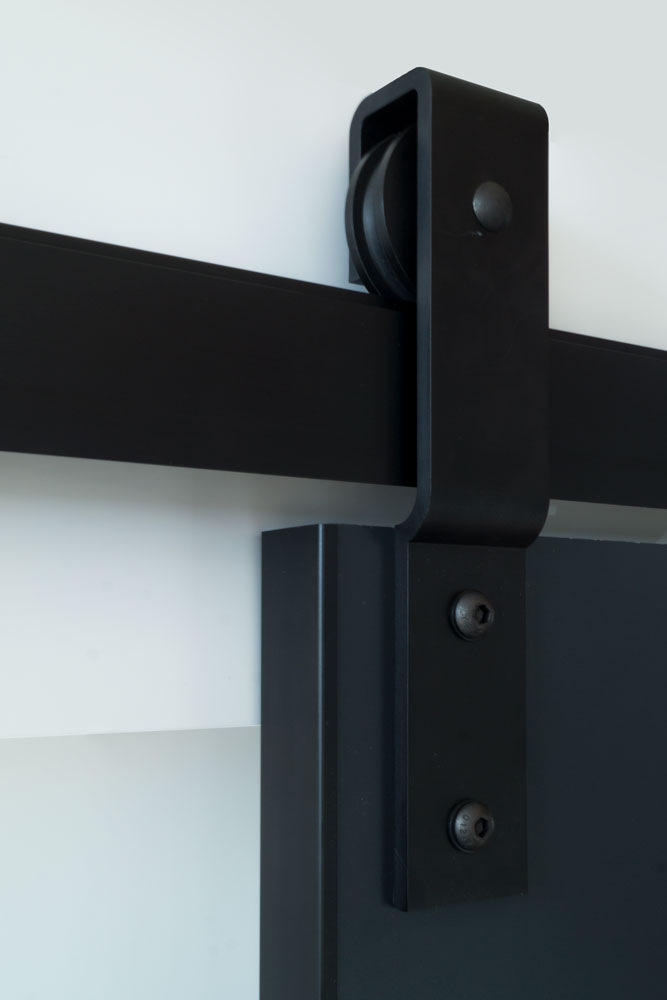

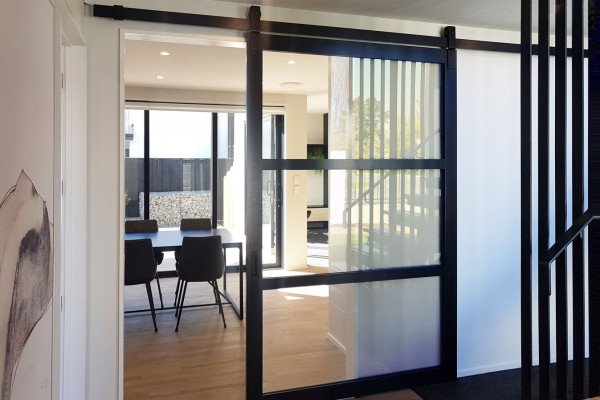

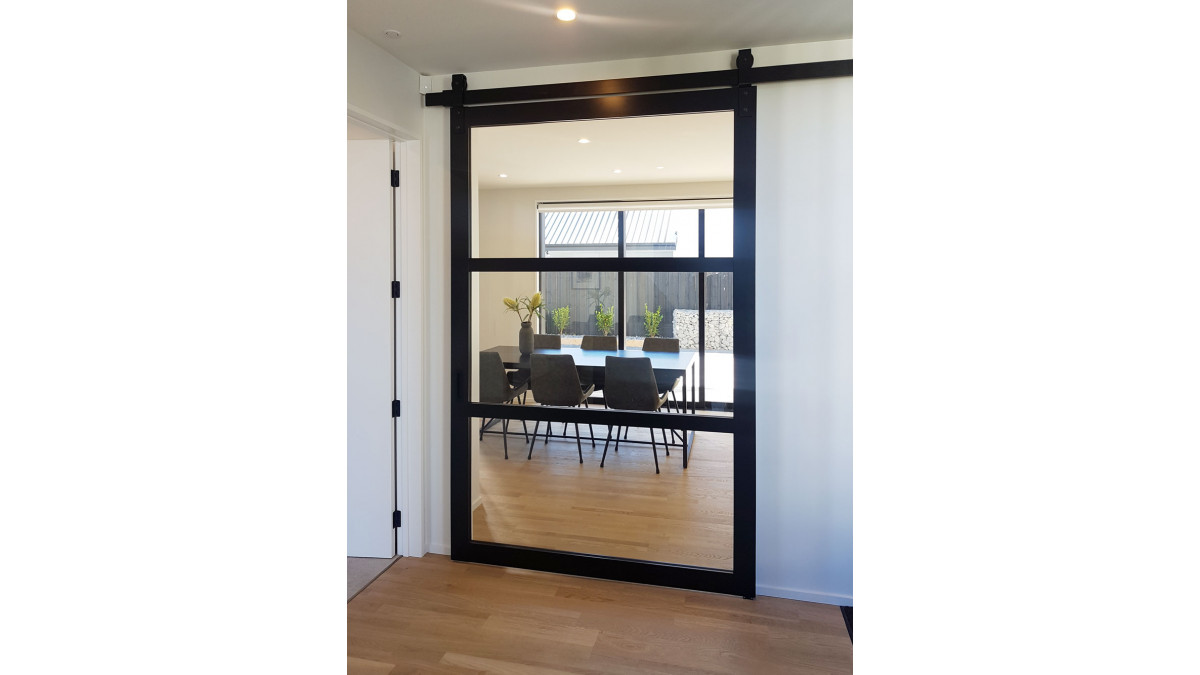

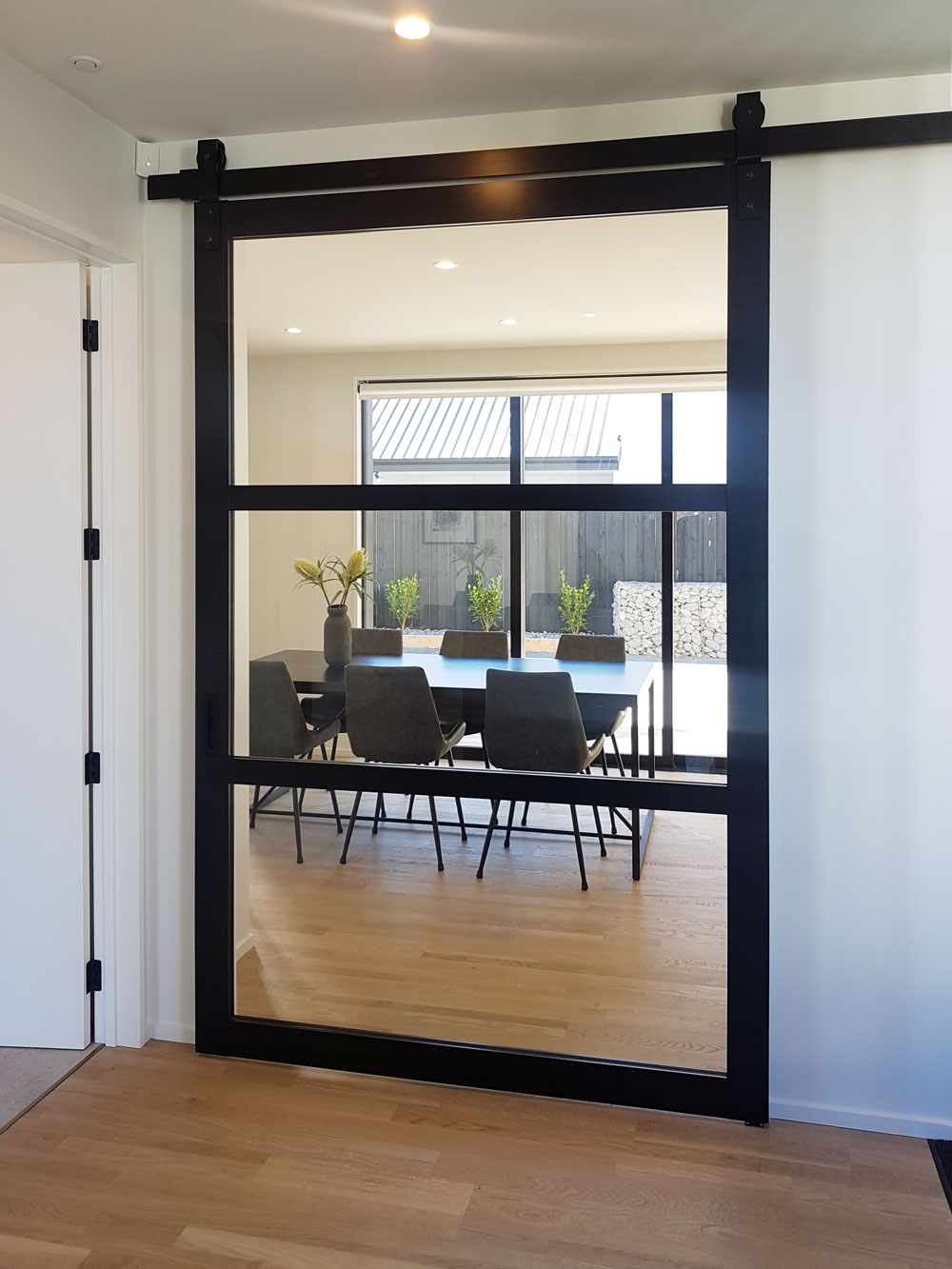

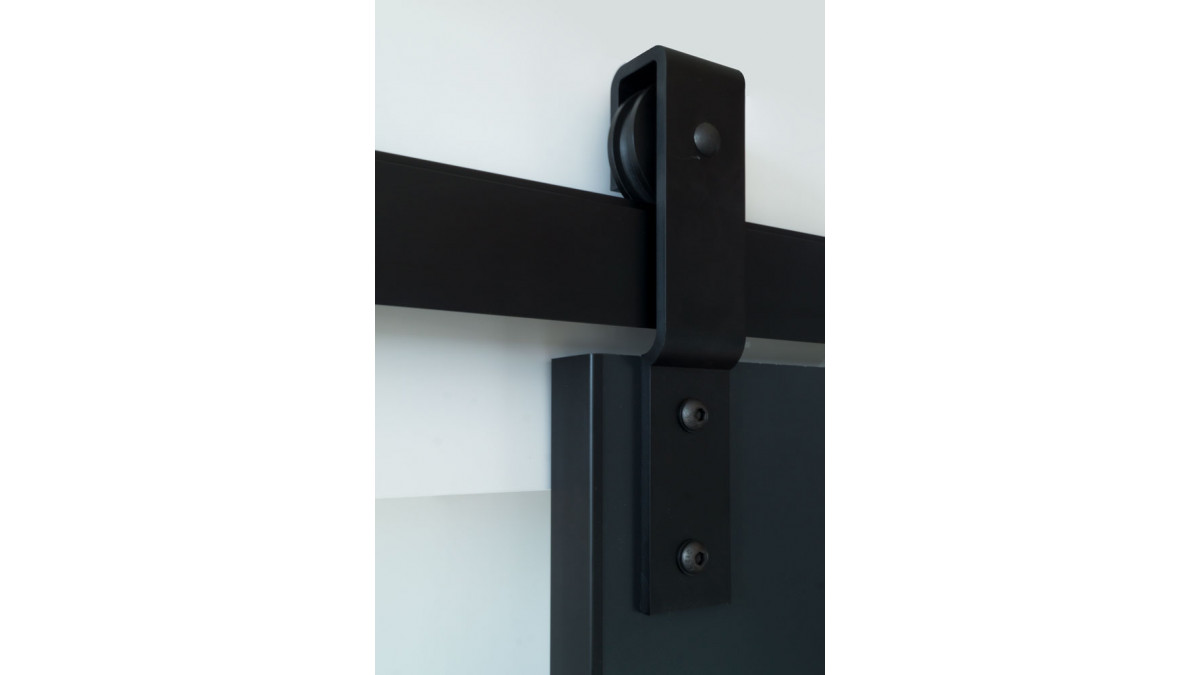

CS Barn Door Track is a traditionally styled sliding door track system. The track is pre-finished black anodised and supplied with fixing bracket, stops, door hangers and T-Guide. This system has been engineered for quick, easy installation and smooth running for heavy doors.

Available with SofStop soft close.

Key Features

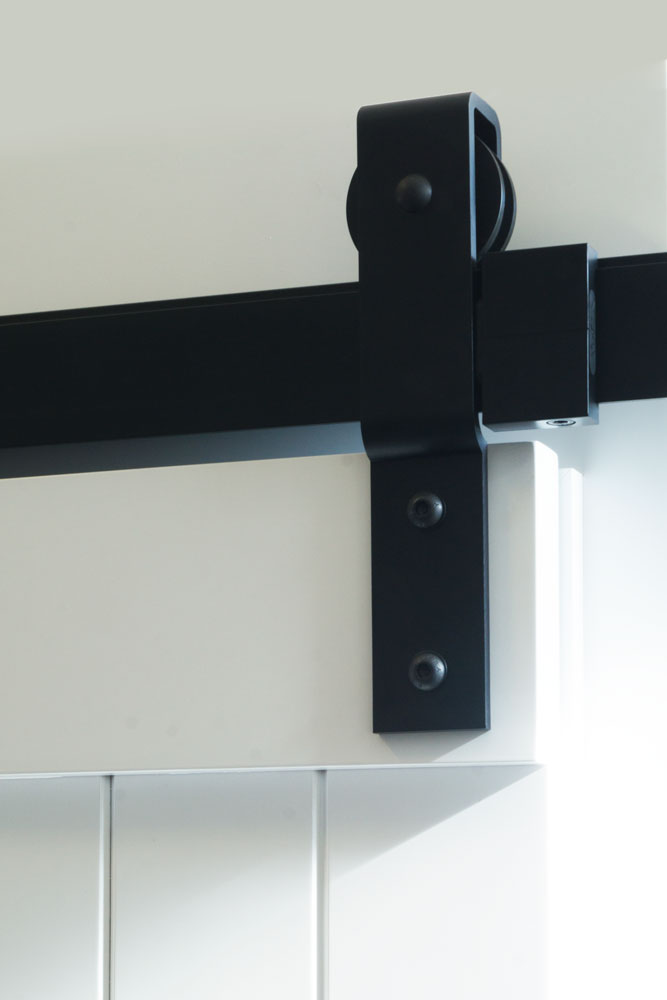

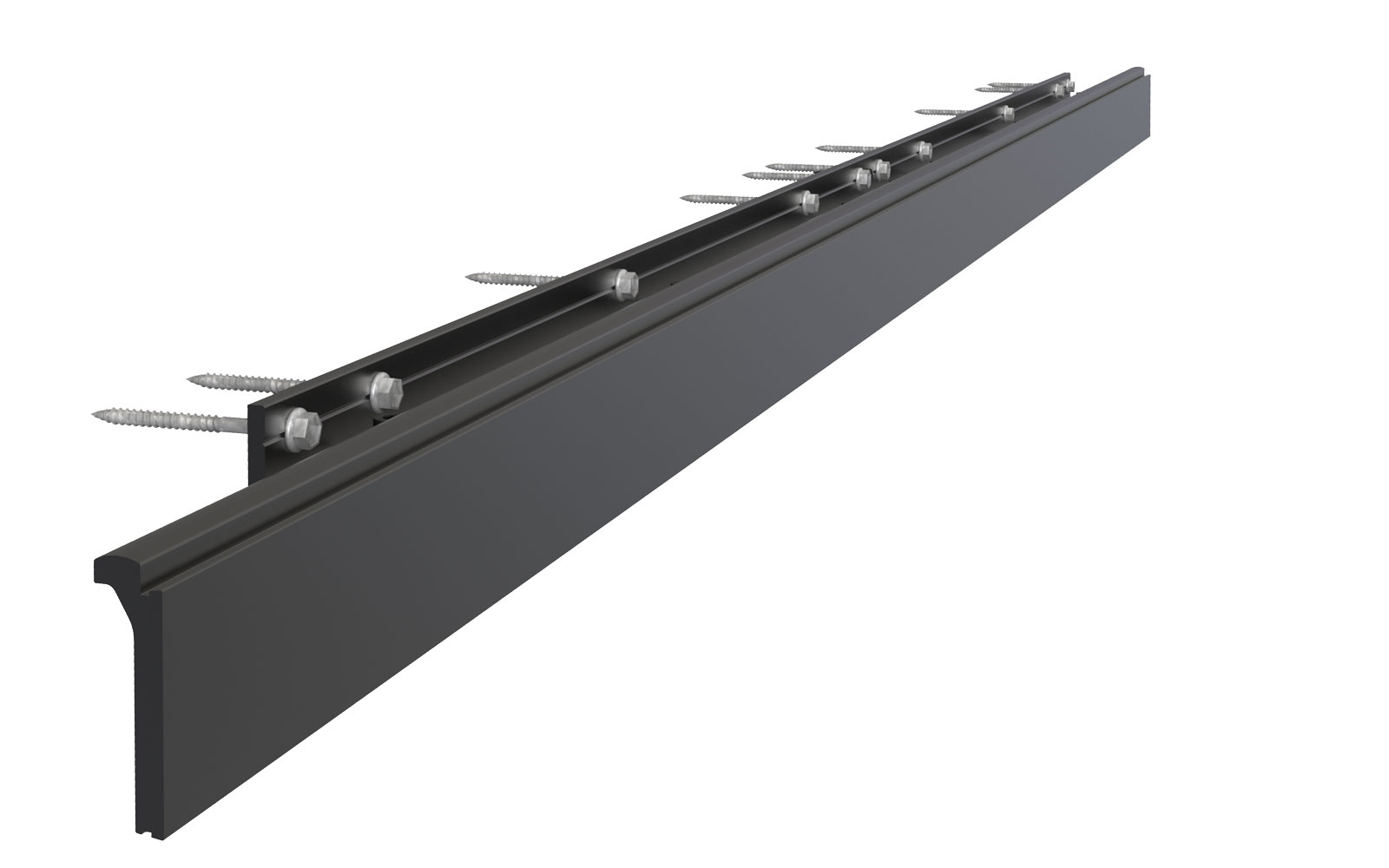

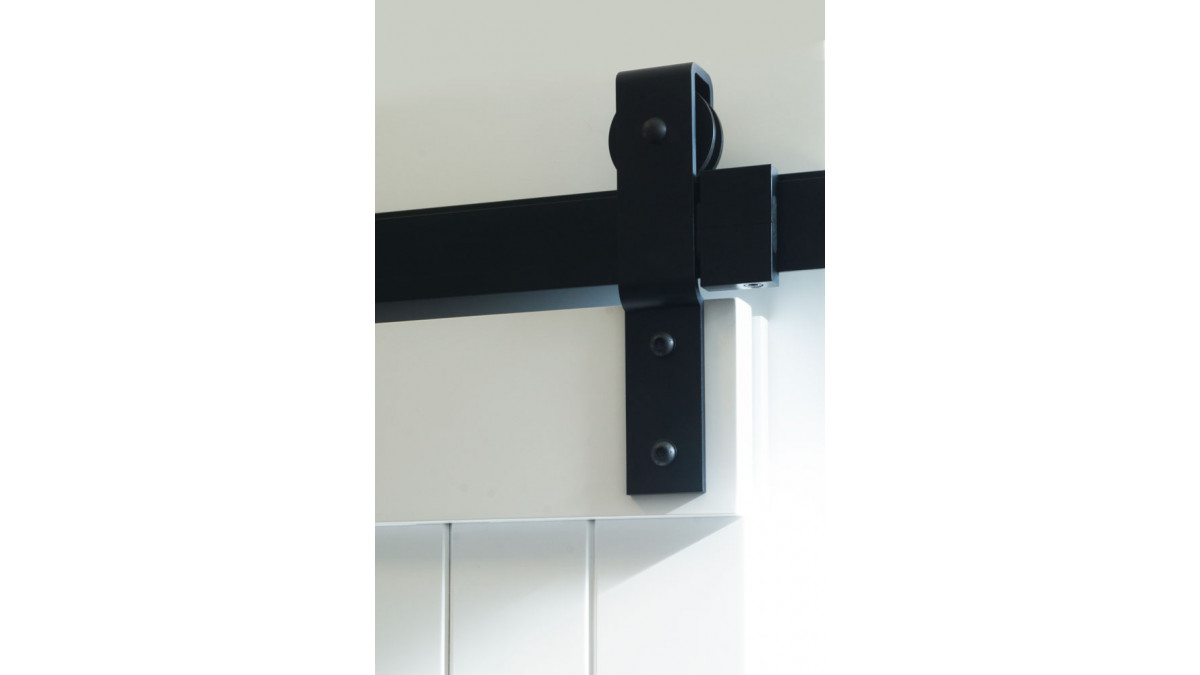

  • Track bracket is adjustable to allow for different door and architrave thickness
  • Track is high-quality, heavy duty extruded aluminium with black anodised finish
  • Anti-jump system ensures door cannot jump off the track
  • Pre-machined mounting holes for easy installation
  • Ultra smooth running acetal wheels
  • Tracks stocked in pre-cut lengths from 1.5 - 5.8m
Categories / Ranges
Cavity Sliders CS Track Systems
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for internal applications where there is enough strength in the wall to side mount a track above an opening
  • The stud wall must be level and solid enough to support the door weight
  • Track bracket is adjustable to allow for different door and architrave thickness
  • This track is supplied with coach screws suitable for use with timber framing. For fixing to concrete walls, the use of masonry anchors is recommended
Limitations on Use
  • Maximum door weight (per track): 300kg
  • SofStop maximum door weight (per door): 100kg
  • Minimum door thickness: 32mm
  • Track is adjustable to suit door + gap + architrave thickness of 40-61mm (narrow option) or 62-80mm (wide option)
In-Service History

CS Track Systems have been successfully used in commercial and residential projects in New Zealand and Australia since 2008.

Other Performance Attributes
  • CS Track Systems are backed by a 10 year written guarantee
Documents
Warranty
Additional Information
CS Company Brochure
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
