CL400 ADA Magnetic — Disabled Access
Description

The CL400 ADA Magnetic matches the look and functionality of the standard CL400 Magnetic range of cavity slider hardware, with added disabled access functionality. Utilising the patented magnetic mechanism of the CL400 Magnetic, this option provides flexibility for building owners.


The CL400 ADA uses the same door cutout and striker and is able to be retrofitted over existing CL400 flush handles for the requirements of disabled tenants. The CL400 ADA is handed and handing must be specified at time of order.

Key Features
  • Pull handle is easy to use — no tight pinching or twisting of the wrist
  • Complies with NZS4121:2001 (installation instructions must be followed)
  • Specify with CS EasyOpen cavity slider for a complete solution

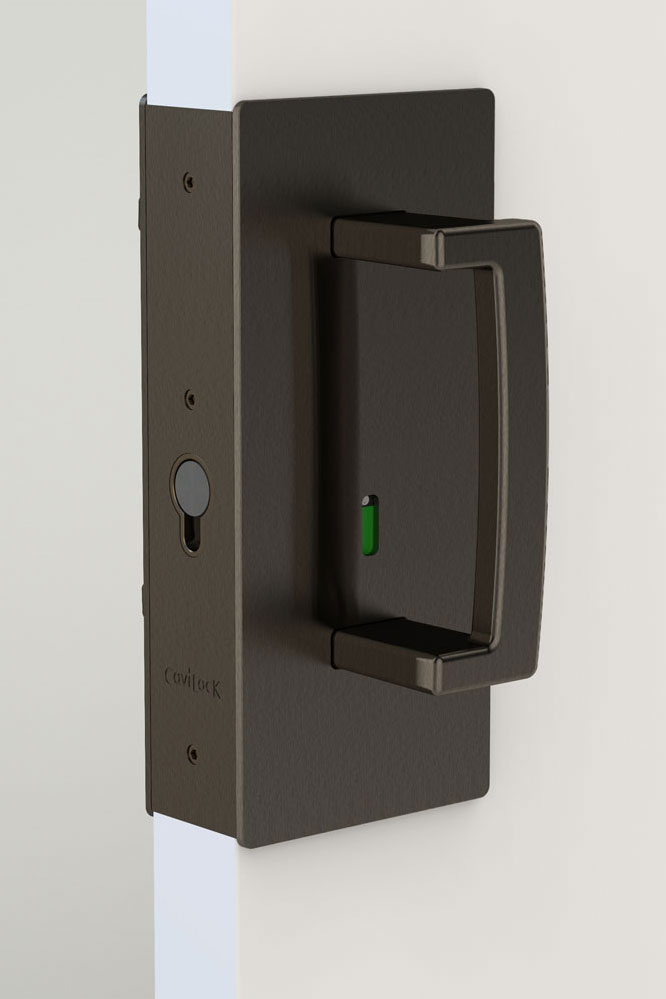

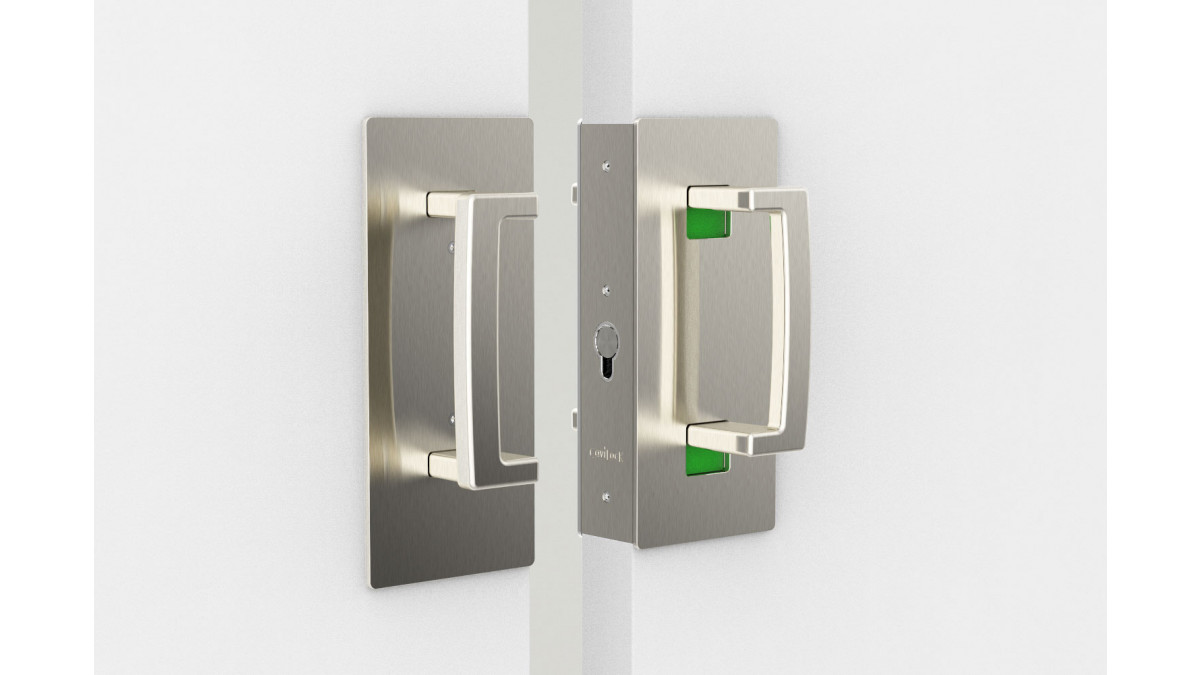

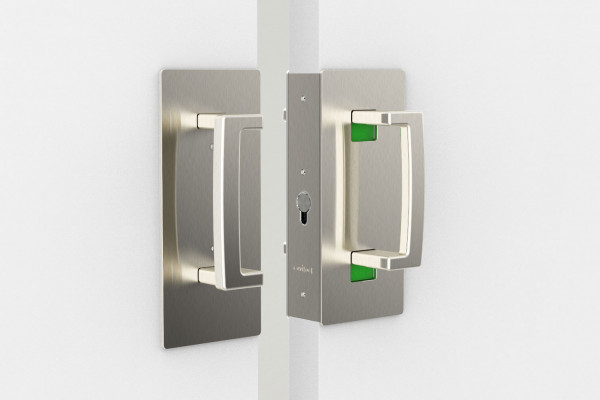

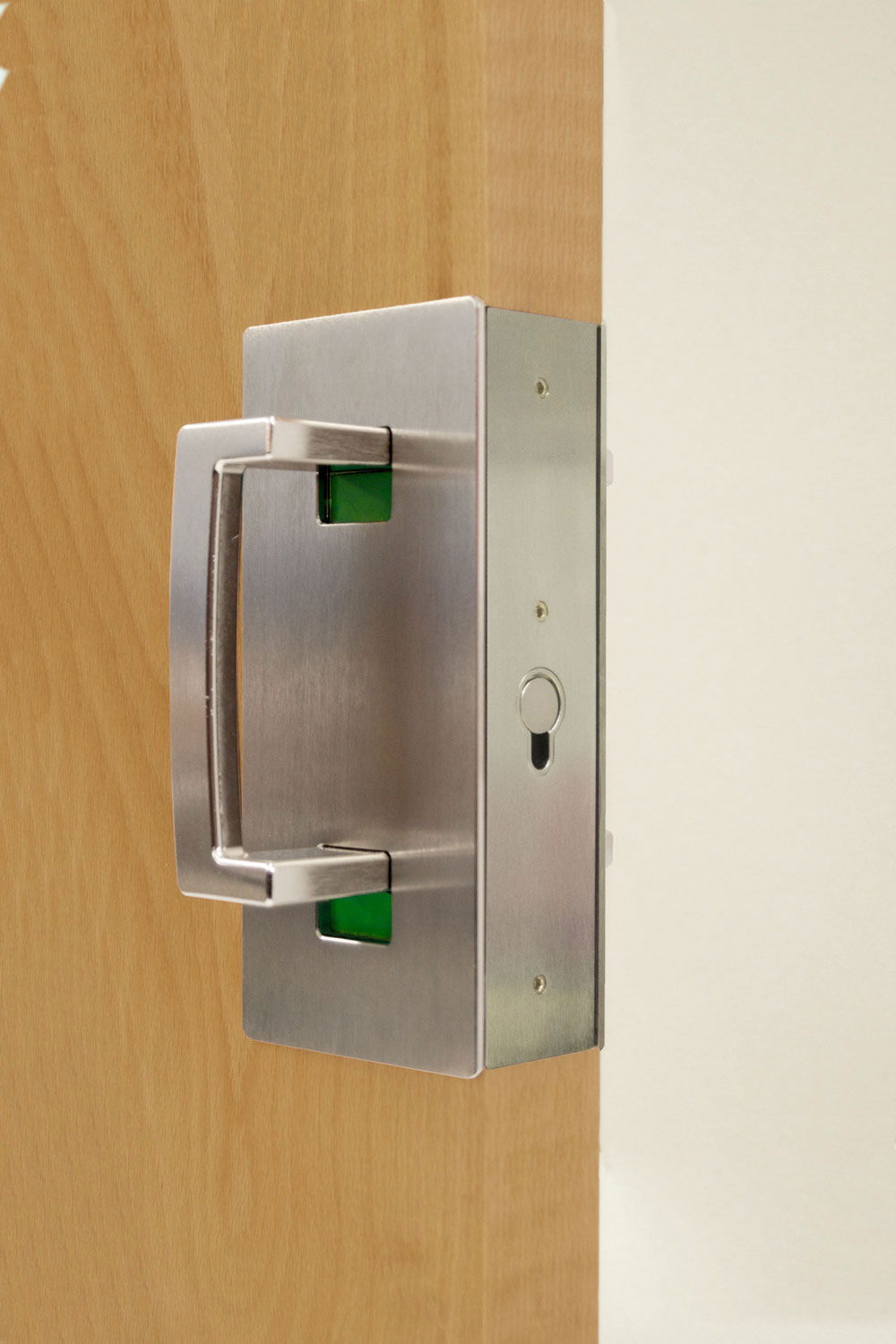

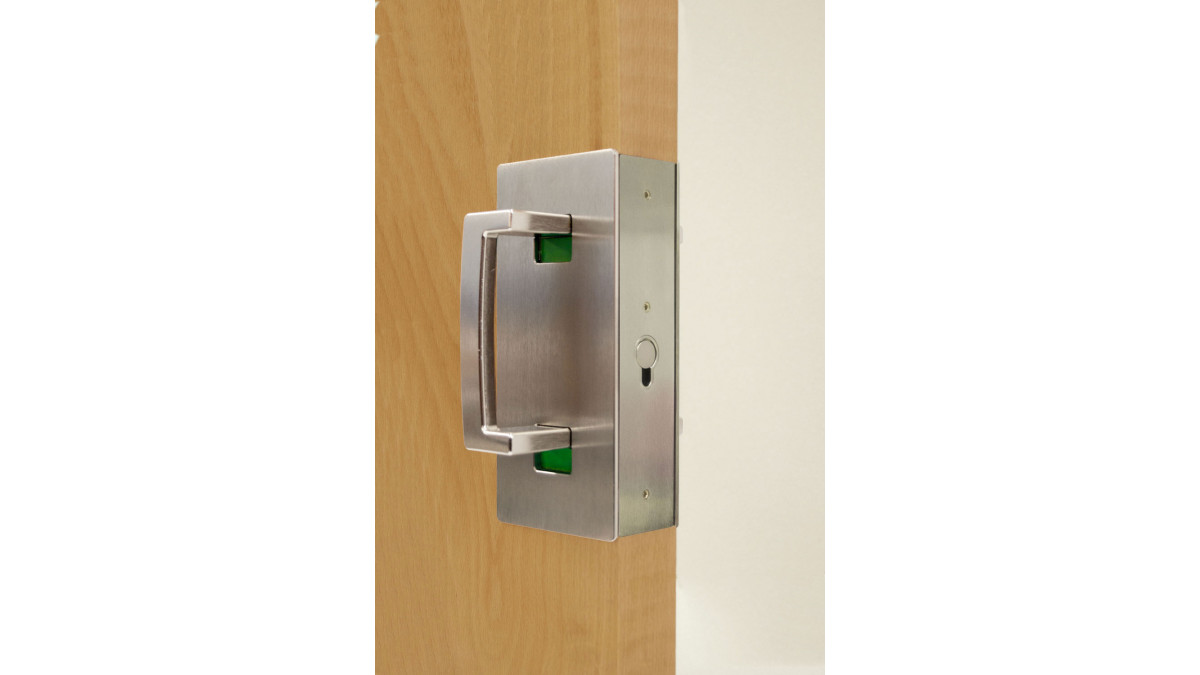

  • Privacy option is supplied with red/green engaged/vacant indication as standard

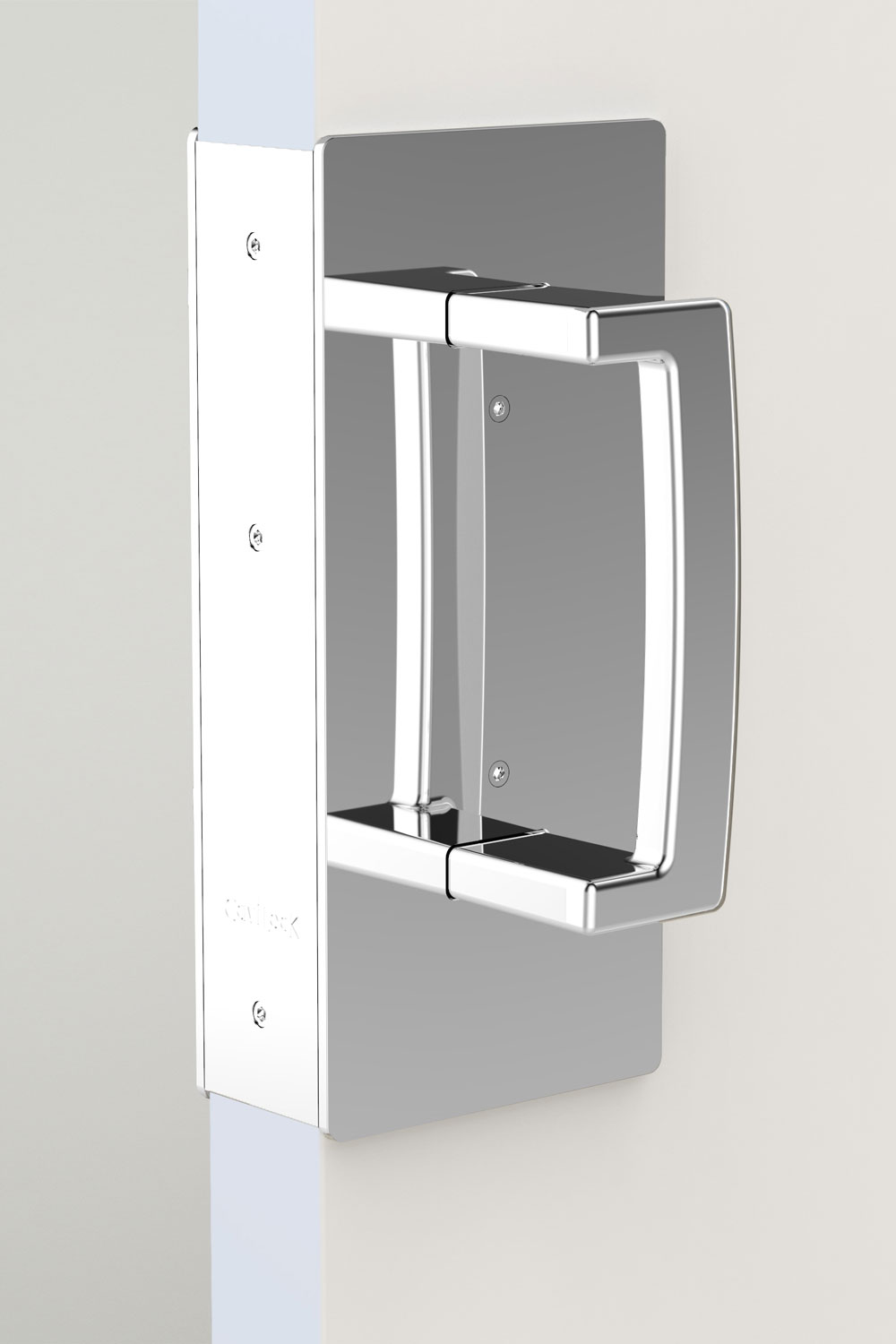

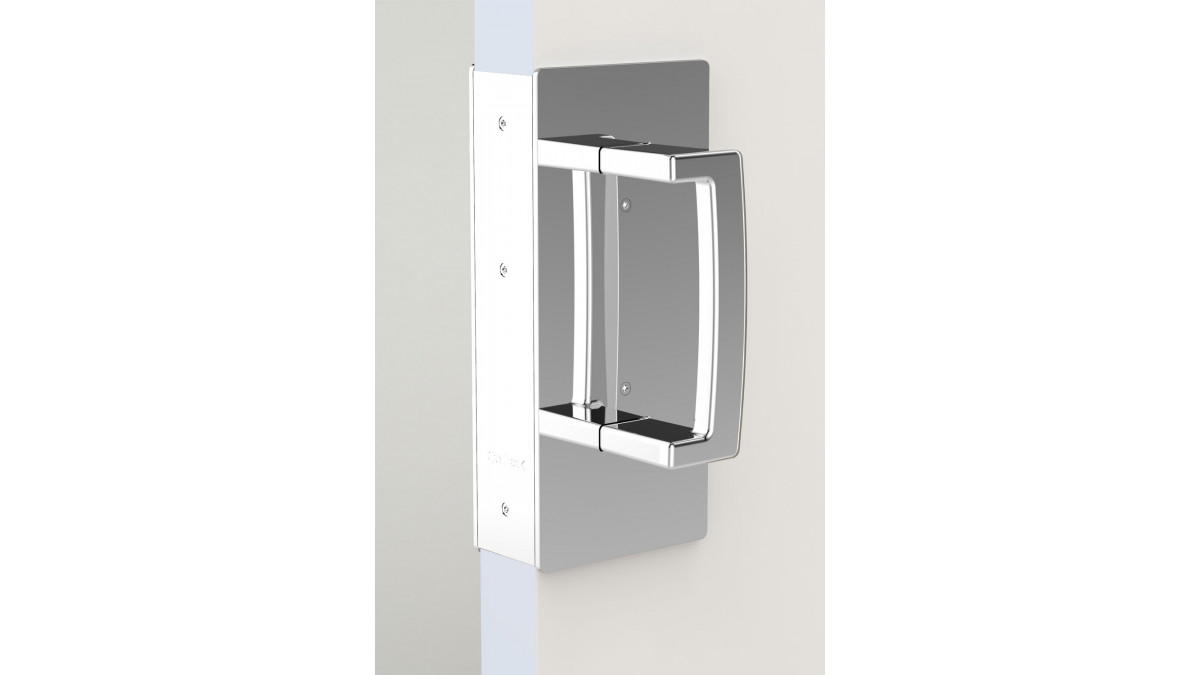

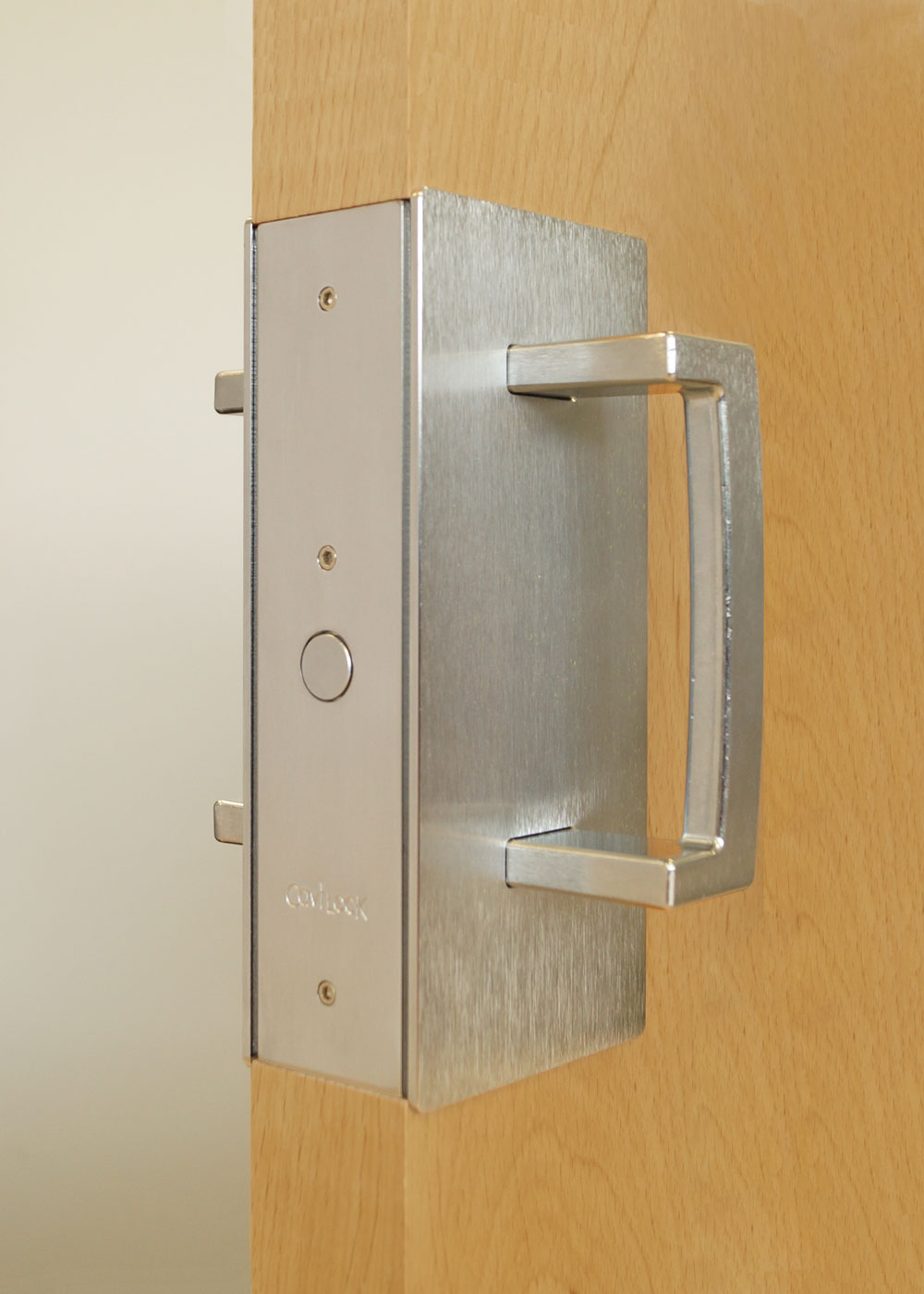

  • Available in Passage, Privacy and Bi-Parting configurations
Categories
Locks
Ranges
CS CaviLock
NZ Made
NZ Made
Scope of Use
  • Residential or light commercial applications
  • Suitable for cavity or surface sliding doors
  • Timber or aluminium doors, 34-52mm thick
Limitations on Use

For use with cavity sliding or surface sliding doors from 34mm—52mm thick. Door thickness and handing must be specified at time of order.

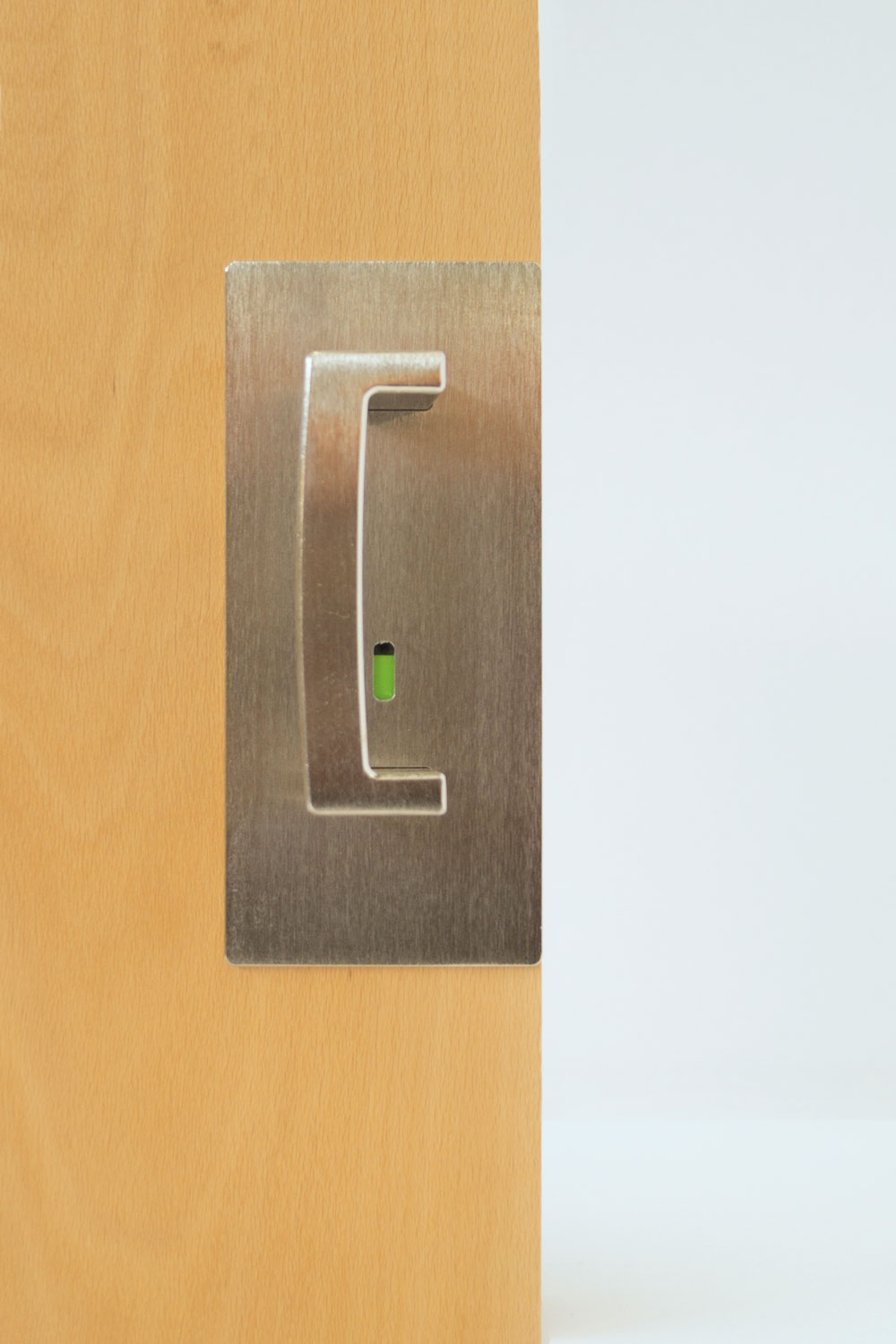

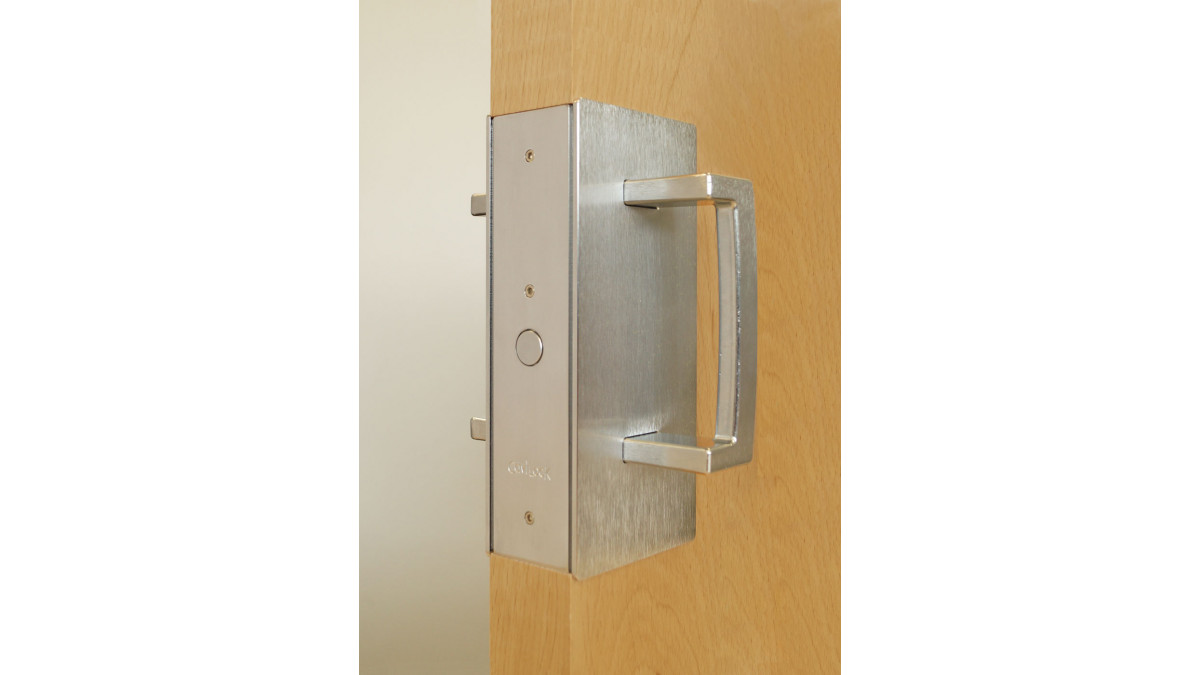

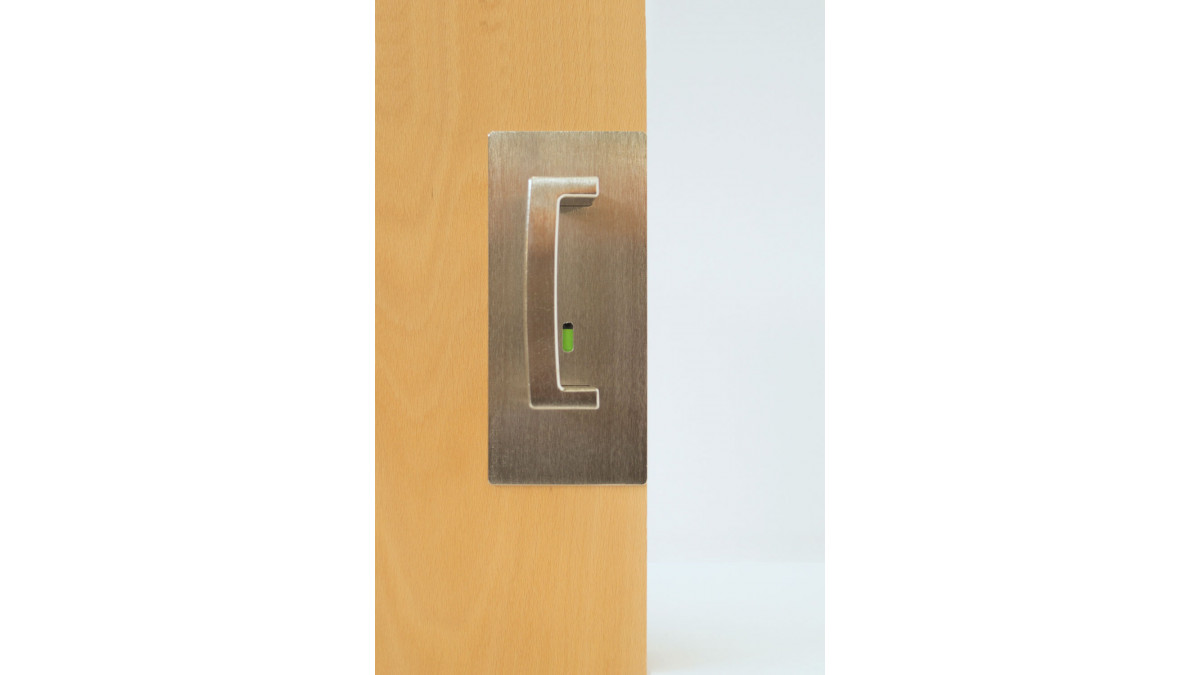

To comply with NZS4121:2001 the offset handle option must be used. The centre of the handle should be positioned between 900mm and 1200mm (1000mm optimal) above finished floor level. The door needs to be at least 910mm wide to allow minimum clear walk through of 760mm. There must be a 45mm clear space from edge of pull handle to the nearest door jamb when the door is both fully open and completely closed. A flat closing jamb is recommended. The supplied ‘Down to Lock’ label must be positioned as close as possible to the handle. Consult local standards for guidelines relating to the specific project.

In-Service History

CaviLock sliding door hardware has been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1990. CaviLock handles are backed by a two year written guarantee.

Other Performance Attributes
  • Complies with NZS4121:2001 (installation instructions must be followed)
  • Specify with CS EasyOpen cavity slider for a complete solution
Documents
Data Sheet
Maintenance Instructions
Warranty
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
