CL100 DigiLock

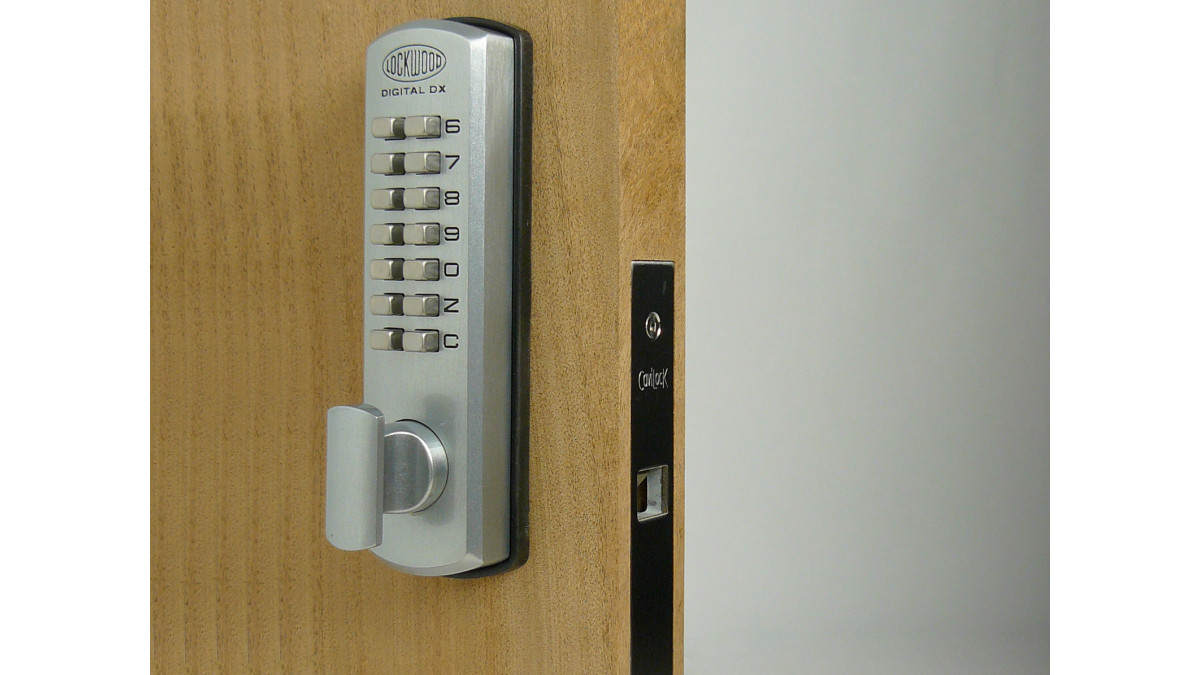

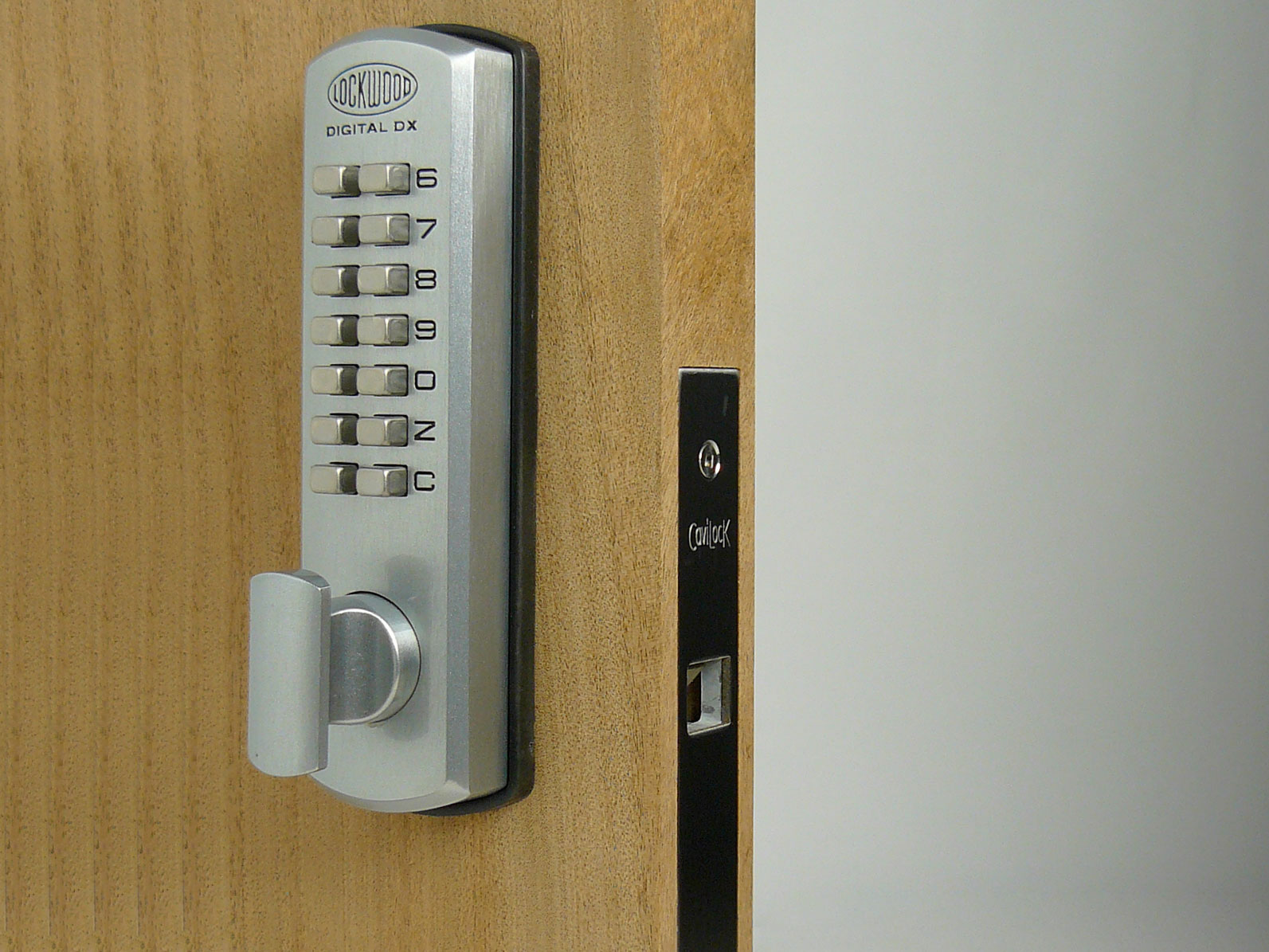

The CL100 DigiLock combines the standard CL100 Mortice with the added security of a digital lock. This offers customers high security that is upgradeable (by changing pin numbers) and dependable.

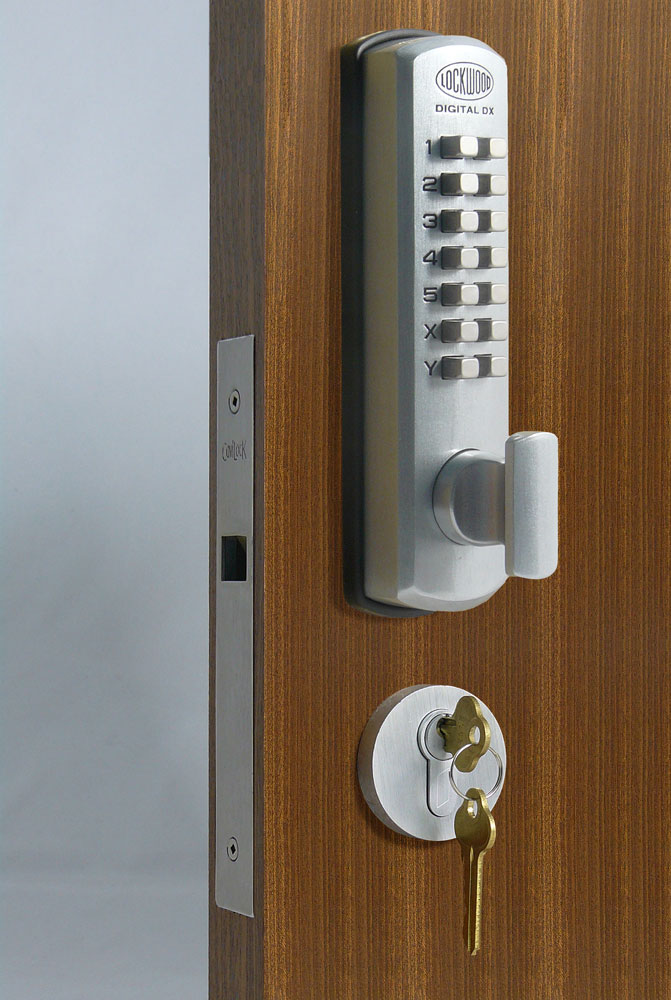

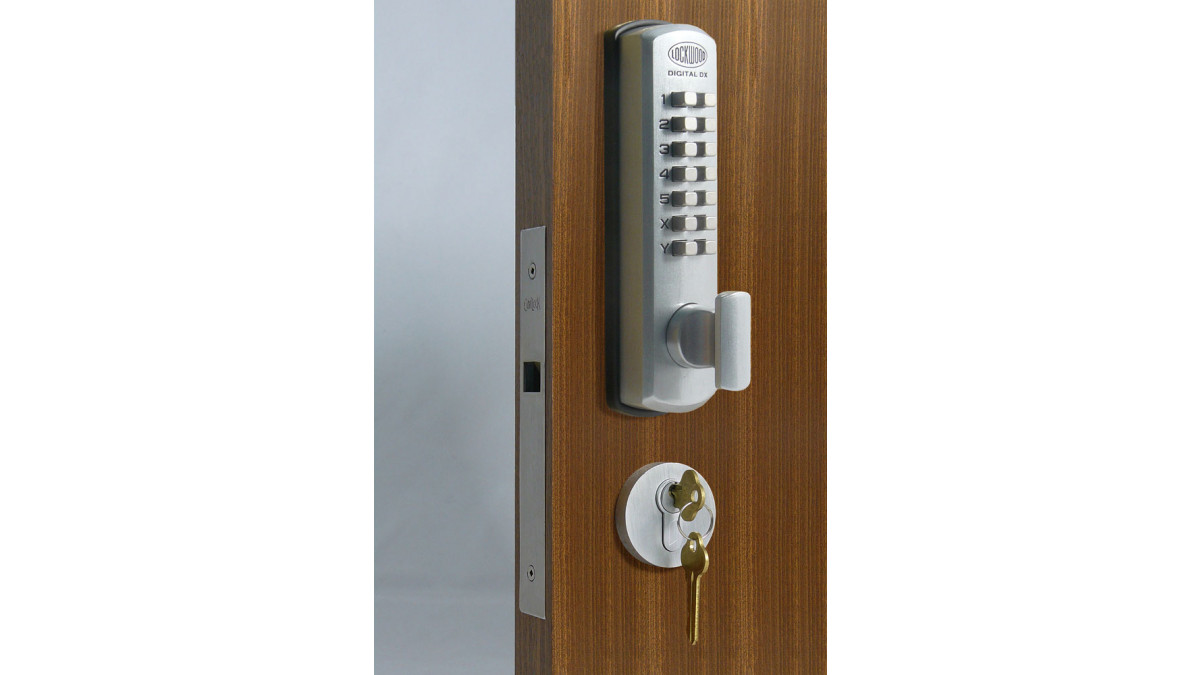

This lock can be set to 'slam lock' which means every time the door is closed it is locked and requires pin code access to open. There is an added function of dual security — requiring both a pin code and key to open the door.

Key Features
  • Available with digital lock furniture only or digital lock plus key locking
  • Full installation instructions are supplied with the lock
  • Finishes available: SCP (Satin Chrome Plate)
CS CaviLock
NZ Made
NZ Made
Scope of Use
  • Offers high security — key and PIN
  • Changeable PIN numbers for versatility
Limitations on Use
  • Minimum recommended door thickness is 34mm

Cavilock hardware must be installed in accordance with the manufacturer's installation instructions. Detailed instructions and cutting templates are supplied with every handle.

In-Service History

The CaviLock CL100 hardware range been successfully used in commercial projects in New Zealand and Australia since 1994.

Test Results
Test Results
Data Sheet
Appraisal, Accreditation, Certification and Testing


Maintenance Instructions
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
