CHH Ply Ecoply Structural Square Edge
Description

Ecoply Structural Square Edge plywood is available in a range of surface appearance grades, sheet sizes, thicknesses and treatments, offering a wide selection to choose from.

Key Features
  • Manufactured from sustainably-grown plantation resource
  • Available in B, C & D surface appearance grades
  • Sheet thicknesses: 7 - 25mm
  • Sheet dimensions: 2400 / 2700 × 1200mm
  • Available untreated and H3.2 CCA or H3.1 LOSP treated
  • Low formaldehyde emission E0
  • Forest Stewardship Council® (FSC®) certified (FSC® C012019) upon request
Ranges
CHH Ply
NZ Made
NZ Made
Scope of Use

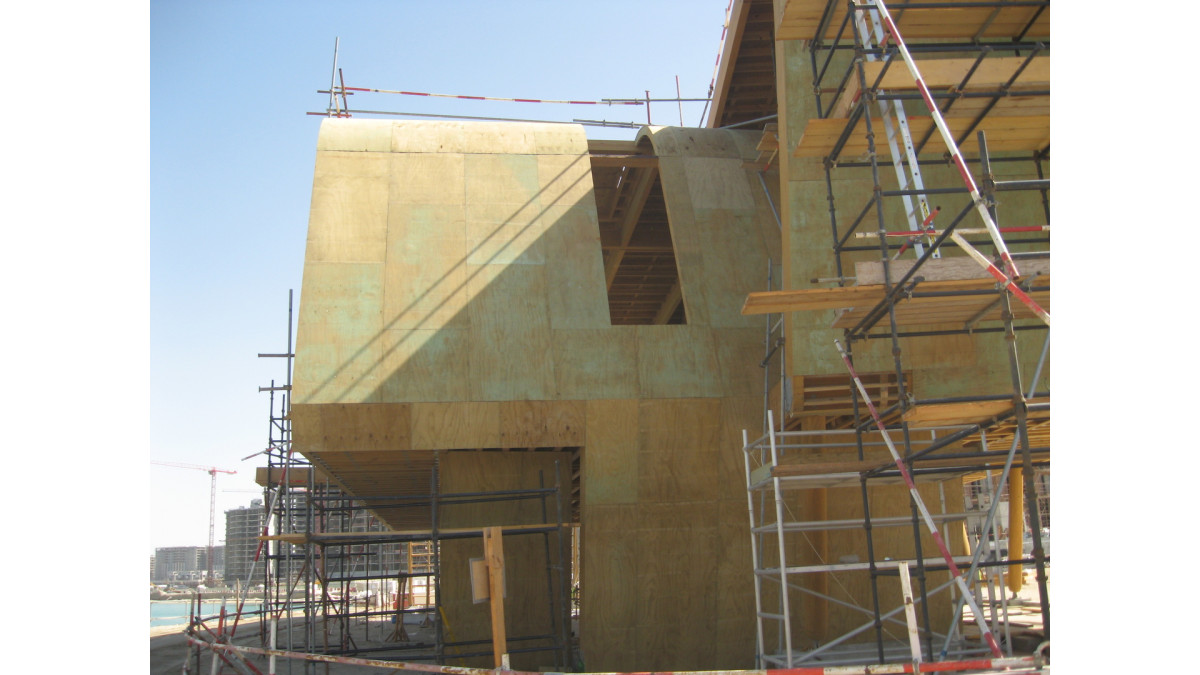

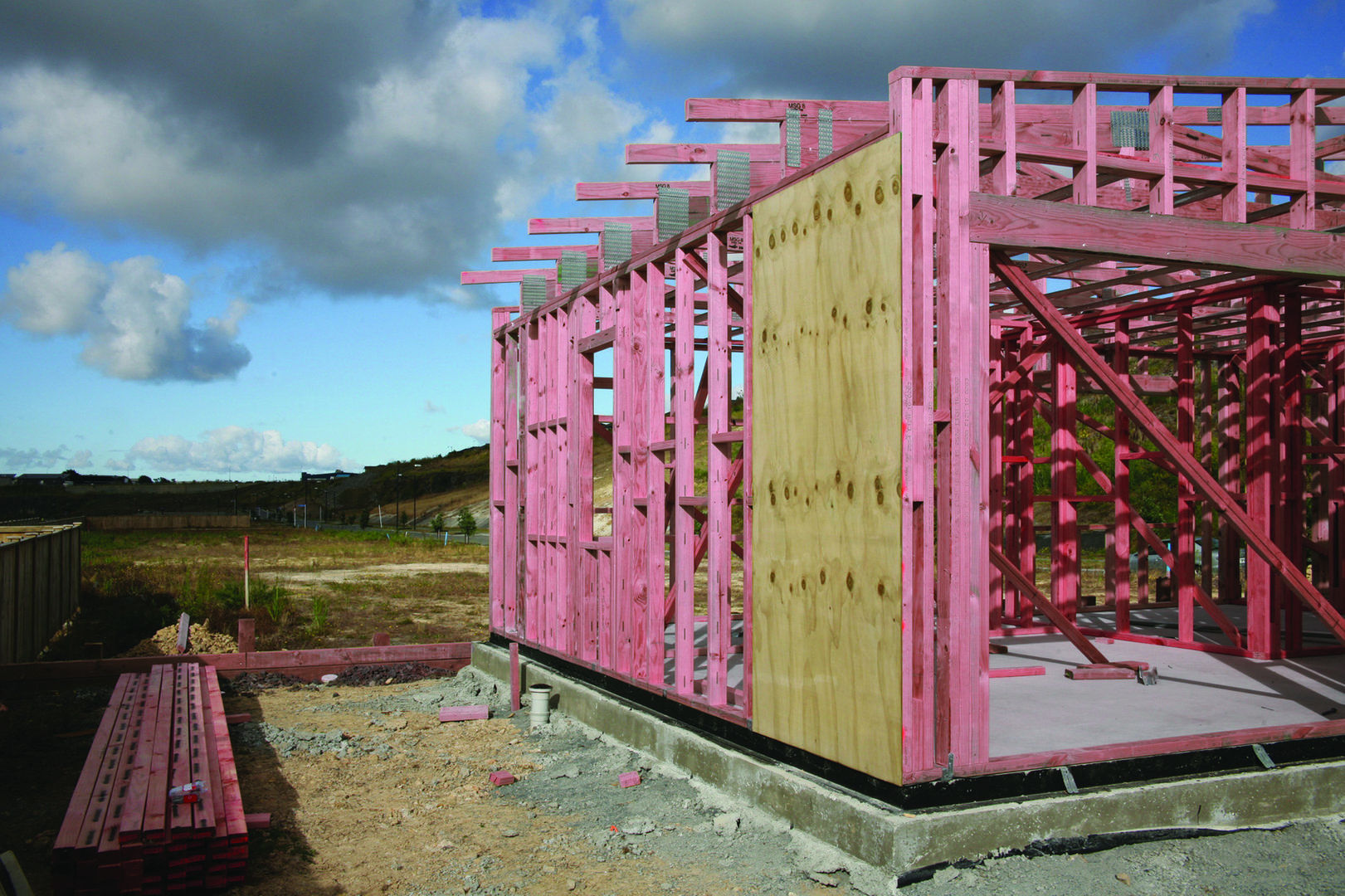

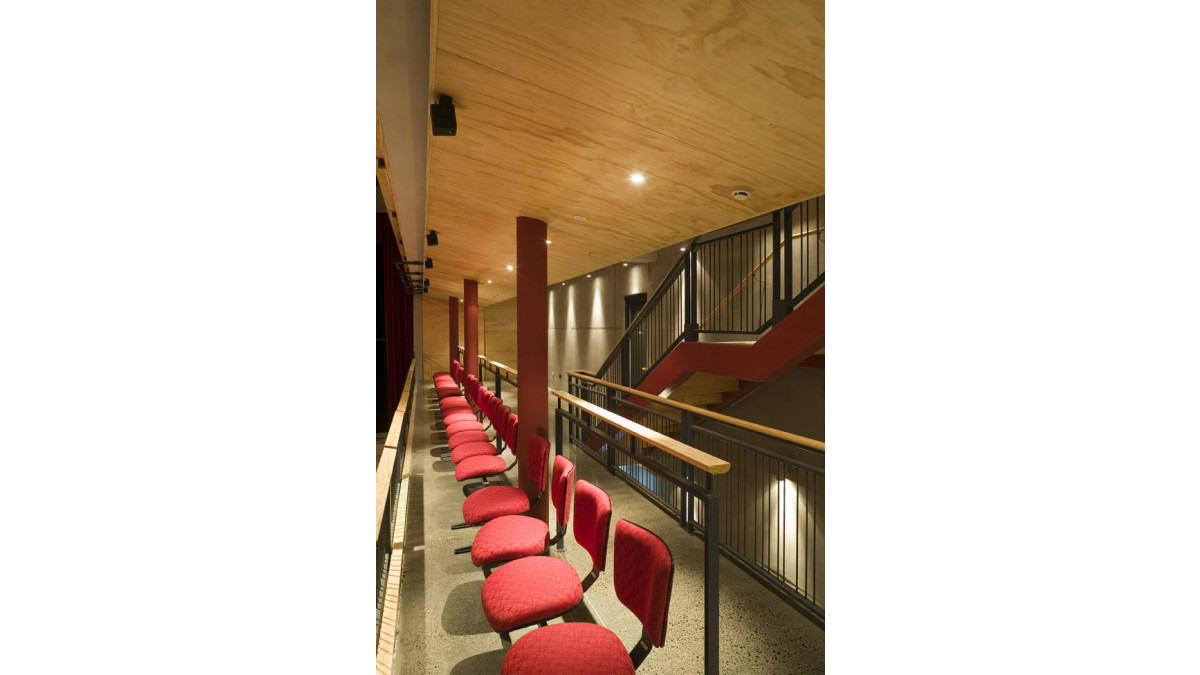

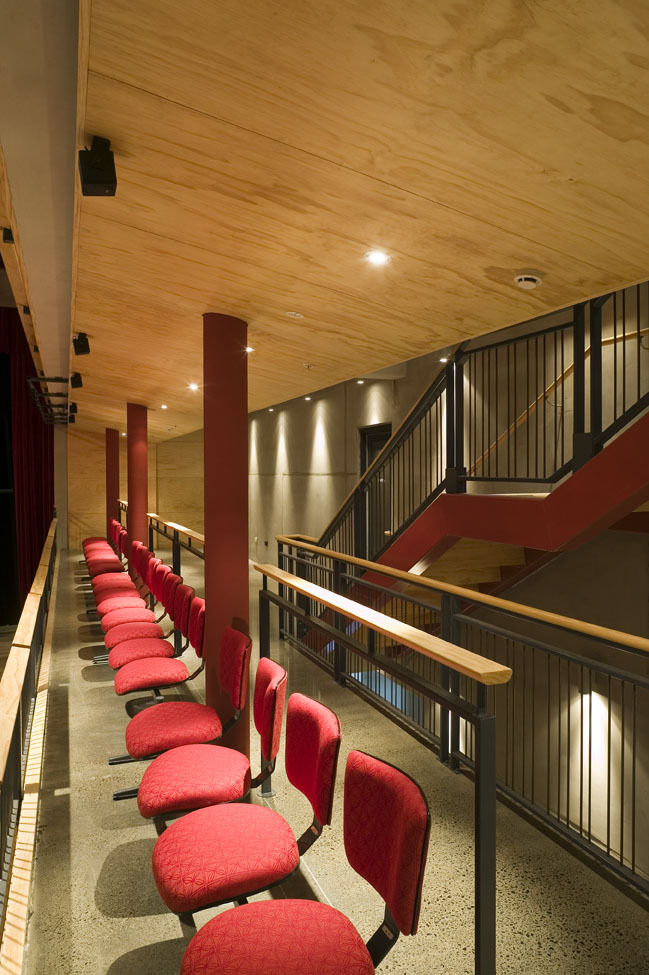

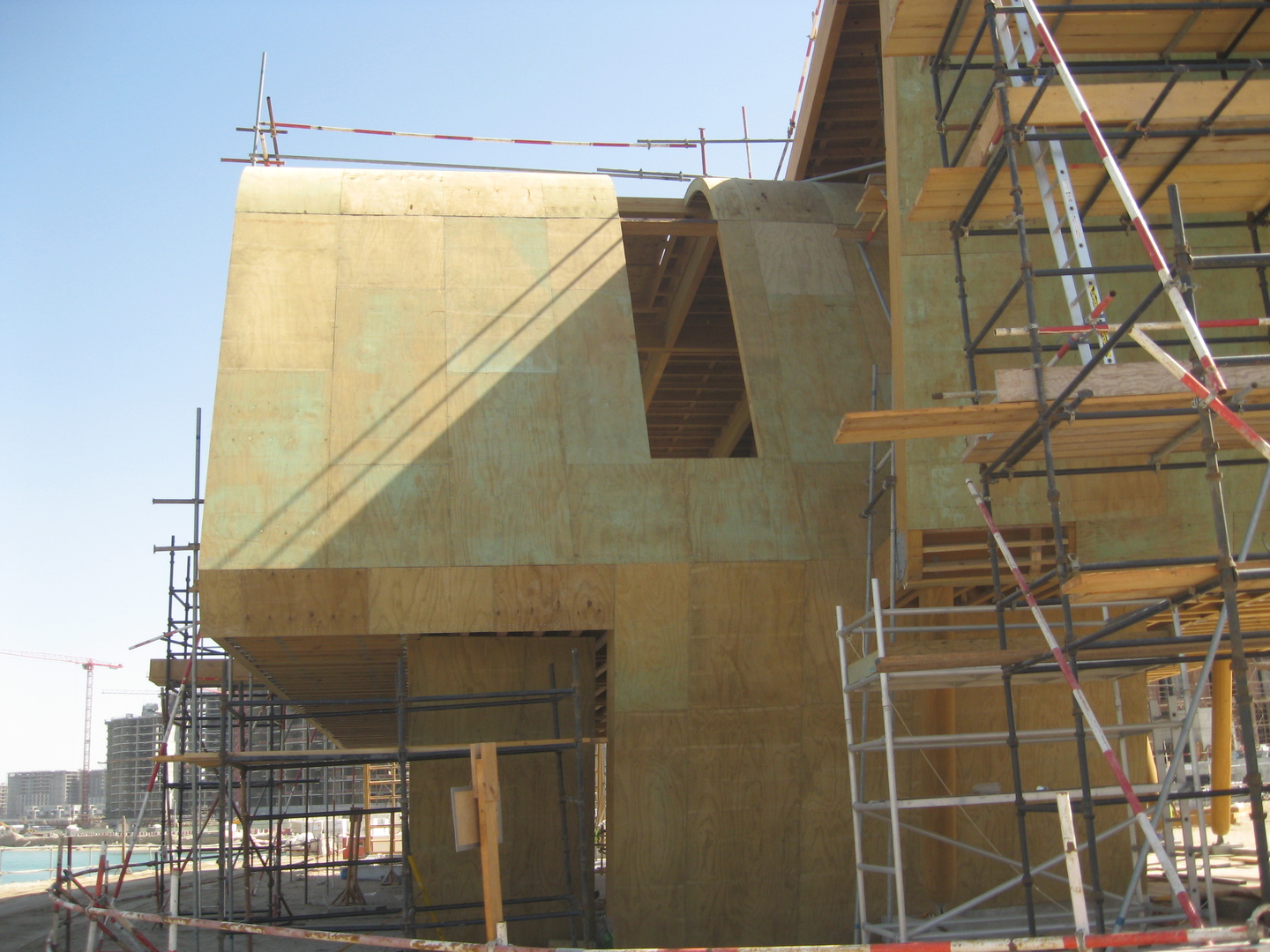

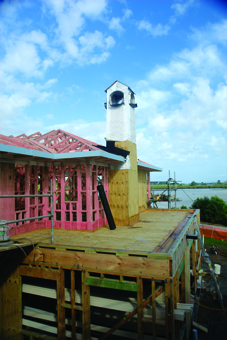

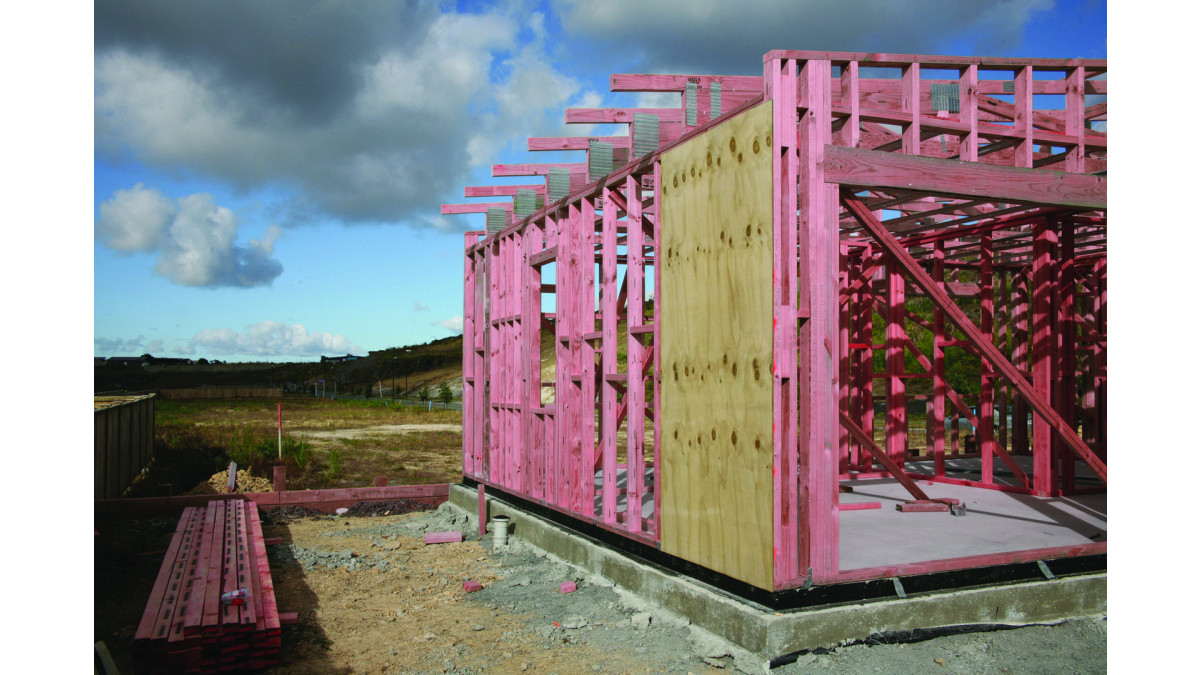

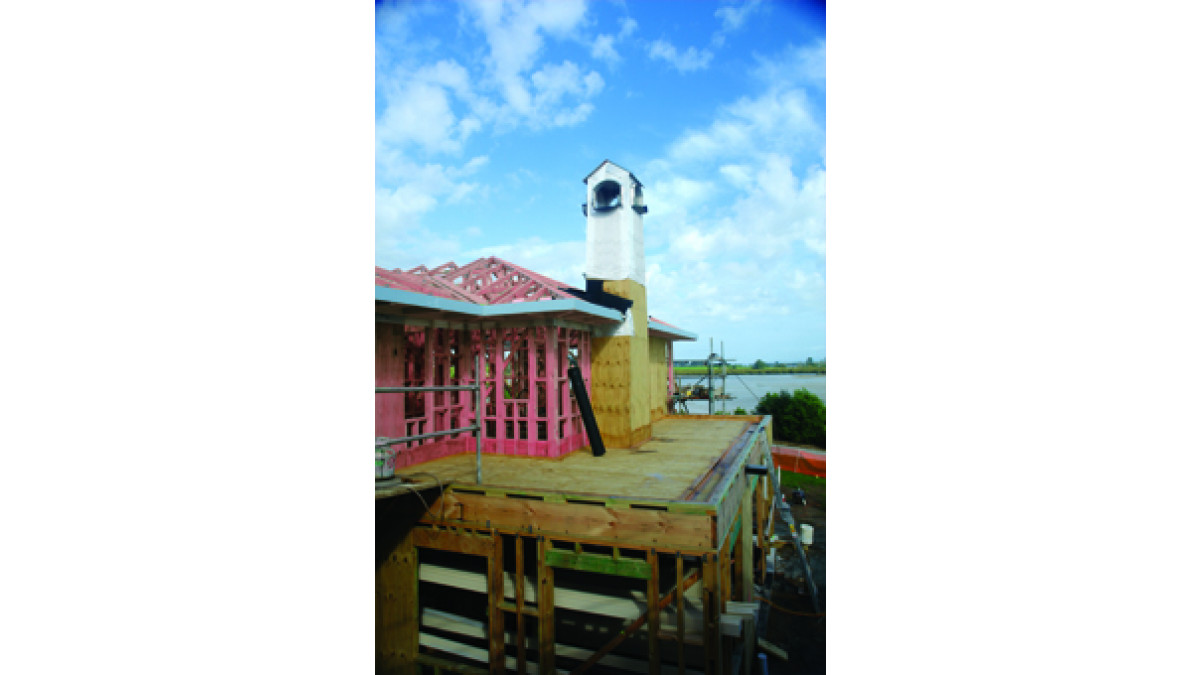

Common uses include bracing, interior lining, membrane and roofing substrate and noise control.

Other Performance Attributes
  • Available untreated and H3.2 CCA or H3.1 LOSP treated
  • Low formaldehyde emission E0
  • Forest Stewardship Council® (FSC®) certified (FSC® C012019) upon request
Documents
CHH Ply Technical Library
Installation Guide
Additional information

Carter Holt Harvey (CHH) is one of New Zealand’s leading forest products companies, manufacturing and supplying timber, laminated veneer lumber (LVL), plywood & other building products in New Zealand.
