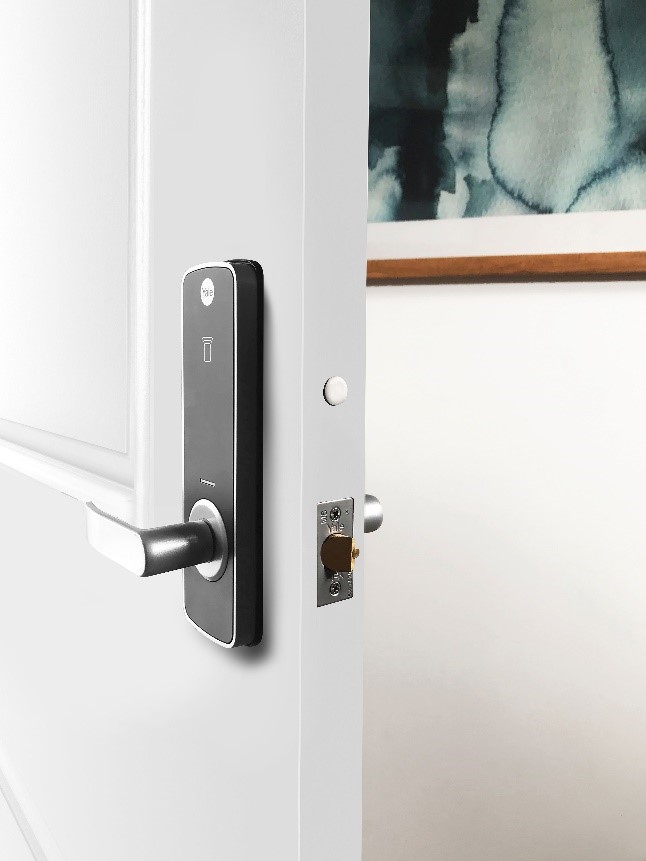

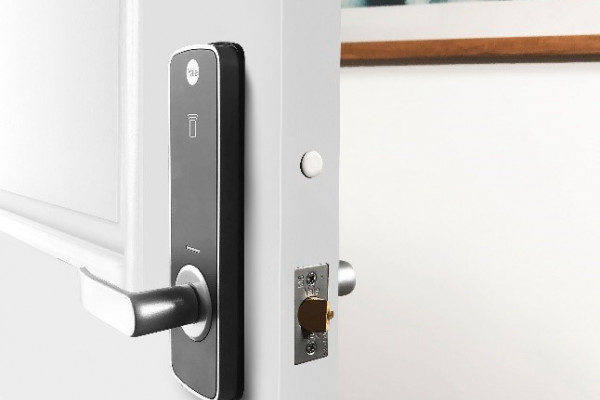

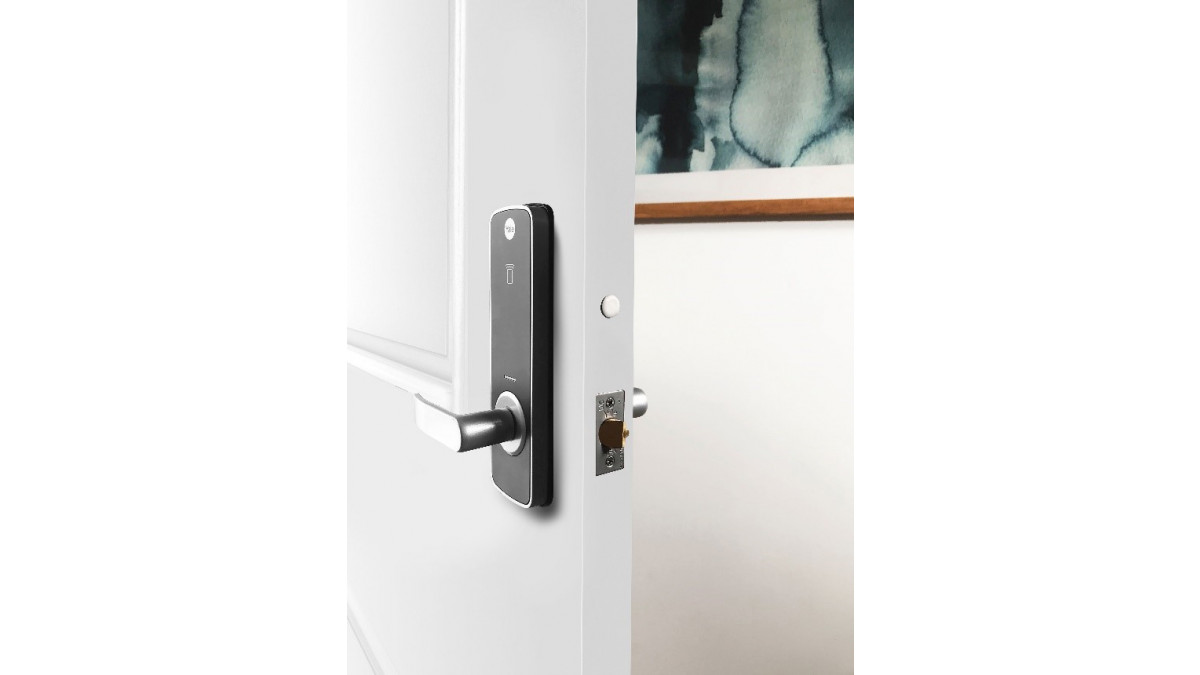

Yale Unity Entrance Lock Fire Rated
Description

The Yale Unity Entrance Lock Fire Rated has been successfully tested for 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1-2015 Fire Resistant Door Sets.

Meeting Australian lock standards AS4145.2:2008, SL8 and D8, providing assurance that the Unity Entrance Lock meets security needs.

Key Features
  • Total Control via the Yale Access App, allowing one to lock and unlock the door, grant access to others and keep track of visitor access.
  • Auto unlock the door while walking up without the need to take out one's phone. The door position sensor notifies if the door is open or closed.

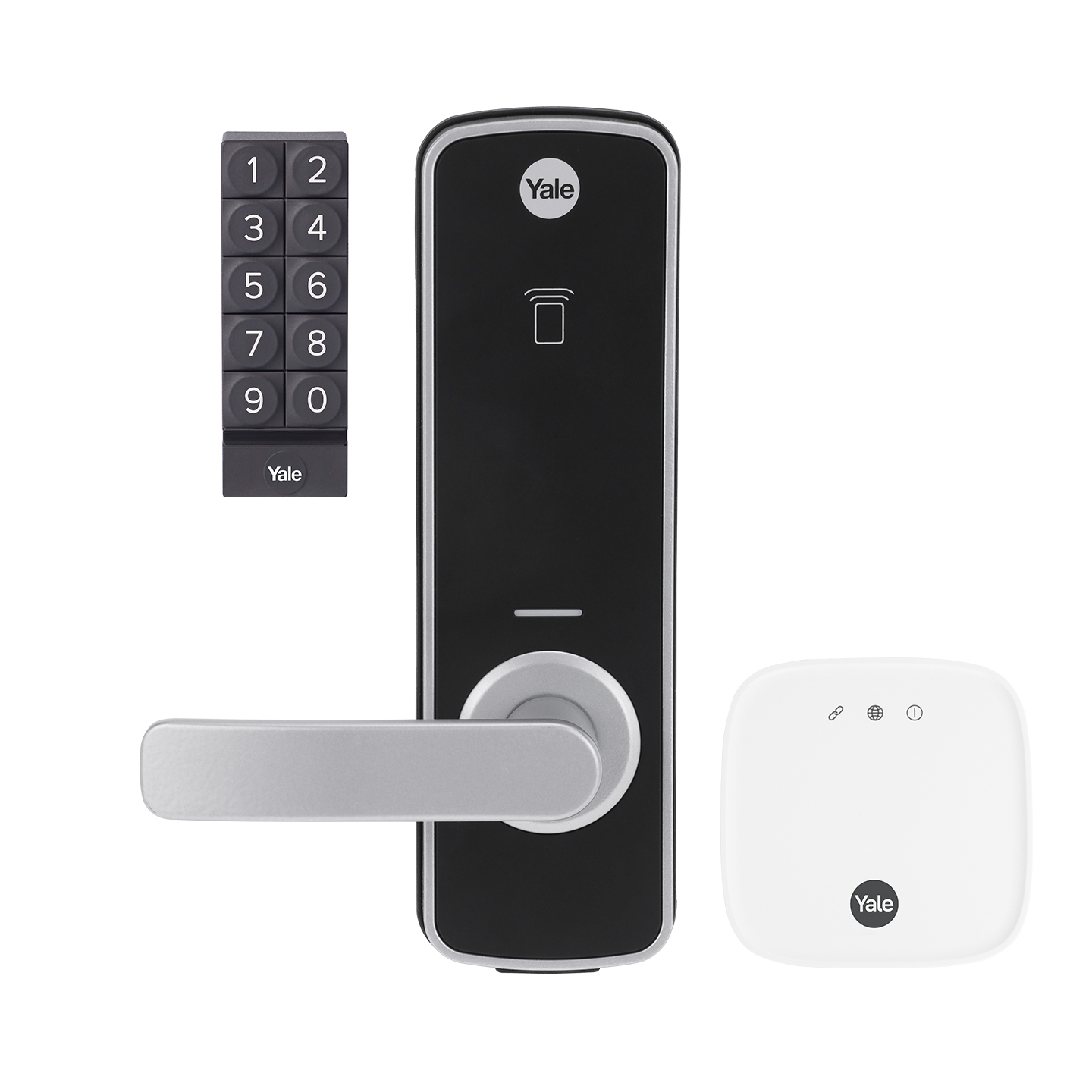

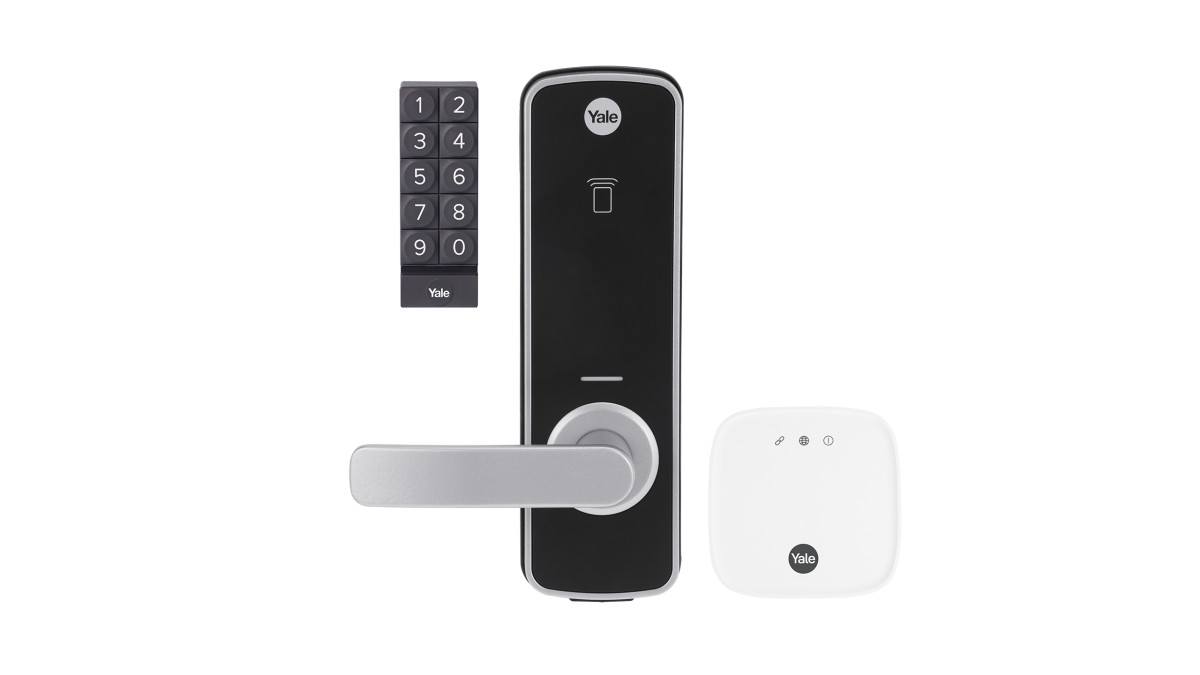

  • Using either the Yale Access App, Yale Key Tags or upgrade with the Yale Smart Keypad to access the lock.
  • Key Free. No cylinder means no lost keys and no pick and bump break-ins.
  • Yale Connect Bridge — Unlock and lock the door from any location. Allows integration of the Yale Unity Entrance Lock with Google and Amazon home automation systems, refer SKU YAL-AC02-ANZ
  • Yale Smart Keypad — Lock and unlock the door using the Yale Smart Keypad, refer SKU05/301000/BL
  • Type C USB port at the bottom of the front of the lock body can be used to power the lock in the event of low battery
  • Suits entry doors. Not for use on doors where the internal escutcheon is exposed to outside elements such as outdoor gates
  • Volume settings at mute, low or high
  • Low battery warning at 20%
  • RFID MiFare (2 x Contactless Key Cards)
Categories
Locks
Scope of Use

Suitable for multi-residence applications such as apartment buildings.

  • Allows integration of the Yale Unity Entrance Lock with Google and Amazon home automation systems, refer SKU YAL-AC02-ANZ
  • Yale Smart Keypad — Lock and unlock the door using the Yale Smart Keypad, refer SKU05/301000/BL
  • Suits entry doors. Not for use on doors where the internal escutcheon is exposed to outside elements such as outdoor gates
  • Backset 60-70mm backset (70mm latch sold separately refer SKU L530-222SC)
  • Lock type 530 latch
  • Door thickness 35-60mm
  • Phone requirement iOS (11.0 or higher) or Android (8.0 or higher with Bluetooth 4.0) smartphones
Limitations on Use
  • Australian standards — AS4145.2.2018, SL8 Security and D8 Durability
  • Compliance RCM — Australian Electrical Regulatory Compliant
  • IP Rating IP54
  • Operating temperature range -25° to 70°C
  • Humidity range 0-90%
  • Powered by 4 x AA Alkaline batteries
  • Battery Life on lock approximately 12 months
Other Performance Attributes
  • Tested for 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1-2015 Fire Resistant Door Sets
  • Meets Australian lock standards AS4145.2:2008, SL8 and D8
  • Compliance RCM — Australian Electrical Regulatory Compliant
  • IP Rating IP54
Documents
Yale Connect Plus Hub 2 Flyer
Yale Unity Entrance Lock Flyer
