Yale Libi® Digital Lever Keyed
Description

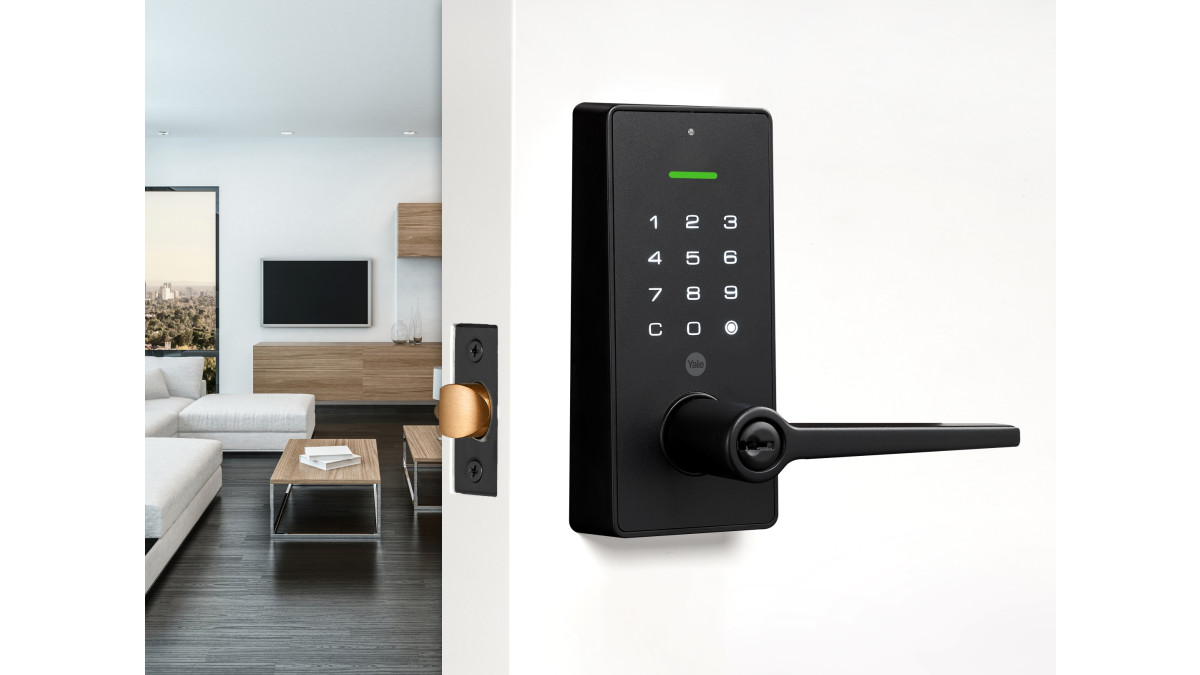

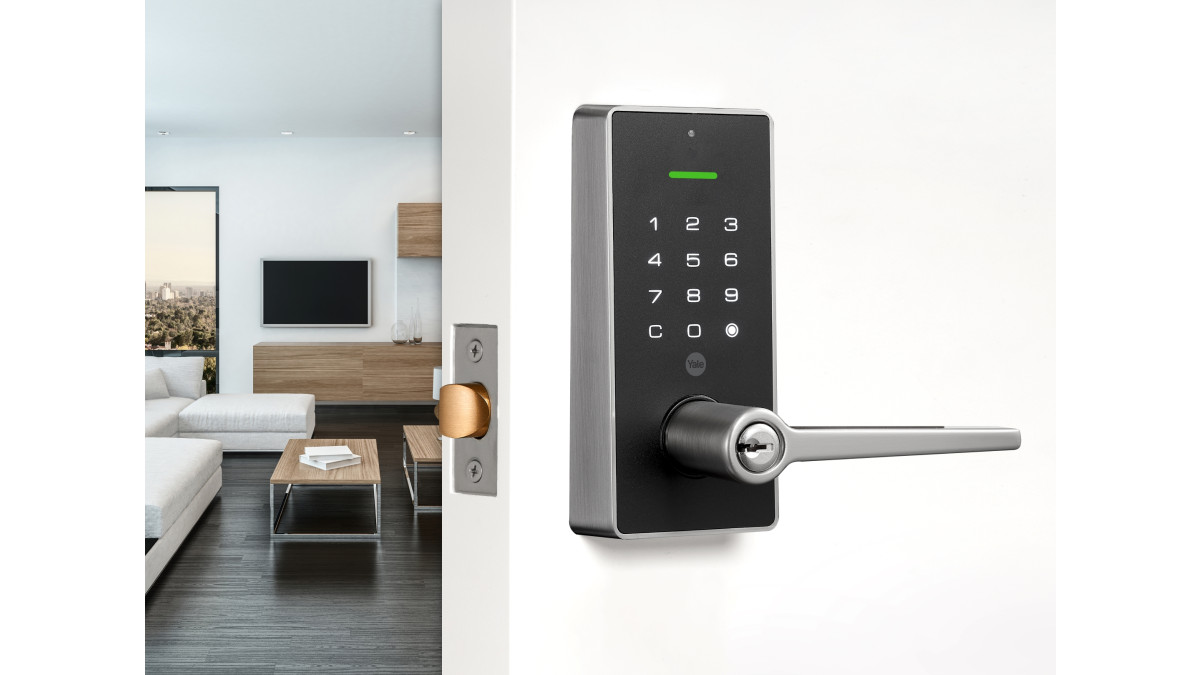

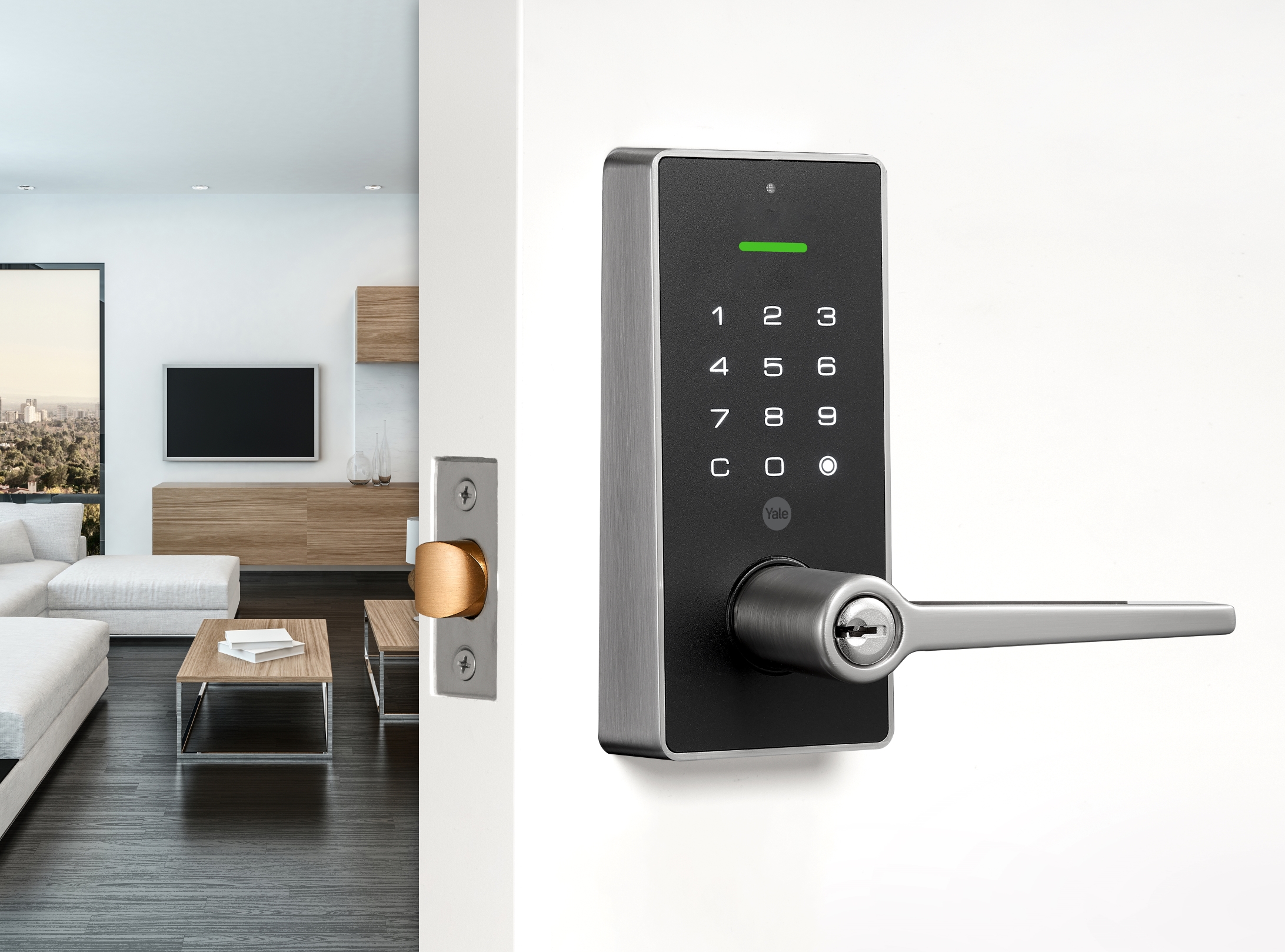

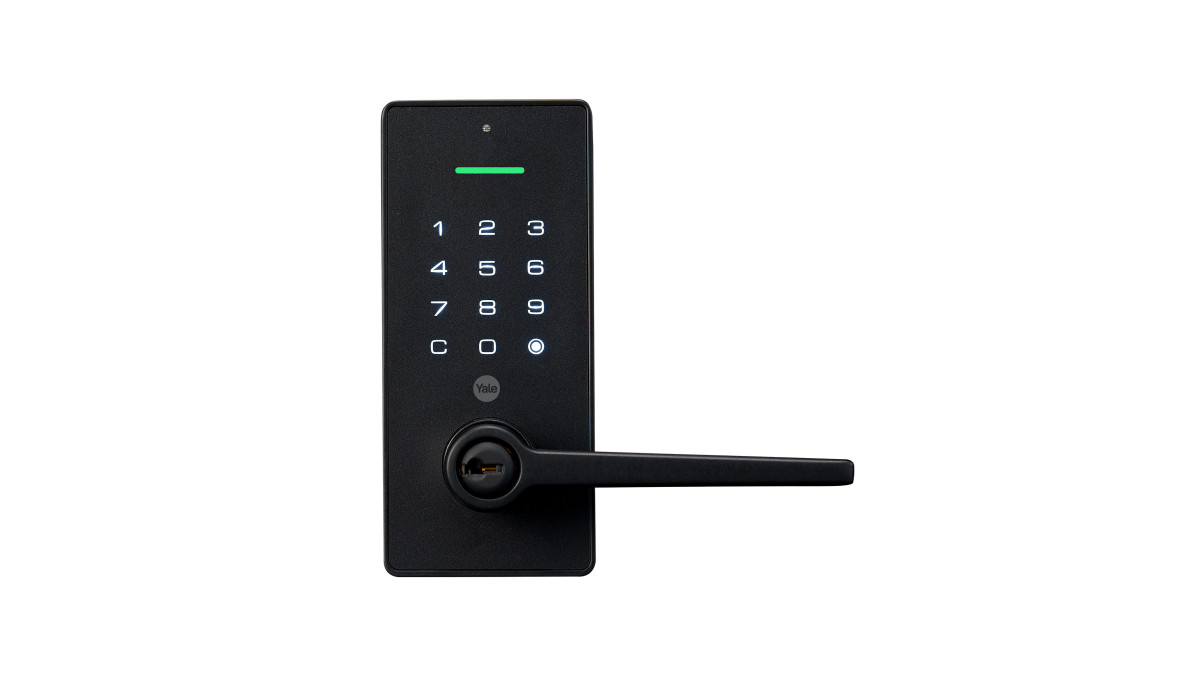

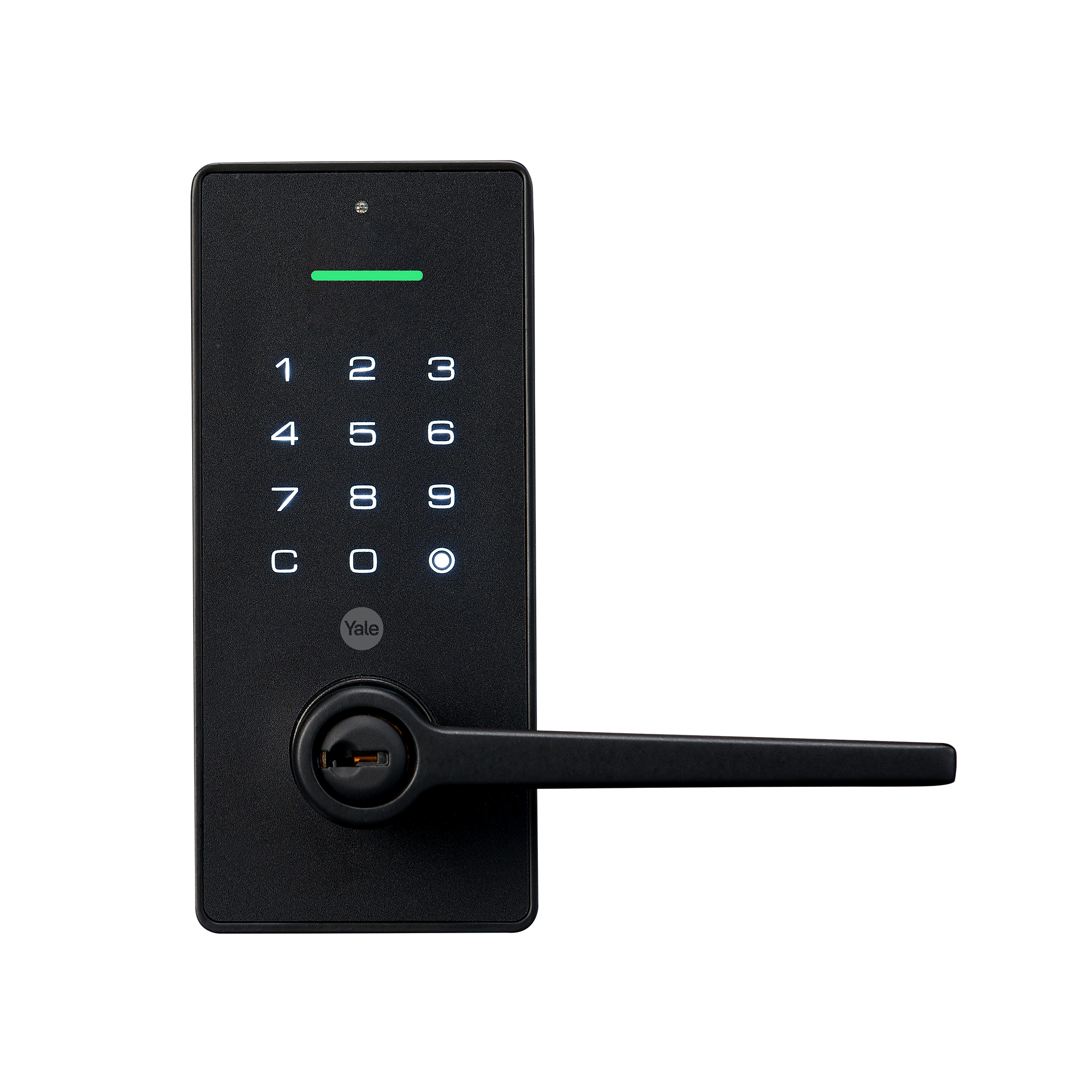

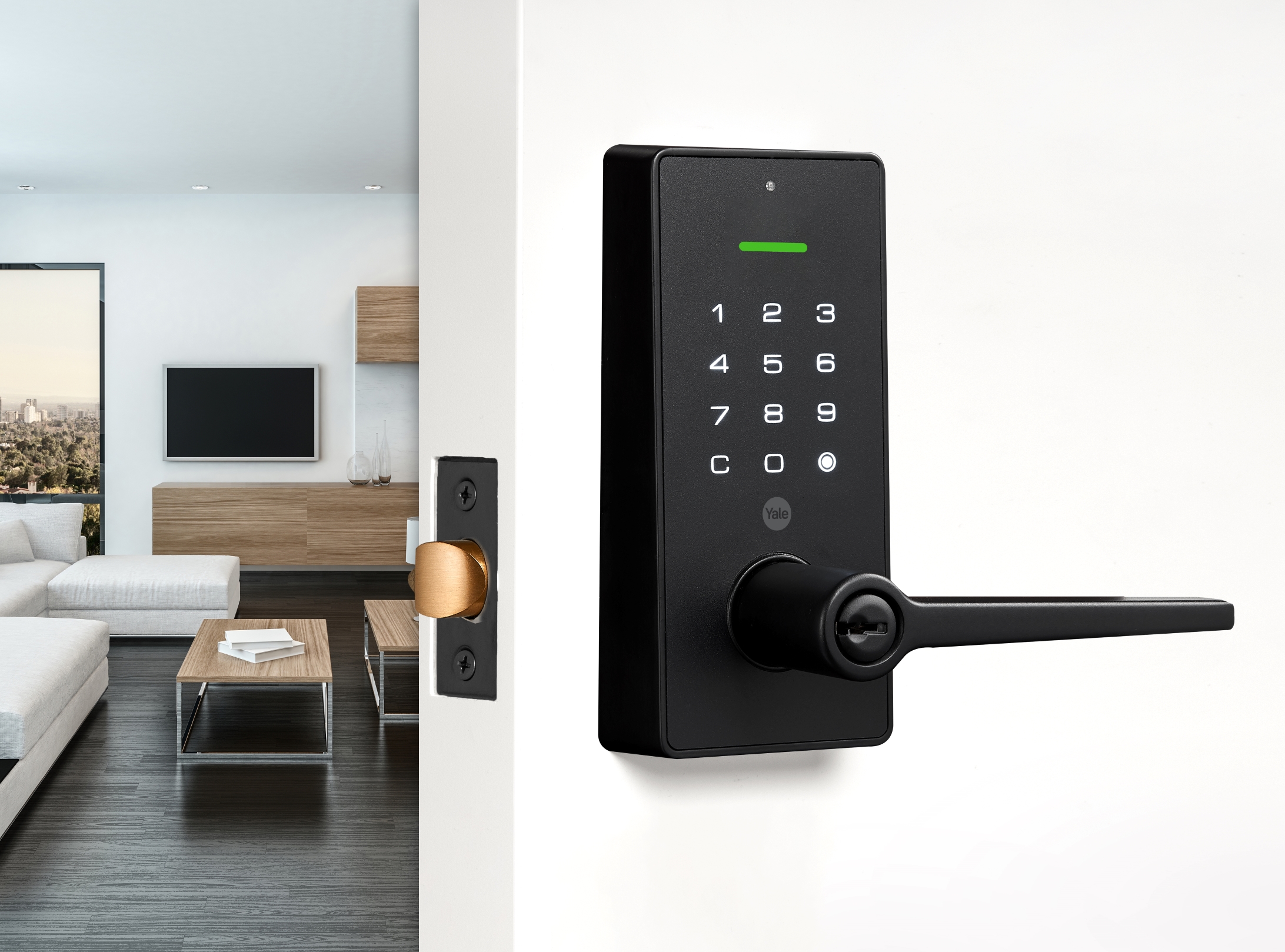

The Yale Libi® Digital Lever Keyed is a smart locking solution that combines the convenience of a digital keypad with the reliability of mechanical key access. Designed for residential applications, it features a glove-friendly LED backlit keypad for easy operation in low-light conditions.

The lock supports up to 70 unique user codes and includes an auto-locking function for added security. Powered by a 9V battery, it ensures reliable access without the need for hardwiring.

Key Features
  • PIN Code: Unlock door with a personalised PIN code. Register up to 100 users.
  • Easy DIY Install: Designed to fit into a standard 54mm lock hole making for easy installation.
  • Auto-lock: Set a timer for automatic locking, providing peace of mind.
  • Mechanical Key Override: Should the batteries go flat, a mechanical key override will prevent users from being locked out.
Categories
Locks
Scope of Use

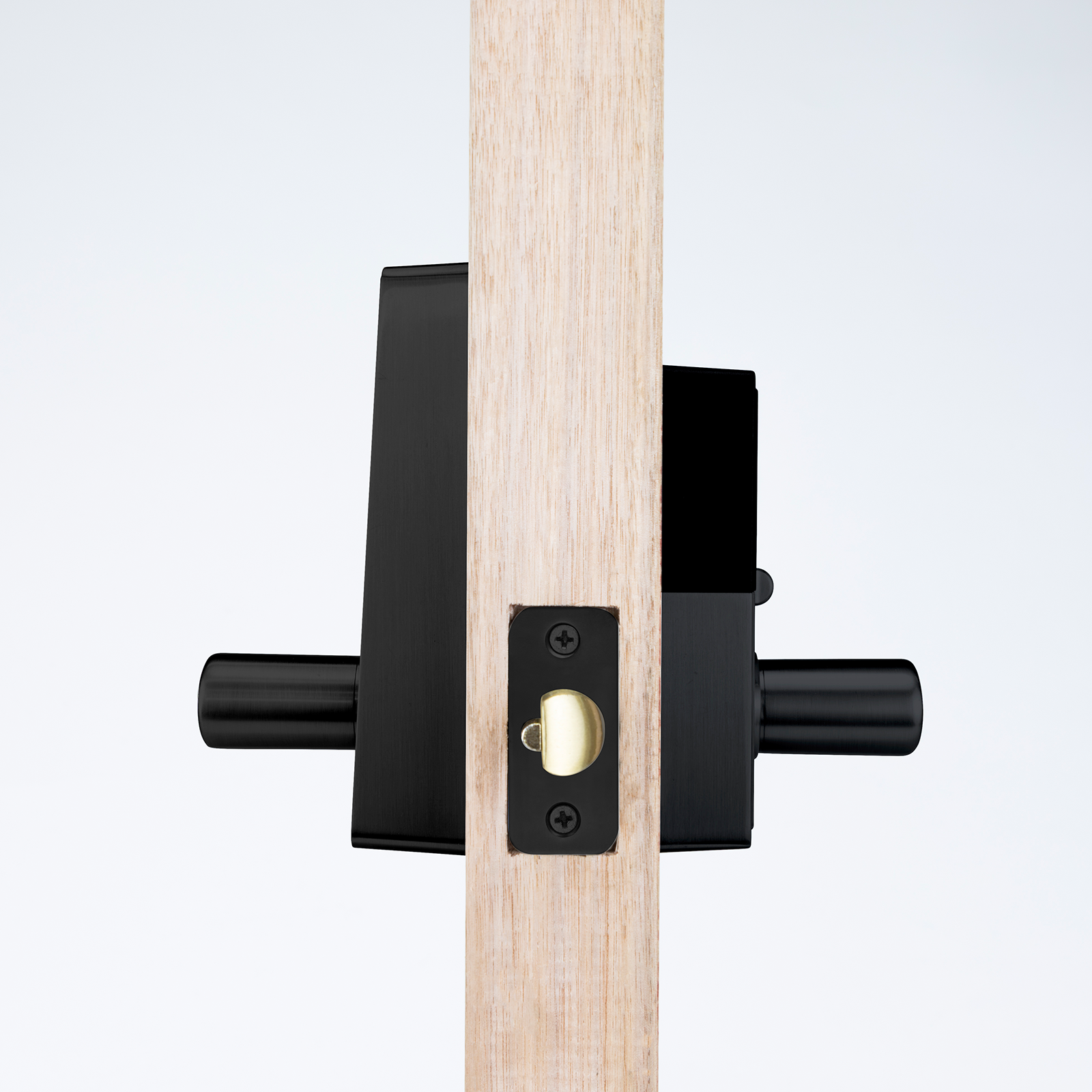

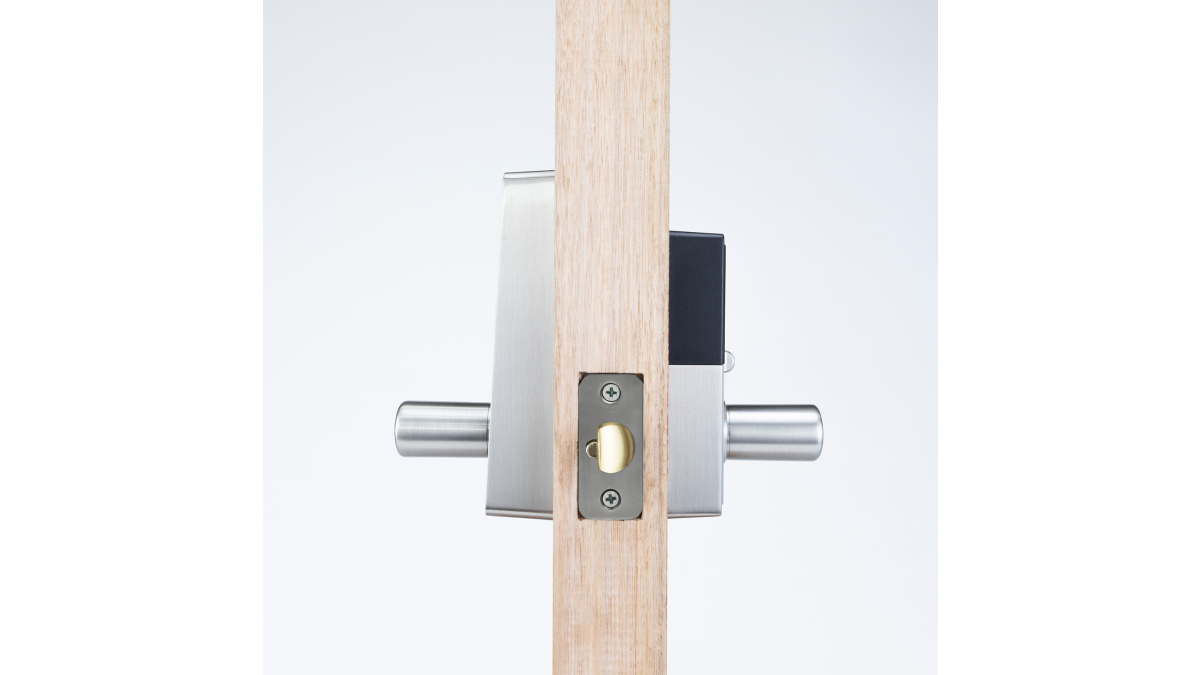

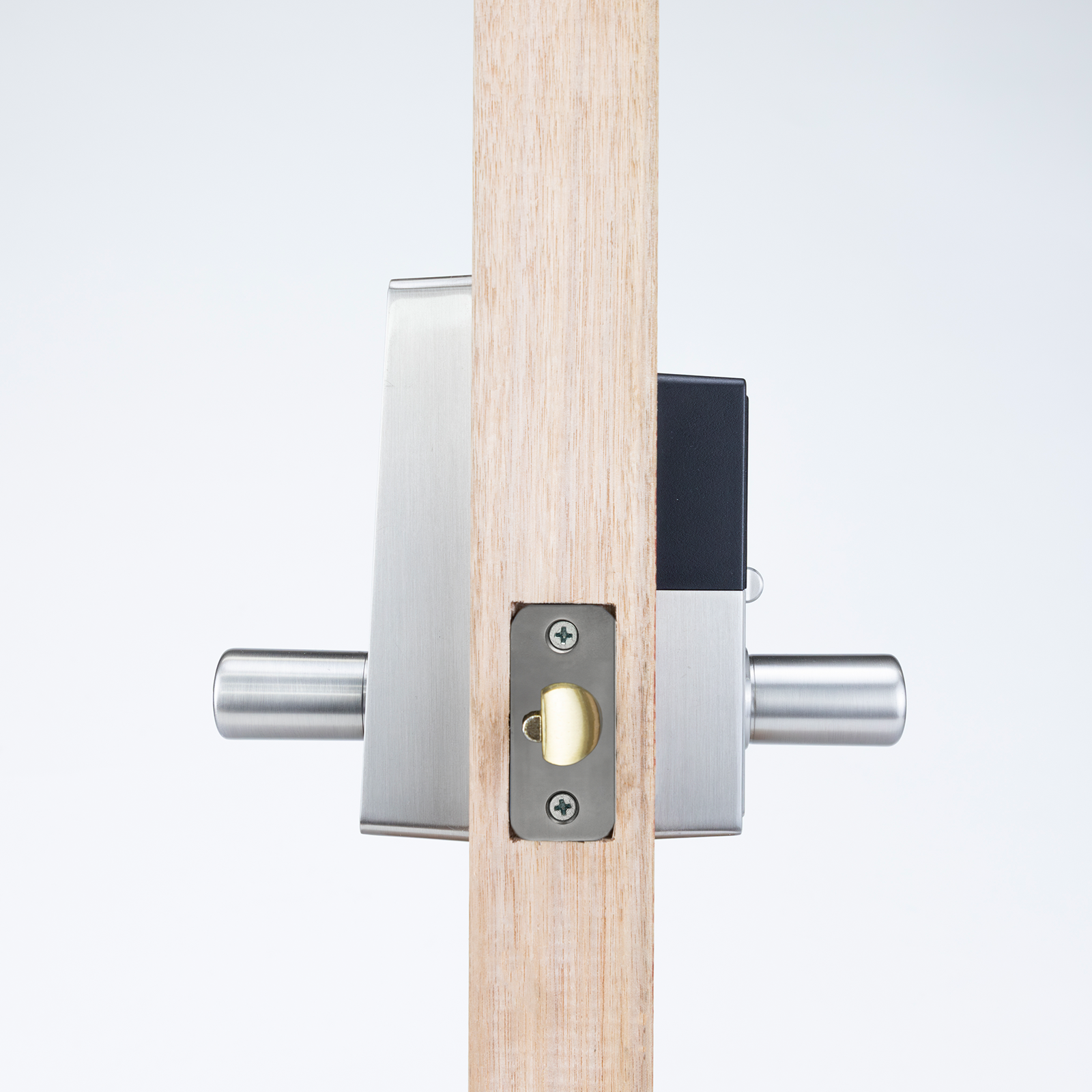

Retrofits into a standard 54mm lock hole and fits timber doors 35mm to 45mm thick, with a 60-70mm adjustable backset latch.

Other Performance Attributes
  • C4 keyway
  • Auto-locking function(when Passage Mode is disabled)
  • Auto-90 second lockout (5 incorrect code attempts)
  • Mechanical key override
  • Up to 70 user codes (Five one-time user codes)
  • Reversable door handing (suits right or left-hand doors)
  • Meets ANSI/BHMA Grade 2
  • IP Rating - IPX4
  • Retrofit Solution for Mechanical Leverset (54mm borehole, single hole no deadbolt)
  • 1x 9V battery (not included)*
  • Suitable door thickness 35mm – 45mm
  • Backset adjustable to 60mm or 70mm
  • Operating Temperature -20ºC ~ 70ºC
  • Operating Humidity 30% ~ 90%

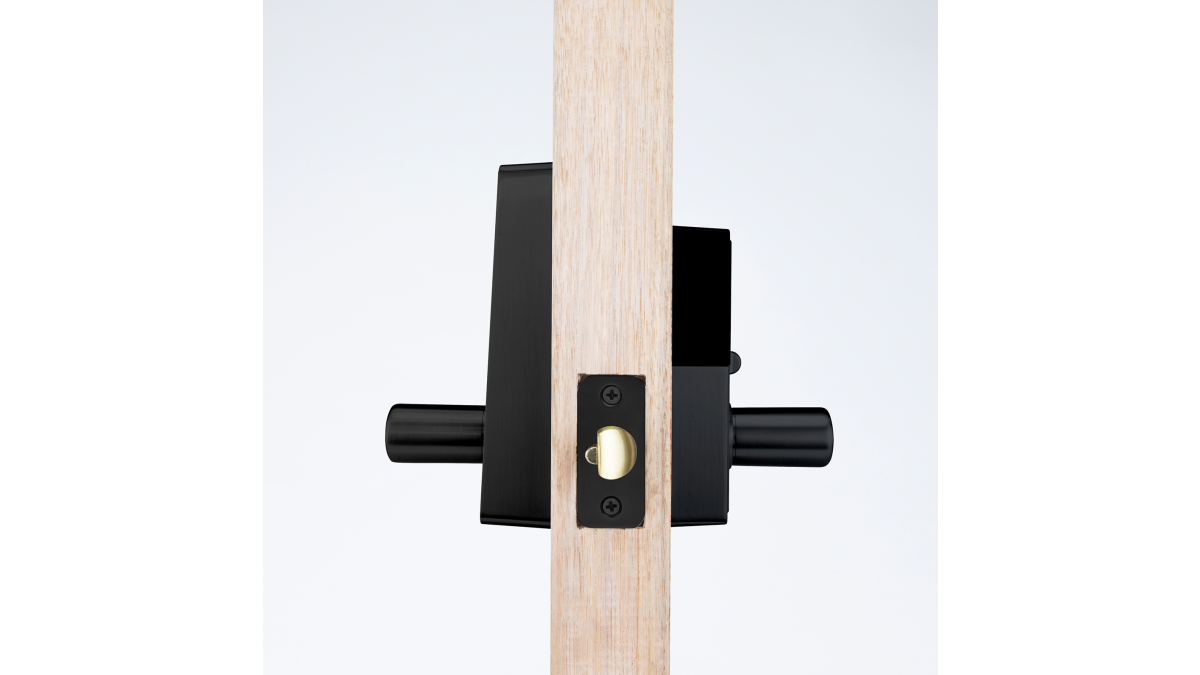

  • Available in Satin Nickel & Matt Black finishes
*For optimum results, we only recommend alkaline batteries. Up to 12 months depending on the frequency of your usage (10 cycles per day).
