Lockwood Door Closers: Concealed Door Closer
Description

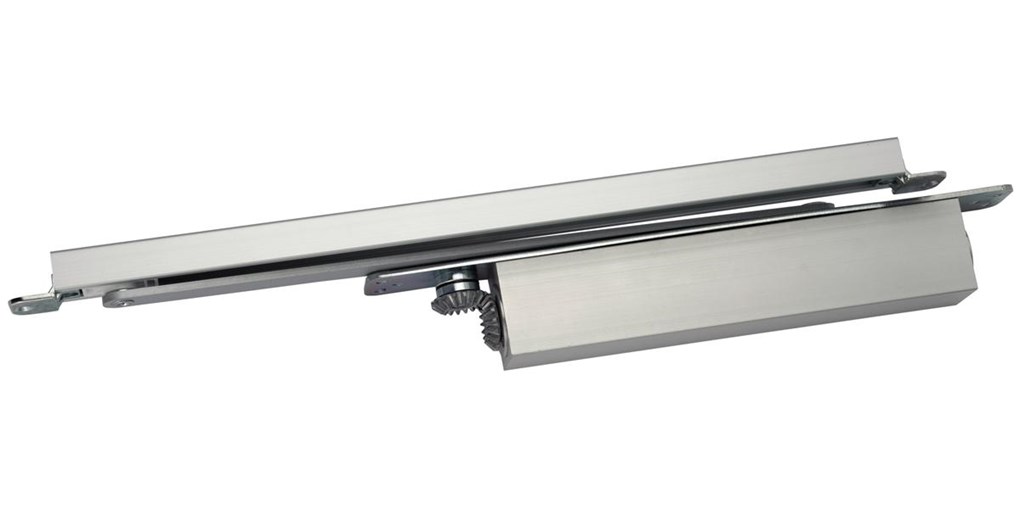

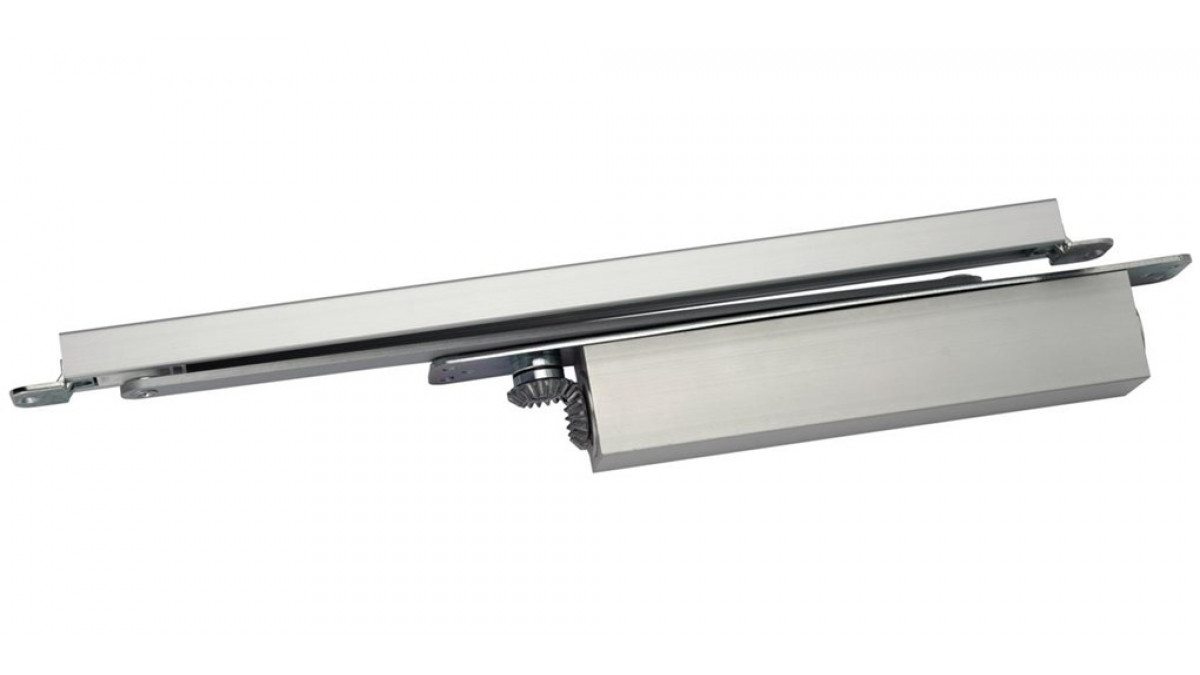

The Lockwood 8014/8015 are non handed, cam action concealed door closers for heavy duty use. Due to the cam construction they are extremely light to open, but strong enough to close the door in every situation.

Key Features
  • Certified to EN1154 (controlled door closing device)
  • Adjustable force size EN1-4
  • Separate adjusting valves for closing and latching speed with mechanical backcheck
  • Pressure relief valve to protect against abuse
  • Wide operating temperature range -15 to 45°C
  • Anodised aluminium door closer body
  • Successfully fire tested for up to 2 hours on fire door assemblies in accordance with AS1905.1:2005-Part 1: Fire Resistant Doors*

*For fire door applications add 2515-153 opening damper

Categories
Door Closers
Ranges
Door Closers
Scope of Use

The Lockwood 8014/8015 is suitable for external, internal and heavy duty doors.

Limitations on Use

8014SIL:

  • Maximum door width 1100mm
  • Maximum door weight 80kgs
  • Minimum door thickness 40mm

8015SIL:

  • Maximum door width 1250mm
  • Maximum door weight 100kgs
  • Minimum door width 48mm
Other Performance Attributes
  • Successfully fire tested for up to 2 hours on fire door assemblies in accordance with AS1905.1:2005-Part 1: Fire Resistant Doors*
