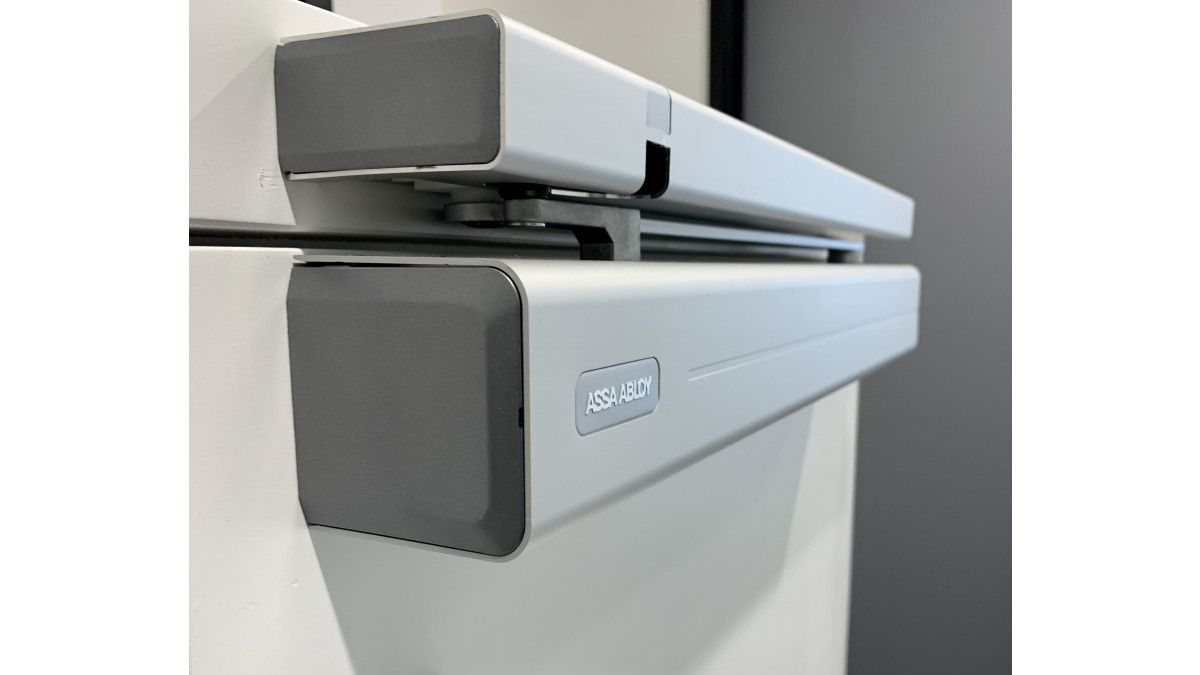

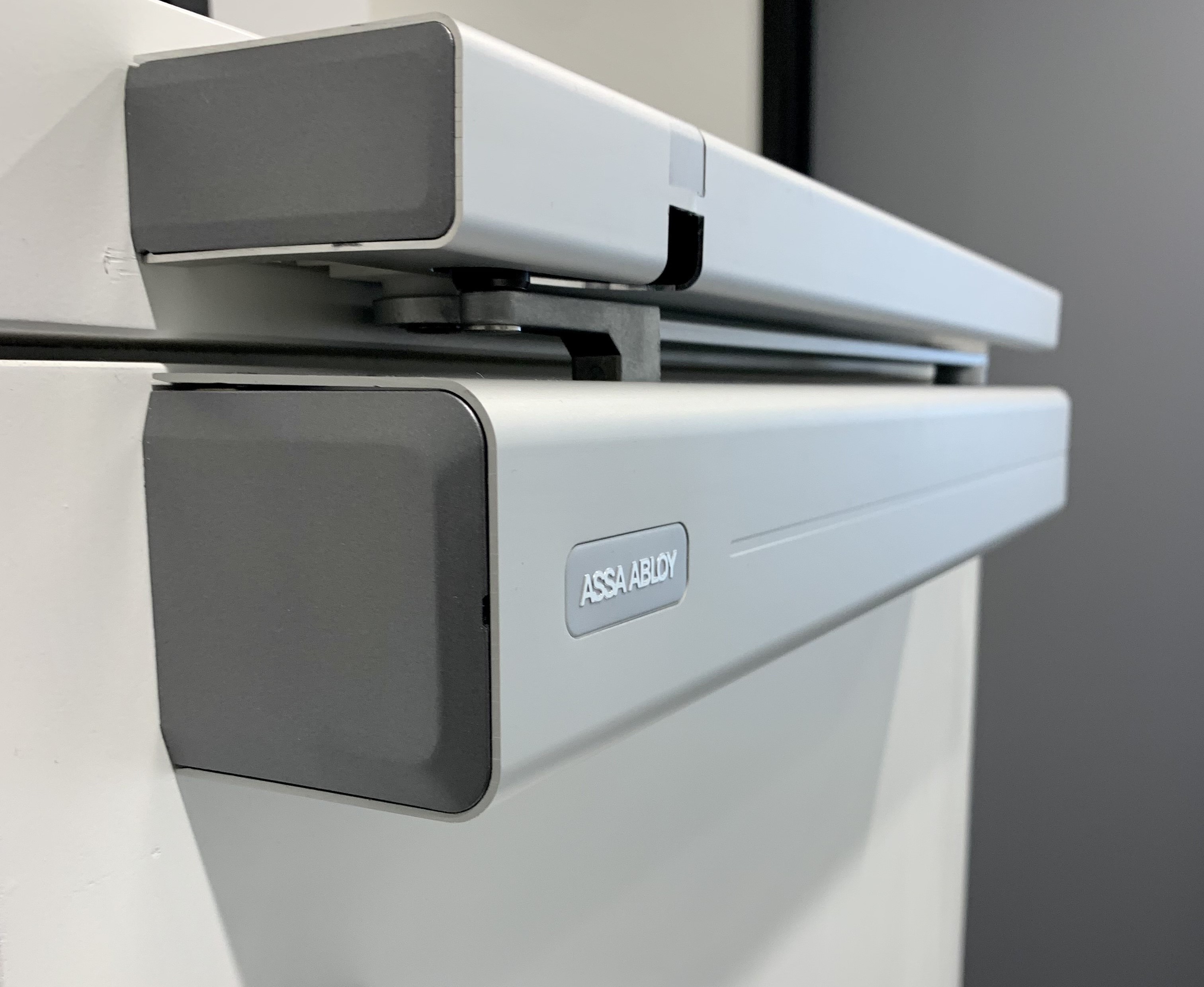

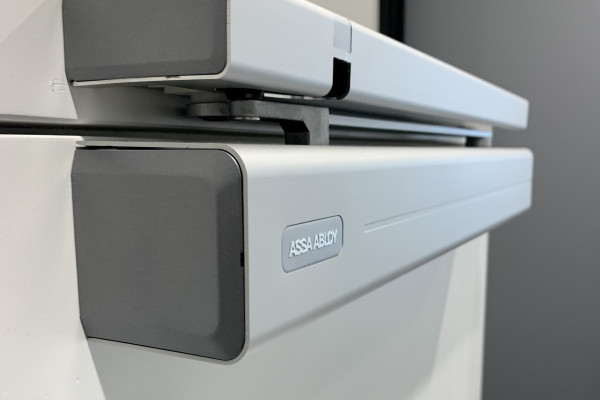

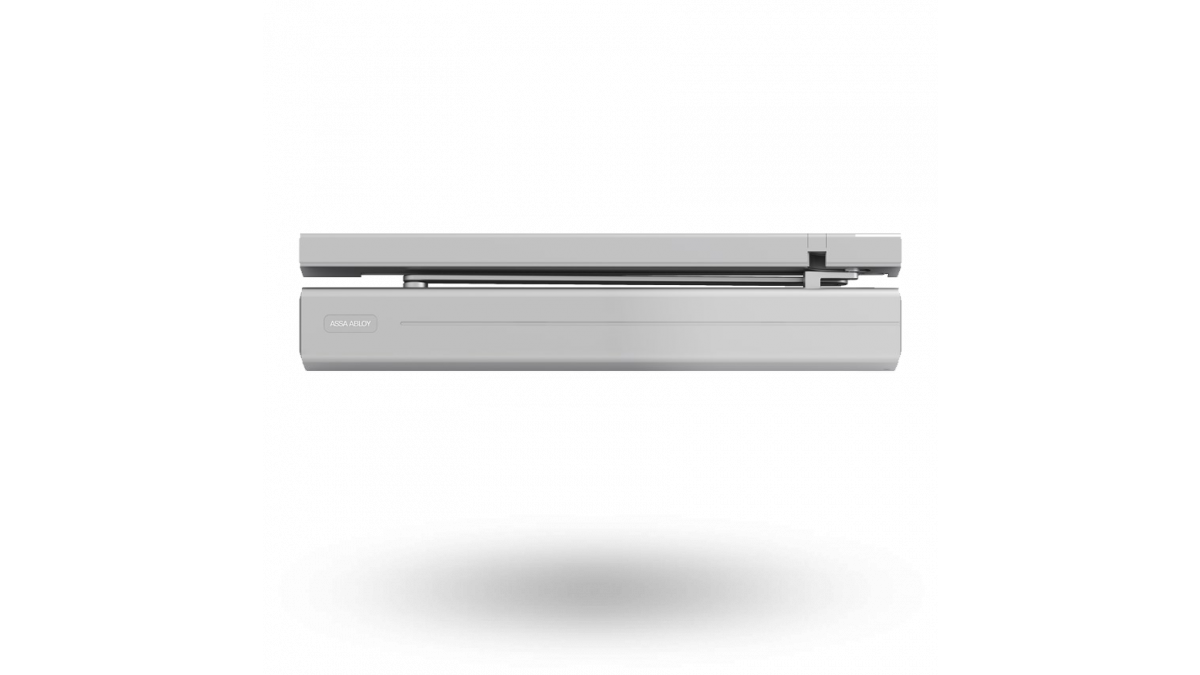

DC700G-CM Close-Motion Door Closer
Description

The ASSA ABLOY Door closer with Cam-Motion® technology, extended mounting plate and integrated Close-Motion® element offers safe and noiseless closing. The door can be pulled closed safely and quietly from an angle of ≤ 10° and is suitable for retrofitting on fire doors and smoke control doors.

Key Features
  • Integrated Close-Motion element in extended closer housing
  • Close-Motion element with horizontal and vertical adjustment
  • Optional tamper protection, installation without dismantling function elements
  • Standard installation on hinge side
  • Can be used for left and right-handed doors
  • Axis continuously height adjustable up to 14 mm
  • Closing speed and latching speed continuously adjustable from front
  • Variable adjustable closing force
  • Opening angle ca. 170°
  • Thermodynamic valves for consistent speed
Categories
Door Closers
Ranges
Door Closers
Scope of Use
  • Suitable for a variety of applications such as hospitality, education, and commercial buildings
  • Works with security and access control applications and for use on internal and external doors
  • Suitable for retrofitting on fire doors and smoke control doors
Statement of Building Code Compliance

Suitable for fire and smoke protection doors with tamper protection. Tested as a whole element in accordance with EN 1154, size 3-6 for single action doors up to 1400 mm wide.

Documents
Data Sheet
