Triton Sports 40
Description

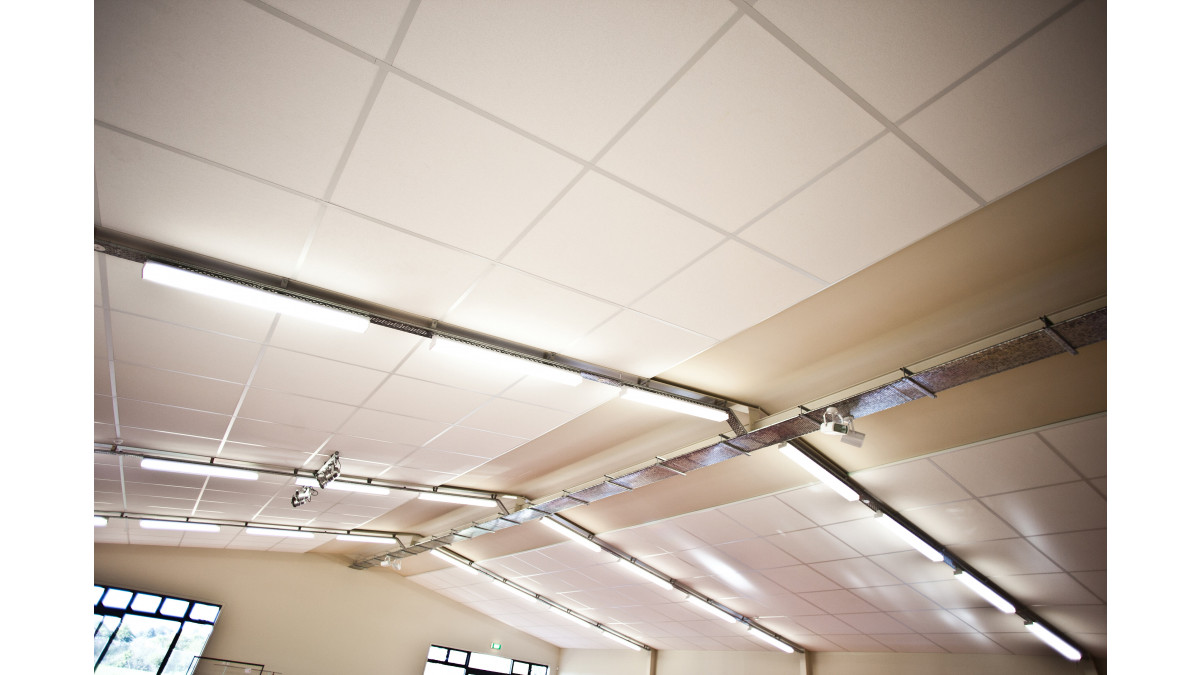

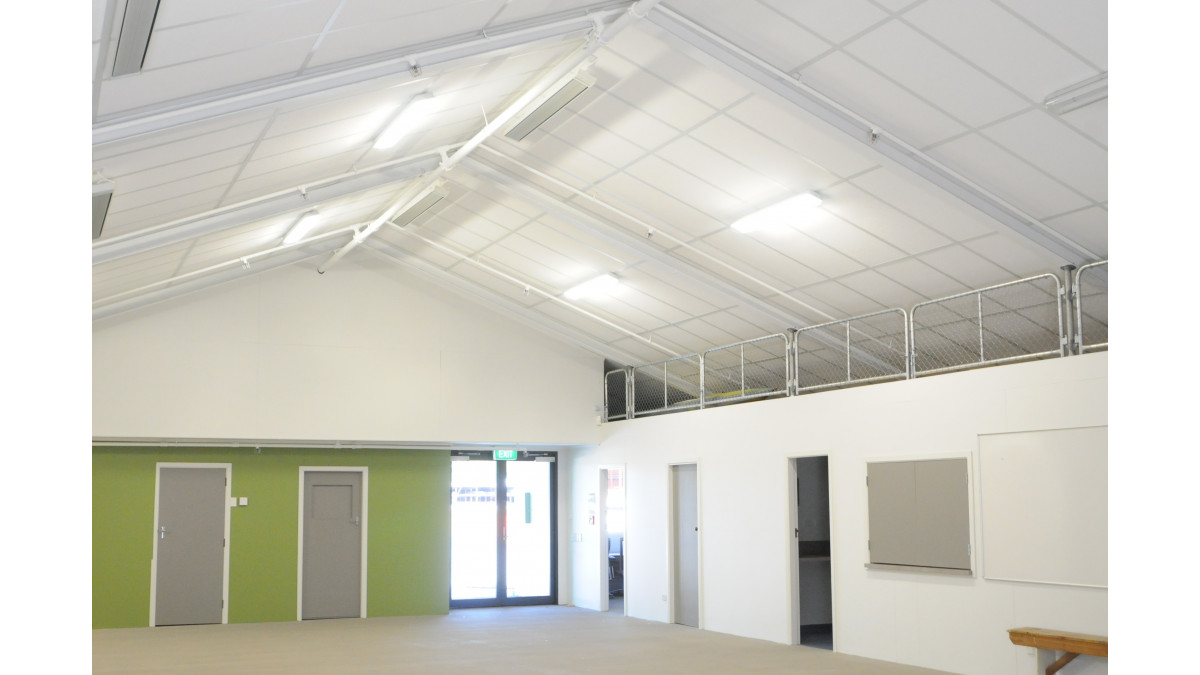

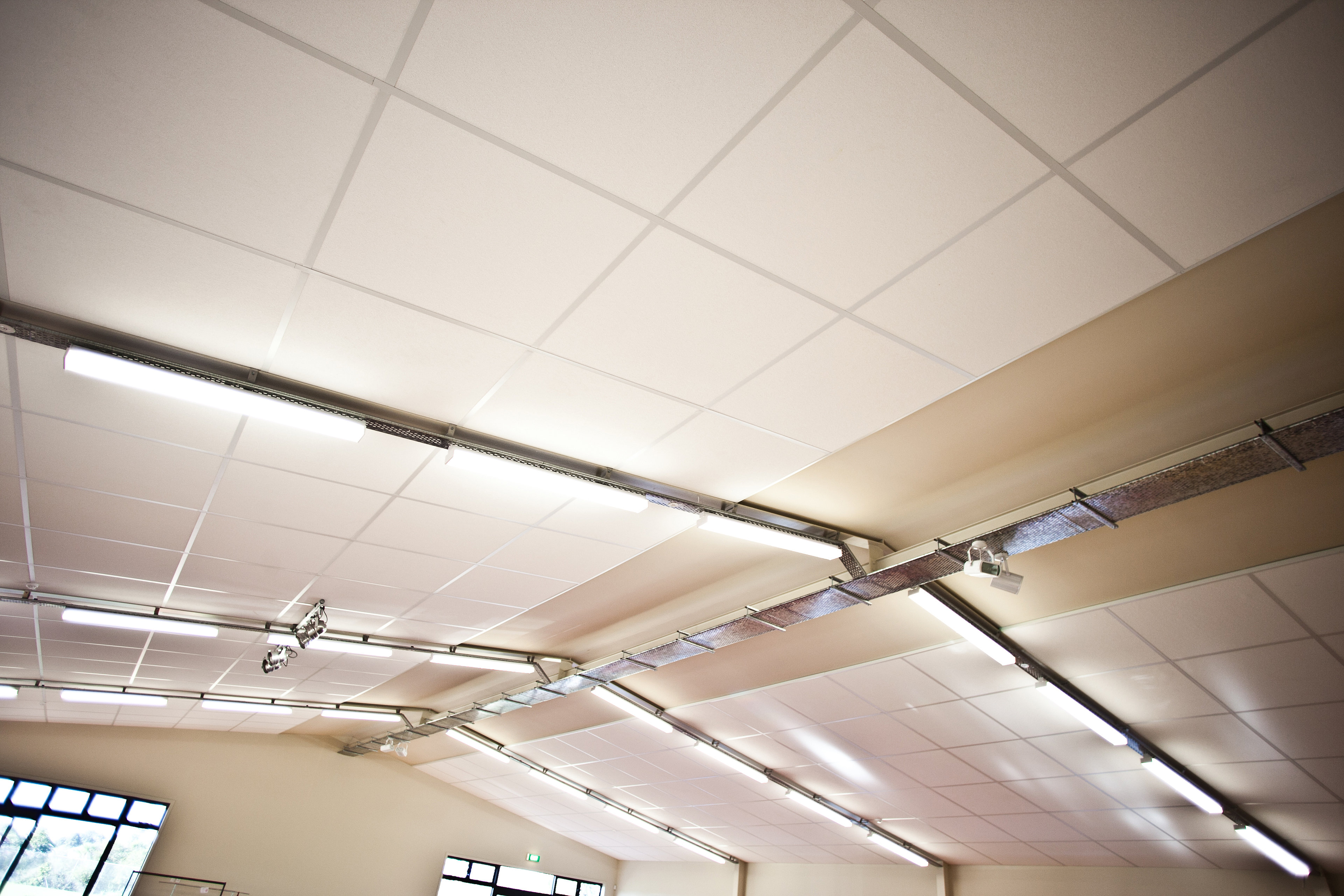

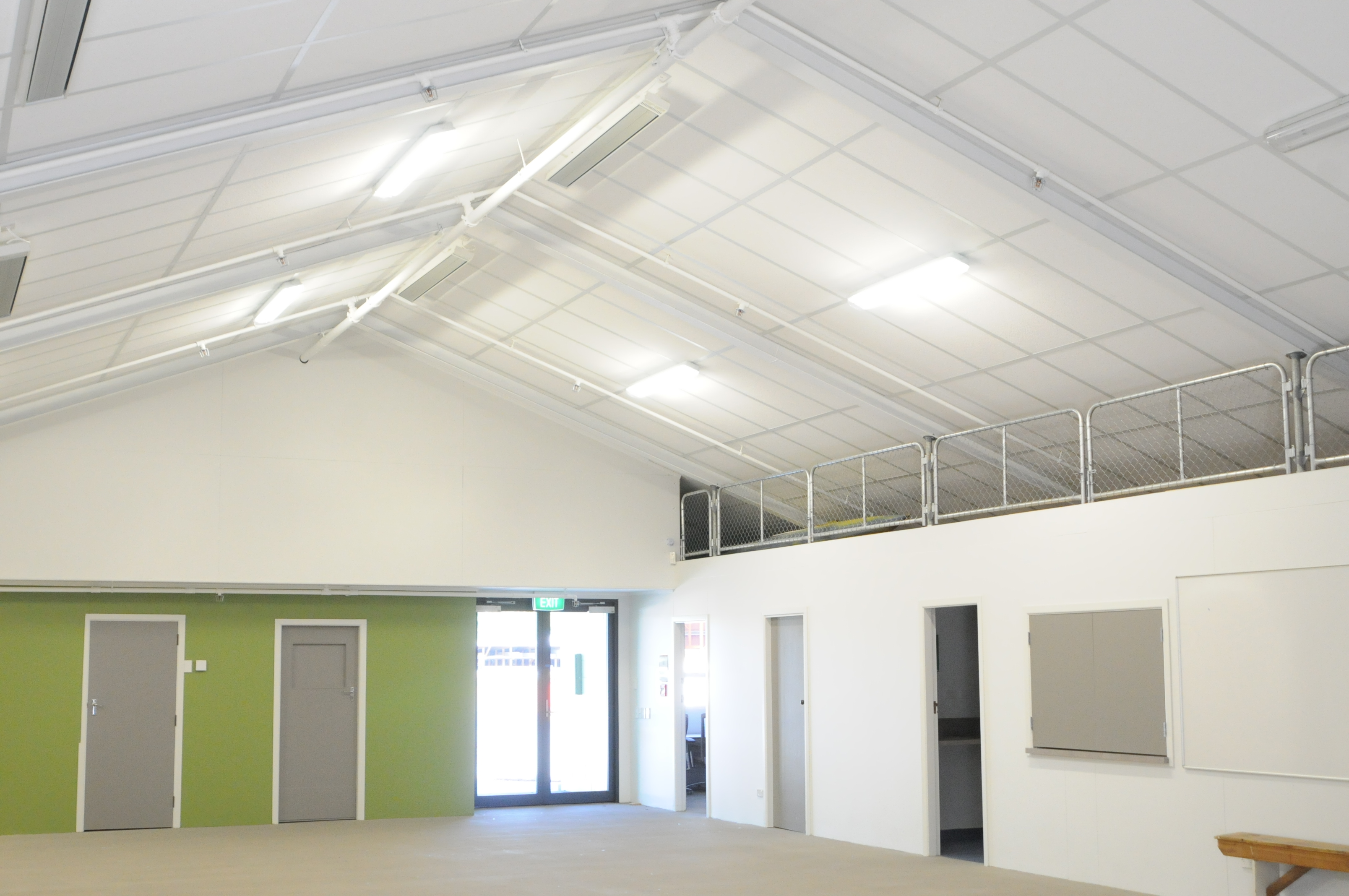

Triton Sports 40™ is a ball impact resistant high sound absorbing and thermal insulating acoustic ceiling system. Panels feature a smooth, high density glass fabric facing, reinforced aluminium foil backing and are held within a heavy duty wide faced grid system with proprietary hold down clips. The system is designed to provide high sound absorption in areas subject to impact, knocks and bumps.

Manufactured in New Zealand from 96 kg/m³ bio-soluble glass fibre board laminated with woven glass fibre fabric facing and aluminium foil backing.

Key Features
  • Impact resistant construction, resists damage from bumps and knocks. Chip, crack and puncture-resistant facing
  • Wide faced heavy duty Rondo Donn® DXW suspension grid system with proprietary CLW95 hold down clips at 300mm centres to secure panels during impact
  • High sound absorption, ideal for large volume spaces. NRC 0.95 for control of reverberation
  • R1.35 thermal insulation, foil back to reflect radiant energy
  • Light weight system at 4.3 kg/m² reduces load on the structure and is ideal for seismic prone areas
  • Green Tag Certified / Level A, low VOC, core contains 80% recycled post consumer waste glass
  • Made in NZ, short lead times including replacement parts
  • Packaging take back and reuse scheme available
  • Product stewardship renew and reuse program
  • ISO 9001 registered quality management program
Green Tag Certified
Green Tag Certified
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

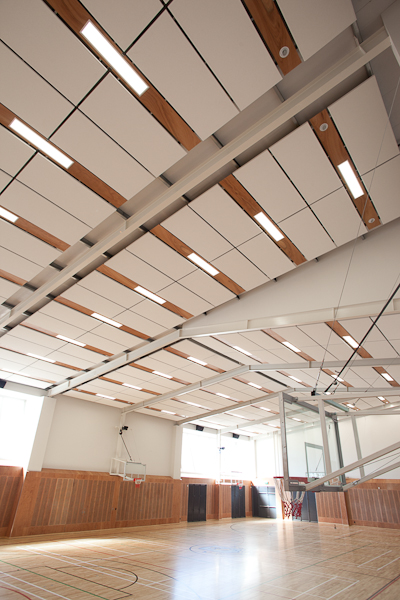

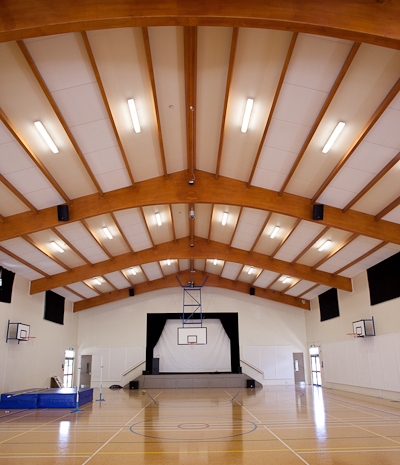

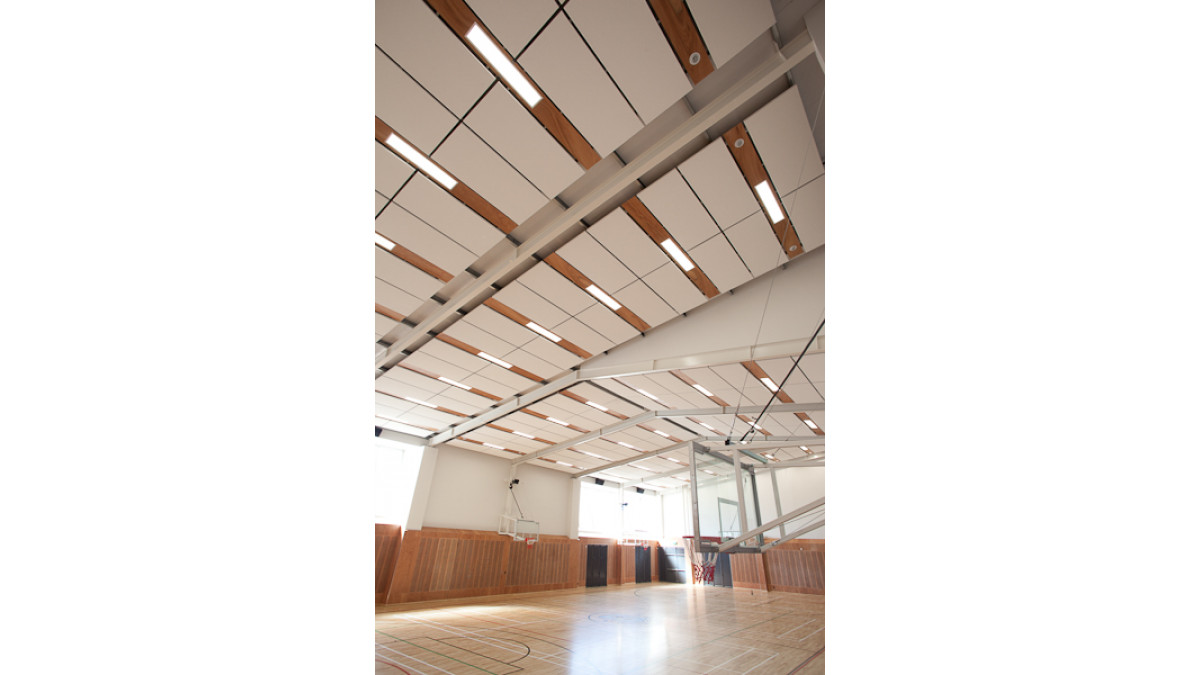

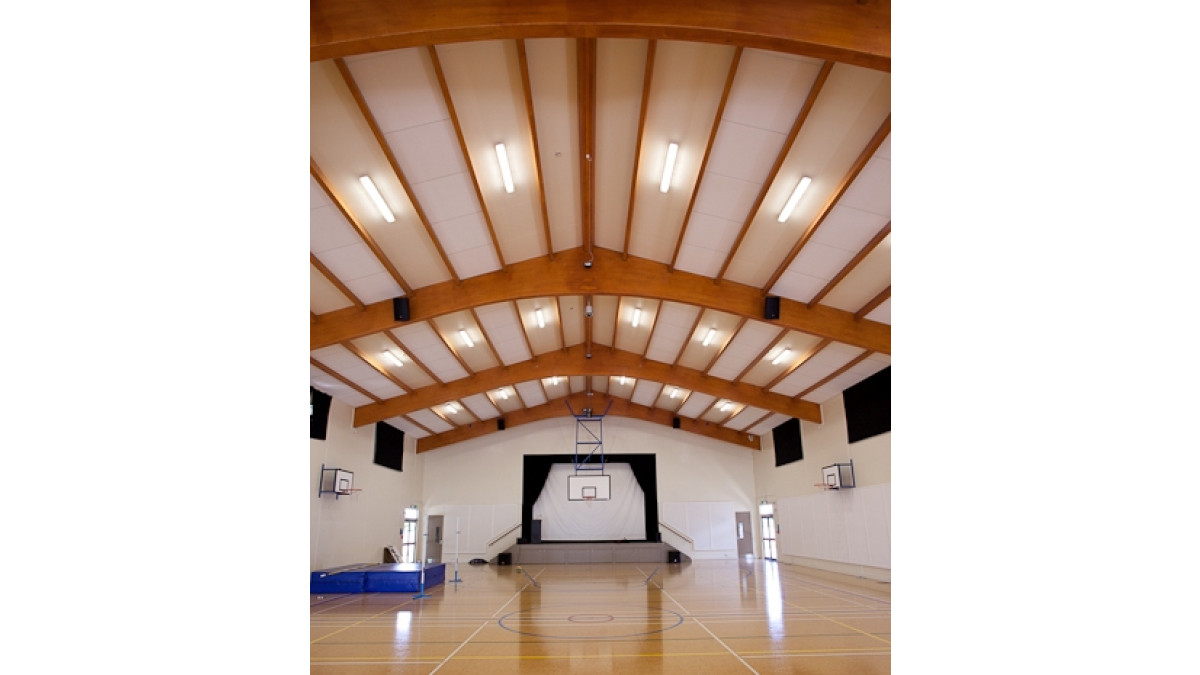

  • Ideal for use in classrooms, gymnasiums, halls, corridors, etc to control reverberation and background noise levels.
  • The system is designed to provide high sound absorption in areas subject to impact, knocks and bumps.
  • Wide faced heavy duty Rondo Donn® DXW suspension grid system with proprietary CLW95 hold down clips at 300mm centres to secure panels during impact.
  • High sound absorption, ideal for large volume spaces. NRC 0.95 for control of reverberation
  • R1.35 thermal insulation, foil back to reflect radiant energy
  • Light weight system at 4.3 kg/m² reduces load on the structure and is ideal for seismic prone areas
Limitations on Use
  • Shall not commence until the building is water tight and dry
  • Light fittings shall be independently supported
  • Must use CLW95 hold down brackets at 300mm centres to secure panels against uplift from ball impact
  • It is recommended that air grilles be installed in the ceiling to balance air pressure differentials
  • Do not use in ceilings with negative air return plenums
  • Back loading — Max. uniformly distributed load 1 kg/m², point loads shall be independently supported.
  • Max 95% R/H at 45°C
Statement of Building Code Compliance
  • Fire Reaction — NZBC verification method C/VM2 material group number: 1-S
  • Clause B2 — durability, 5 years
In-Service History

Recent projects include:

  • Mount Maunganui School
  • Westmere School
  • Westmount School
  • Cambridge Terrace Offices
  • Rawhiti School
  • Hobsonville Point Intermediate
  • Hobsonville Point Primary
Other Performance Attributes
  • GreenTag certified / Level A (Sonatex, Frameless, Aluminium Edge)
  • Thermal Resistance — R 1.35 m²°C/W
  • Light Reflectance — 83% per BS8493:2008, White
  • Global Green Tag Certified, Level A, from 80% recycled local glass waste, low VOC <0.005 Mg/M²/hr per ASTM D5116.
  • Packaging return, panel renew and reuse programs
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Asona Triton Sports 40

24.09

Environmental Information - GreenTag Level A

230413

Environmental Information - GreenTag Level B

22-04

Maintenance: Triton Range
Warranty
