Triton 25
Description

Triton 25 is an NZ-made, high sound absorbing ceiling panel designed to control unwanted noise reverberation. Triton panels are available in a wide range of sizes and decorative colours, wood prints and perforated acoustic laminate patterns.

Manufactured in New Zealand from 48 kg/m³ bio-soluble glass wool absorber, tissue backed, Sonatex™ / Sonaris™ acoustic laminate finish.

Key Features
  • Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0. Provides more absorption per m² than other acoustic materials
  • Fire Group 1-S
  • Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
  • Board formed from 80% recycled local glass
  • Low formaldehyde > 0.05 gm
  • Product stewardship renew and reuse program available
  • Packaging take back and reuse scheme available
  • Made locally in NZ, meaning short lead times, including replacement parts
  • Panels available with strippable foil option to better protect the decorative finish during the construction phase
  • Durable and dimensionally stable in high humidity
  • Light weight for seismic, easy to work and trim
Green Tag Certified
Green Tag Certified
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

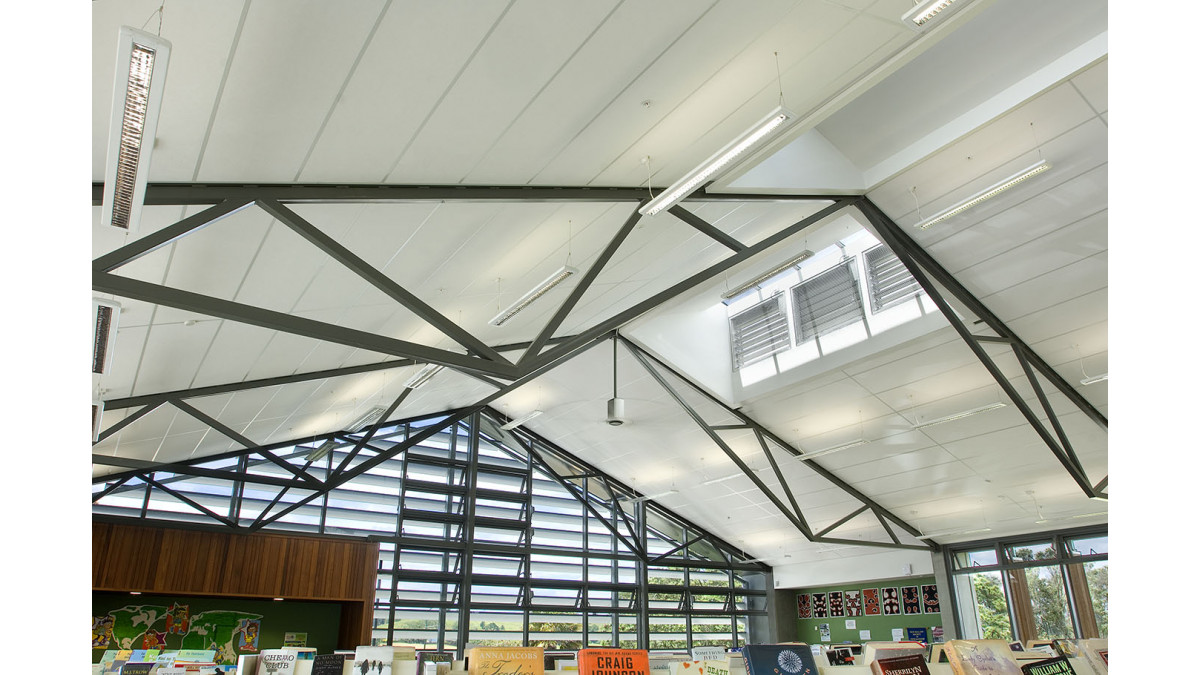

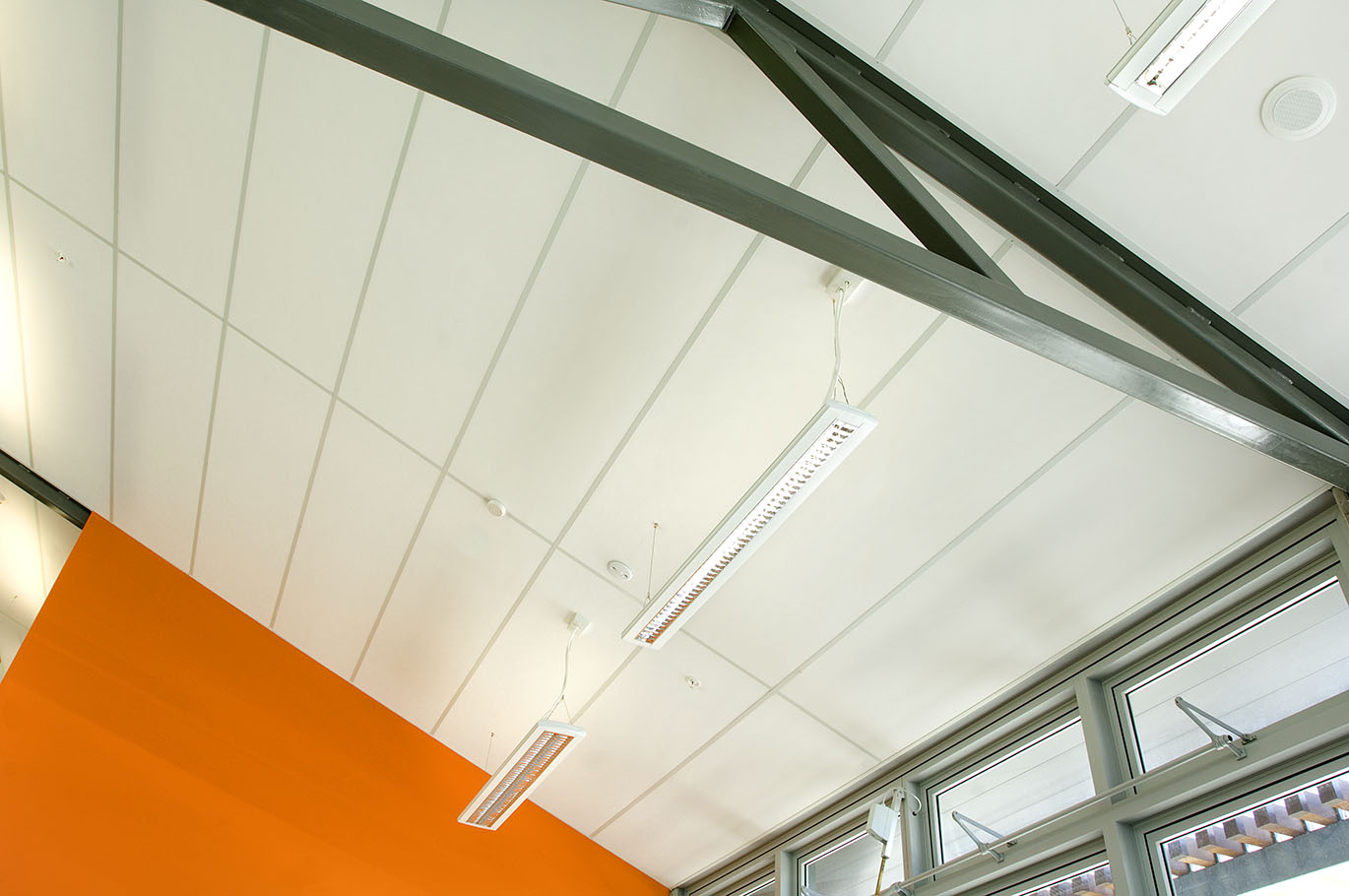

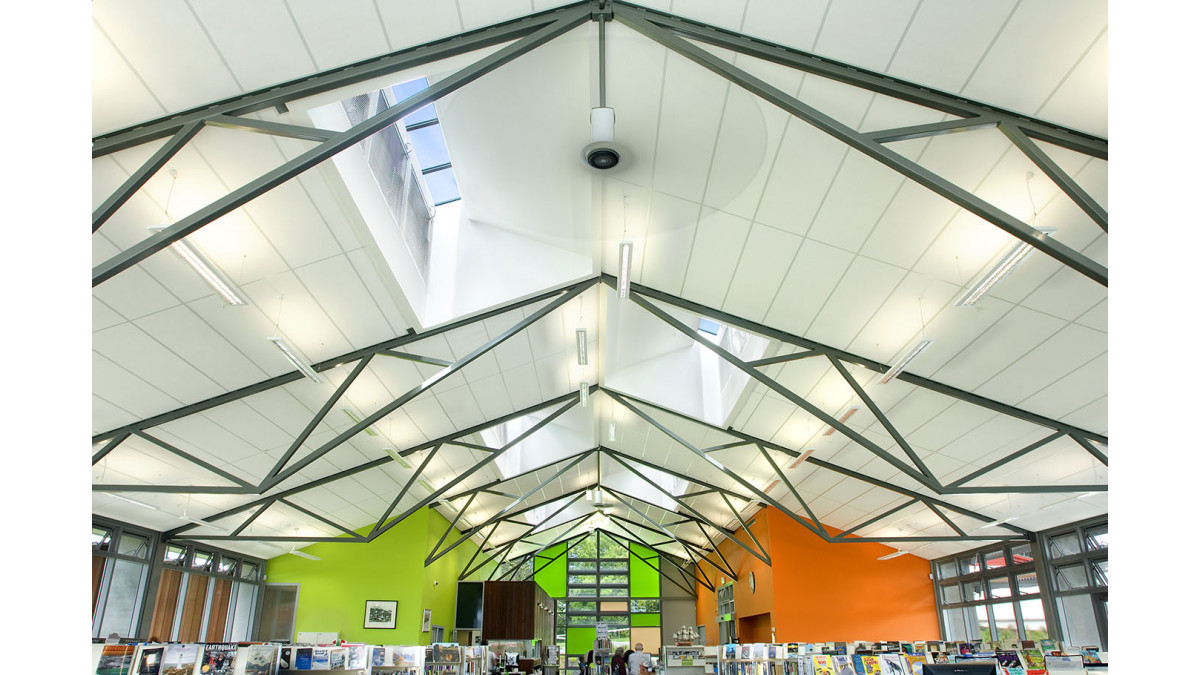

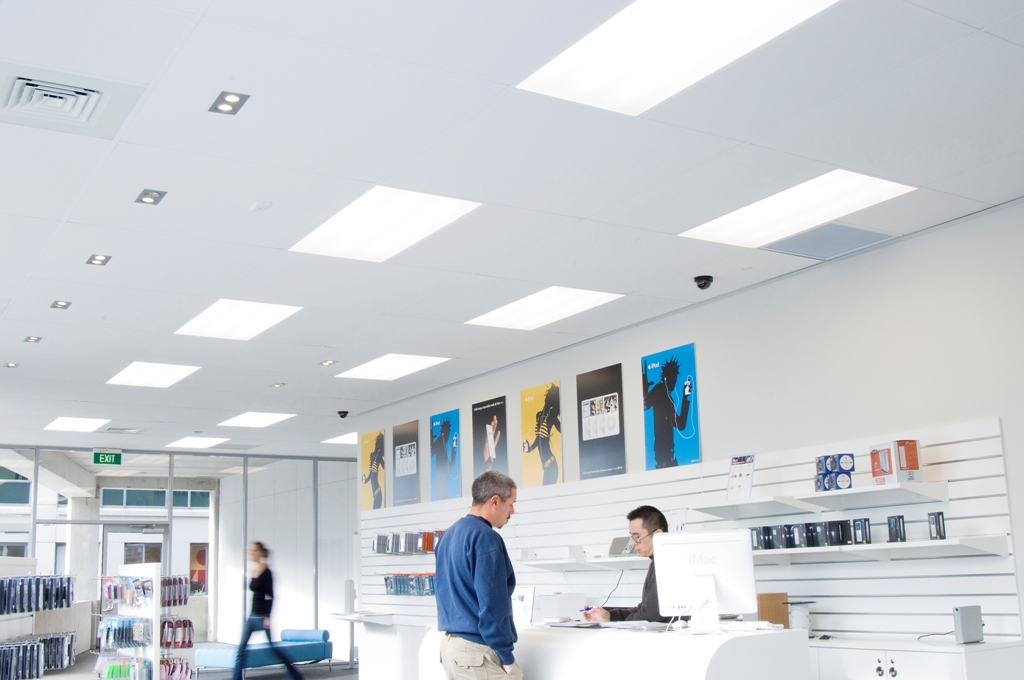

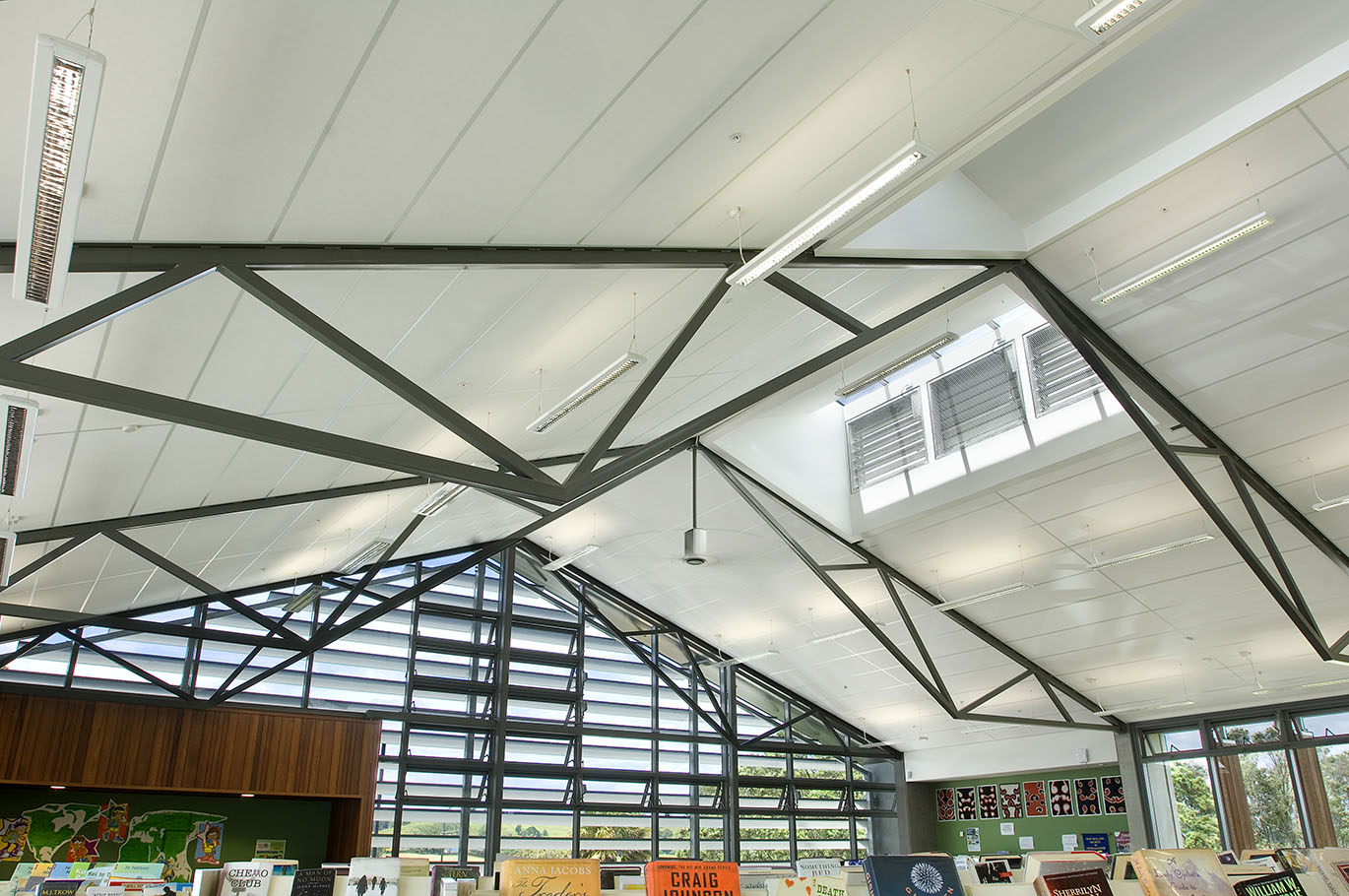

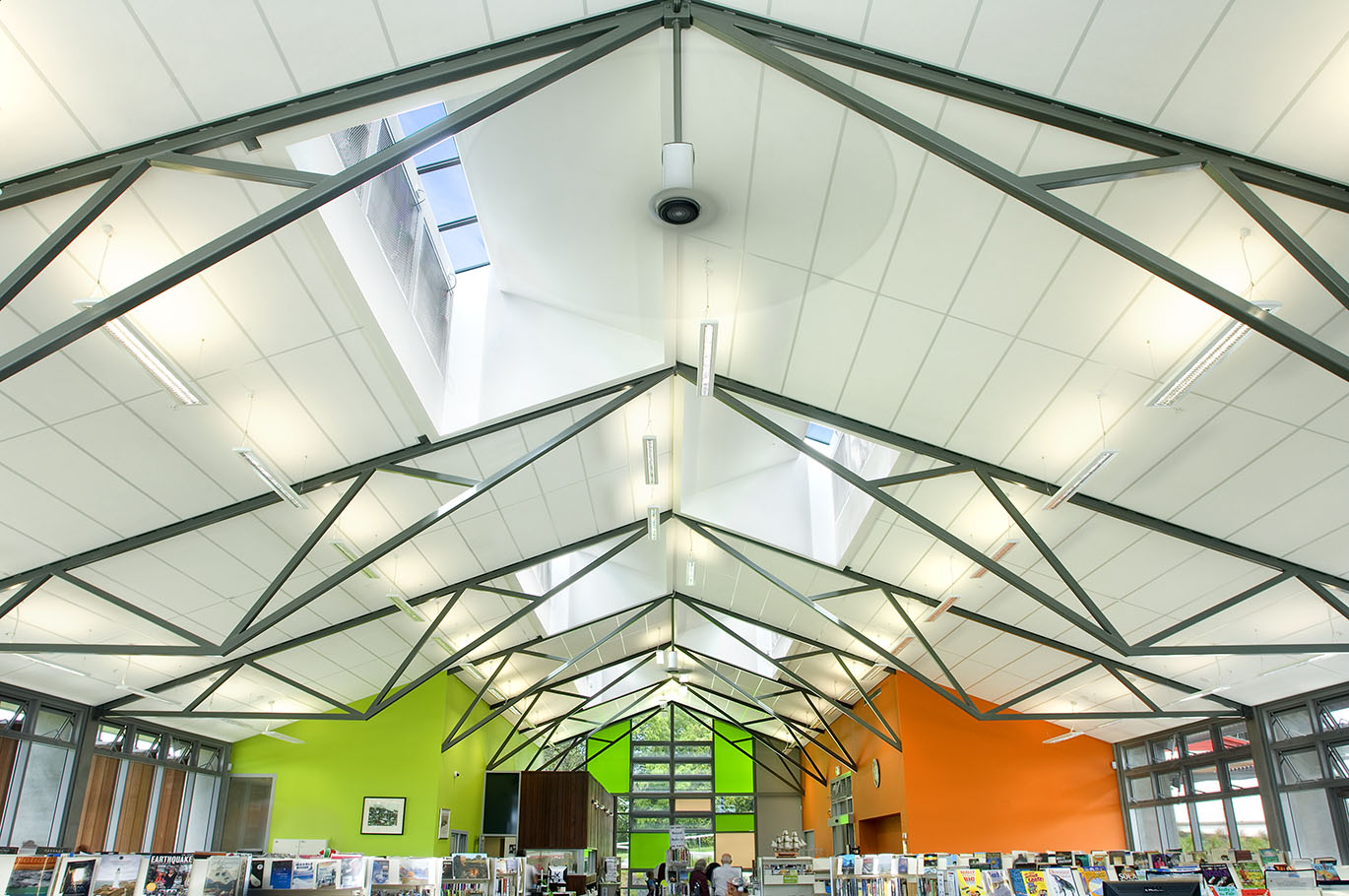

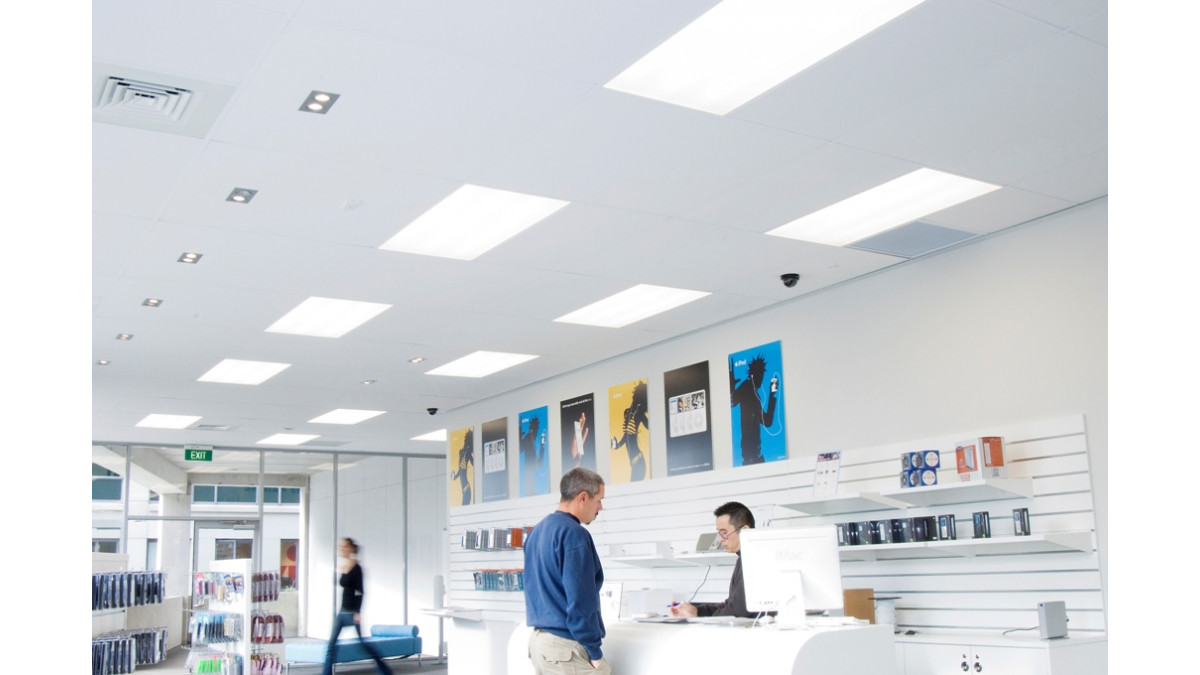

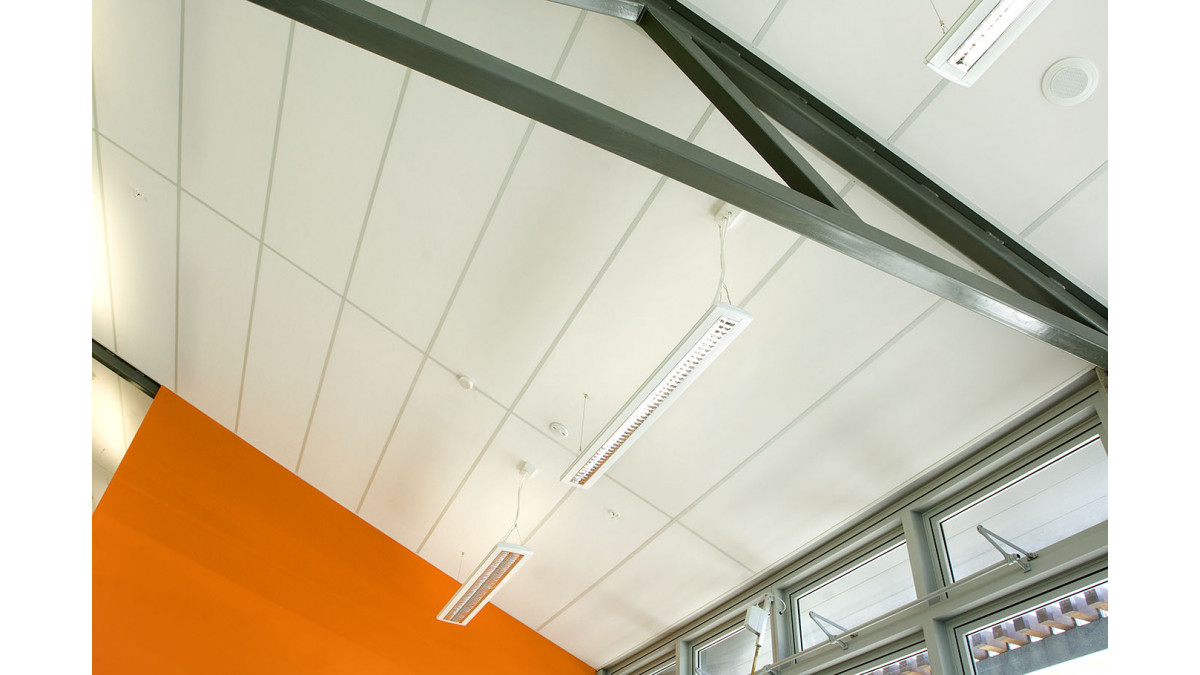

  • Ideal for use in open plan offices, schools, call centres, libraries and other applications that require control of background noise levels and reverberation times.
  • Light weight permits larger areas for high seismic prone areas
Limitations on Use
  • Shall not commence until the building is water tight and dry
  • Light fittings shall be independently supported
  • Backloading max. 1.5 kg/m², point loads shall be independently supported
  • Max 99% R/H at 45°C
  • Use hold down clips in areas of wind uplift
  • Not for air return plenums
Statement of Building Code Compliance
  • NZBC verification method C/VM2 material group number: 1-S
  • Clause B2 — durability, 5 years
In-Service History

Multi projects over many years.

Other Performance Attributes
  • Light Reflectance - 85% per BS8493:2008, White
  • Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0. Provides more absorption per
  • Fire Group 1-S
  • Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
  • Board formed from 80% recycled local glass
  • Low formaldehyde > 0.05 gm
  • Product stewardship renew and reuse program available
  • Packaging take back and reuse scheme available
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Asona Triton 25

24.9

Environmental Information - GreenTag Level A

230413

Maintenance: Triton Range
Warranty
