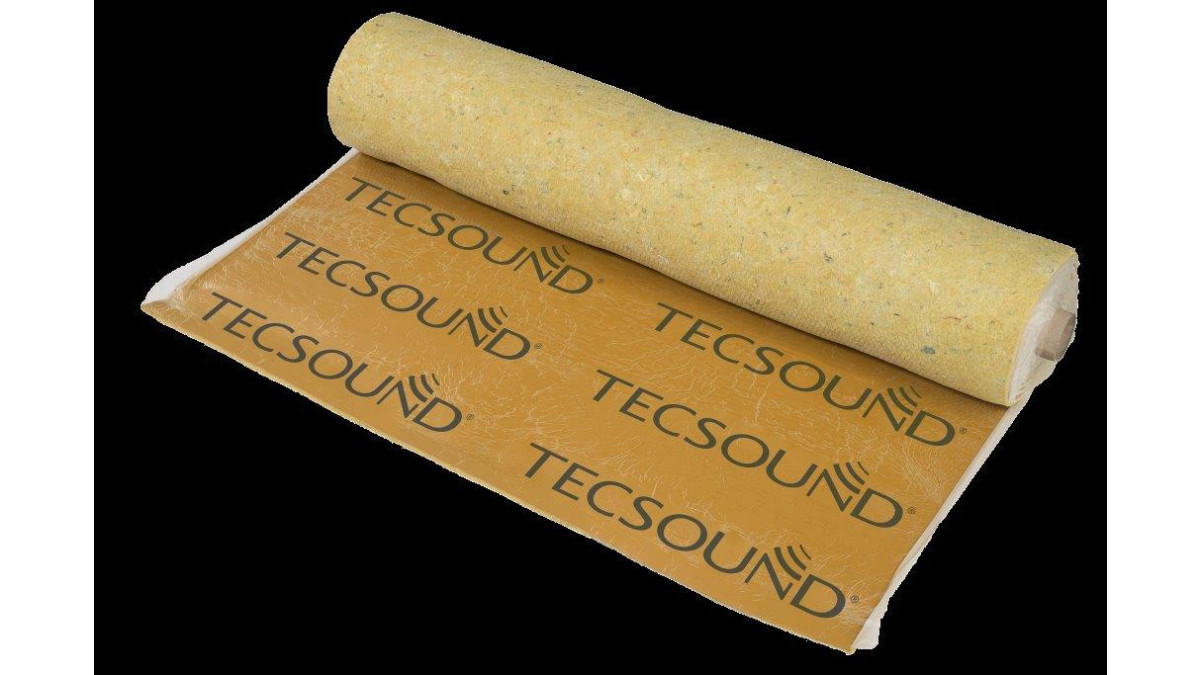

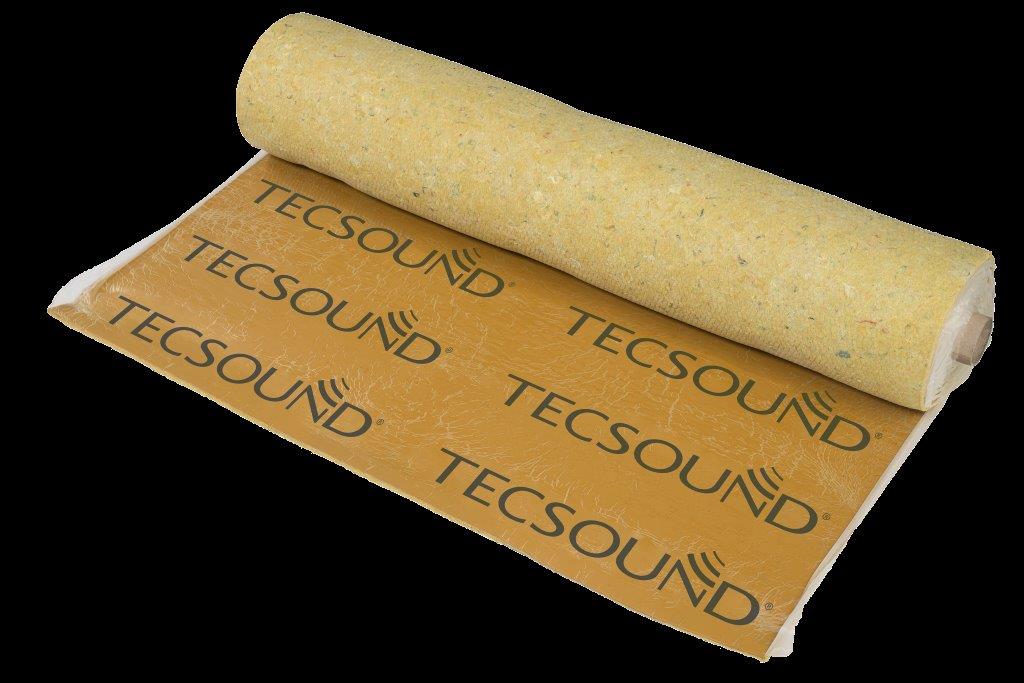

Tecsound FT
Description

Tecsound® FT is a mass loaded barrier designed for soundproofing of larger diameter pipes, and vertical surfaces.

Key Features
  • Soundproofing of all types of pipes and ducts: PVC, metal
  • Airborne noise insulation in ceilings and vertical surface
  • Low thickness assists installation
  • Suitable for new and refurbishment projects
  • Does not crack or break at low temperatures
  • Excellent ageing resistance
  • Easy to handle, cut and apply
  • Easy installation directly on larger diameter pipes and ducting
  • High performance for reduction of airborne and impact noise
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • New construction, refurbishment work, apartments, cinemas, theatres, sports complexes, night clubs, bars, restaurants, hotels, shopping centres
  • Residential or commercial buildings where liquids are moved via pipes through walls or floor/ceiling voids
Limitations on Use
  • For interior use only.
  • Operating Service Temperature: -10 up to 60°C.
  • Shall not commence until the building is water tight and dry. Application temperature shall be between 5—35°C
  • Prior to installation, contact adhesive must be applied to both the substrate and the Tecsound FT
  • Leave to dry per adhesive manufactures instructions before bonding the two surfaces
  • Pressure must be applied on all areas to ensure correct adherence
  • Where large areas are covered, overlap 5cm both lengthwise and crosswise
  • If the membrane cannot be overlapped, use the self-adhesive S50 Band 50 to seal butt joints
Statement of Building Code Compliance

NZ Building Act

  • This product is not subject to a warning or ban under Section 26.
  • NZ Building Code Compliance:

  • B2 Durability – Clause B2.3.1 (b) (i): Soprema Tecsound FT will have a minimum durability of at least 15 years when installed in accordance with manufacturer’s installation requirements.
  • C3 Fire – Clause C/AS2 4.12.1: Soprema Tecsound FT is to be tested. Due to its similarity to Tecsound SY, is likely to have a Fire Material Group Number 1-S (B-s1/s2), no greater than 2-S, by NZBC Building Product Specification Parts 8.5.3.1a), based on classification from BS EN 13501-1:2018.
In-Service History

Soprema LLC, for more than 100 years, is an international company specialising in developing high end sound proofing solutions and products for the building industry.

Other Performance Attributes
  • Acoustic insulation: Insertion loss of airborne noise ( ILa,A): 13 dB
Documents
Tecsound FT

25.11

Tecsound SY

25.11

Tecsound Tube S

25.11
