• Quicklock is specifically designed to meet the DQLS recommendation for 20% wall coverage at NRC 0.85 for classrooms, flexible learning spaces.
• Also ideal for meeting rooms, video conference rooms and corporate offices.

• For interior use only
• Do not install in wet areas
• For high impact zones consult Asona
• Building shall be closed in and dry, track and sound absorber panel may be installed early
• Fabric finish shall be installed once site is clean and free of dust and wet trades completed
• Direct exposure to sun light may result in fabric fade
• Fabric colour may vary batch to batch

NZ Building Act:

• This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

• B2 Durability – Clause B2.3.1 (b) (i): Asona Quicklock™ with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with manufacturer’s installation requirements.
• C3 Fire – Clause C/AS2 4.12.1: Asona Quicklock™ has a Fire Material Group Number 2-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660. BRANZ test report FH5320-12-2. Alternative fabrics to that tested may result in a different Group number rating.

• Foodstuffs NI
• CCC. Christchurch

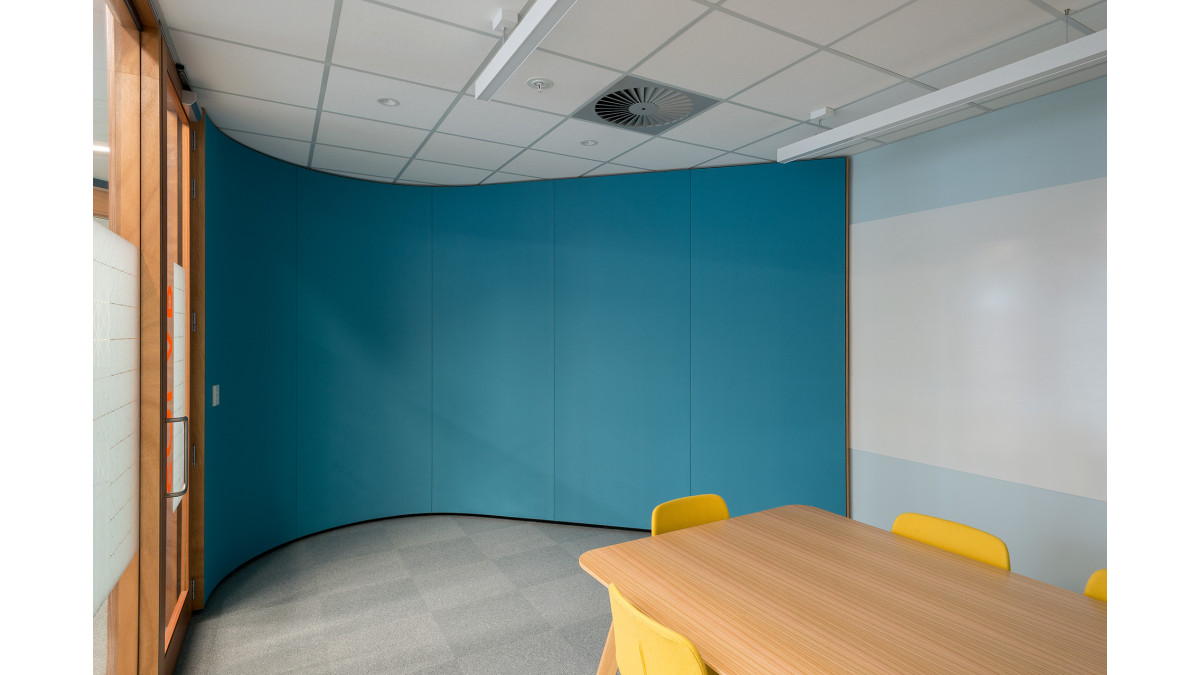

• Genesis, Penrose, Hamilton
• Paerata School, South Auckland
• Karaka Lifestyle Estate clubhouse lounge, South Auckland
• St Peters, Tauranga
• Manukau Courtrooms
• Anthony Harper, Auckland
• Takina, Wellington

• Sound absorption up to NRC 1.00
