Knauf-Danoline Solopanel
Description

Solopanel is a continuous to-the-edge perforated acoustic ceiling system designed for large volume areas to control noise reverberation such as auditoriums, atriums, offices, meeting rooms, libraries, hotels, malls, halls, receptions, retail, civic buildings, galleries and large public spaces.

Panels are manufactured from press-punched perforated, reinforced plasterboard with grey sound absorption felt fixed on the back.  Panels are screw-fixed to battens and machined UFF joints plastered for a monolithic finish.



Key Features
  • Continuous perforations with UFF edges for a seamless, monolithic look
  • Good sound absorption for control of reverberation
  • Fire Group 1-S
  • Wide range of perforation patterns
  • Ideal for large volume areas
  • Durable long lasting acoustic finish
  • Suitable for ceilings and wall linings
  • Cleaneo™ air purification technology for control of VOCs
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use
  • Suitable for ceilings and walls
  • Acoustic system designed for auditoriums, atriums and large public spaces.
  • Ideal for large volume areas, requiring a durable acoustic finish which is easy to repaint and maintain long term
  • Panels are screw-fixed to battens
Limitations on Use
  • Installed Conditions — Max 90% R/H at 30°C
  • Not for use with negative air return plenums, in direct contact with moisture or in extreme humidity conditions
  • Loading - Maximum weight that can be directly integrated into the ceiling eg: lighting, A/C grill, speakers etc, shall not exceed 1.5kg. Greater weights shall be independently supported
  • To maintain acoustic performance do not spray paint
  • Stock subject to prior sale, lead times may apply, consult Asona
Statement of Building Code Compliance
  • NZBC: Clause B2—durability, 5 years
  • Fire Reaction: C/VM2 / ISO 5660.1, Group number 1-S
In-Service History

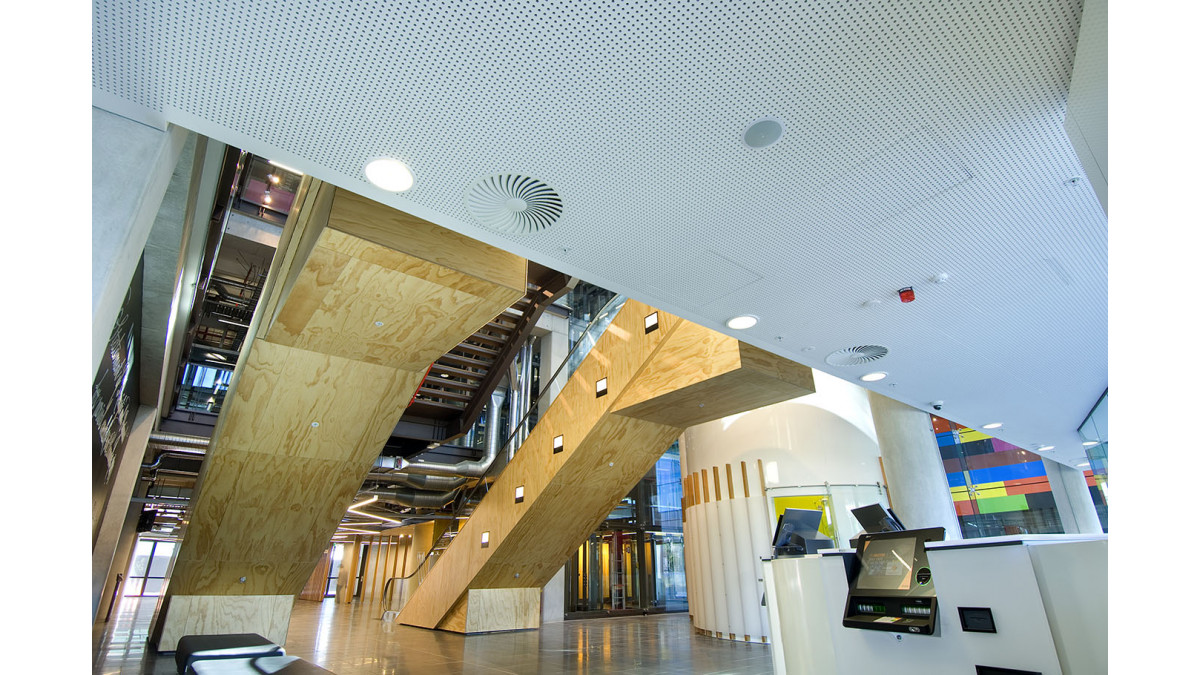

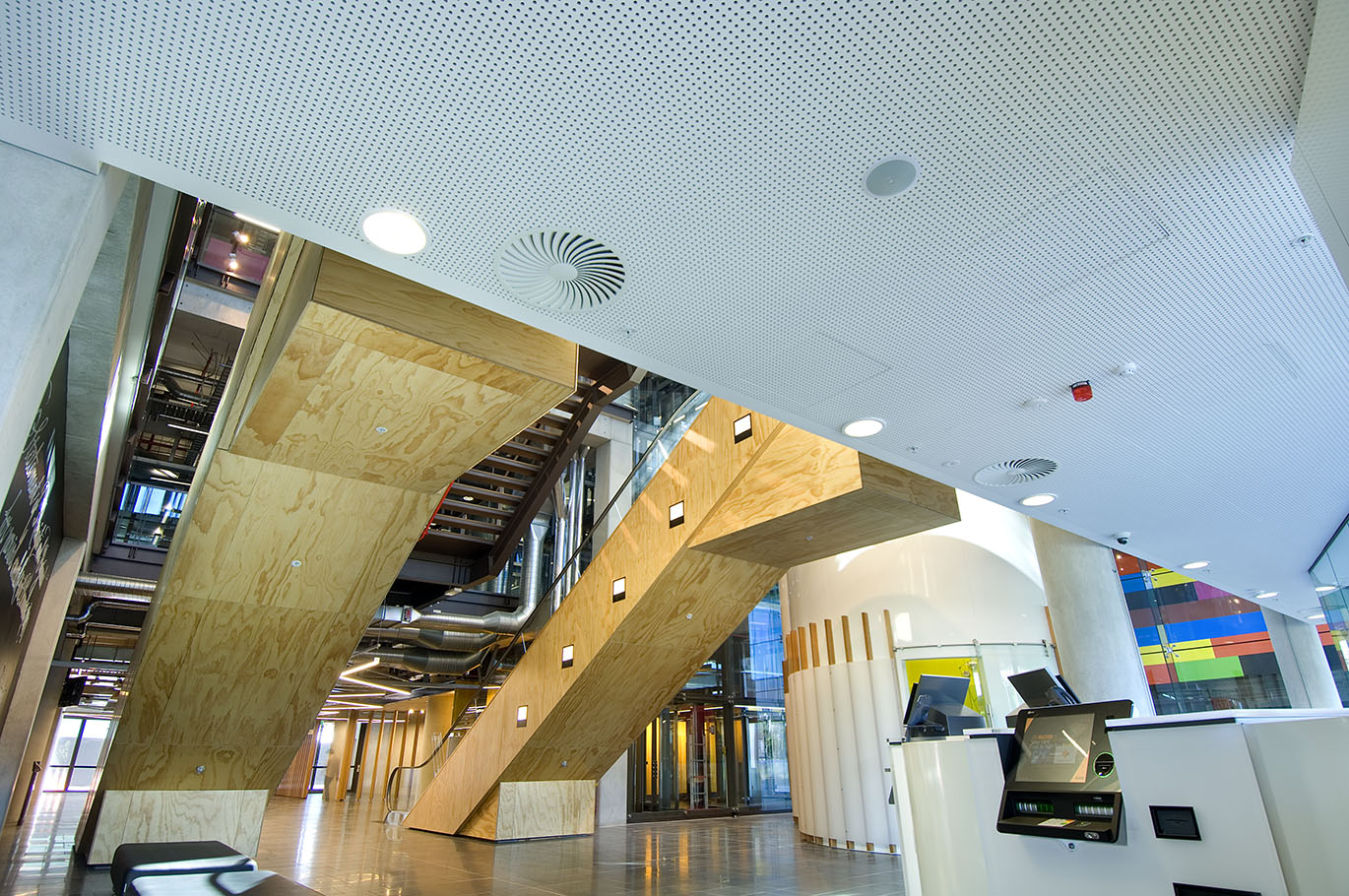

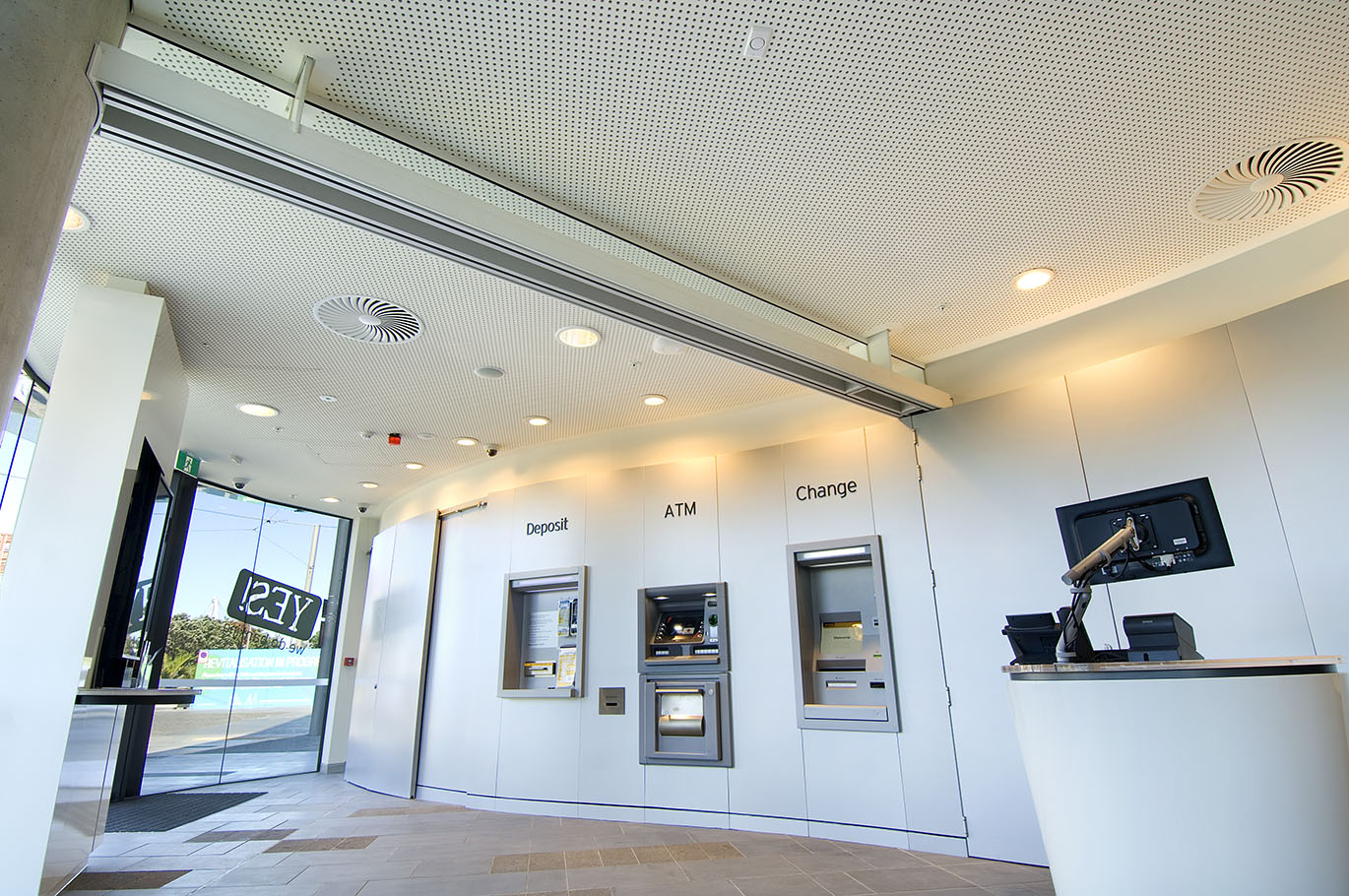

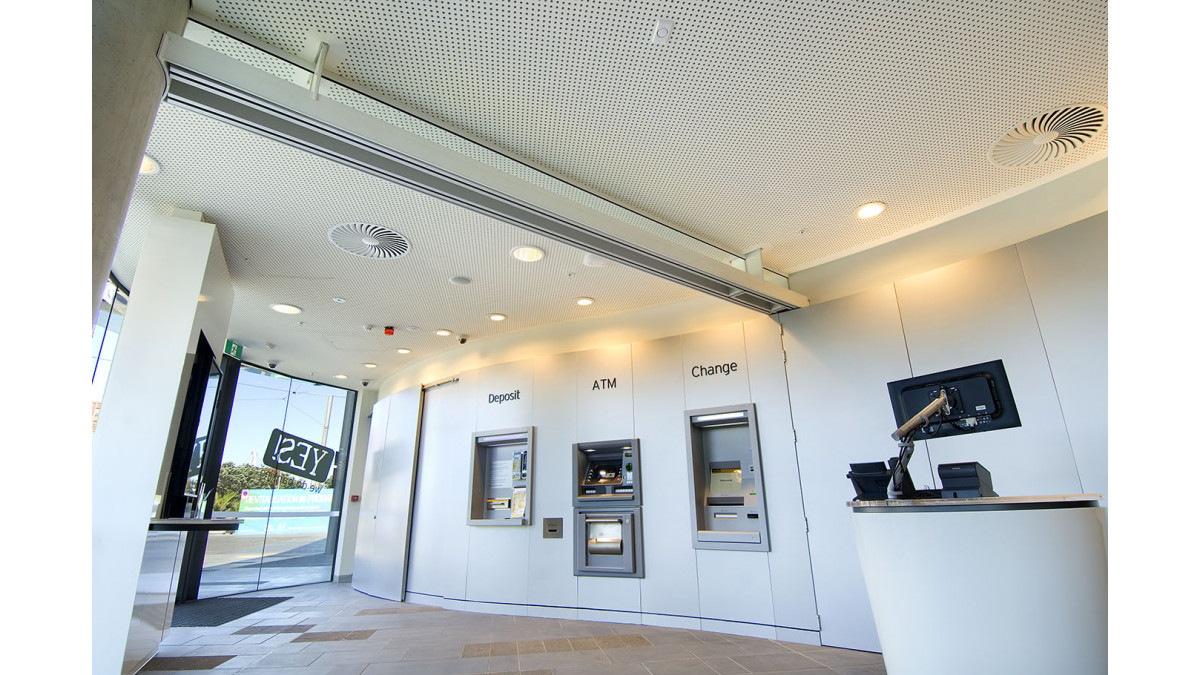

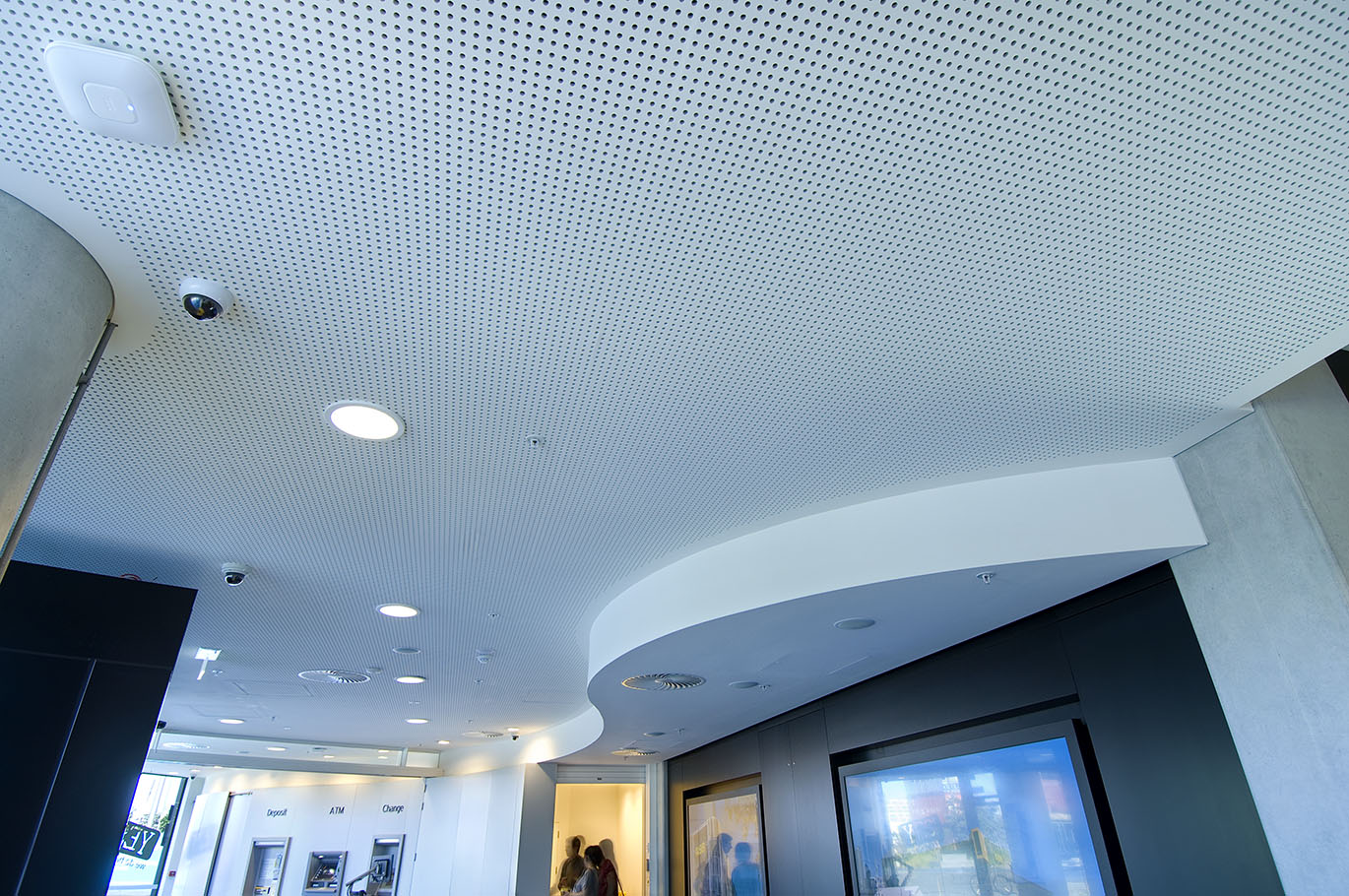

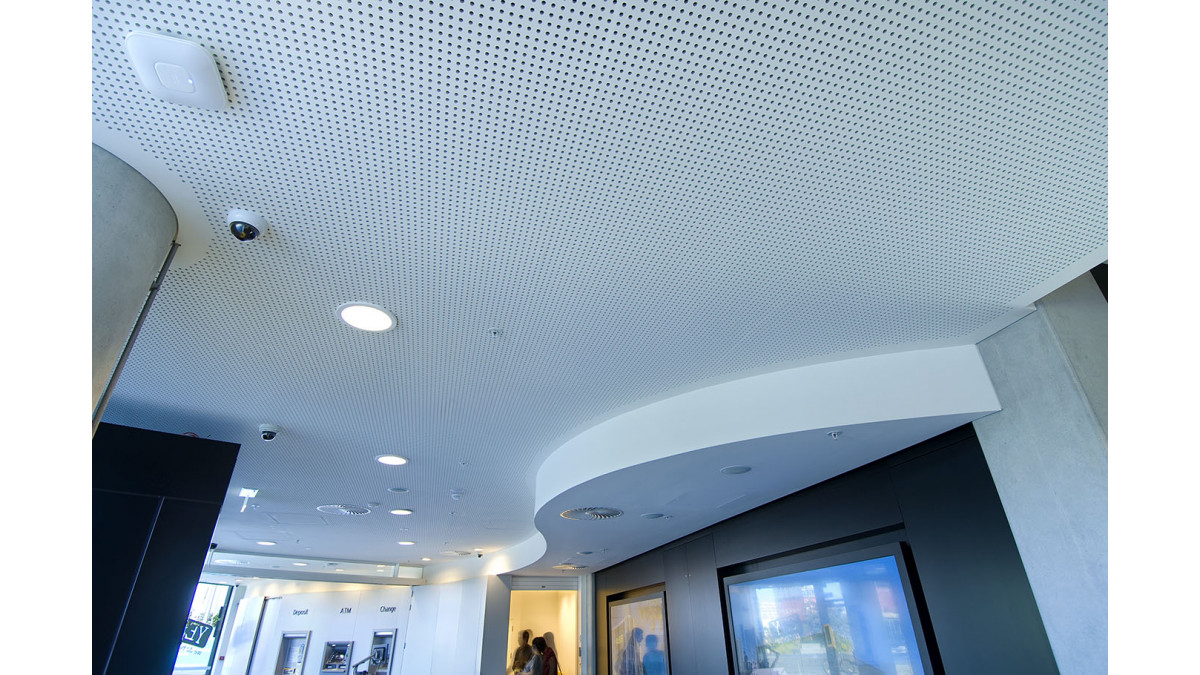

  • ASB North Wharf
Other Performance Attributes
  • Good sound absorption for control of reverberation — see Data Sheet
  • Light reflectance: 73% DIN 5036 pt 3, White
  • Maintenance: Clean with damp cloth
  • Cleaneo™ air purification technology for control of VOC’s.
B2 Durability compliant
Durability
Interior Fire Rating 1S
1S
Test Results
Test Results
Documents
Knauf-Danoline Solopanel

23.12

Knauf Danoline Warranty Info
Plasterboard Care & Maintenance
