Asona Polyfon Pinboard
Description

Polyfon Pinboard is a superior high density polyester fabric wrapped wall panel available in a wide range of decorative fabric finishes.

Key Features
  • Tackable wall finish
  • 3 x standard sheet sizes and custom sizes to order.
  • Available in a wide range of coloured fabric finishes.
  • Base board is compressed polyester for a superior flat finish.
  • Sound absorption rating to control reverberation up to NRC 0.50.
  • Global GreenTag Level B, low VOC material.
  • Light weight.
  • Rigid panel can be fixed to studs or battens at 300mm centres or glue fixed over plasterboard lining.
  • Easy to trim and install.
  • Available to order, lead times 2-3 weeks
Scope of Use

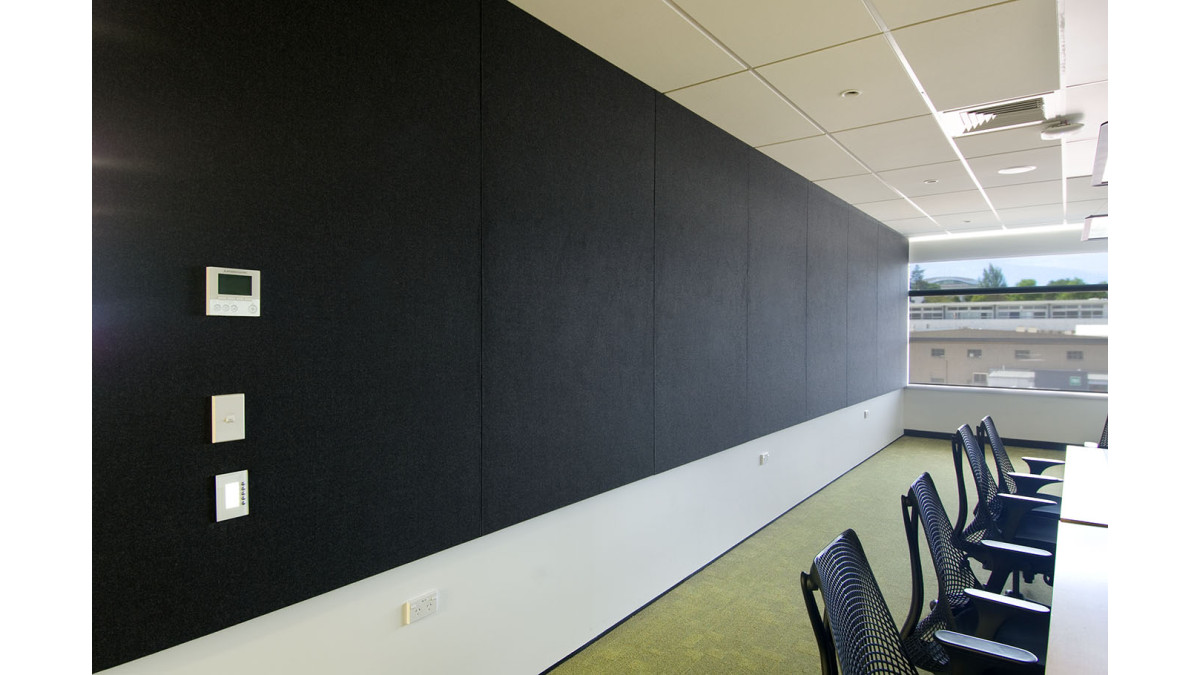

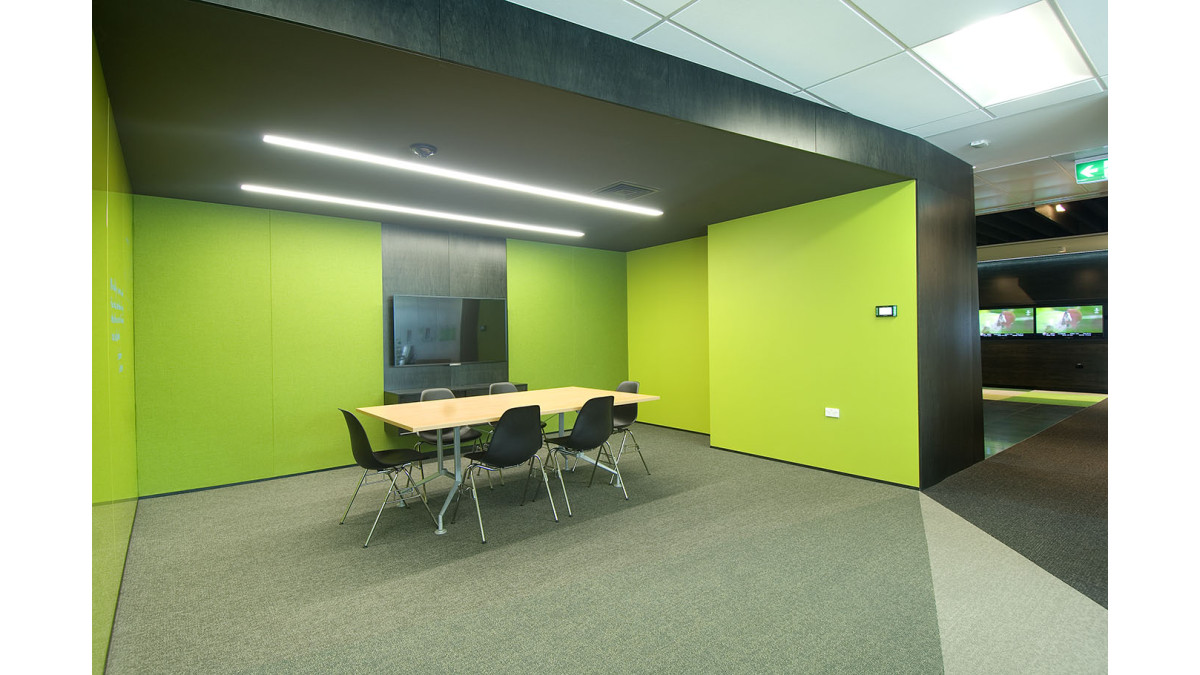

  • Polyfon Pinboard is designed for use in general office and the education environment where a tackable wall surface is required.
  • Suitable for notice boards, meeting rooms, training rooms, classrooms and corridors.
  • A variety of woven and non woven fabric finishes are available. Please contact Asona for full range.
Limitations on Use
  • For interior use only, and not in direct contact with water.
  • Maximum humidity/temperature 95% R/H at 30°C.
  • Shall not commence until the building is water tight and dry. Panels shall be glue fixed to wall lining or glued and pinned to timber framing at 300 mm centres. Care shall be taken when handling to avoid damage. Store panels on pallets in a clean dry place.
Statement of Building Code Compliance
  • B2 Durability – Clause B2.3.1 (c) (i): Asona Polyfon Pinboard with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with; manufacturer’s installation requirements.
  • C3 Fire – Clause C/AS2 4.12.1: Asona Polyfon Pinboard with polyester fabric has a Fire Material Group Number 1-S by NZBC Building Product Specification Parts 8.5.4 or 8.5.5, tested in accordance with ISO 9705 or ISO 5660. Other fabrics 2-S, 2 and 3. Please consult Asona.

This product is not subject to a warning or ban under Section 26.

Other Performance Attributes
  • Global GreenTag Level B
  • Low VOC material
Green Tag Certified
Green Tag Certified
Documents
Polyfon Pinboard

26.05

Environmental Information - GreenTag Level B: Polyfon

260430

Asona Ltd are a manufacturer, distributor and installer of acoustic and decorative ceiling and wall panels.
