LCN 4040XP/4040XPT Series Surface Mounted Door Closers
Allegion
All products

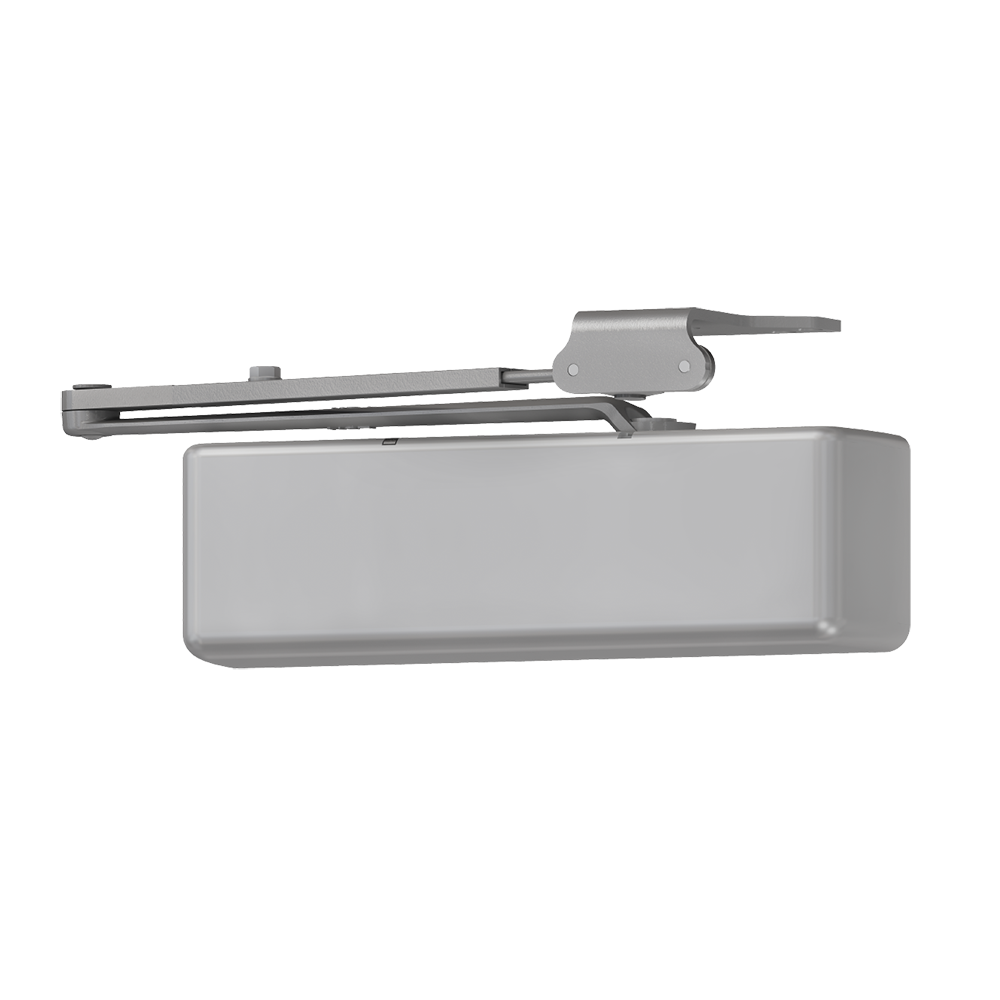

LCN 4040XP REGARM 689 1000x1000 SR

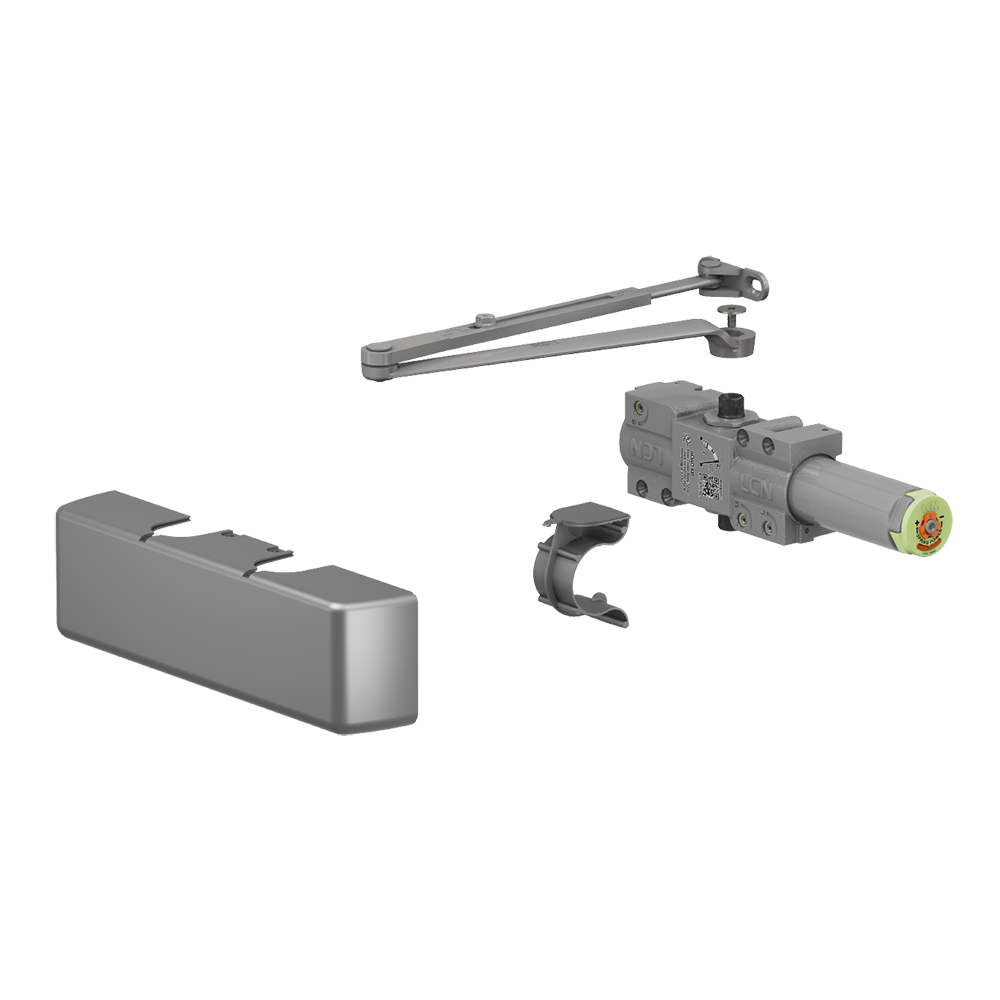

LCN 4040XP Exploded 1000x1000

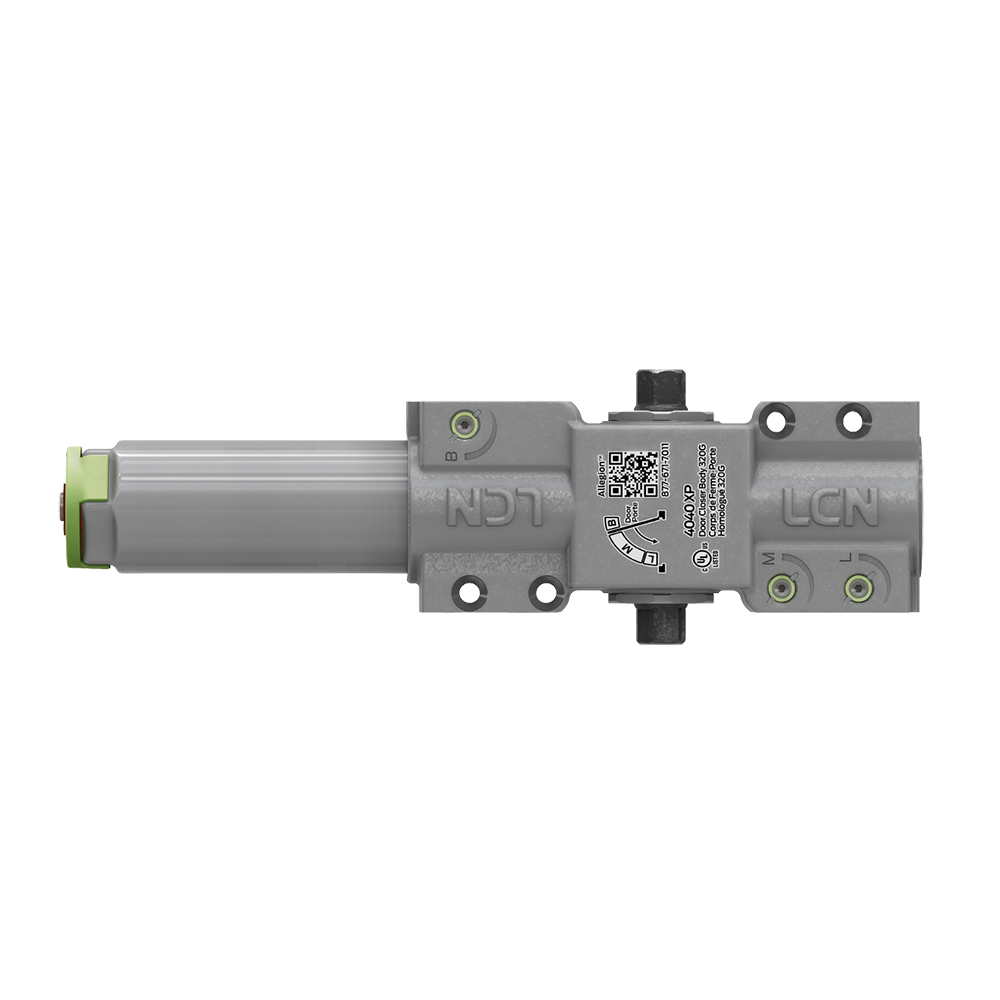

LCN 4040XP 3071 1000x1000 HO
Description

The LCN 4040XP Series is a non-handed surface mounted door closer. A wide choice of options, mounting accessories and ease of installation offer maximum versatility.

The LCN 4040XP Series is a heavy-duty door closer designed to be used on aluminium, hollow metal or wood swinging commercial interior/exterior doors and is ideally suited for hospitals, educational, institutional and other high traffic applications.

Key Features
  • Universal, fully reversible, non-handed door closer
  • Closer cylinder constructed of high strength cast iron for extra durability
  • Tested to 10,000,000 cycles
  • Fully adjustable 1-6 spring strength to suit door size and site conditions
  • Strength: 1-6 adjustable, factory set to strength 3
  • Universal, fully reversible, non-handed door closer
  • Standard closer offers 3 installation options: Regular (pull side), Top jamb (pull side), Parallel arm (push side)
  • Independent adjustment valves for adjusting backcheck, closing and latching speeds
  • All adjustment valves are concealed behind the cover to prevent tampering
  • Joints in arms and shoe brackets adapt to uneven mounting surfaces
  • Fast adjust dial (fast accurate spring tension) to help installers accurately adjust the closer to match the conditions of the application. As spring power is adjusted, the size appears on the face of the dial
  • Cush-N-Stop® function has a built-in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Categories
Door Closers
Ranges
Door Controls
Scope of Use
  • Door type: timber or metal
  • Door size: external door 610 - 1219mm, internal door 610 - 1524mm
  • Applications: regular — pull side mount, parallel arm — push side mount, top jamb — push side mount
  • Universal, fully reversible, non-handed door closer
  • Options: Hold open arm, adaptor plate, parallel arm drop plate, square metal cover
Other Performance Attributes
  • Tested to 10,000,000 cycles
  • Strength: 1-6 adjustable, factory set to strength 3
