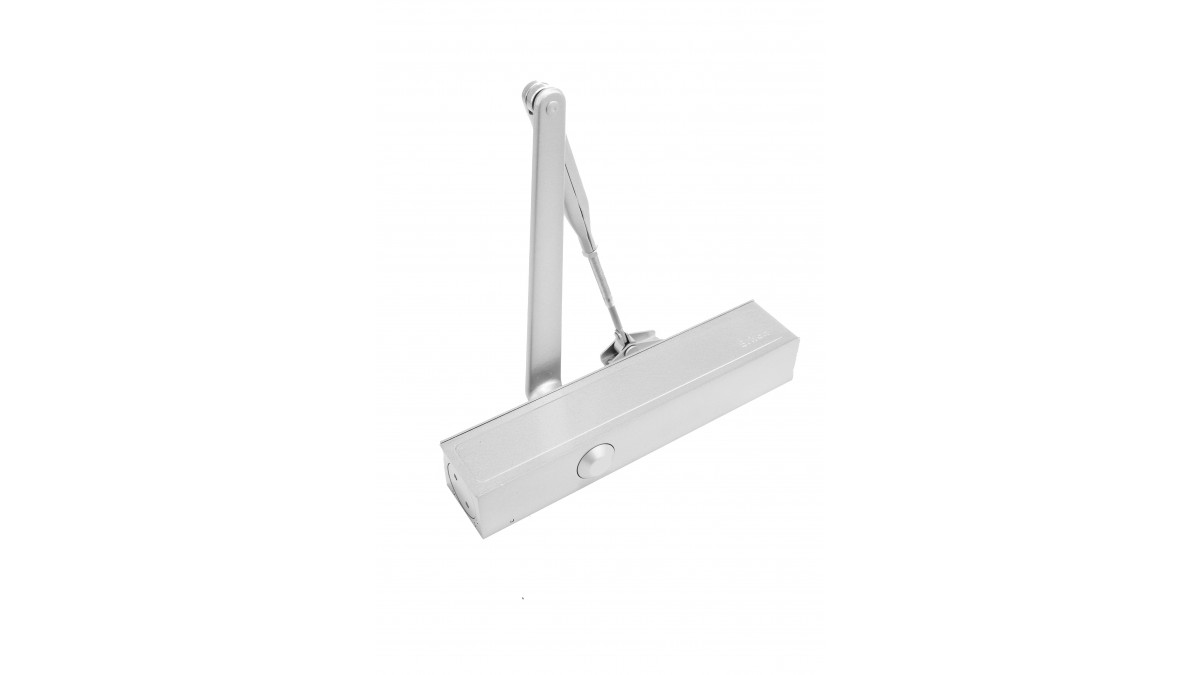

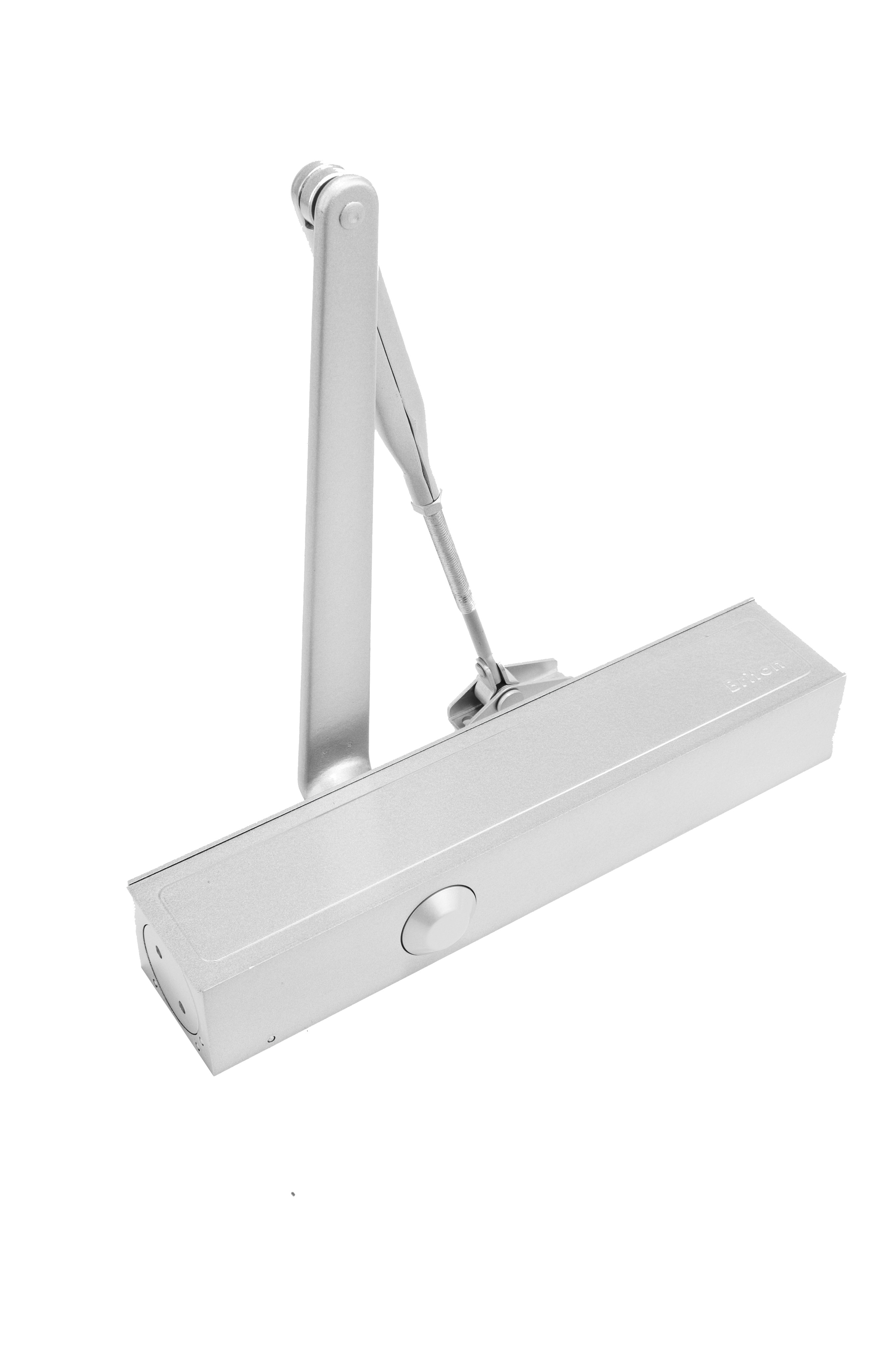

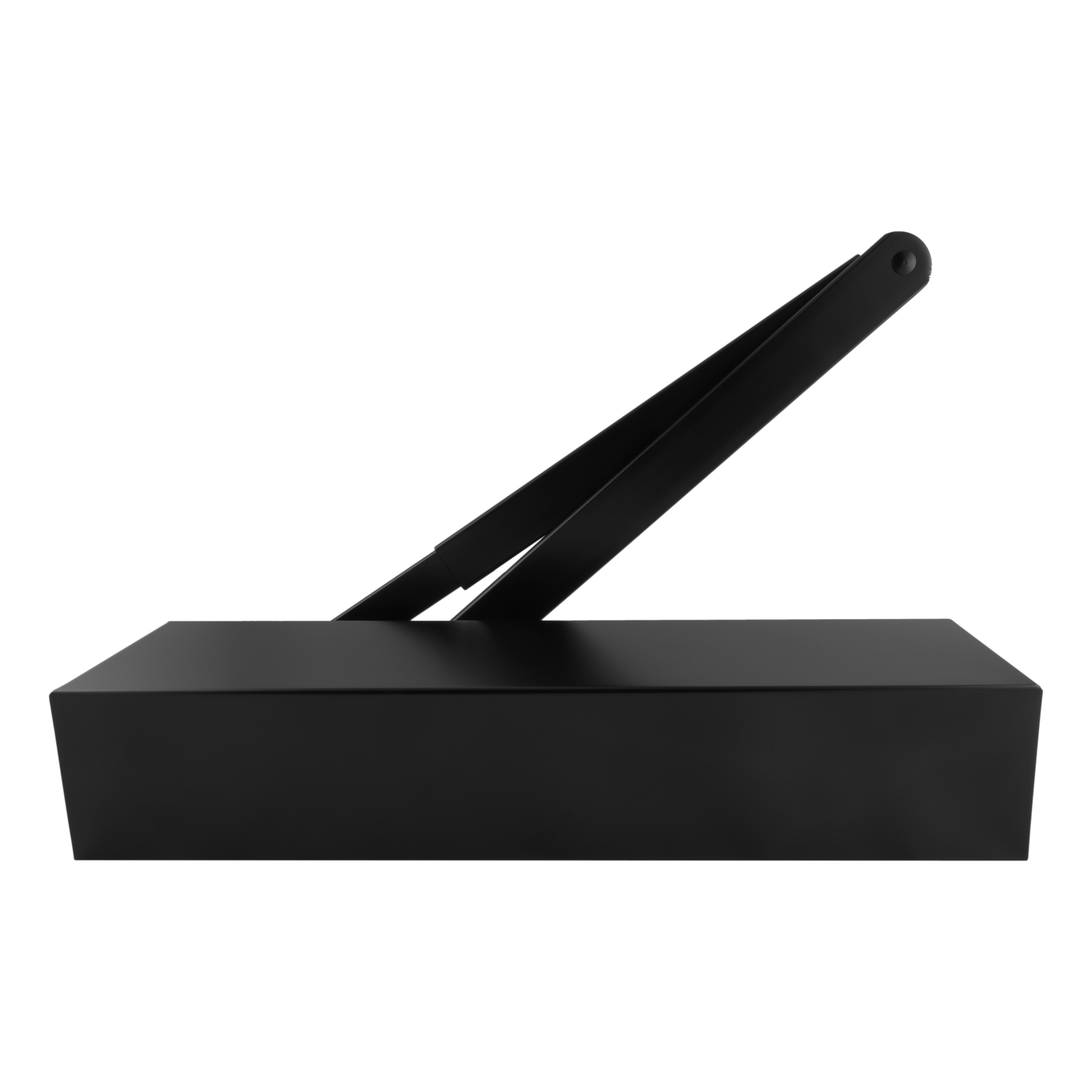

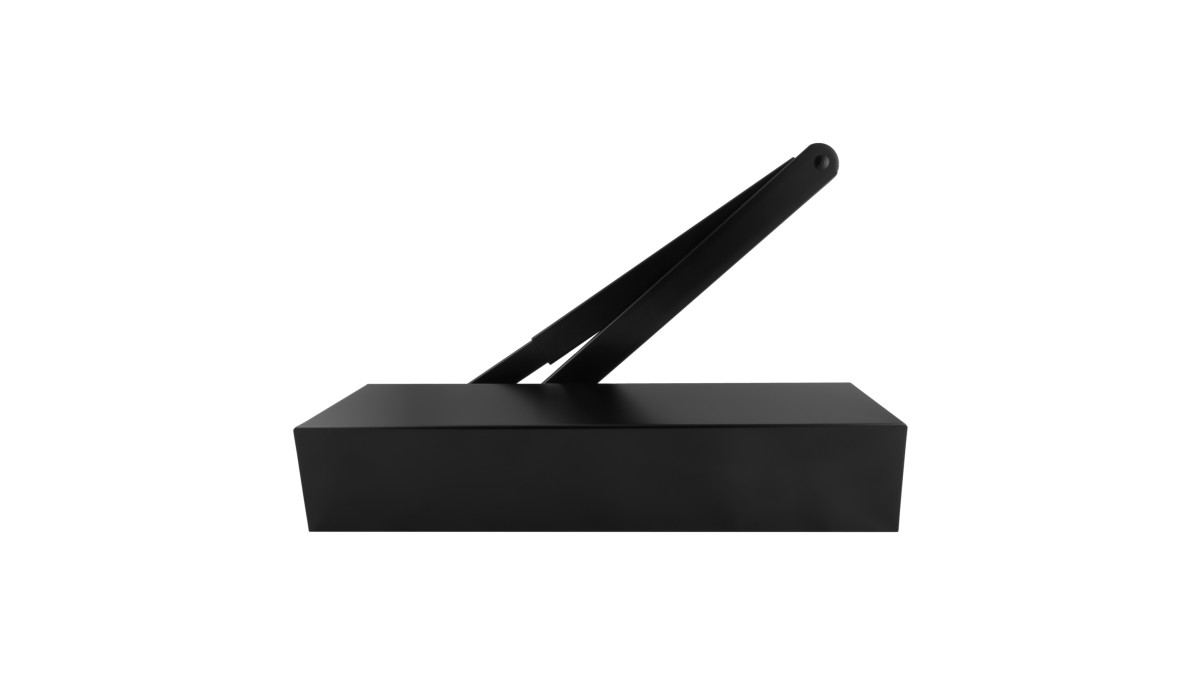

Briton 1130 Series
Description

The Briton 1130 Series is a non-handed, slimline closer suitable for commercial interior/exterior wooden and metal doors. The back check and regulators are hydraulically controlled which can adjust the closing speed. The 1130 has a precision rack and pinion mechanism, and is easily mounted to the surface on the door or the top jamb.

Hold open and track arm versions also available.

Key Features
  • Universal, fully reversible, non-handed door closer
  • Closer body constructed from pressure die-cast aluminium with a steel rack and pinion
  • Tested to 500,000 cycles
  • Fully adjustable 1-6 strength regular arm, 1-4 strength track arm
  • Factory set to strength 3
Categories
Door Closers
Scope of Use
  • Non-handed, slimline closer suitable for commercial interior/exterior wooden and metal doors
  • Door type: Timber or metal
  • Door size: Refer to product catalogue
  • Applications: Regular: pull side mount, parallel arm: push side mount, top jamb: push side mount
  • Adjustment controls: Closing speed, latching speed, backcheck, delayed action (NZ Standard)
  • Strength: Regular - 1-6 adjustable, track arm _ 1-4 adjustable
  • Options: Hold open arm, adaptor plate, parallel arm drop plate
Documents
Data Sheet
Installation and Operation
Commercial Warranty 2023
Brochure
Caring for Door Hardware

Allegion locally manufactures residential and commercial hardware: electronic locks, mechanical door furniture, cylinder, keying, door control, exit devices and hardware for sliding and folding doors.
