Mitigating the Risk in Watertight Roofing and Decking Solutions

Viking Roofspec mitigate risk through the quality of their products, certified applicator network and collaborative partnerships.

Although electronic leak detection isn't mandatory in the construction industry, Viking Roofspec operates by the mantra of providing 'absolute risk minimisation'. Having recognised the value of electronic lead detection, they frequently recommend its use where practicable.

Recent innovation in electronic leak detection technology allows for any leak to be identified, isolated and repaired — removing the time, 'guess work' and pain for building owners from traditional flood testing methods.

Recognising the value of this new technology, Viking sent samples of their membranes to International Leak Protection (ILD) to test compatibility. Viking's GM Torch-on systems and Enviroclad TPO membranes were suitable for use with ILD's electronic leak detection system.

It is rare that installations of Viking membranes incur leaks, but Viking recognises that it can happen and offers a solution to customers through ILD that is simple and easy to identify through.

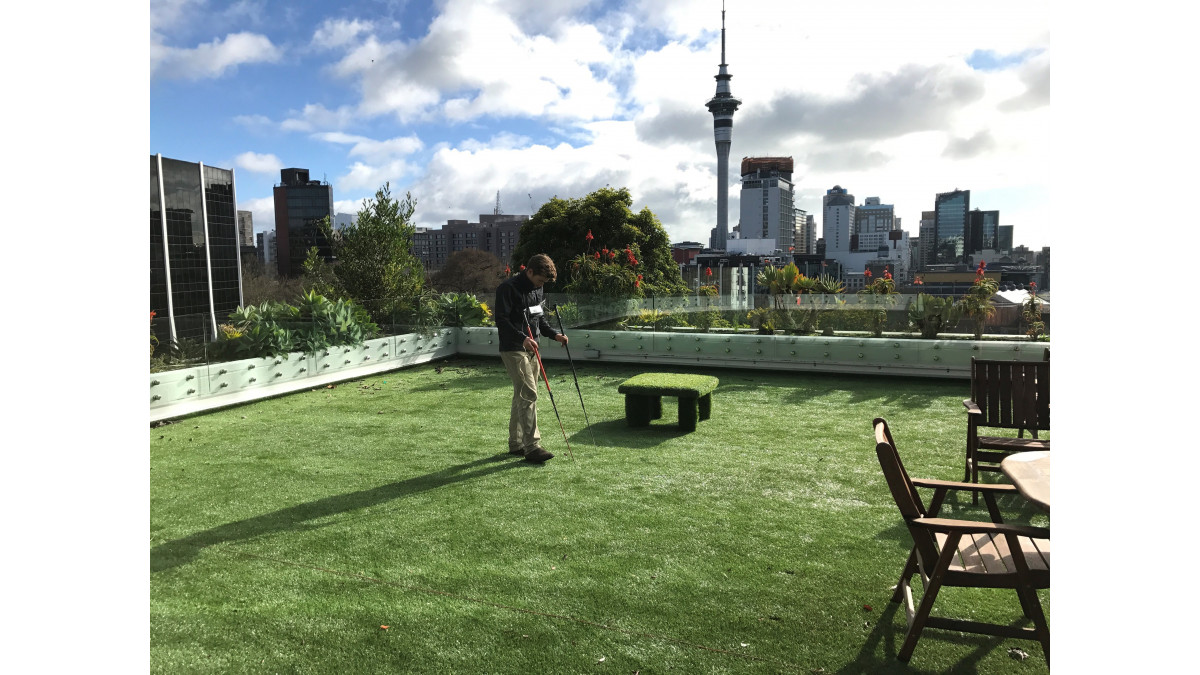

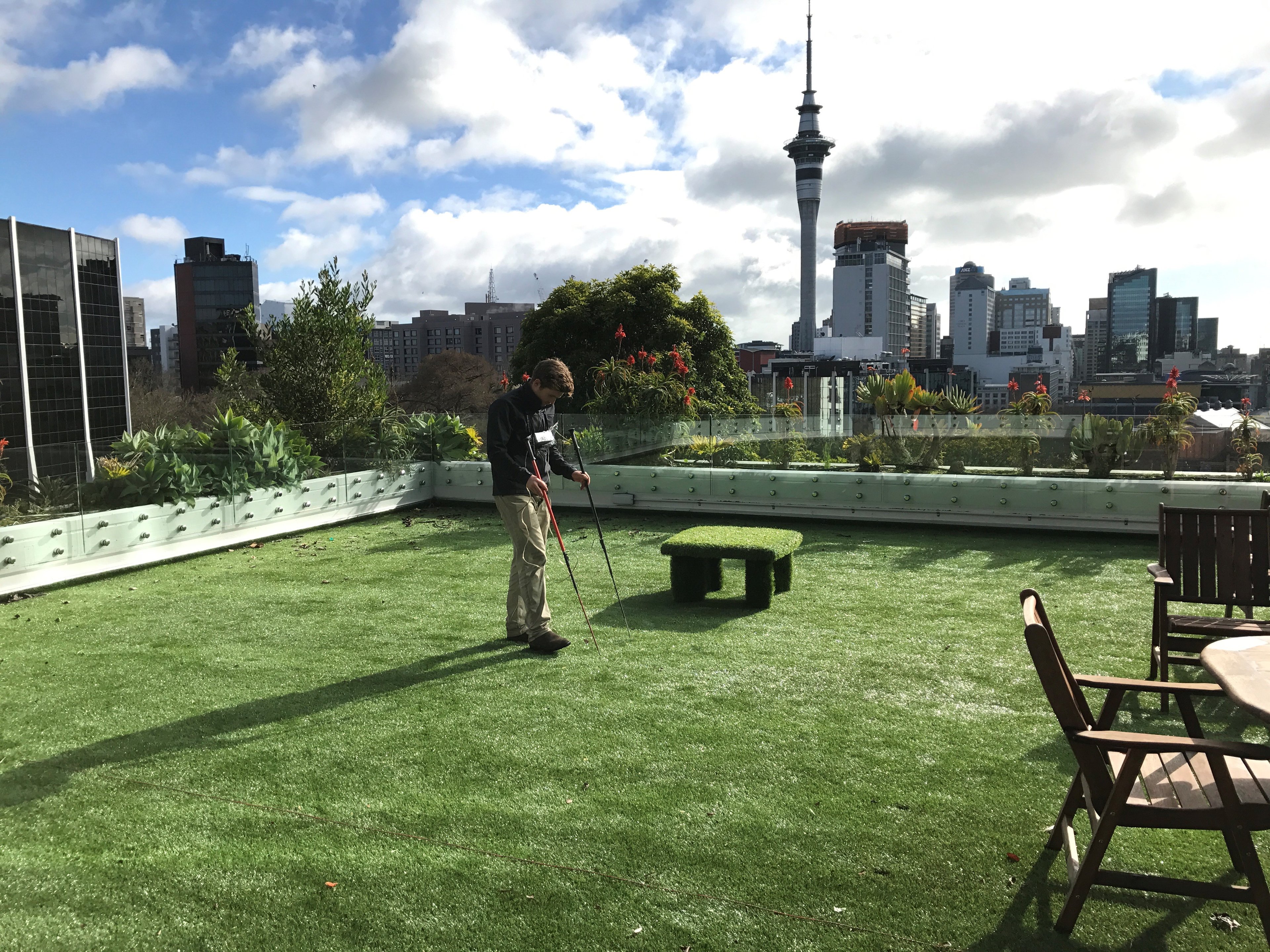

So how does electronic leak detection work? A wire mesh grid is laid under the waterproofing membrane and connected to sensors. The membrane surface is covered with water to create a conductive medium. The system emits an electric current through the water and in the event of membrane breach, a ground fault connection is created that allows the technician to read the electric flow and to locate the leak point immediately.

Electronic leak detection is significantly important for roof gardens systems where the growth medium and plants are installed on top of the membrane; a traditional flood test would not be able to be repeated post-installation. The installation of an ILD system prior to membrane installation means any leaks can be easily identified and rectified.

The benefits of ILD:

Non destructive to membrane
Creates pinpoint accuracy
Can be measured during product lifespan

Never leave risk to chance; specifying a Viking Roofspec waterproof membrane system complemented with ILD gives an added layer of protection and confidence.

Enviroclad (TPO) Waterproofing Membrane

Viking Roofspec

View Product

Viking Enviroclad offers absolute watertight integrity for low-slope roofs.

NZ-Owned Business

Viking Enviroclad Roofing and Deck Membrane System has been assessed as a roof and deck waterproofing membrane on buildings within the following scope:

the scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, paragraph 1.1; or,
the scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
situated in NZS 3604:2011 Wind Zones, up to, and including Extra High; and,
with substrates of plywood or suspended concrete slab

Viking Enviroclad Roofing and Deck Membrane System has also been assessed for use as a roof and deck waterproofing membrane on specifically designed or existing buildings within the following scope:

subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.7 kPa; and,
with substrates of plywood or suspended concrete slab
with the weathertightness design of junctions for each specific structure being the responsibility of the building designer

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (a), (c), (e), (h), (m) and (p) Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b) and B2.3.2 (a), 15 years. Viking Enviroclad Roofing and Deck Membrane System meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking Enviroclad Roofing and Deck Membrane System meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Enviroclad Roofing and Deck Membrane System meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Viking Roof Garden System

Viking Roofspec

View Product

The focus on improving the quality of life in our urban environments and reducing the impact on our buildings, can be assisted with the installation of a Viking Roof Garden System.

NZ-Owned Business

The Viking Roof Garden System is suitable for use on buildings within the following scope:

with substrates of suspended reinforced concrete; and,
with each structure being subjected to specific structural engineering and weather-tightness design

Clause B1 STRUCTURE: Performance B1.3.1.
Clause B2 DURABILITY: Performance B2.3.1(b).
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

Structure

Durability

External Moisture

Hazardous Building Materials

Viking Gemini APP TorchOn Membrane

Viking Roofspec

View Product

Viking Gemini APP is a robust and versatile membrane system ideally suited to New Zealand's North Island (except the Central Volcanic Plateau) and the Pacific Islands.

NZ-Owned Business

Viking Gemini APP is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Gemini APP Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Viking Gemini APP Waterproofing Membrane has also been assessed for use as a roof waterproofing membrane on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Gemini A.P.P Waterproofing Membranes meet this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Gemini A.P.P Waterproofing Membrane meet this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Gemini A.P.P Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Gemini A.P.P Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Viking Lybra SBS TorchOn Membrane

Viking Roofspec

View Product

Viking Lybra SBS is a robust and versatile membrane system ideally suited to New Zealand's South Island and the North Island's Central Volcanic Plateau.

NZ-Owned Business

Viking Lybra SBS is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks such as roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Lybra SBS Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees)

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c). Viking GM Lybra S.B.S Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking GM Lybra S.B.S Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

CodeMark

Viking Phoenix Super APAO

Viking Roofspec

View Product

Viking's 'Platinum' torch-on solution can be installed anywhere in the world.

NZ-Owned Business

Viking Phoenix Super APAO is suited to tricky / confined roofs where it can be 'bled' in to vulnerable areas such as tight corners and awkward areas susceptible to leaks like roof penetrations, internal corners and gutter junctions.

It is suitable for low-slope roofs (flat or curved), gutters and parapets, waterproofing beneath a floating deck, inland and coastal conditions, commercial and residential buildings.

Viking Phoenix Super APAO Waterproofing Membrane has been assessed as a roof waterproofing membrane on buildings within the following scope:

The scope limitations of NZS 3604:2011 and NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
The scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area when subject to specific structural design; and,
Situated in NZS 3604:2011 Wind Zones, up to and including Extra High; and,
With substrates of plywood or suspended concrete slab; and,
With a minimum fall for roofs of 1:30 (2 degrees).
Viking Phoenix Super APAO Waterproofing Membrane has also been assessed for use as roof waterproofing membranes on buildings within the following scope:

Subject to specific structural and weathertightness design situated in wind pressures up to a maximum design differential ultimate limit state (ULS) of 6 kPa: and,
With substrates of plywood or suspended concrete slab.

Clause B1 STRUCTURE: Performance B1.3.1 and B1.3.4 (b) (c) (d) (e) for the relevant physical conditions of B1.3.3 (p). Viking Phoenix Super APAO Waterproofing Membrane meets this requirement.
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years. Viking Phoenix Super APAO Waterproofing Membrane meets this requirement.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2 and E2.3.7 (b) and (c)Viking Phoenix Super APAO Waterproofing Membrane meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Phoenix Super APAO Waterproofing Membrane meets this requirement and will not present a health hazard to people.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised
