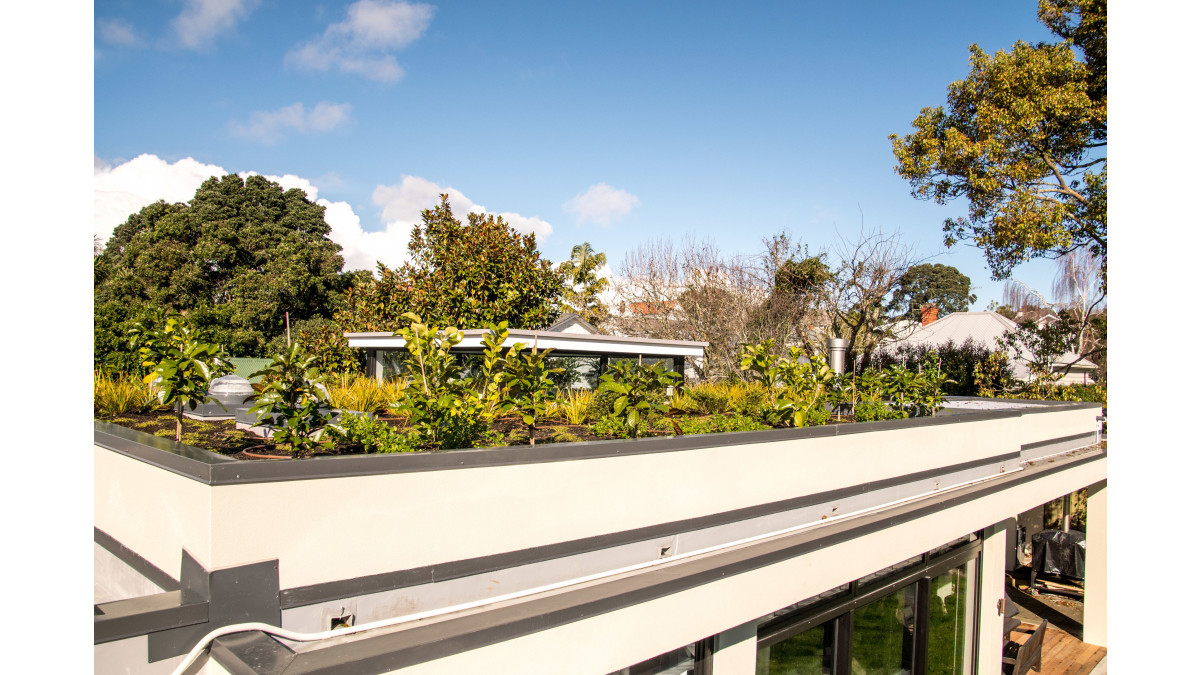

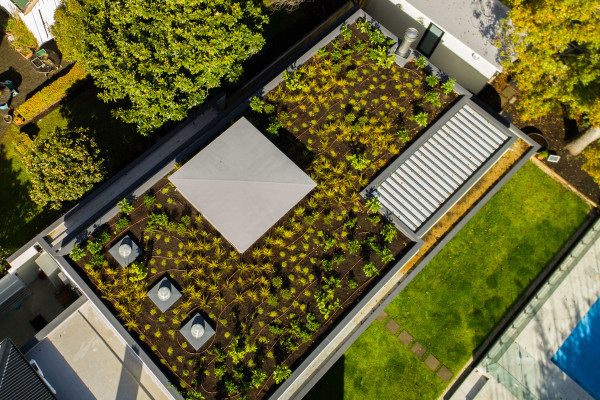

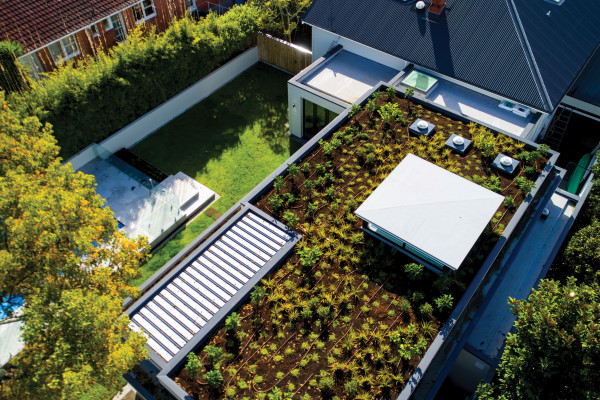

Viking Roof Garden System
Description

The focus on improving the quality of life in our urban environments and reducing the impact on our buildings, can be assisted with the installation of a Viking Roof Garden System. A roof garden is a roof that is partially or completely covered with vegetation and soil; lined by a membrane that ensures the living space below remains watertight.

As compelling as the idea of a roof garden can be, there are several facets that must be executed correctly to ensure a successful roof garden installation. A dead roof garden, or worse-still, a leaking one is a hugely expensive issue to resolve.

Key factors include:

  • An appropriate waterproofing membrane layer
  • Only trained applicators installing that membrane system – (to the manufacturer’s specification)
  • Proven roof garden drainage components that have been sourced from the same reputable manufacturer
  • The soil (a.k.a growth medium) having been specifically formulated for roof gardens eg: high draining soil full of pumice, compost and perlite
  • Plants and grasses that aren’t too thirsty and don’t possess aggressive root structures
  • A maintenance programme employed, or better still, proprietary watering system

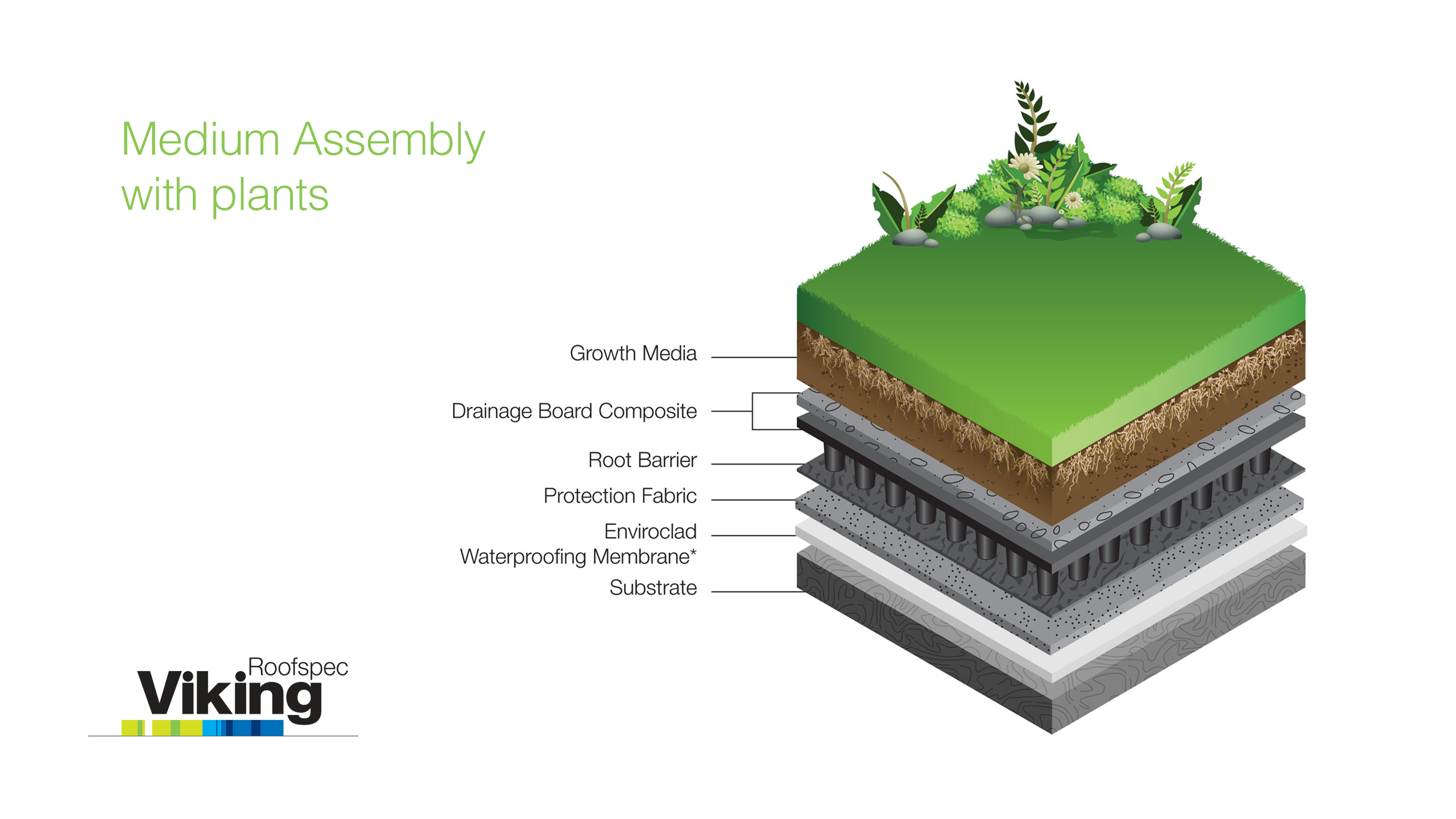

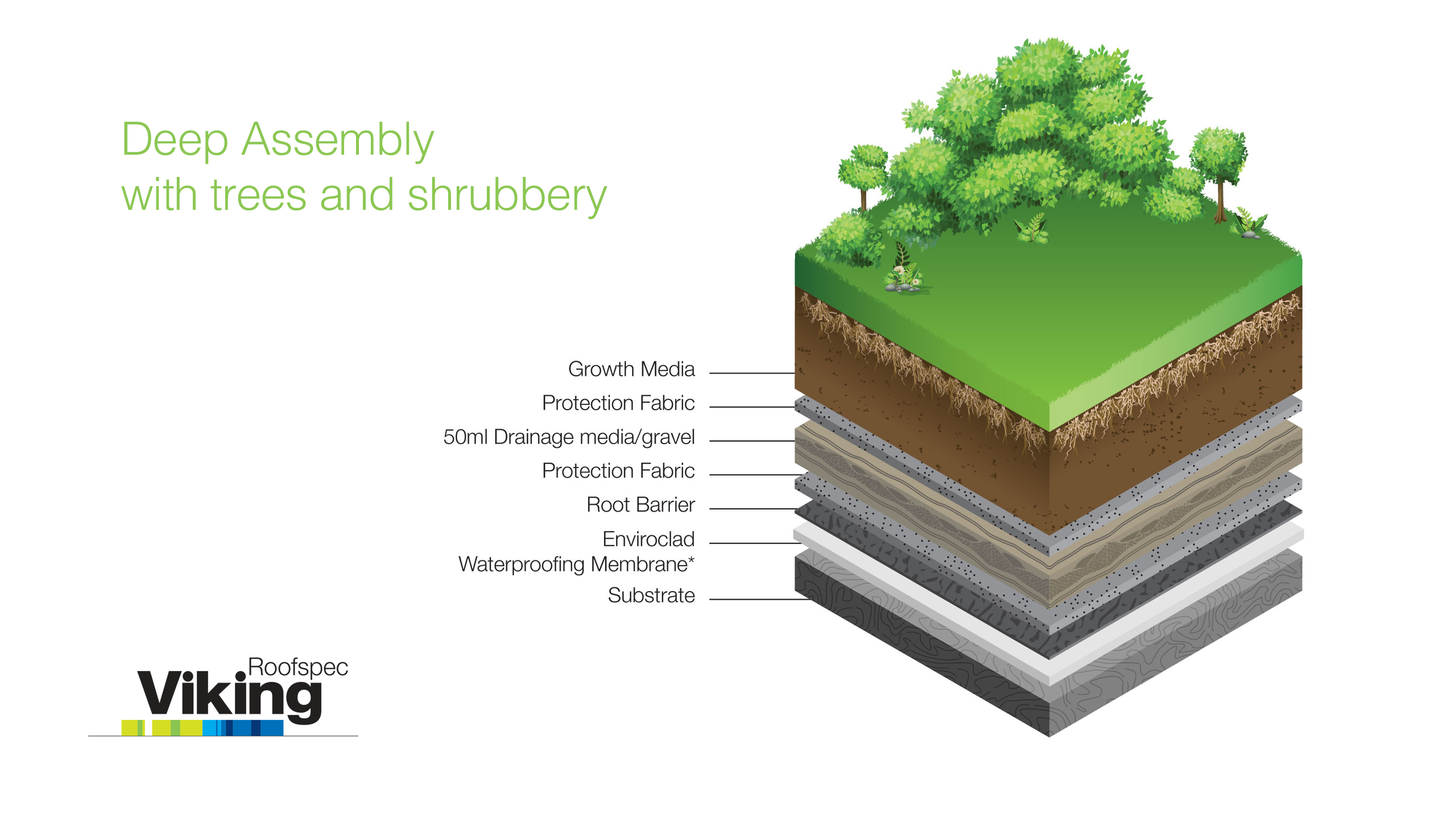

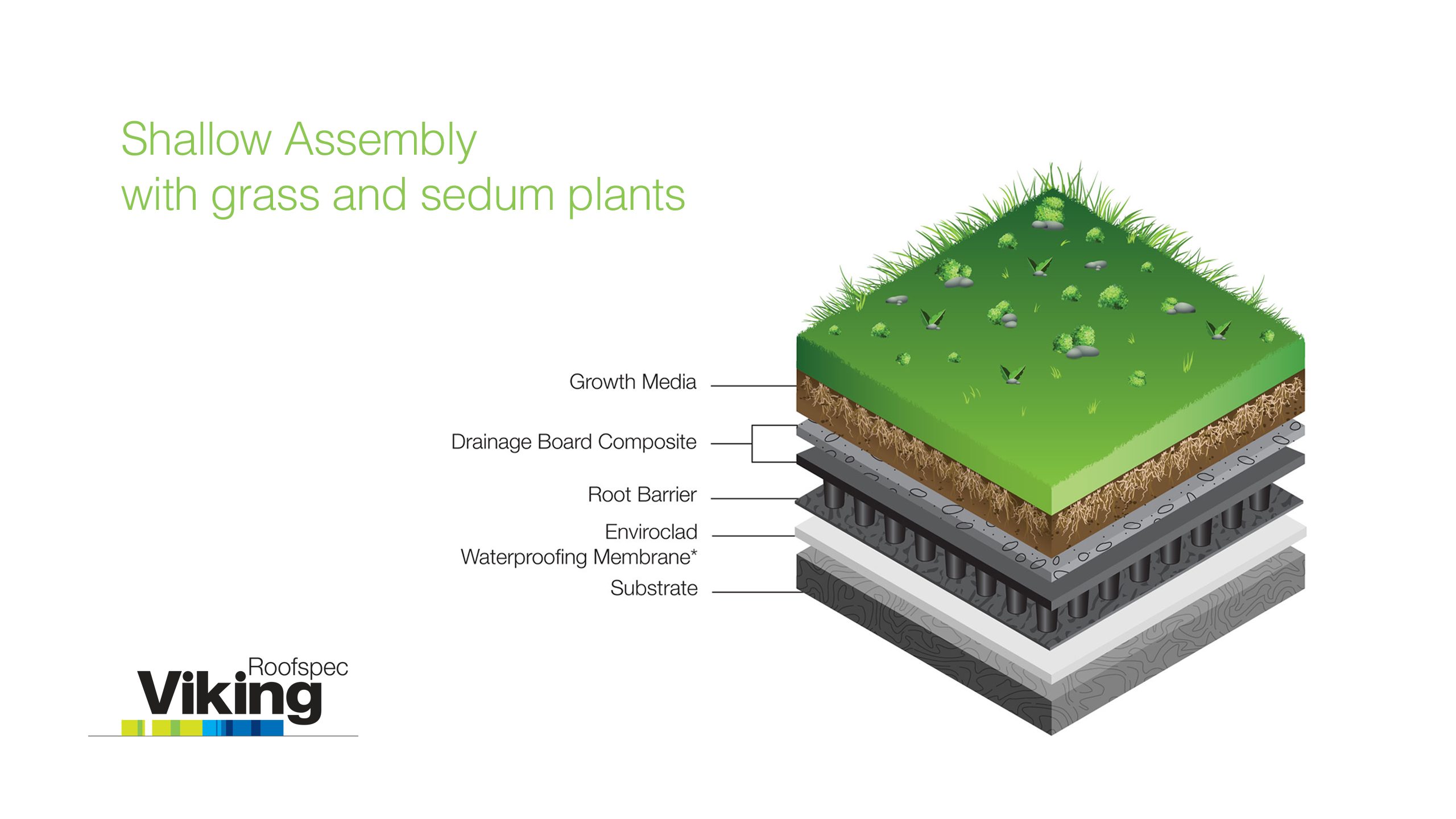

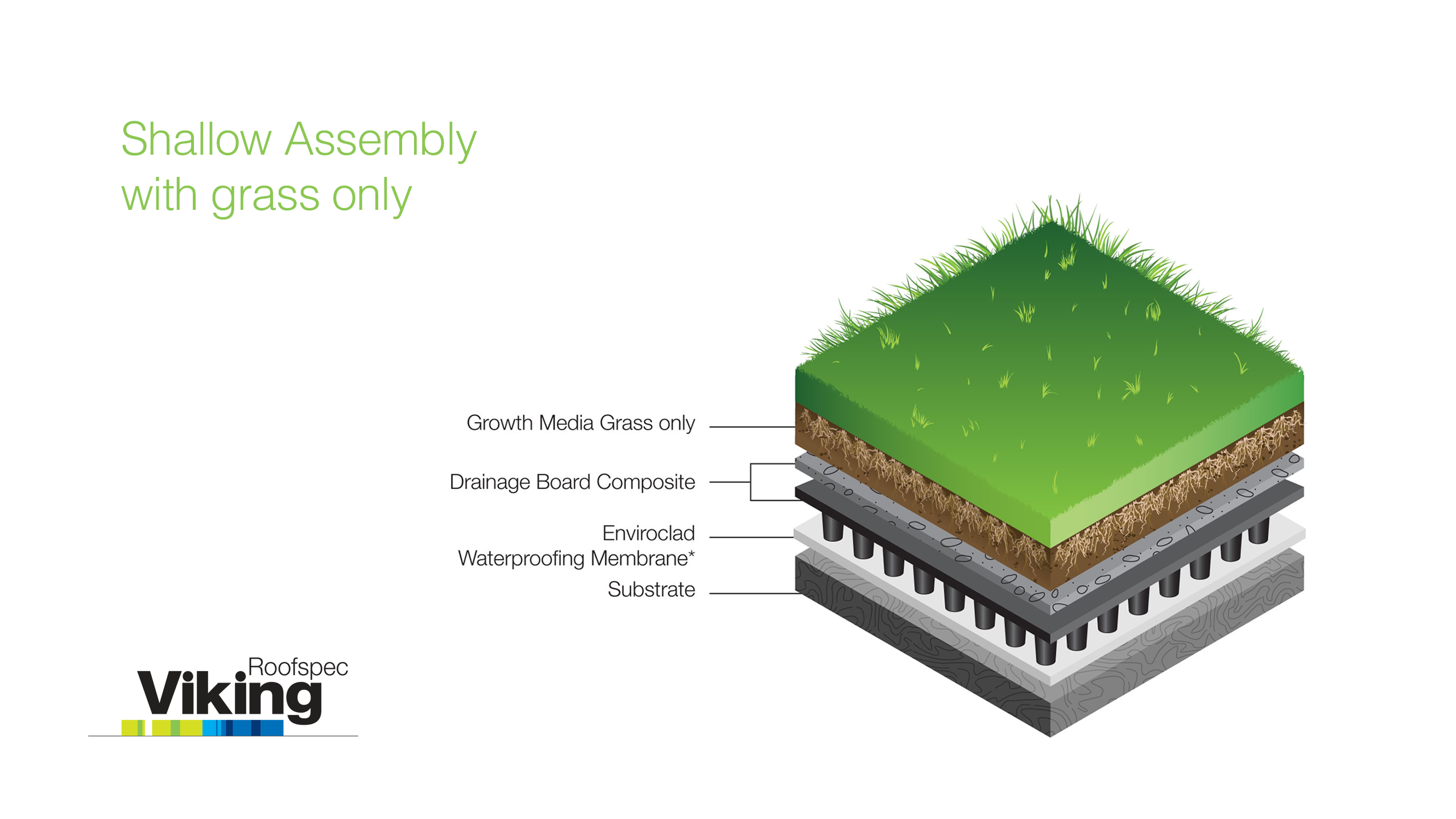

Components of a Viking Roof Garden System

  • Waterproofing membrane (Enviroclad or Anti-root torch-on)
  • Root Barrier* Drainage Board Composite (including protection fabric, drainage board cups and moisture retention layer)
  • Plants and soil
  • Aluminium drain protection box
  • Aluminium garden edging
Key Features
  • Reduces storm water runoff<i>Air and water purification</i> Protects roof membrane from climatic extremes
  • Sound and temperature control
  • Insulates and shades building
  • Provides a pleasant outdoor area
  • Utilises a buildings ‘5th wall’
  • Installed only by a Viking Approved Applicator
  • 20-year product warranty
  • Full System Warranty Option: 20-year
  • BRANZ appraised (Appraisal No. 903)
NZ-Owned Business
NZ-Owned Business
Scope of Use

The Viking Roof Garden System is suitable for use on buildings within the following scope:

  • with substrates of suspended reinforced concrete; and,
  • with each structure being subjected to specific structural engineering and weather-tightness design
Limitations on Use

Installation of a Viking Roof Garden System is only performed by contractors who have been through Viking Roofspec’s stringent three-stage licencing programme, ensuring the highest level of care and attention to detail, for building owners and specifiers.



Statement of Building Code Compliance
  • Clause B1 STRUCTURE: Performance B1.3.1.
  • Clause B2 DURABILITY: Performance B2.3.1(b).
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.1, E2.3.2.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
Other Performance Attributes
  • BRANZ appraised and backed by a 20-year warranty, the Viking Roof Garden System is a coordinated system that has been tested and proven by the manufacturer both locally and internationally
  • Longer roof life: the roof membrane is protected from climate extremes and physical abuse which increases the life of the roof and its long term performance
  • Benefits include clean air, reduced storm water run-off, sound and energy insulation, and practical use of the "5th wall"
B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Documents
Material Safety Data Sheet
Warranty
Warranty
Specification Clause/Guide
Brochure: Viking Roof Garden
Additional Information
CAD/PDF Details
Viking Roof Garden Details Full Set
