Beachlands Home Creatively Mixes Colour and Texture

This high-end Beachlands home creatively mixes colour and texture to create a striking landmark. Built by Bravo Ltd Builders, the home opens up to expansive sea views, inviting outdoor living areas and a pool.

Due to the coastal environment, low maintenance was a key consideration when it came to choosing materials for the exterior of the house. Products needed to not only look fantastic, but also be able to withstand the corrosive conditions.

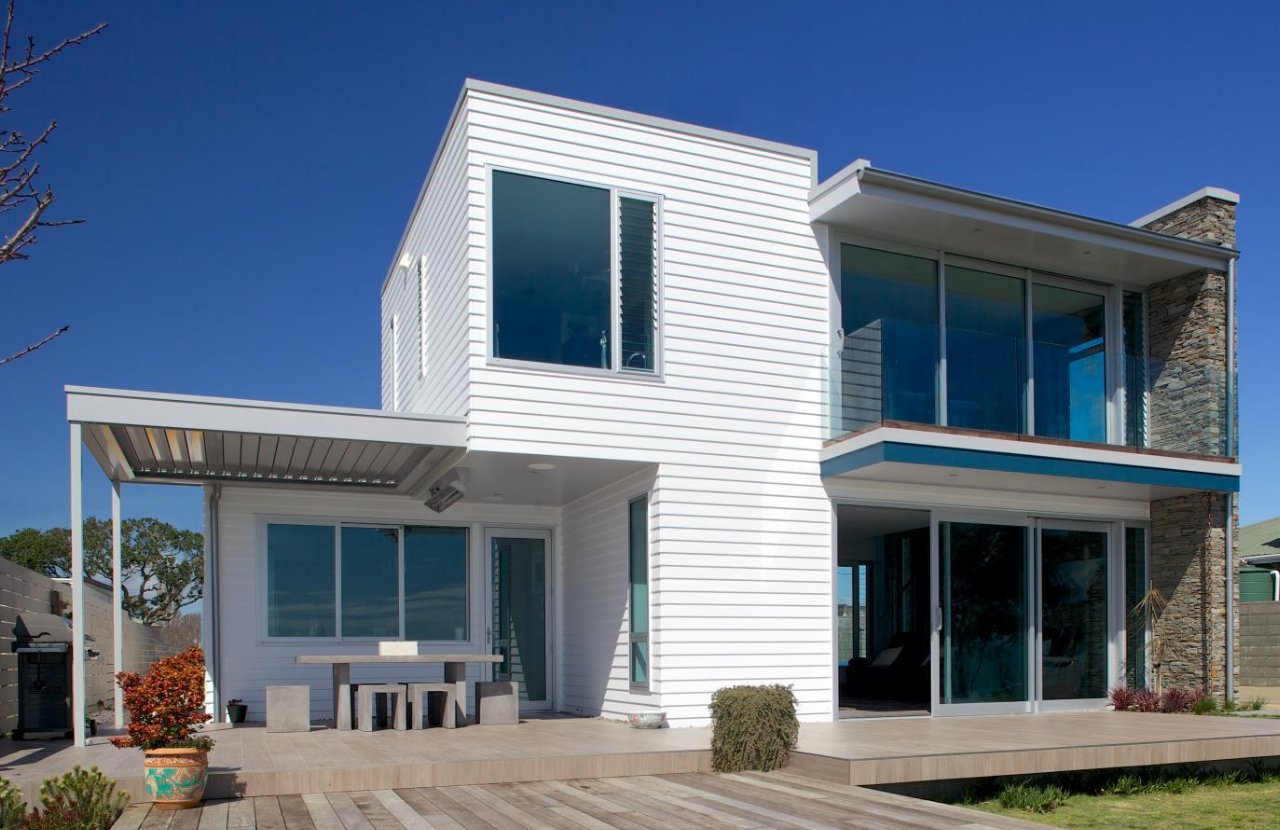

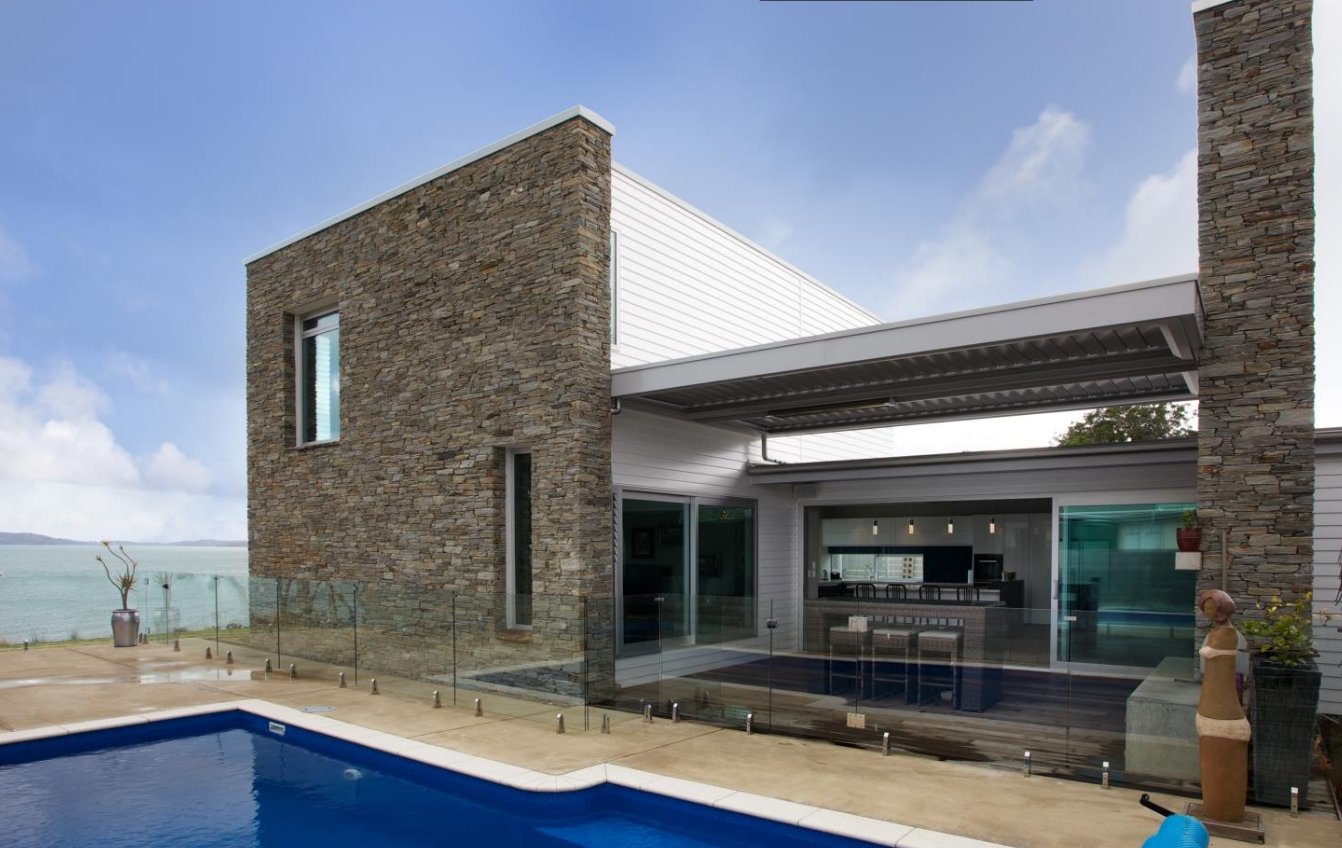

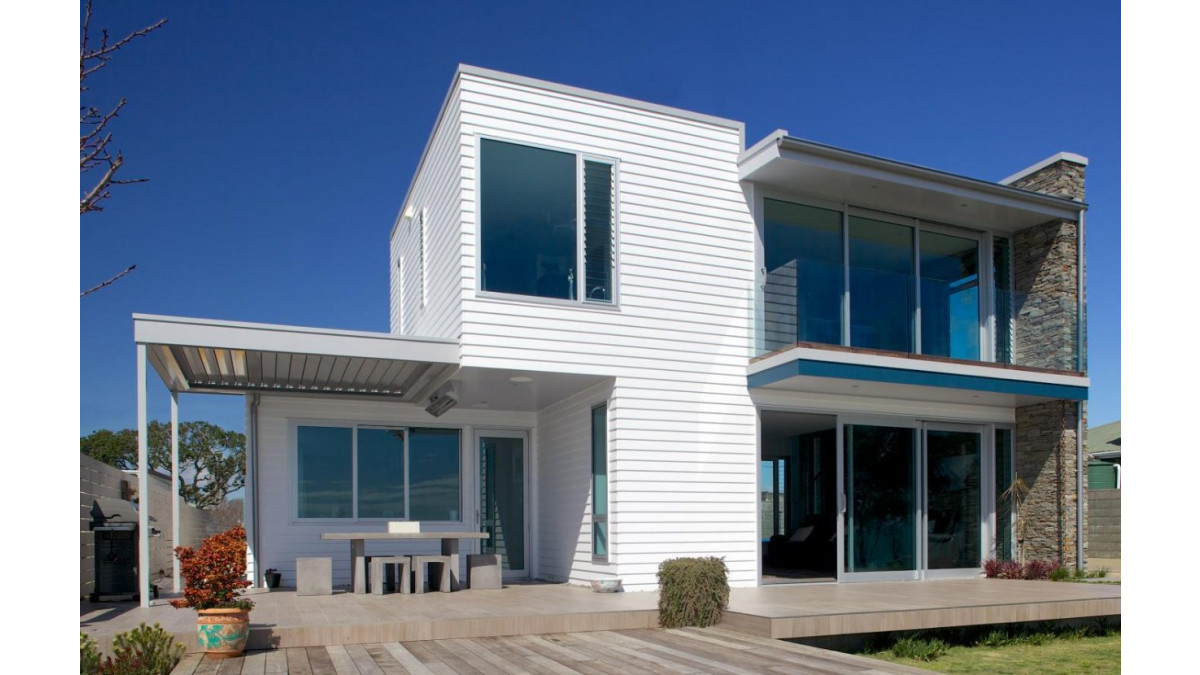

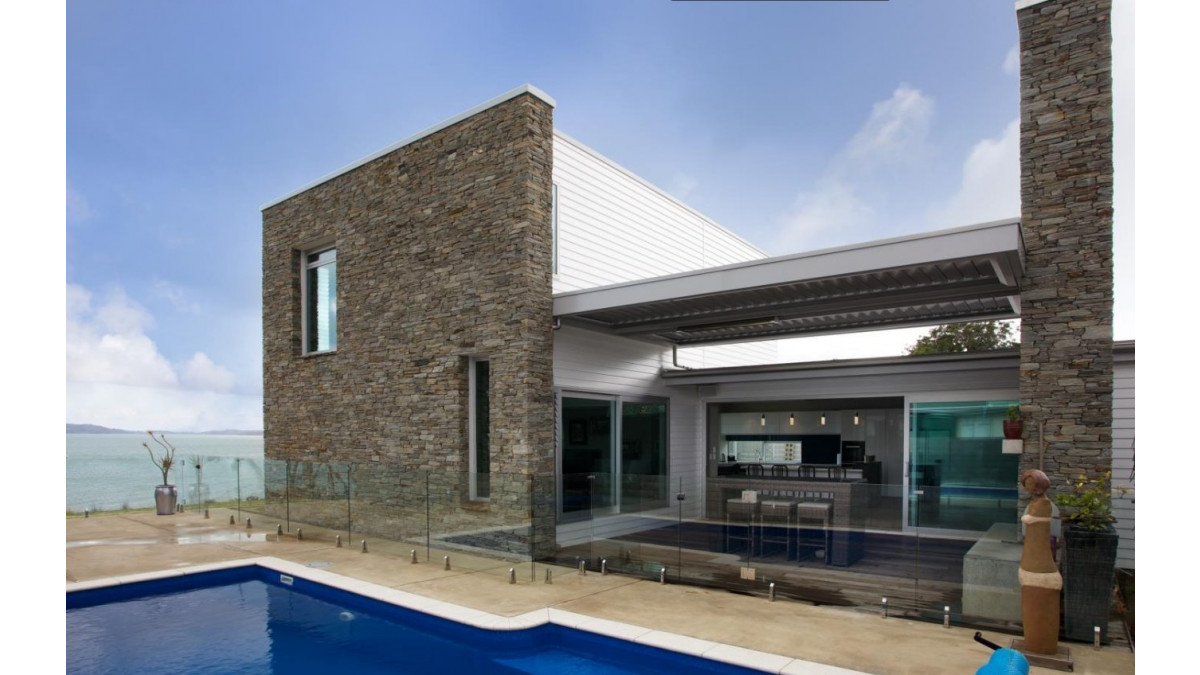

As a result, the owners chose to clad the house in a mix of Hyde schist stone from the South Island and uPVC Palliside weatherboards in a Traditional profile. Palliside never needs painting and is designed to withstand New Zealand's demanding coastal conditions. uPVC gutters and downpipes were also specified for the project, to minimise maintenance.

Bravo director Andy Parker says the home is all about lifestyle — the large, open-plan family living space can be separated from the formal lounge by a glass cavity slider. Both areas open up to decks with overhead aluminium louvres providing shade. On the upper level, the master suite is also designed to maximise the view.

Yusuf Yaseen of DynexBuild, the manufacturer of Palliside, says the home is notable for the especially high standard of finish. "Bravo's painstaking attention to detail has ensured this project raises the benchmark for a family home in every possible way."

PALLISIDE Traditional Weatherboards (Direct Fixed)

Dynex

View Product

PALLISIDE® is a low-maintenance, pre-finished weatherboard system that provides the look of traditional timber weatherboards, with natural shadow-lines and definition, without the requirement for painting and the cost of upkeep associated with it.

NZ Made

Pre-Consumer Recycled Content

PALLISIDE® Weatherboards Direct Fix have been appraised as an external horizontally fixed cladding for buildings within the following scope:

Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
Constructed with steel framing subject to specific engineering design with building height and floor plan area scope limitations in accordance with NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
With a risk score of 0-12, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
Situated in NZS 3604 Wind Zones up to, and including Very High.

The PALLISIDE® Weatherboards Direct Fix must only be installed horizontally on vertical surfaces.

The PALLISIDE® Weatherboards Direct Fix are appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills. (The Appraisal of the PALLISIDE® Weatherboard system relies on the joinery meeting the requirements of NZS 4211 for the relevant Wind Zone.)

If PALLISIDE® Weatherboards are to be used in any applications not covered by the current Installation and Technical Guide and scope, written confirmation of suitability should be obtained from Dynex Extrusions Limited prior to the commencement of the project.

Very High WInd Zone

In the opinion of BRANZ, the Palliside Cellular uPVC Weatherboard Direct Fix or Drained Cavity Cladding Systems, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No.490 and No.491 (2015), will meet the following provisions of the NZBC:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. The PALLISIDE® Cellular uPVC Weatherboard Cladding System meets the requirement for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
Clause B2 Durability: Performance B2.3.1(b), 15 years.
Clause E2 External Moisture: Performance E2.3.2.
Clause F2 Hazardous Building Materials: Performance F2.3.1. The PALLISIDE® Cladding system will not present a health hazard to people.

The PALLISIDE® Cellular uPVC Weatherboard direct fix or drained cavity cladding systems have been appraised as Alternative Solutions in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

PALLISIDE Traditional Weatherboards (Drained Cavity)

Dynex

View Product

NZ Made

Pre-Consumer Recycled Content

PALLISIDE® Weatherboards Drained Cavity have been appraised as an external horizontally fixed cladding for buildings within the following scope:

Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
Constructed with steel framing subject to specific engineering design with building height and floor plan area scope limitations in accordance with NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
With a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
Situated in NZS 3604 Wind Zones up to, and including Extra High.

PALLISIDE® Weatherboards Drained Cavity have also been appraised as an external wall cladding system for buildings within the following scope:

The scope limitations of NZBC Acceptable Solution E2/AS1, with regards to building height and floor plan area; and,
Constructed with timber and steel framing subject to specific engineering design; and,
Situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.
The PALLISIDE® Weatherboards Drained Cavity must only be installed horizontally on vertical surfaces.

The PALLISIDE® Weatherboards Drained Cavity are appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills. (The Appraisal of the Palliside Weatherboard system relies on the joinery meeting the requirements of NZS 4211 for the relevant Wind Zone or wind pressure.)

Extra High Wind Zone

Specific Design Wind Zone

In the opinion of BRANZ , the PALLISIDE® Cellular uPVC Weatherboard Direct Fix or Drained Cavity Cladding Systems, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No.490 and No.491 (2015), will meet the following provisions of the NZBC:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. The PALLISIDE® Cellular uPVC Weatherboard Cladding System meets the requirement for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
Clause B2 Durability: Performance B2.3.1(b), 15 years.
Clause E2 External Moisture: Performance E2.3.2.
Clause F2 Hazardous Building Materials: Performance F2.3.1. The PALLISIDE® Cladding system will not present a health hazard to people.

The PALLISIDE® Cellular uPVC Weatherboard direct fix or drained cavity cladding systems have been appraised as Alternative Solutions in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised
