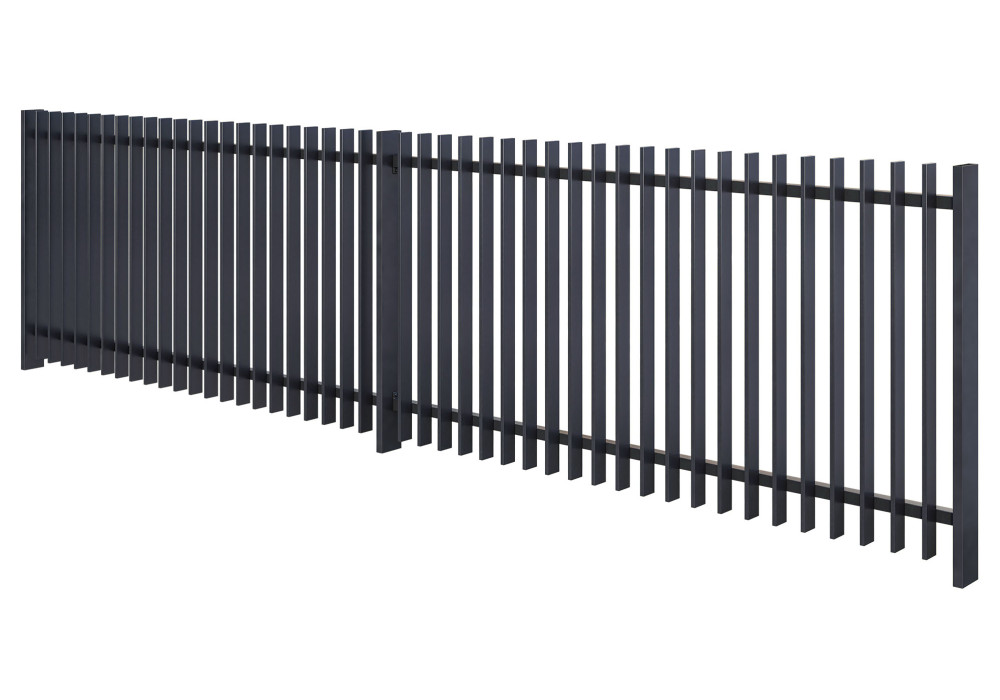

Designed to deliver a clean, cohesive aesthetic, ModePanel Arc provides a modern fencing solution that balances durability with refined style. Manufactured from high-grade aluminium, ModePanel Arc panels are fully welded for structural integrity and long-term performance. The system’s robust construction ensures resistance to rust and corrosion, providing a low-maintenance solution suited to both residential and commercial applications.

Streamlined design integration

ModePanel Arc’s defining feature is its streamlined post profiles, which mirror the panel’s vertical fins to create a flush, seamless fence line. This alignment removes the visual interruption of traditional square post and panel systems, offering a continuous, architectural rhythm that works beautifully with modern landscapes and building facades.

Compliance that balances form and function

ModePanel Arc is designed and manufactured in accordance with the New Zealand Building Code, achieving compliance with F4 – Safety from Falling and F9 – Means of Restricting Access to Residential Pools. The system’s absence of a centre rail, including at full 1800mm panel height, ensures a clean architectural profile while maintaining the structural integrity and safety performance required for boundary and pool fencing applications. This specification allows ModePanel Arc to be installed on property boundaries as a compliant pool barrier solution, delivering both aesthetic continuity and code-approved protection.

Installation efficiency and architectural versatility

For installers, the modular system has been designed with ease and accuracy in mind. Lightweight yet strong, each panel integrates cleanly with its corresponding posts, reducing time on site and minimising the need for complex alignment or welding. The result is a professional finish achieved with efficiency and consistency across the entire fence line.

Designed with architects and designers seeking a refined, cohesive boundary solution, ModePanel Arc offers a minimalist form suited to a wide range of contemporary projects. Its refined vertical structure complements modern architectural language, from residential boundaries to premium commercial developments. Available in black however, the system can be customised to meet specific design palettes and project requirements.

Designed for modern environments

ModePanel Arc offers the perfect balance of performance and presentation, robust enough for demanding environments, yet sophisticated in appearance. The fully welded aluminium construction ensures enduring strength, while the seamless design delivers a polished, cohesive look aligned with today’s architectural standards.

Specifications:

• Panel Height: 950, 1200, 1500, 1800mm
• Panel Length: 2400mm 
• Fin Size: 65 x 16mm 
• Fin Spacing: 90mm 
• Line Post Size: 110 x 32mm 
• Colour: Black 

Key features

• Fully welded aluminium fin panels for superior strength and durability
• Streamlined 110 x 32mm post profiles for a smooth, continuous fence line
• Modular design for fast, precise installation
• Minimalist, architectural aesthetic
• Low-maintenance and corrosion-resistant finish
• F4 and F9 compliant
• Matching Gates available
