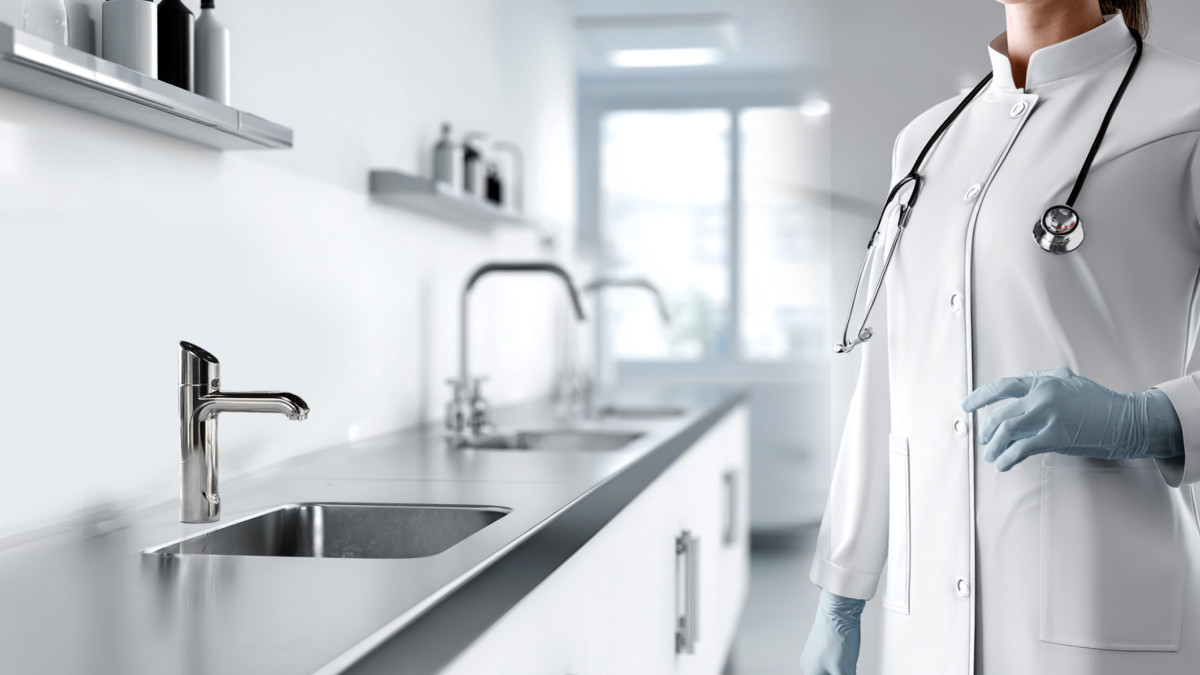

• Suitable for health, medical, and aged care facilities where strict microbiological water safety controls are required.
• Ideal for projects targeting sustainability and reduced reliance on bottled water — such as Green Star Buildings, WELL Certified Buildings, NABERSNZ Water Certified Buildings
• Capacity for 20 to 40 people
• Suitable where potable water, drainage, and electrical connections are available
• Accessibility (Access Classic) and touch-free (Touch-Free Wave) options

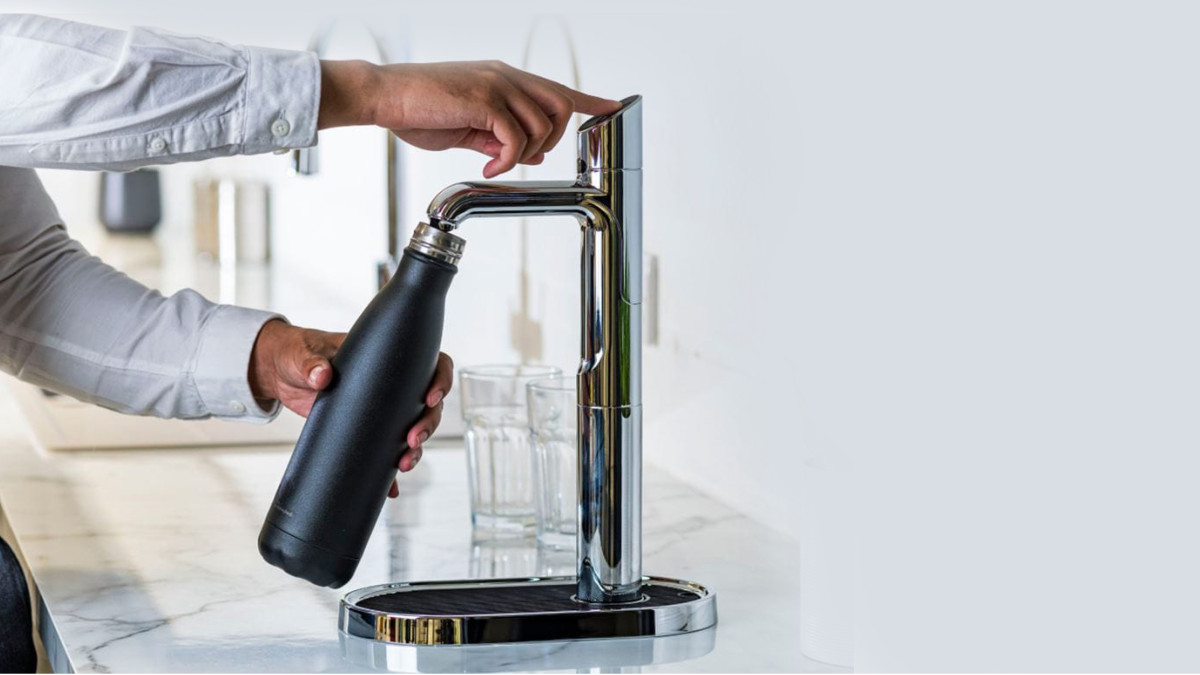

• Designed for installation over a sink, or on a countertop when combined with a font; height extenders may be available to allow space for filling bottles
• Full product information including BIM files, installation guides, manuals, and brochures can be found for each product on the Zenith Water website

• Requires connection to potable water supply, drainage, and electrical power
• Installation limited to locations with services available within 1.5 metres

• Requires a cold mains water supply
• Water pressure: Not suitable for systems operating outside the 170–700 kPa range;
• May not be suitable where significant cabinetry, benchtop modification, or plumbing alterations are required without additional work.
• Cabinet ventilation is required for air-cooling
• In regions with high mineral content or hard water, installation of a Zenith scale filtration kit is recommended to prevent scale build-up.
• Zenith certified installation available in main centres.
• Must be installed by qualified tradespersons in accordance with manufacturer requirements

Relevant building code clauses:

• B2 Durability — B2.3.1 (c)
• F2 Hazardous building materials — F2.3.1
• G1 Personal Hygiene — G1.3.2
• G12 Water Supplies — G12.3.1, G12.3.2, G12.3.5

Contributions to compliance:

• B2.3.1(c): Zenith offers a 5 year warranty
• F2.3.1: All HydroTap meet the lead-free requirements and are safe for potable water supply.
• G1.3.2: HydroTaps are constructed and finished in such a way as to allow for effective cleaning and avoid harbouring of dirt and germs.
• G12.3.2: Installation in accordance with Zenith guidelines and components avoids the likelihood of contamination within the system and water main.
• G12.3.5: Contributes to compliance

For over 75 years, Zenith Water along with parent company Zip Water, has pioneered the world’s most advanced drinking water systems.

Zenith Water HydroTap systems are widely used in office environments, workplace kitchens, and shared hydration areas throughout Aotearoa New Zealand and around the world.

Energy and Environmental Performance

• Uses 23% less energy compared to a leading competitor*

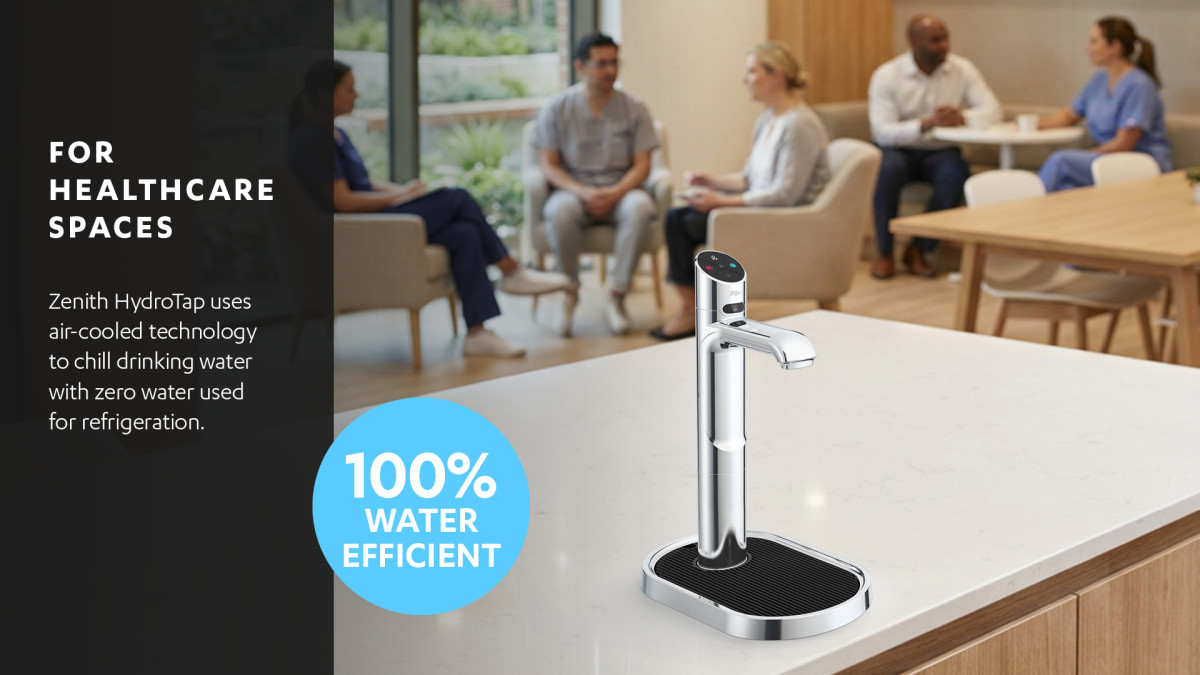

• Air-cooled system is 100% water efficient (no water used in cooling process**)
• R290 refrigerant with low global warming potential and zero ozone depletion potential
• Improved G5 ventilation design enhances system efficiency
• Packaging is recyclable with recycled content
• Options for energy-saving functions including programmable timer, sleep mode, and sensor activation

* Independent testing prepared by a leading Australian University showed the HydroTap to be 23% more energy efficient when used in a typical office environment over 9 hours.

** Independent testing prepared by a leading Australian University showed that a leading competitors water cololed technology discharged over 30 litres of water to the drain daily. The 24 hour test period included 9 hours of typical office use allowing the product to make full use of any heat reclaim technology used to replenish the boiling water tank.

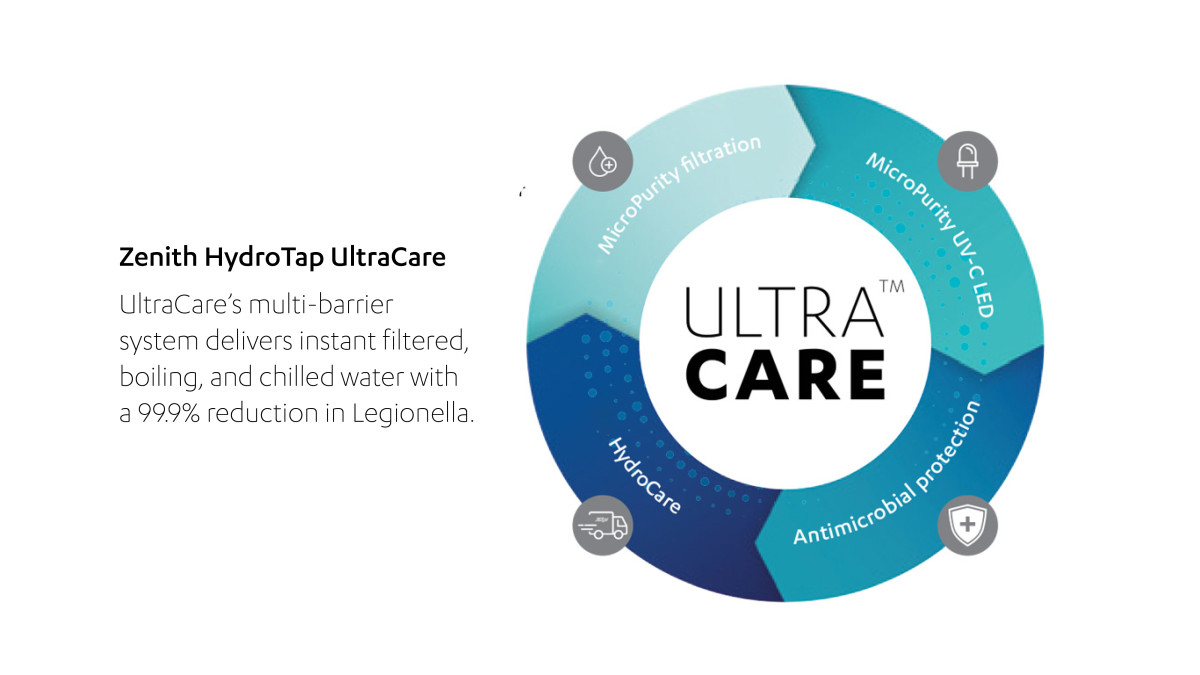

Water Quality

Zenith Water 0.2 Micron Micropurity Filters are independently tesed and certified by IAPMO R&T to NSF372, AS3497, NSF/ANSI Standards 42, 53 & 401 for the reduction of the substances listed below.

• NSF Standard 372 — Lead Free
• NSF Standard 42 — Bacteriostatic Effects, Taste & Odour Reduction, Chlorine Reduction, Nominal Particulate Class 1
• NSF Standard 53 — Lead Reduction, Total PFAS Reduction, Cysts Reduction (cryptosporidium & giardia), Asbestos Reduction
• NSF Standard 401 — Emerging Contaminants (Microplastics Reduction)

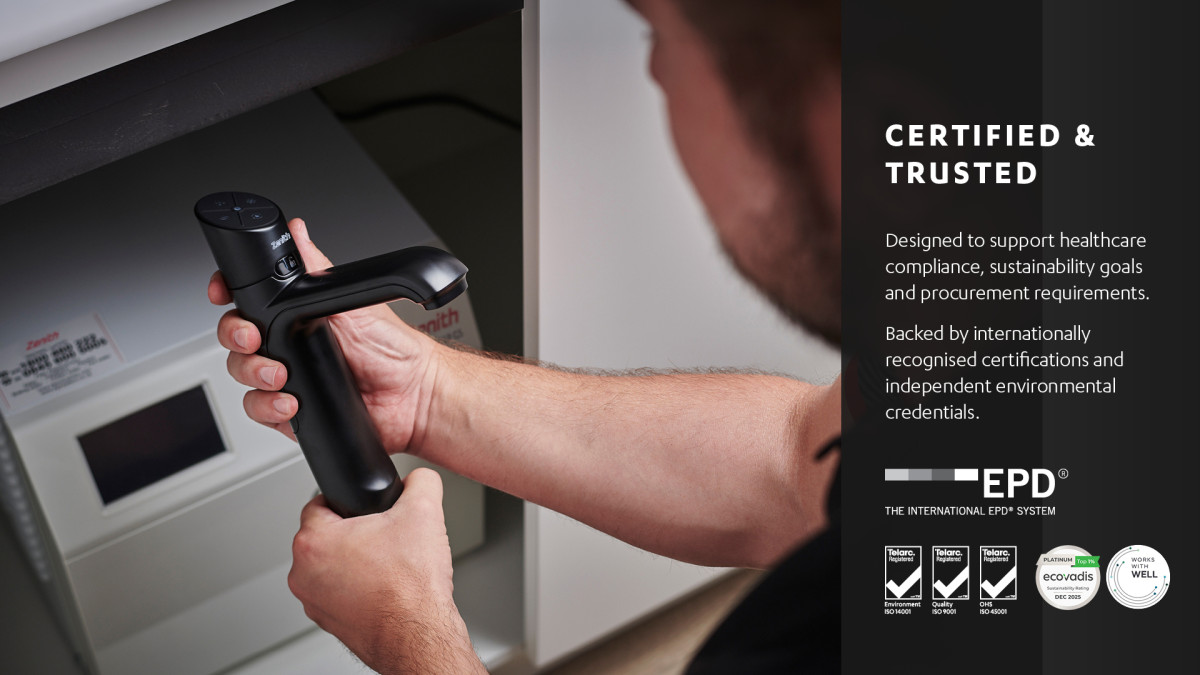

Certifications and Standards

• WaterMark Lead Free Certified
• WELLS rated — 5 Star, 6 Star available (depending on selection)
• ISO 9001 (Quality Management)
• ISO 14001 (Environmental Management)
• ISO 45001 (Health and Safety)
• Declare Red List Approved
• Works with WELL certified
• CE compliance
• RCM compliance
• ARCtick licensed

Sustainability

• Supports reduction of single-use plastic bottles
• Contributes to Green Star project requirements
• Environmental Product Declaration (EPD) compliant to ISO 14025 & EN 15804
• Declare Red List Approved
• Works with WELL certified
