Pradis: Residential Environments (Max height 1400mm)

PRADIS is the new generation of point fix stand off fittings, PRADIS is the new EUROANCHOR.

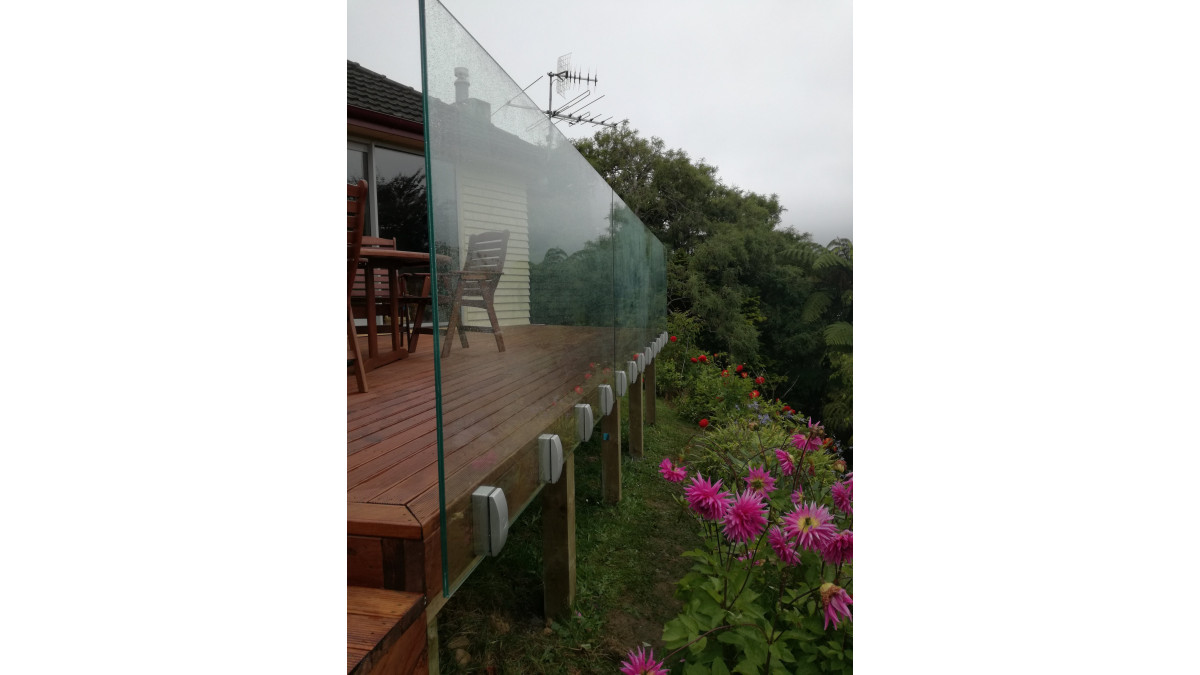

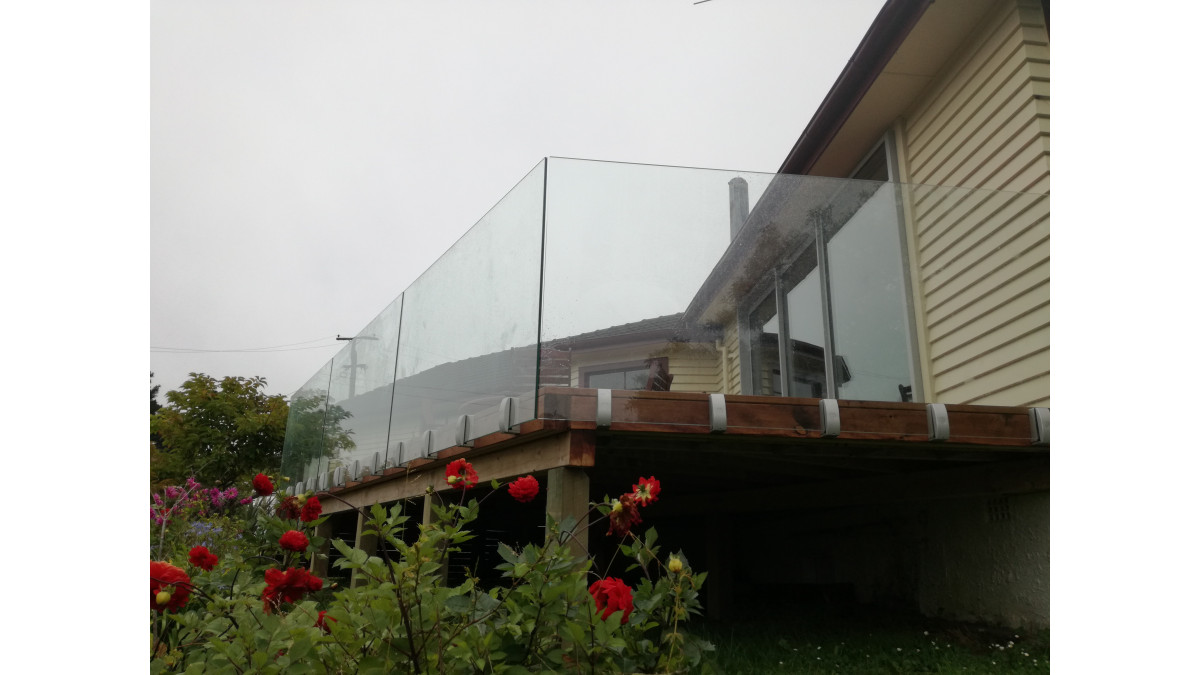

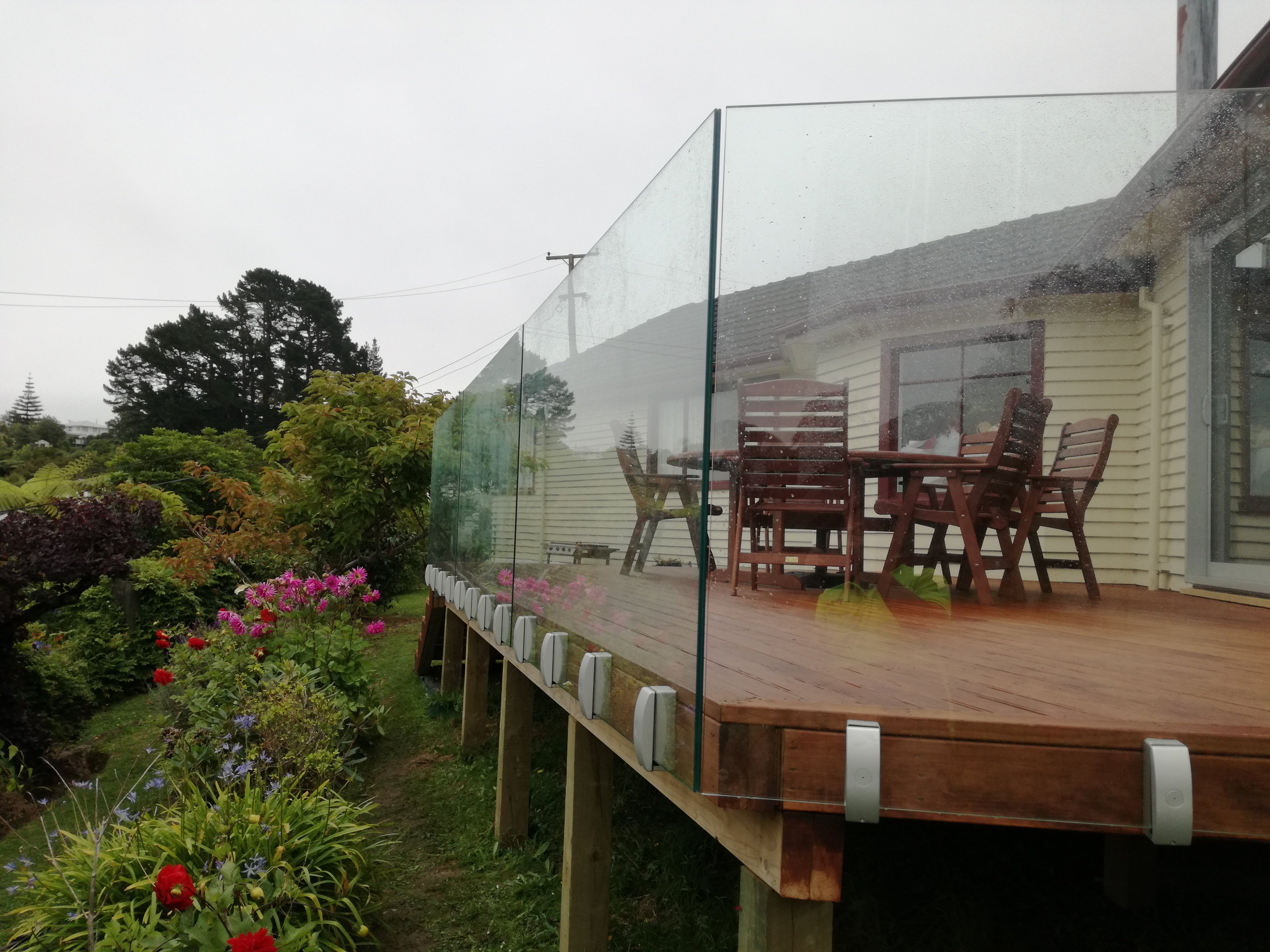

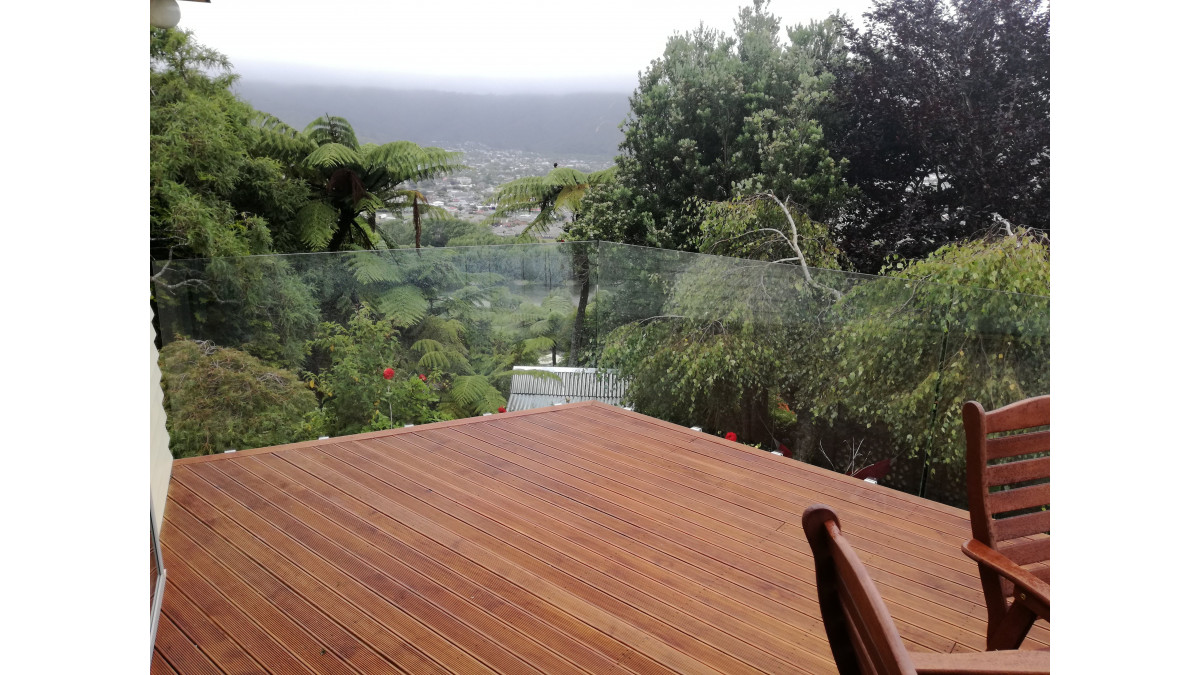

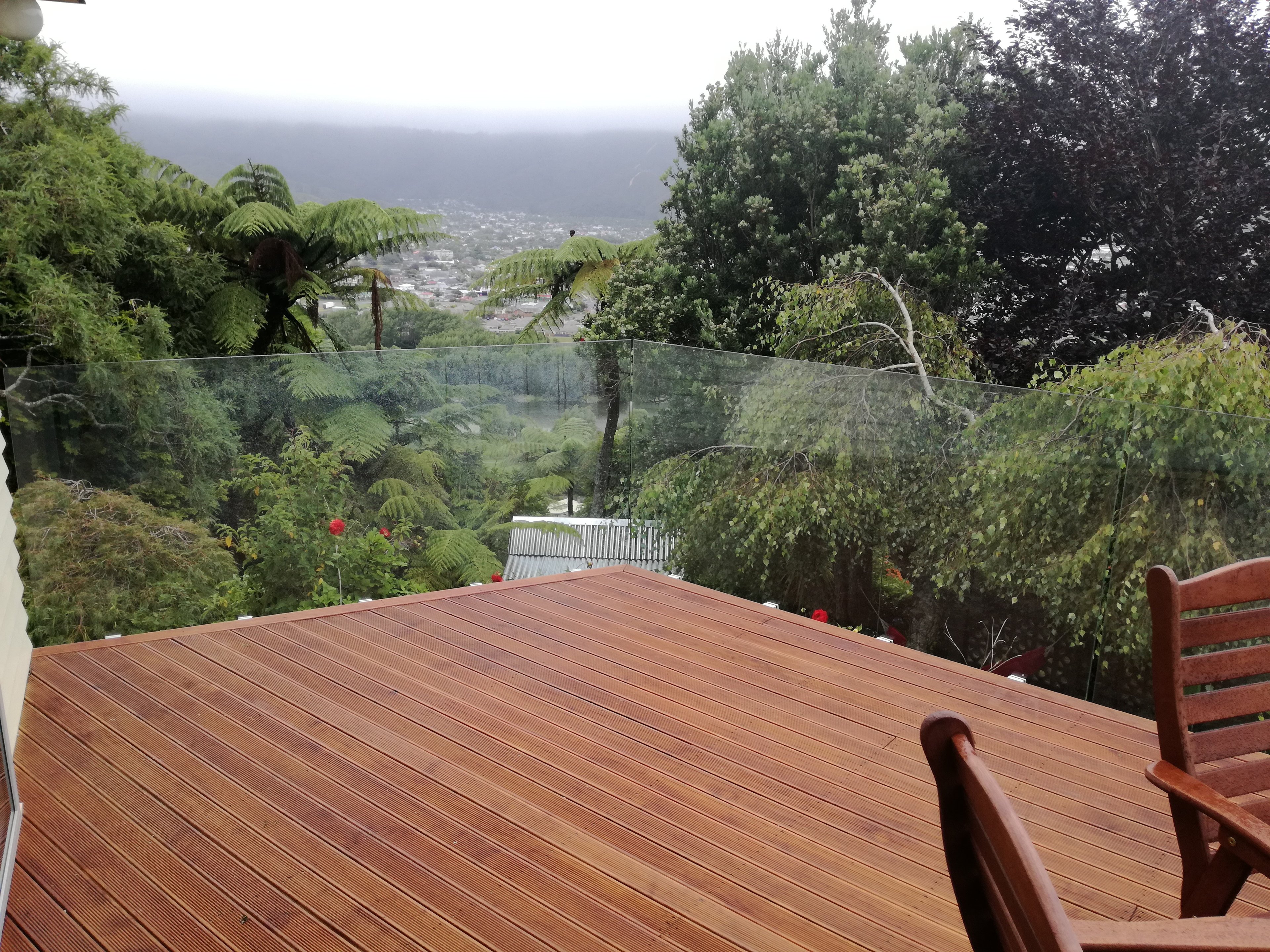

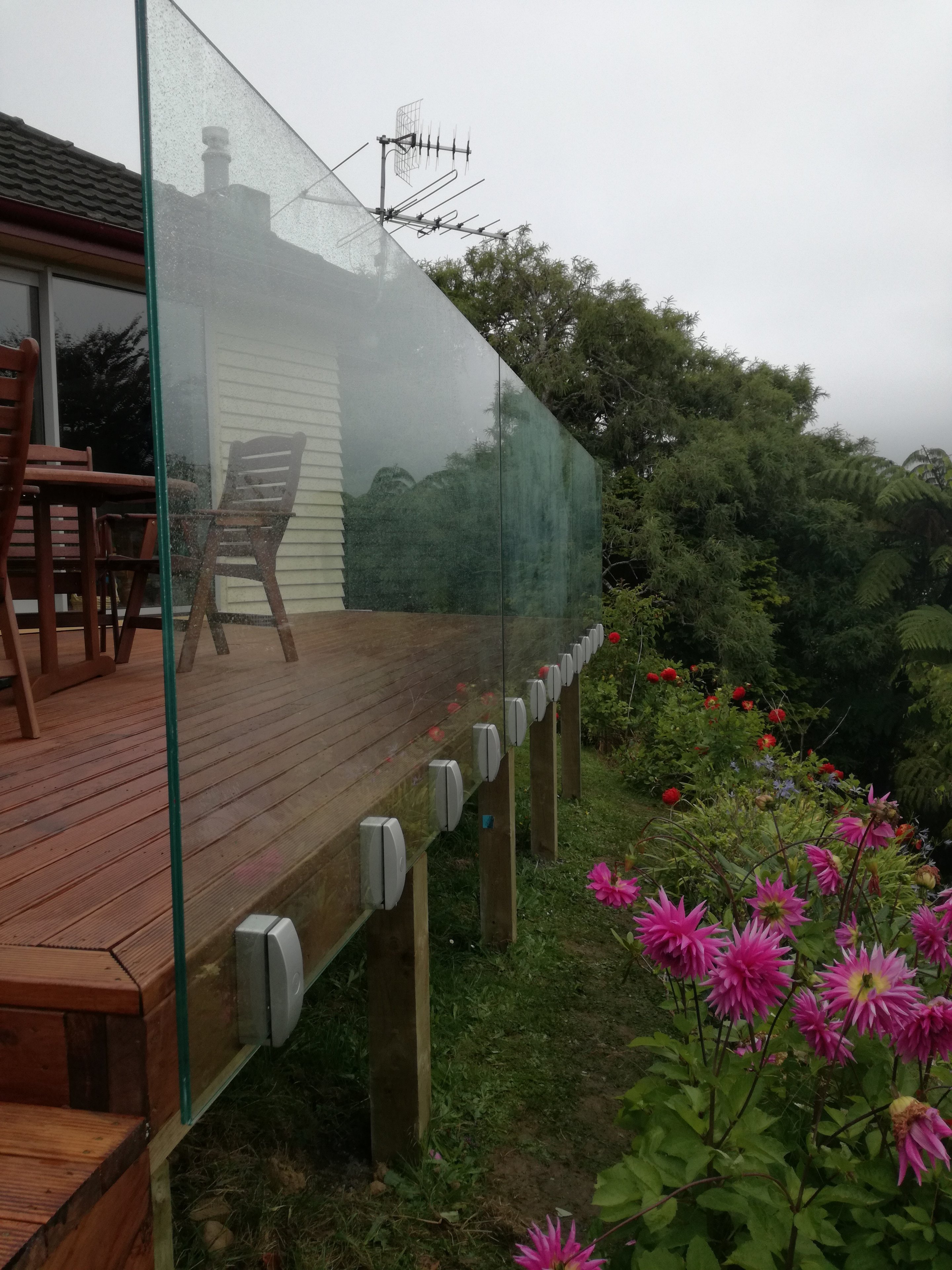

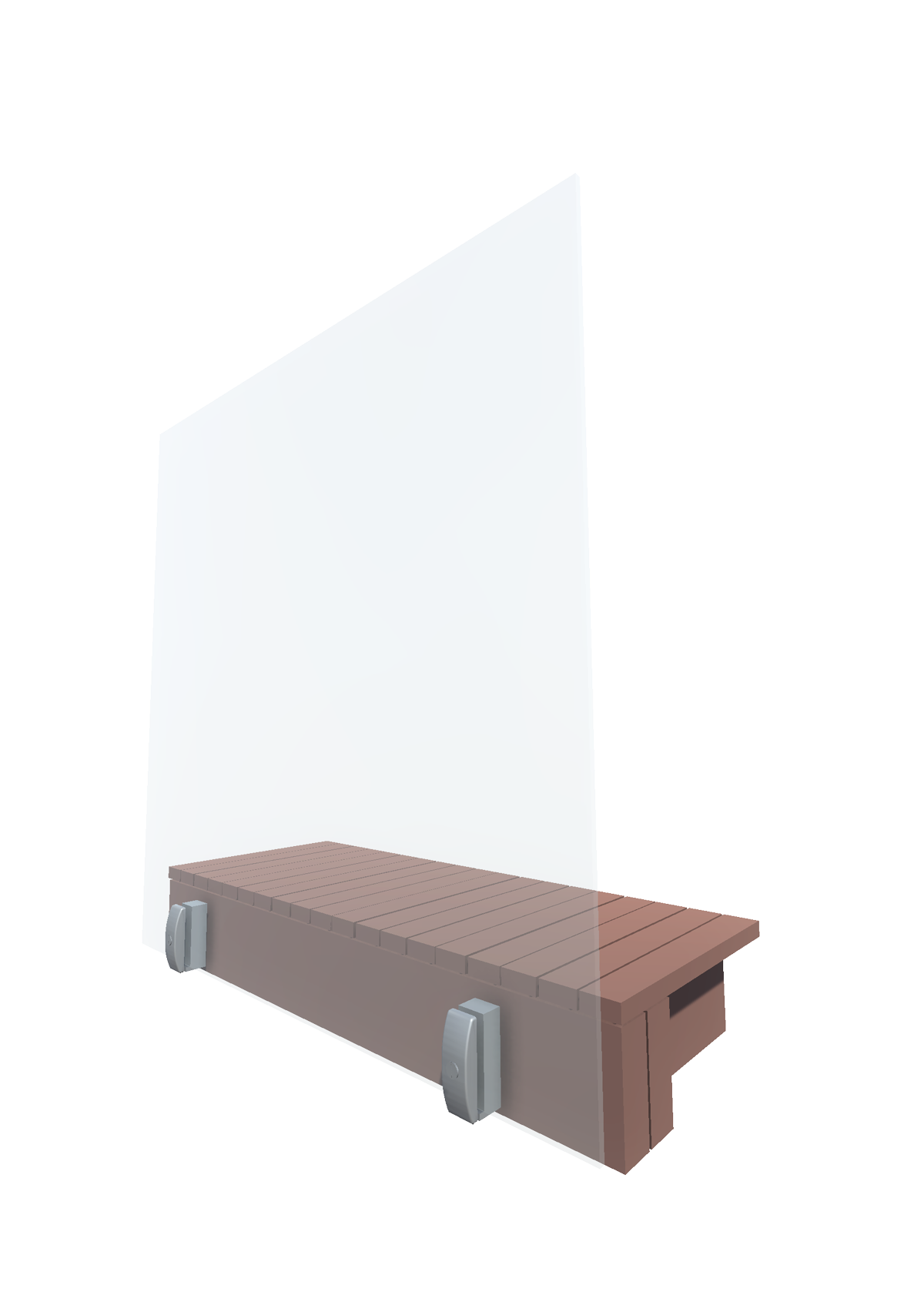

PRADIS is a face mounted cantilevered frameless glass barrier system.

Key Features

 - PRADIS is stronger than other conventional systems; anchors, single disc etc.

 - Quick to install and easy to adjust.

 - Due to the design strengths PRADIS can be spaced every 800mm ctc when fixing into concrete, steel and bolt through timber

Because of the large fixing spacing, there are fewer fittings compared to other systems like anchors. Less fittings = Less clutter.


 - PRADIS can be fixed to a 150mm tall substrate.

Scope of Use

PRADIS is designed to be used as;

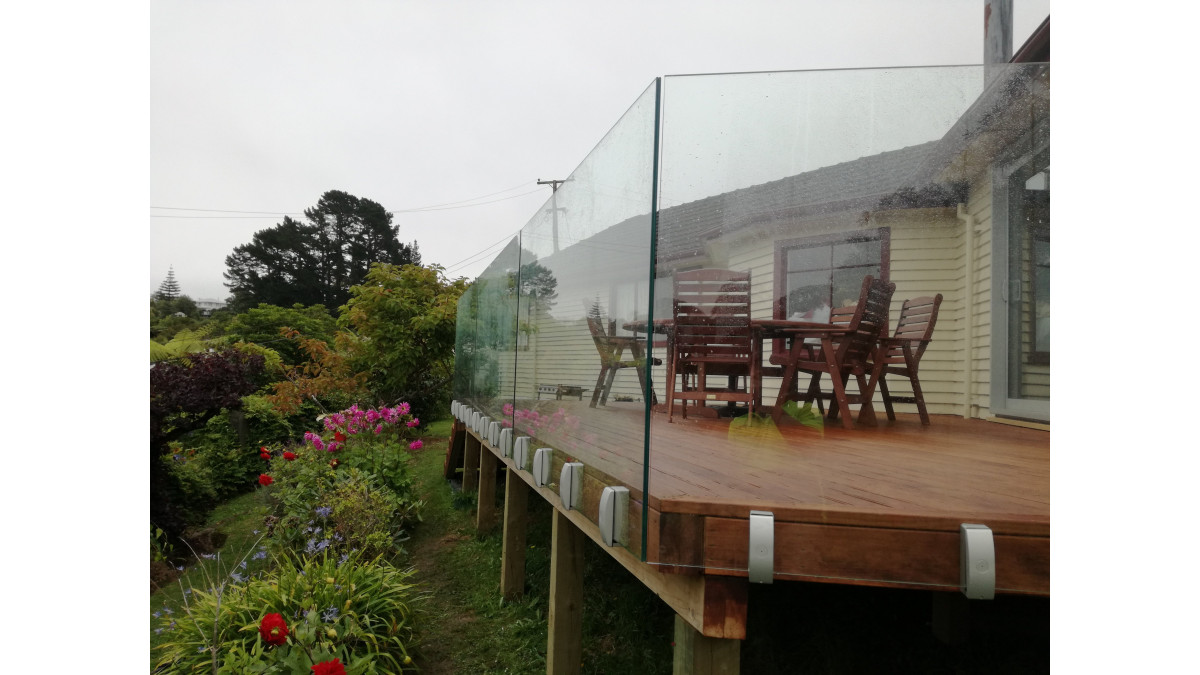

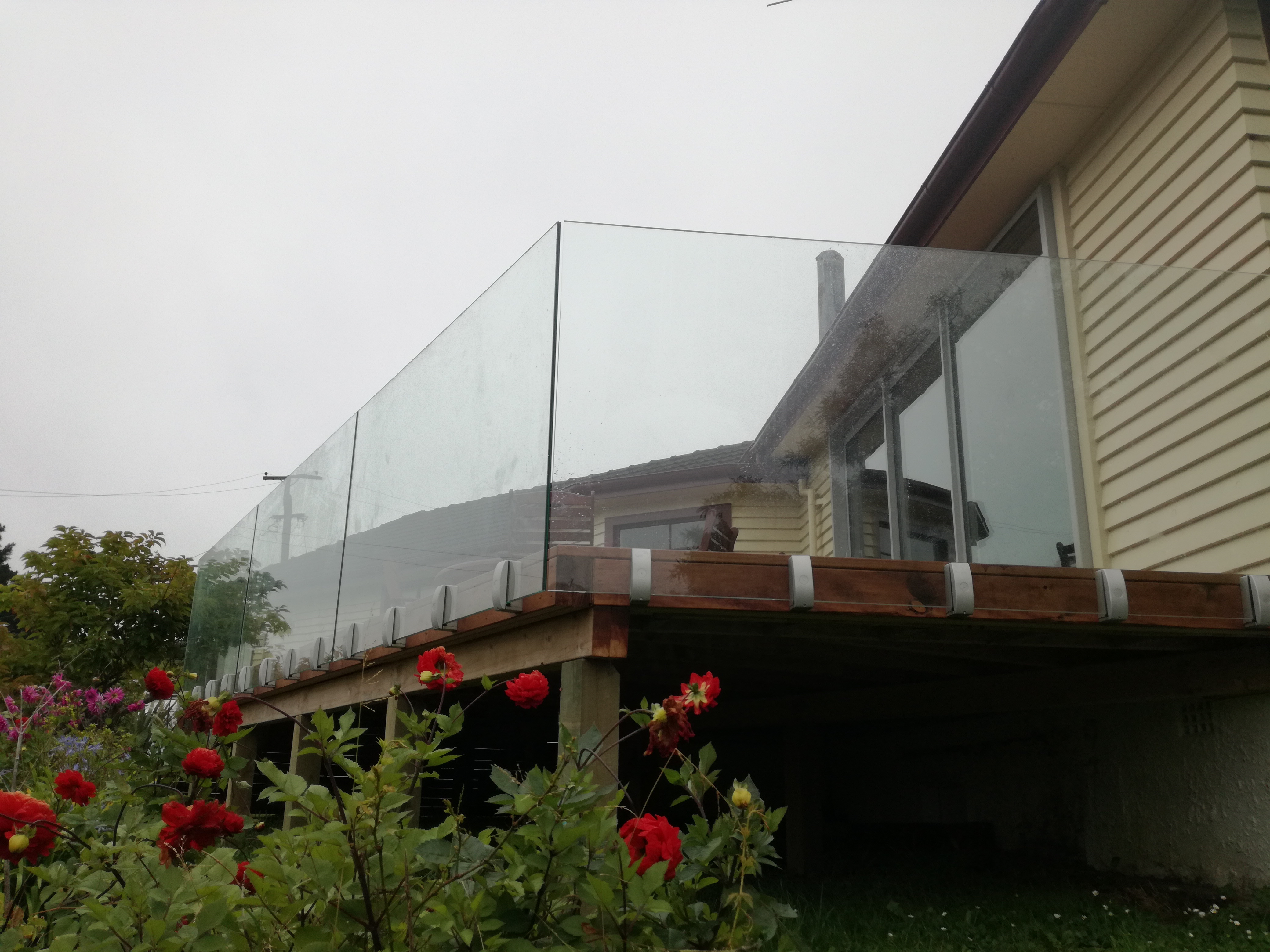

 - Balustrades for External Decks and Stairwells

 - Balustrades for Internal Decks, Stairwell, Landings and Mezzanine Floors


PRADIS can be attached to the following substrates;

 - Concrete

 - Timber

 - Steel


PRADIS complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

SAFE: Viridian's toughened safety glass and Euroglass interlinking rail system. Euroglass offers three interlinking rail systems;

 1) Squareline

 2) Roundline

 3) Archline

SAFEST: Viridian's toughened SENTRYGLAS® laminated safety glass with Euroglass gap clamps.  SENTRYGLAS® incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier.


PRADIS is bright marine anodised with 10 year warranty.


You can also powder coat PRADIS, there are many powder coat colours to choice from to match your colour scheme.

Statement of Building Code Compliance

Rated to be used up to a extra high wind zone (2.13Kpa or less).

This proprietary balustrade system complies with New Zealand Building Code Clauses;

 B1 - Structure and B1/VM1

 B2 - Durability

 F2 - Hazardous Building Materials

 F4 - Safety from Falling

 D1 - Access routes (complies with the use of a handrail in accordance with NZBC D1/AS1)


Based on barrier loads taken from AS/NZS1170.0 PRADIS can be used for Residential Occupancy Types;

 A - Domestic and residential activities

All areas within or serving exclusively one dwelling including stairs, landings etc. but excluding external balconies and edges of roofs (see C3)

A Other - Domestic and residential activities

Other residential (see also C)

C3 - Areas without obstacles for moving people and not susceptible to overcrowding.

Stairs, landings, external balconies, edges of roofs

Taken from table 3.3AS/NZS1170.1


Maximum glass height from the top of the clamp to the top edge of the glass is 1400mm using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are;

 - 15mm toughened safety glass with interlinking rail


 - 17.52mm toughened SENTRYGLAS® laminated safety glass with Euroglass gap clamps  (SENTRYGLAS® is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)

Balustrade - Pradis residential with 15mm glass 10-2-17
Occupancy Table AS/NZS 1170
Selection of Side Mounted Interlinking Rails to NZS 4223.3

2016 version 7

Selection of Top-Capped Interlinking Rails to NZS 4223.3

2016 version 3

Euroglass — Request for balustrade PS1 v4
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Euroglass Handrail Range 2017
Modern Living With Glass

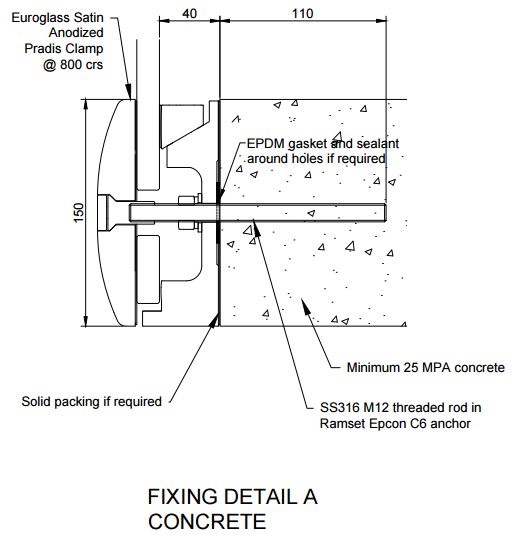

CAD/PDF Details
Pradis for specifier
