Peel & Stick Tanking Membrane
Description

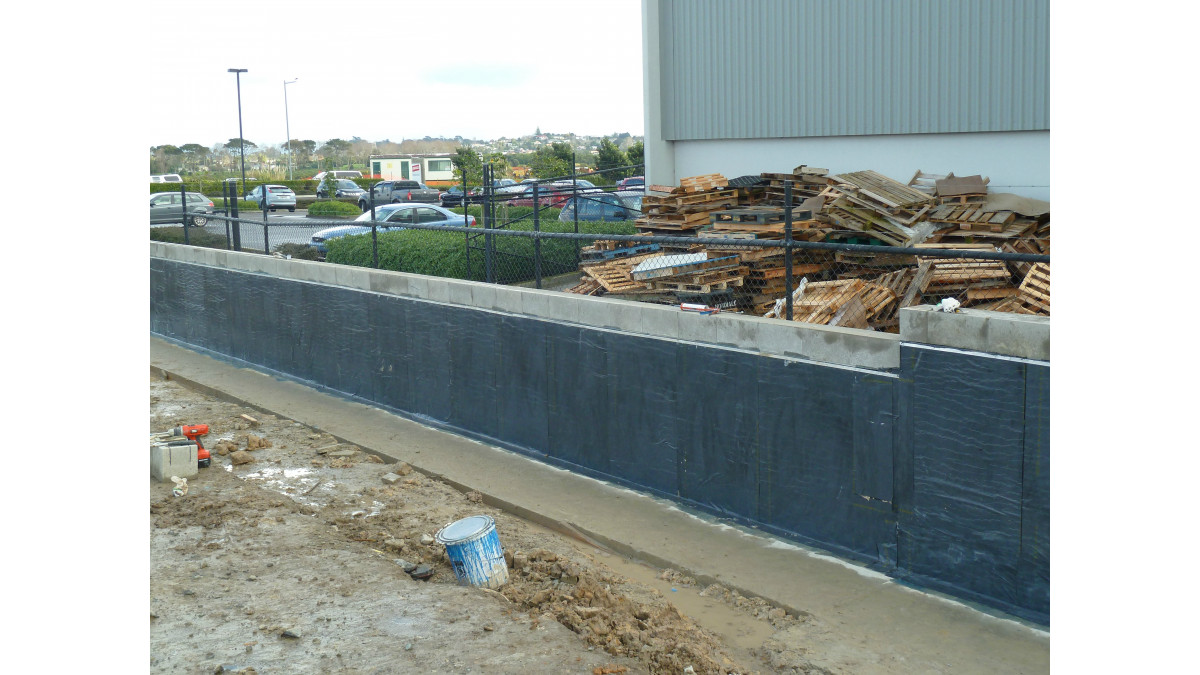

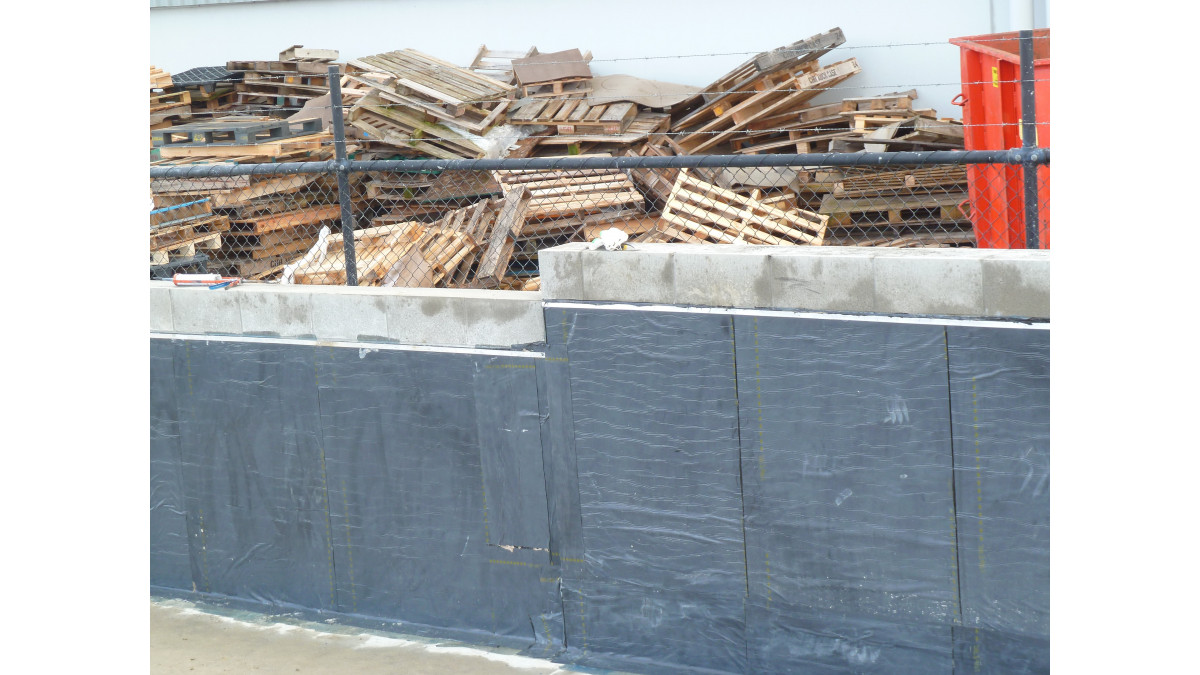

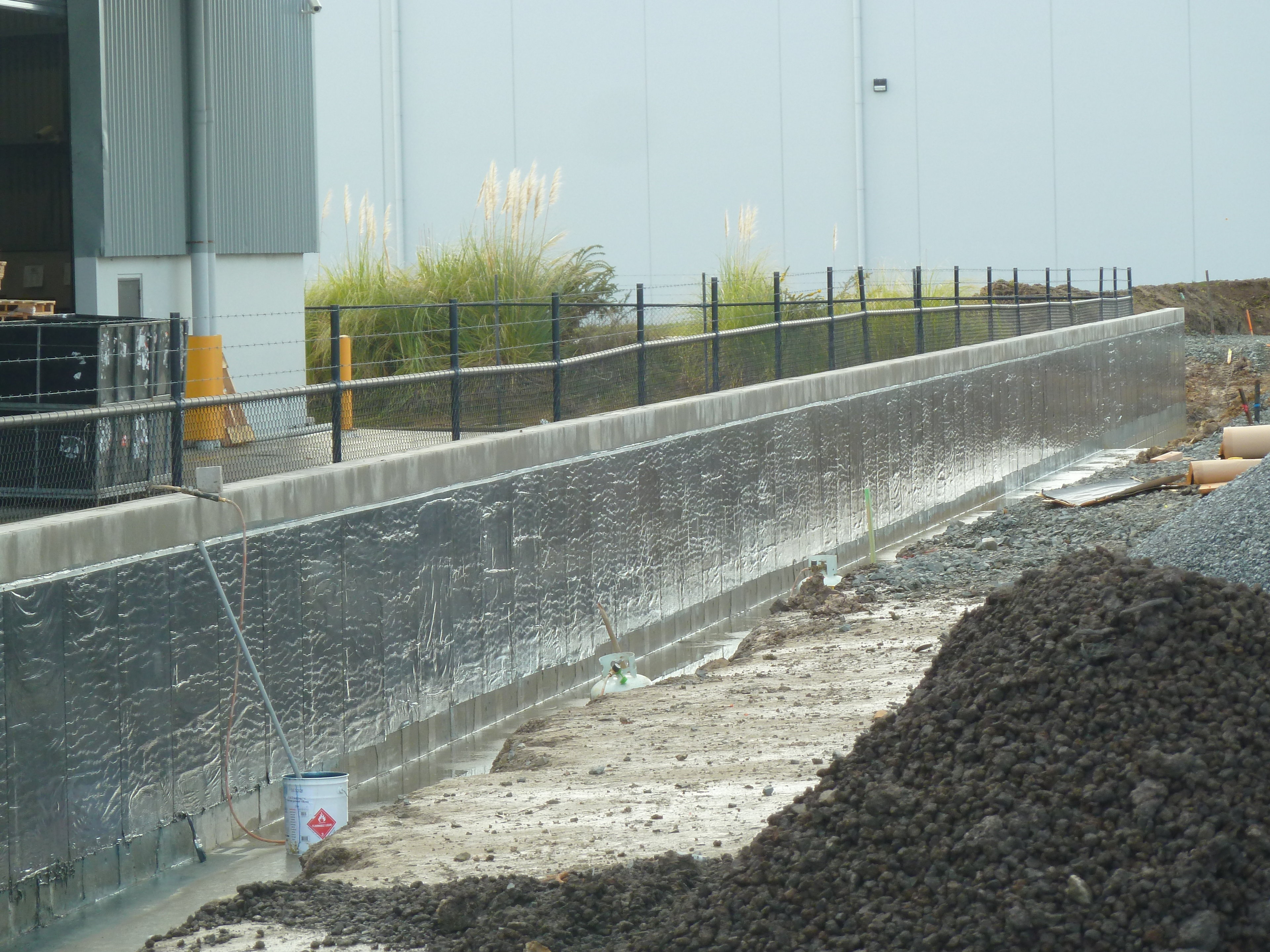

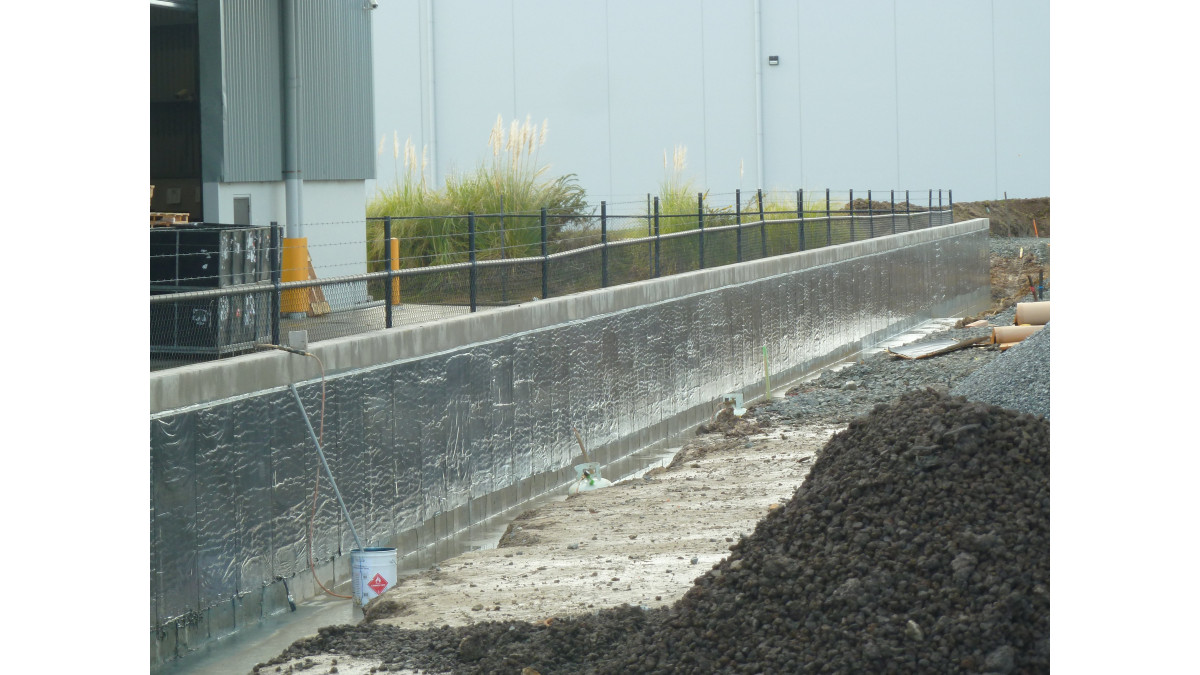

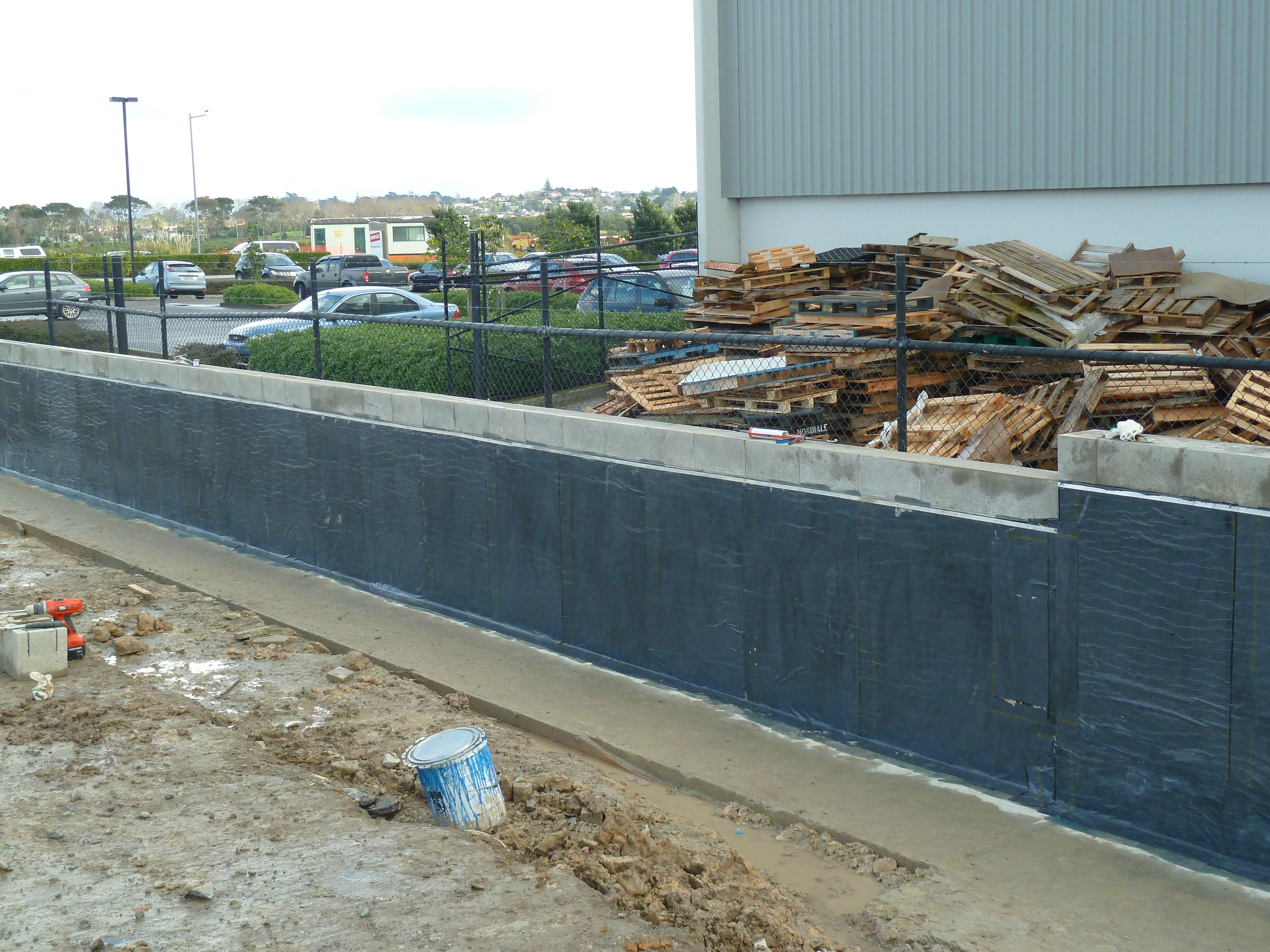

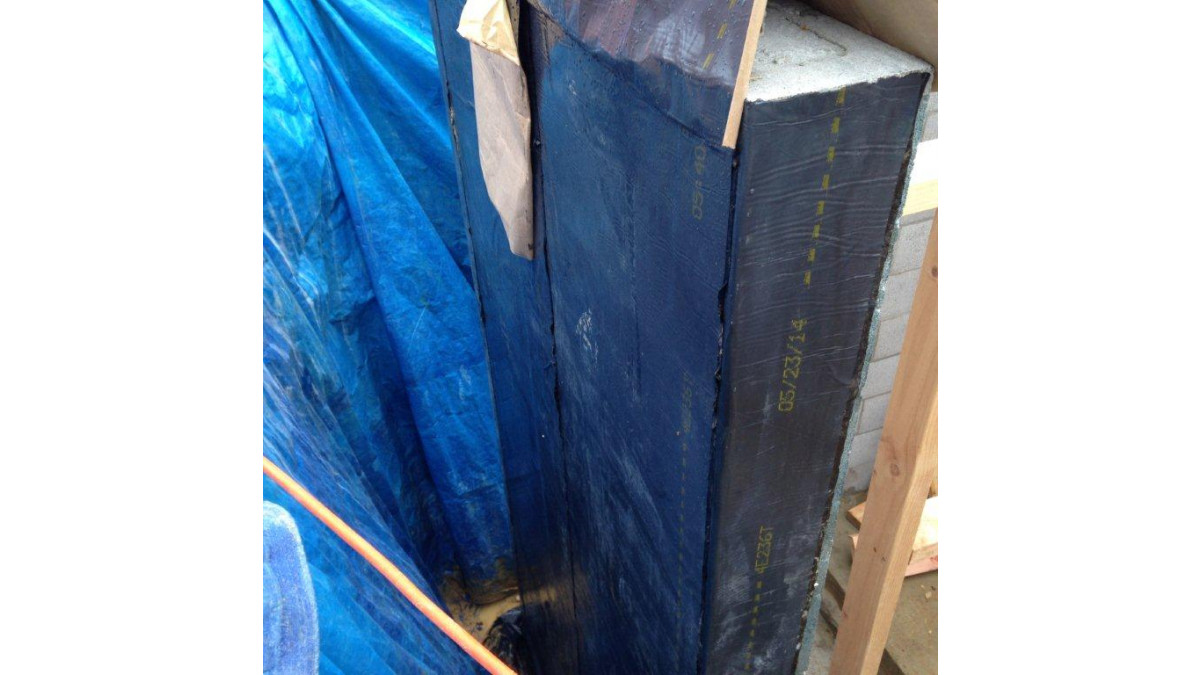

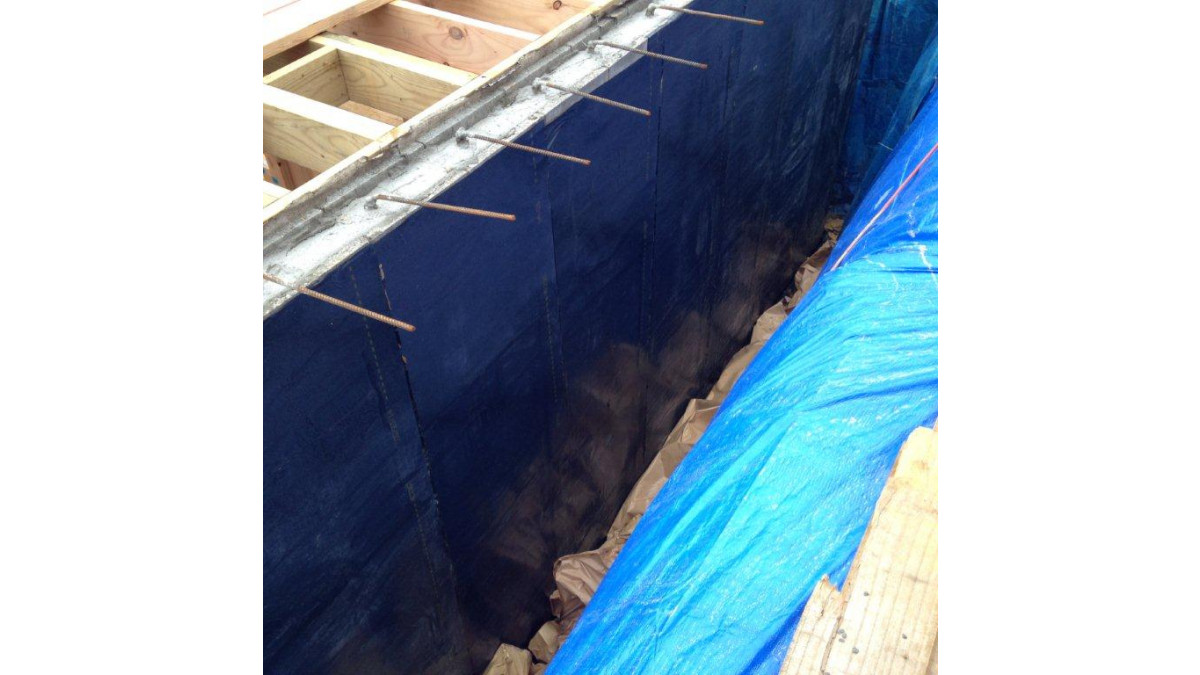

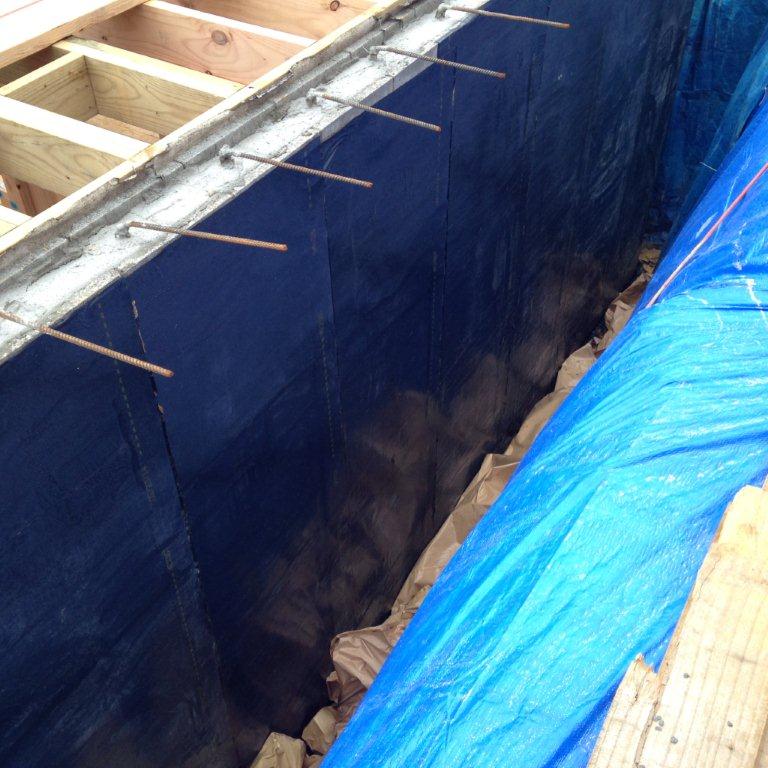

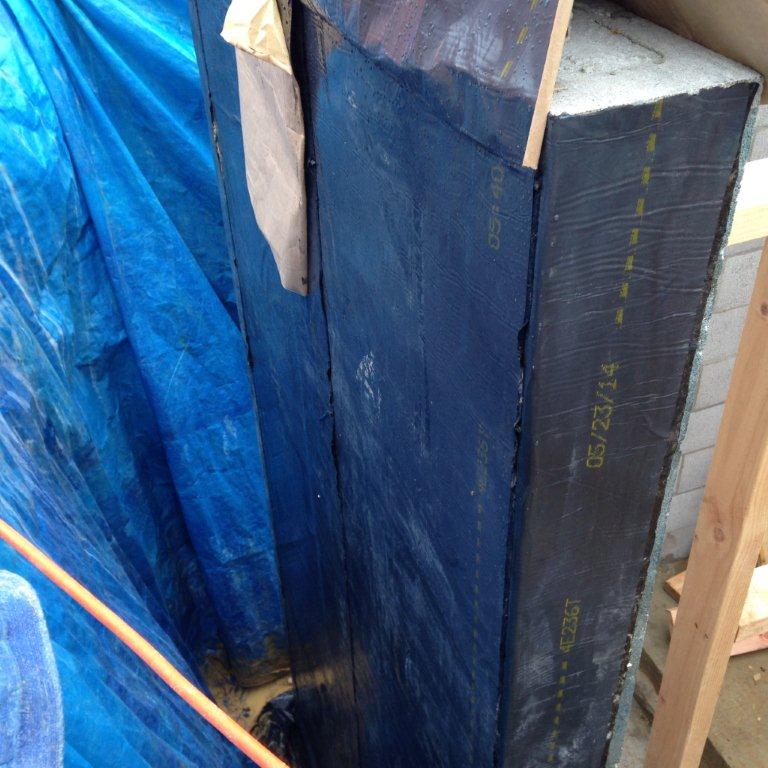

Viking Peel and Stick is a damp-proofing and tanking membrane system that protects the below-ground portion of a building structure from water ingress.

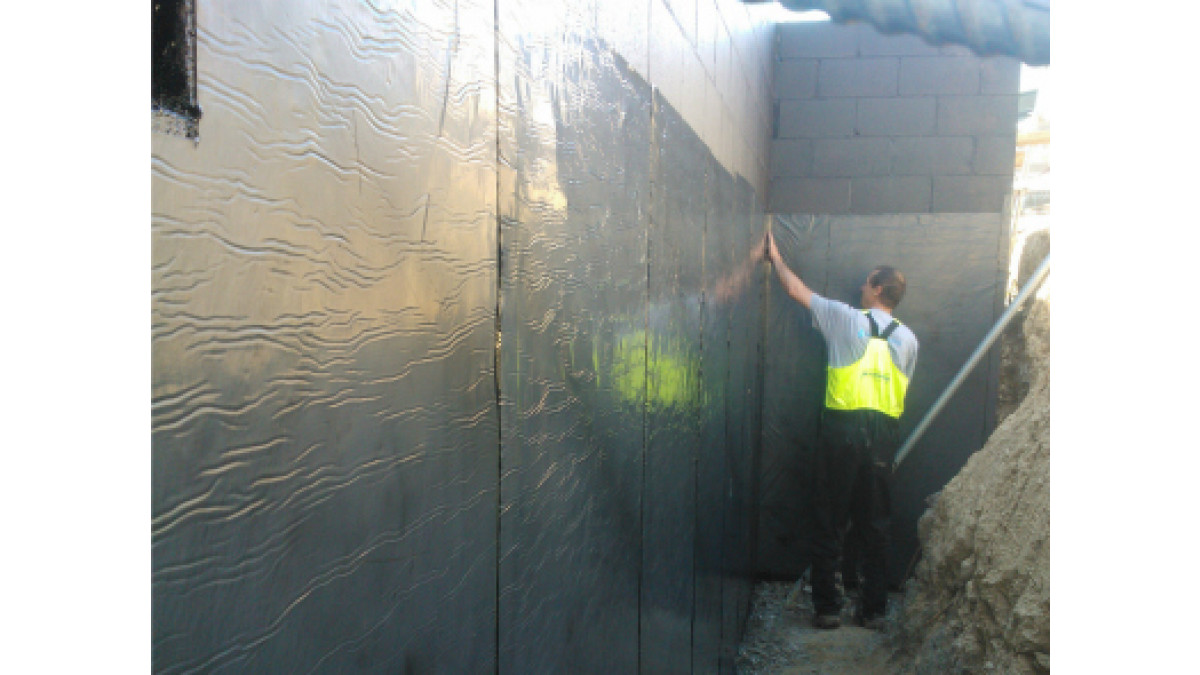

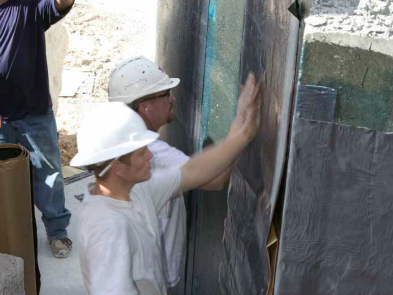

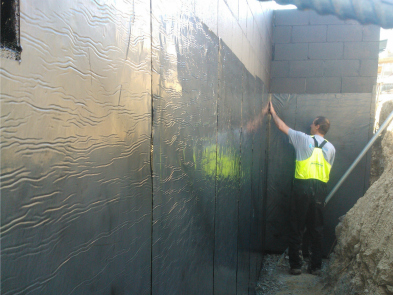

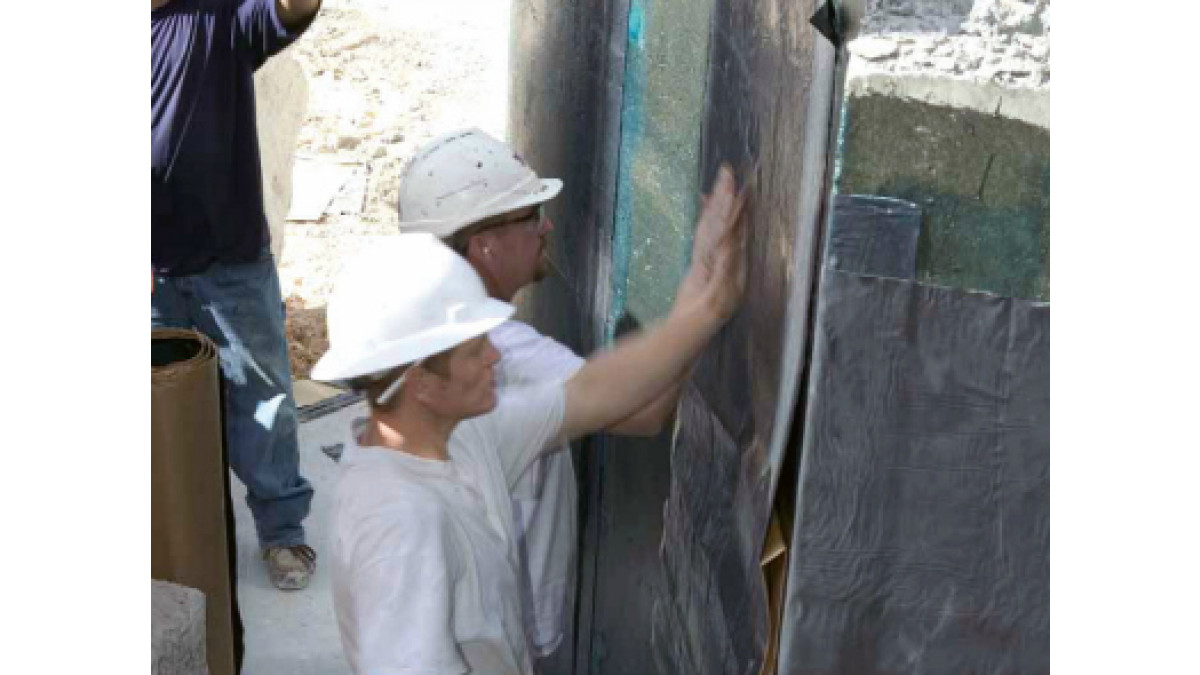

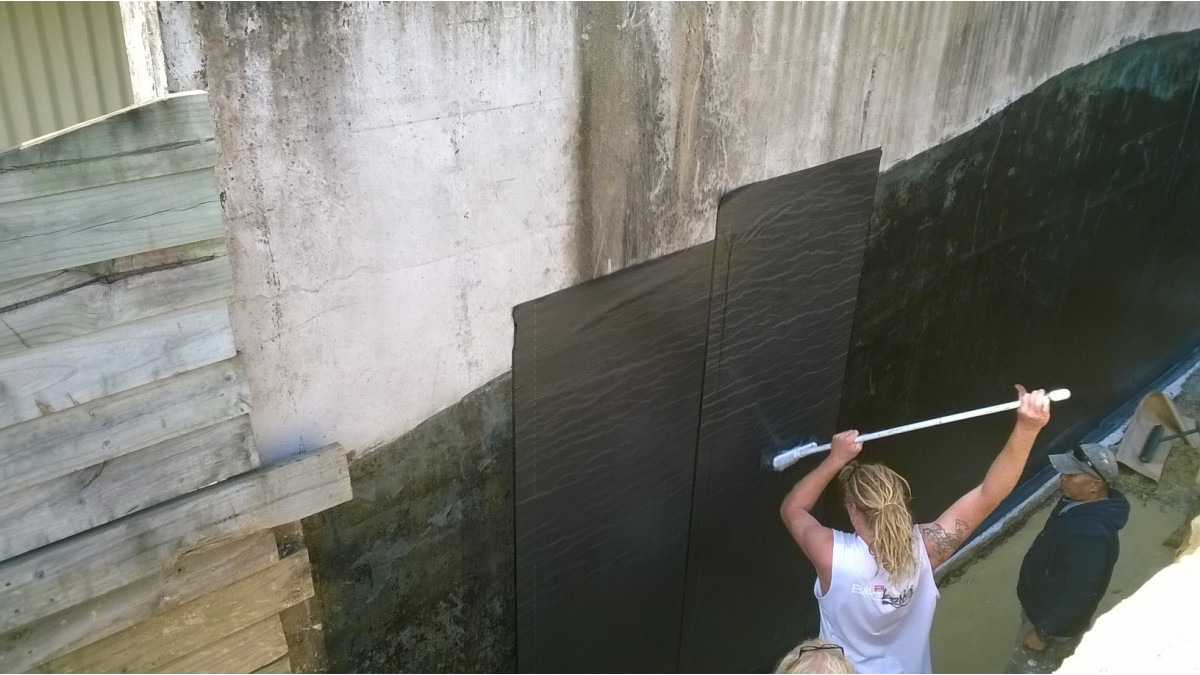

Viking Peel and Stick is a self-adhering waterproofing system consisting of a 1.5mm thick rubberised asphalt membrane, on the face of which a heavy-duty, high impact polyethylene film, has been laminated. The adhesive side has a removable release sheet that is peeled back at the time of application to a pre-primed substrate and then fully bonded to it.

It is applied cold; a perfect solution in restricted areas where the use of a propane-gas-fuelled flame would be dangerous.

Key Features
  • Full-adhesion eliminates water migration
  • Bond improves over time
  • Adheres to various substrate types
  • Some Hydrostatic pressure resistance (can be installed to maximum depth of 3.5m)
  • Elastomeric properties
  • Proven track record over the last 20-years
  • Installed only by a Viking Approved Applicator
  • 20-year product warranty
  • BRANZ Appraised (Appraisal No. 826)
NZ-Owned Business
NZ-Owned Business
Scope of Use

Viking Peel & Stick Membrane has been appraised as a DPM for use:

  • on buildings subject to non-specific design under floor slabs complying with NZS 3604 and behind concrete masonry basement walls and under floor slabs complying with NZS 4229; and,
  • on buildings subject to specific design with substrates of insitu or precast concrete complying with NZS 3101 or concrete masonry complying with NZS 4230 and 4210; and,
  • where subsoil drainage and free draining granular backfill has been placed behind basement walls.

Viking Peel & Stick Membrane must be adequately protected against damage during backfilling and in service.

Limitations on Use

Viking Peel & Stick Membrane can only be installed by Viking Licensed Installers.

Statement of Building Code Compliance
  • Clause B1 STRUCTURE: Performance B1.3.1. Viking Peel & Stick Membrane meets this requirement.
  • Clause B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years. Viking Peel & Stick Membrane meets this requirement. See paragraph 11.1 of the Viking Peel & Stick BRANZ Appraisal.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.3. Viking Peel & Stick Membrane meets this requirement. See paragraphs 13.1 - 13.3 of the Viking Peel & Stick BRANZ Appraisal.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Peel & Stick Membrane meets this requirement and will not present a health hazard to people.
Other Performance Attributes
  • BRANZ Appraised No. 826 (2014);
  • 20-year product warranty.
B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Material Safety Data Sheet
Independent Appraisal (BRANZ)
Warranty
Specification Clause (Masterspec)
Find an approved installer
Brochure
Additional Information
