Butylclad Rubber Waterproofing Membrane
Description

 Viking Butylclad is a rubber membrane ideal for waterproofing low-slope roofs and gutters.

Viking Butylclad comes in long narrow rolls that minimises unnecessary end-laps and off-cut waste. Viking Butylclad membranes are made of 70% butyl and 30% EPDM (ethylene propylene diene monomer)rubber; the latter providing the extra UV resistance and elongation properties over 100% butyl membranes.

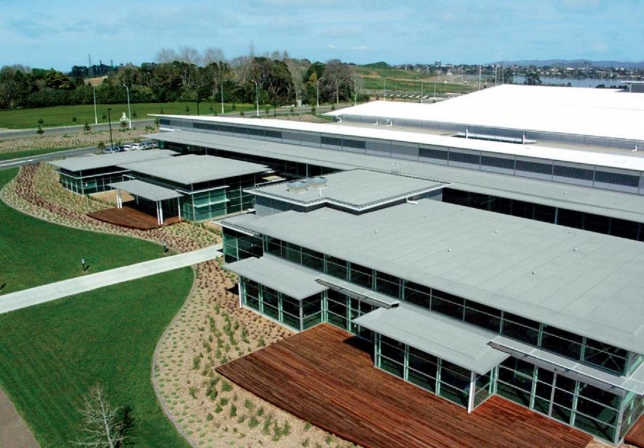

Butylclad is also suitable for industrial, commercial and residential roofs, decks, balconies and parapets and is formulated to suit a wide-range of climatic conditions — ideal for both inland and coastal conditions.

Key Features
  • 50 years track record in NZ and the Pacific Islands
  • Formulated to suit a wide range of climatic conditions
  • UV resistant
  • Elongation properties
  • Pliable material
  • Can be painted with approved paint systems
  • Installed only by Viking Licensed Applicators
  • 20-year product warranty
  • Full System Warranty Option: 20-years
  • BRANZ Appraised (Appraisal No. 307)



  • Colour: Black and Grey
  • Thickness: 1.0mm and 1.5mm
  • Roll width: 1350mm (900mm in 1.0mm black only)
  • Roll length: 20m (for 1.5mm thick), 25m (1.0mm thick)
NZ-Owned Business
NZ-Owned Business
Scope of Use

Viking Butylclad Membrane has been appraised for use as a waterproofing membrane for buildings within the following scope:

  • scope limitations of NZBC Acceptable Solution E2/AS1, paragraph 1.1; and,
  • with timber supporting structures designed and constructed in accordnace with the NZBC; and,
  • with nominally flat or pitched roofs constructed to drain water to gutters and drain outlets complying with NZBC; and,
  • with substrates of plywood sheet.

Viking Butylclad Membranes have also been appraised for use as waterproofing membranes for external reinforced concrete and plywood roofs and decks for buildings within the following scope:

  • up to 3 storeys with a maximum height from ground to eaves of 10m and with a floor plan area limited only by seismic and structural control joints; and,
  • with the reinforced concrete structure designed and constructed in accordance with the NZBC; and,
  • with timber supporting structures designed and constructed in accordance with the NZBC; and,
  • with nominally flat, curved or pitched roofs constructed to drain water to gutters and drain outlets complying with NZBC.

The BRANZ Appraisal is limited to roofs and decks within the following scope:

  • constructed to suitable falls (refer paragraph 12.1 -12.9 of the Viking Butylclad Membrane BRANZ Appraisal); and,
  • with no steps within a deck level, no integral roof gardens and no down pipe discharging directly onto a deck.

The design and construction of the substrate and movement and control joints is specific to each building, and therefor the responsibility of the building designer and building contractor and is outside the scope of this Appraisal.

Limitations on Use

The Viking Butylclad Membrane must be installed by Viking Roofspec Licensed and Trained installers.

Statement of Building Code Compliance

The Viking Butylclad Membrane, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1. Viking Butylclad Membrane meets this requirement.
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. Viking Butylclad Membrane meets this requirement. See paragraph 9.1 of the Viking Butylclad Membrane BRANZ Appraisal.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.1 and E2.3.2. Roofs, decks, balconies, parapets and gutters incorporating Viking Butylclad Membrane meet this requirement. See paragraphs 12.1 - 12.9 of the Viking Butylclad Membrane BRANZ Appraisal.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Viking Butylclad Membrane meets this requirement and will not present a health hazard to people.

See BRANZ Appraisal for full information.

In-Service History

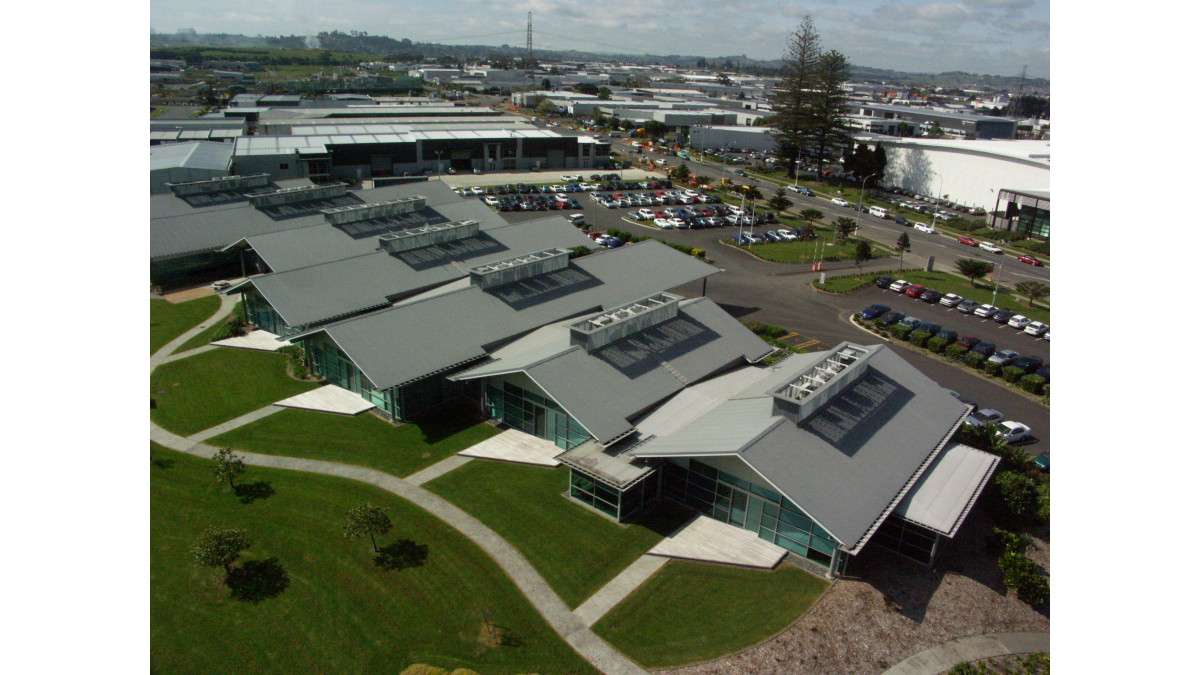

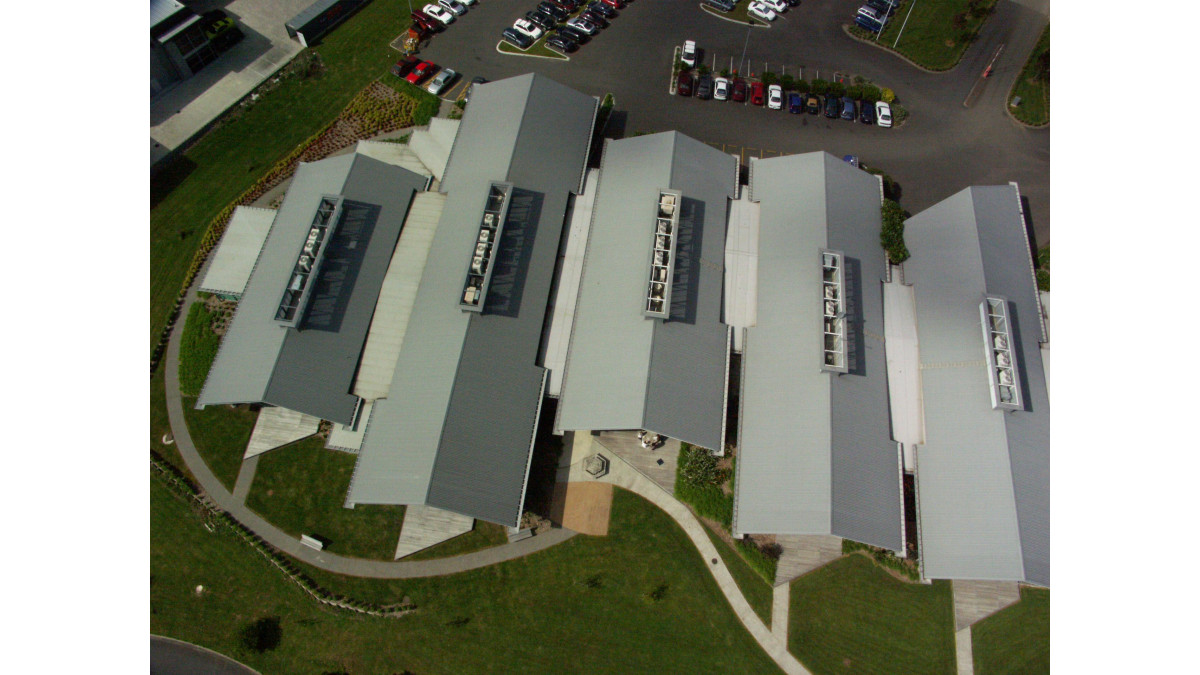

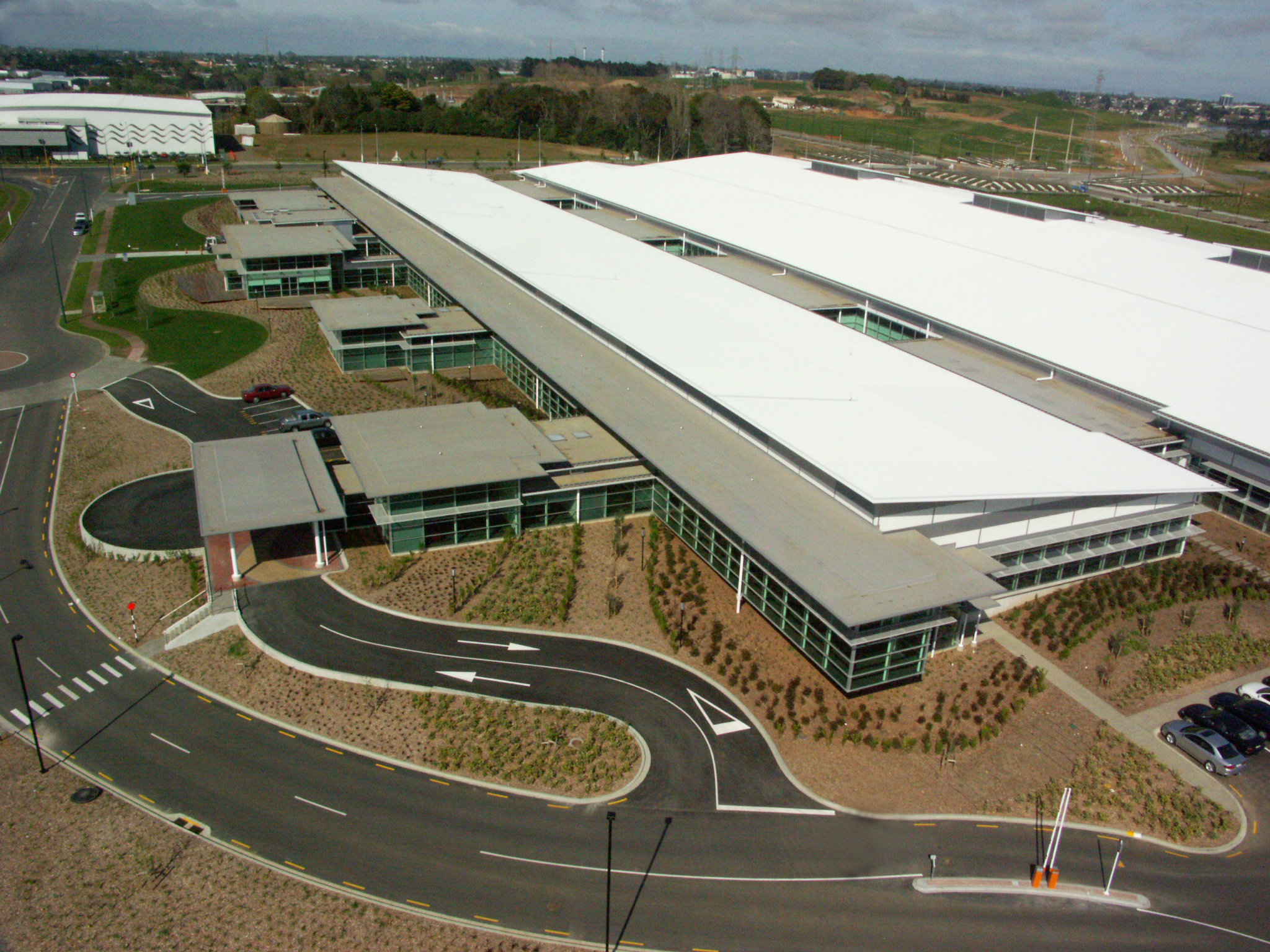

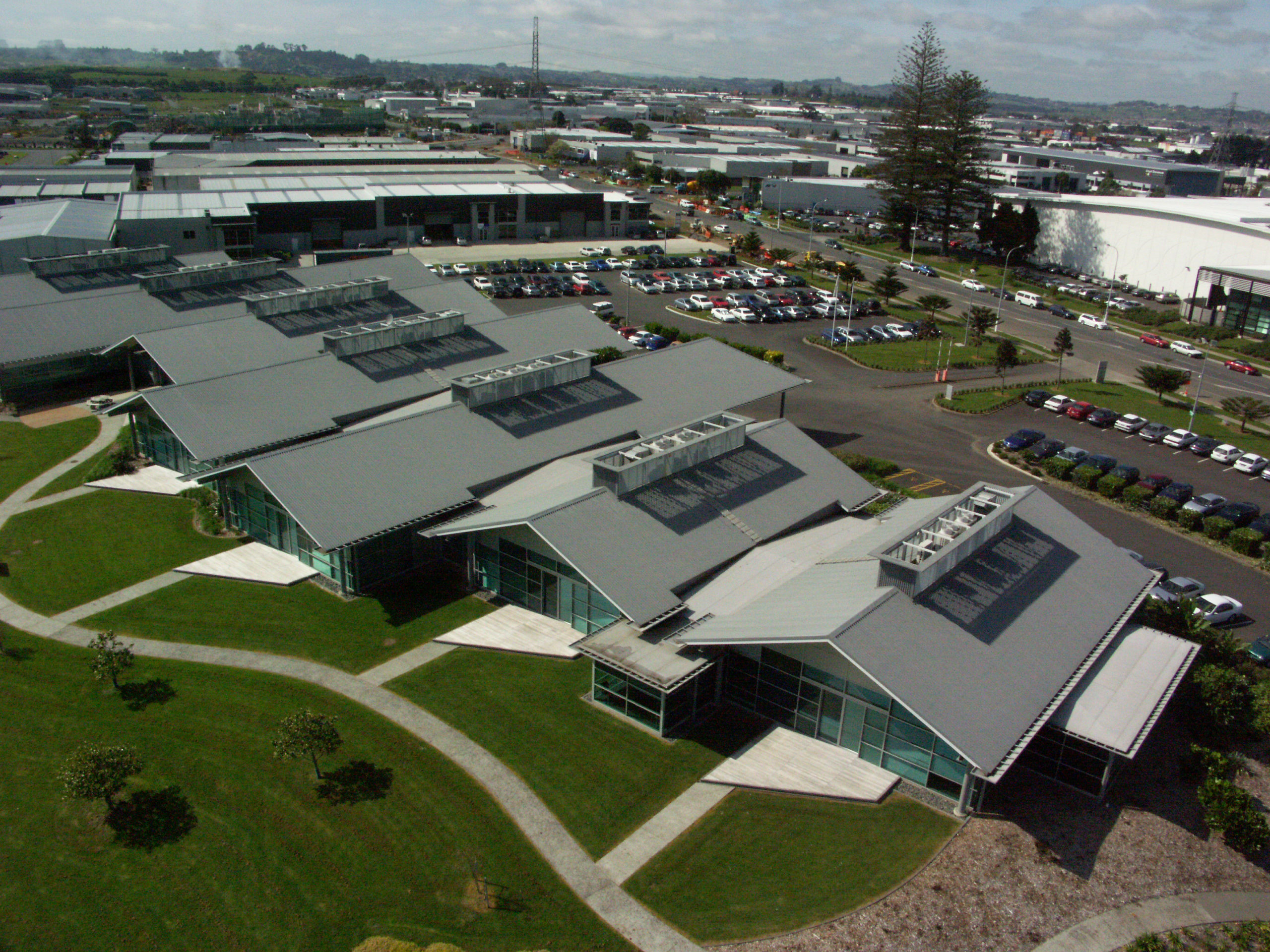

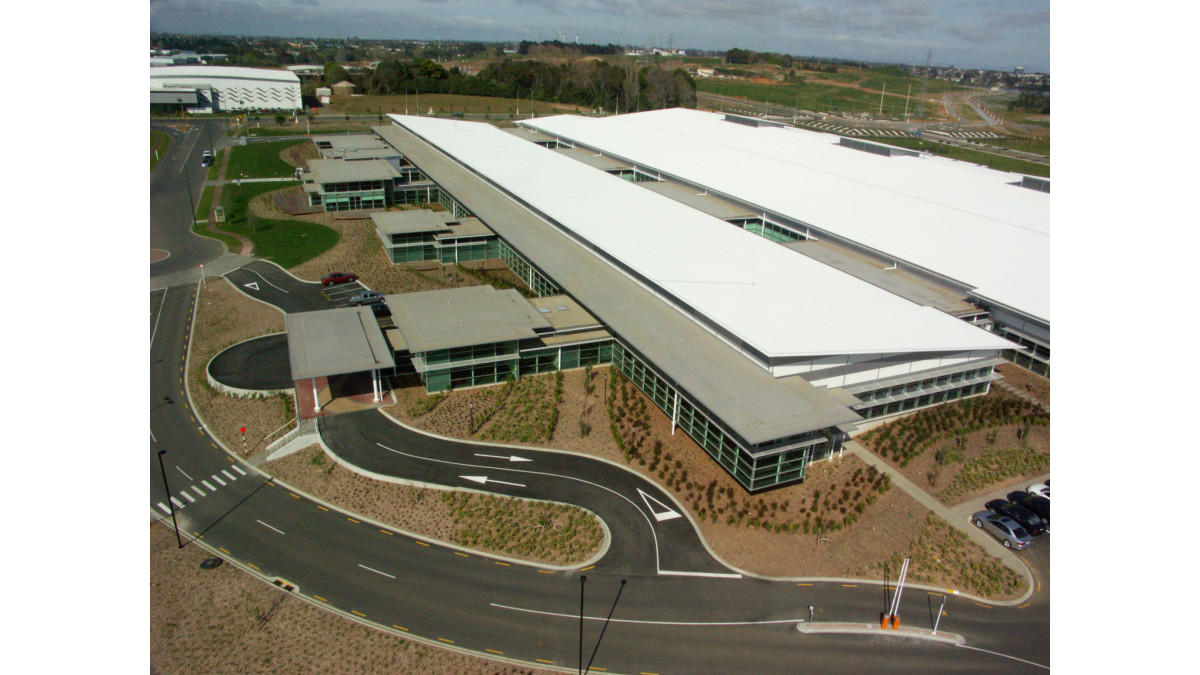

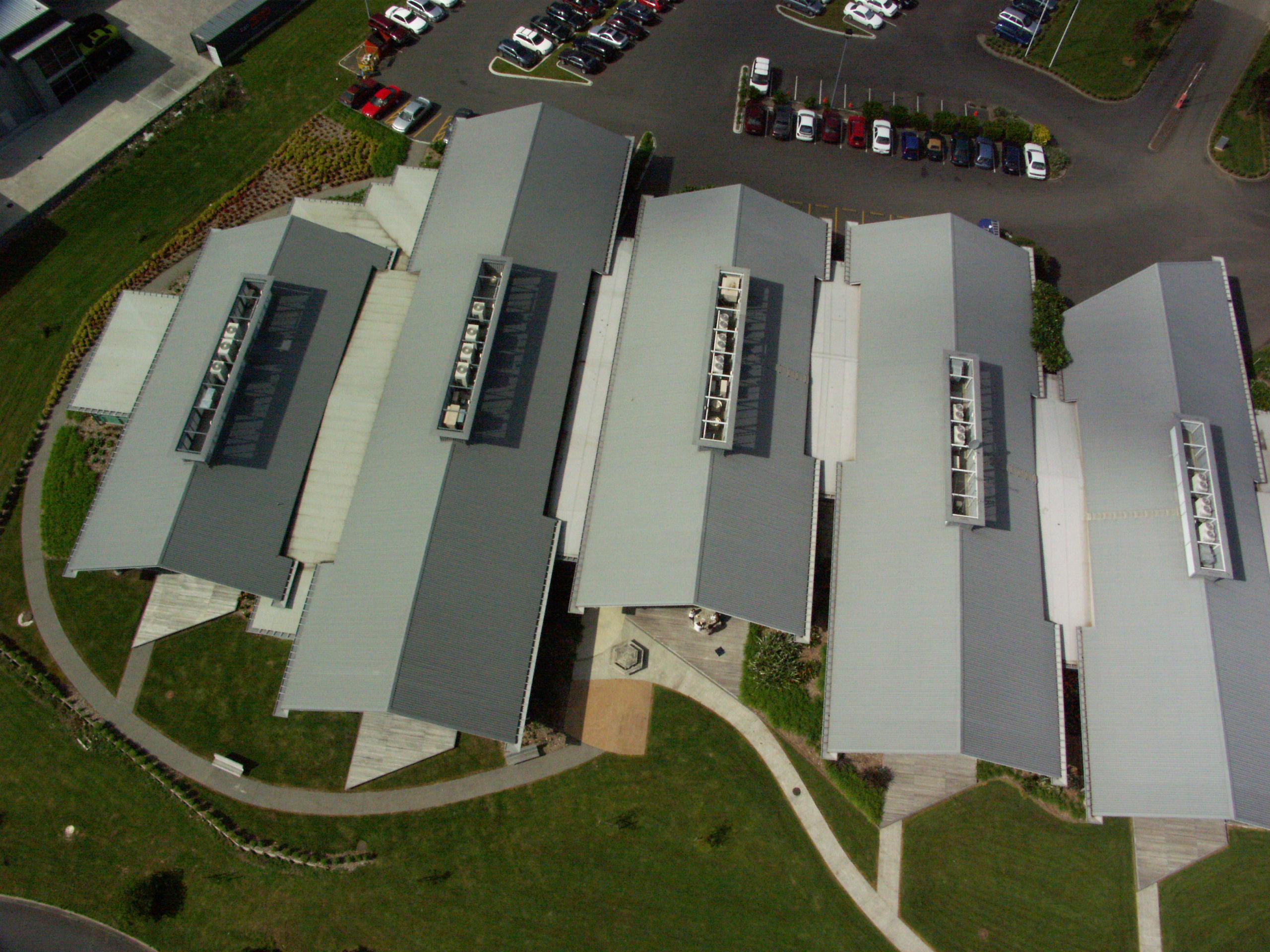

  • Fisher & Paykel Healthcare Building (South Auckland)
  • Mainfreight's two depots (Auckland)
  • Novotel Hotel (Greenlane)
  • Christchurch Airways Building
Other Performance Attributes
  • BRANZ Appraised No. 307 (2013);
  • Backed by a 20-year product warranty, and for specific projects, is eligible for Viking's Full System Warranty, which covers the product and installation in one document;
  • Can be painted with approved paint systems - design flexibility.
E2 External Moisture compliant
External Moisture
Literature
Product Assurance
Full Product Information
Full System Warranty
Independent Appraisal (BRANZ)
Maintenance
Masterspec
Material Safety Data Sheet
Substrate Checklist - Concrete
Substrate Checklist - Plywood
Substrate Checklist: Concrete
Substrate Checklist: Plywood
Warranty
Other Literature
Brochure
Brochure: Viking WarmRoof
Brochure: Viking WarmSpan
Case Study - Tried and True Roofing Membrane Solution
Find an approved installer
Membrane Protection Sheet
Product Page on Supplier Website
Viking Roofspec Company Profile
CAD/PDF Details
Butylclad and Epiclad Details Full Set .DWG
Butylclad and Epiclad Details Full Set .PDF

For over 50 years, Viking Roofspec have supplied roofing and waterproofing materials, and combining leading-edge function with design flair to keep water out — for good.
