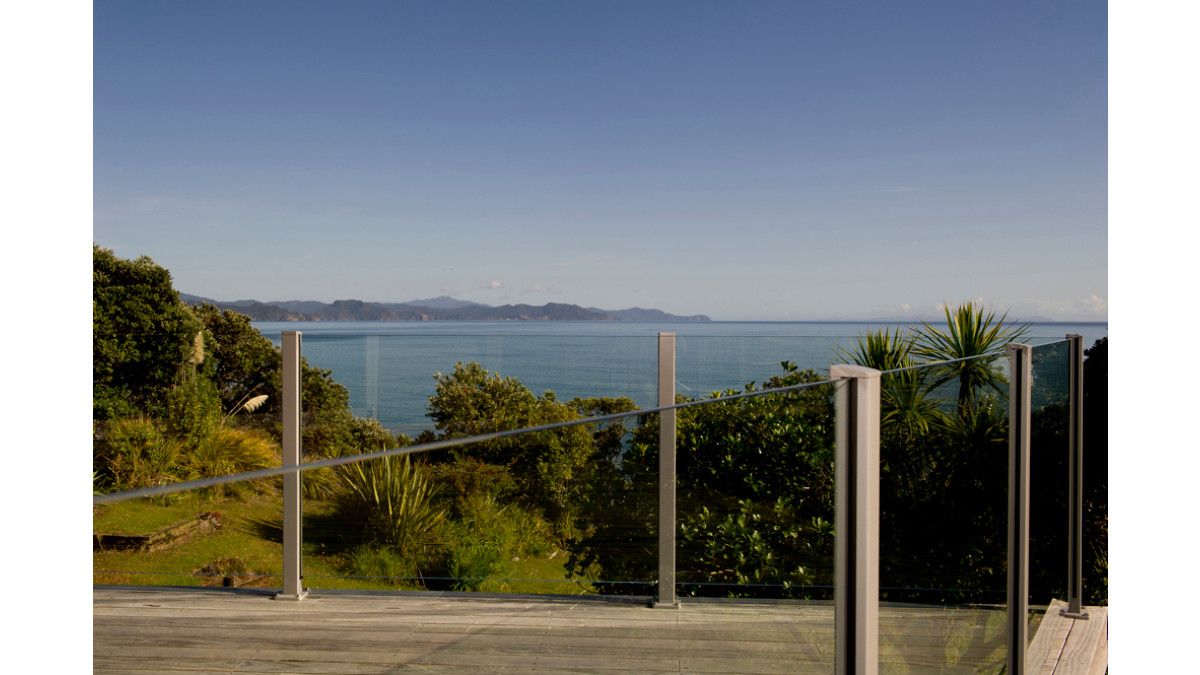

Vetro Semi-frameless Glass Balustrade
Description

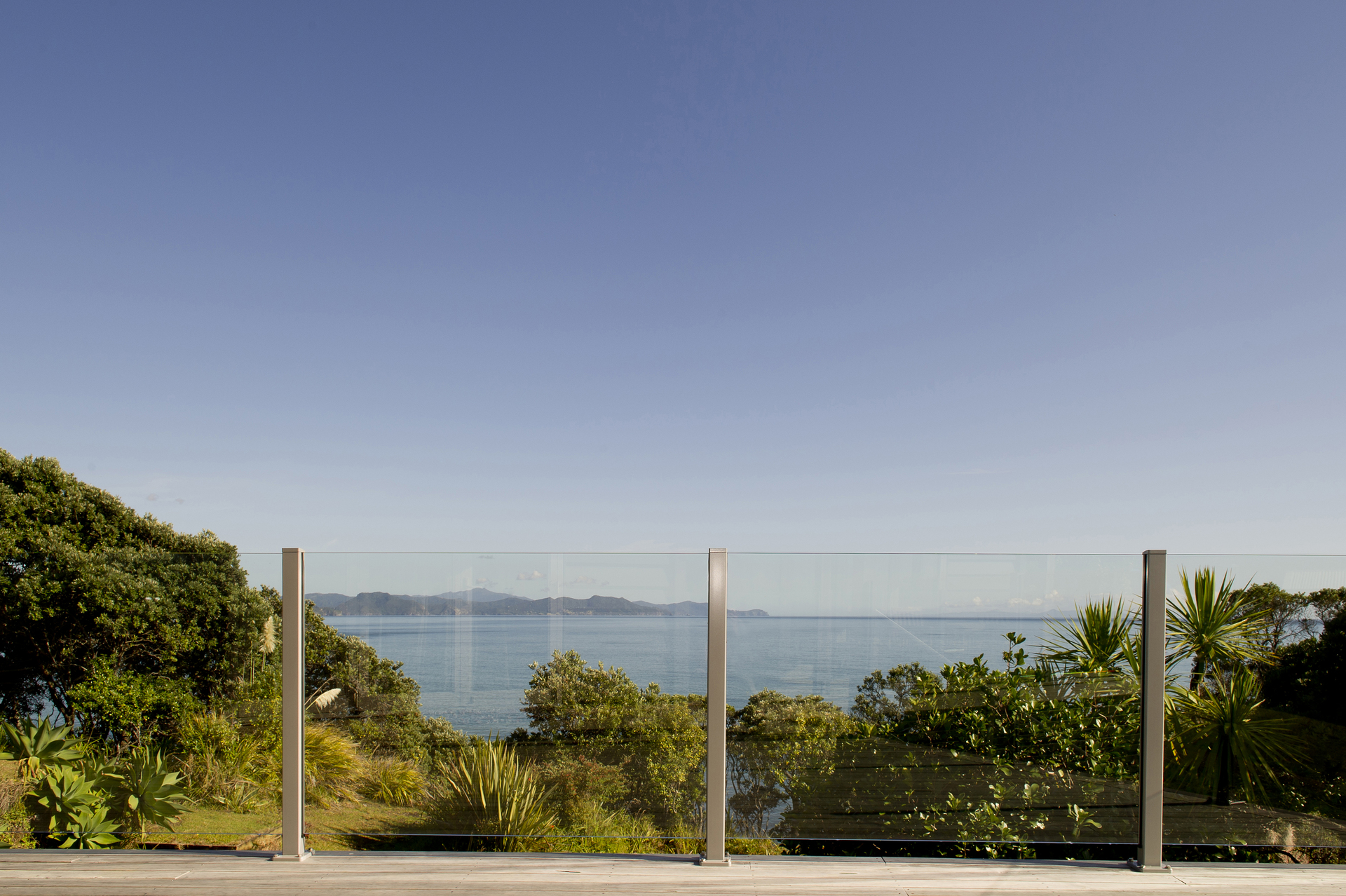

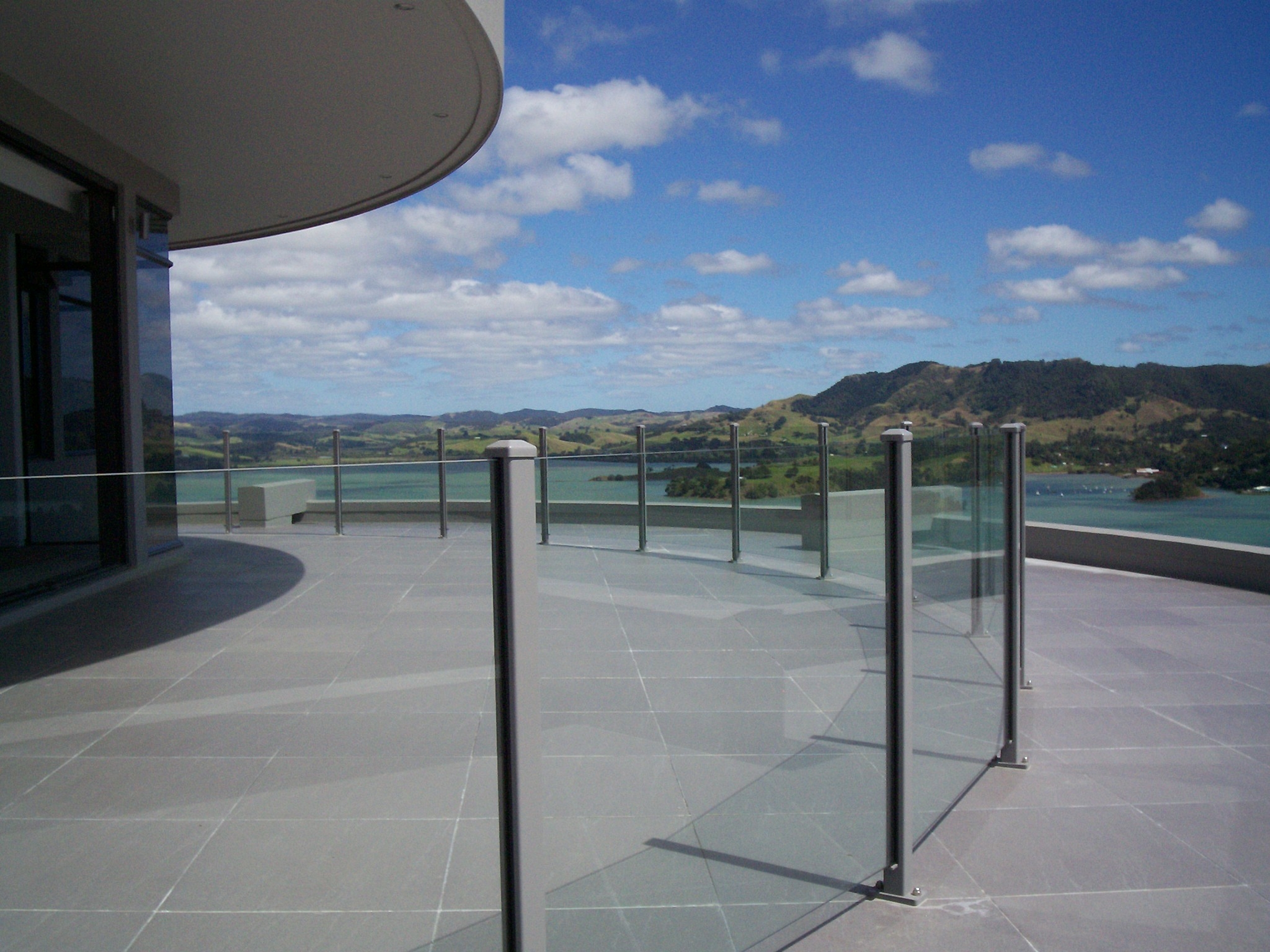

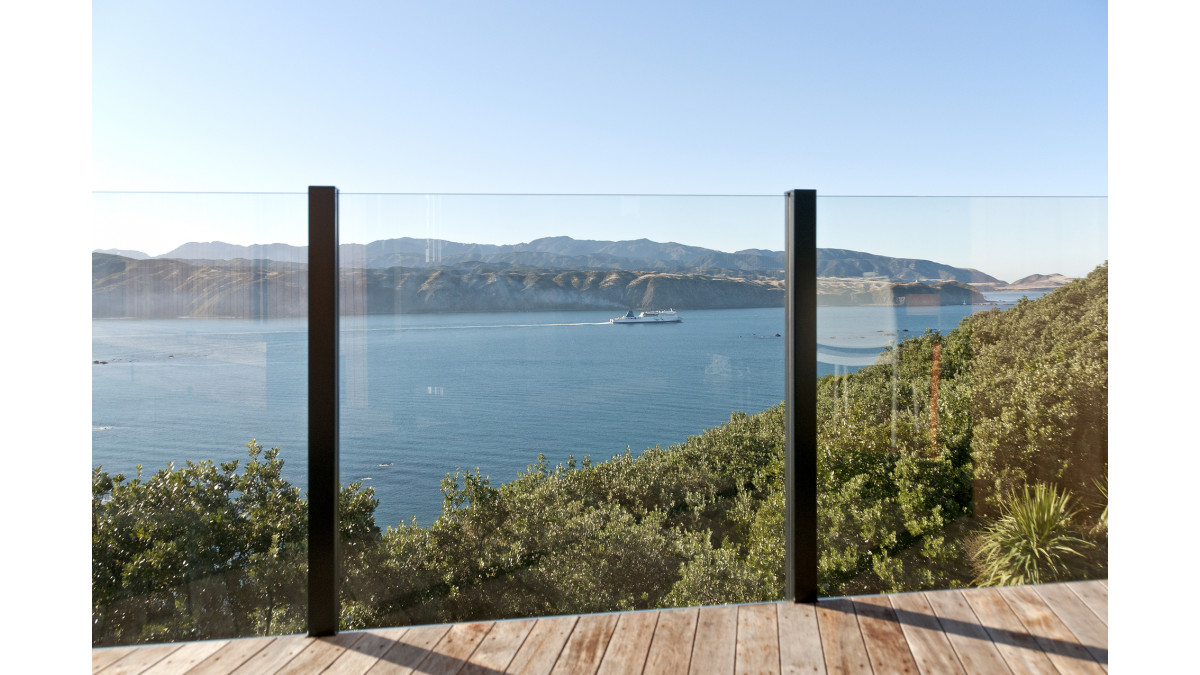

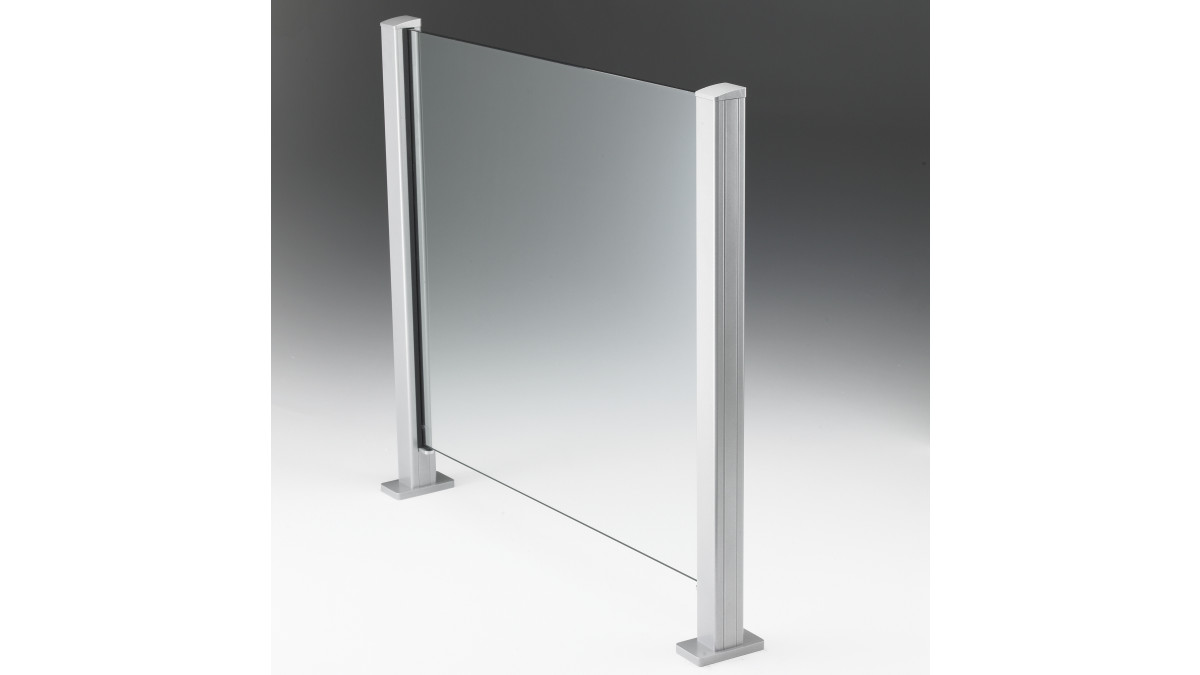

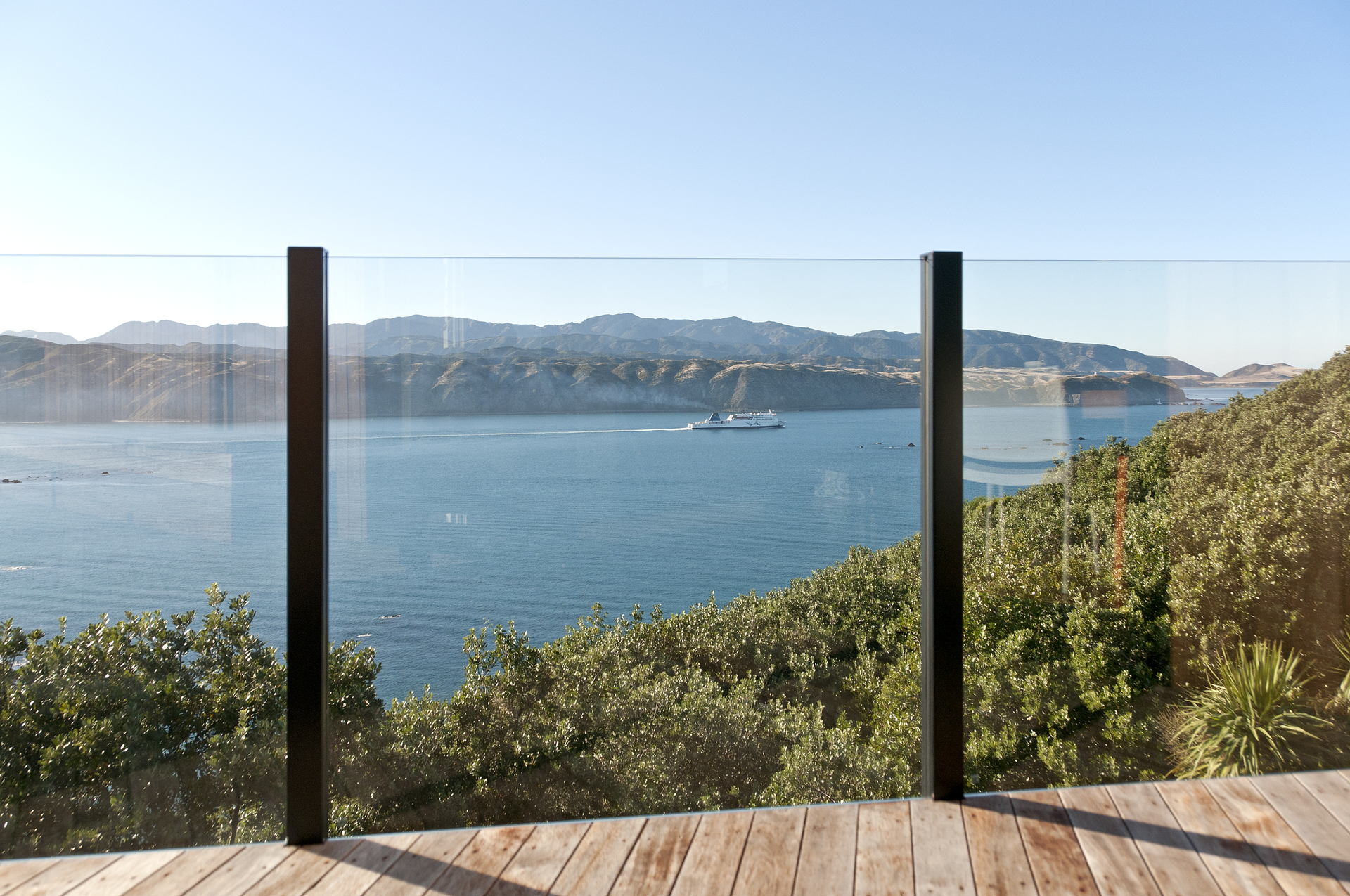

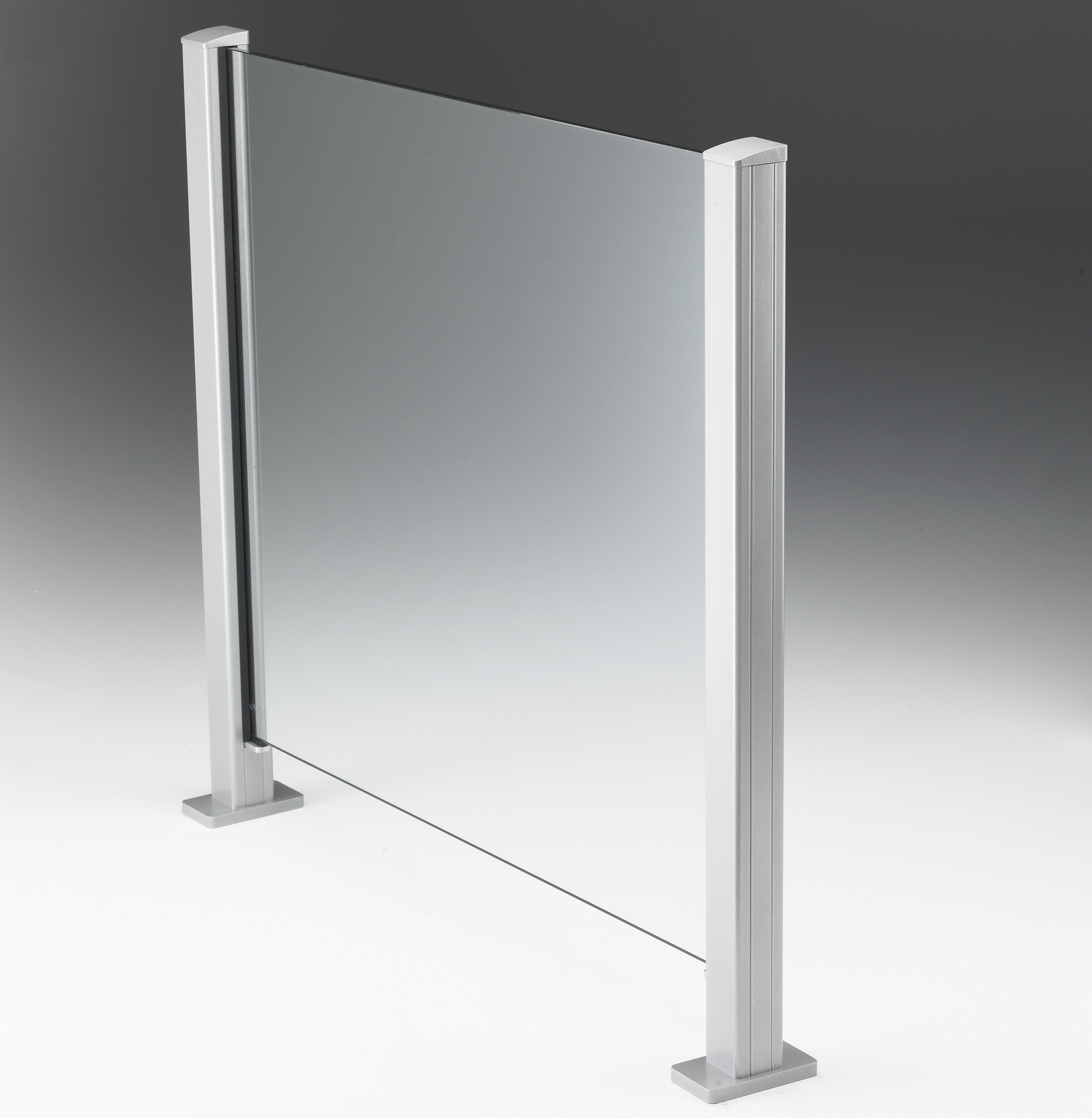

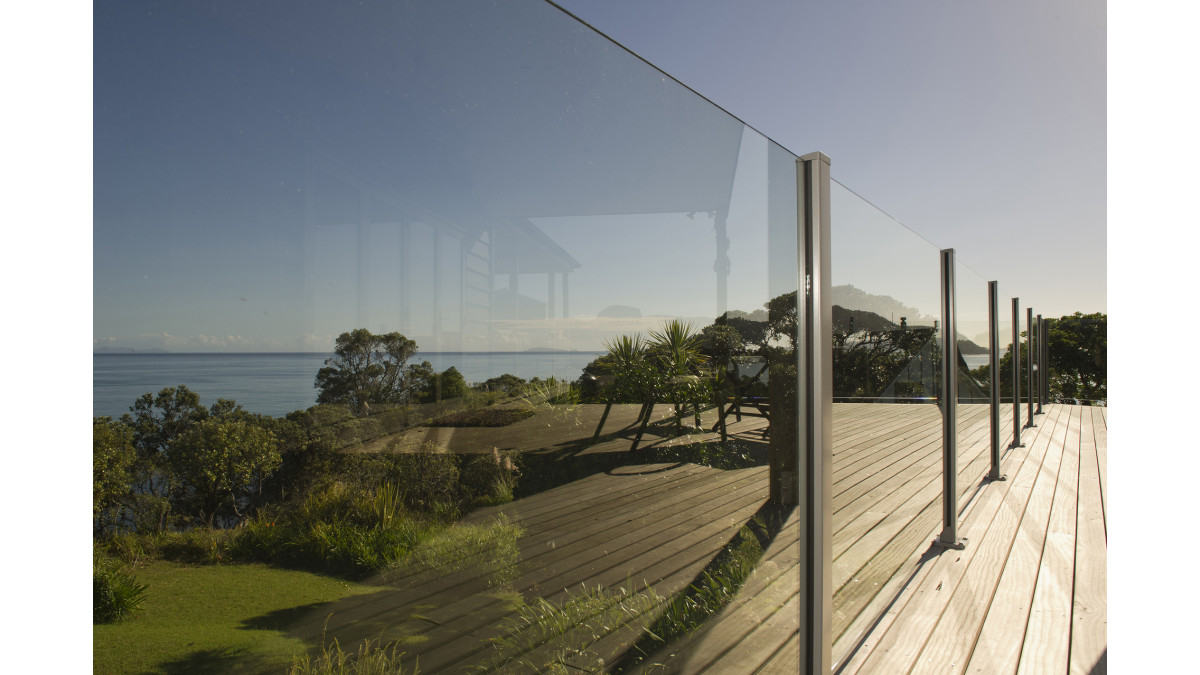

The Vetro’s recessed channels and absent top rail offer a crisp, clean-lined support that is significantly more economical than frameless glass.  A very popular choice for specifiers, this great all-rounder features a reliable combination of minimal aluminium structure and a glass aesthetic for uninterrupted views.  The Vetro's posts protrude just above the top edge of the glass with a stylish sloping cap.

Key Features
  • Designed for standard heights up to 1200mm from finished deck level
  • Wide range of finish options — can be powdercoated or anodised in all standard NZ colours
  • Standard specifications available for top or side fixing to both Timber and Concrete substrates
  • Specifications for non-standard situations may be provided by Unex Systems upon request
  • Screws together with minimal, if any, welds required
  • Made from 6000 series extruded aluminium alloys
  • Installed only by Authorised Fabricators, available nationwide
  • Post option available for side-fixed situations to conceal screw fixings
  • Designed for wind speeds up to 64m/s (ULS)
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

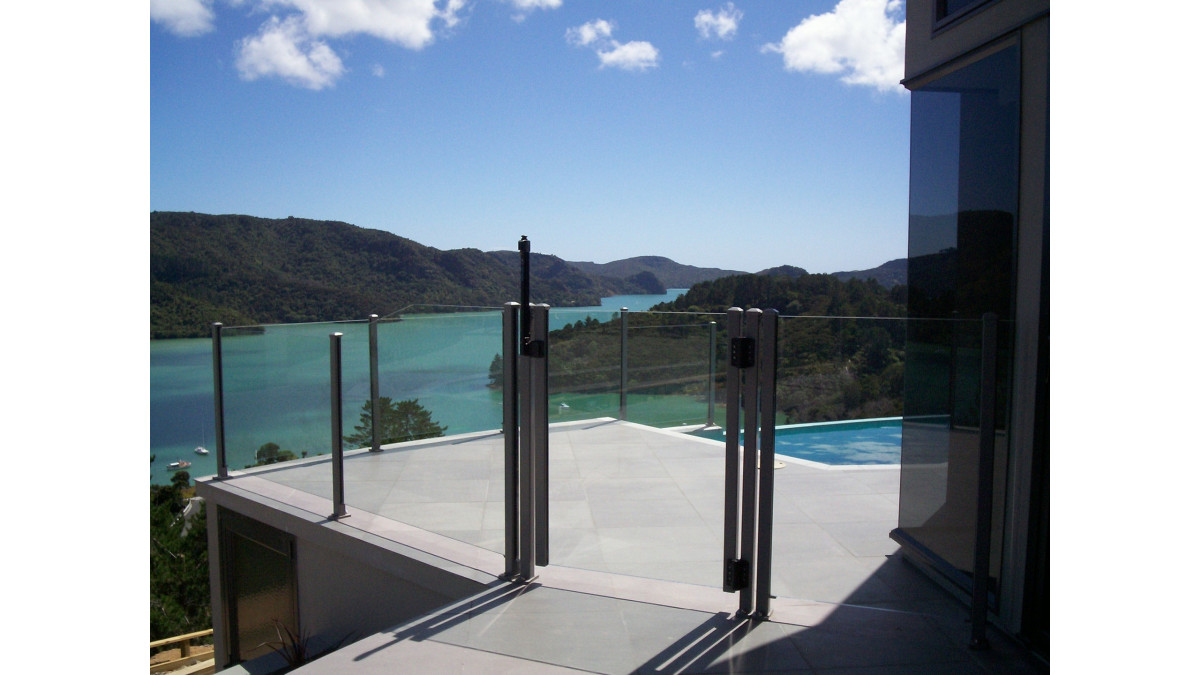

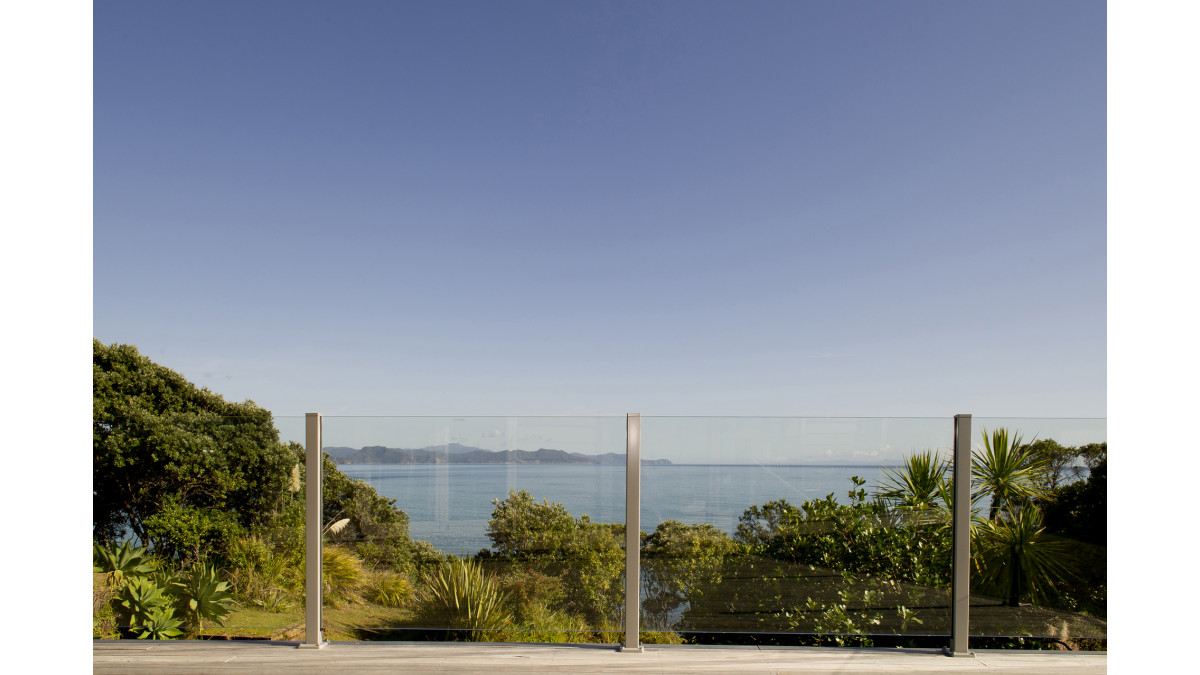

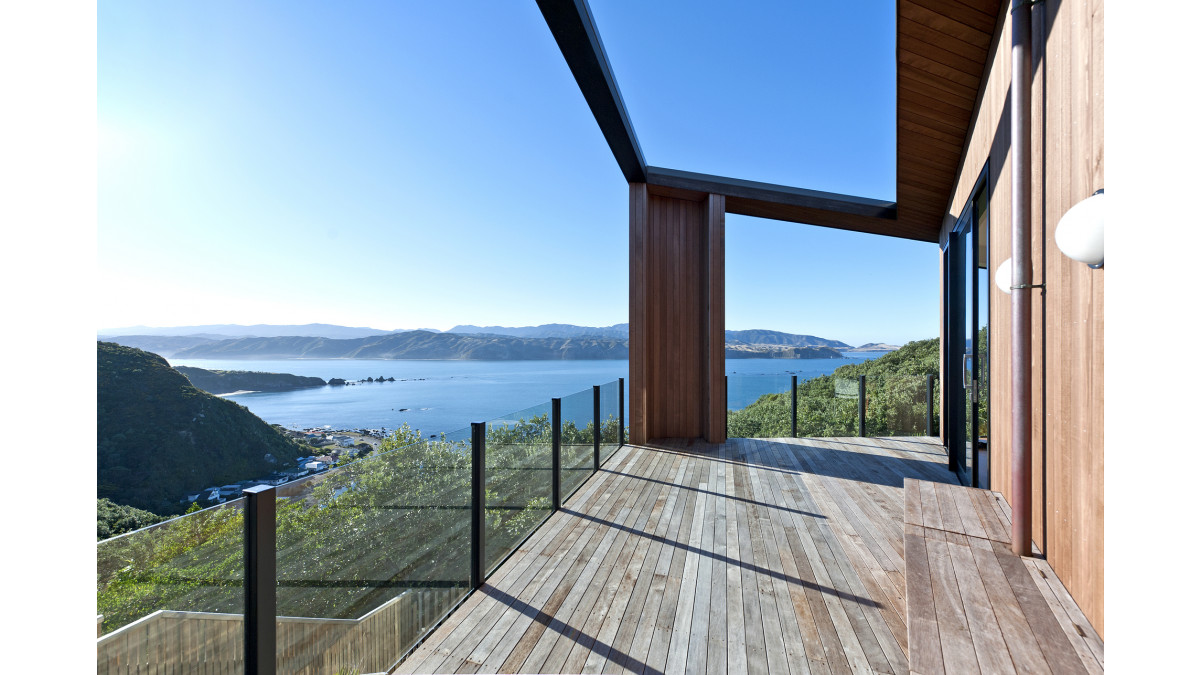

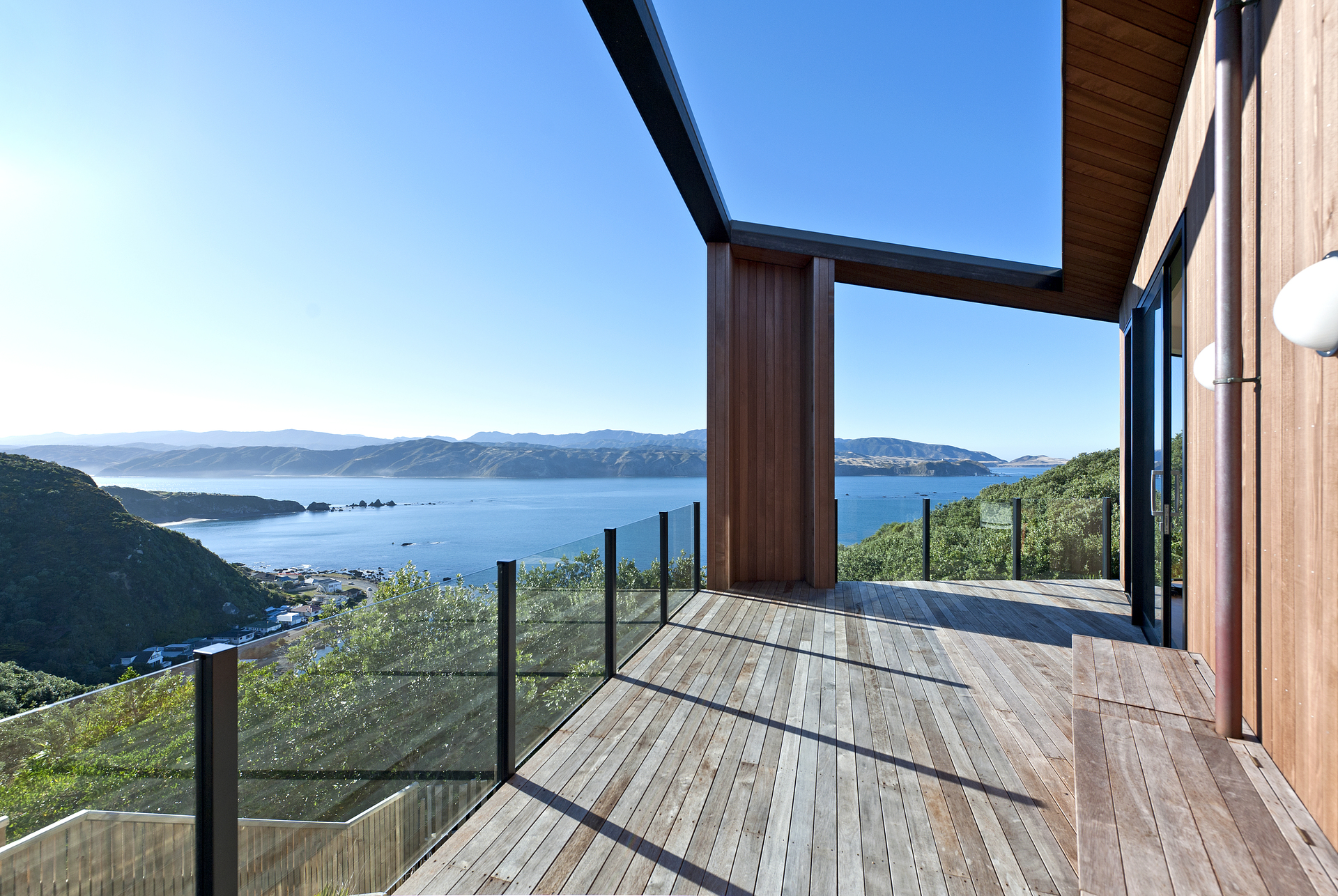

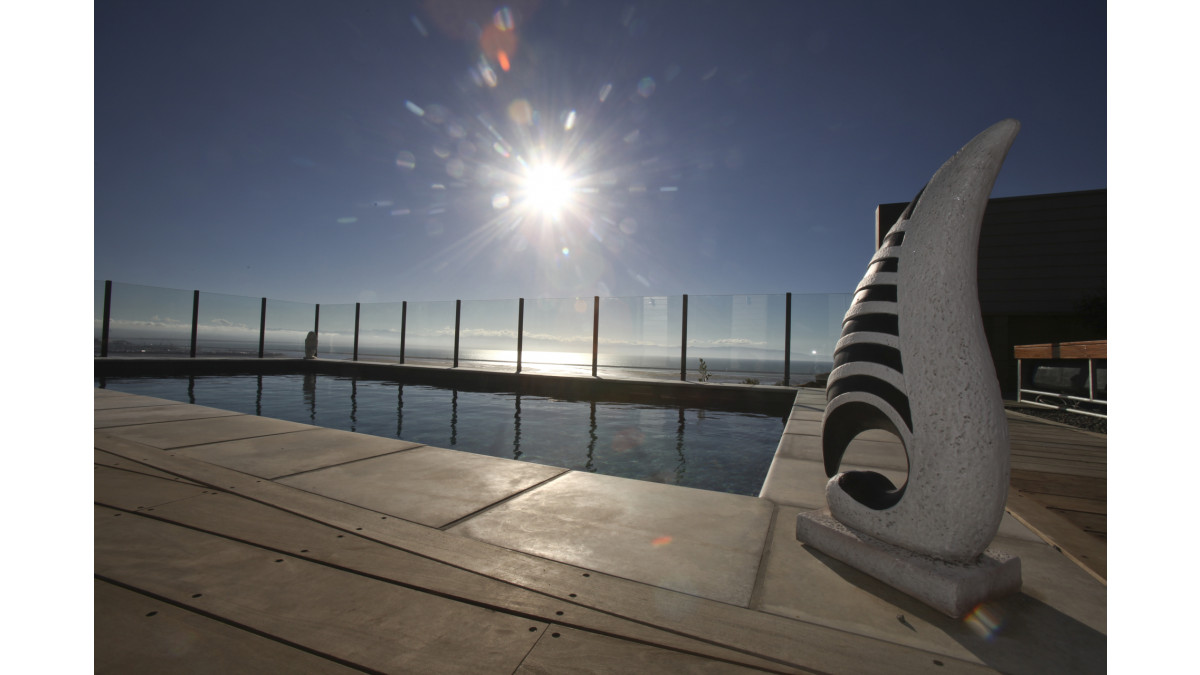

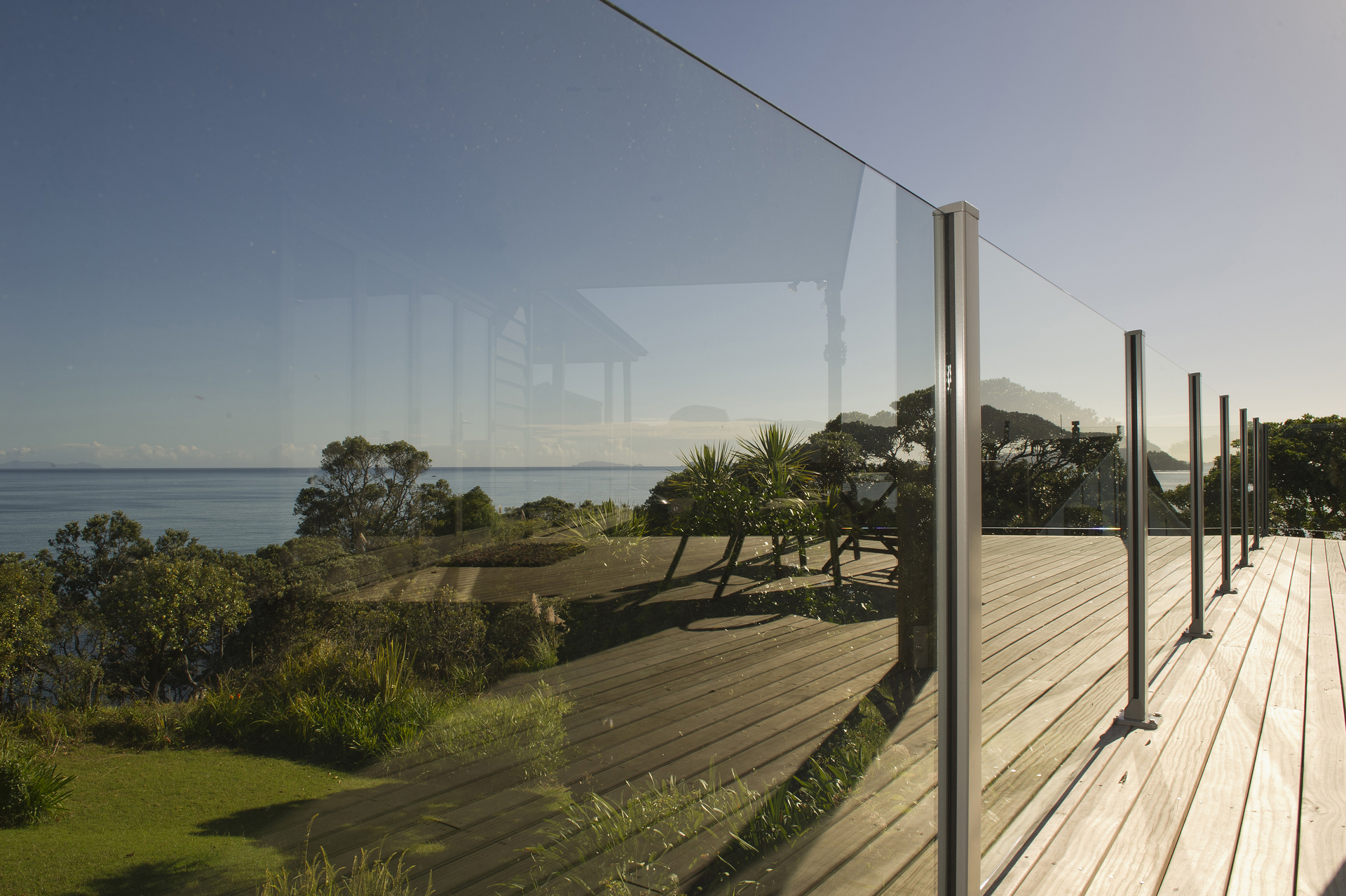

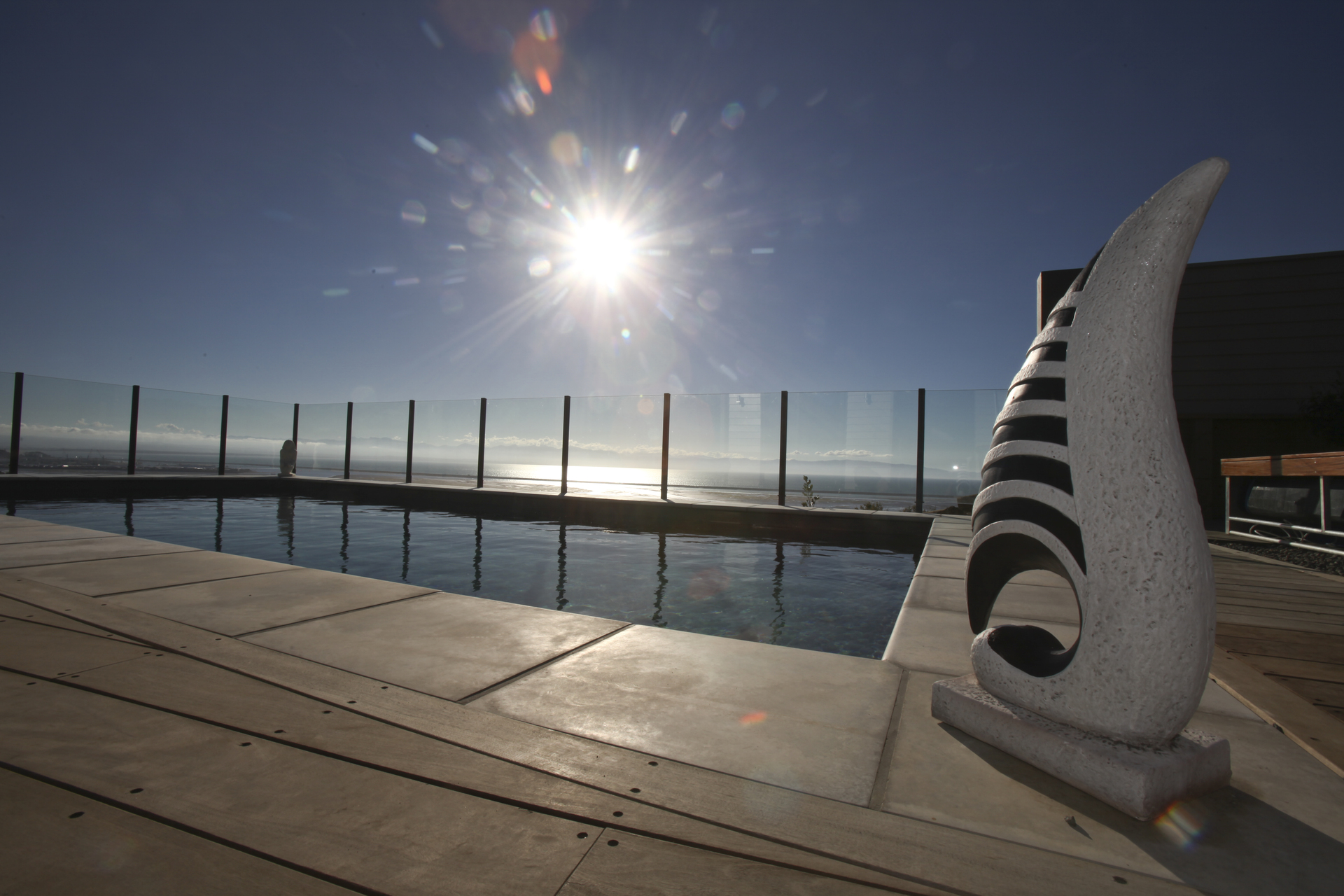

The Vetro Semi-frameless Glass style by UNEX can be used for both external and internal applications, including decks, balconies, stairways and landings, mezzanine floors, pedestrian gates, and pool fences, etc.

UNEX balustrades are designed to and comply with 'A', 'B', 'E' and 'C3' loadings of AS/NZS 1170.1:2002 for residential applications, office, and work areas, as well as areas for moving people without obstacles.

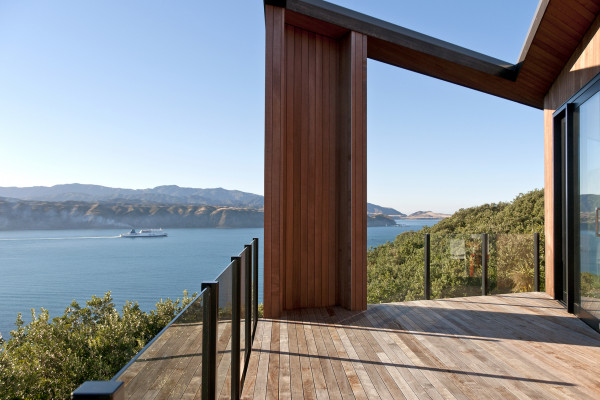

A wide range of fixing options are available to fix to the top and sides of both timber and concrete substrates.  Unex's DKG2 gutter bracket system is designed for membrane decks with gutters and waterproofing considerations. Site-specific specifications may also be provided upon request for those non-standard situations.

The standard powders used by Unex (the Interpon powder coat range) can be used right down to sea level, provided the care and maintenance instructions are adhered to.

Limitations on Use

UNEX designs for residential situations, office, and work areas, as well as for areas with moving people, however, cannot be used for 'C1/C2', 'C5' or 'D' Loadings. In these applications, Unex recommends the use of its Extreme Barriers range of styles which has been specifically developed for these higher loadings for crowd and public situations.

For certain buildings (such as architectural sky rises (over 3 stories high), light commercial, and high pollution areas) a higher grade powder coat powder must be specified.

NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Medium suitable
Medium Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
NZS 3604 Wind Zone Very High suitable
Very High Wind Zone
Statement of Building Code Compliance

Unex has designed its range of balustrade styles to comply with the B1, B2, F2, F4, and F9 requirements of the NZ Building Code and are suitable for occupancy types 'A', 'B', 'E' and 'C3' in accordance with AS/NZS 1170.

Producer Statements for all standard specifications can be created online in the registered area of the UNEX website.

For non-standard situations not covered by Unex's specifications, a site-specific PS1 and specification may be prepared by UNEX upon request.

In-Service History

Unex specialises in designing and manufacturing architectural balustrade systems throughout Australasia having done so since 1981.

These semi-frameless styles have been incorporated in Unex’s range since the early 2000s. There have been enhancements made since this time – in particular during 2008, when the building code changed to incorporate AS/NZS1170 which meant that the required balustrades loads effectively doubled. Unex Systems then redesigned a number of their balustrade extrusions to ensure these loads were adequately met.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
F9 Restricting Access to Residential Pools compliant
Restricting Access to Residential Pools
Documents
UNEX Promotional Catalogue

ZUPPB

NZ Building Code of Compliance
Producer Statement (PS1)
Framed Glass Installation Guide
UNEX Loading Classification
CAD/PDF Details
Filters
Fixing Specs

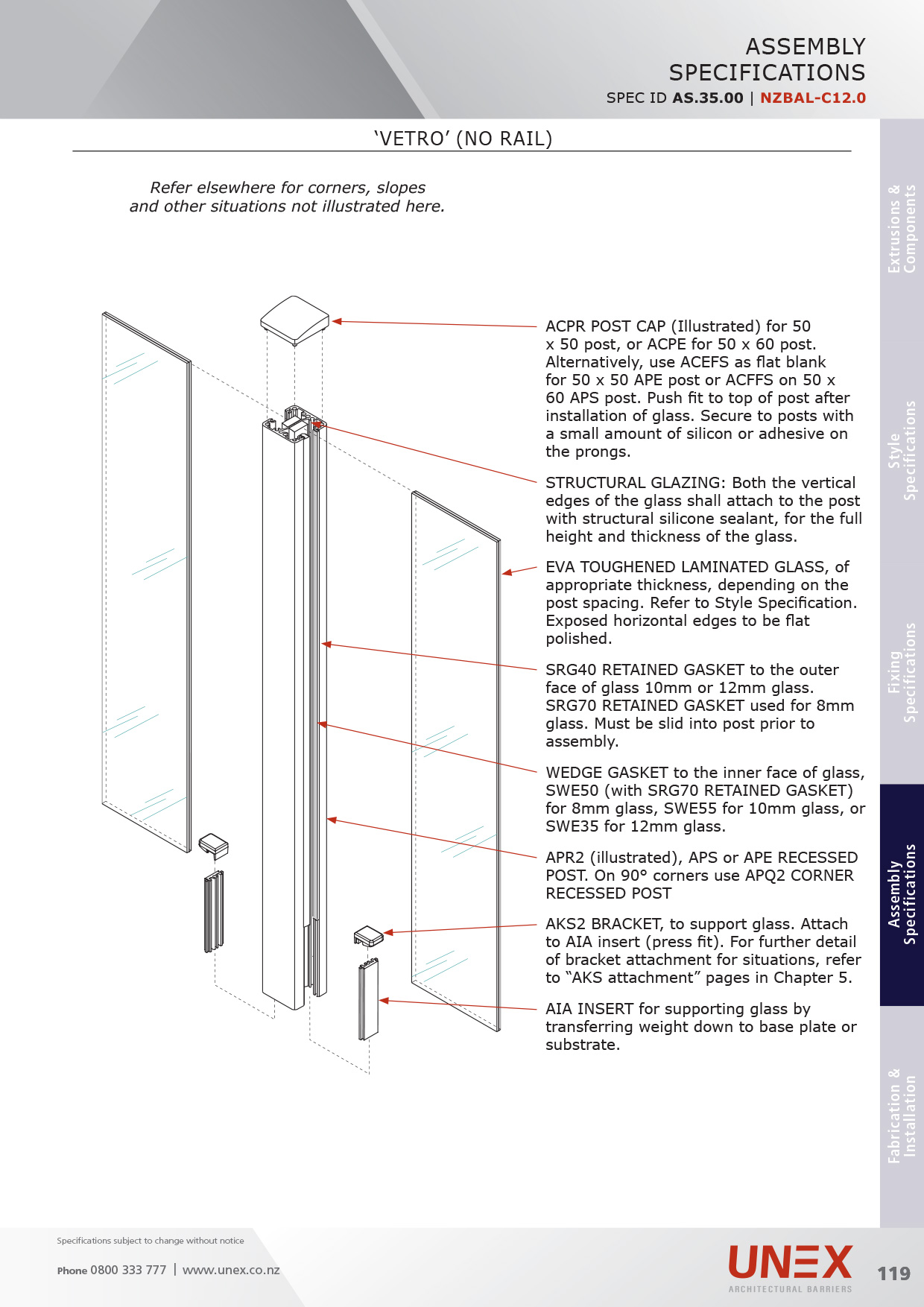

Assembly Specification w/NO Side Rail

AS.35.00

NZBAL-C12.0

Assembly Specification w/VRT Side Rail

AS.35.04S

NZBAL-C12.0

Assembly Specification w/ART Side Rail

AS.35.05S

NZBAL-C12.0

Assembly Specification w/PRR Side Rail

AS.35.06S

NZBAL-C12.0

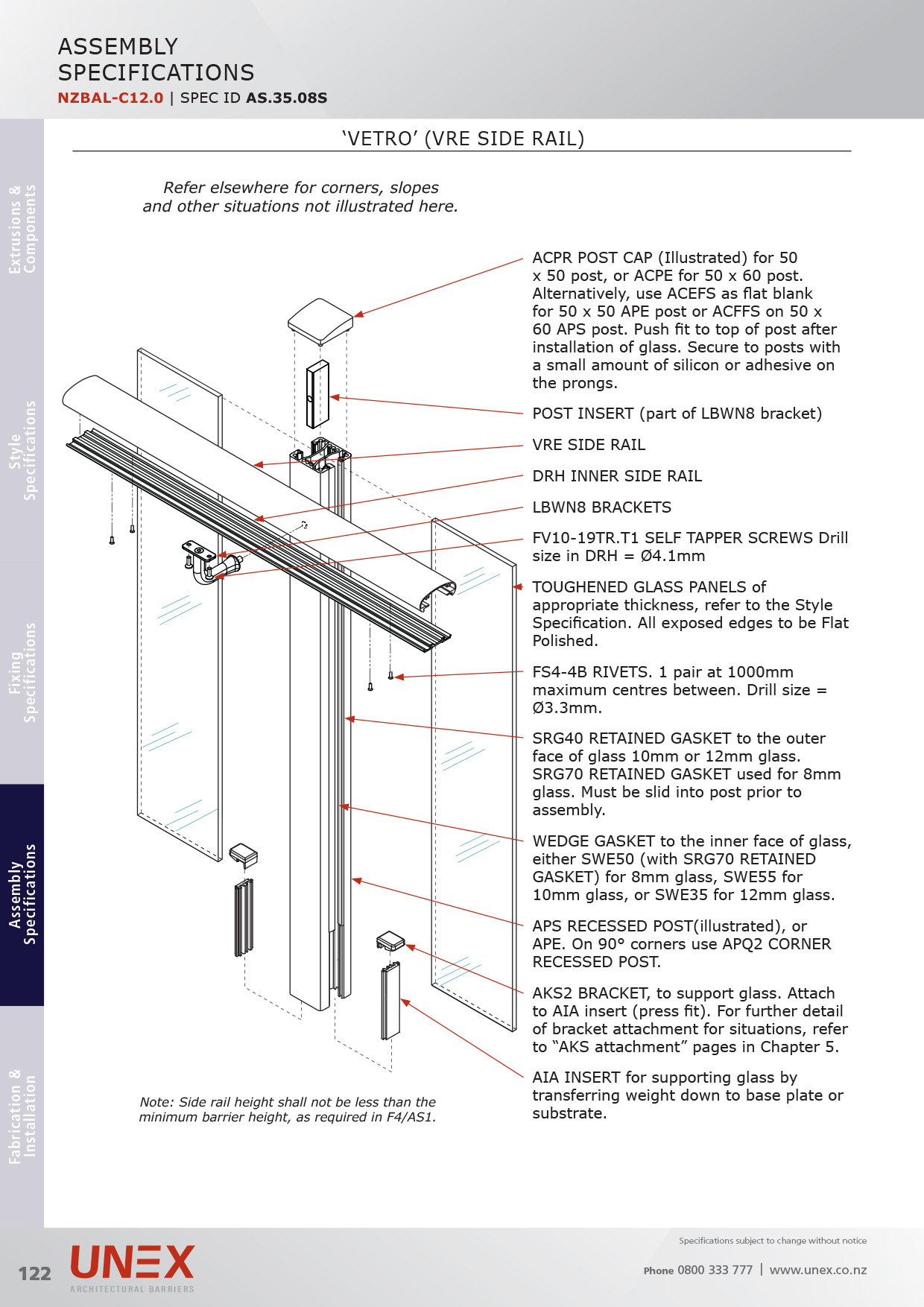

Assembly Specification w/VRE Side Rail

AS.35.08S

NZBAL-C12.0

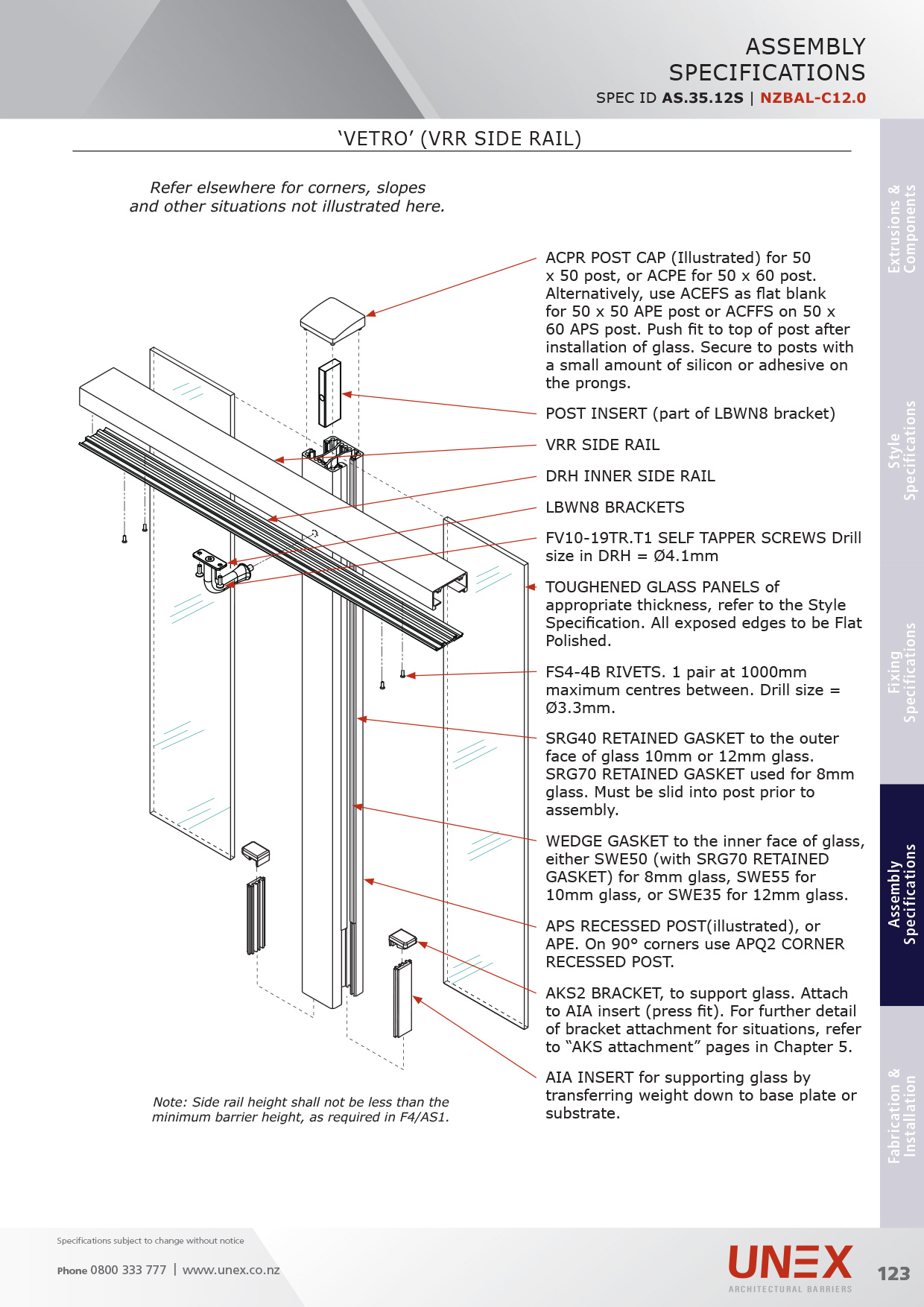

Assembly Specification w/VRR Side Rail

AS.35.12S

NZBAL-C12.0

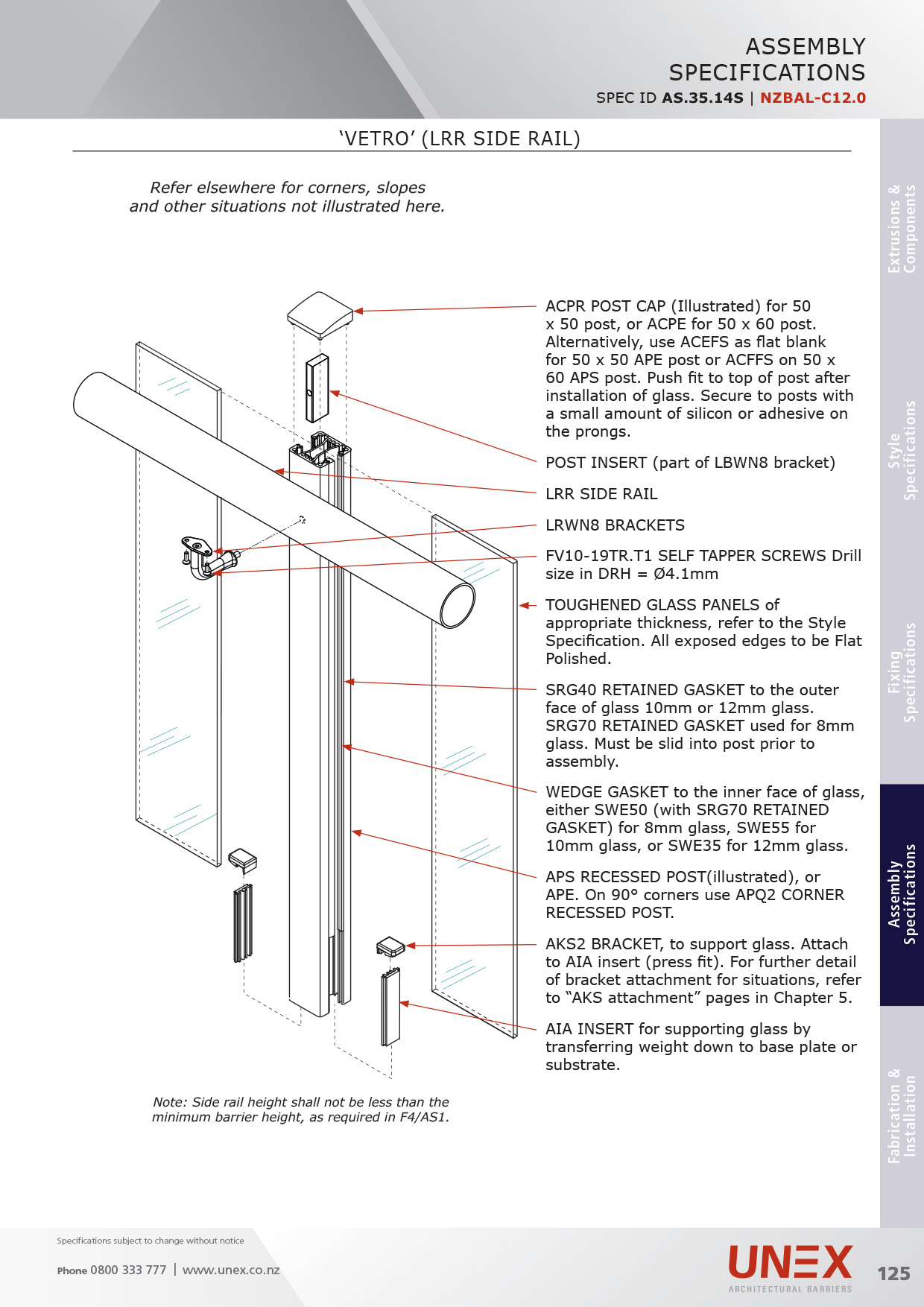

Assembly Specification w/LRR Side Rail

AS.35.14S

NZBAL-C12.0

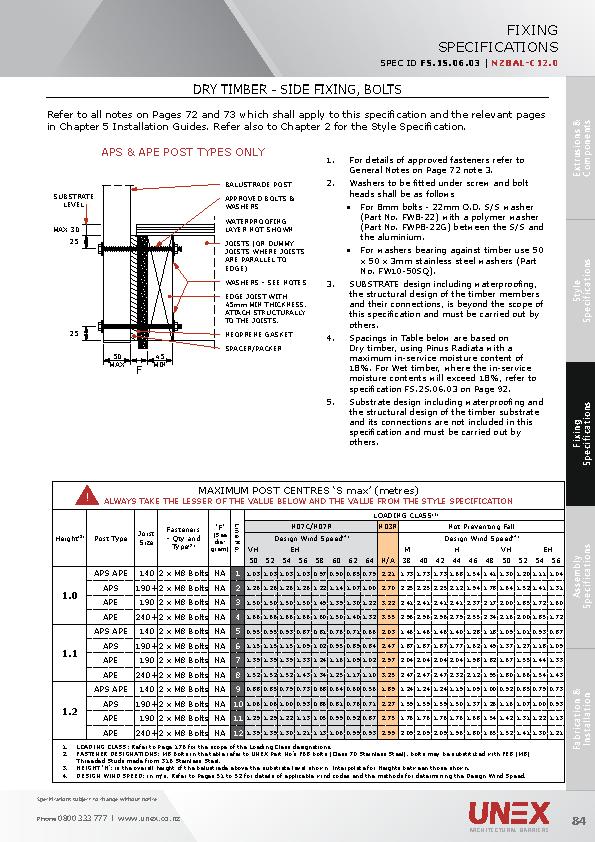

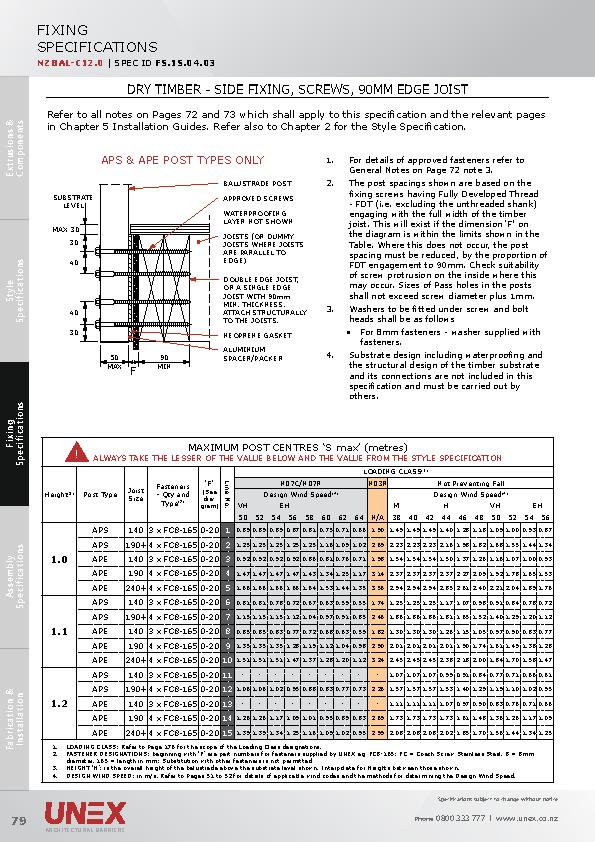

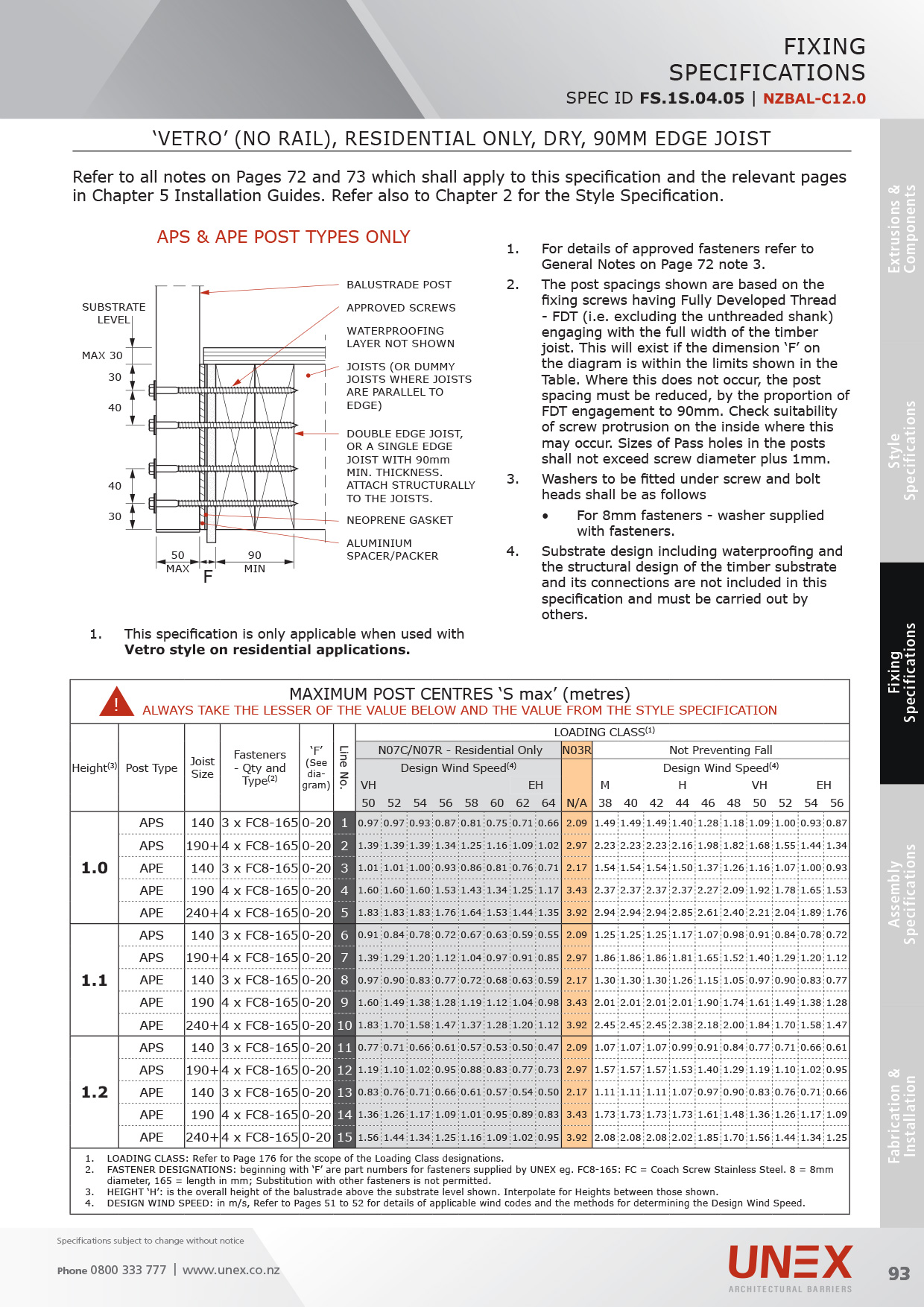

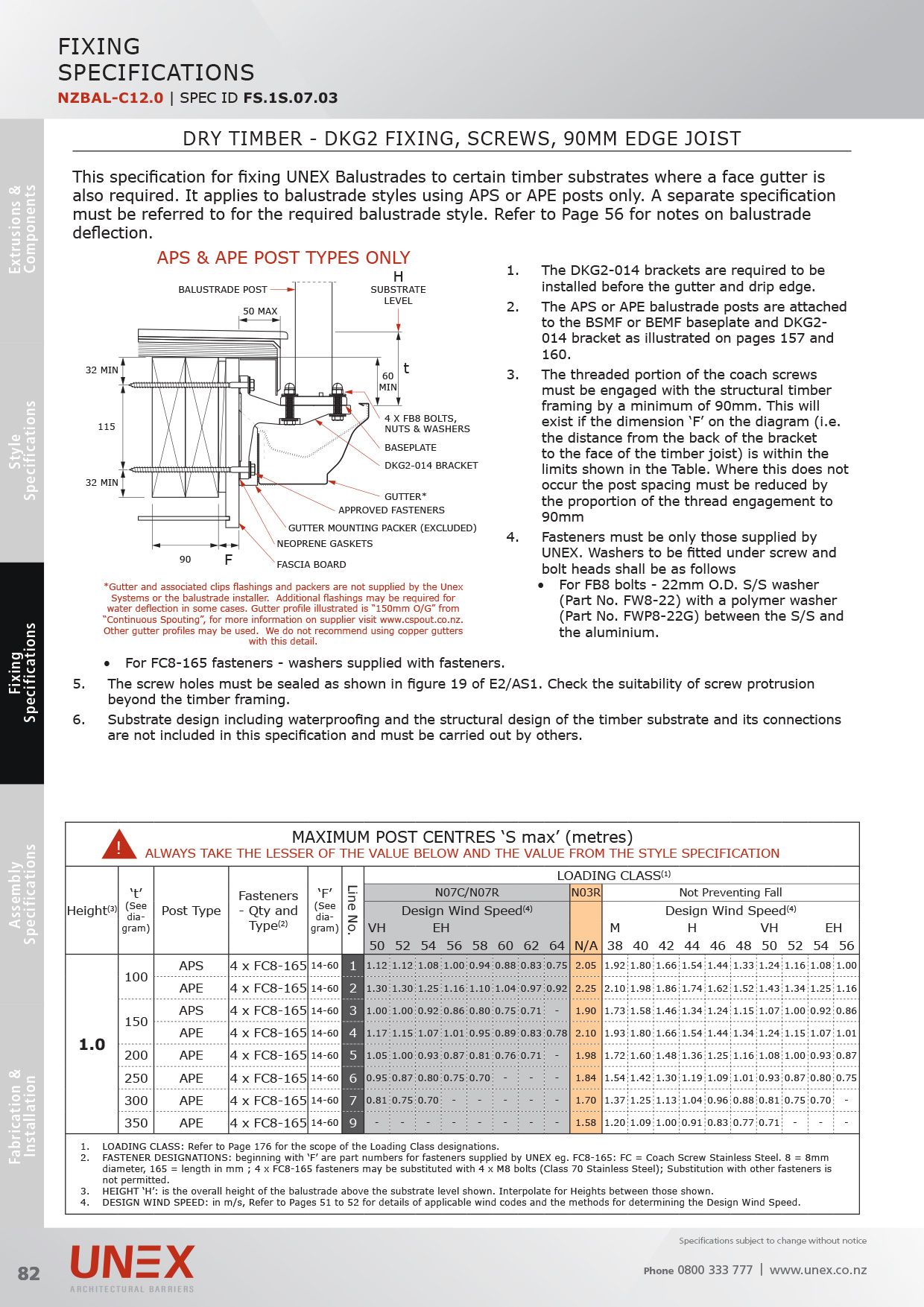

Dry Timber, Side Fixing, Screws, 90mm Edge Joist

FS.1S.04.03

Residential ONLY, Dry Timber, 90mm Edge Joist

FS.1S.04.05

Dry Timber, Side Fixing, Bolts

FS.1S.06.03

Dry Timber, DKG2 Fixing, Screws, 90mm Edge Joist

FS.1S.07.03

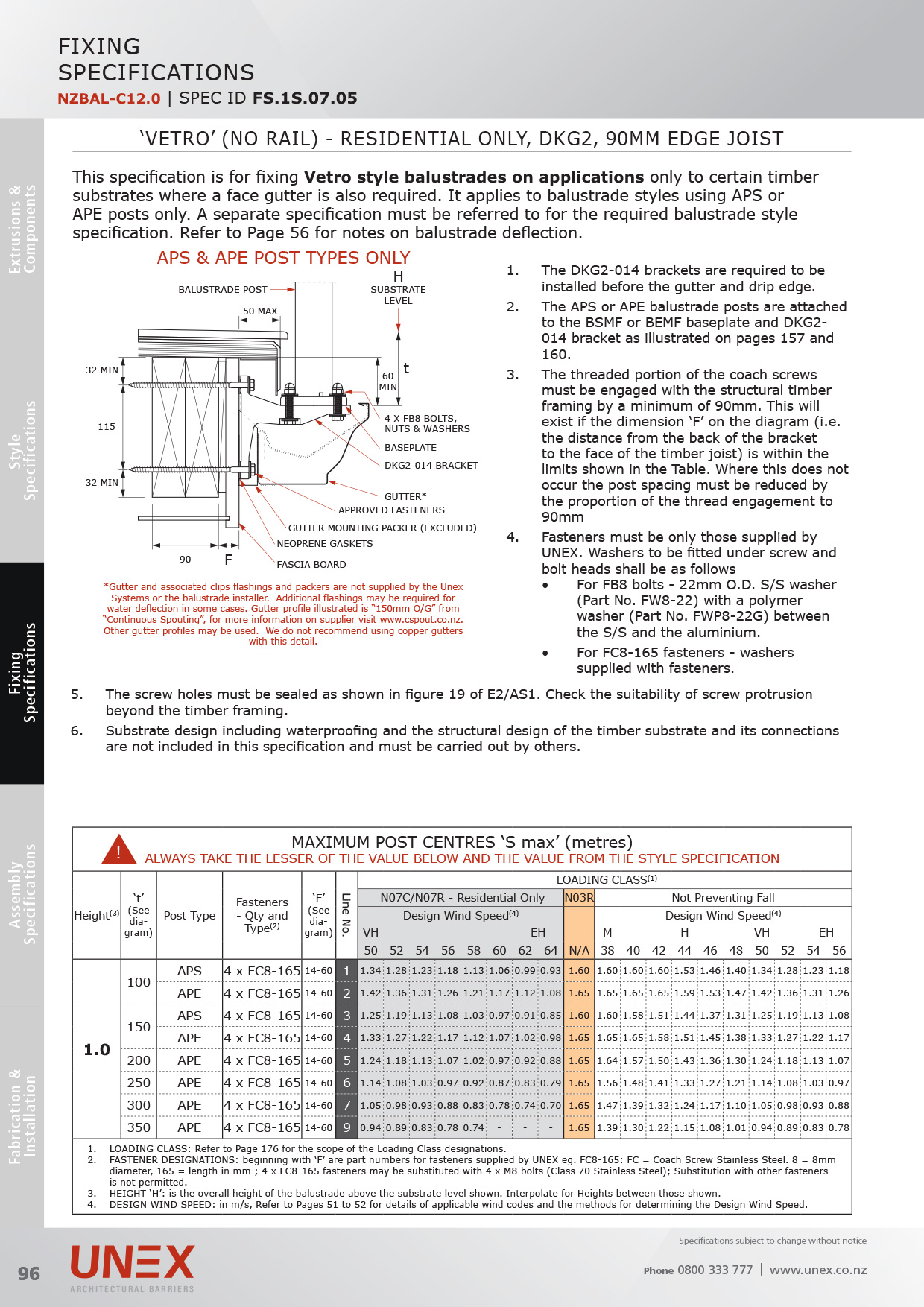

Residential ONLY, DKG2 Fixing, 90mm Edge Joist

FS.1S.07.05

Dry Timber, Top Fixing, 65mm CRS

FS.1T.01.00

Dry Timber, Top Fixing, 90mm CRS

FS.1T.02.00

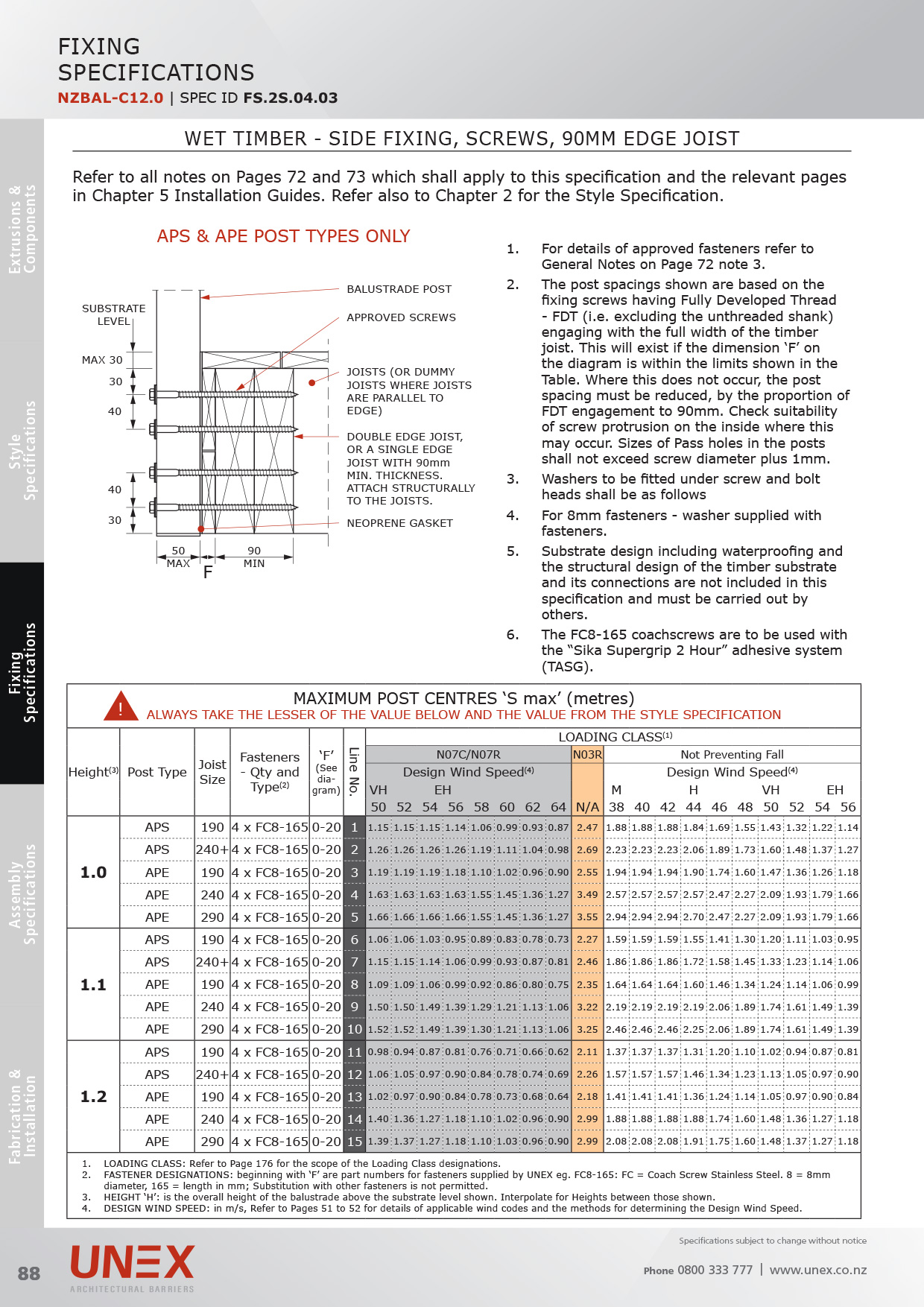

Wet Timber, Side Fixing, Screws, 90mm Edge Joist

FS.2S.04.03

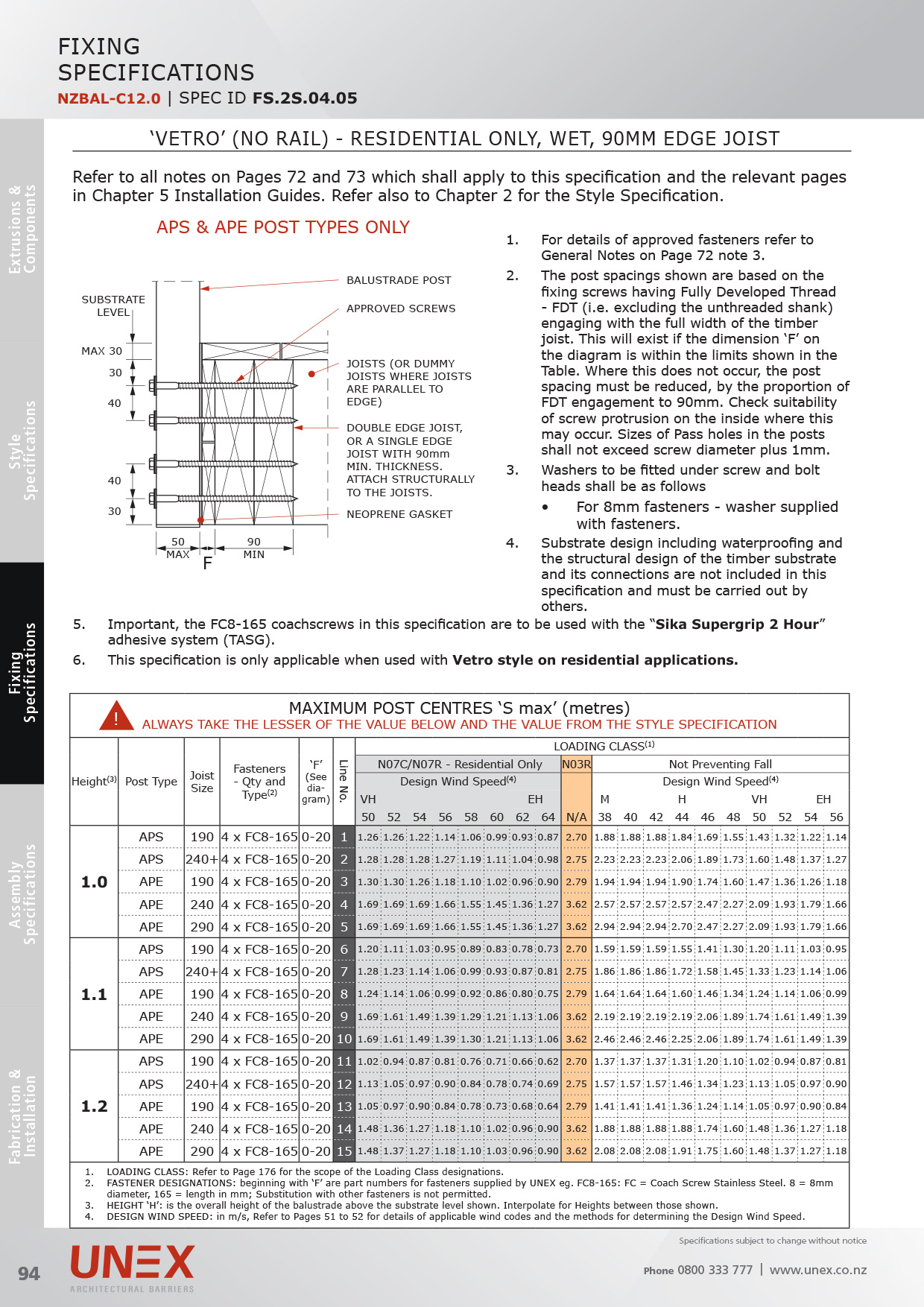

Vetro, Residential ONLY, Wet, 90mm Edge Joist

FS.2S.04.05

Wet Timber, Side Fixing, Screws, 135mm Edge Joist

FS.2S.05.03

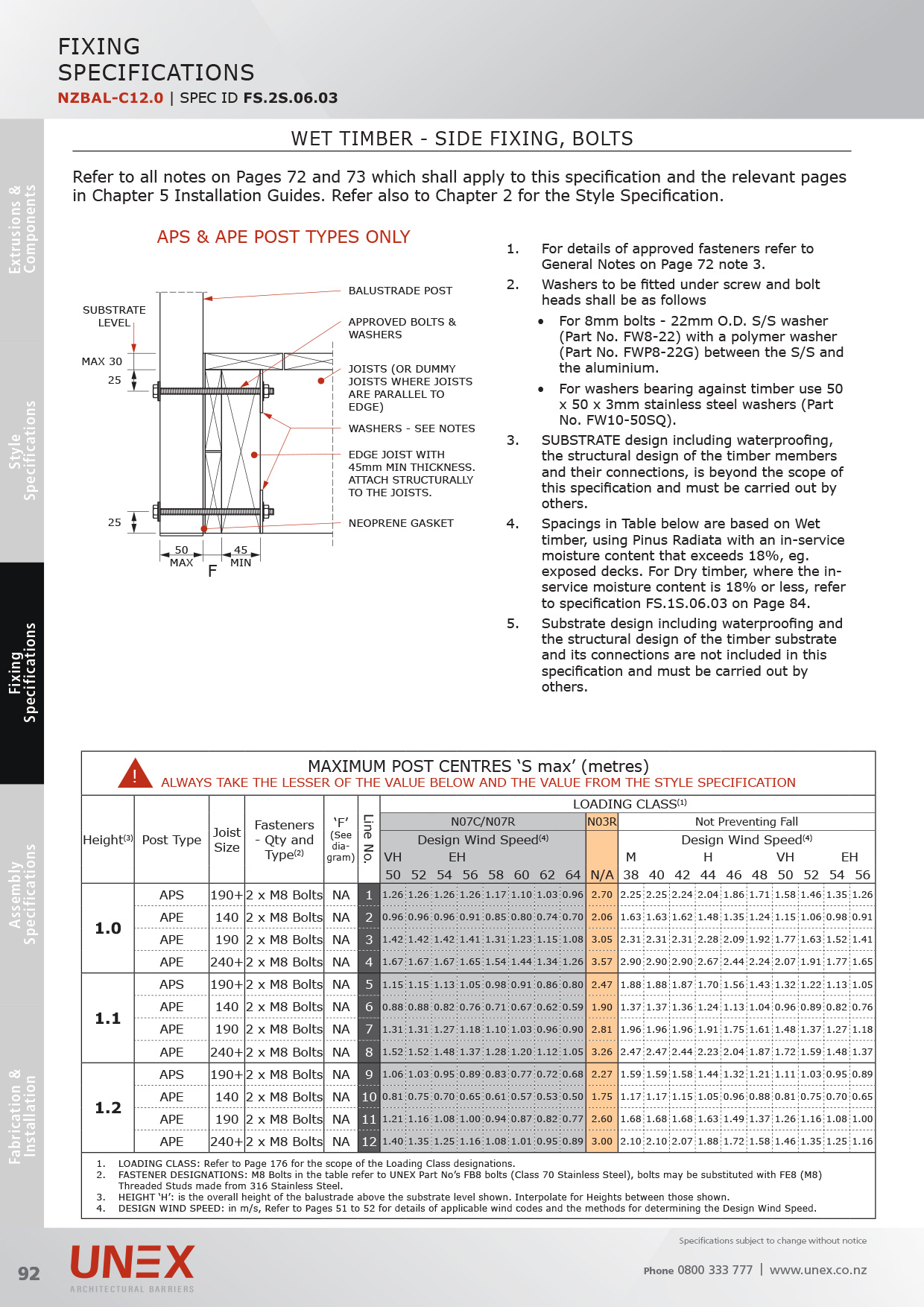

Wet Timber, Side Fixing, Bolts

FS.2S.06.03

Wet Timber, Top Fixing, 65mm CRS

FS.2T.01.00

Wet Timber, Top Fixing, 90mm CRS

FS.2T.02.00

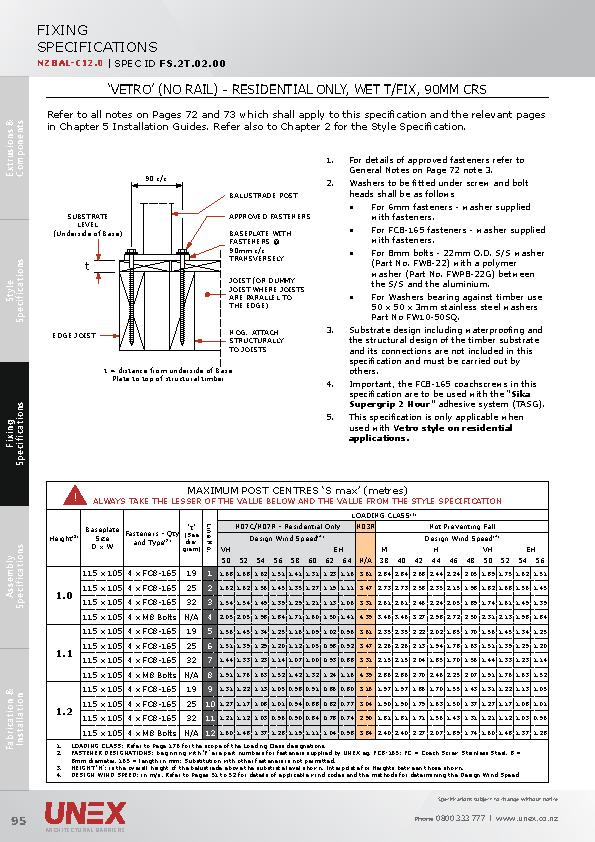

Wet Timber, Residential ONLY, Wet, Top Fixing, 90mm CRS

FS.2T.02.05

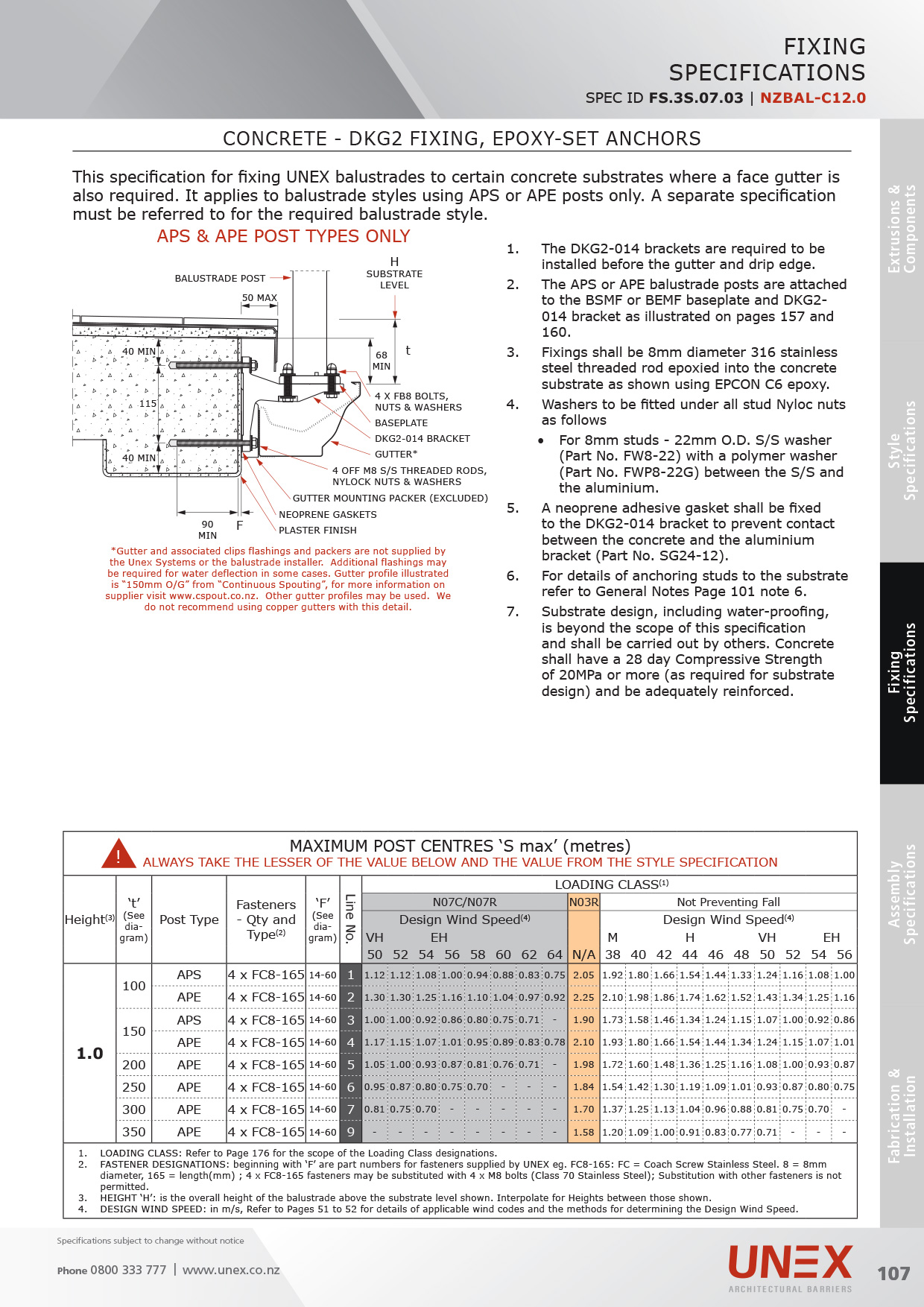

Concrete, DKG2 Fixing, Expoxy-set Anchors

FS.3S.07.03

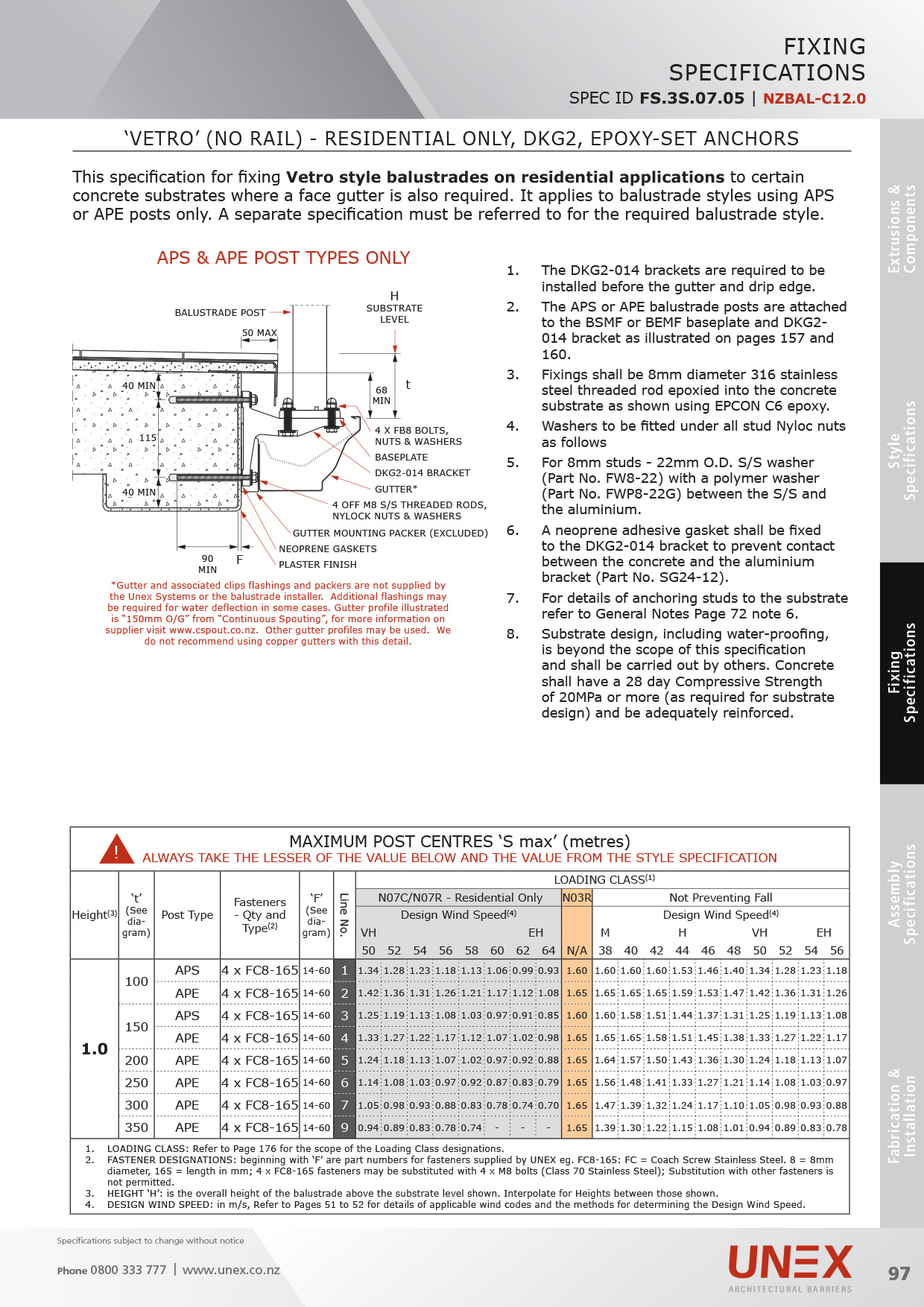

Residential ONLY, Concrete, DKG2 Fixing, Expoxy-set Anchors

FS.3S.07.05

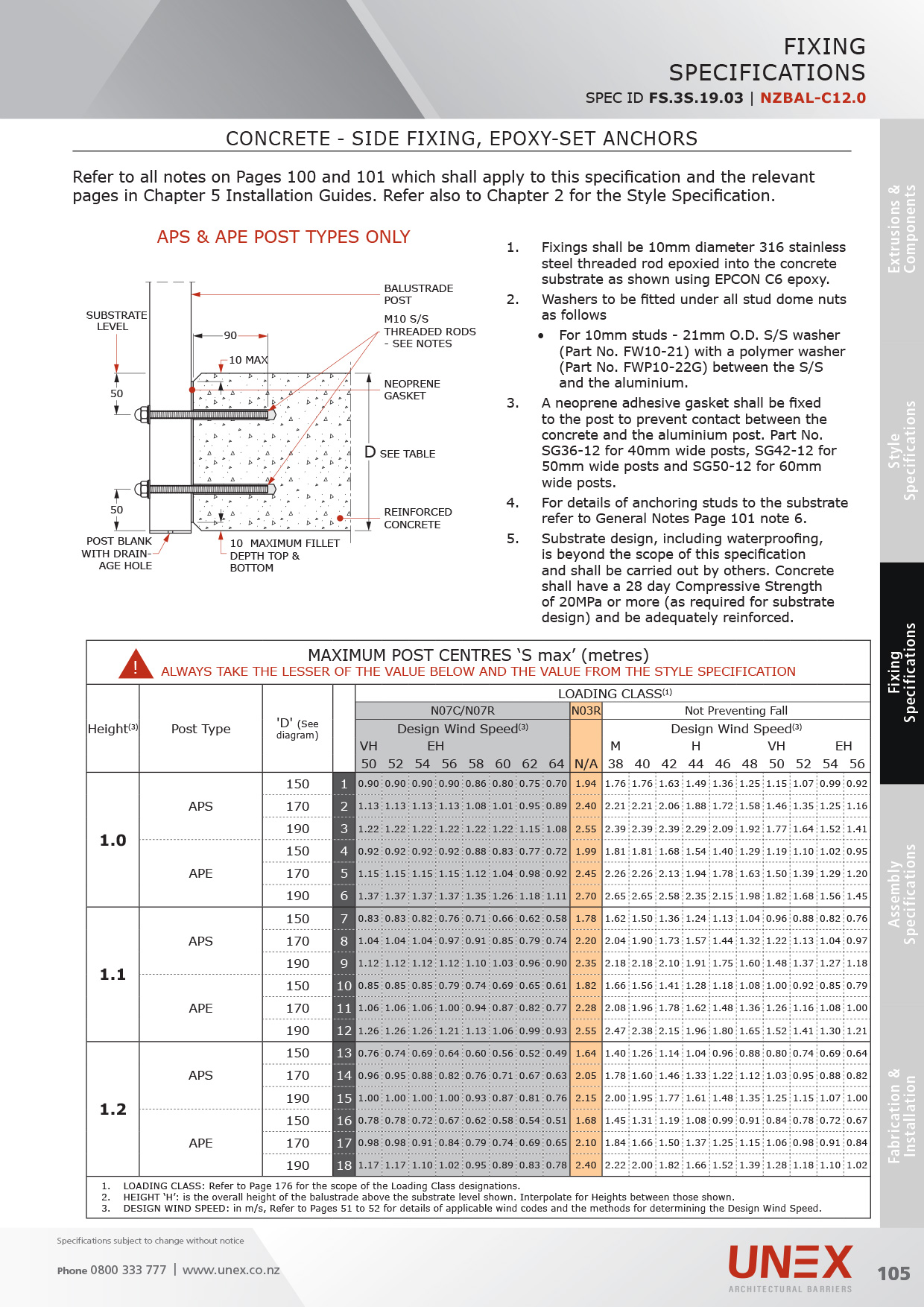

Concrete, Side Fixing, Epoxy-set Anchors

FS.3S.19.03

Concrete, Top Fixing, Epoxy-set Anchors, 65mm CRS

FS.3T.01.00

Concrete, Top Fixing, Epoxy-set Anchors, 90mm CRS

FS.3T.02.00

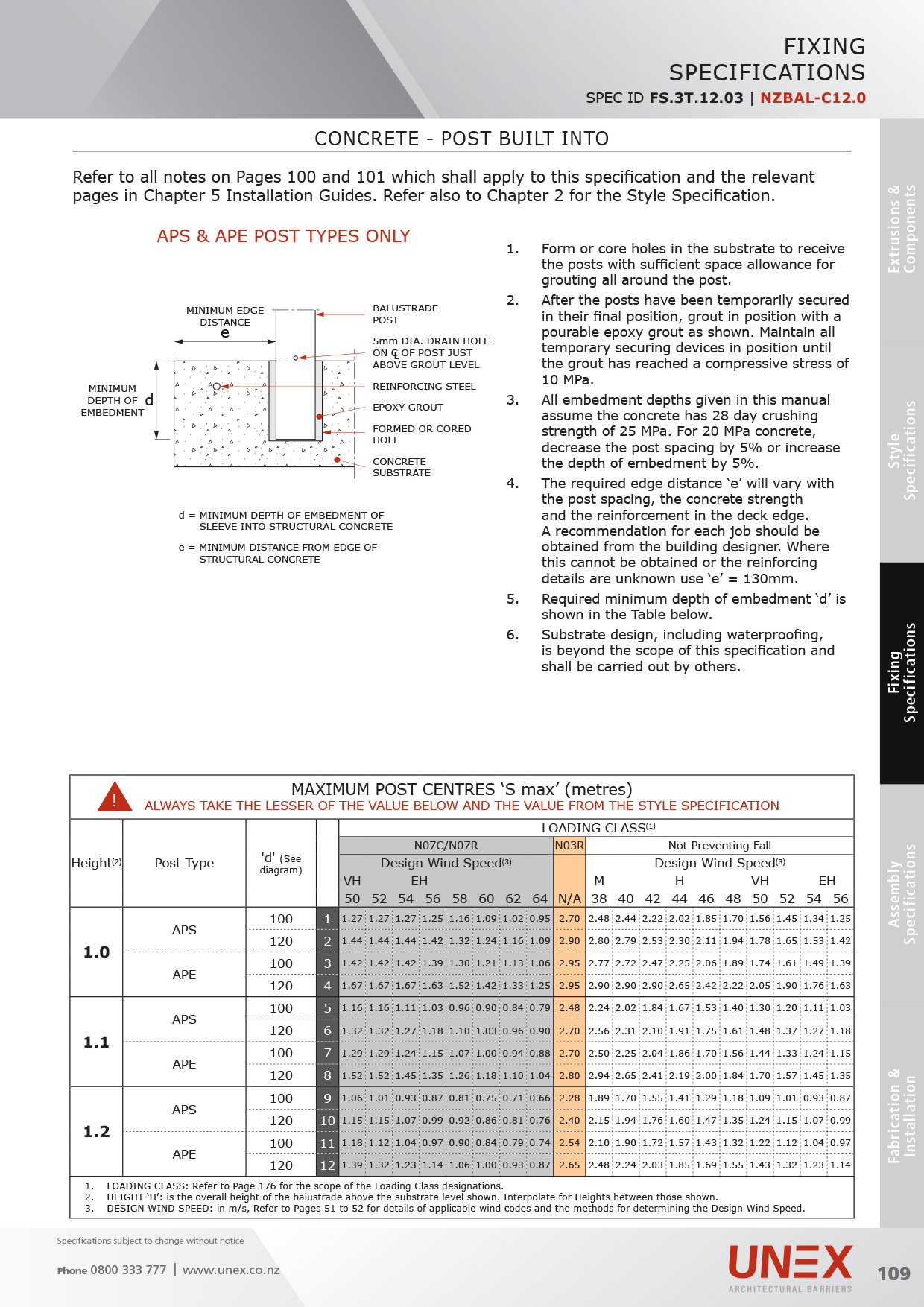

Concrete, Post Built-into

FS.3T.12.03

Masonry, Side Fixing, Epoxy-set Anchors

FS.4S.19.00

Masonry, Top Fixing, Epoxy-set Anchors, 65mm CRS

FS.4T.01.00

Masonry, Top Fixing, Epoxy-set Anchors, 90mm CRS

FS.4T.02.00

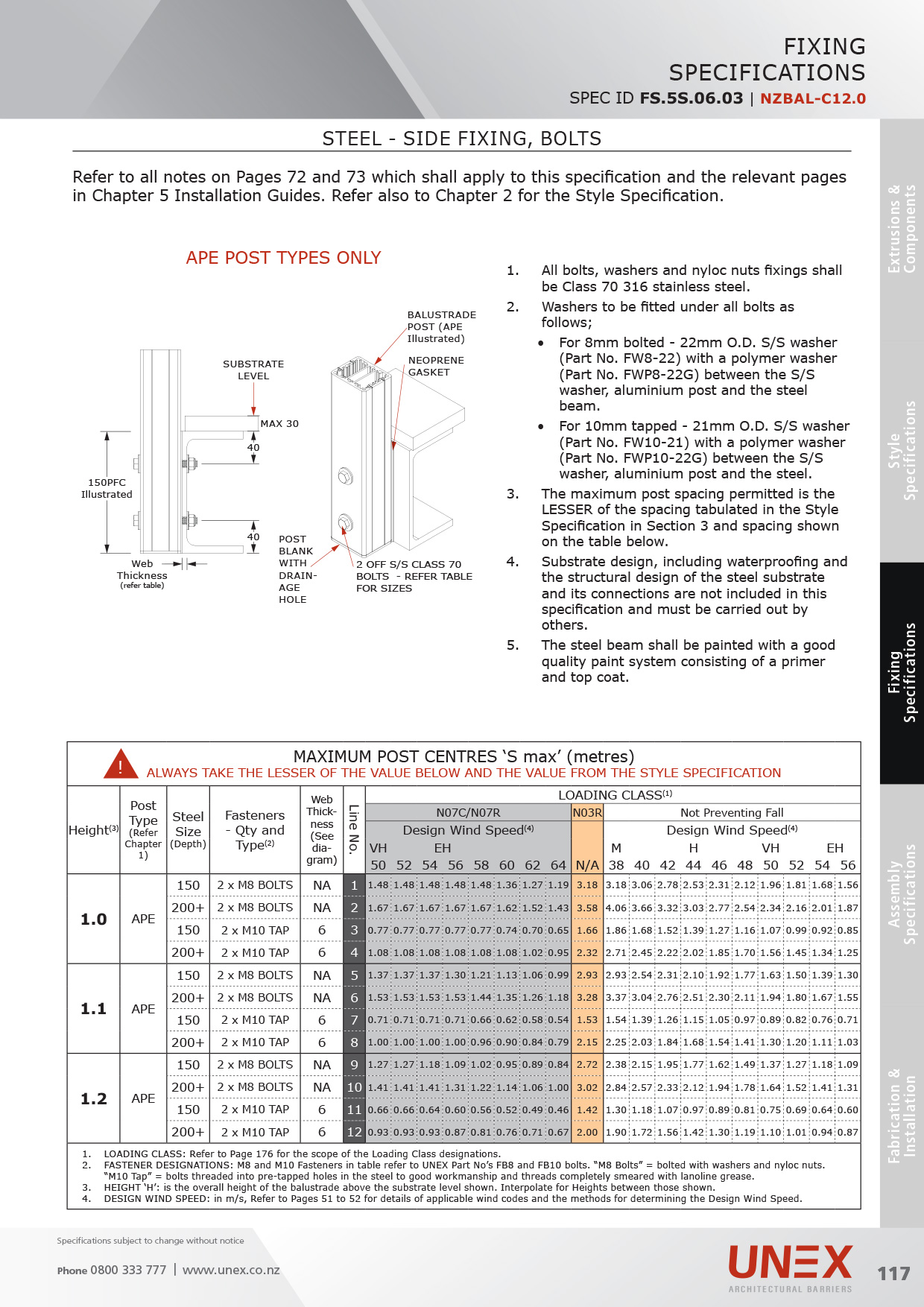

Steel, Side Fixing, Bolts

FS.5S.06.03

Steel, Top Fixing, Inline Bolts

FS.5T.00.00_75

Steel, Top Fixing, Inline Bolts

FS.5T.00.00_90

Steel, Top Fixing, Bolts, 65mm CRS

FS.5T.01.00

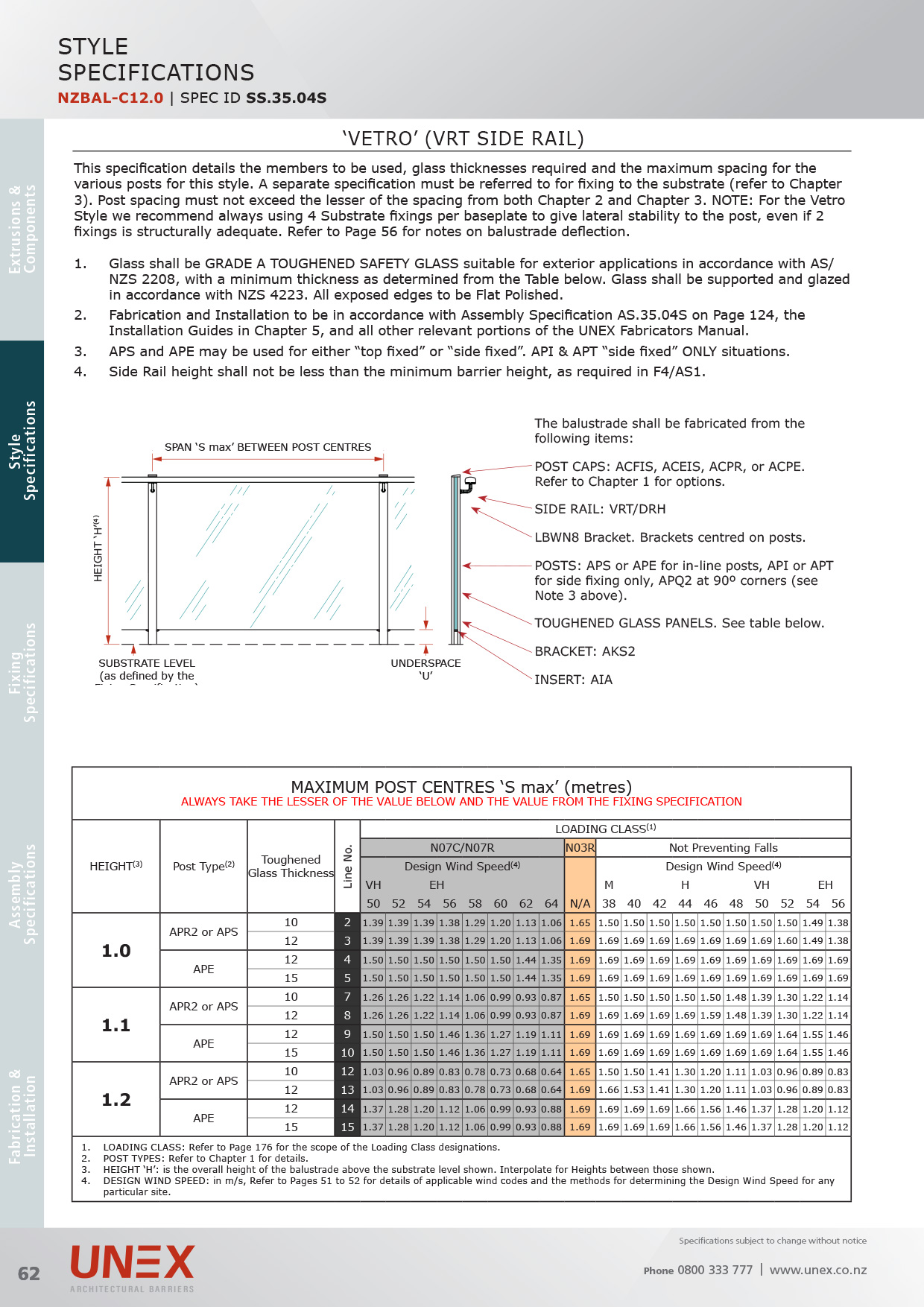

Style Specification w/VRT Side Rail

SS.35.04S

NZBAL-C12.0

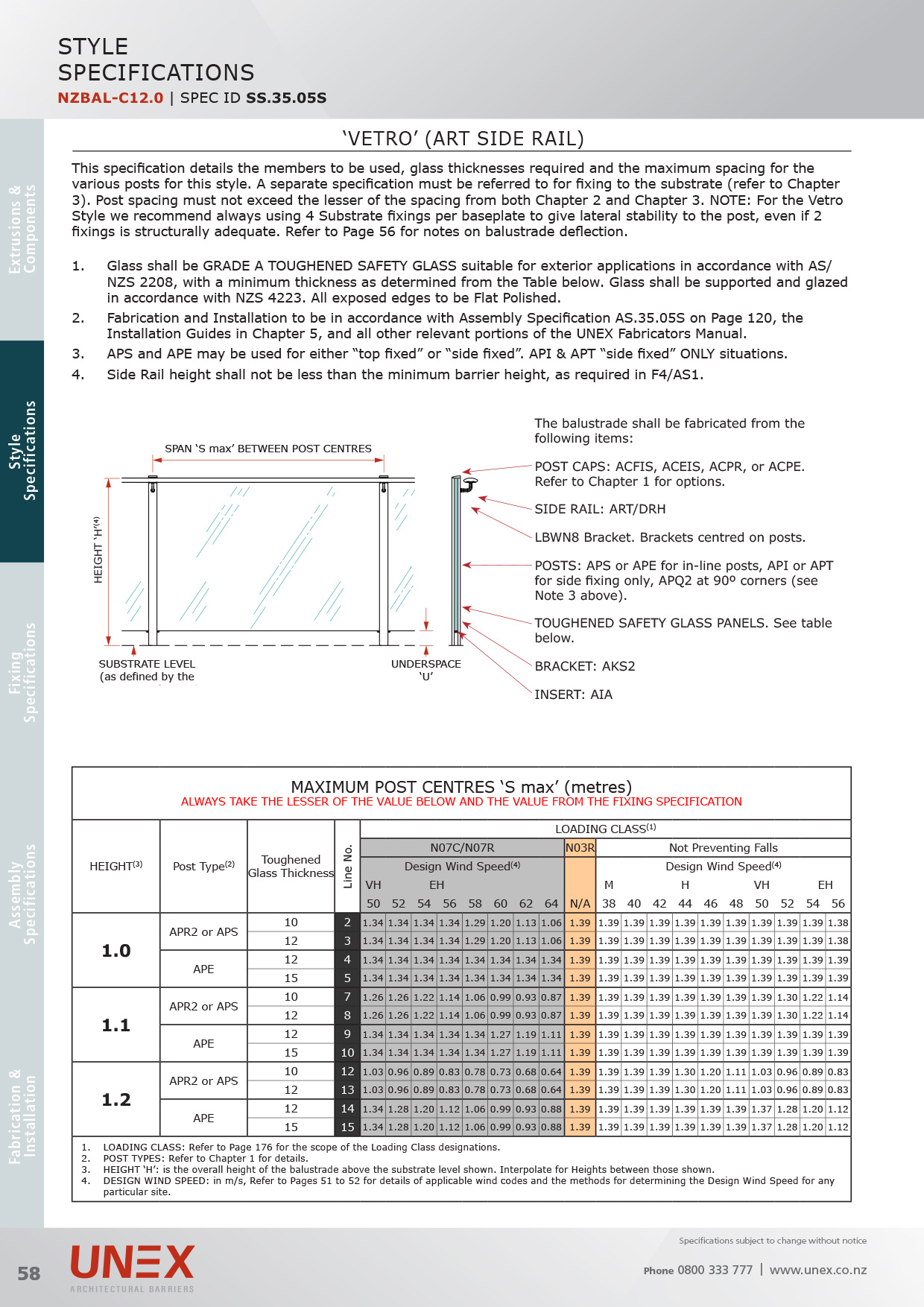

Style Specification w/ART Side Rail

SS.35.05S

NZBAL-C12.0

Style Specification w/PRR Side Rail

SS.35.06S

NZBAL-C12.0

Style Specification w/VRE Side Rail

SS.35.08S

NZBAL-C12.0

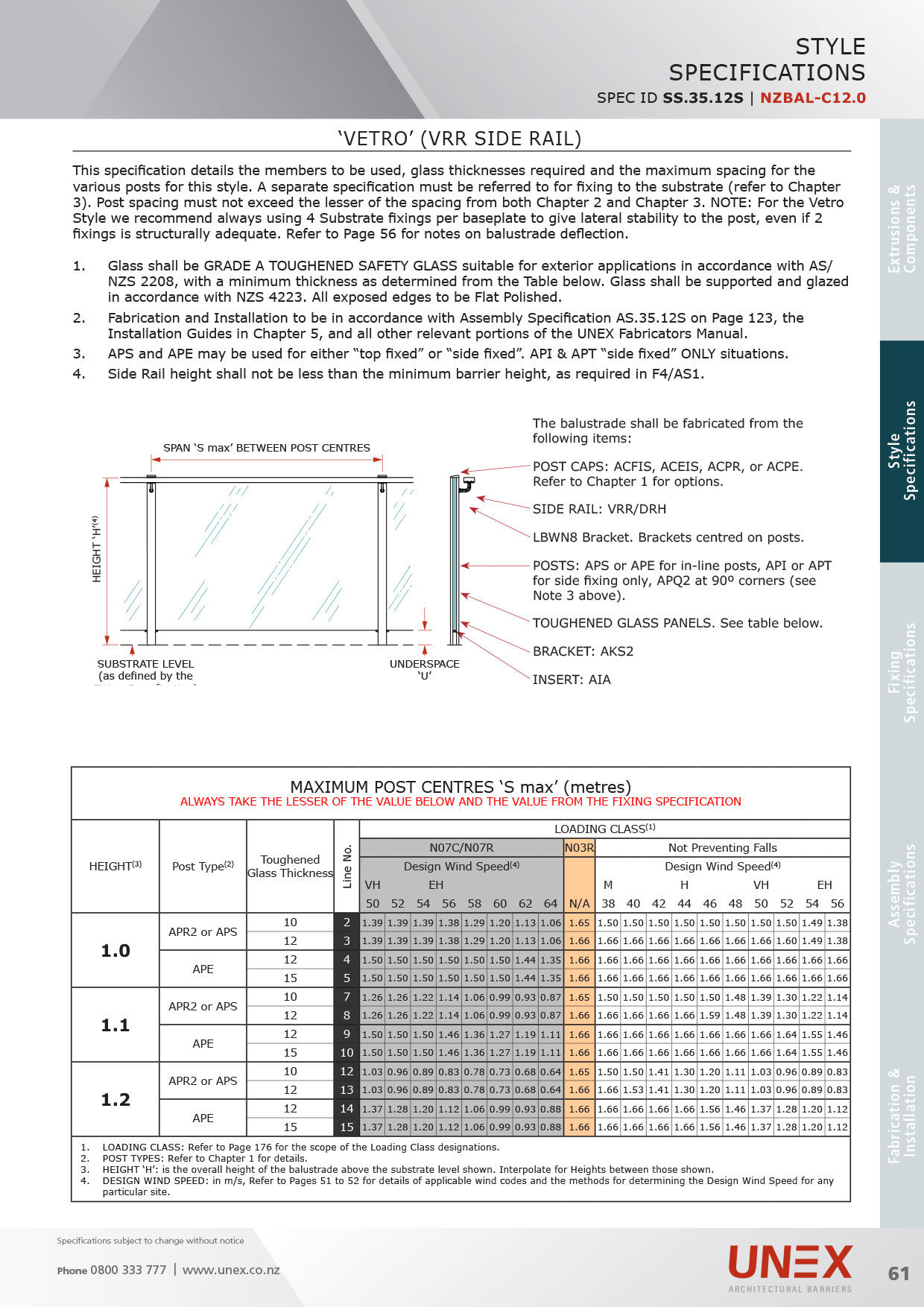

Style Specification w/VRR Side Rail
