Hampton Balustrade

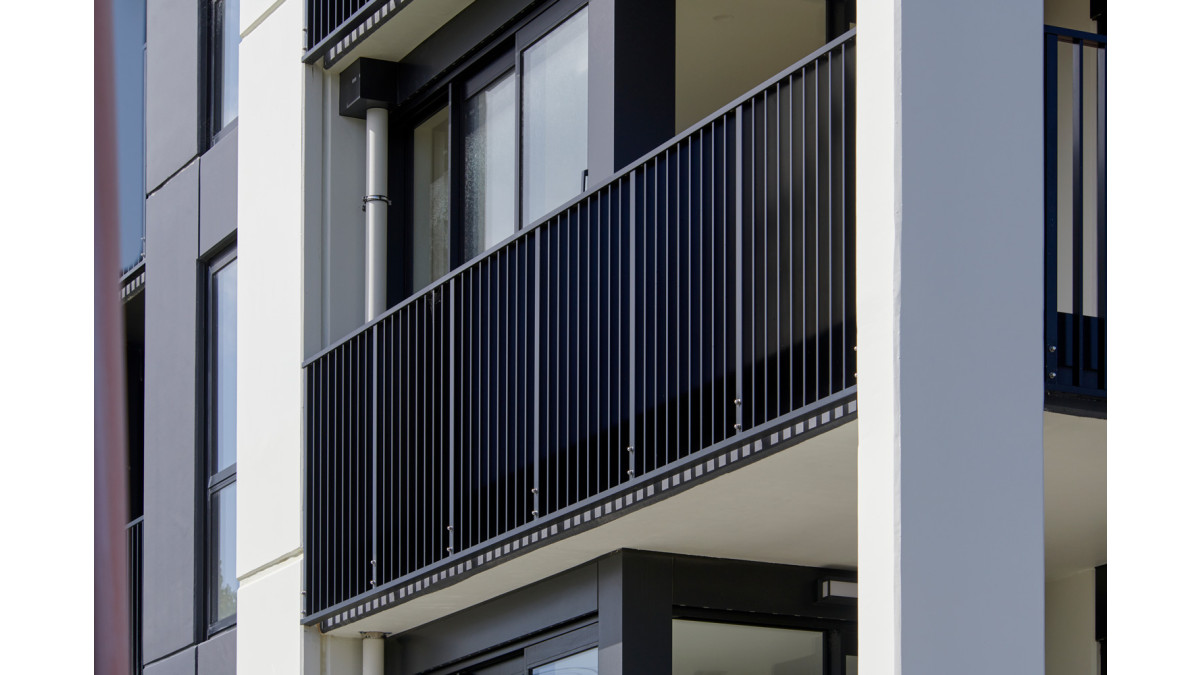

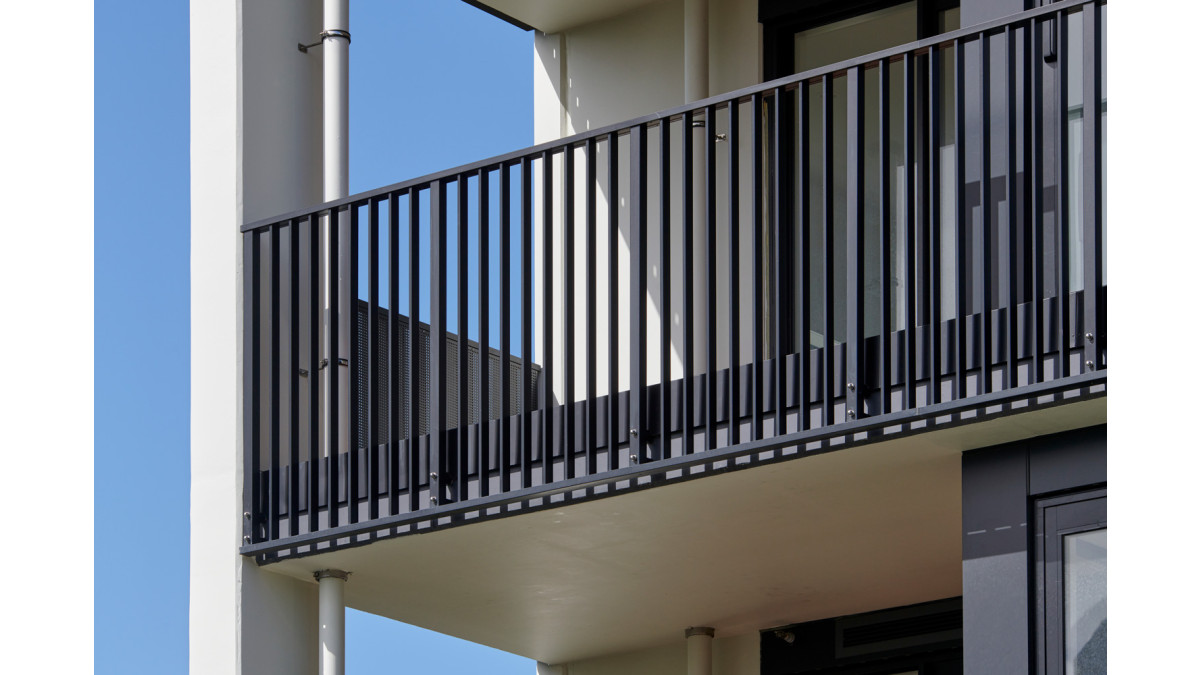

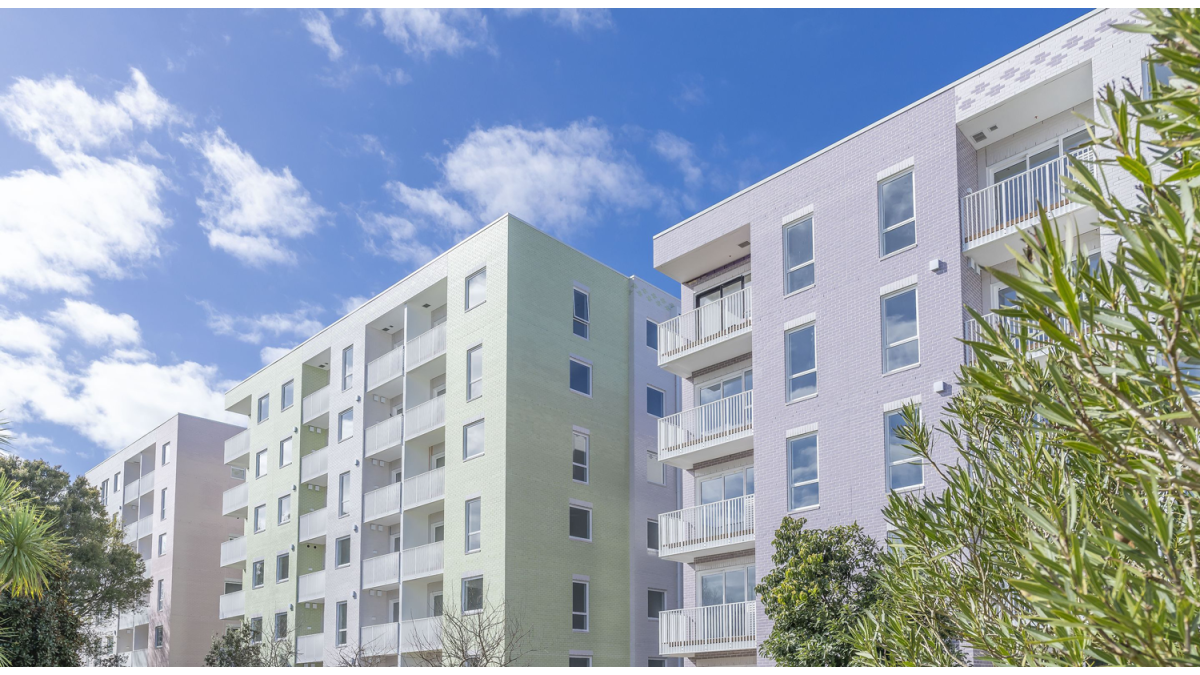

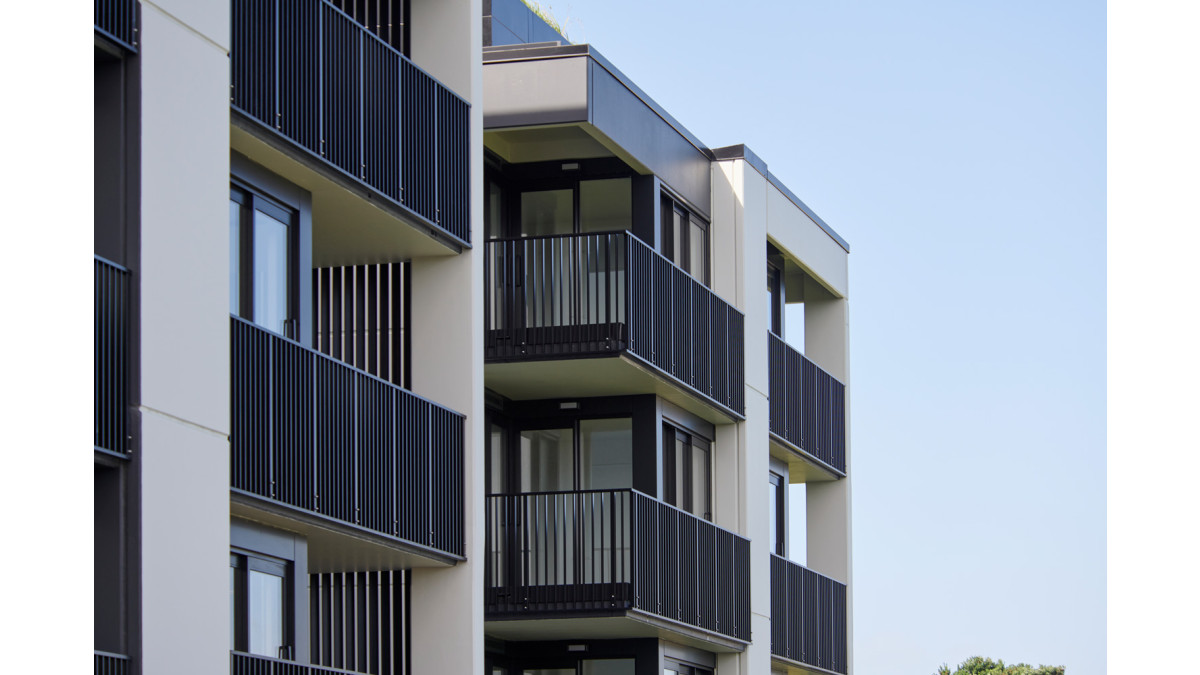

Introducing the UNEX Balustrade Hampton Style Balustrade. This sleek and versatile balustrade features 50x16mm fins between vertical square posts, making it ideal for stairs, decks, or privacy screens. Crafted with quality and durability in mind, it adds a touch of elegance to any space. Upgrade with the UNEX Hampton Aluminium Framed Balustrade and experience timeless style and functionality.

A site-specific PS1 is required for installation, ensuring compliance with regulations.

Key Features

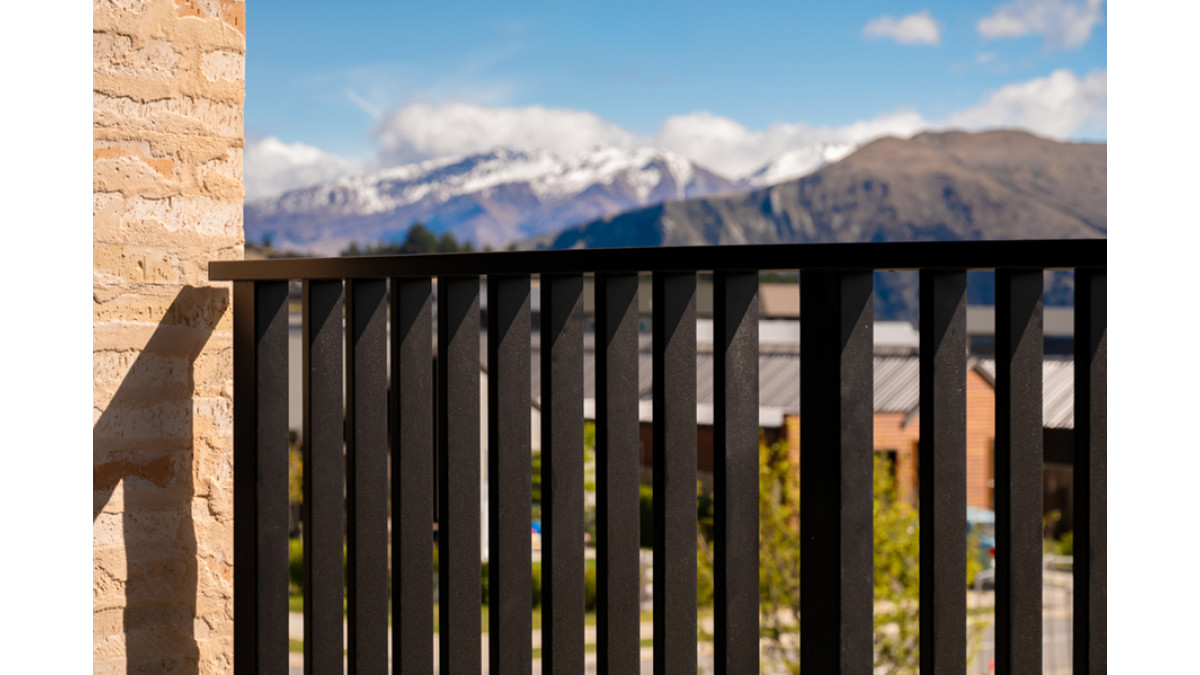

  • Vertical 50x16mm Fins set between vertical square posts
  • Face fixed to timber, concrete or steel with a range of six top rails to choose from
  • Designed with concealed assembly fasteners, simple clean lines, tidy joints with no welds
  • Fixings are grade 316 stainless steel, which is less susceptible to tarnishing
  • Support from NZ’s leading balustrade specialists
  • In-house engineering expertise provide site-specific solutions
  • All UNEX products comply with New Zealand building regulations where they are required
  • Site-specific PS1 is required
Scope of Use

Can be used for both external and internal applications, including decks, balconies, stairways and landings, mezzanine floors, pedestrian gates, and pool fences.

UNEX balustrades are designed to and comply with 'A', 'B', 'E' and 'C3' loadings of AS/NZS 1170.1:2002 for residential applications, office, and work areas, as well as areas for moving people without obstacles.

A wide range of fixing options are available to fix to the top and sides of both timber and concrete substrates.  UNEX's DKG2 gutter bracket system is designed for membrane decks with gutters and waterproofing considerations. Site-specific specifications may also be provided upon request for those non-standard situations.

Limitations on Use

UNEX designs for residential situations, office, and work areas, as well as for areas with moving people, however, cannot be used for 'C1/C2', 'C5' or 'D' Loadings. In these applications, UNEX recommends the use of its 'Extreme Barriers' range of styles which has been specifically developed for these higher loadings in crowd and public situations.

The standard UNEX top rails comply with the handrail profile requirements of D1/AS1 for 'Private' and 'Common' stairways (with the exception of the #ARC and #ART top rails), but do not comply for 'Accessible Stairways or Ramps'.

Where a top rail of a balustrade on a stairway does not comply with D1/AS1, Unex Systems recommends an auxiliary complying handrail is mounted to the side of the balustrade posts.

For certain buildings — such as architectural sky rises (over 3 stories high), light commercial or high pollution areas — a higher grade powder coat powder must be specified.

Statement of Building Code Compliance

UNEX has designed its range of balustrade styles to comply with the B1, B2, E2, and F4 requirements of the NZ Building Code and are suitable for occupancy types 'A', 'B', 'E' and 'C3' in accordance with AS/NZS 1170.

Producer Statements for all standard specifications can be created online in the registered area of the UNEX website. For non-standard situations not covered by Unex's specifications, a site-specific PS1 and specification may be prepared by UNEX upon request.

In-Service History

UNEX specialises in designing and manufacturing architectural balustrade systems for over 40 years.

Other Performance Attributes
  • Fixings are grade 316 stainless steel, which is less susceptible to tarnishing
B1 Structure compliant
B2 Durability compliant
E2 External Moisture compliant
External Moisture
F4 Safety from Falling compliant
Safety from Falling

UNEX are a trusted partner in creating beautiful, secure outdoor living spaces, with high-performing balustrade solutions.
