Aluminium Framed Glass Balustrade with Double Top Rail

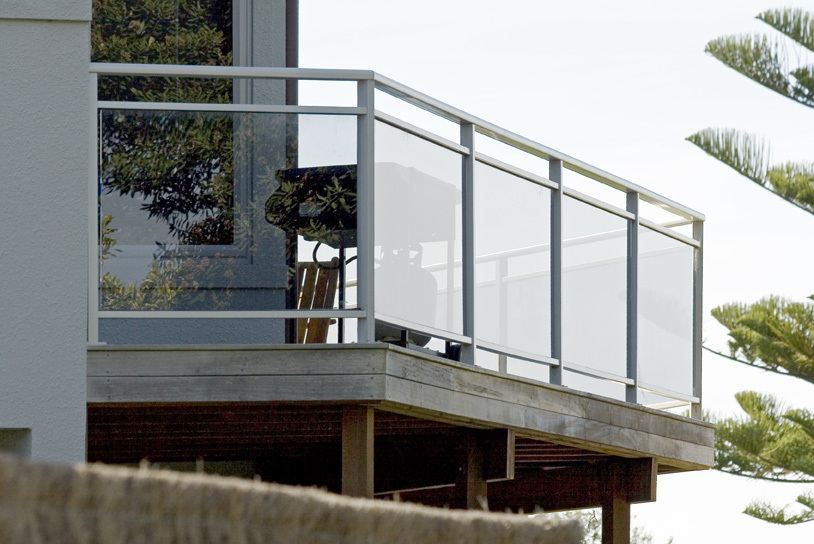

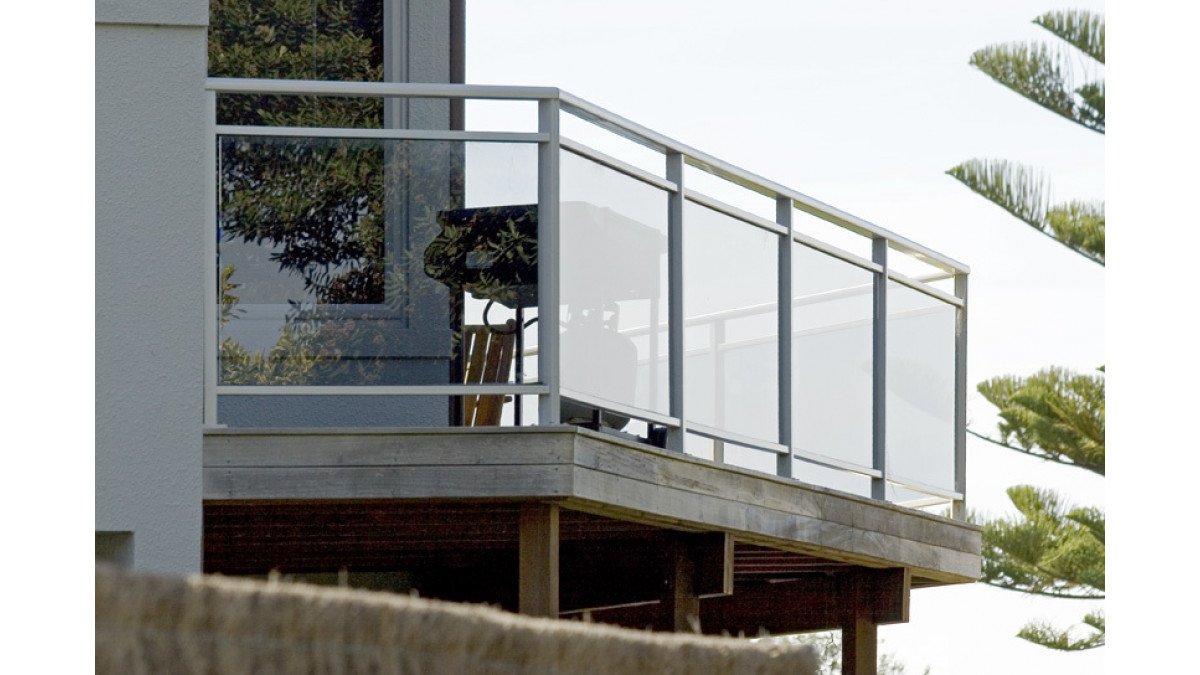

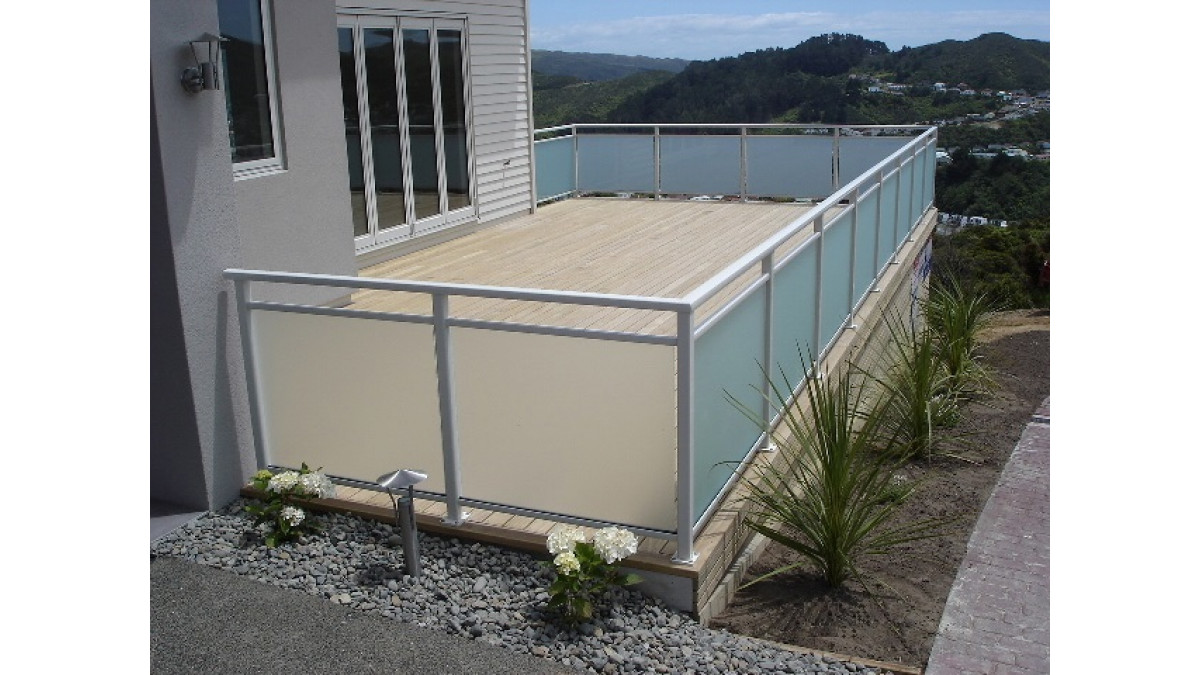

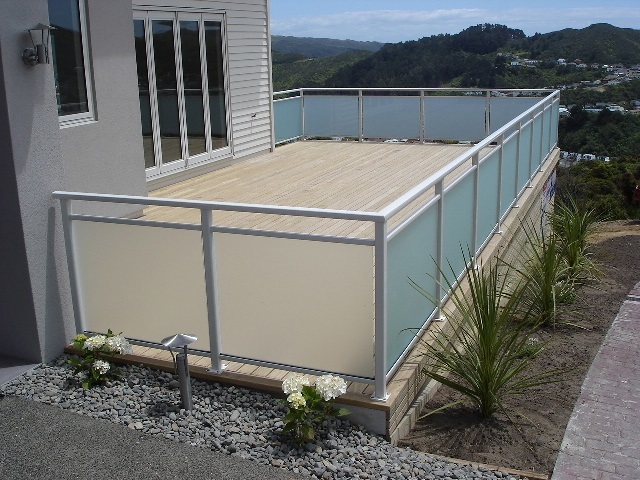

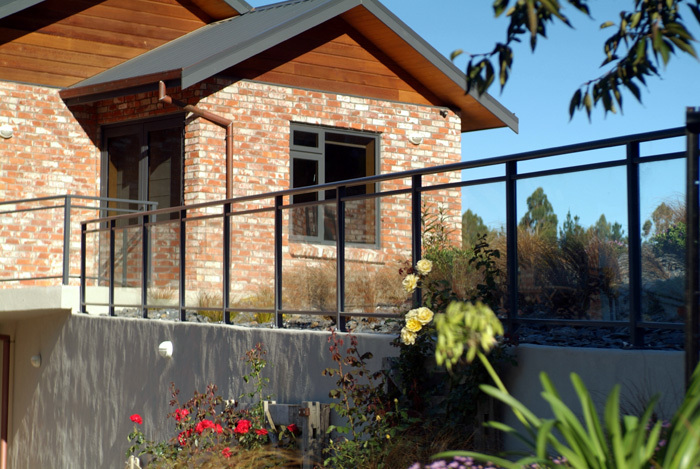

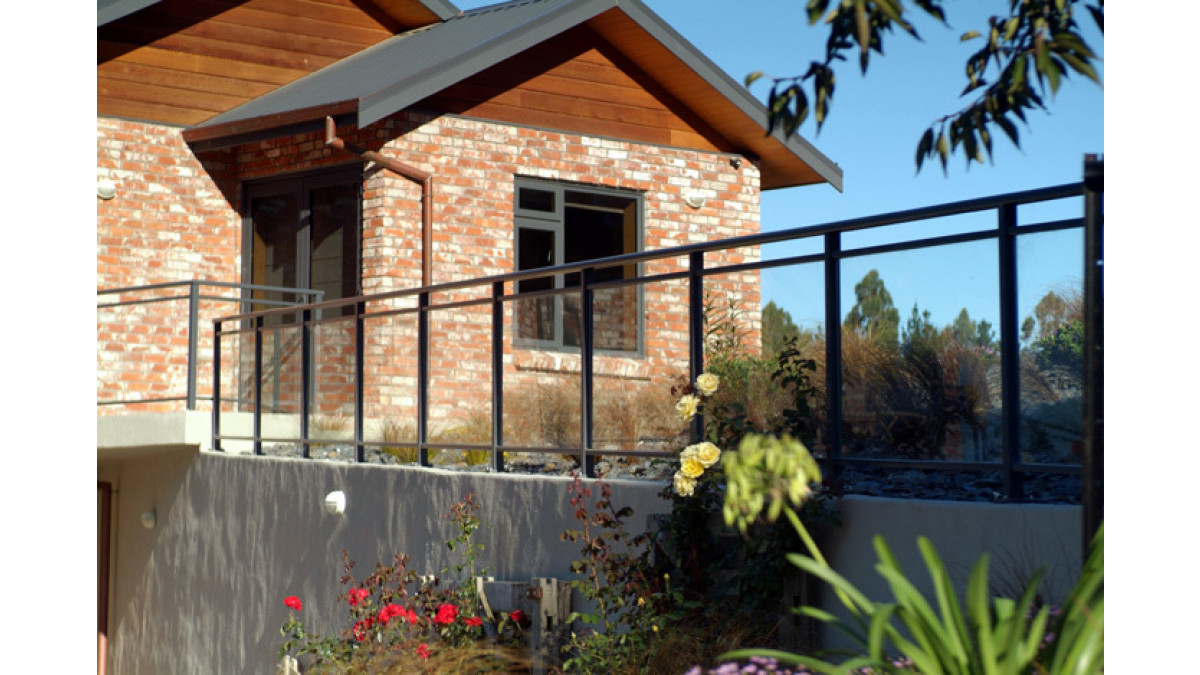

The Unex Systems’ Framed Glass Balustrades with a double top rail are an aluminium framed panel with glass infill spanning between the lower and middle horizontal rails.  There is a choice of six-plus top rail profiles which can be adapted and all aluminium can be finished in a range of colours.


Key Features
  • Designed for standard heights up to 1200mm from finished deck level
  • Wide range of finish options – can be powder coated or anodised in all standard NZ colours
  • Standard specifications available for top or side fixing to both timber and concrete substrates
  • Specifications for non-standard situations may be provided by Unex Systems upon request
  • Screws together with minimal, if any, welds required
  • Made from 6000 series extruded aluminium alloys
  • Installed only by Authorised Fabricators, available nationwide
  • Post option available for side-fixed situations to conceal screw fixings
  • Range of six plus top rails to choose from
  • Designed for wind speeds up to 64m/s (ULS)


Scope of Use

The vertical baluster styles by Unex Systems can be used for both external and internal applications, including decks, balconies, stairways and landings, mezzanine floors, pedestrian gates and pool fences, etc.

Unex Systems’ balustrade brands – namely Aluma, Eclipse Vogue and Arena – are designed to and comply with “A”, “B, E” and “C3” loadings of AS/NZS 1170.1:2002 for residential applications, office and work areas, as well as areas for moving people without obstacles.

There is a wide range of fixing options available to fix to the top and sides of both timber and concrete substrates.  The Unex Systems DKG2 gutter bracket system is designed for membrane decks with gutters and waterproofing considerations.  Site-specific specifications may also be provided upon request for those non-standard situations.

The standard powders used by Unex Systems (the Interpon powder coat range) can be used right down to sea level, provided the care and maintenance instructions are adhered to.


Limitations on Use

The Unex Systems brands designed for residential situations, office and work areas, as well as for areas with moving people – namely Aluma, Eclipse Vogue and Arena – cannot be used for “C1/C2”, “C5” or “D” Loadings.  In these applications, Unex Systems recommends the use of the “Extreme Barriers” range which has been specifically developed for these higher loadings in crowd and public situations.

The standard Unex Systems’ top rails comply with the handrail profile requirements of D1/AS1 for “Private” and “Common” stairways (with the exception of the #ARC and #ART top rails), but do not comply for “Accessible Stairways or Ramps” .

Where a top rail of a balustrade on a stairway does not comply with D1/AS1, Unex Systems recommends an auxiliary complying handrail is mounted to the side of the balustrade posts.

For certain buildings such as architectural sky rises (over 3 stories high), light commercial and high pollution areas, a higher grade powder coat powder must be specified.

Statement of Building Code Compliance

Unex Systems has designed its range of balustrade styles in the Aluma, Eclipse Vogue and Arena brands to comply with the B1, B2, E2, F2 and F4 requirements of the NZ Building Code and are suitable for occupancy types “A”, “B,E” and “C3” in accordance with AS/NZS 1170.

For more information, please refer to Unex Systems' “NZ Building Code Compliance” Document (right).

Producer Statements for all standard specifications can be created online in the registered area of the Unex Systems website.

For non-standard situations not covered by the specifications, a site-specific PS1 and specification may be prepared by Unex Systems upon request.


In-Service History

Unex Systems has specialised in designing and manufacturing architectural balustrade systems throughout Australasia and beyond since 1981.

These framed glass styles have been incorporated in Unex’s range since the early 1990s. There have been a number of enhancements made since this time – in particular during 2008, when the building code changed to incorporate AS/NZS1170 which meant that the required balustrades loads effectively doubled. Unex Systems then redesigned a number of their balustrade extrusions to ensure these loads were adequately met.

B1 Structure compliant
B2 Durability compliant
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
Other Literature
Colour Range
Aluma Balustrades Brochure
Eclipse Vogue Balustrades Brochure
UNEX Balustrade Handbook
Product Assurance
Producer Statement
Installation Instructions
Maintenance Instructions
NZ Building Code Compliance
Typical Specification
UNEX Authorised Fabricators
CAD/PDF Details

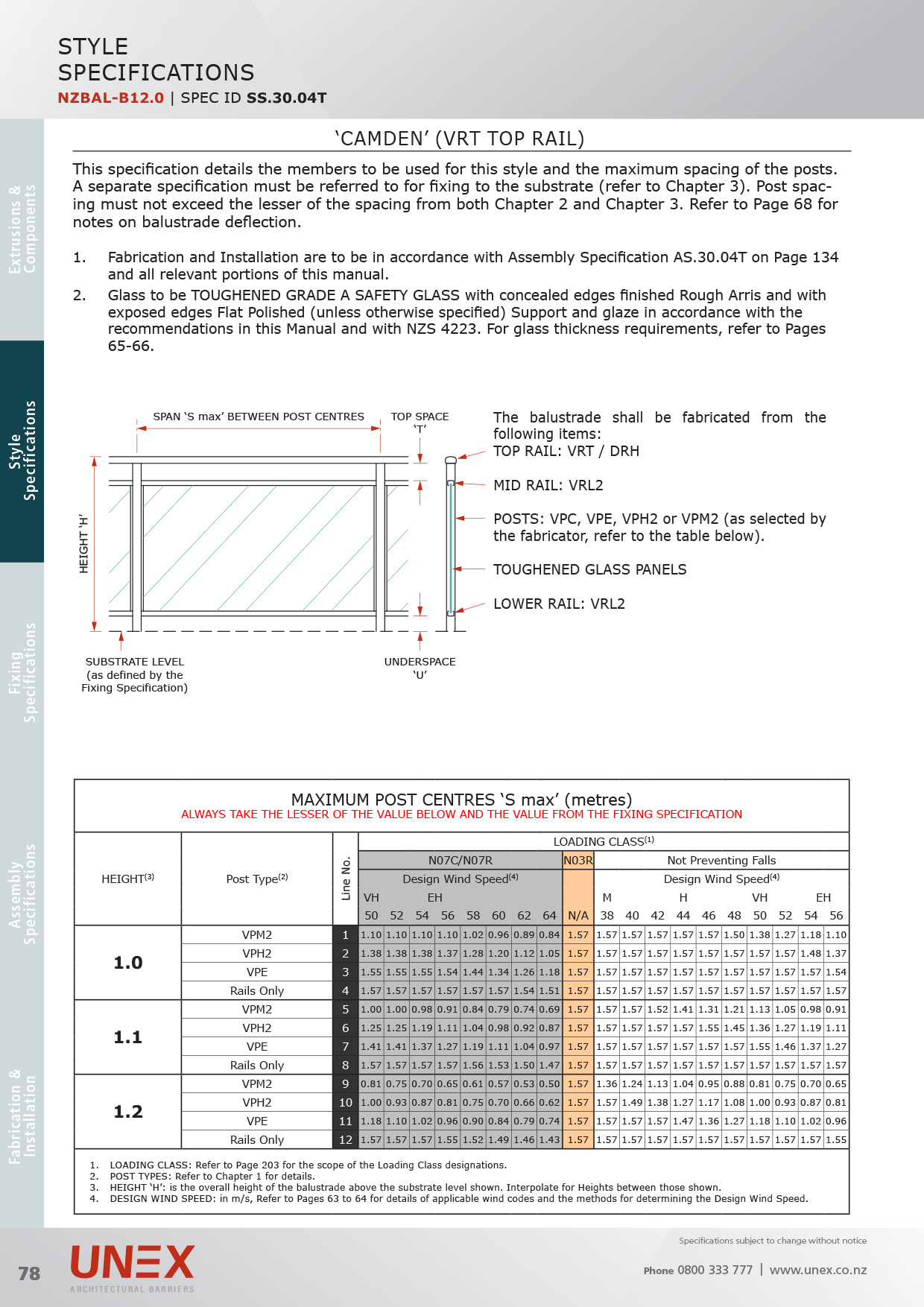

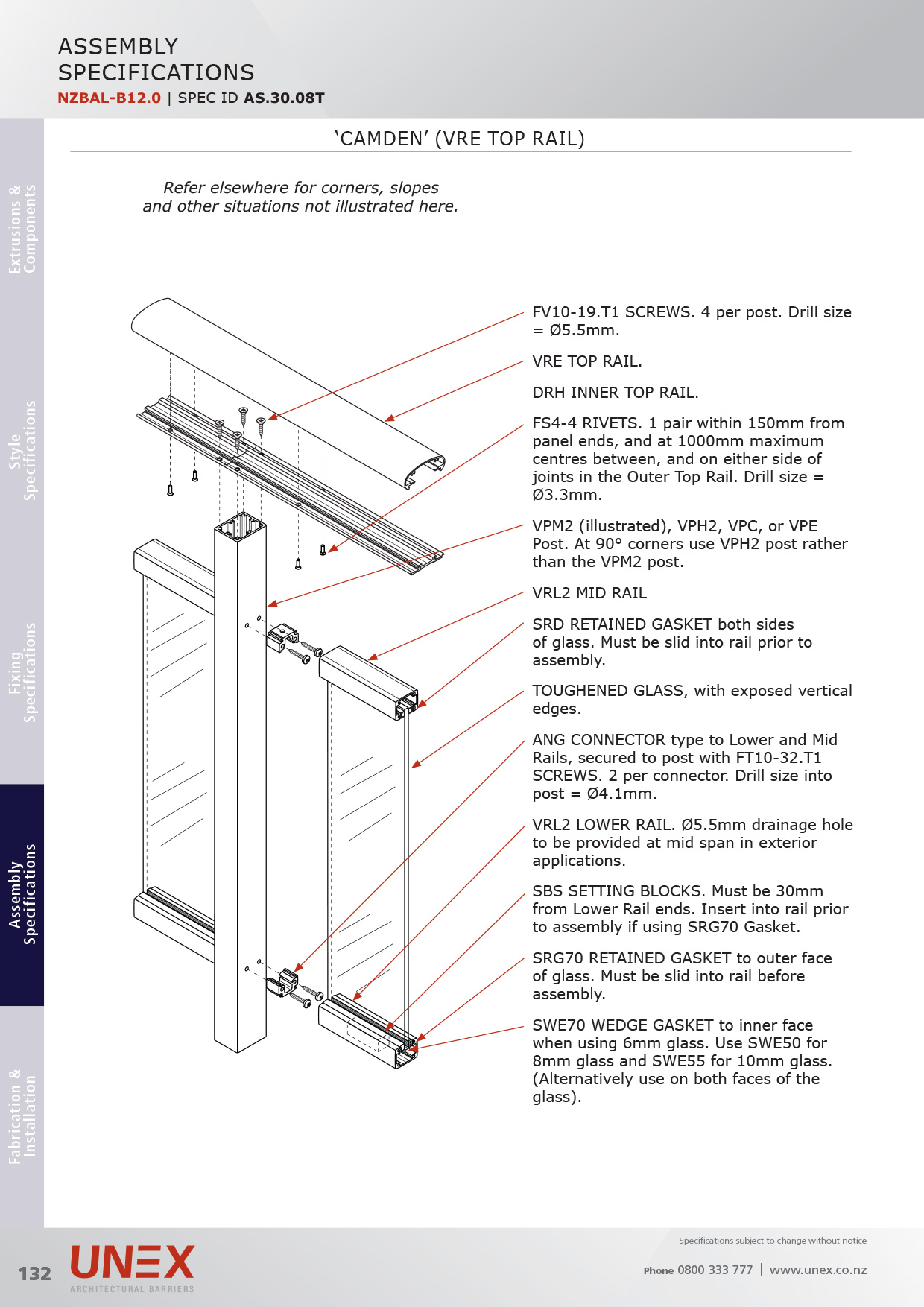

Aluma Decor Horizon with DRT3 Top Rail


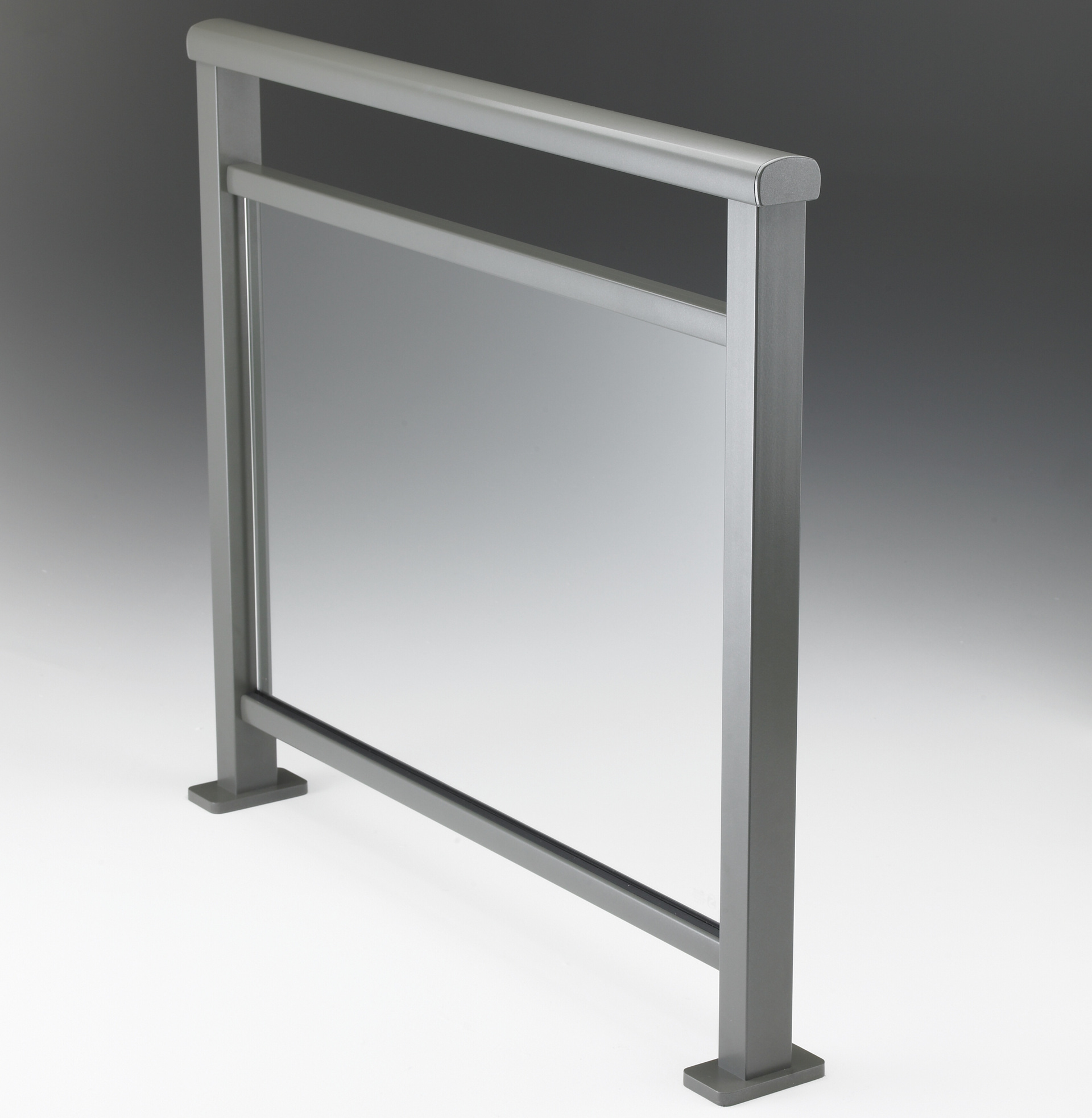

Eclipse Camden with VRT Top Rail


Eclipse Camden with VRE Top Rail

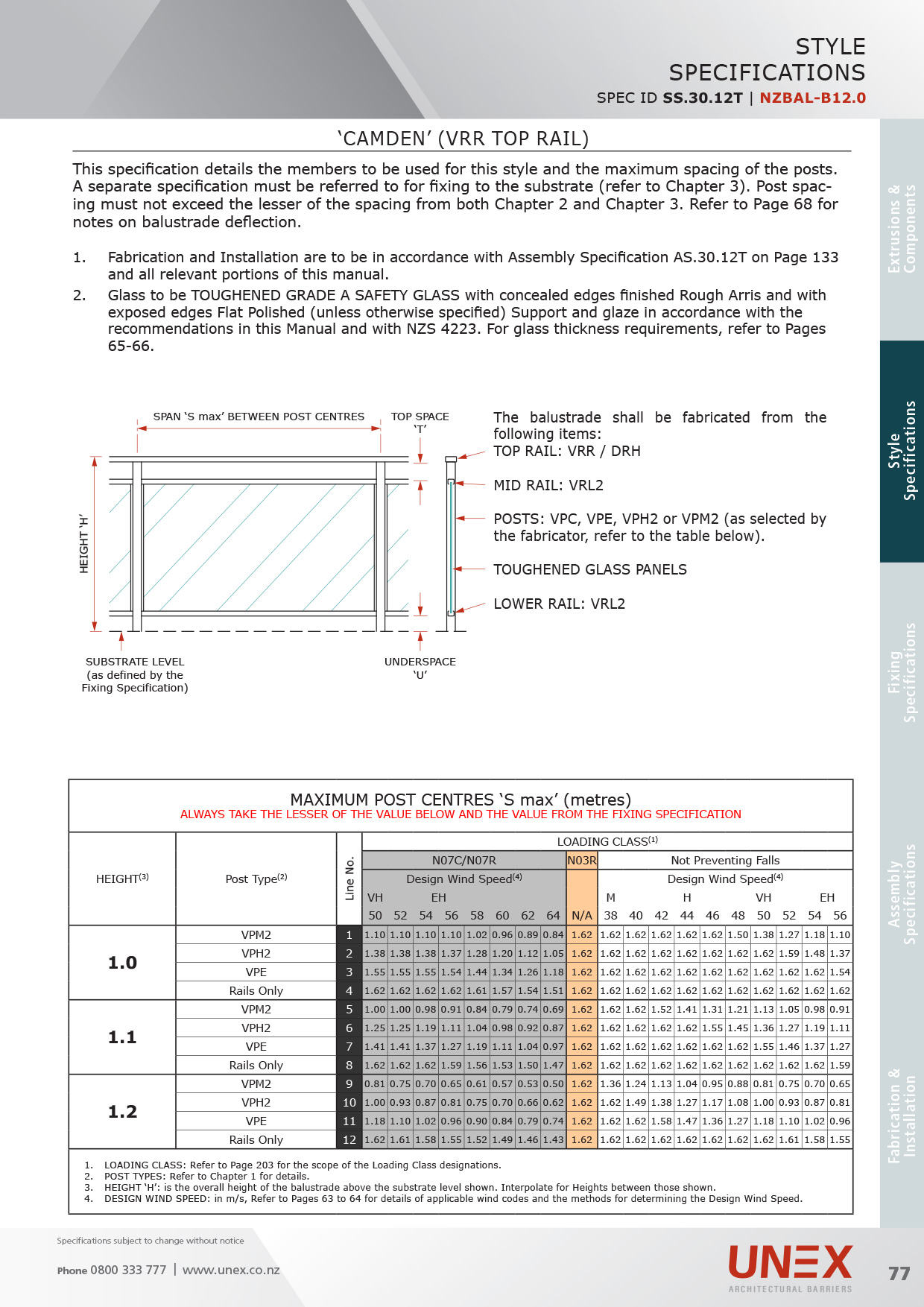

Eclipse Camden with VRR Top Rail

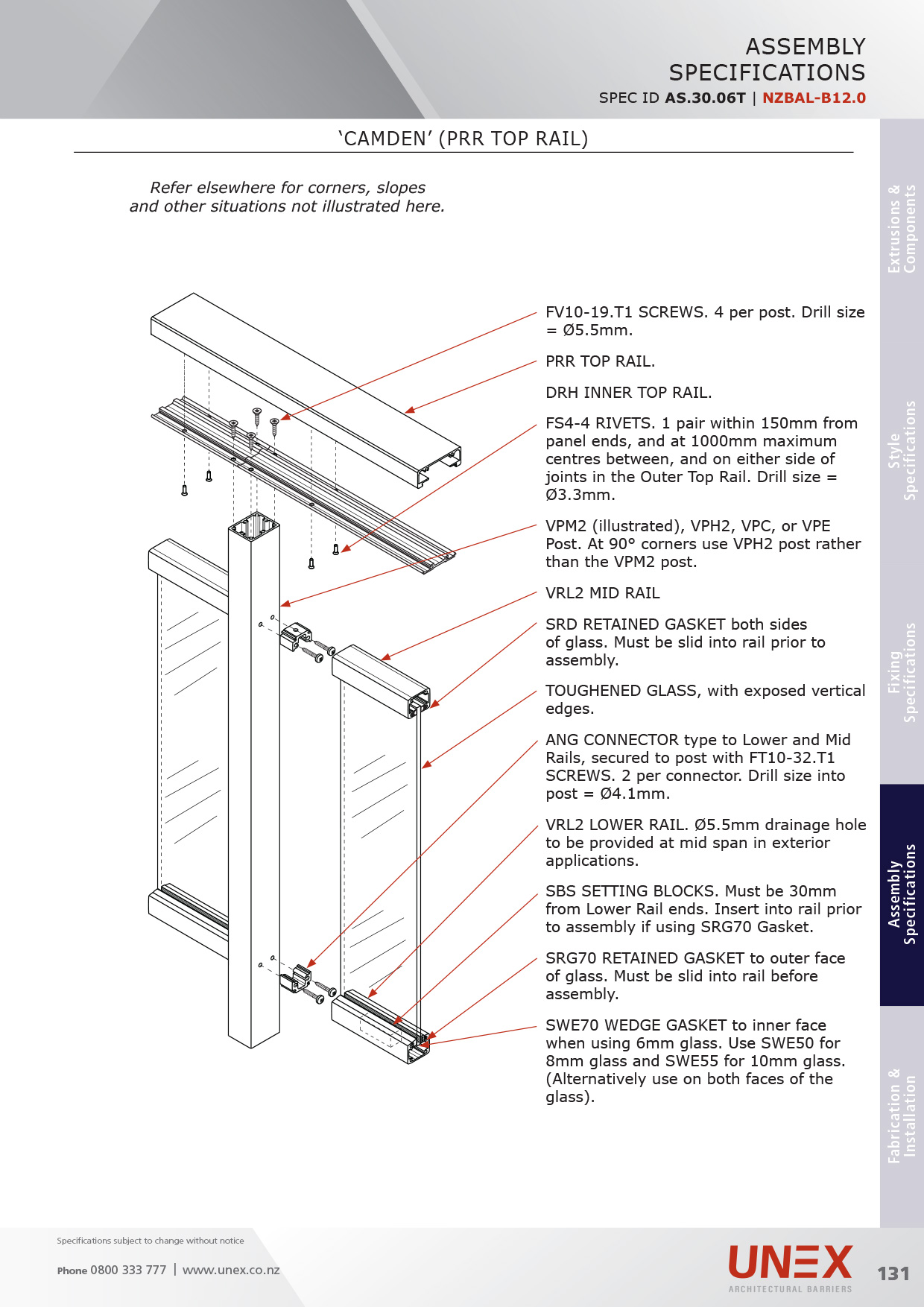

Aluma Urban Horizon with PRR Top Rail
