X-Rail Ultra — Rigid Rail System
Description

The SafetyLink X-Rail Ultra Horizontal Rail System is a heavy-duty permanent rigid rail fall protection system designed for fall arrest, fall restraint and rope access applications. The system provides continuous attachment using one or more mobile anchor points and is suitable for overhead, wall and floor-mounted installations.

X-Rail Ultra is designed for commercial, industrial and infrastructure applications where restricted fall clearance, multiple users or abseiling capability are required.

X-Rail Ultra provides continuous user attachment, supports multiple users, accommodates spans of up to 4m between fixing brackets, and is engineered for demanding industrial environments with restricted fall clearance.

Key Features
  • Heavy-duty rigid horizontal rail system.
  • Supports up to four users (maximum 150 kg per user).
  • Supports spans of up to 4m between fixing brackets (Abseil).
  • Suitable for fall arrest, fall restraint and rope access applications.
  • Overhead, wall and floor mounting options.
  • Suitable for applications with limited fall clearance.

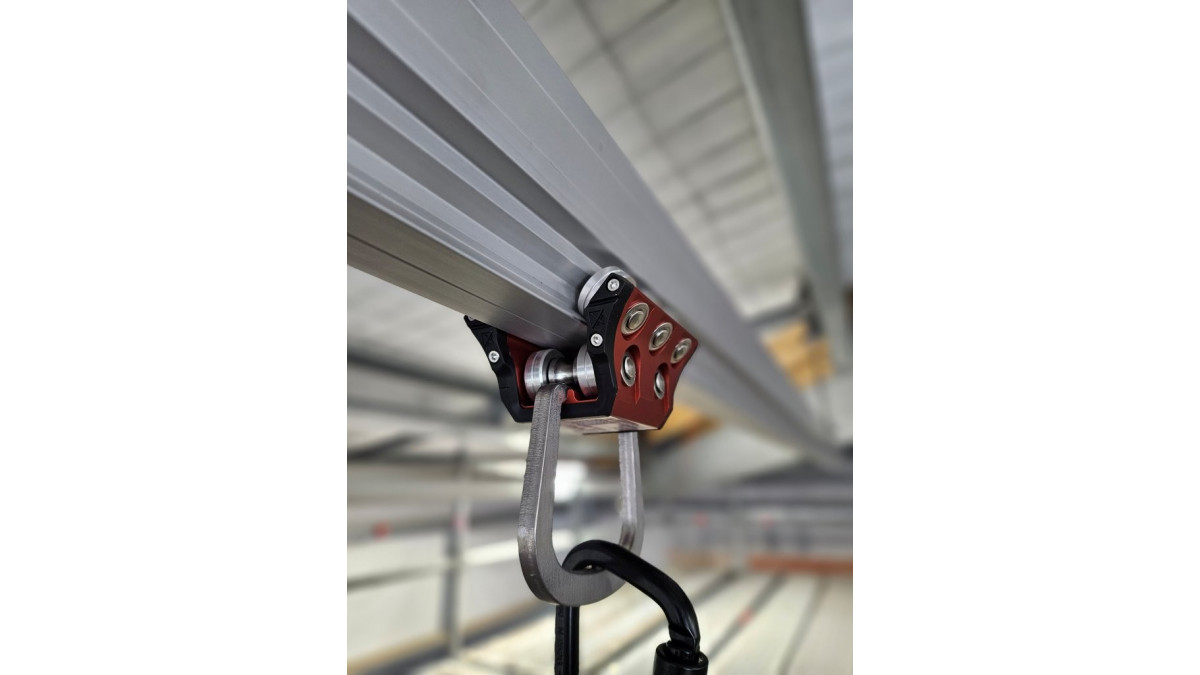

  • Continuous movement using a proprietary shuttle.

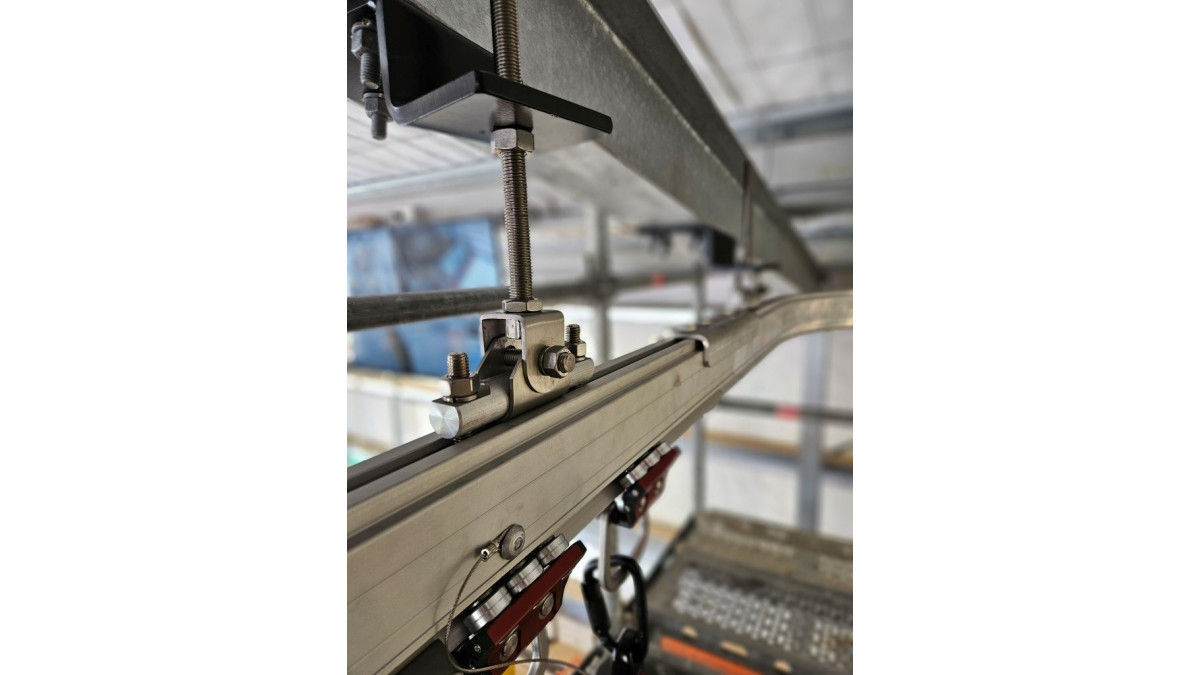

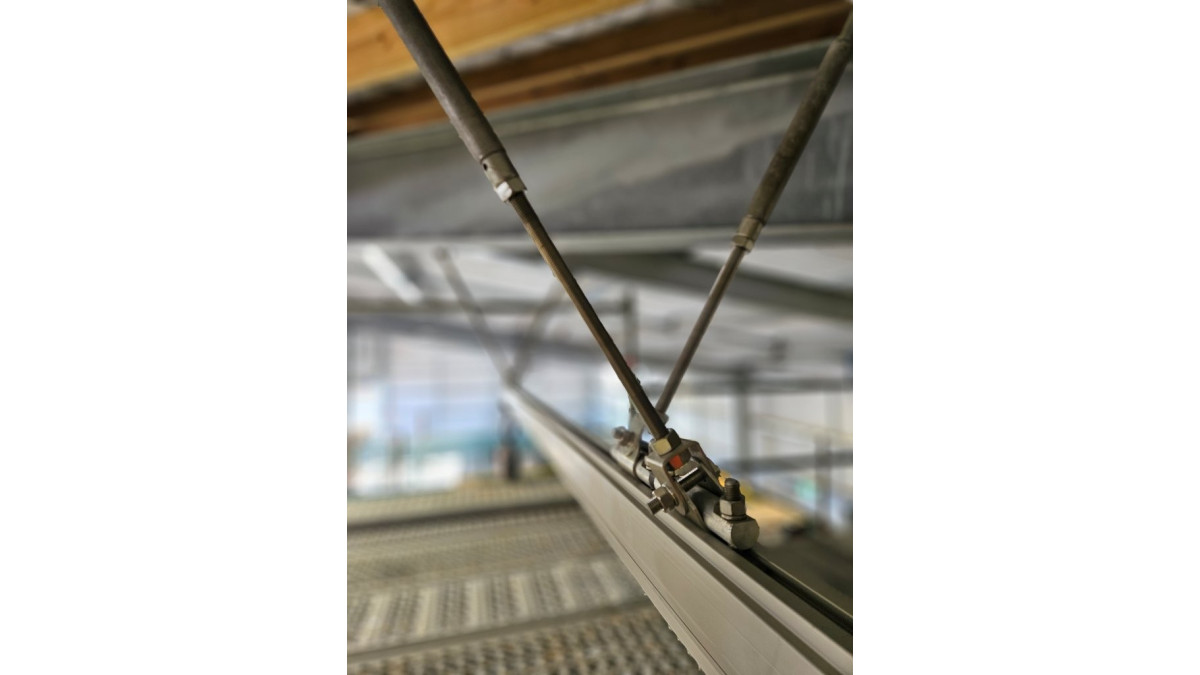

  • Modular rail sections with suspension assemblies, join kits and end gates.
  • Designed to AS/NZS 1891.2, EN 795:2012 and PD CEN/TS 16415.
Scope of Use
  • Commercial, industrial and infrastructure facilities.
  • Maintenance access to plant and equipment.
  • Rope access and abseiling applications.
  • Overhead, wall and floor mounted systems.
  • New construction and retrofit projects.
  • Supports up to four users (maximum 150 kg per user).
  • Supports spans of up to 4m between fixing brackets (Abseil).
Limitations on Use
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Inspection and recertification in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Tested and/or certified to AS/NZS 5532 and AS/NZS 1891.4.

Other Performance Attributes
  • Marine grade Aluminiumn construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
Data Sheet: X-Rail Ultra
7938TH Product Specification
DESIGN: No Substitution Principle
Specification Guide
Total Height Safety on Masterspec
Handbook: X-Rail Ultra
