X-Rail — Rigid Rail System
Total Height Safety
All products

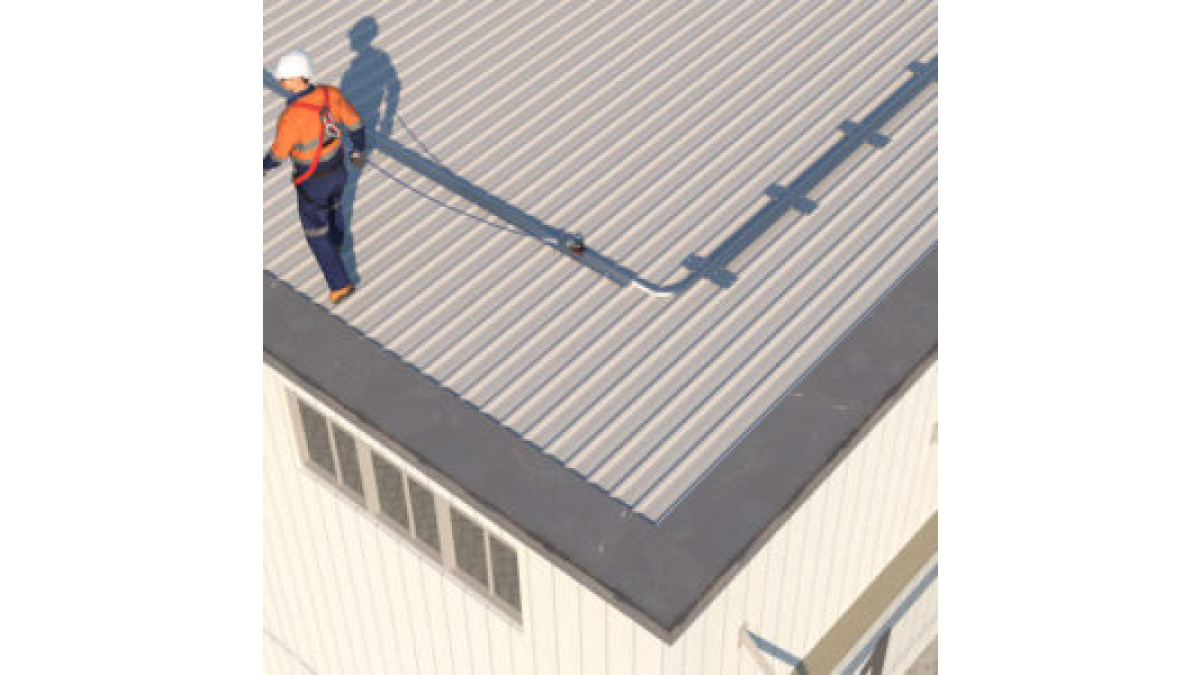

X Rail Surface Mount2 300x300

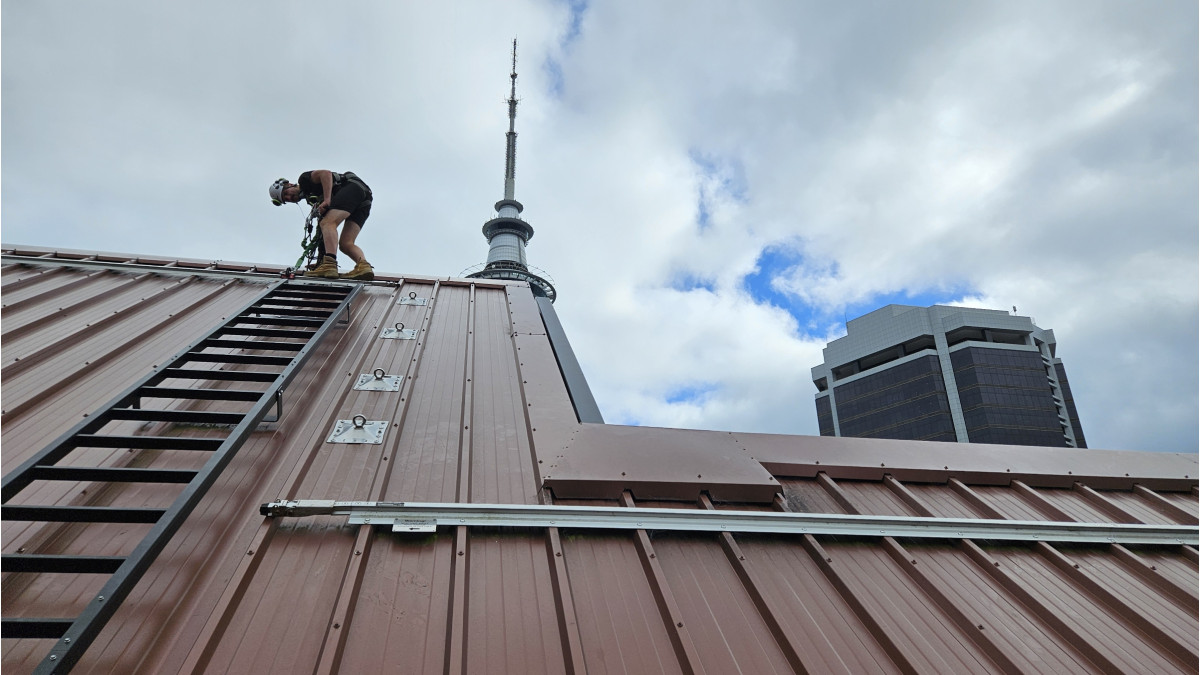

20241213 091227
Description

The SafetyLink X-Rail Horizontal Rail System is a permanent rigid rail fall protection system designed to provide continuous personal fall protection for personnel working at height.

The system accommodates one or more mobile anchor points, allowing uninterrupted movement along the rail without disconnecting. It is available in Surface Mount, Direct Fix and Offset Fix configurations for installation on metal roofing, steel and concrete structures.

Designed and manufactured in Australia, the system is suitable for fall arrest, fall restraint and rope access applications.

Key Features
  • Permanent rigid horizontal rail system.
  • Continuous attachment using mobile anchor points.
  • Suitable for fall arrest, fall restraint and rope access applications.
  • Surface Mount, Direct Fix and Offset Fix options.
  • Suitable for metal roof, steel and concrete structures.
  • Innovative shuttle enables continuous movement.
  • Designed to AS/NZS 1891.2, EN 795:2012 and PD CEN/TS 16415.
Categories
Roof Access, Walkways and Fall Protection
Ranges
Metal Roof Access Systems Roof Panel Access Systems Fibre Thermal Roof Access Systems Concrete Roof Access Systems Concrete Warm-Roof Access Systems Cool Store Roof Access Systems Cool Store Panel with Membrane Access Systems Roof Anchor Systems — Fall Arrest Abseil Anchorage Systems Rigid Rail Systems
Scope of Use
  • Commercial, industrial and infrastructure buildings.
  • Roof access systems.
  • Steel and concrete structures.
  • Metal roof systems.
  • Maintenance and plant access.
  • Rope access and abseiling applications.
  • New construction and retrofit projects.
Limitations on Use
  • System supplied, installed and certified by Total Height Safety in accordance with the manufacturer's requirements.
  • Inspection and recertification in accordance with AS/NZS 1891.4.
Statement of Building Code Compliance

Contributes towards compliance with NZBC:

  • B1 Structure
  • B2 Durability
  • F4 Safety from Falling

Tested and/or certified to AS/NZS 5532 and AS/NZS 1891.4.

Other Performance Attributes
  • Marine grade Aluminiumn construction.

Warranty & Maintenance

  • Manufacturer's warranty applies when installed in accordance with SafetyLink requirements.
  • Inspect and re-certify by a competent person in accordance with AS/NZS 1891.4.
Documents
Height Safety Systems and Design Guide
pdf
7938TH Product Specification
docx
DESIGN: No Substitution Principle
pdf
Specification Guide
pdf
Total Height Safety on Masterspec
docx
Handbook: X-Rail - Structural
pdf
Handbook: X-Rail - Surface Mounted
pdf
Installation: X-Rail
pdf
Flyer: X-Rail
pdf
